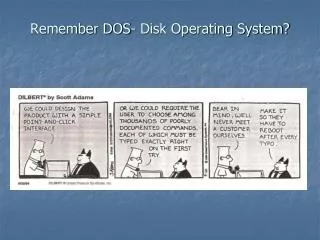

Remember DOS- Disk Operating System?


The pointed hair boss remains clueless

The pointed hair boss remains clueless


What would you rather have a computer or an x box 360

What would you rather have?A computer or an X-Box 360

$398

Laptop computer

AMD Sempron

Processor

60 GB nard drive

DVD/CD Burner

Basic programs

$399.92

X-Box 360

One controller

NO games

Wal-Mart Ad


Remember dos disk operating system

The Volt by GM will be an all electric car. Other manufacturers are also introducing all electric cars

With more cars becoming hybrid electric and total electric powered, the demand for Electrical and Computer engineers will increase in the auto industry.


Remember dos disk operating system

This was a good idea but was scrapped because the solar powered lights would not provide enough illumination. It will be revisited as solar cells and LEDS become more efficient and brighter


Remember dos disk operating system

Opto-electronics (devices that use light) include LEDs or light emitting diodes, solar cells, and fiber optic components


Unc charlotte college of engineering buildings

UNC-Charlotte College of Engineering Buildings

Bioinformatics

Grigg

Physics

Optoelectronics

Duke Centennial

ME

PE

Motor sports

EPIC

ECE and Civil

Engineering

New football stadium

Cameron

ECE Clean Room

Smith

ET

MAPS


Remember dos disk operating system

Engr 1202 E01 students will need to choose one of two projects Details on each project will be presented to help choose

  • The EE project will require working in the Cameron microelectronics clean room

  • The computer engineering project will be done in EPIC


The engr 1202 ee project

The Engr 1202 EE Project

  • Teams will be formed of 4 to 6 members. Each team will decide on various options to design and fabricate a prototype.

  • The EE project will require a one hour time commitment other than the TR 8:OOam slot.

  • A silicon wafer will be used to fabricate the prototype miniature communications antenna

  • The design will be evaluated on cost, reliability, and manufacturability.

  • Each team will submit slide presentation of their design.


The engr 1202 ee project1

The Engr 1202 EE Project

Research, design, and fabricate a miniature planar antenna for use in:

  • Mobile phone using the PCS frequency of 1850-1990 MHz

  • “Bluetooth” and Wi-Fi antenna using the frequency band of 2400-2597 MHz

  • RFID antenna using the frequency band of 860-960 MHz

  • GPS antenna using the frequencies of 1227.60 MHz and 1575.42 MHz

    Maximum size of 20mm x 20mm, minimum size of 5mm x 5mm. Width on antenna not less than 1mm. Design to have no sharp corners. Reliability, cost, and manufacturability to also be considered


The computer engineering project

The Computer Engineering Project

  • Students will form small teams

  • A programmable robot will be fabricated

  • The robot will need to perform a specific set of commands for maximum grade

  • Work will be done in EPIC

  • A final report will be required

  • Dr. Conrad will provide additional details


Communications the key to technology progress

Communications – the key to technology progress

  • Data, voice, and video are all key elements

  • Both electrical and computer engineers will play a key and vital role

  • “Wireless” communications is the dominate form

  • The EE project will focus on communications systems and a key element of these system.


Next few slides are from the book

Next few slides are from the book:


Antennas

Antennas

How Wireless Works

by Preston Gralla


Remember dos disk operating system

Early Cell Phone


The inside of a mobile flip phone

The Inside of a mobile flip phone

Battery

Chip set for transmit and receive

Keypad

Ribbon wire to connect top and bottom

Camera

Display on back side of circuit board


Cell phone showing internal antenna

Cell phone showing internal antenna

Antenna


Wrist mobile phone is a reality

Wrist mobile phone is a reality


Recent announcement at ces watch to cell phone connectivity

Recent announcement at CESWatch to cell phone connectivity


Example of a miniature antenna for a mobile phone watch

Example of a miniature antenna for a mobile phone/watch


From engr 1201 we will use

From Engr 1201 we will use:


Engr 1202 ee project and the clean room

Engr 1202 EE project and the clean room

  • To work in the clean room, students must wear clean room garments

  • To work in the clean room, students must pass the required safety test

  • Students need to be aware of the hazards in the clean room at all times


Clean room

Clean Room?


Remember dos disk operating system

Cameron HallOn Craver Road, across from parking lot 16Microelectronics Clean Room on second floor, room 201


Required gowning when working in the ece microelectronics clean room

Required gowning when working in the ECE Microelectronics Clean Room

  • Special material garments

  • Hood

  • Coveralls

  • Boots

  • Face mask

  • Goggles when working with chemicals

  • Gloves


Students working in the ece microelectronics clean room

Students Working in the ECE Microelectronics Clean Room


Requirements to work in the ece microelectronics clean room

Requirements to work in the ECE Microelectronics Clean Room

  • Gown in clean room garments at all times

  • Understand clean room protocols and procedures

  • Understand the hazards and dangers when working in the clean room

  • Take and pass a clean room safety test


Units used in electrical and computer engineering

Units used in electrical and computer engineering

  • Units

  • Tera - 1012

  • Giga – 109

  • Mega – 106

  • Kilo – 103

  • Milli – 10-3

  • Micro – 10-6

  • Nano – 10-9

  • Pico – 10-12


Understanding the si system is essential in engineering

Understanding the SI system is essential in engineering

  • Power – kilovolts, megawatts

  • Circuits – microamps, picofarads, millivolts

  • Communications – megahertz, gigahertz

  • Computer speed – nanoseconds

  • Time dependence – microseconds, milliseconds


How much does it cost to run a 100 watt light bulb

How much does it cost to run a 100 watt light bulb

  • Typical cost from Duke Power is $.08/Kw-Hr

  • Convert 100w to Kw (Kw = 103W)

  • 100W=.1 KW

  • For 1 hour a 100w light bulb uses .1 KW-Hr

  • For 24 hours, a 100W light bulb uses (24 hr) x (.1 KW-hr) = 2.4 Kw-Hr/day

  • Cost for 24 hr is ($.08/Kw-hr) x (2.4 Kw-hr/day) =$.192/day

  • Cost for a month is (30 days) x ($.192/day) = $5.76/month

  • Cost for a year is (365 days) x ($.192/day) = $70.08/year


Compare cost to a high efficiency replacement lamp

Compare cost to a high efficiency replacement lamp

  • If an equivalent high efficiency lamp uses 13 watts instead of 100 watts

  • 13 watts = .013 Kw

  • (.013 KW-Hr) x (24Hr/day) = .312 KW-Hr/day

  • ( $.08/Kw-Hr) x (.312 KW-Hr/day) = $.02496/day

  • ($.02496/day) x (365 days/yr) = $9.11/yr

  • 100watt light bulb = $70.08/yr

  • 13 watt light bulb = $9.11/yr

  • Based on lamp running 24 hours per day, everyday for a year


Remember dos disk operating system

This analysis can be used for any electrical deviceEvery electrical device will show power required to operate it

  • Typical computer may use 120V, 1.5A

  • (120V)(1.5) = 180 watts = .180 Kw

  • (.180 Kw-hr) x ($.08/Kw-Hr) = $.0144/Hr

  • ($.0144/hr) x (24 hr/day) = $.3456/day

  • ($.3456/day) x (365 days/yr) = $126.144/yr

    There will be a questions on this type analysis on the tests


Assignment due next class

Assignment – due next class

  • Review the presentation slides on the project, antennas and units

  • Complete HW 2 – units work sheet found on the Engr 1202 ECE web site

    • Answers need to be in scientific notation – one unit to the left of the decimal point

    • Submit via e-mail

      Homework and lecture slides can be found at http://coefs.uncc.edu/jahudak/ under heading Engr 1202,
