Presentation Transcript
Prevention of accidental exposure in radiotherapy l.jpg

IAEA TrainingCourse

PREVENTION OF ACCIDENTAL EXPOSURE IN RADIOTHERAPY

Part 6: Case histories of major accidents with abandoned radiotherapy sources


Overview objectives l.jpg
Overview / Objectives

  • Module 6.1: Source not under control (Brazil)

  • Module 6.2: Source not under control (Mexico)

  • Module 6.3: Source not under control (Turkey and Thailand)

  • Group exercise G7 : Public exposure

Objectives: To review and analyze case histories of major accidents involving abandoned radiotherapy sources

Prevention of accidental exposure in radiotherapy


Module 6 1 source not under control brazil l.jpg

IAEA Training Course

Module 6.1: Source not under control (Brazil)


Background information l.jpg
Background information

Prevention of accidental exposure in radiotherapy


Background information5 l.jpg
Background information

  • Year 1985, a private radio-therapy institute, Instituto Goiano de Radioterapia (IGR), had two external beam treatment units:

    • Cobalt-60 teletherapy unit

    • Caesium-137 teletherapy unit

Prevention of accidental exposure in radiotherapy


Slide6 l.jpg

Background information

  • The institute was situated in Goiânia, population ~1M, in central Brazil.

  • Both the 60Co and 137Cs units had gone through proper licensing procedures with CNEN (Regulatory Authority)

Rio de Janeiro

Prevention of accidental exposure in radiotherapy


Slide7 l.jpg

Background information

  • CNEN is the Regulatory Authority, operating a licensing system relating to individuals (certifying training) and facilities (licensing operation of facilities).

  • Federal Ministry of Health had responsibilities for subsequent inspections of medical facilities. This was also devolved to State Health Secretaries.

Prevention of accidental exposure in radiotherapy


Slide8 l.jpg

Description of the Cs-unit

  • The radiation head is adjustable vertically and can be rotated about two horizontal axes

  • Inside the radiation head is a rotating assembly with the sealed 137Cs source

Prevention of accidental exposure in radiotherapy


Slide9 l.jpg

Description of the Cs-unit

  • A source wheel forms a rotating shutter mechanism with the source

  • To produce a beam, the shutter is rotated electrically to align the source with an aperture

Prevention of accidental exposure in radiotherapy


Slide10 l.jpg

Description of the Cs-unit

  • Cross-section of international standard capsule

  • Source material was inside two stainless steel capsules, inside a standard capsule

Prevention of accidental exposure in radiotherapy


Slide11 l.jpg

Description of the Cs-unit

  • Source material: 137Cs chloride salt (which is highly soluble) – 93 g

  • Sep. 1987: 50.9 TBq; 4.56 Gy/h at 1 m

Prevention of accidental exposure in radiotherapy


Description of the event l.jpg
Description of the event

Prevention of accidental exposure in radiotherapy


Slide13 l.jpg

At the end of 1985, the IGR ceased operations at the old site and a new partnership took over the old site

The 60Co unit was moved to the new site

Start of the event

Prevention of accidental exposure in radiotherapy

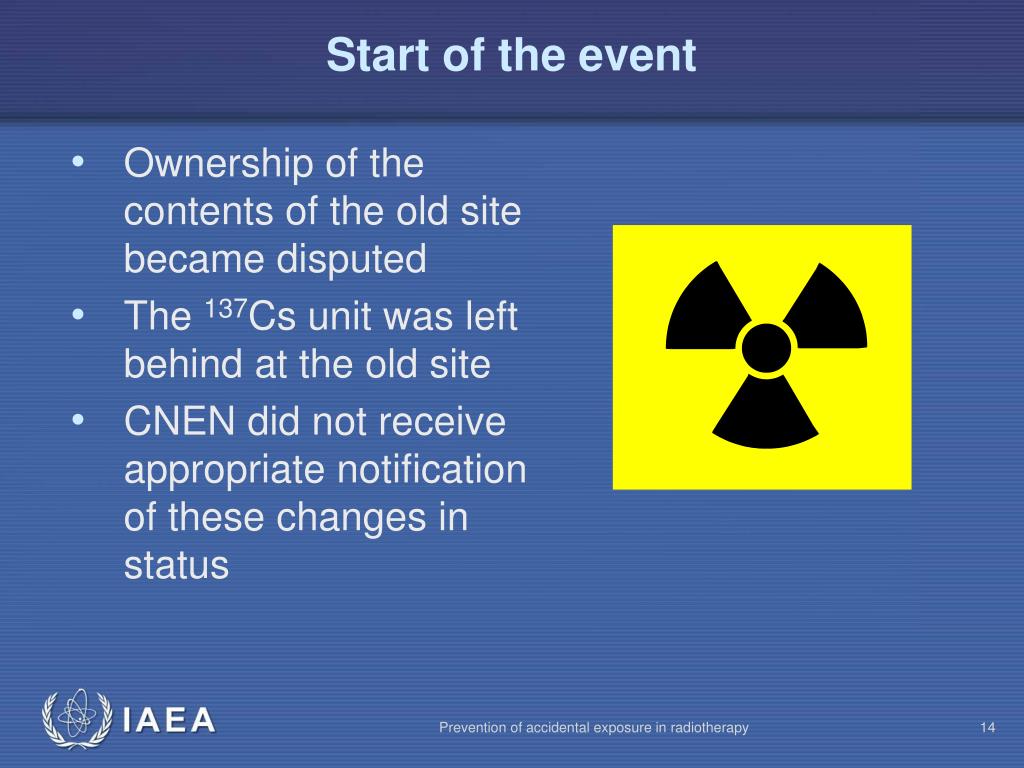

Slide14 l.jpg

Start of the event site and a new partnership took over the old site

  • Ownership of the contents of the old site became disputed

  • The 137Cs unit was left behind at the old site

  • CNEN did not receive appropriate notification of these changes in status

Prevention of accidental exposure in radiotherapy


Slide15 l.jpg

Start of the event site and a new partnership took over the old site

  • Most of the old site was demolished.

  • The treatment rooms were not demolished but were left in a derelict state and apparently used by vagrants.

Prevention of accidental exposure in radiotherapy


Slide16 l.jpg

Chronology of the event site and a new partnership took over the old site

NB! Original drawing made at time of discovery differs in details from description of event

Prevention of accidental exposure in radiotherapy


Slide17 l.jpg

Chronology of the event site and a new partnership took over the old site

10-13 Sep. 1987

  • RA and WP went to old site of IGR on rumours that valuable equipment had been left behind, and tried to dismantle Cs-unit with simple tools.

  • They succeeded in removing rotating assembly in its stainless steel casing.

Prevention of accidental exposure in radiotherapy

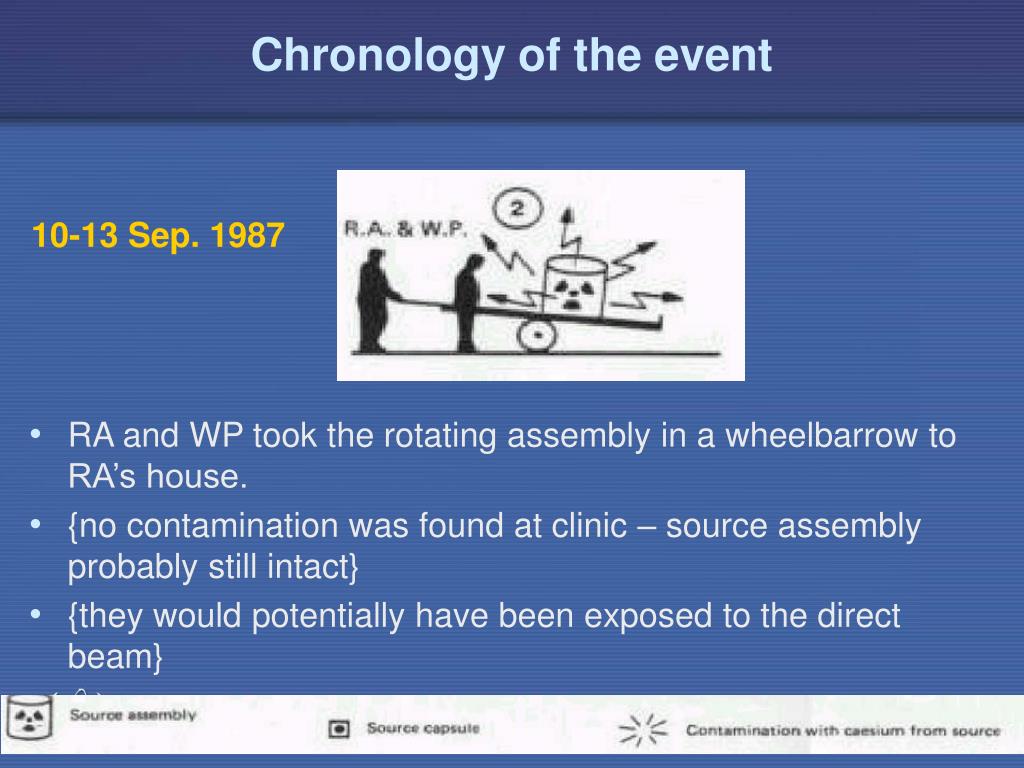

Slide18 l.jpg

Chronology of the event site and a new partnership took over the old site

10-13 Sep. 1987

  • RA and WP took the rotating assembly in a wheelbarrow to RA’s house.

  • {no contamination was found at clinic – source assembly probably still intact}

  • {they would potentially have been exposed to the direct beam}

Prevention of accidental exposure in radiotherapy


Slide19 l.jpg

Chronology of the event site and a new partnership took over the old site

13-15 Sep. 1987

  • WP and RA were vomiting, assuming this was due to something eaten

  • WP had diarrhoea, one hand swollen, sought medical assistance

  • Symptoms diagnosed as allergic reaction due to bad food

Prevention of accidental exposure in radiotherapy

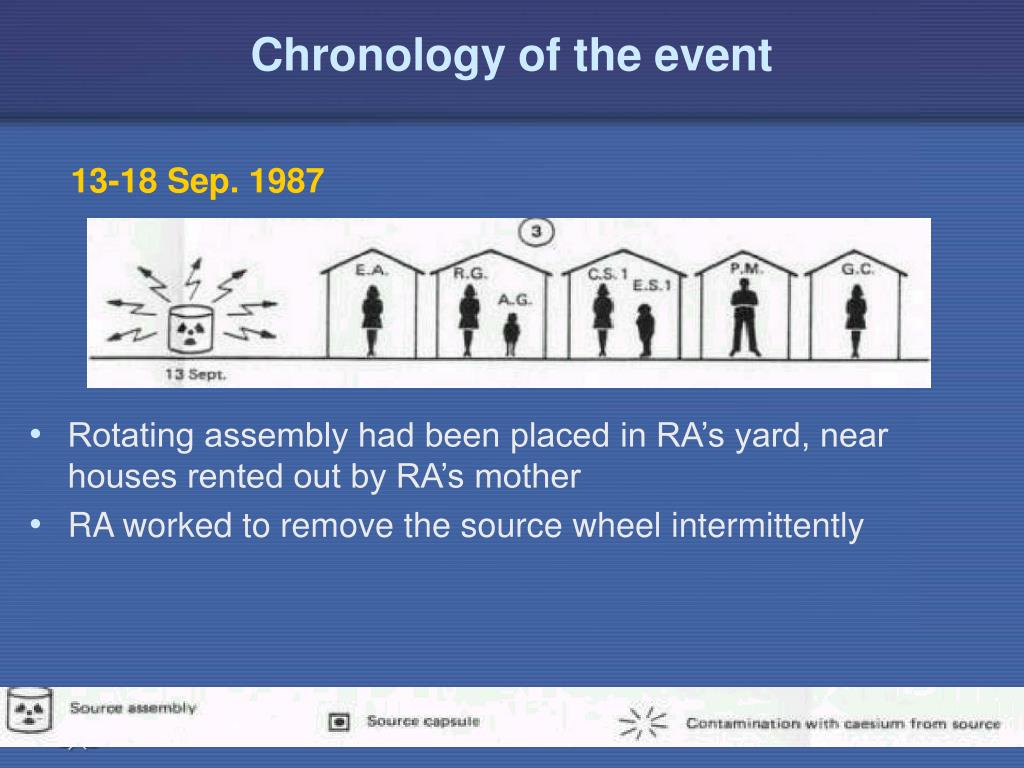

Slide20 l.jpg

Chronology of the event site and a new partnership took over the old site

13-18 Sep. 1987

  • Rotating assembly had been placed in RA’s yard, near houses rented out by RA’s mother

  • RA worked to remove the source wheel intermittently

Prevention of accidental exposure in radiotherapy


Slide21 l.jpg

Chronology of the event site and a new partnership took over the old site

18 Sep. 1987

  • RA succeeded in removing the source wheel eventually

Prevention of accidental exposure in radiotherapy


Slide22 l.jpg

Chronology of the event site and a new partnership took over the old site

18 Sep. 1987

  • In the course of removing the source wheel, the 1 mm window of the source capsule was punctured with a screwdriver and some of the source was scooped out

  • {residual contamination (2 Oct) under the mango tree gave a dose rate of 1.1 Gy/h at 1m}

Prevention of accidental exposure in radiotherapy


Slide23 l.jpg

Chronology of the event site and a new partnership took over the old site

18 Sep. 1987

  • Rotating assembly pieces were sold to junkyard manager DF. Pieces were transported by employee of DF to garage in junkyard

  • That night, DF noticed a blue glow from the source capsule. He thought the powder might be valuable

Prevention of accidental exposure in radiotherapy


Slide24 l.jpg

Chronology of the event site and a new partnership took over the old site

18-21 Sep. 1987

  • DF took the capsule into the house. Over the next three days, various neighbours, relatives and acquaintances were invited to see the capsule as a curiosity

Prevention of accidental exposure in radiotherapy


Slide25 l.jpg

Chronology of the event site and a new partnership took over the old site

18-21 Sep. 1987

  • DF and his wife MF1 examined the powder closely

  • {MF1 (D=5.7 Gy) subsequently died. DF (D=7.0 Gy) survived, possibly due to fractionation arising from him being in and out of the house}

Prevention of accidental exposure in radiotherapy


Slide26 l.jpg

Chronology of the event site and a new partnership took over the old site

21 Sep. 1987

  • EF1 visited DF and removed fragments of source from capsule. EF1 gave some fragments to his brother EF2 and took the rest home.

  • DF also distributed fragments to his family. Some persons applied powder on skin as glitter.

Prevention of accidental exposure in radiotherapy


Slide27 l.jpg

Chronology of the event site and a new partnership took over the old site

21-23 Sep. 1987

  • MF1 was vomiting and had diarrhoea. After examination in hospital, MF1 was sent home and her mother MA1 came over for two days to nurse her

  • MA1 returned home on the bus, taking contamination with her

  • {MA1 (D=4.3 Gy) survived}

Prevention of accidental exposure in radiotherapy


Slide28 l.jpg

Chronology of the event site and a new partnership took over the old site

22-24 Sep. 1987

  • DF’s employees, IS and AS worked on the rotating assembly with the unshielded source to extract lead. ZS visited, offered to cut up pieces with torch, but forgot to do so

  • {IS (D=4.5 Gy) and AS (D=5.3 Gy) subsequently died}

Prevention of accidental exposure in radiotherapy


Slide29 l.jpg

Chronology of the event site and a new partnership took over the old site

24 Sep. 1987

  • IF, the brother of DF, was given source fragments, took them home, and placed them on the table during the meal

  • His six year old daughter, LF2, handled them while eating

  • {LF2 (D=6.0 Gy) subsequently died}

Prevention of accidental exposure in radiotherapy


Slide30 l.jpg

Chronology of the event site and a new partnership took over the old site

24-28 Sep. 1987

  • The parts spread to two more junkyards

  • By 28 Sep. a significant number of people were physically ill

Prevention of accidental exposure in radiotherapy


Slide31 l.jpg

Chronology of the event site and a new partnership took over the old site

28 Sep. 1987

  • MF1 was convinced that the glowing powder was causing the sickness

  • Source assembly was taken to small clinic in bag, left to Dr. PM, who got worried enough to put bag in yard

  • Dr. AM at Toxicological Information Centre was contacted

Prevention of accidental exposure in radiotherapy


Slide32 l.jpg

Chronology of the event site and a new partnership took over the old site

28 Sep. 1987

  • Dr. JP at the State Department of the Environment was in turn contacted. He proposed that a Medical Physicist should have a look at the suspicious package

  • The pace of the events then quickened as the seriousness of the accident began to be appreciated

Prevention of accidental exposure in radiotherapy


Slide33 l.jpg

Chronology of the event site and a new partnership took over the old site

29 Sep. 1987

08:00-11:00

  • Medical Physicist WF was contacted and became convinced (from scintillation detector readings) that a major radiation source was at the clinic

  • The clinic was vacated. Police and fire brigade stopped building being entered

Prevention of accidental exposure in radiotherapy


Slide34 l.jpg

Chronology of the event site and a new partnership took over the old site

29 Sep. 1987

12:00-15:00

  • Radiation monitor showed contamination at first junkyard which was vacated

  • State Secretary for Health was informed of incident and its significance and to obtain further assistance

  • Director of the Department of Nuclear Installations in CNEN (coordinator for nuclear emergencies) was contacted

  • IGR was contacted, who tentatively identified source as possibly originating from IGR

Prevention of accidental exposure in radiotherapy


Slide35 l.jpg

Chronology of the event site and a new partnership took over the old site

29 Sep. 1987

16:00-20:00

  • Hospitals were informed of potential radiation exposure to a number of people

  • Civil defence forces were alerted

  • Known sites of contamination were resurveyed

  • State Health Secretary made plans for receiving contaminated persons in city’s stadium

  • Press was taking an interest

  • More sites of major contamination were identified

Prevention of accidental exposure in radiotherapy


Slide36 l.jpg

Chronology of the event site and a new partnership took over the old site

  • The physicist WF monitoring for contamination at the stadium

Prevention of accidental exposure in radiotherapy


Extent of the accident l.jpg
Extent of the accident site and a new partnership took over the old site

Prevention of accidental exposure in radiotherapy


Slide38 l.jpg

Extent of the accident site and a new partnership took over the old site

  • 112,000 persons were monitored

  • 249 of these had external / internal contamination (up to 7 Gy)

  • 129 of these had both external and internal contamination

  • 49 of these were admitted to hospital

  • 20 of these needed intensive medical care

  • 10 of these were in critical conditions

  • 4 of these died (within four weeks) and one had to have the forearm amputated

Prevention of accidental exposure in radiotherapy


Slide39 l.jpg

Extent of the accident site and a new partnership took over the old site

Prevention of accidental exposure in radiotherapy


Slide40 l.jpg

Extent of the accident site and a new partnership took over the old site

  • 7 main foci of contamination within 1 km2

  • Dose rates up to 2 Sv/h at 1 m from contamination

  • 41 houses were evacuated

  • Contamination was removed from 45 different public places, and it was also found on 50 vehicles

  • Extensive rains dispersed the highly soluble caesium chloride into the environment

Prevention of accidental exposure in radiotherapy


Actions taken l.jpg
Actions taken site and a new partnership took over the old site

Prevention of accidental exposure in radiotherapy


Slide42 l.jpg

Actions taken site and a new partnership took over the old site

  • Remember the cardinal rule of radiation protection: The security of the source is of paramount importance!

  • This was an Emergency Exposure Situation (BSS). The Regulatory Authority CNEN was contacted

  • Civil defence (police, etc.) was contacted

  • Intervention was enacted based on action levels (e.g. evacuation, decontamination, removal of soil)

Prevention of accidental exposure in radiotherapy


Slide43 l.jpg

Actions taken site and a new partnership took over the old site

  • For accidents like this, the actions to be taken can be divided into two phases:

  • The initial phase, when urgent action is required

    • To identify potential sources of acute exposure

    • To bring exposure under control

  • The recovery phase, when urgent action is no longer required and the objective is to restore the situation to normal

Prevention of accidental exposure in radiotherapy


Slide44 l.jpg

Actions taken site and a new partnership took over the old site

  • Initial phase

  • Identification of main contamination sites

  • Evacuation at sites above intervention levels

  • Control areas through access prevention

  • Identification of persons who had incurred significant doses or were contaminated

    + Medical response, of course!

Prevention of accidental exposure in radiotherapy


Slide45 l.jpg

Actions taken site and a new partnership took over the old site

  • Medical response

  • Specialists dispatched to Goiânia

  • Severe external and internal contamination with Cs-137

  • External decontamination was performed

  • “Prussian Blue” was used for internal decontamination

  • Acute radiation syndrome and local injuries were treated

Prevention of accidental exposure in radiotherapy


Slide46 l.jpg

Actions taken site and a new partnership took over the old site

  • Remedial actions

  • Decontamination of property

  • Collection of contaminated clothing

  • Removal of contaminated soil

  • Placing of restrictions on home grown produce

Prevention of accidental exposure in radiotherapy


Slide47 l.jpg

Actions taken site and a new partnership took over the old site

  • Seven houses had to be demolished

    Preparing to demolish the house of EF2 near first junkyard

Prevention of accidental exposure in radiotherapy

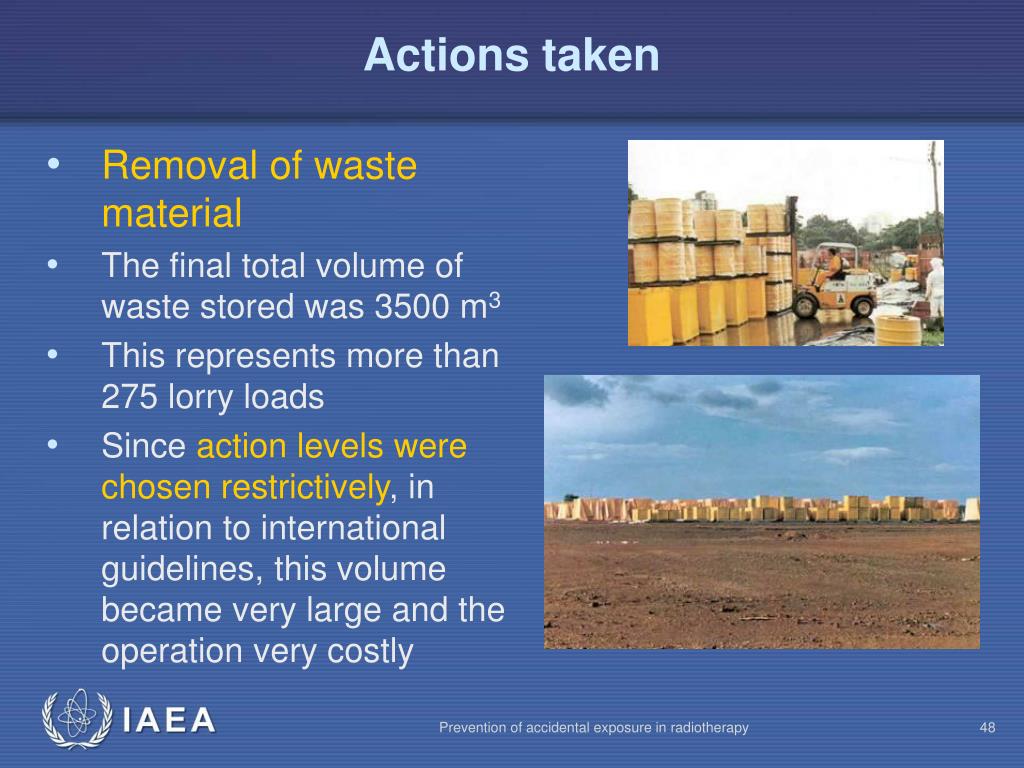

Slide48 l.jpg

Actions taken site and a new partnership took over the old site

  • Removal of waste material

  • The final total volume of waste stored was 3500 m3

  • This represents more than 275 lorry loads

  • Since action levels were chosen restrictively, in relation to international guidelines, this volume became very large and the operation very costly

Prevention of accidental exposure in radiotherapy


Lessons and recommendations l.jpg
Lessons and recommendations site and a new partnership took over the old site

Prevention of accidental exposure in radiotherapy


Initiating event and contributory factors l.jpg
Initiating event and contributory factors site and a new partnership took over the old site

  • The event was triggered by

    • Allowing a source to become in a state of not being secure and under control

  • Contributory factors

    • The solubility and ease of dispersion of the caesium chloride

Prevention of accidental exposure in radiotherapy


Slide51 l.jpg

Lessons for prevention site and a new partnership took over the old site

  • The person designated as being liable for a radioactive source must always ensure the source is secure and under control

  • Notify Regulatory Authorities of changes in circumstances relating to sources

  • Physical and chemical properties of sources should be taken into account in licensing

Prevention of accidental exposure in radiotherapy


Slide52 l.jpg

Lessons for responses site and a new partnership took over the old site

  • Too restrictive criteria for action levels (in relation to international guidelines) can impose a tremendous burden on public and response team

  • Recognition of the nature of radiation injury depends on education of health and safety professions. This can aid speed of diagnosis and overall speed of response

  • Prompt handling of internal contamination is important. Prussian Blue was shown to aid under these circumstances

Prevention of accidental exposure in radiotherapy


Slide53 l.jpg

Goiâna accident summary site and a new partnership took over the old site

  • Caesium-137 source not under control

  • Many people lost their homes

  • 4 persons dead

    Most fatal radiological accidents have occurred outside the nuclear industry

Prevention of accidental exposure in radiotherapy


Reference l.jpg
Reference site and a new partnership took over the old site

  • IAEA: The Radiological Accident in Goiânia (1988)

rpop.iaea.org

Prevention of accidental exposure in radiotherapy


ad
