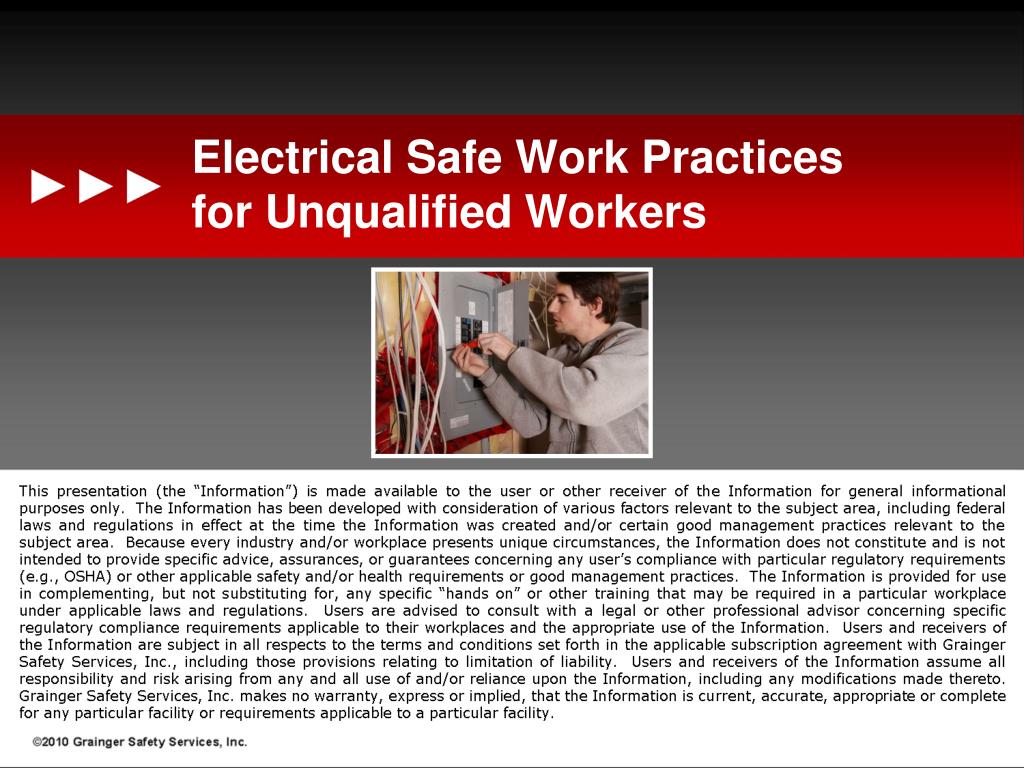

2. Electrical Safe Work Practices for Unqualified Workers

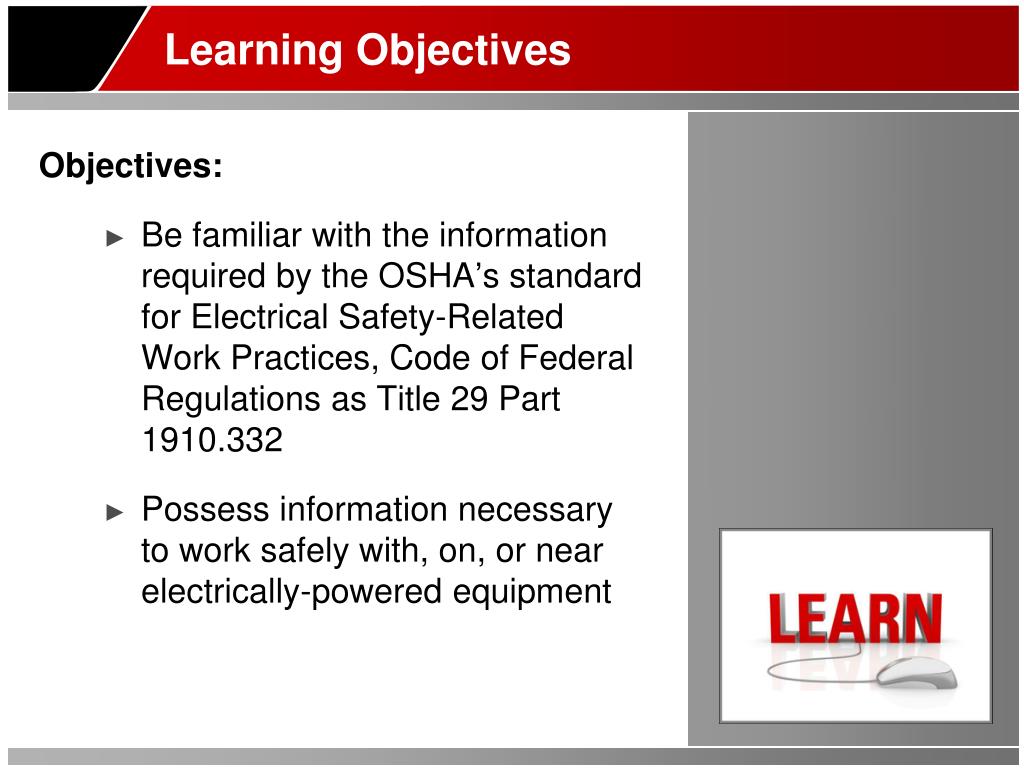

3. Learning Objectives • Objectives: • Be familiar with the information required by the OSHA’s standard for Electrical Safety-Related Work Practices, Code of Federal Regulations as Title 29 Part 1910.332 • Possess information necessary to work safely with, on, or near electrically-powered equipment

4. Agenda • Presentation agenda: • Overview • Basics of electricity • Hazards of electricity • Safe work practices • Your responsibilities

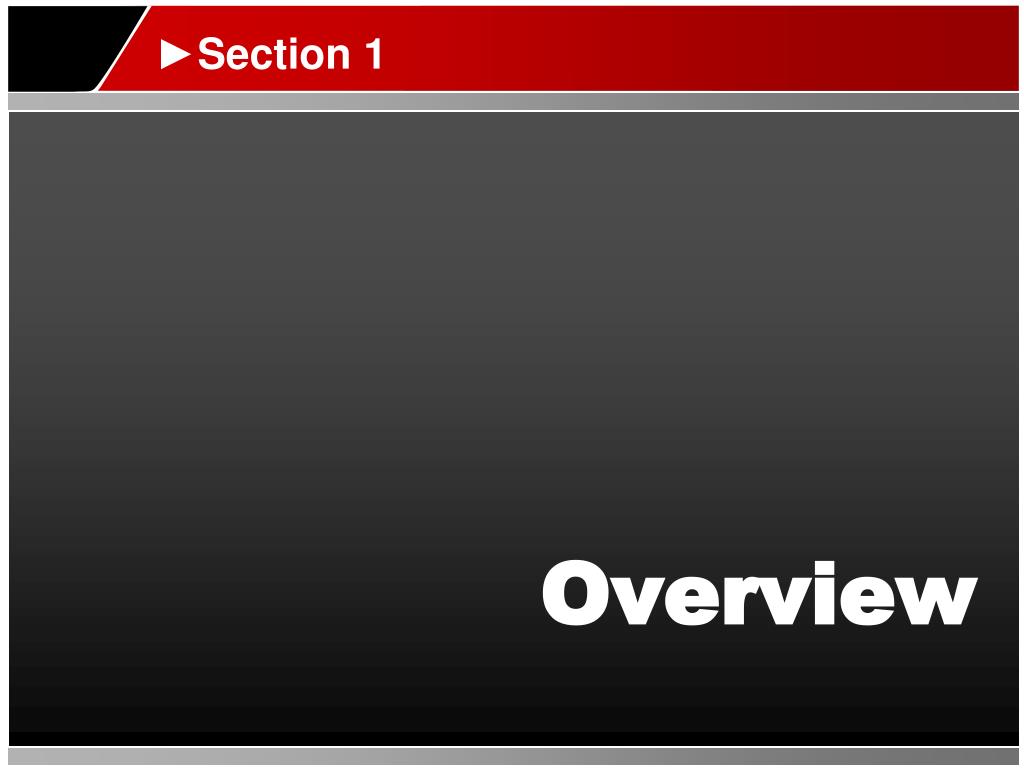

5. Section 1 Overview

6. Electrical Safety • Electricity facts: • Electrical generation is less than 150 years old • Average of one worker electrocution daily • Major cause of home fires

7. Electrical Safety • OSHA standards: • Requires safe work practices and protective equipment when electric hazards are present • Qualified person – familiar with electrical equipment and its hazards • Covers daily use of electrically-powered equipment

8. Employee Training • OSHA requirements: • Qualified employees may work on energized systems • Required training: • Distinguishing exposed live parts • Determining nominal voltage • OSHA specified clearance distances

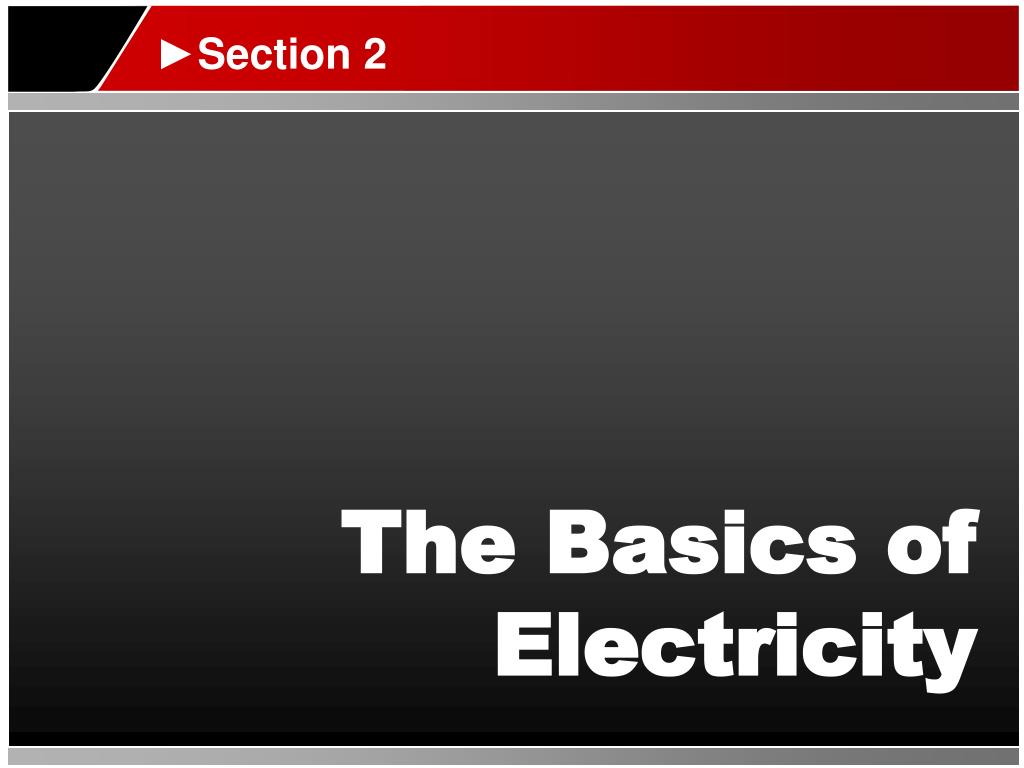

9. Section 2 The Basics of Electricity

10. Electrical Terminology • Basic terms: • Current – the movement of electrical charge • Circuit – the flow of electrical charge • Resistance – opposition to current flow • Voltage – measure of electrical force

11. Electrical Terminology • More terms: • Conductors – substances with little electrical resistance • Insulators – substances with high electrical resistance • Grounding – conductive connection to the earth

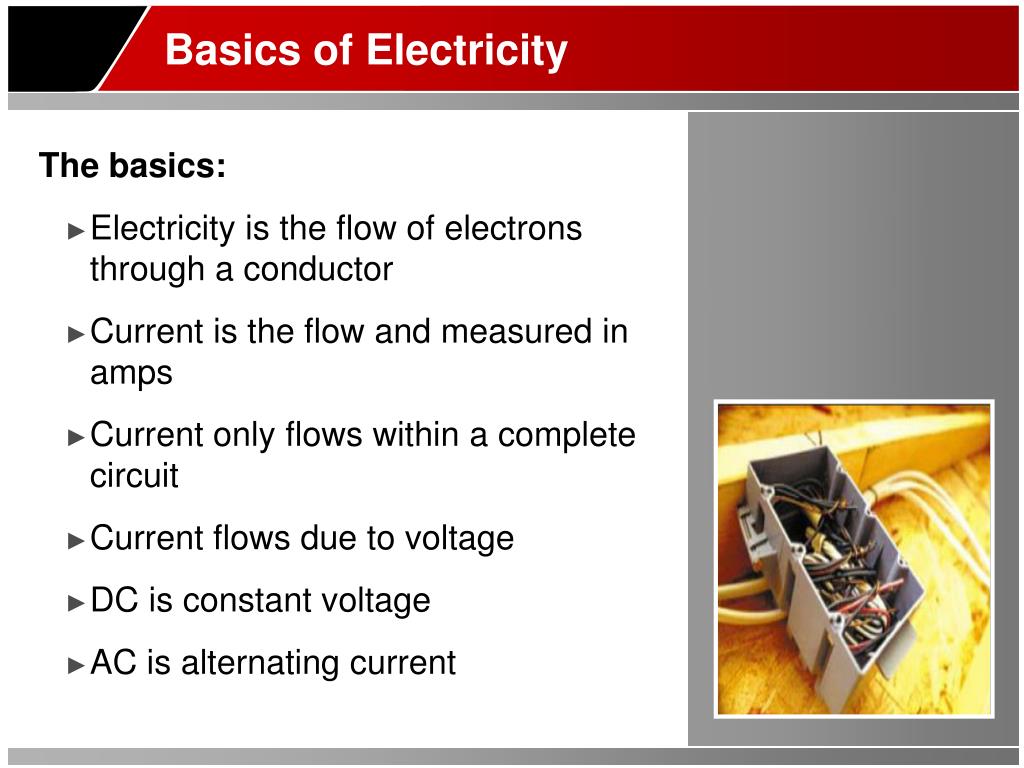

12. Basics of Electricity • The basics: • Electricity is the flow of electrons through a conductor • Current is the flow and measured in amps • Current only flows within a complete circuit • Current flows due to voltage • DC is constant voltage • AC is alternating current

13. Section 3 The Hazards of Electricity

14. Injuries Related to Electricity • Main types of injuries: • Electrocution – death due to electrical shock • Electrical shock – non-fatal shocks • Burns – most common • Falls – from muscle spasms due to shocks

15. Electrical Shock • Facts on shocks: • Occur when a part of the body comes in contact with an electrical circuit • Small currents and low voltages can still be fatal • Severity of shock depends on: • Path through the body • Amount of current • Length of time in circuit

16. Section 4 Safe Work Practices

17. Electrical Safe Work Practices • Categories of practices: • Grounding • Electrical protective devices • Guarding energized parts • Proper use of cords • Maintaining distances • Clothing and jewelry

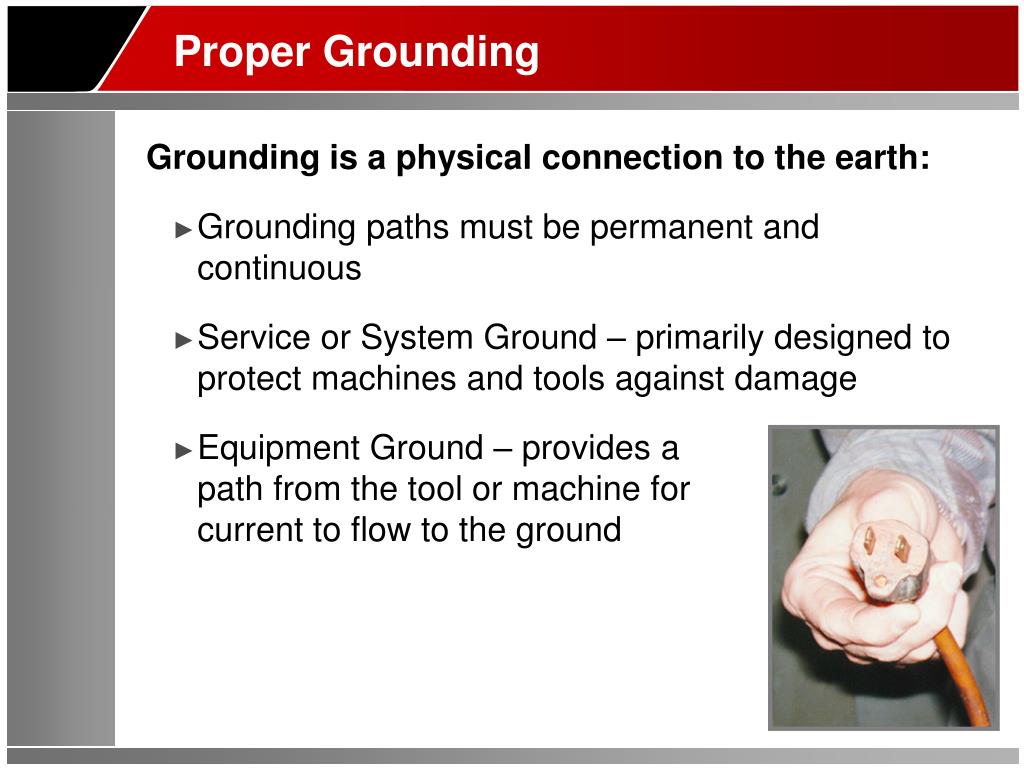

18. Proper Grounding • Grounding is a physical connection to the earth: • Grounding paths must be permanent and continuous • Service or System Ground – primarily designed to protect machines and tools against damage • Equipment Ground – provides a path from the tool or machine for current to flow to the ground

19. Proper Grounding • Hand-held tools must be: • Equipped with three-wire cord with ground • Plugged into a grounded receptacle • Double-insulated • Powered by a low-voltage isolation transformer

20. Electrical Protective Devices • Types of protective devices: • Fuses – will be destroyed before considerable damage can be dealt • Circuit breakers – a set of contacts opens the circuit • Ground-fault circuit-interrupters

21. Electrical Protective Devices • Ground-fault circuit-interrupter (GFCI): • Detect leakage currents • Matches current going to a device against current returning • Shuts down within 1/40th of a second when fault is detected • Able to detect loss of current due to a person who is being shocked

22. Guarding Energized Parts • Equipment operating at 50 volts or more should be isolated by: • Protective cabinet or enclosure • Permanent partitions • Elevation above working surface • Must be conspicuously marked

23. Guarding Energized Parts • All wiring needs to be protected: • Junction boxes, outlet boxes, switches and fittings must have approved covers • Unused openings must be closed • Wiring needs to be intact and shielded

24. Flexible (extension) Cords • Causes of cord damage: • Aging • Door or window edges • Staples or fastenings • Abrasions • Activities in the area

25. Flexible (extension) Cords • Cords may not be used: • As a substitute for fixed wiring • Where run through holes in walls, ceilings or floors • Where run through doorways or windows • Where attached to building surfaces • Where concealed behindwalls, ceilings, or floors

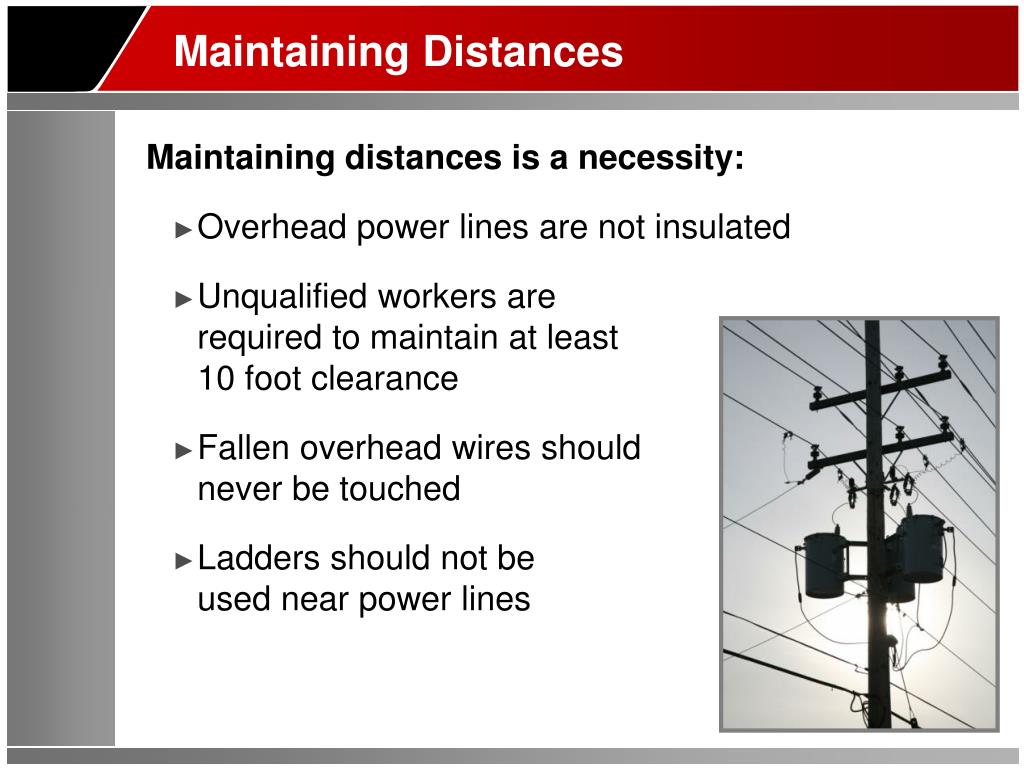

26. Maintaining Distances • Maintaining distances is a necessity: • Overhead power lines are not insulated • Unqualified workers are required to maintain at least10 foot clearance • Fallen overhead wires should never be touched • Ladders should not be used near power lines

27. Clothing and Jewelry • Conductive clothing and jewelry: • Watch bands • Bracelets • Rings • Key chains • Necklaces • Metalized aprons • Cloth with conductive thread • Metal headgear

28. Clues that Electrical Hazards Exist • Clues: • Tripped circuit breakers • Blown fuses • Warm wiring • GFCI shuts down the circuit • Damaged insulation • Wiring pulling loose

29. Module 5 Your Responsibilities

30. Your Responsibilities • Your responsibilities include: • De-energizing equipment before inspecting • Maintain and inspect electrical tools • Be aware of your surroundings • Inspect and properly use extension cords • Wear personal protective equipment when necessary • Maintain 10 foot clearance from overhead power lines
