Presentation Transcript


Fixed ladder safety review l.jpg

FIXED LADDER SAFETY REVIEW

JAC Safety Committee

Meeting #36

Ian Wheeler

October 26, 1999


Background l.jpg

Background

  • Staff observations and cursory surveys prior to September 1999 prompted a more comprehensive review of the fixed ladders in the UKIRT, JCMT, and Hilo facilities.

  • Report titled Fixed Ladder Safety Review (21Oct99) is this comprehensive review.


Slide3 l.jpg

Aim

  • “Run through” report:

    • methodology

    • highlight some examples

    • potential costs


Discussion desired outcome l.jpg

Discussion/Desired Outcome

  • Agreement on methodology, i.e., not strictly about compliance but risk assessment

  • Review recommendations


Report scope l.jpg

Report Scope

  • Intended as a review document, it identifies ladder deficiencies, outlines corrective action, and lists possible options.

  • Contains recommendations to replace or modify seven ladder assemblies.

  • Requires discussion to determine priority and action plan for any rectification work.


What makes a ladder safe analysis methodology l.jpg

What makes a ladder Safe? - Analysis Methodology

  • The JAC Health and Safety Manual states:

    “The minimum standards for safety will be those laid down by the State of Hawaii Occupational Safety and Health standards. The JAC is also required to comply not only with the state standards but, where the requirements are more stringent, and where it is reasonably practicable with UK standards encompassed by the Health and Safety at Work Act 1974”.


Methodology standards l.jpg

Methodology - Standards

  • Workplace Health, Safety and Welfare Regulations (ACOP, paragraph13, page 21)

  • British Standards (BS-5395: 1985)

  • Occupational Safety and Health Administration (OSHA 3124, 1997 revised)

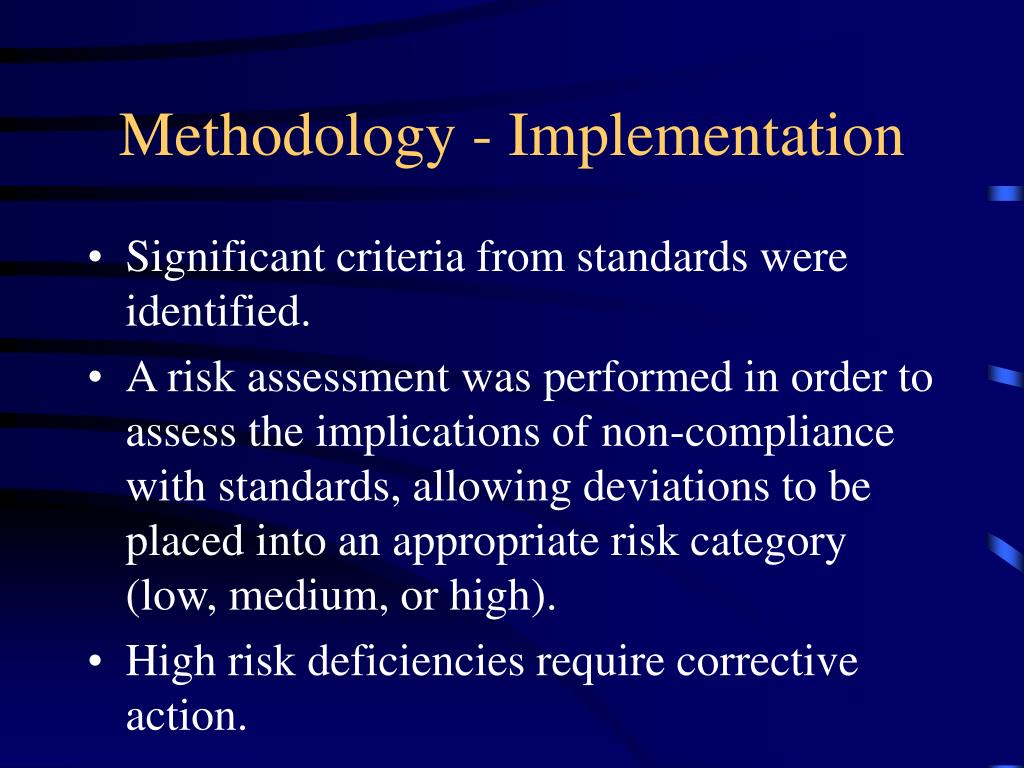

Methodology implementation l.jpg

Methodology - Implementation

  • Significant criteria from standards were identified.

  • A risk assessment was performed in order to assess the implications of non-compliance with standards, allowing deviations to be placed into an appropriate risk category (low, medium, or high).

  • High risk deficiencies require corrective action.


Methodology application l.jpg

Methodology - Application

  • Two possible approaches:

1. Complete an individual risk assessment for

each ladder.

OR

2. Complete a general risk assessment based on

non-compliance with standards.


Results l.jpg

Results

  • Total of 21 ladders surveyed.

  • No ladders surveyed fully complied with either BS or OSHA.

  • Extent of non-compliance and associated risks that determine whether corrective action is required.

  • 7 ladders cited for corrective action.


Critical ladder dimensions l.jpg

Critical Ladder Dimensions


Example of an acceptable ladder l.jpg

Example of an Acceptable Ladder

  • JCMT crane access ladder.

  • Associated risks are low, due to:

    • cage starting height 2.32m instead of 2.5m (BS)

    • clear space behind user 530mm instead of 760mm (BS and OSHA)


Slide13 l.jpg

  • High risk of falling due to the absence of a safety cage.

  • Exposes user to risk of strain-type injury and possible fall due to work envelope.

Ukirt South/North Column Access Ladders


Slide14 l.jpg

Ukirt Outside Roof Access Ladder

  • High risk of falling due to:

    • excessive string flexure

    • inadequate string extensions

    • absence of safety cage

  • Adjacent handrail is also deficient and should be upgraded.


Slide15 l.jpg

JCMT Outside Roof Access Ladder

  • High risk of falling due to inadequate safety cage.


Slide16 l.jpg

  • High risk of falling due to the absence of a safety cage.

  • High risk of falling objects due to the lack of landing platform toe plates.

JCMT Control Room Roof Access Ladder


Slide17 l.jpg

  • High risk of falling due to:

    • the absence of a safety cage

    • excessive lateral instability

JCMT Outside Carousel Escape Ladder

  • Evacuation route documentation requires review.


Slide18 l.jpg

Hilo Vehicle Bay Loft Access Ladder

  • High risk of falling due to:

    • the absence of a safety cage

    • excessive flexure

  • High risk of falling objects due to the lack of landing platform toe plates.


Recommendations l.jpg

Recommendations

  • Remove, replace or modify 7 ladders.

  • Conduct review of building evacuation route documentation.


Estimated costs l.jpg

Estimated Costs

  • Implementing all 7 recommendations as given would result in the following estimated costs:

    • Material costs range $4420 to $9120

    • Total effort range 23 days to 63 days (installation and design)

    • J1OBC has $1k provision for ladder work in FY99


Fixed ladder safety review22 l.jpg

  • Talked about:

    • methodology

    • highlighted some examples

    • outlined recommendations

    • listed potential costs

FIXED LADDER SAFETY REVIEW

  • To be discussed:

    • Agreement on methodology

    • Review recommendations

Thank you...
