An integrated approach to developing sensor network solutions

An Integrated approach to developing sensor network solutions

Presented by

Richie John Thomas

08/27/04


Introduction

Introduction

  • Paper on the development work on sensor networks at Computer and Network Architecture Lab. Of the Swedish Institute of Computer Science

  • System core

    • ESB Sensor Hardware running the Contiki OS

    • Contiki emulation/simulation enviornment for development


An integrated approach to developing sensor network solutions

  • Communication Stack

    • Adaptive energy efficient MAC

    • TCP/IP layer optimized for resource constrained devices – allows system to be connected to internet system


Hardware platform

Hardware Platform

  • ESB (Embedded sensor board)

    • Texas Instruments MSP 430 low power micro controller

    • RF monolithics TR 1001 single chip RF transceiver

    • Collection of sensors

      • Light- visible light

      • Passive infra red-movement

      • Temperature

      • Vibration-movement of sensor board

      • Microphone-ambient noise level

      • Infra red sender and receiver


An integrated approach to developing sensor network solutions

  • MSP 430 has 60 kb flash ROM and 2kb RAM

  • 32 kb EEPROM provides addl. Persistent sec. storage

  • RF transceiver operates at 868 MHz and supports rates upto 115.2 kbps

  • Board has two external Connectors

    • RS 232 port – for communication with PC

    • JTAG interface – code downloading and debugging


An integrated approach to developing sensor network solutions

  • MSP 430 for low power appln.

  • Provides sleep modes awakened by interrupts from internal timers or sensors

  • Supports selective rewriting of internal flash ROM

  • TR 1001 RF transceiver

    • Baseband transmission with either amplitude shift keying or on-off keying

    • Provides half duplex bit level access to physical radio medium


An integrated approach to developing sensor network solutions

  • Higher level mechanisms (MAC protocol processing, data encoding, time multiplexing) should be done in s/w

  • Transceiver connected to one of MSP 430 UART-Bit shifting in h/w rather than s/w

  • UART causes interrupt only after full 8 bit received as against MICA motes where interrupt for each incoming bit


The embedded sensor board

The embedded sensor board


The contiki os

The Contiki OS

  • Flexible- allows individual programs and services to be dynamically loaded and unloaded in a running system.

  • Based on event based concurrency model

  • But also provides preemptive multithreading

  • Event based systems have lower resource requirements and well suited for sensor networks


An integrated approach to developing sensor network solutions

  • Allows cryptographic computations as it can be run on a separate thread

  • Allows dynamic reprogramming of n/w behavior – due to service layer

    • Conceptual layer providing service discovery and run-time dynamic service replacement


An integrated approach to developing sensor network solutions

  • Portability makes it trivial to run Contiki as a user level process under different PC OS

  • Appln. pgms developed in simulator can be directly run and compiled on the sensor h/w


Mac layer

MAC Layer

  • Plays key role in energy efficiency and quality of service

  • MAC layer under development

    • Energy efficient TDMA-like structure overlaid on CSMA based collision avoidance protocol

    • Asynchronous – Meet requirements on size, complexity and cost and deployment in extreme environment with variable h/w stability


An integrated approach to developing sensor network solutions

  • Lightweight

  • No traffic overhead- foregoing synchronization

  • Scalable for multihop sensor n/w-no centralized coordination used

  • Provide good best effort QoS

  • Energy efficiency

    • Asynchronous power save protocol

    • Based on the observation if node awake for just over half of the time is awake interval will overlap with that of each of its neighbors

    • Nodes can determine available transmission window of neighbors

    • Node sleeps when no transmission


An integrated approach to developing sensor network solutions

  • Flow adaptation

    • Phase adjustment used to increase effective capacity of a region and reduce latency

    • Node adjust its phase to avoid sending data when there are high levels of contention or interference

    • Sequence of nodes forming a path can adjust their phase to minimize intra path interference


Tcp ip for sensor networks

TCP/IP for Sensor Networks

  • This requirement for network management, calibration, diagnostics, debugging

  • Possible to connect network directly to Internet

  • Sensor data is transmitted using UDP/IP but for administrative tasks reliable unicast connections required


An integrated approach to developing sensor network solutions

  • TCP/ IP used

  • Individual nodes can be addressed and necessary reprogramming of sensors performed

  • Also for debugging and diagnostic tasks requiring reliable connectivity to a specific sensor

  • uIP has been developed with size of few kb and few hundred bytes of RAM – not only on ESB but variety of 8 and 16 bit processors


An integrated approach to developing sensor network solutions

  • Spatial IP addressing

    • Each node uses its spatial location to construct its IP address

    • The spatial IP address only denotes the location and not single identifiable node

    • If node replaced new node given same IP address as replaced node

    • Nodes aware of their spatial location neither require central server or communication between nodes for address assignment


An integrated approach to developing sensor network solutions

  • Distributed TCP Caching

    • Packet loss result in heavy overhead due to TCP end to end ack. and retransmission scheme

    • Poor performance in energy consumption and throughput

    • DTC cache TCP segments in network and perform local retransmissions

    • Nodes are allowed to cache only one segment

    • Nodes attempt to identify and cache segments not received by next hop


An integrated approach to developing sensor network solutions

  • The segment lost i.e. for which no ack. has been received is locked in cache

  • DTC has to respond to lost packets more quickly to avoid end-to-end transmissions

  • DTC uses ordinary TCP mechanisms to detect packet loss

  • Analytical and simulation results indicate that DTC increases TCP performance

  • DTC currently being implemented in ESB nodes using Contiki simulator


Applications

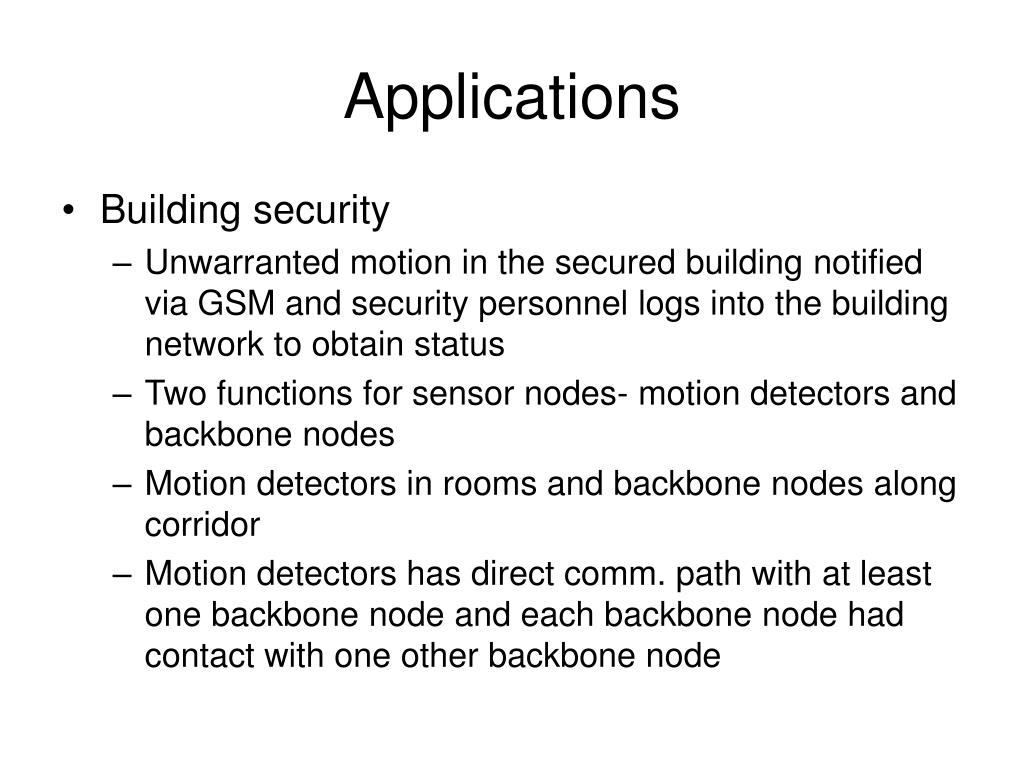

Applications

  • Building security

    • Unwarranted motion in the secured building notified via GSM and security personnel logs into the building network to obtain status

    • Two functions for sensor nodes- motion detectors and backbone nodes

    • Motion detectors in rooms and backbone nodes along corridor

    • Motion detectors has direct comm. path with at least one backbone node and each backbone node had contact with one other backbone node


An integrated approach to developing sensor network solutions

  • One backbone node equipped with external interface device

  • Alarm from motion detector to its backbone node and from there to its back bone node

  • Eventually all backbone nodes have info. abt. entire state of network

  • Security team with mobile backbone node to scan the information

  • Uses spatial IP addressing but mobile backbone node has fixed IP address from another n/w to differentiate it from other backbone nodes


An integrated approach to developing sensor network solutions

  • Marine monitoring

    • Used to study water temp. and salinity

    • Sensors attached to a buoy takes measurements at known depths

    • These connected as fixed network as communication expensive

    • Above waterline on the buoy is a full function ESB

    • These collect data from fixed n/w below and transfer over wireless interface to gateway node

    • From here by GPRS to marine sciences center


An integrated approach to developing sensor network solutions

  • This gateway can also be used to transport data to sensors for reprogramming, debugging and monitoring

  • This exemplifies usefulness of being able to manage nodes directly via TCP/IP protocols


An integrated approach to developing sensor network solutions

  • HVAC Monitoring

    • Explore feasibility of instrumenting a residential complex to improve the efficiency of its HVAC

    • Temperature and vibration sensors of ESB are used

    • IP based sensor accommodated into the Ethernet of the energy control room
