6065098

计算机辅助医学医学知识库

刘雷

上海生物信息技术研究中心

2013.4.12


6065098

提纲

基本概念

1

关键技术

2

应用实例

3


6065098

基本概念

医生根据具体病人的症状和体征进行推理的时候,这两种类知识是相互交织的。

科学知识

临床诊疗

经验知识

  • 医学知识的来源

    • 科学知识-认知和推理等

    • 经验知识-专家临床经验等


6065098

基本概念

  • 传统医学以医生的经验为主导

问题

误诊

漏诊

晚诊

不合理用药


6065098

基本概念

  • 医学知识爆炸

医学知识数量

医生个体医学知识与临床循证知识的巨大鸿沟

医生个体医学知识

2003

2006

2000

2010


6065098

基本概念

A knowledge base is a special kind of database for knowledge management, providing the means for the computerized collection, organization, and retrieval of knowledge.

知识库的定义


6065098

基本概念

知识获取(knowledge acquisition)是指从某个领域或某些知识源(如专家、书本或专家处理的实例)获取专家系统实现问题求解所需要的专门知识,包括共性知识和个性知识。

知识库

抽提、归纳、总结

  • 直接获取

  • 间接获取

知识获取的方式


6065098

基本概念

再构造

确定领域问题

再构造

概念化

再设计

形式化和编码

测试

知识获取的步骤


6065098

知识库构建的关键问题

知识的完整性

知识的安全性

知识获取工具

知识管理


6065098

医学知识库构建的关键技术

本体(ontology)

  • 医学知识模型的构建

    • 适合医学知识表达、存储、检索和共享的医学知识模型

    • 知识模型应涵盖医学知识实体及实体间的关系


6065098

医学知识库构建的关键技术

本体(ontology)

  • An ontology is an explicit description of a domain:

    • concepts

    • properties and attributes of concepts

    • constraints on properties and attributes

    • Individuals (often, but not always)

  • An ontology defines

    • a common vocabulary

    • a shared understanding


6065098

医学知识库构建的关键技术

本体(ontology)

Why Develop an Ontology?

  • To share common understanding of the structure of information

    • among people

    • among software agents

  • To enable reuse of domain knowledge

    • to avoid “re-inventing the wheel”

    • to introduce standards to allow interoperability


6065098

医学知识库构建的关键技术

本体(ontology)

Why Develop an Ontology?

  • To make domain assumptions explicit

    • easier to change domain assumptions (consider a genetics knowledge base)

    • easier to understand and update legacy data

  • To separate domain knowledge from the operational knowledge

    • re-use domain and operational knowledge separately (e.g., configuration based on constraints)


6065098

医学知识库构建的关键技术

本体(ontology)

An Ontology Is Often Just the Beginning

Databases

Declare

structure

Ontologies

Knowledge

bases

Provide

domain

description

Domain-independent

applications

Software agents

Problem-solving methods


6065098

医学知识库构建的关键技术

本体(ontology)

Biomedical ontology in action

  • Knowledge Management

    • Annotating Data and Resources

      • Biomedical ontology serves as a source of vocabulary for the purpose of annotating data or indexing documents.

      • Indexing is principally used in reference to the assignment of entries from a controlled vocabulary to documents

      • The indexing of clinical documents is generally referred to as coding

      • In biology, the functional description of experimental data is usually referred to as annotation

    • Accessing Biomedical Information

    • Mapping across Biomedical Ontologies


6065098

医学知识库构建的关键技术

本体(ontology)

Biomedical ontology in action

  • Knowledge Management

    • Annotating Data and Resources

    • Accessing Biomedical Information

      • The main function of the indexing of large document collections such as MEDLINE is to support accurate retrieval

      • Several biomedical search engines exploit MeSH and the UMLS to provide access to the biomedical literature

      • The automatic classification of biomedical documents is also generally supported by ontologies.

    • Mapping across Biomedical Ontologies


6065098

医学知识库构建的关键技术

本体(ontology)

Biomedical ontology in action

  • Knowledge Management

    • Annotating Data and Resources

    • Accessing Biomedical Information

    • Mapping across Biomedical Ontologies

      • users can choose from a variety of ontologies and select the artifact that best fits their purpose.

      • resources annotated to different ontologies become more difficult to integrate, unless mappings are created among ontologies in order to identify equivalent concepts across ontologies.


6065098

医学知识库构建的关键技术

本体(ontology)

Biomedical ontology in action

  • Data Integration, Exchange and Semantic Interoperability

    • Information Exchange and Semantic Interoperability

      • RxNorm, UMLS, SNOMED CT clinical information systems

      • LONIC exchange of laboratory data

      • The HL7 Clinical Document Architecture, Release 2 (CDA R2) model is "richly expressive, enabling the formal representation of clinical statements"

    • Information and Data Integration


6065098

医学知识库构建的关键技术

本体(ontology)

Biomedical ontology in action

  • Data Integration, Exchange and Semantic Interoperability

    • Information Exchange and Semantic Interoperability

    • Information and Data Integration

      • ontology support the standardization required from warehousing approaches to data integration

      • mediation-based approaches use ontologies for defining a global schema and mapping between the global schema and local schemas

      • ontologies facilitate the integration of datasets, often by providing a common reference for biomedical entities in several datasets.


6065098

医学知识库构建的关键技术

本体(ontology)

Biomedical ontology in action

  • Decision Support and Reasoning

    • Data Selection

      • By providing an abstraction of some domain, ontologies can help define groups from a high level value for the independent variable, instead of listing all possible values

    • Data Aggregation

    • Decision Support

    • Natural Language Processing Applications

    • Knowledge Discovery

cancer of upper-inner quadrant of breast

cancer of lower-outer quadrant of breast

breast cancer


6065098

医学知识库构建的关键技术

本体(ontology)

Biomedical ontology in action

  • Decision Support and Reasoning

    • Data Selection

    • Data Aggregation

      • ontologies are used for identifying the characteristics of groups obtained through various methods

      • ICD 10

    • Decision Support

    • Natural Language Processing Applications

    • Knowledge Discovery


6065098

医学知识库构建的关键技术

本体(ontology)

Biomedical ontology in action

  • Decision Support and Reasoning

    • Data Selection

    • Data Aggregation

    • Decision Support

      • ontologies provide a standard vocabulary for biomedical entities, helping standardize and integrate data sources

      • ontologies are a source of computable domain knowledge that can be exploited for decision support purposes, often in combination with business rules

    • Natural Language Processing Applications

    • Knowledge Discovery


6065098

医学知识库构建的关键技术

本体(ontology)

Biomedical ontology in action

  • Decision Support and Reasoning

    • Data Selection

    • Data Aggregation

    • Decision Support

    • Natural Language Processing Applications

    • Knowledge Discovery

term recognition

NLP

ontology

domain knowledge


6065098

医学知识库构建的关键技术

本体(ontology)

Biomedical ontology in action

  • Decision Support and Reasoning

    • Data Selection

    • Data Aggregation

    • Decision Support

    • Natural Language Processing Applications

    • Knowledge Discovery

      • ontologies are a component of the data-driven approach to biomedical research

      • ontologies have been used for identifying relations between genotype and phenotype,

Data mining


6065098

医学知识库构建的关键技术

文本挖掘

文本知识发现(Knowledge Discovery in Texts)就是从文本集中发现和挖掘归纳性的知识,如有用的模式、模型、趋势、规则等知识

生物医学文本

NLP

Machine Learning

电子病历

健康档案

医学文献

……

知识库

知识


6065098

医学知识库构建的关键技术

文本挖掘

A

B

A

C

B

C

镁缺乏

偏头疼

生物医学文献挖掘这个概念最早在1986年由芝加哥大学教授Don R.Swanson提出


6065098

医学知识库构建的关键技术

文本挖掘

  • 评测标准

  • 召回率

  • 准确率

  • F-测度

  • 一般流程

  • 信息检索

  • (Information Retrieval,IR)

  • 实体识别

  • (Entity Recognition,ER)

  • 信息抽提

  • (Information Extraction,IE)


6065098

医学知识库构建的关键技术

知识库构建

知识的存储

知识的查询

知识的展示

知识的更新


6065098

医学知识库

MD Consult-Medical Doctor Consult

该数据库被称为“临床医学知识库”、“内科医师的在线临床工具”,是临床卫生科技人员的循证医学资源参考数据库。

MD Consult由世界最大的三家英文医学出版商Mosby、Lippincott Williams&Wilkins、

W.B.Saunders联合创建,由世界上五大出版社之一的Elsevier Science出版发行,于1997年开始正式投入使用。


6065098

医学知识库

  • MD Consult是一个集成医学文献、图书、临床指南、药物等的综合性医学知识库

六、药物库(Drugs)

七、诊疗指南(Guidelines)

八、医学图片(Images)

九、医学新闻(News)

十、继续医学教育(CME)

一、First Consult

二、参考书籍(Books)

三、医学期刊(Journals)

四、北美临床杂志(The Clinics)

五、病人教育(Patient Education)


6065098

医学知识库

常见症状列表


6065098

医学知识库

  • MD Consult是一个集成医学文献、图书、临床指南、药物等的综合性医学知识库

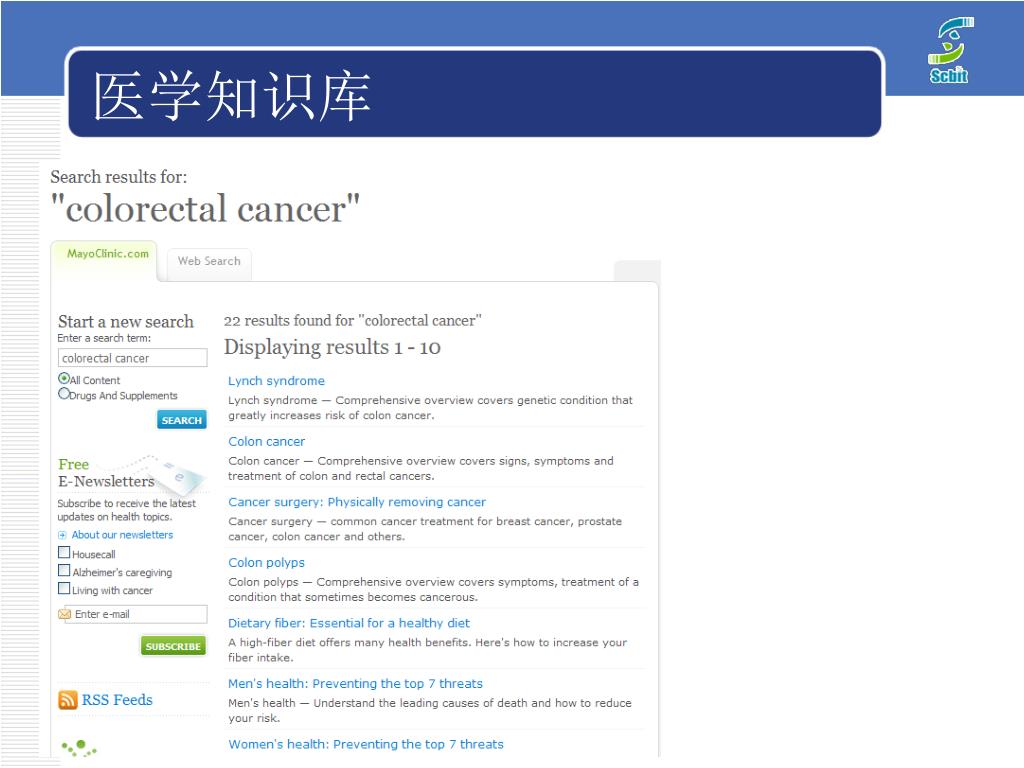

Keywords:colorectal cancer


6065098

医学知识库

  • 问答系统


6065098

医学知识库

NLP

Vocabulary

  • 问答系统


6065098

医学知识库

  • 基于知识库的临床决策支持系统

  • 规则库

  • 条件库

  • 动态规则库


6065098

医学知识库

  • Disease and condition

  • Symptoms

  • Drugs and supplements

  • Tests and procedures

  • Healthy lifestyle

Mayo Clinic-Health information


6065098

医学知识库


6065098

医学知识库


6065098

医学知识库


6065098

医学知识库


6065098

医学知识库

Symptom checker


6065098

医学知识库

Drugs and supplements


6065098

医学知识库

Drugs


6065098

医学知识库

Tests


6065098

参考资料

蒋立辉 ,王 伟.医学 知 识 库 与 医学知识的获取.

O. Bodenreider. Biomedical Ontologies in Action: Role in Knowledge Management, Data Integration and Decision Support.

Daniel L. Rubin, Nigam H. Shah and Natalya F. Noy. Biomedical ontologies: a functional perspective.


6065098

谢谢!

2013.4.12
