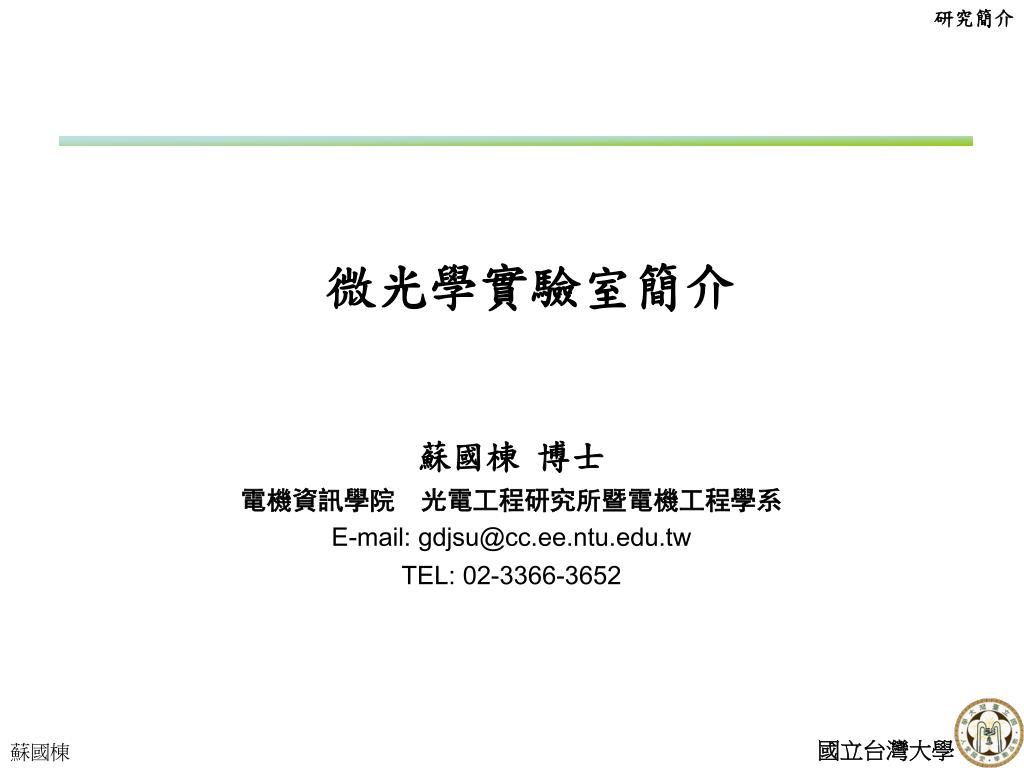

  1. 微光學實驗室簡介 蘇國棟 博士 電機資訊學院 光電工程研究所暨電機工程學系 E-mail: gdjsu@cc.ee.ntu.edu.tw TEL: 02-3366-3652

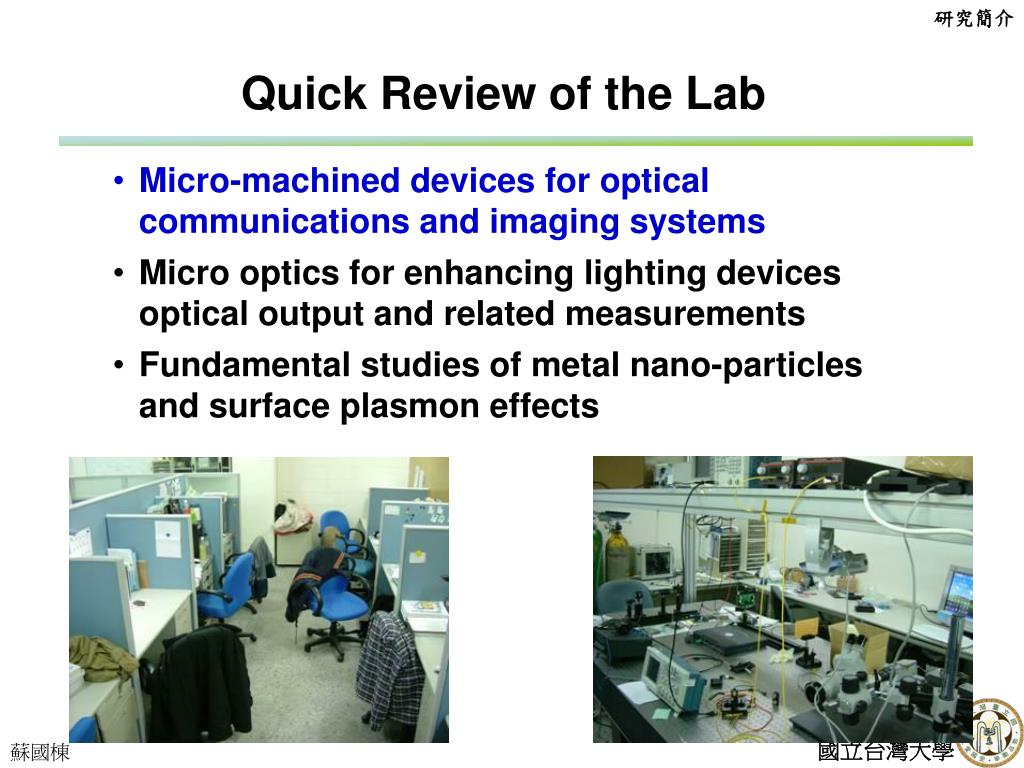

  2. Quick Review of the Lab • Micro-machined devices for optical communications and imaging systems • Micro optics for enhancing lighting devices optical output and related measurements • Fundamental studies of metal nano-particles and surface plasmon effects

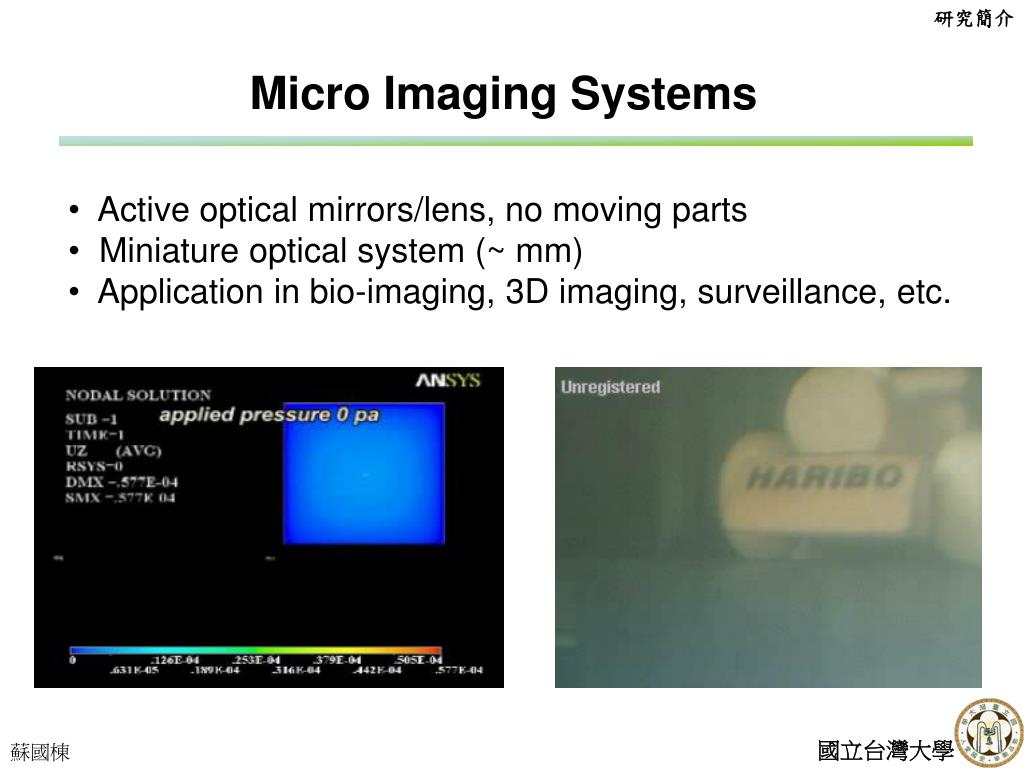

  3. Micro Imaging Systems • Active optical mirrors/lens, no moving parts • Miniature optical system (~ mm) • Application in bio-imaging, 3D imaging, surveillance, etc.

  4. Imprinting Technology for Micro Optics PMMA PVC

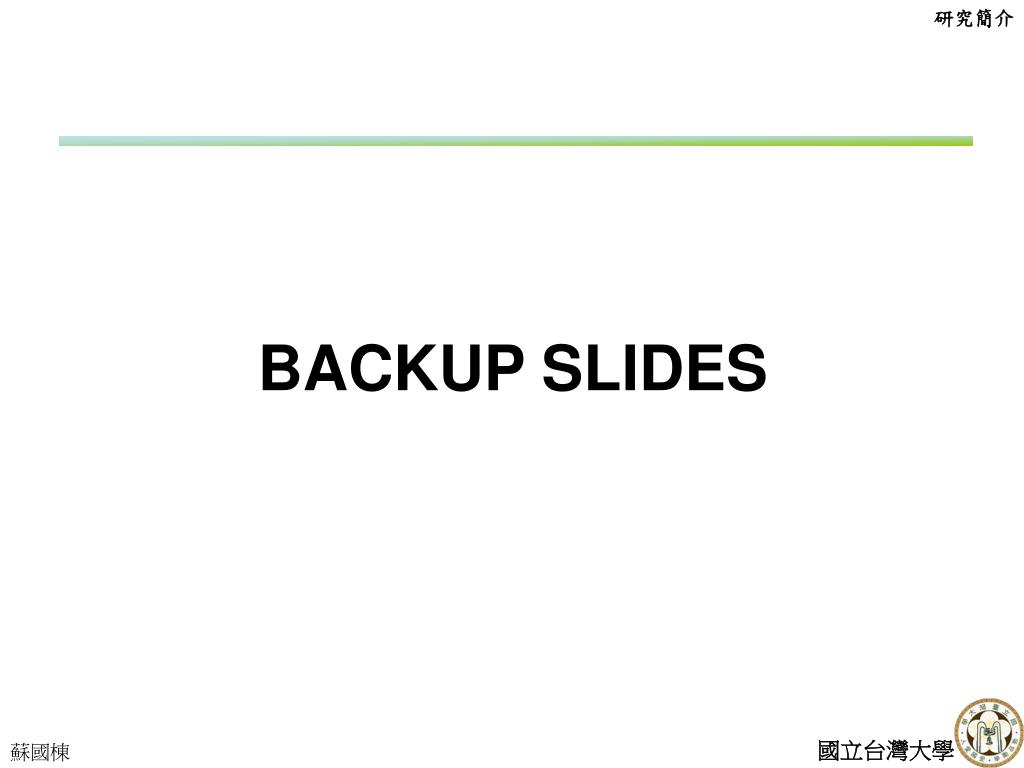

  5. BACKUP SLIDES

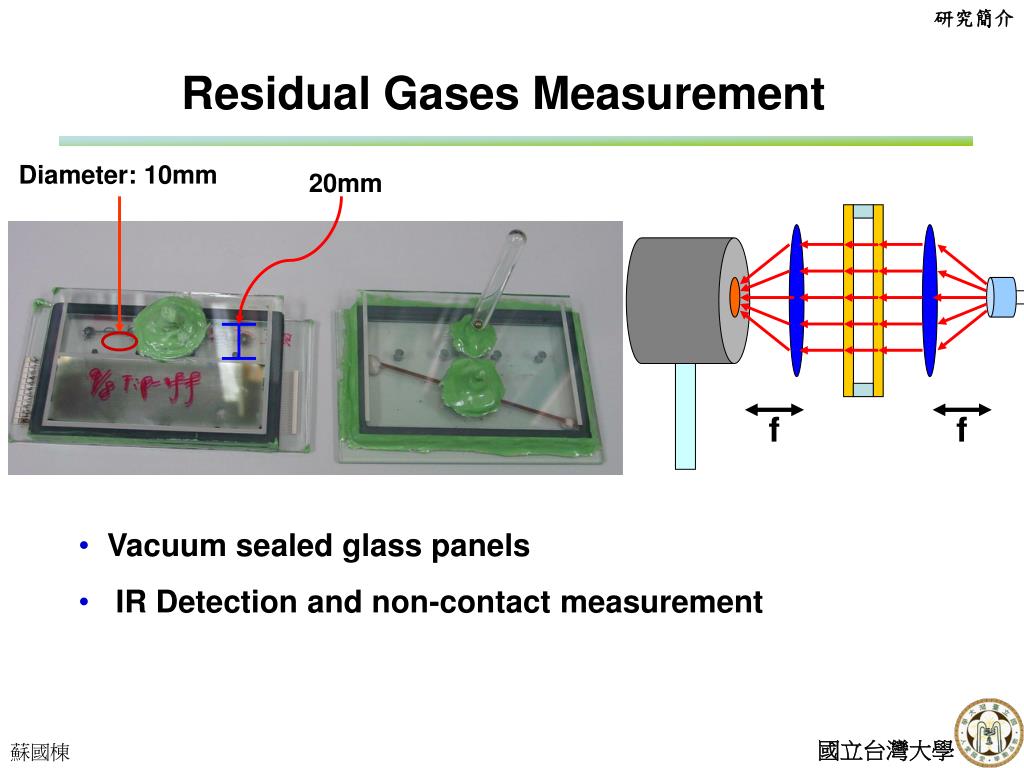

  6. Residual Gases Measurement Diameter: 10mm 20mm f f • Vacuum sealed glass panels • IR Detection and non-contact measurement
