  1. GAS WELDING EQUIPMENT

  2. Gas Welding Equipment • Oxygen gas cylinder • Acetylene gas cylinder • Oxygen pressure regulator • Acetylene pressure regulator • Oxygen gas hose (Blue) • Acetylene gas hose (Red) • Welding Torch • Trolleys • A set of keys and spanner • Filler rods and flux • Protective clothing for welders

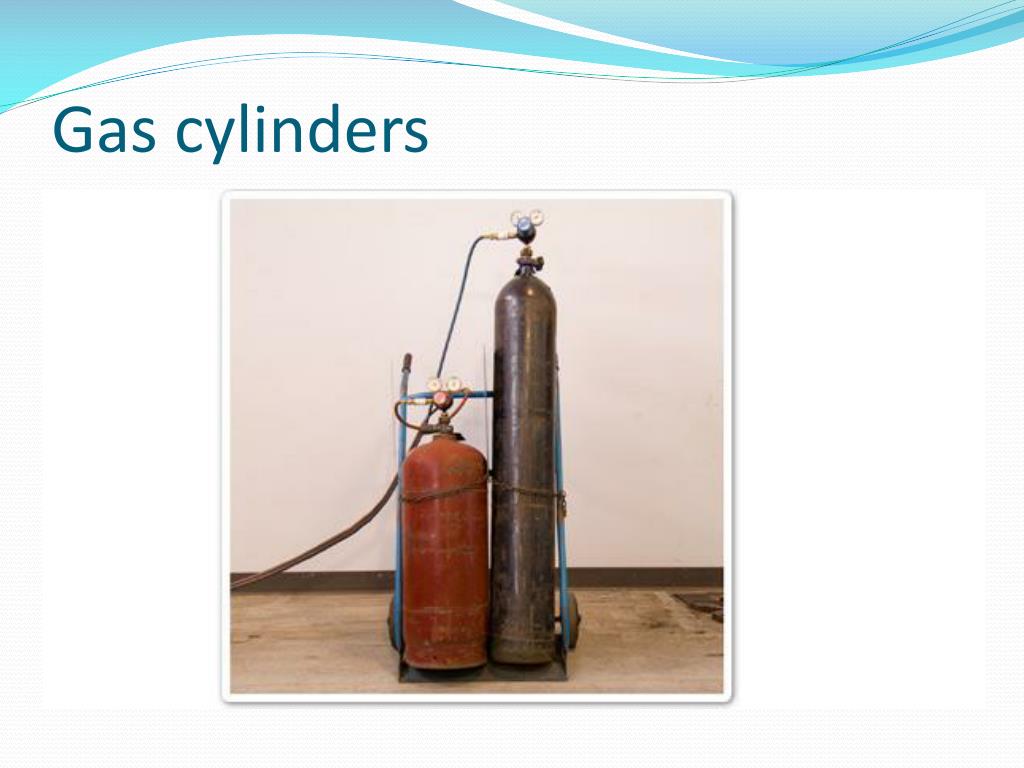

  3. Gas cylinders

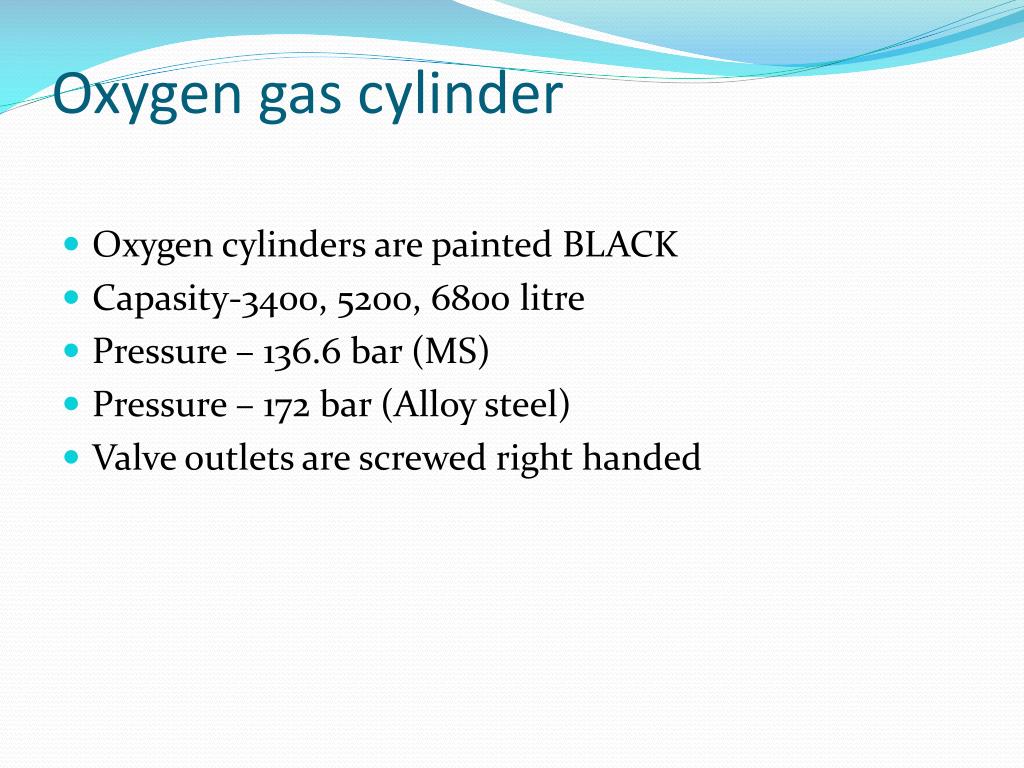

  4. Oxygen gas cylinder • Oxygen cylinders are painted BLACK • Capasity-3400, 5200, 6800 litre • Pressure – 136.6 bar (MS) • Pressure – 172 bar (Alloy steel) • Valve outlets are screwed right handed

  5. Acetylene gas cylinder • An Acetylene cylinder is painted maroon • Valve outlets are screwed left handed • Pressure – 15.5 bar • Capacity – 2800, 5600 litre

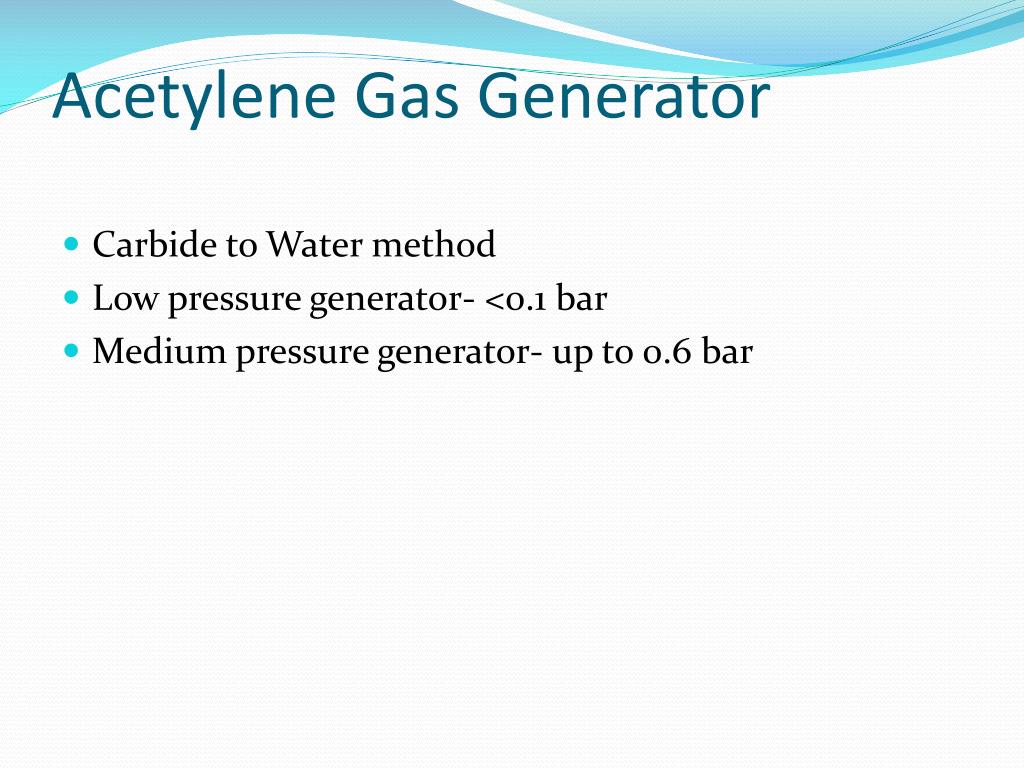

  6. Acetylene Gas Generator • Carbide to Water method • Low pressure generator- <0.1 bar • Medium pressure generator- up to 0.6 bar

  7. Manifold system for gas welding

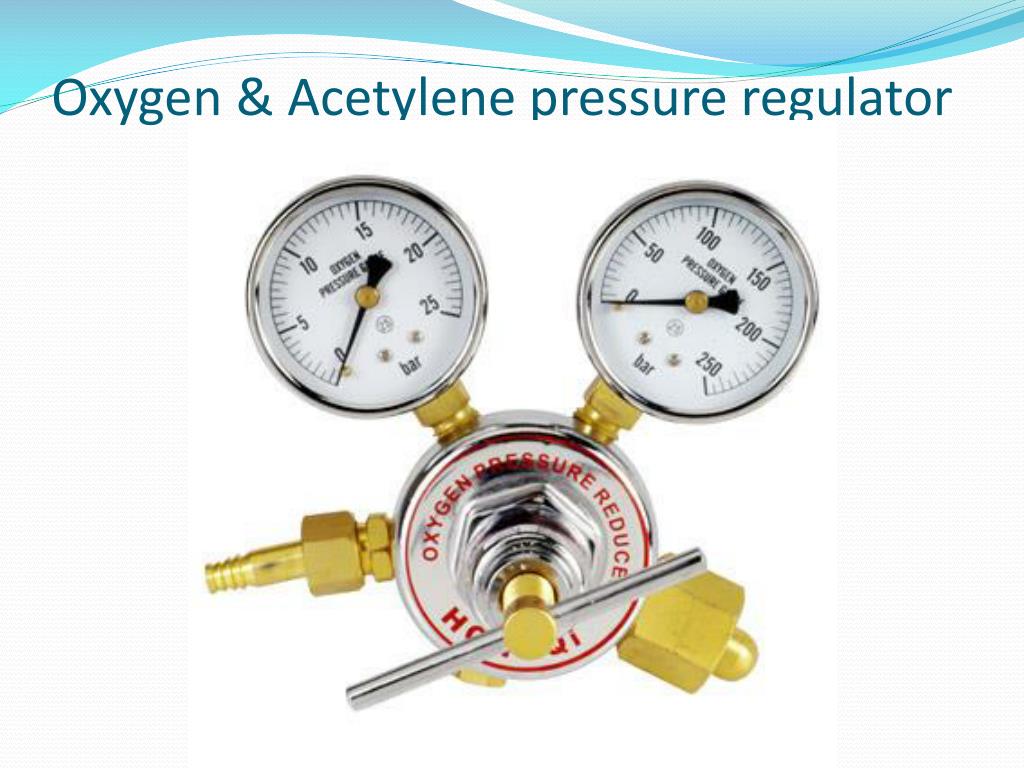

  8. Oxygen & Acetylene pressure regulator

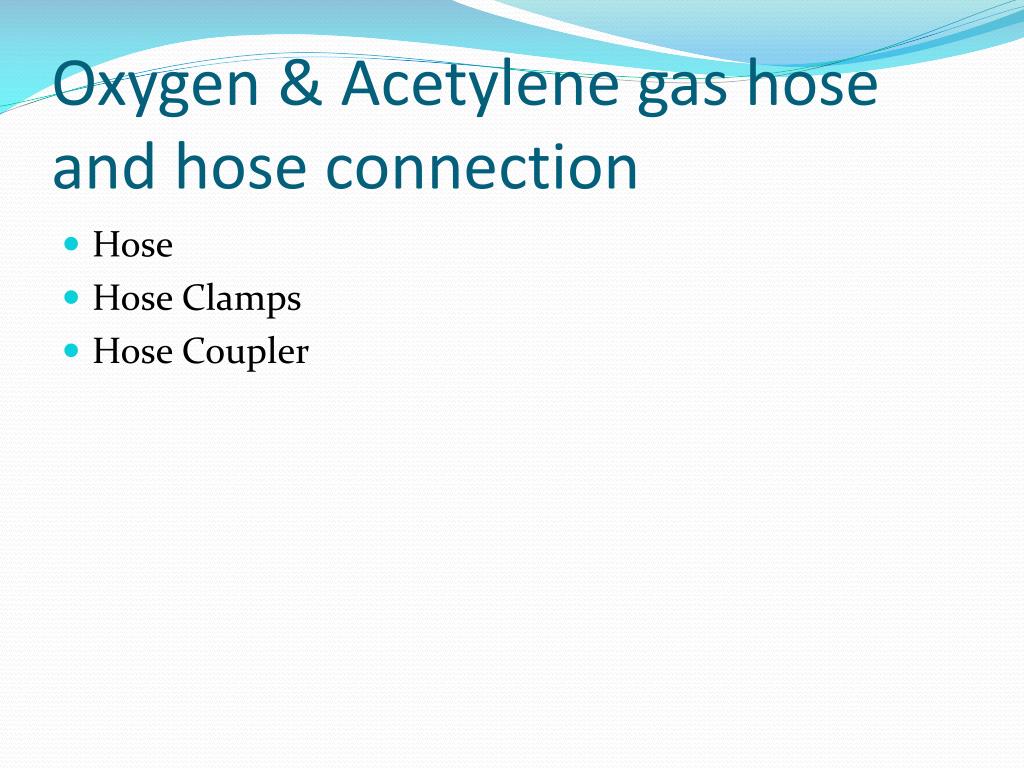

  9. Oxygen & Acetylene gas hose and hose connection • Hose • Hose Clamps • Hose Coupler

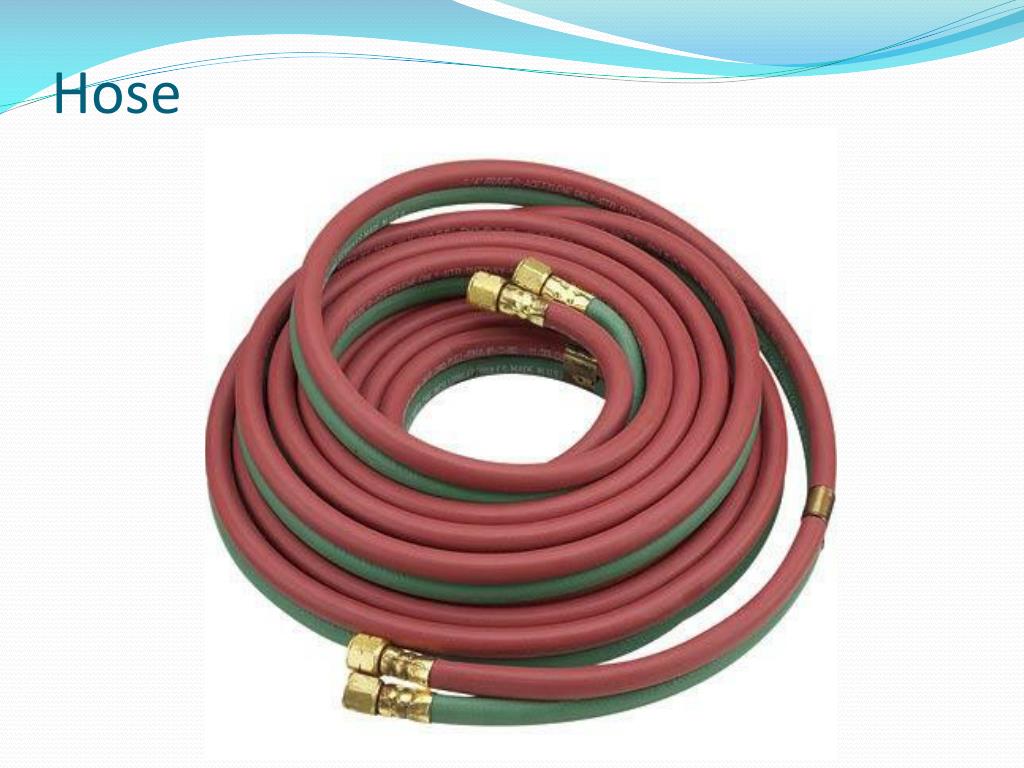

  10. Hose

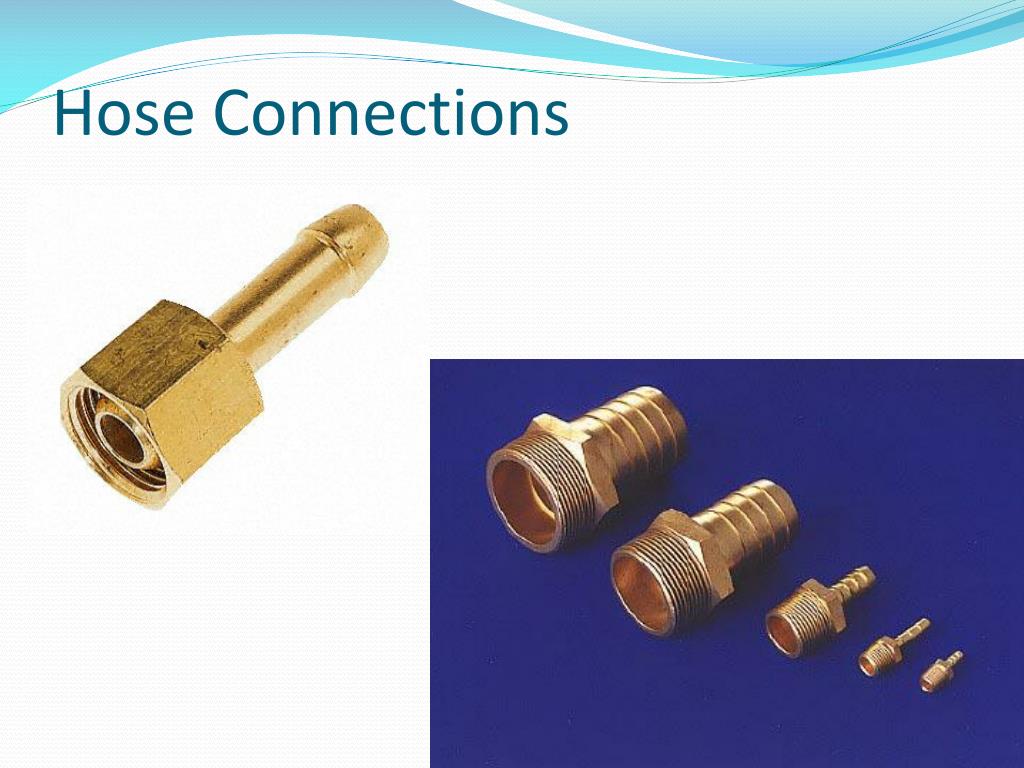

  11. Hose Connections

  12. Hose Clamps

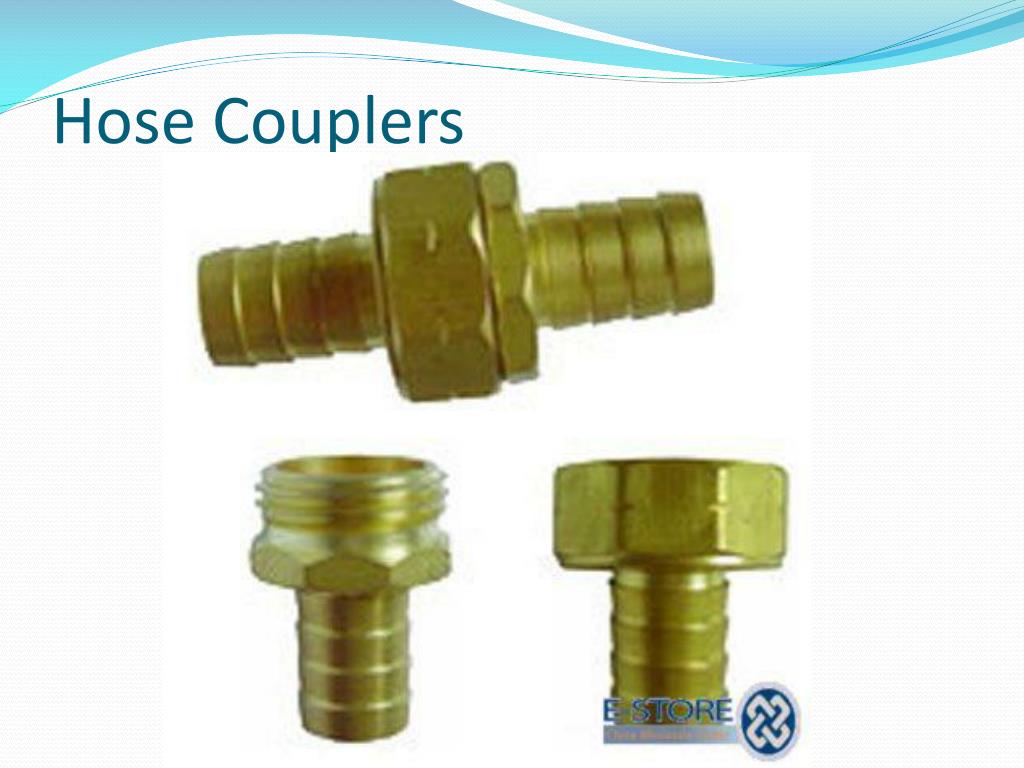

  13. Hose Couplers

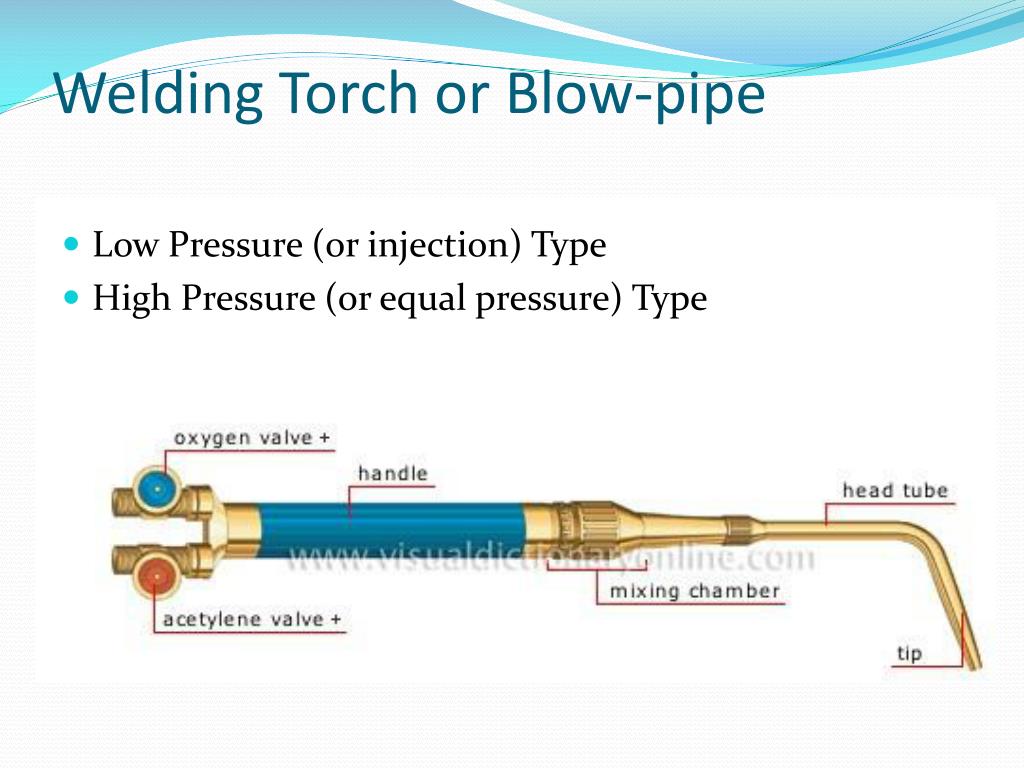

  14. Welding Torch or Blow-pipe • Low Pressure (or injection) Type • High Pressure (or equal pressure) Type

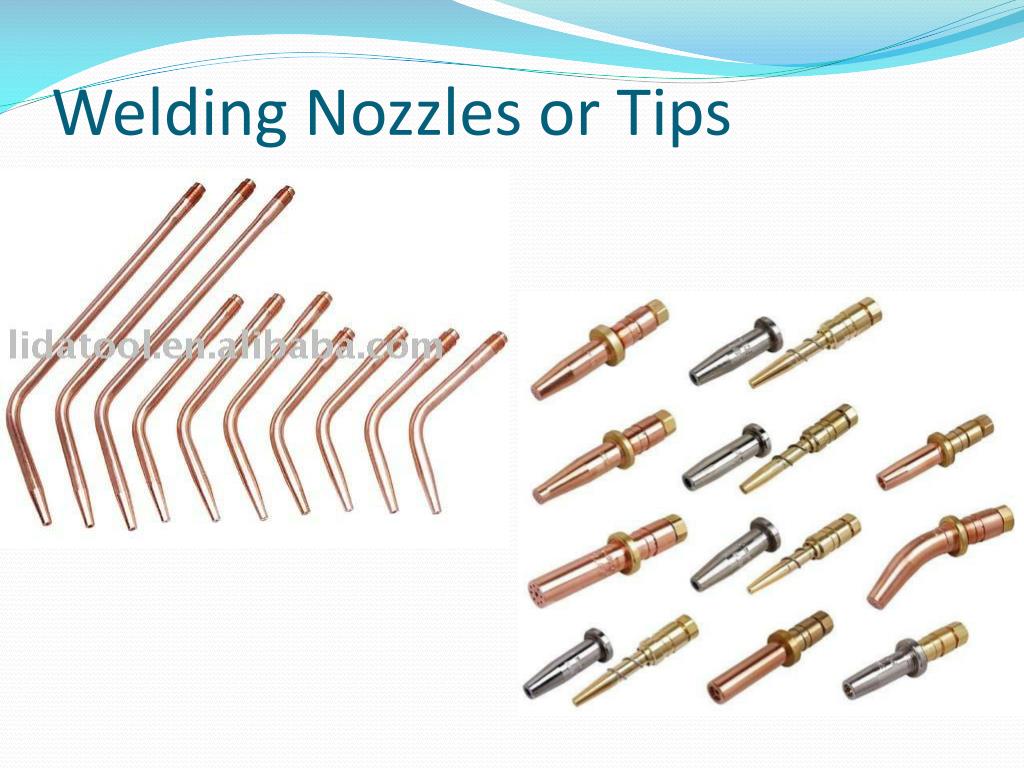

  15. Welding Nozzles or Tips

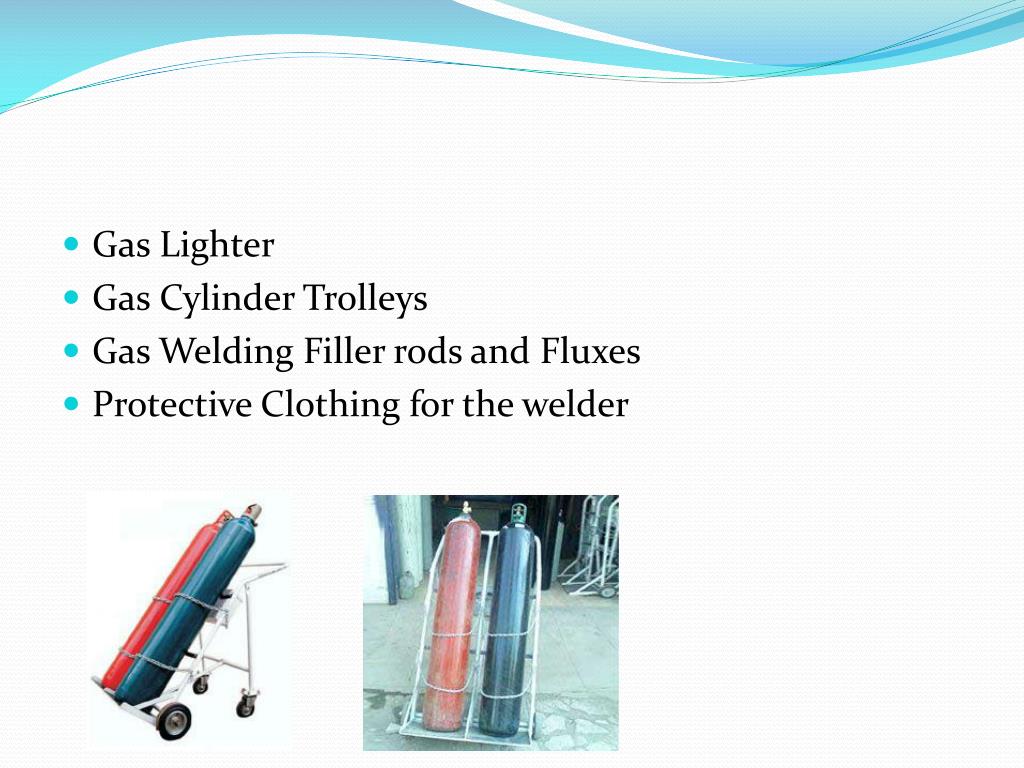

  16. Gas Lighter • Gas Cylinder Trolleys • Gas Welding Filler rods and Fluxes • Protective Clothing for the welder
