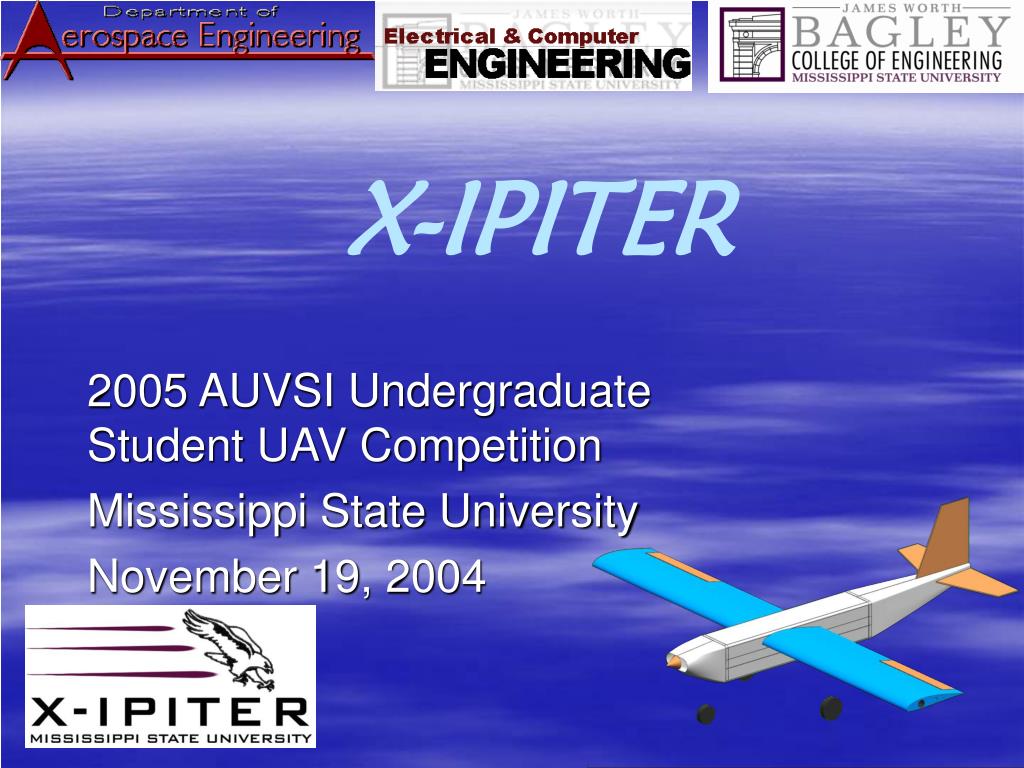

  1. X-IPITER 2005 AUVSI Undergraduate Student UAV Competition Mississippi State University November 19, 2004

  2. Team Members • Advisors • Dr. Randolph Follett (ECE) • Calvin Walker (ASE)

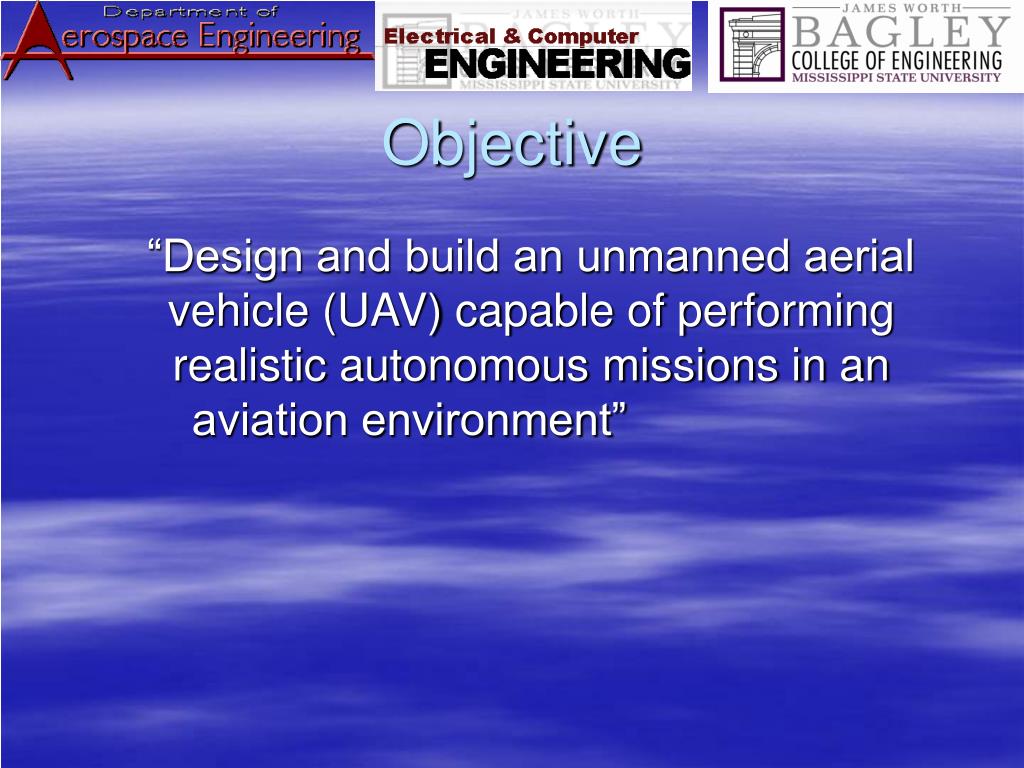

  3. Objective “Design and build an unmanned aerial vehicle (UAV) capable of performing realistic autonomous missions in an aviation environment”

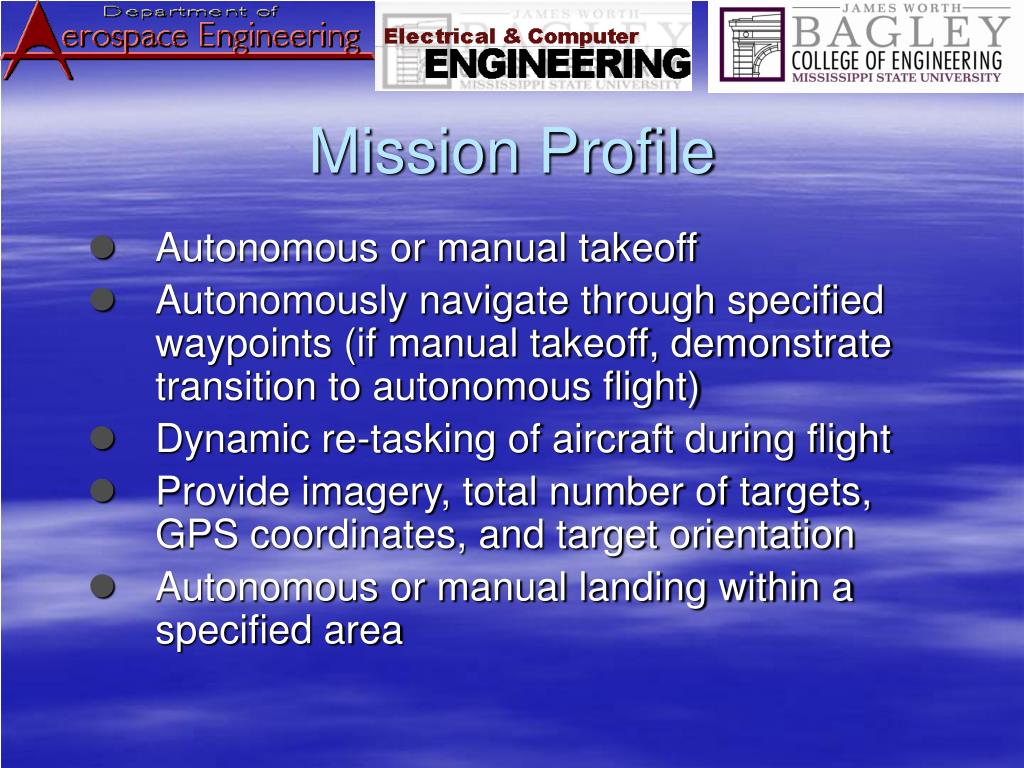

  4. Mission Profile • Autonomous or manual takeoff • Autonomously navigate through specified waypoints (if manual takeoff, demonstrate transition to autonomous flight) • Dynamic re-tasking of aircraft during flight • Provide imagery, total number of targets, GPS coordinates, and target orientation • Autonomous or manual landing within a specified area

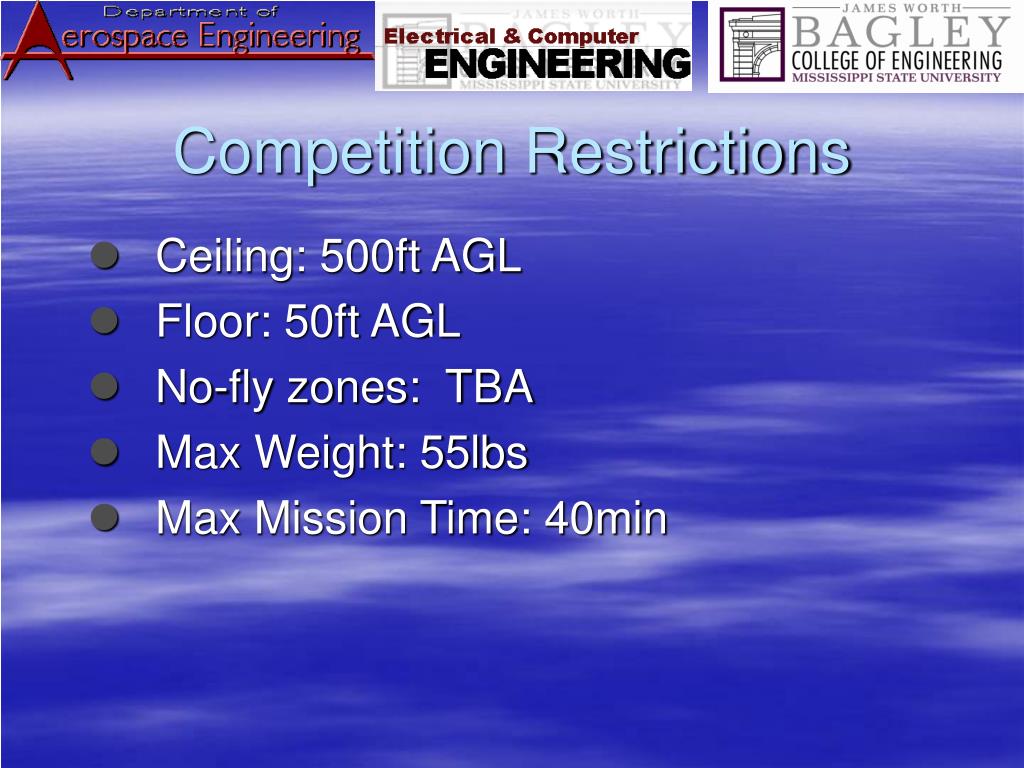

  5. Competition Restrictions • Ceiling: 500ft AGL • Floor: 50ft AGL • No-fly zones: TBA • Max Weight: 55lbs • Max Mission Time: 40min

  6. Overall Design

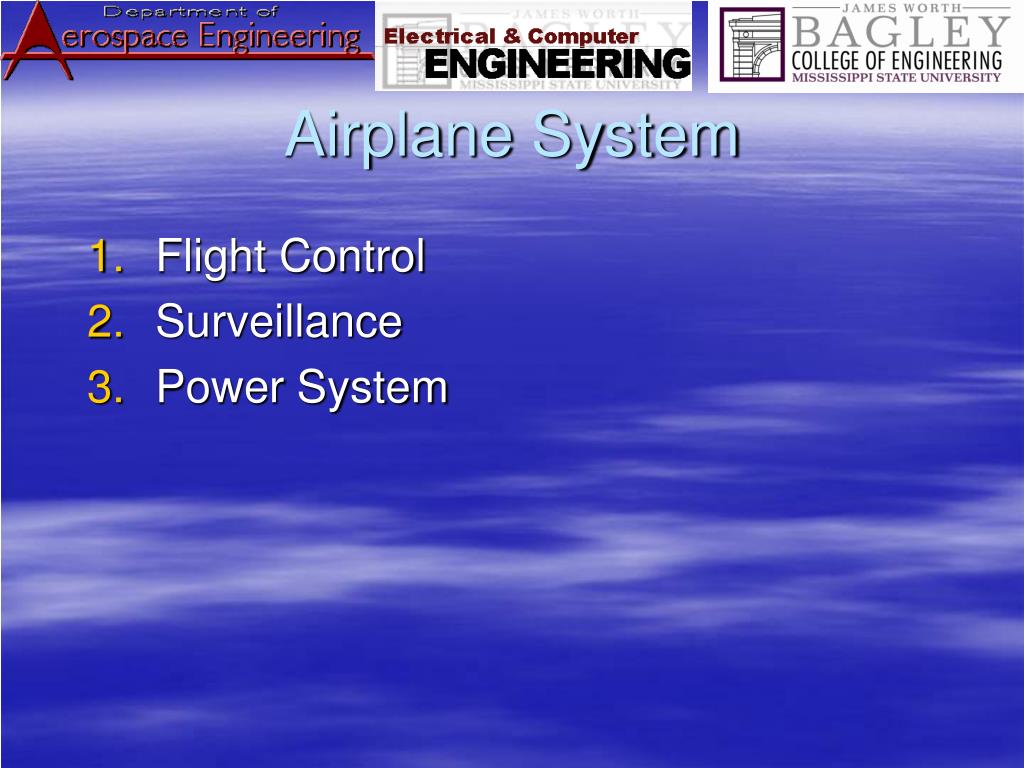

  7. Airplane System Flight Control Surveillance Power System

  8. Flight Control

  9. Flight Control

  10. Surveillance

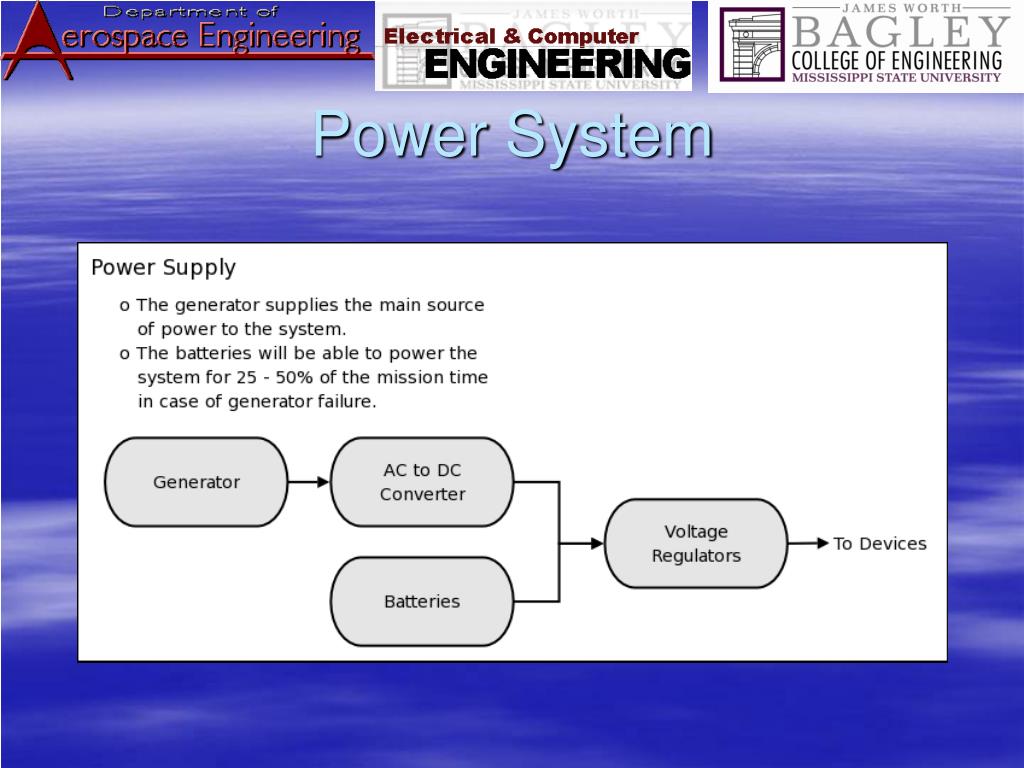

  11. Power System

  12. Ground Station

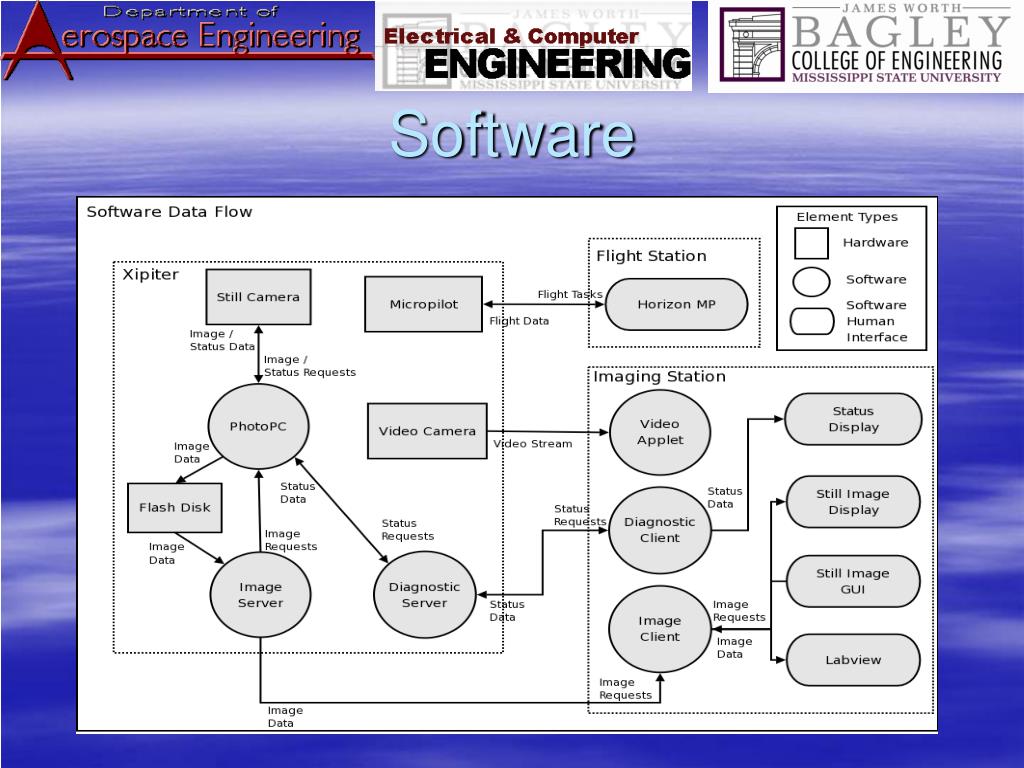

  13. Software

  14. Preliminary Airplane Design • Airplane Dimensions • Airplane Components • Flight Mechanics • Performance • Stability and Control

  15. Composites or Built-Up Balsa • Composites • Advantages • Strength • Durability • Ease of Fabrication • Disadvantages • Expensive • Can be heavy for small aircraft

  16. Composites or Built-Up Balsa • Balsa • Advantages • Light Weight • Relatively Inexpensive • Disadvantages • Complex Structural Design • Length of Fabrication Time

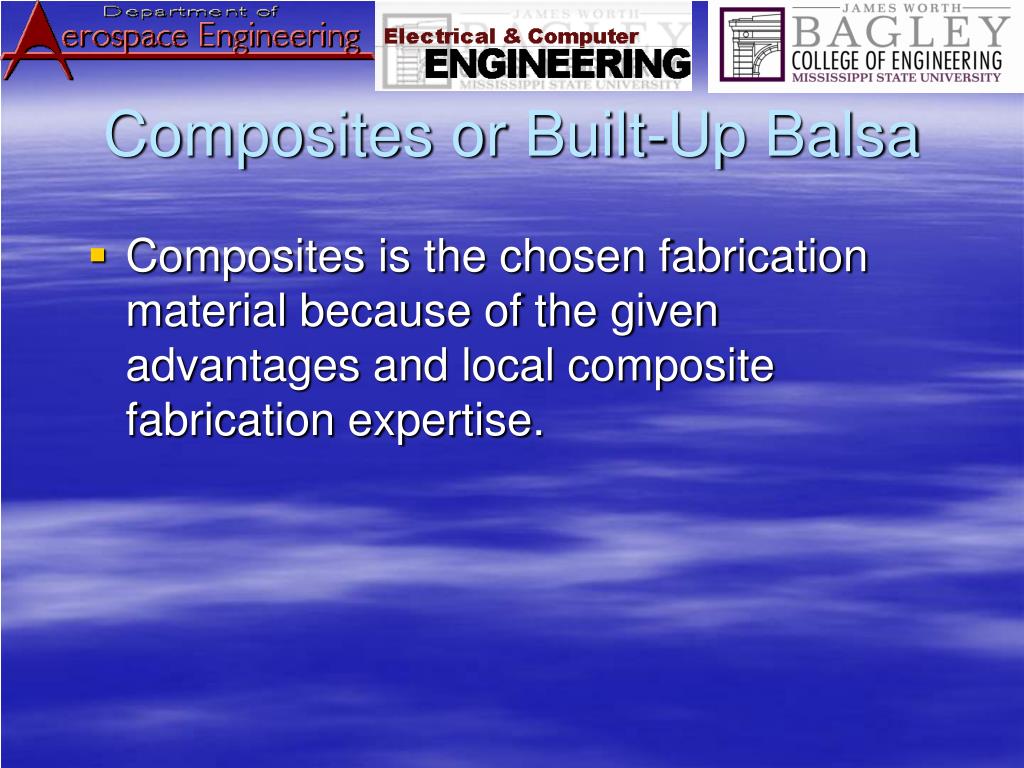

  17. Composites or Built-Up Balsa • Composites is the chosen fabrication material because of the given advantages and local composite fabrication expertise.

  18. Fabrication Technique • Method • Wet-layup • Hotwire Foam Materials • Materials • Fiberglass/epoxy • Carbon Tubes • Dow Chemical “Pink” Foam • Plywood

  19. Airplane Dimensions • Wing • Airfoil Section: SD7062 • Chord: 16in • Span: 106in • Area: 1696in2 • Aspect Ratio: 6.5 • Fuselage • Length: 40in • Length (Tip to Tail): 80in • Width: 8.5in • Height: 8.5in

  20. Airplane Dimensions • Empennage • Horizontal • Span: 34in • Chord (Root): 11.3in • Chord (Tip): 5.6in • Vertical • Height: 16in • Chord (Root): 15in • Chord (Tip): 7.5in

  21. Airplane Components • Engine • Fuji BT-64A Gasoline Engine • Fuel Tank • 24 oz • Propeller • 20in diameter X 10in pitch • Radio Control • Futaba 9-Channel Transmitter/Receiver

  22. Contingency

  23. Conceptual Design Review: 8 Oct 04 Software Complete: 3 Nov 04 Electrical System Complete: 3 Nov 04 Preliminary Design Review: ? Nov 04 Critical Design Review: ? Jan 05 Airframe Complete: 24 Jan 05 First Flight (Airframe Only): 28 Jan 05 Airframe/Systems Integrated: 10 Feb 05 First Flight (Integrated): 11 Mar 05 1st Place in Competition: 3 Jul 05 Milestones

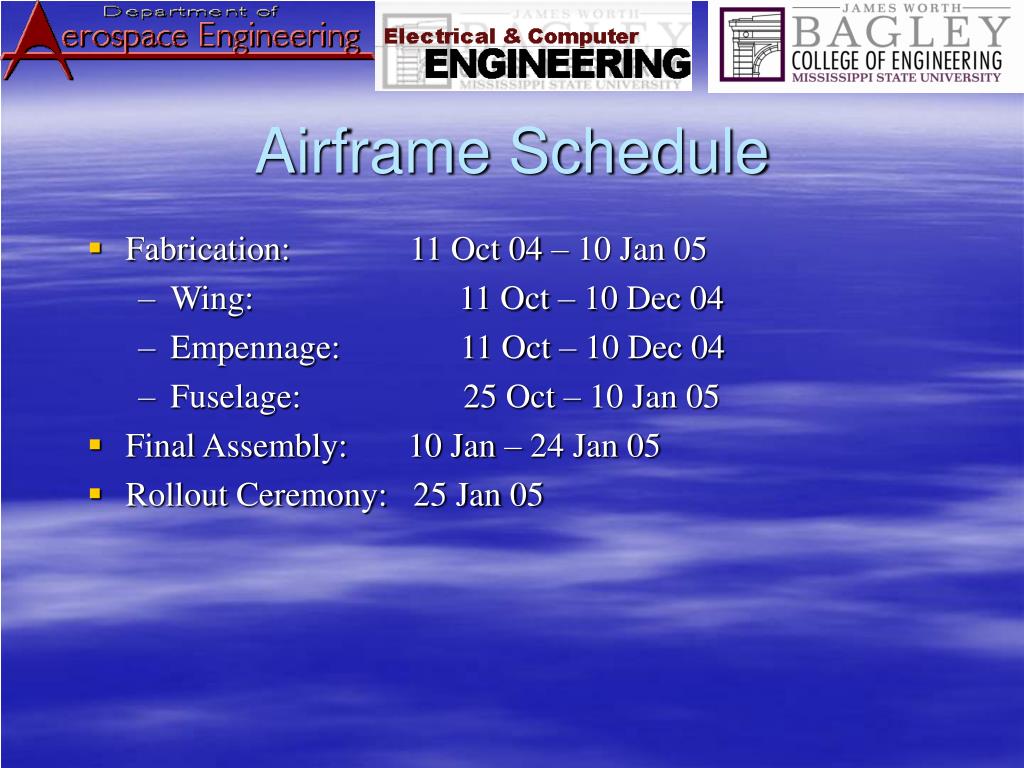

  24. Fabrication: 11 Oct 04 – 10 Jan 05 Wing: 11 Oct – 10 Dec 04 Empennage: 11 Oct – 10 Dec 04 Fuselage: 25 Oct – 10 Jan 05 Final Assembly: 10 Jan – 24 Jan 05 Rollout Ceremony: 25 Jan 05 Airframe Schedule

  25. Software programming: 3 Oct – 10 Dec 04 Boosting wireless range: 4 Oct – 10 Dec 04 Micropilot testing: 9 Oct – 12 Jan 05 Power supply design: 15 Oct – 3 Nov 04 System testing: 4 Nov – 31 Jan 05 Component integration: 10 Jan – 10 Feb 05 Systems Schedule

  26. Landing Gear.........……………. $80.00 Prop (4)............………………....$100.00 Fiberglass ......………………......$300.00 Epoxy……………………………$250.00 Carbon Tubes (5)...……….…….$408.00 Foam................………………….$216.00 Servos..............………………….$135.00 Wood..........……………………...$80.00 Fuji BT-64A……………………..$430.00 Paint…………………………...…$100.00 Parachutes…………………..$160.00 Total…….$2260.00 Airplane Cost

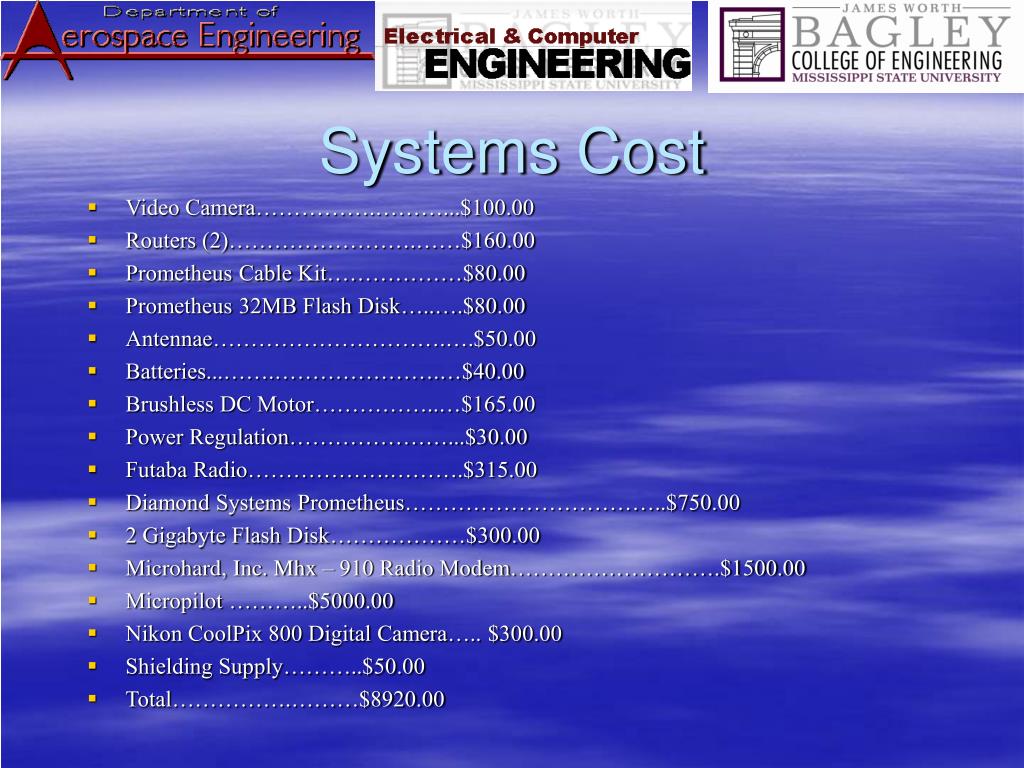

  27. Video Camera…………….………...$100.00 Routers (2)…………………….……$160.00 Prometheus Cable Kit………………$80.00 Prometheus 32MB Flash Disk…..….$80.00 Antennae………………………….….$50.00 Batteries...…….………………….…$40.00 Brushless DC Motor……………..…$165.00 Power Regulation…………………...$30.00 Futaba Radio……………….……….$315.00 Diamond Systems Prometheus……………………………..$750.00 2 Gigabyte Flash Disk………………$300.00 Microhard, Inc. Mhx – 910 Radio Modem……………………….$1500.00 Micropilot ………..$5000.00 Nikon CoolPix 800 Digital Camera….. $300.00 Shielding Supply………..$50.00 Total…………….………$8920.00 Systems Cost

  28. Labor 8 hrs per person per week 36 weeks 17 people at $10 per hour Total Labor Cost….. $48,960.00 Travel and Lodging $3500 Fixed Overhead Xtender Software…..$5000.00 Labview……. $2000.00 Laptop (2)……$1500.00 Ground station Antennae……. $300.00 Total……$61260.00 Other Cost

  29. Airplane……….$2260.00 System Set…….$8920.00 Other Cost….....$61260.00 Initial Start-up Cost……. $72440.00 Subsequent Aircraft Cost….$12460.00 Includes cost of airplane, system, and labor at 128 manhours Overall Cost

  30. Actual UAV Cost….. $3715.00 Travel….. $3500.00 Total Actual Cost……$7215.00 Actual Cost

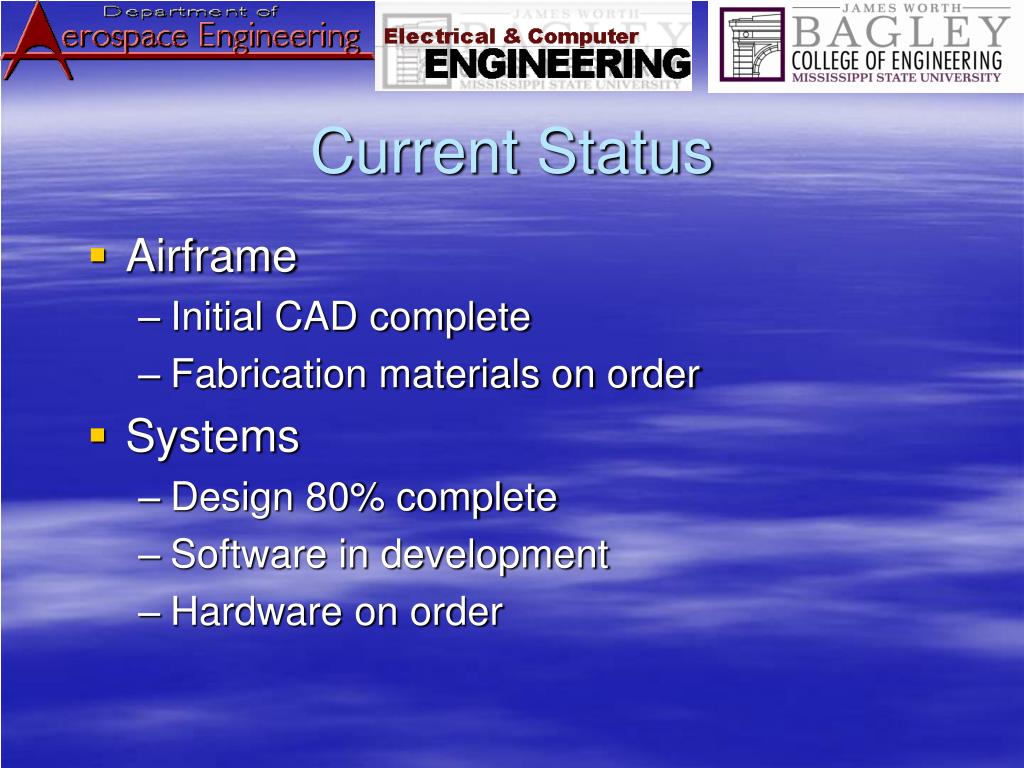

  31. Airframe Initial CAD complete Fabrication materials on order Systems Design 80% complete Software in development Hardware on order Current Status

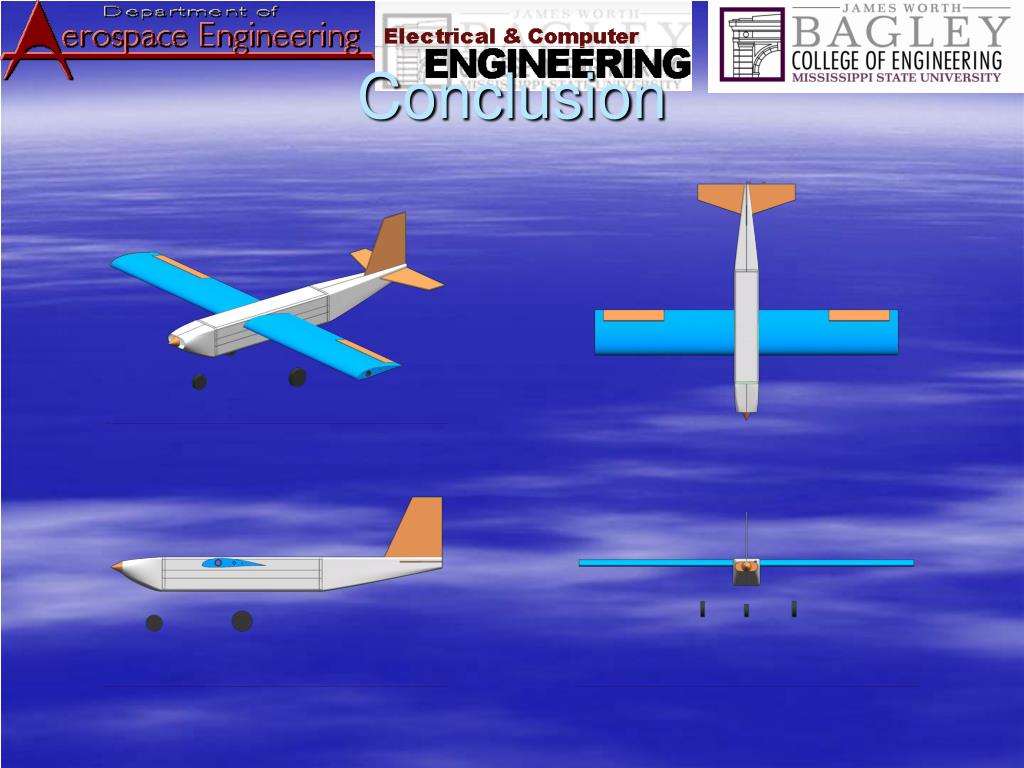

  32. Conclusion

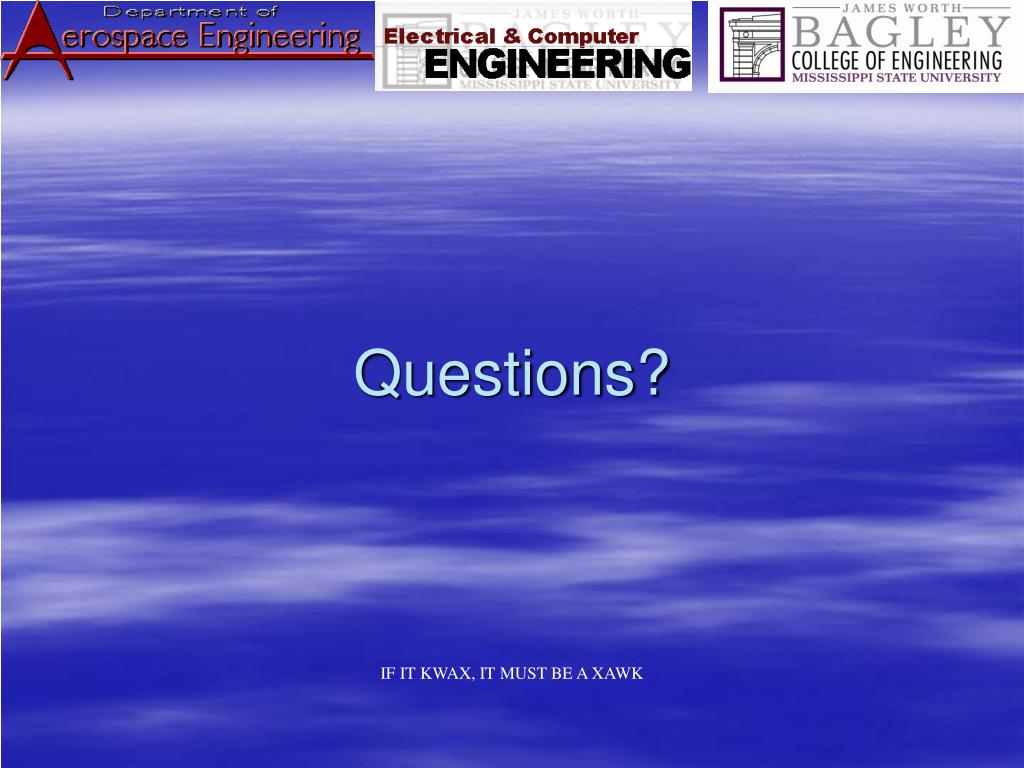

  33. Questions? IF IT KWAX, IT MUST BE A XAWK
