Design for stamping

Design for Stamping

Terry Sizemore

University of Detroit-Mercy

MPD Cohort 5


References

References

  • Eary and Reed: Techniques of Pressworking Sheet Metal, 2nd ed. Prentice Hall

  • Boothroyd, Dewhurst, Knight: Product Design for Manufacture and Assembly, 2nd ed. Marcel Decker

  • Brallia: Design for Manufacturability Handbook, 2nd ed., McGraw Hill

  • Sizemore: EMU MFG 316 Lecture Notes

  • Ulrich and Eppenger


Design for stamping dfs

Design for Stamping (DFS)

  • Assumptions

    • DFS will be “Design for Stamping” in this lecture

    • DFS applies to sheet materials from .035 to .1875

    • Successful use of DFS is measured by:

      • Improvement in quality by decreasing Quality Loss (Taguchi’s quality loss function)

      • $$$’s of Die Cost Avoidance

      • Number of processes eliminated

      • Number reduced parts due to adding “Free” features

      • Number of re-orientations eliminated


Product development process ulrich and eppenger 1995

Product Development ProcessUlrich and Eppenger, 1995

Mission

Statement

Design for Stamping

Concept

Development

System

Design

Detail

Design

Product

Launch

Testing/

Refinement

Production

Ramp up


Agenda

Agenda

  • Cutting

    • Theory of Cutting Sheet Metal

    • Forces for Cutting

    • Die Cutting Operations

  • Properties of Metals (stress strain curve, spring back, etc)

  • Forming

    • Bending

    • Embossing and Miscellaneous Forming

    • Drawing

  • Tooling

  • Design Practices


Agenda1

Agenda

  • Cutting

    • Theory of Cutting Sheet Metal

    • Forces for Cutting

    • Die Cutting Operations

  • Properties of Metals (stress strain curve, spring back, etc)

  • Forming

    • Bending

    • Embossing and Miscellaneous Forming

    • Drawing

  • Tooling

  • Design Practices


Theory of cutting

Theory of Cutting

  • Assumptions

    • Theory of Cutting also applies to the trimming of forgings, extrusions and castings and the cutting of bar stock

    • Sheet metal is anything <.125, Plate is anything >.125

    • These rules do not apply to very brittle materials such as magnesium


Analysis of cutting

Analysis of Cutting

  • Forces applied by the punch and die are shearing forces, which apply a shearing stress to the material until fracture

  • Material deformation occurs in the plane of shear

  • As the tool wears and the clearance between the punch and die grow the material will begin to experience more tensile deformation and less shear deformation prior to fracture (insert figures from pg 3)


Characteristics of a die cut edge

Characteristics of a Die Cut Edge

  • Roll Over – Flow of material around the punch and die

    • The larger the clearance the greater the roll over

  • Burnish – The rubbed or “cut” portion of the edge

    • The sharper the punch the wider the burnish

  • Fracture – The angled surface where the material separates from the parent material

  • Burr – The very sharp projection caused by a dull cutting on the punch or die.

    General Rules: The more dull the tool the greater the burr. The softer the material the greater the burr.

    *These characteristics are evident on both the hole and slug

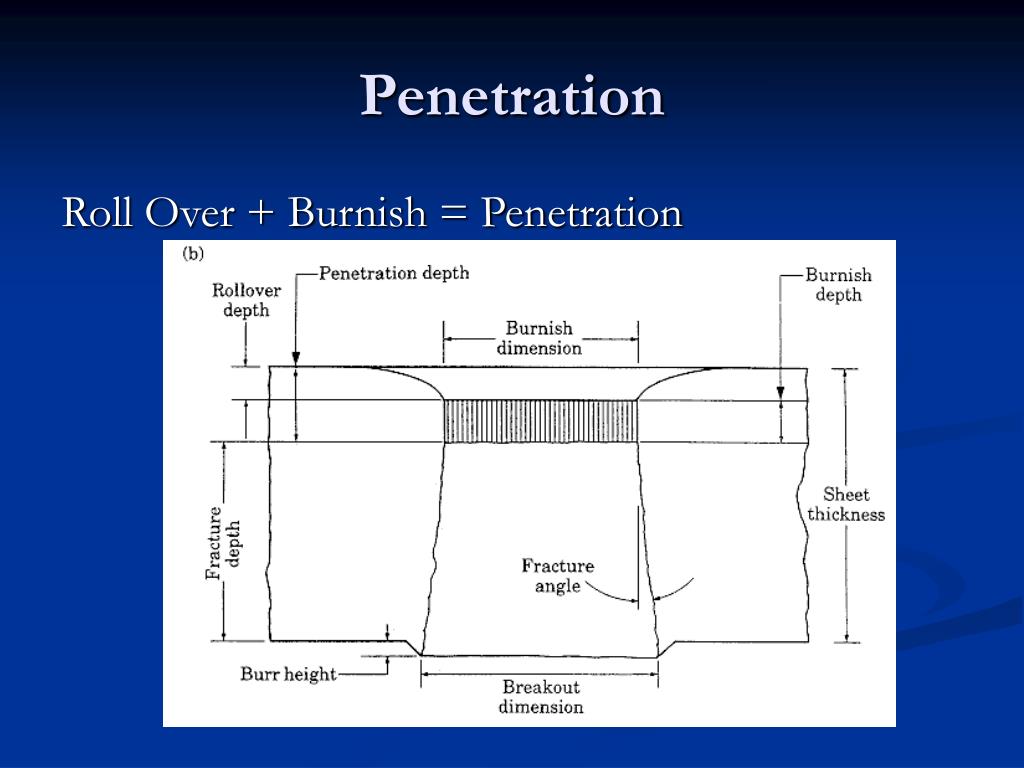

Penetration

Penetration

Roll Over + Burnish = Penetration


Percent penetrations

Percent Penetrations

E.V. crane, Plastic Working in Presses, John Wiley and Sons, Inc., New York, 1948, p. 36


Die and punch clearance

Die and Punch Clearance

Proper Clearance

  • Too Big – Blank ends up with roll-over and/or a crown effect.

  • Too Small – Results in large stripping force and secondary shear. Secondary shear is when the fracture propagating from the punch misses the fracture propagating from the die.

  • When proper clearance exists the fractures meet, which yields a preferable break edge.


Die and punch clearance1

Die and Punch Clearance

  • Force Curves – Using strain gages or other transducers to create force vs. displacement curves is a common tool for analyzing various clearance conditions. Poor clearance conditions result in less than ideal force curves (may put in curves???)


Other characteristics

Other Characteristics

  • Dish Distortion

  • Spacing Distortion – When holes are punched next to each other in sequence distortion in the circularity and position of the first hole will occur. If possible punch closely proximate holes simultaneously. See attached table for recommended design practices. (insert figure and chart from page 20)


Forces for cutting

Forces for Cutting

For Cutting:

  • In general ferrous stamping materials, shear strength is 70-80% ultimate tensile strength

  • Force=Shear Strength*Perimeter of Cut*Thickness

  • When calculating tonnage required it is recommended that ultimate tensile strength be used instead of shear strength to compensate for die wear.

    Tonnage=(UTS*Perimeter*Thickness)/2000


Forces for cutting1

Forces for Cutting

  • Take caution in what number is used for shear strength or UTS. Consideration must be made for prior operations that may affect the material properties.

    • Work Hardening

    • Annealing or Tempering

    • Other processes that affect the mechanical properties of the material


Work and energy

Work and Energy

  • In terms of metal cutting:

    Work=average force*distance

  • Force: Since the force/displacement curve for cutting sheet metal is nearly rectangular use the maximum force prior to fracture as the average force

  • Distance: The distance used in this calculation is percent penetration (see earlier slide) multiplied by material thickness.

  • This calculation assumes no secondary shear, which will require additional energy during cutting.


Example

Example

10 inch diameter aluminum blank made from .032 inch 3003 aluminum (3003 UTS is 11000 psi)

Force=(11000)(3.14)(10)(.032) =11053 lbs

Tonnage=11053/2000=5.5 tons

Work=(5.500)(.600)(.032)=.1056 inch tons*

(Need to insert penetration chart page 10)

*Most press flywheels are rated in inch ton capacity


Cutting operations

Cutting Operations

  • Blanking – Material removed is the work-piece

  • Piercing – Material removed is scrap

  • Lancing – No metal removed, bending and cutting

  • Cut-off/Parting- Separating parts or reducing scrap strip size

  • Notching – Removing material from the outer edges of the strip

  • Shaving – Removing the break edge

  • Trimming – Removing “Flash” from drawn parts

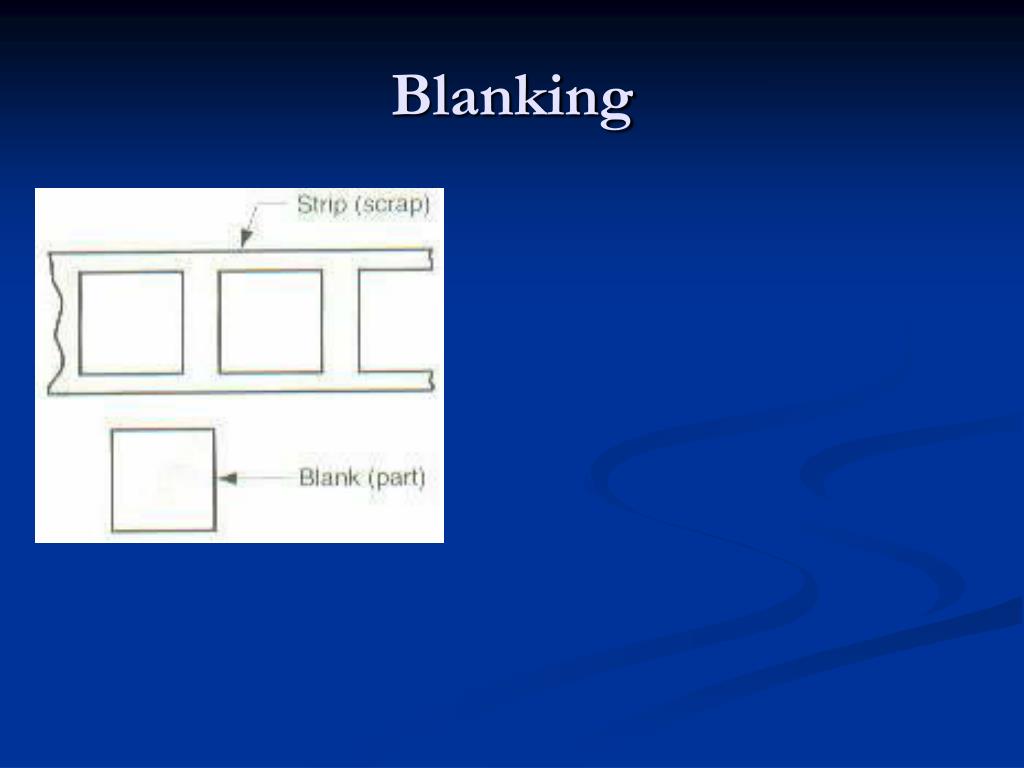

Blanking

Blanking


Piercing

Piercing


Lancing

Lancing

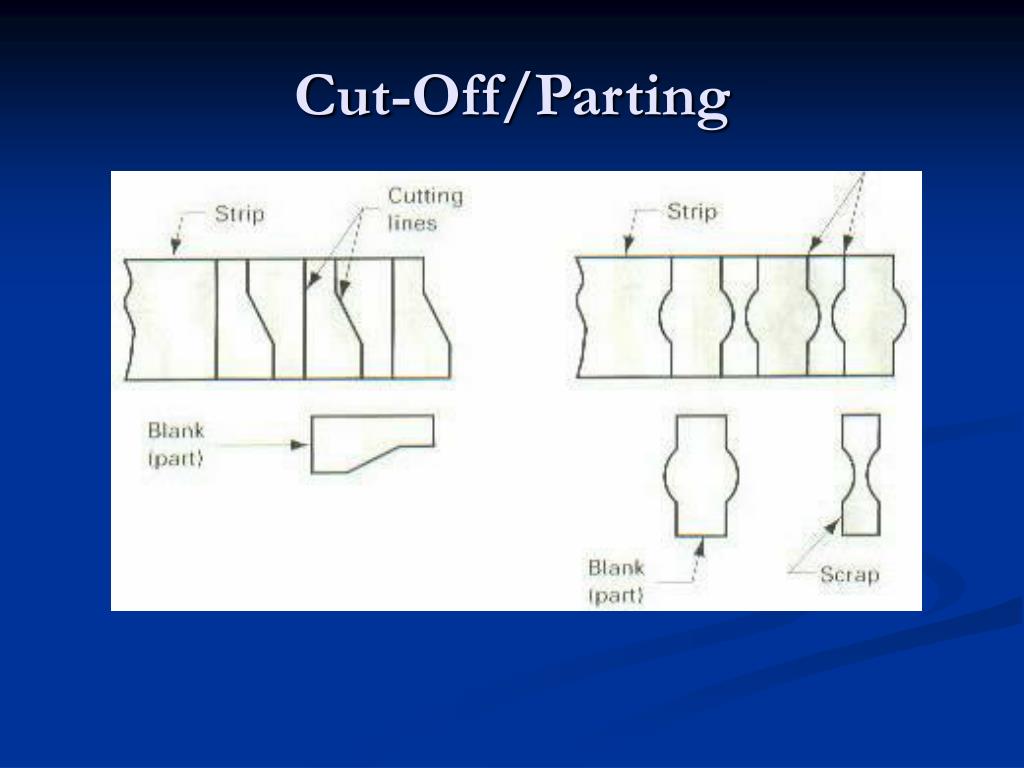

Cut off parting

Cut-Off/Parting


Notching

Notching


Shaving

Shaving


Trimming

Trimming


Agenda2

Agenda

  • Cutting

    • Theory of Cutting Sheet Metal

    • Forces for Cutting

    • Die Cutting Operations

  • Properties of Metals (stress strain curve, spring back, etc)

  • Forming

    • Bending

    • Embossing and Miscellaneous Forming

    • Drawing

  • Tooling

  • Design Practices


Stress strain curves

Stress/Strain Curves

Insert Curve with details


Geology of stress strain curve

Geology of Stress Strain Curve

  • Elastic Region

  • Yield Point

  • Necking Region

  • Ultimate Point

  • Elongation

  • Spring Back


Spring back

Spring Back

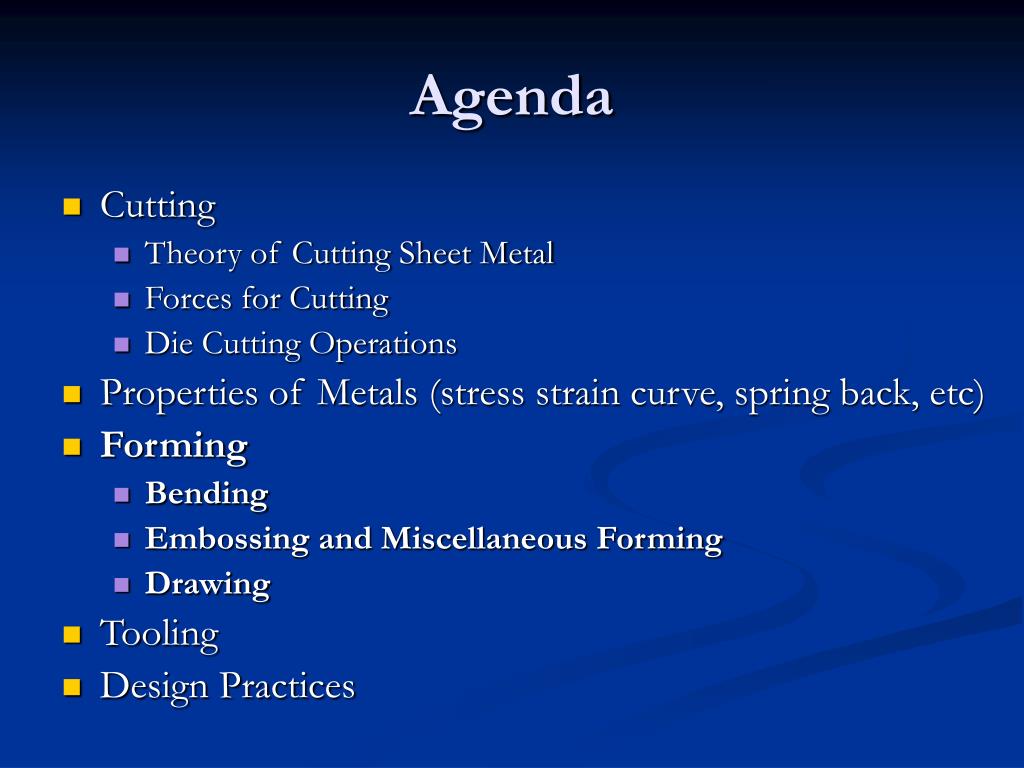

Agenda3

Agenda

  • Cutting

    • Theory of Cutting Sheet Metal

    • Forces for Cutting

    • Die Cutting Operations

  • Properties of Metals (stress strain curve, spring back, etc)

  • Forming

    • Bending

    • Embossing and Miscellaneous Forming

    • Drawing

  • Tooling

  • Design Practices

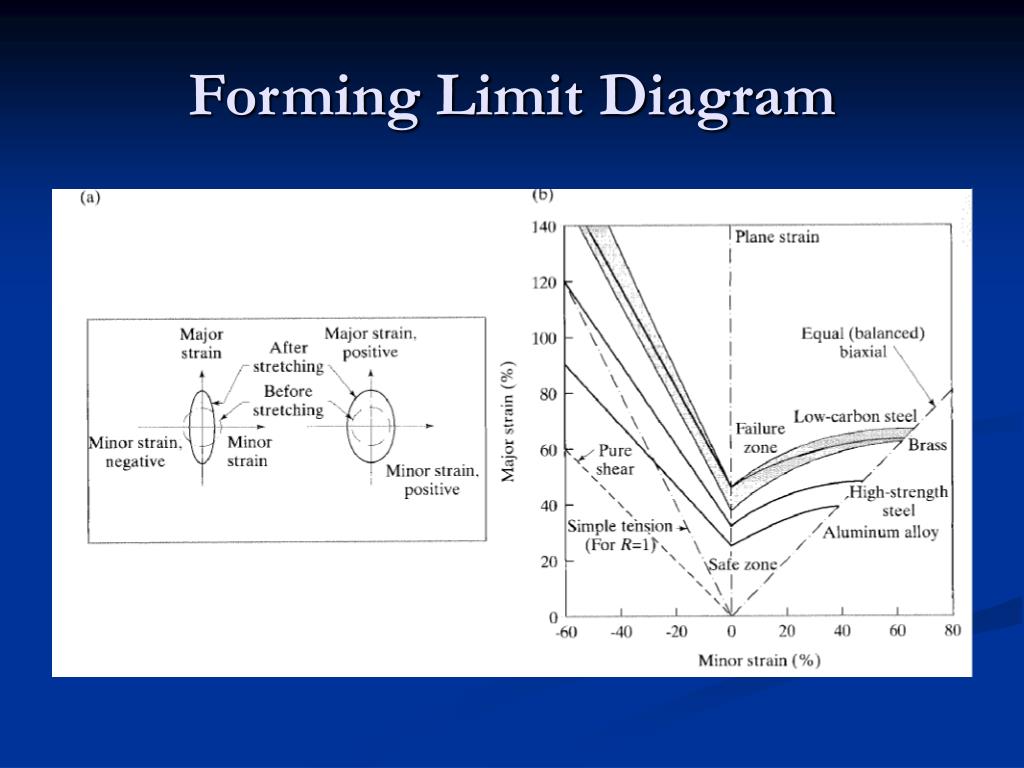

Forming limit diagram

Forming Limit Diagram


Bending

Bending


Embossing

Embossing


Drawing

Drawing


Hydro forming

Hydro-forming


Agenda4

Agenda

  • Cutting

    • Theory of Cutting Sheet Metal

    • Forces for Cutting

    • Die Cutting Operations

  • Properties of Metals (stress strain curve, spring back, etc)

  • Forming

    • Bending

    • Embossing and Miscellaneous Forming

    • Drawing

  • Tooling

  • Design Practices


Transfer dies

Most automotive stampings created by transfer press

Automation “transfers” part from die to die

First picture shows stampings transferred from the side

Second picture shows stampings transferred from the front and back

Transfer Dies


Hydro forming bladder press

Create only bottom half of the die (cheaper and faster)

Sheet metal placed over die

Rubber-like material placed over sheet metal

High pressure water forms part

Hydro-forming - Bladder press


Progressive dies

Dies fed directly from steel coil

No need for blanking operation

Scrap get cut away as part gets formed

Restricted to simple parts

Progressive Dies


Flexible forming dies

Flexible Forming Dies

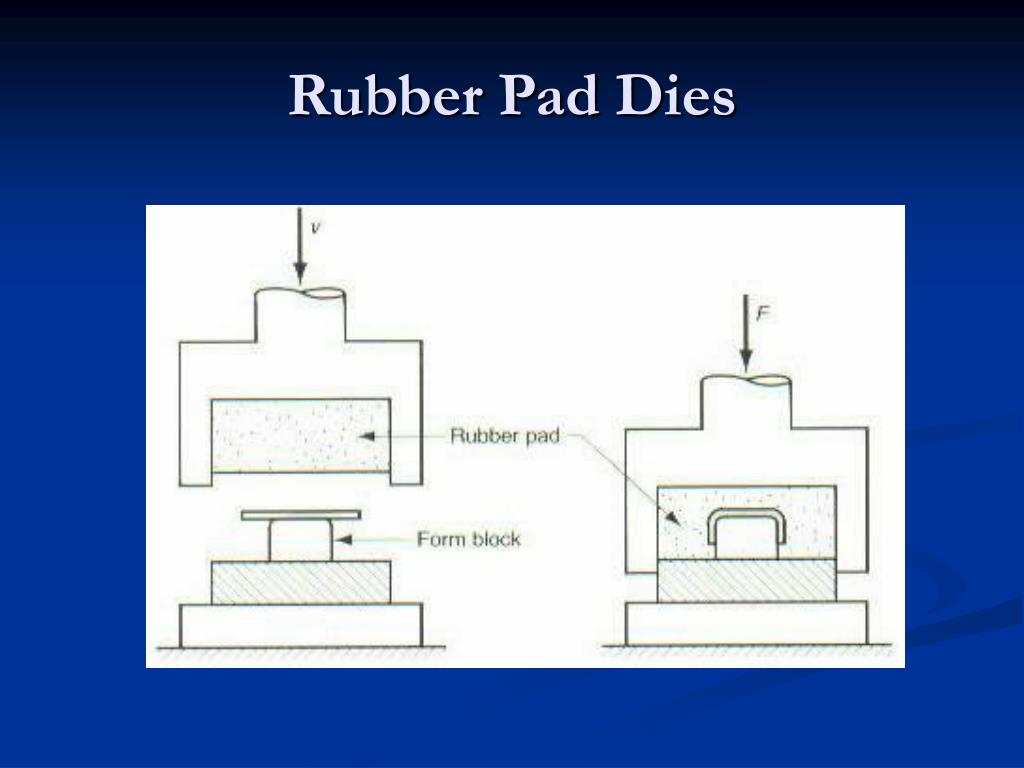

Rubber pad dies

Rubber Pad Dies


Tooling materials

Tooling Materials


Agenda5

Agenda

  • Cutting

    • Theory of Cutting Sheet Metal

    • Forces for Cutting

    • Die Cutting Operations

  • Properties of Metals (stress strain curve, spring back, etc)

  • Forming

    • Bending

    • Embossing and Miscellaneous Forming

    • Drawing

  • Tooling

  • Design Practices


Stamping applications

Stamping Applications

  • Can accommodate many functional features and attachment features

  • Natural uniform wall thickness

  • Can incorporate

    • Springs

    • Snap fit

    • Tabs

    • Spot welding

  • Material Thickness from .001 in to .790 in


Production

Production

  • 35 to 500 parts per minute

  • 250000 per year minimum to justify using progressive die

    • Progressive Die should eliminate at least two secondary operations before consideration

  • Short run press tooling – Short run is when the cost of the tool exceeds the cost of the parts

  • Punch presses should be used for low volume parts when possible


Materials

Materials

  • Any material that can be produced in sheet can be press-worked

    • Deep drawn parts require “Draw Quality” steels

  • Non-ferrous metals may require modified processing or additional processing steps


Design recommendations

Design Recommendations

  • Shaping and nesting on strip

    • Stamp multiple parts on same strip to increase strip utilization

    • Design part/strip so part can be “cut-off”, not “blanked”

  • Holes

    • Diameter not less then T, spacing should be 2T to 3T

    • 1.5 to 2T between a hole and edge

    • 1.5T + bending radius spacing between surface and hole

    • Use pilot holes


Design recommendations1

Design Recommendations

  • Avoid sharp corners

    • Improves tool wear

    • Increases bur size

    • Lowers stress

    • Minimum radius of .5T or .03125

  • Be aware of grain direction

  • Long sections should greater than 1.5T wide to avoid distortion and a weak problematic tool design


Design recommendations2

Design Recommendations

  • Use stiffening ribs or darts when more strength is needed

  • Use extruded holes when threaded fasteners must be used (1.5 T is the max thread contact you can achieve)

  • Set-outs – used for location, rivets, etc.

    • Height to be .5T

  • Be aware of the burr


Dimensional considerations

Dimensional Considerations

  • Spring-back, die wear, material variation (temper, thickness, content) are sources of variation

  • Short run prototype stampings should represent the dimensional population of the production tooled parts to prevent system failures when part goes into production
