Motivation: How to stop network abuse given a set of policies?

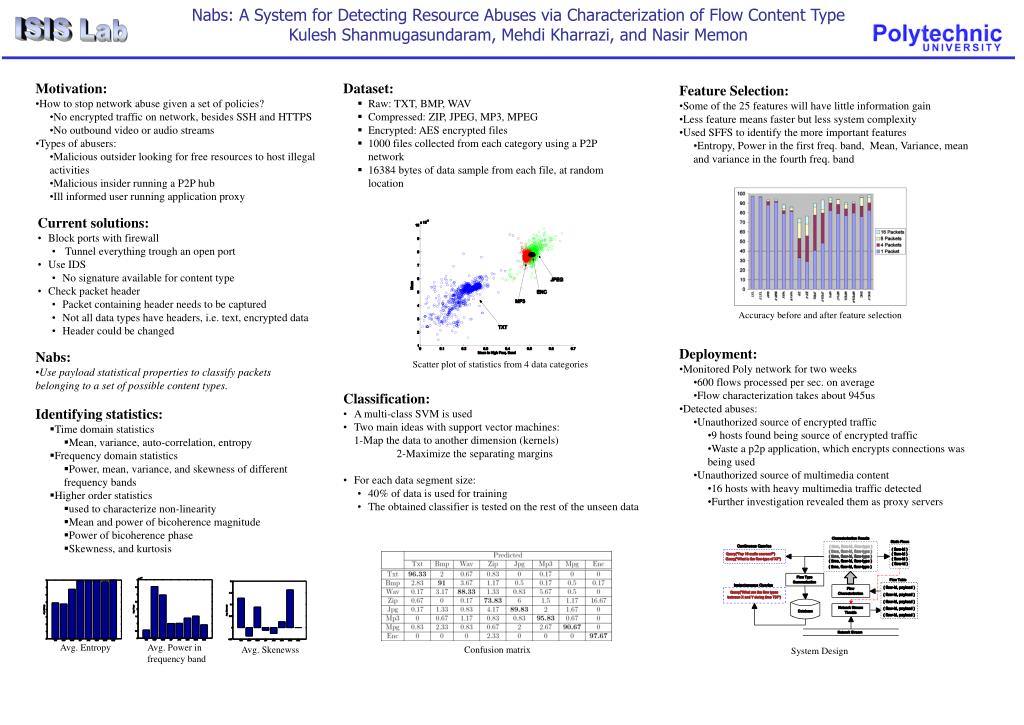

1. ISIS Lab • Motivation: • How to stop network abuse given a set of policies? • No encrypted traffic on network, besides SSH and HTTPS • No outbound video or audio streams • Types of abusers: • Malicious outsider looking for free resources to host illegal activities • Malicious insider running a P2P hub • Ill informed user running application proxy Dataset: • Raw: TXT, BMP, WAV • Compressed: ZIP, JPEG, MP3, MPEG • Encrypted: AES encrypted files • 1000 files collected from each category using a P2P network • 16384 bytes of data sample from each file, at random location • Feature Selection: • Some of the 25 features will have little information gain • Less feature means faster but less system complexity • Used SFFS to identify the more important features • Entropy, Power in the first freq. band, Mean, Variance, mean and variance in the fourth freq. band Nabs: A System for Detecting Resource Abuses via Characterization of Flow Content TypeKulesh Shanmugasundaram, Mehdi Kharrazi, and Nasir Memon • Current solutions: • Block ports with firewall • Tunnel everything trough an open port • Use IDS • No signature available for content type • Check packet header • Packet containing header needs to be captured • Not all data types have headers, i.e. text, encrypted data • Header could be changed Accuracy before and after feature selection • Deployment: • Monitored Poly network for two weeks • 600 flows processed per sec. on average • Flow characterization takes about 945us • Detected abuses: • Unauthorized source of encrypted traffic • 9 hosts found being source of encrypted traffic • Waste a p2p application, which encrypts connections was being used • Unauthorized source of multimedia content • 16 hosts with heavy multimedia traffic detected • Further investigation revealed them as proxy servers • Nabs: • Use payload statistical properties to classify packets belonging to a set of possible content types. • Identifying statistics: • Time domain statistics • Mean, variance, auto-correlation, entropy • Frequency domain statistics • Power, mean, variance, and skewness of different frequency bands • Higher order statistics • used to characterize non-linearity • Mean and power of bicoherence magnitude • Power of bicoherence phase • Skewness, and kurtosis Scatter plot of statistics from 4 data categories • Classification: • A multi-class SVM is used • Two main ideas with support vector machines: • 1-Map the data to another dimension (kernels) • 2-Maximize the separating margins • For each data segment size: • 40% of data is used for training • The obtained classifier is tested on the rest of the unseen data Avg. Entropy Avg. Power infrequency band Avg. Skenewss Confusion matrix System Design
