Presentation Transcript

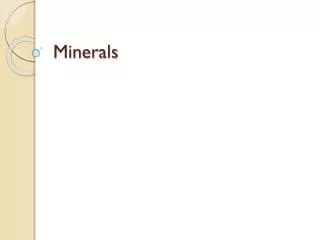

  1. Minerals

  2. Building Blocks of Matter • An element is a substance that cannot be broken down into simpler substances by chemical or physical means • The basic unit of matter is the atom (smallest particle of matter that retains characteristics of an element) • Atoms are made of subatomic particles: protons (+), electrons (-), and neutrons • Protons (atomic number) and neutrons reside in the nucleus • Electrons move around in energy levels outside of the nucleus

  3. Building Blocks of Matter

  4. Building Blocks of Matter • Atoms of the same element but with different neutrons are isotopes • Carbon-12, Carbon-13, Radioactive Carbon-14

  5. Building Blocks of Matter • Two or more elements can combine to form compounds (H2O) • Properties of compound differ from the elements • Ionic bonds form between positive and negative ions (element loses or gains electron) • Covalent bonds involve sharing of electrons between elements (H2O) • Metallic bonds form when electrons are shared by metal ions

  6. Building Blocks of Matter

  7. Minerals • Mineral is a naturally occurring, inorganic solid, with an orderly crystalline structure and a definite chemical composition • Natural, not man-made (synthetic) • Solid at normal Earth temperatures • Crystalline- atoms or ions are arranged in orderly repetitive manner • Consistent element (gold) or chemical compound (quartz [SiO2]) • Inorganic

  8. How Minerals Form • Crystallization from magma as it cools • Precipitation occurs when water evaporates leaving the dissolved substances can react to form minerals • Changes in pressure and temperature can cause atoms to rearrange • Hydrothermal solution (water and dissolved substances between 100C-300C) form new mineral when come in contact with mineral

  9. Mineral Groups • Minerals are classified based on their composition • Silicates are composed primarily of silicon and oxygen • Make up 95% of all minerals on Earth • Ferromagnesian minerals contain a lot of the elements iron and magnesium (usually dark in color) • Nonferromagnesium silicates are usually light in color because they don’t contain iron and magnesium

  10. Mineral Groups • Sulfides have compounds combined with sulfur • Galena (PbS), sphalerite (ZnS) • Carbonates have compounds made up of a carbon atom and bordered by oxygen • Halides contain elements that combine with halogen ion (chlorine, fluorine, bromine, iodine) • Salt is a halide mineral called halite

  11. Mineral Groups • Sulfates contain compounds made of sulfur enclosed by four oxygen atoms (CaSO4) • Oxides contain element combined with oxygen • Hematite (rust) • Native elements are elements in relatively pure form • Gold (Au), Copper (Cu)

  12. Properties of Minerals • Mineral’s properties can help identify them • Hardness is a mineral’s resistance to scratching • Moh’s hardness scale ranges from 1-10 • 10 is diamond, talc is 1

  13. Cleavage • Cleavage is the breakage along planes of weakness (based on atomic arrangements) • One direction: mica breaks into sheets because bond holding sheets together is weak • Two directions: feldspar breaks into two directions at about 90 degrees • Three directions: calcite, 75 degrees

  14. Fracture and Streak • Fracture occurs when minerals don’t show cleavage when broken • Break along curved surfaces, splinter, or just break unevenly • Streak is the color of the mineral in its powdered form • Created by rubbing mineral across streak plate • More reliable than color of mineral (small amounts of different elements can change color of mineral)

  15. Color • Sapphires have different colors based on small amounts of different elements

  16. Luster and Crystal Form • Luster describes how light is reflected from the surface of a mineral • Metallic luster- have metallic appearance • Glassy- quartz; earthy- chalk • Crystal form is the visible expression of a mineral’s internal arrangement of atoms • If allowed to form slowly and without space restrictions they form consistent crystal shape

  17. Density and Acid Test • Density is the ratio of an object’s mass to its volume (D=m/V) • Density of a pure mineral is a constant value • Adding dilute HCl to an unknown mineral is the acid test • If the sample fizzes, it is a carbonate • The fizz is carbon dioxide
