  1. Cooperative Layered Wireless Video Multicast Ozgu Alay, Thanasis Korakis, Yao Wang, Elza Erkip, Shivendra Panwar

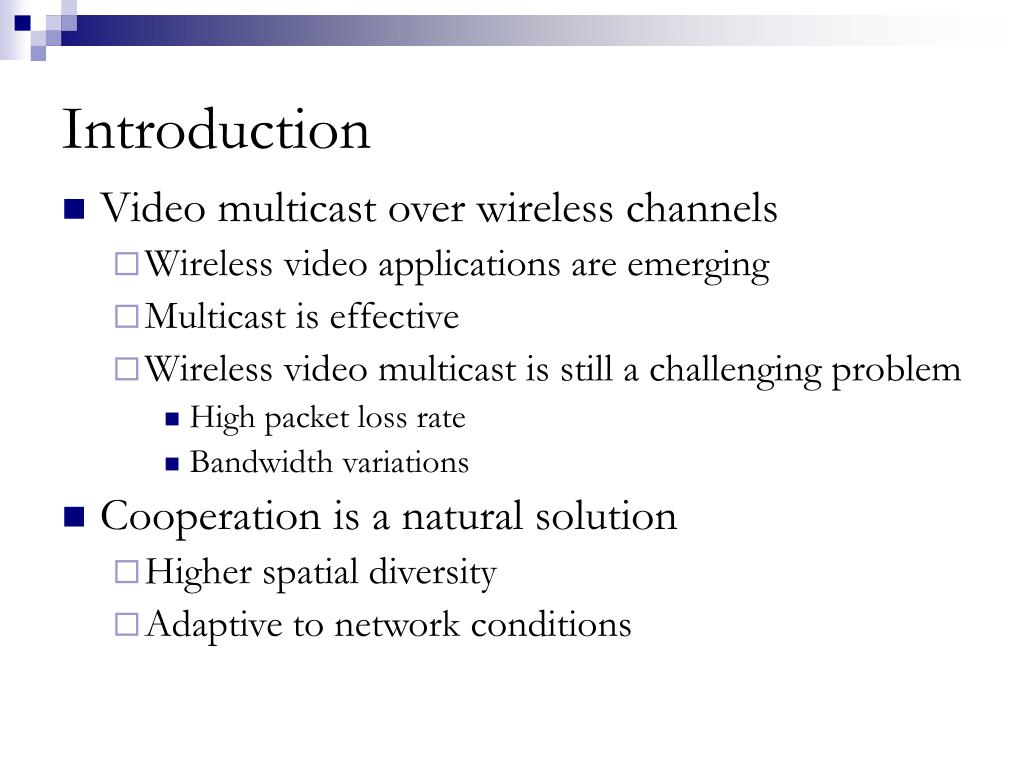

  2. Introduction • Video multicast over wireless channels • Wireless video applications are emerging • Multicast is effective • Wireless video multicast is still a challenging problem • High packet loss rate • Bandwidth variations • Cooperation is a natural solution • Higher spatial diversity • Adaptive to network conditions

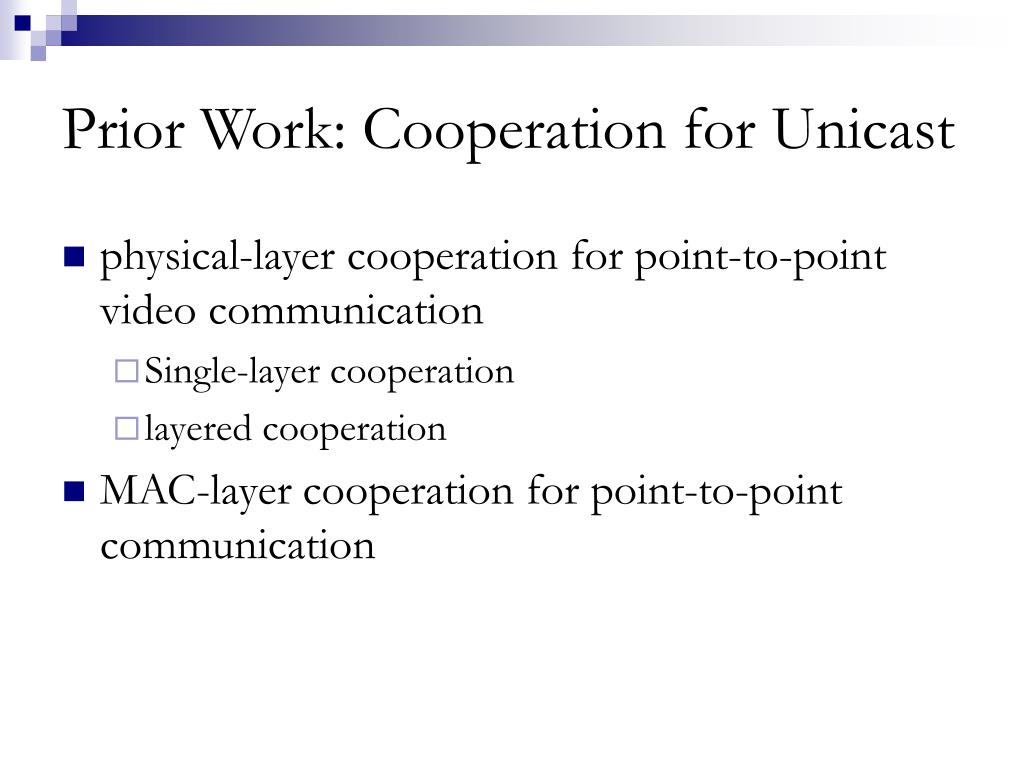

  3. Prior Work: Cooperation for Unicast • physical-layer cooperation for point-to-point video communication • Single-layer cooperation • layered cooperation • MAC-layer cooperation for point-to-point communication

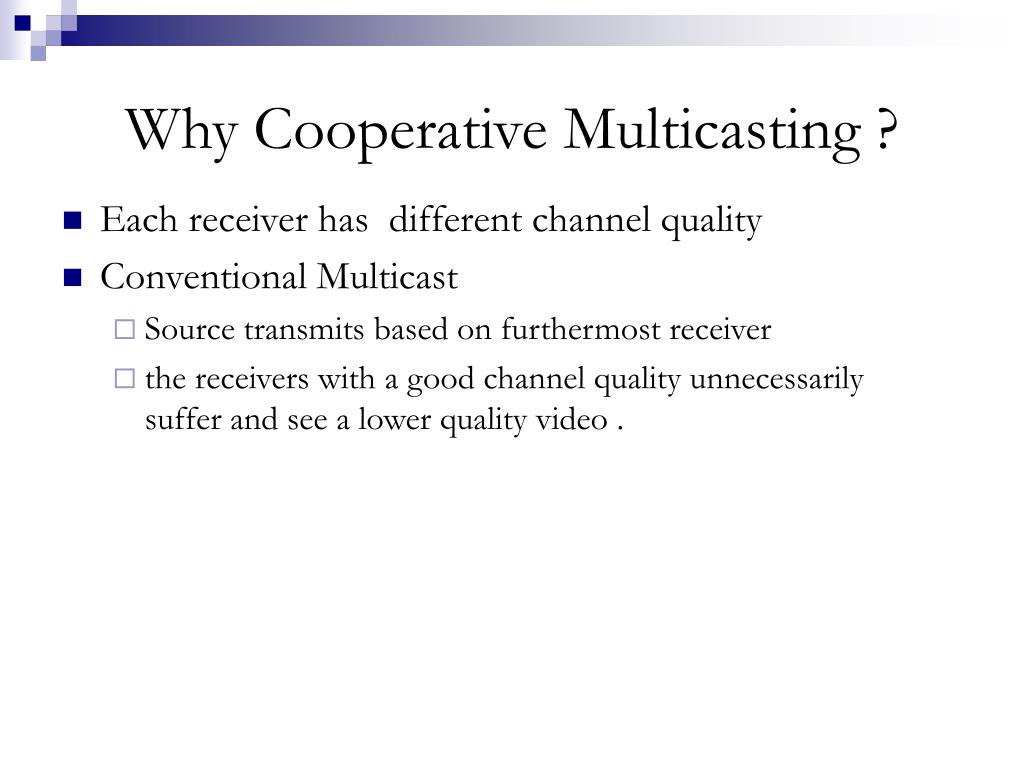

  4. Why Cooperative Multicasting ? • Each receiver has different channel quality • Conventional Multicast • Source transmits based on furthermost receiver • the receivers with a good channel quality unnecessarily suffer and see a lower quality video .

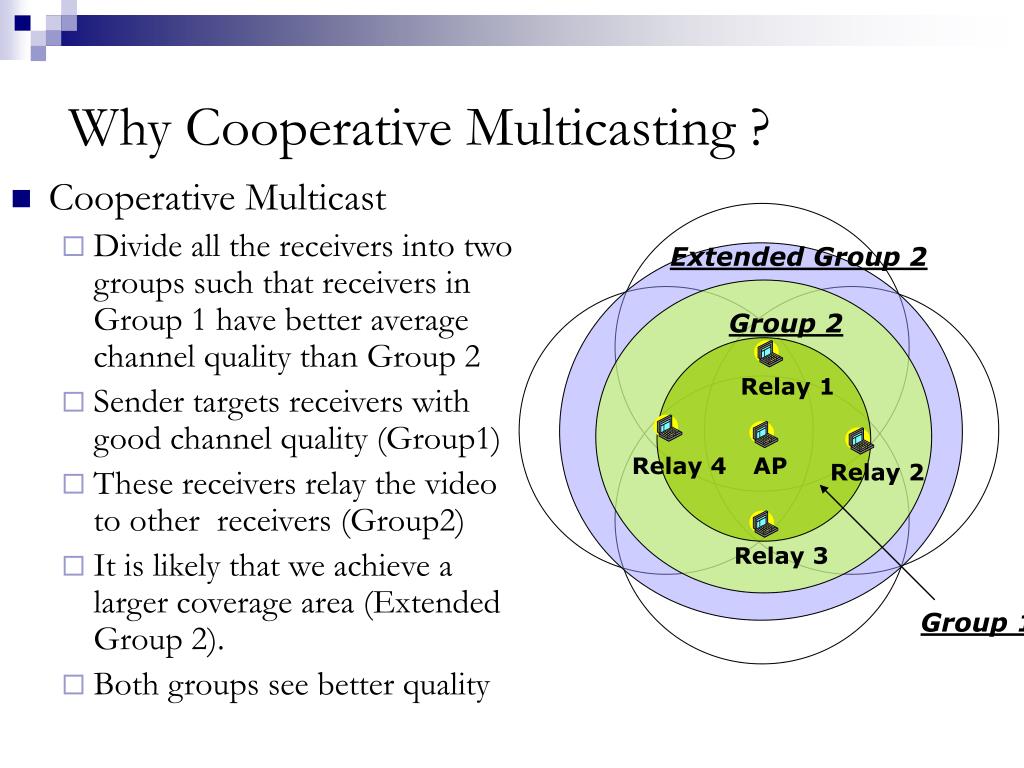

  5. Extended Group 2 Group 2 Relay 1 Relay 4 AP Relay 2 Relay 3 Group 1 Why Cooperative Multicasting ? • Cooperative Multicast • Divide all the receivers into two groups such that receivers in Group 1 have better average channel quality than Group 2 • Sender targets receivers with good channel quality (Group1) • These receivers relay the video to other receivers (Group2) • It is likely that we achieve a larger coverage area (Extended Group 2). • Both groups see better quality

  6. Received Video Rates T T1 T2 T2

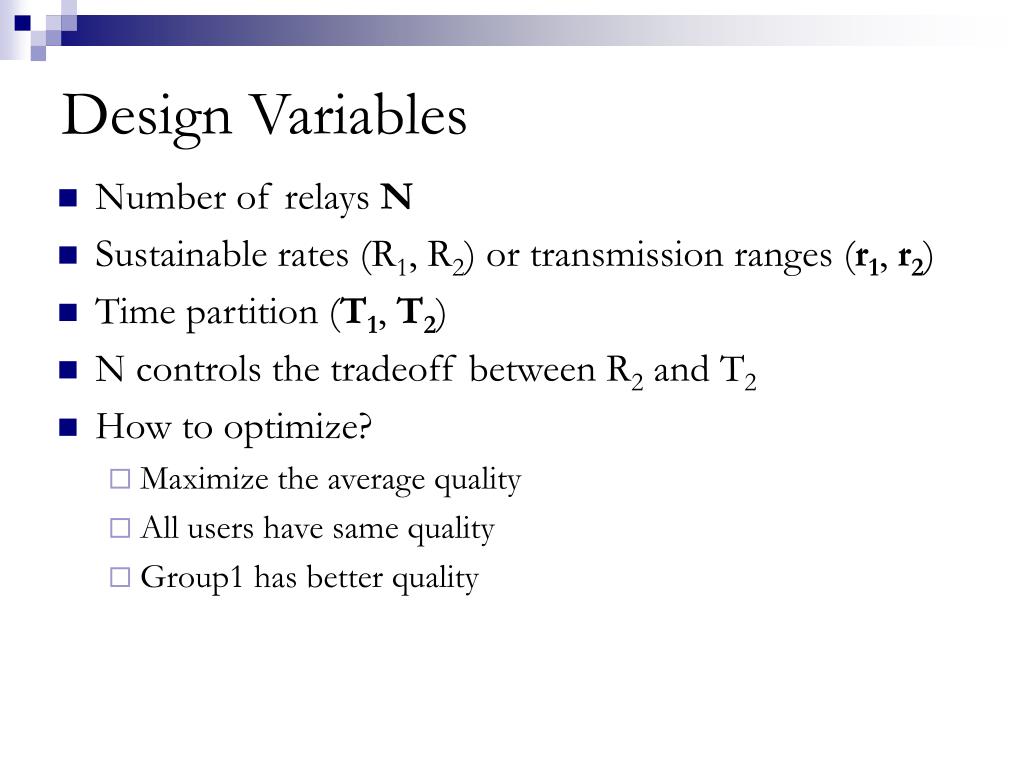

  7. Design Variables • Number of relays N • Sustainable rates (R1, R2) or transmission ranges (r1, r2) • Time partition (T1, T2) • N controls the tradeoff between R2 and T2 • How to optimize? • Maximize the average quality • All users have same quality • Group1 has better quality

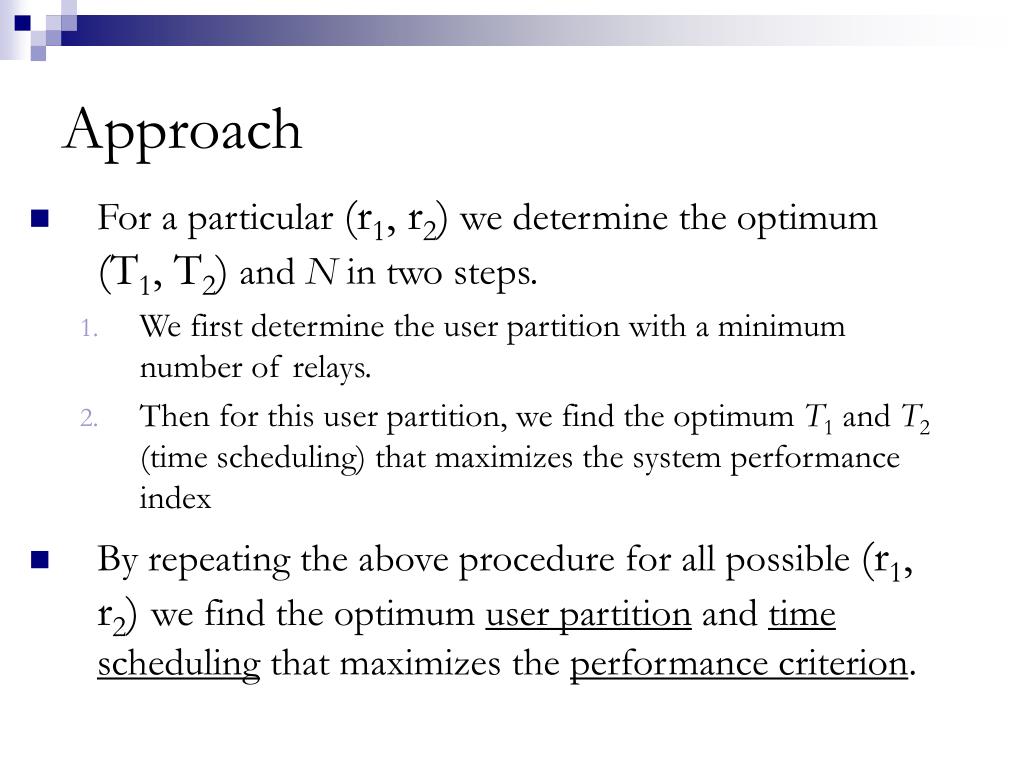

  8. Approach • For a particular (r1, r2) we determine the optimum (T1, T2) and N in two steps. • We first determine the user partition with a minimum number of relays. • Then for this user partition, we find the optimum T1 and T2 (time scheduling) that maximizes the system performance index • By repeating the above procedure for all possible (r1, r2) we find the optimum user partition and time scheduling that maximizes the performance criterion.

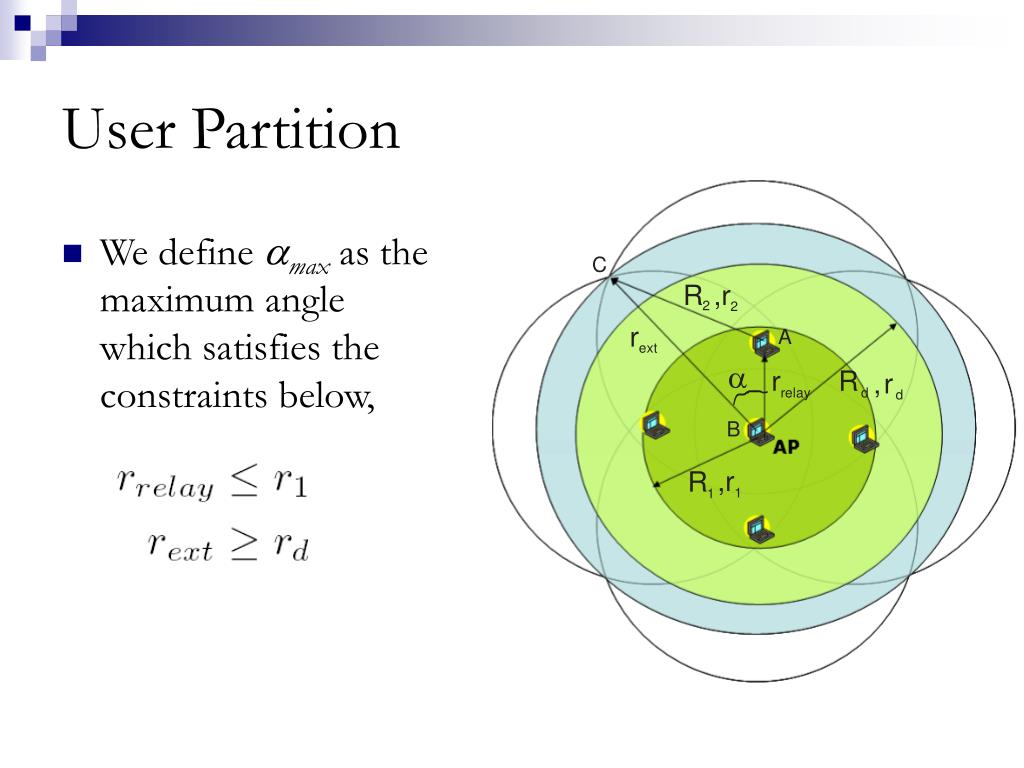

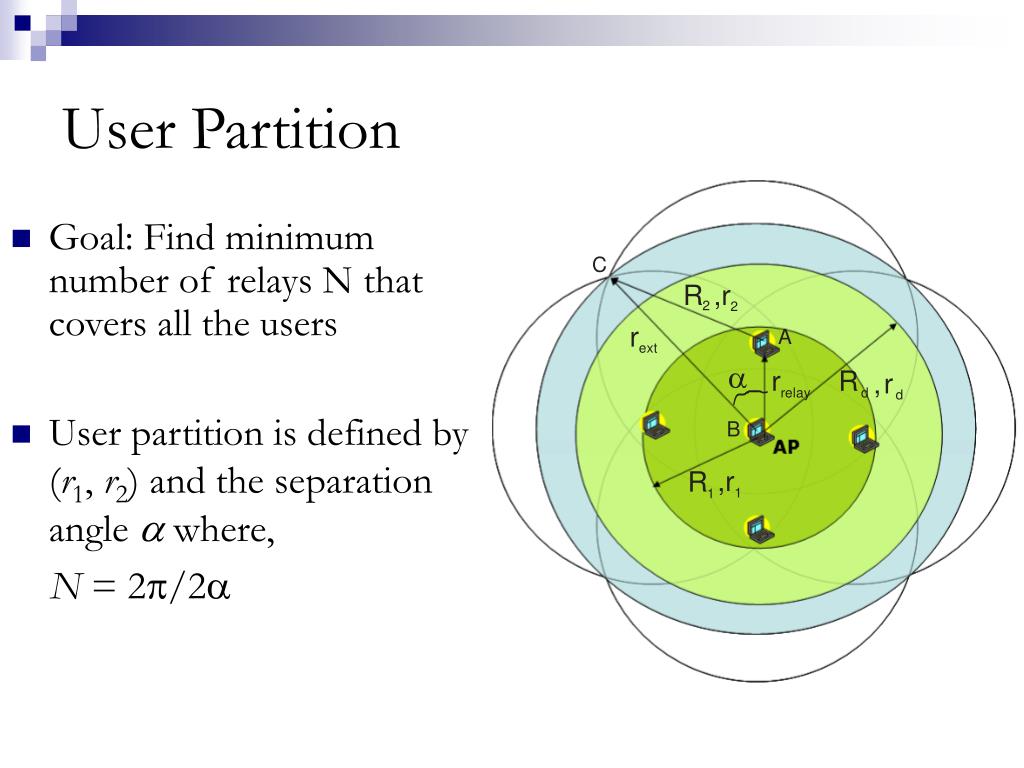

  9. User Partition • Goal: Find minimum number of relays N that covers all the users • User partition is defined by (r1, r2) and the separation angle awhere, N = 2p/2a

  10. User Partition • We define amaxas the maximum angle which satisfies the constraints below,

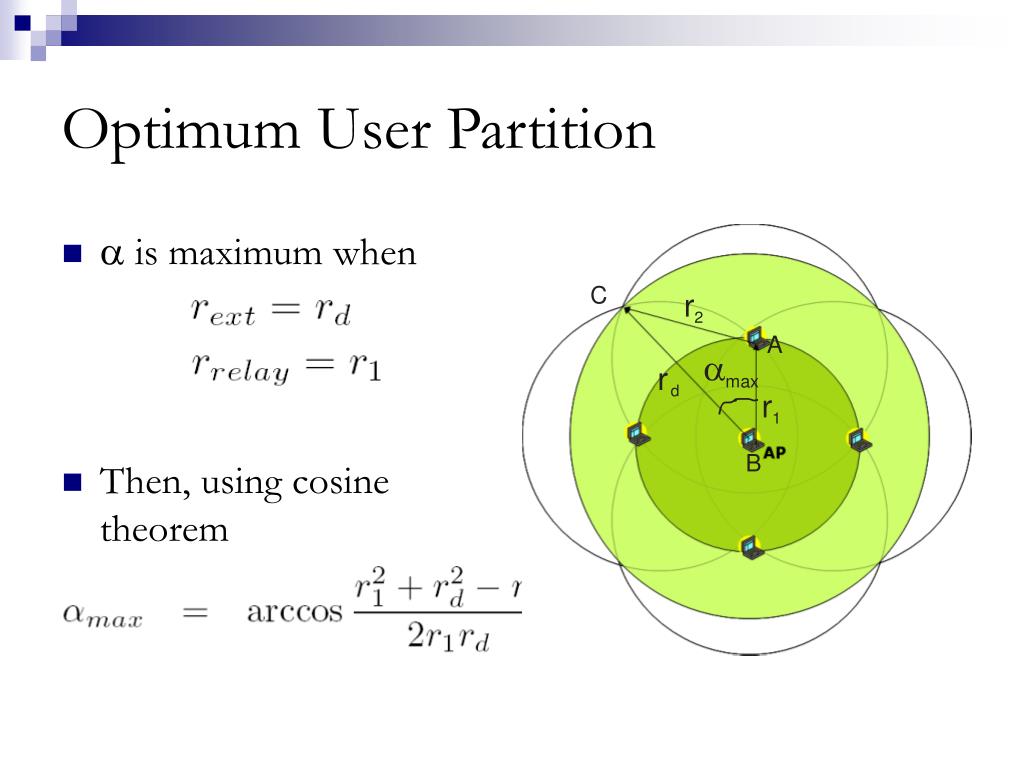

  11. Optimum User Partition • a is maximum when • Then, using cosine theorem

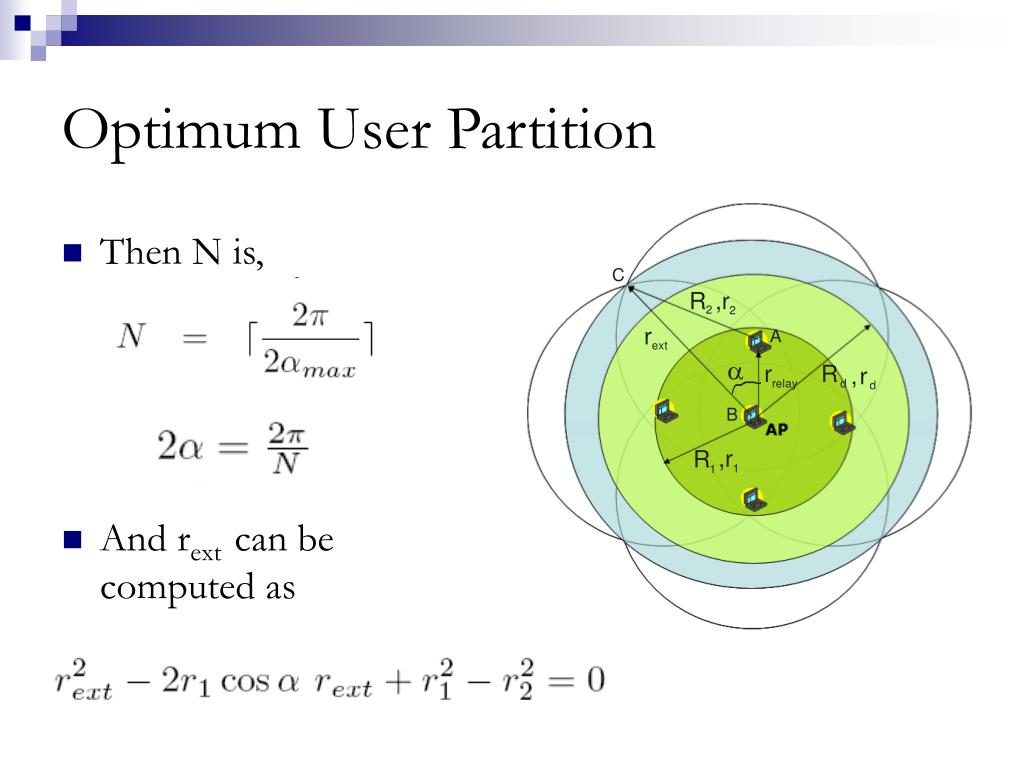

  12. Optimum User Partition • Then N is, • And rext can be computed as

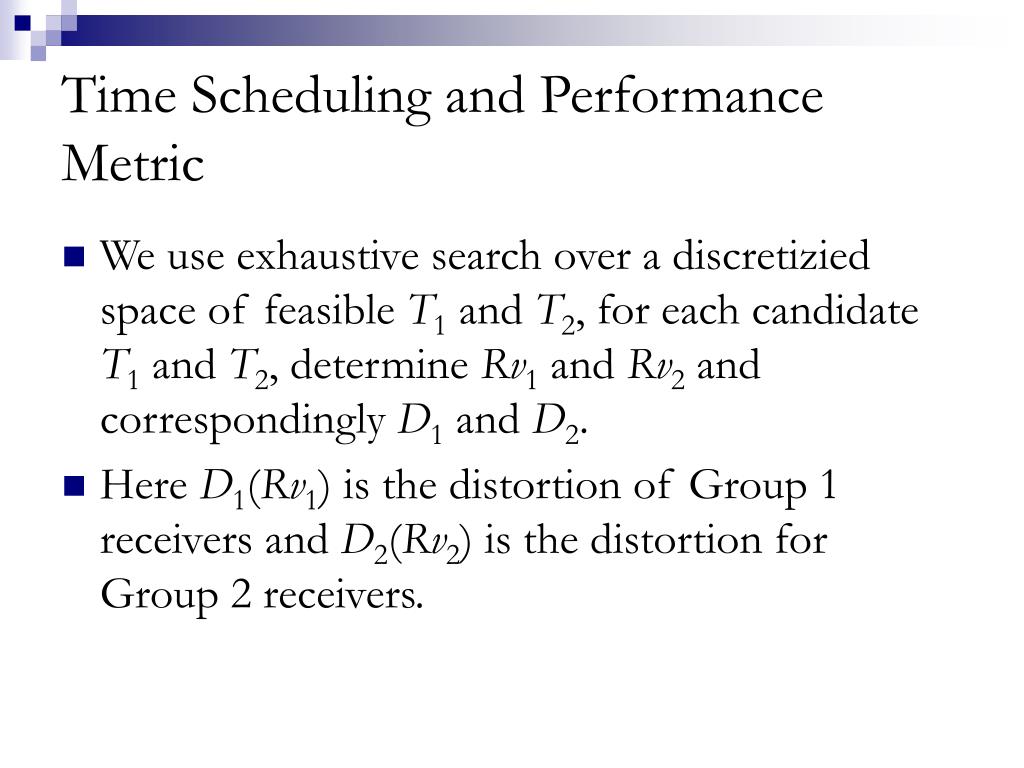

  13. Time Scheduling and Performance Metric • We use exhaustive search over a discretizied space of feasible T1 and T2, for each candidate T1 and T2, determine Rv1 and Rv2 and correspondingly D1 and D2. • Here D1(Rv1) is the distortion of Group 1 receivers and D2(Rv2) is the distortion for Group 2 receivers.

  14. Minimum Average Distortion • N1 and N2 are the number of users in Group 1 and Group 2, respectively.

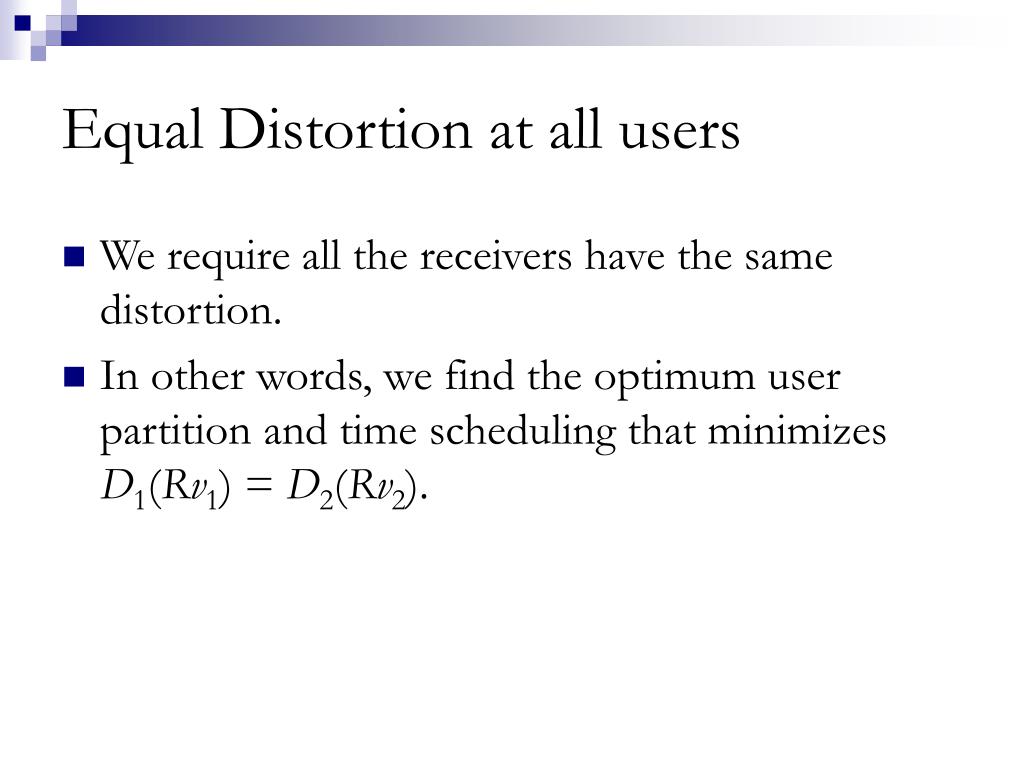

  15. Equal Distortion at all users • We require all the receivers have the same distortion. • In other words, we find the optimum user partition and time scheduling that minimizes D1(Rv1) = D2(Rv2).

  16. Best Quality at Group 1 users • Considering that relays are spending their own resources to help others, • We find the optimum user partition and time scheduling that minimizes D1(Rv1) while guaranteeing Rv2 = bRd

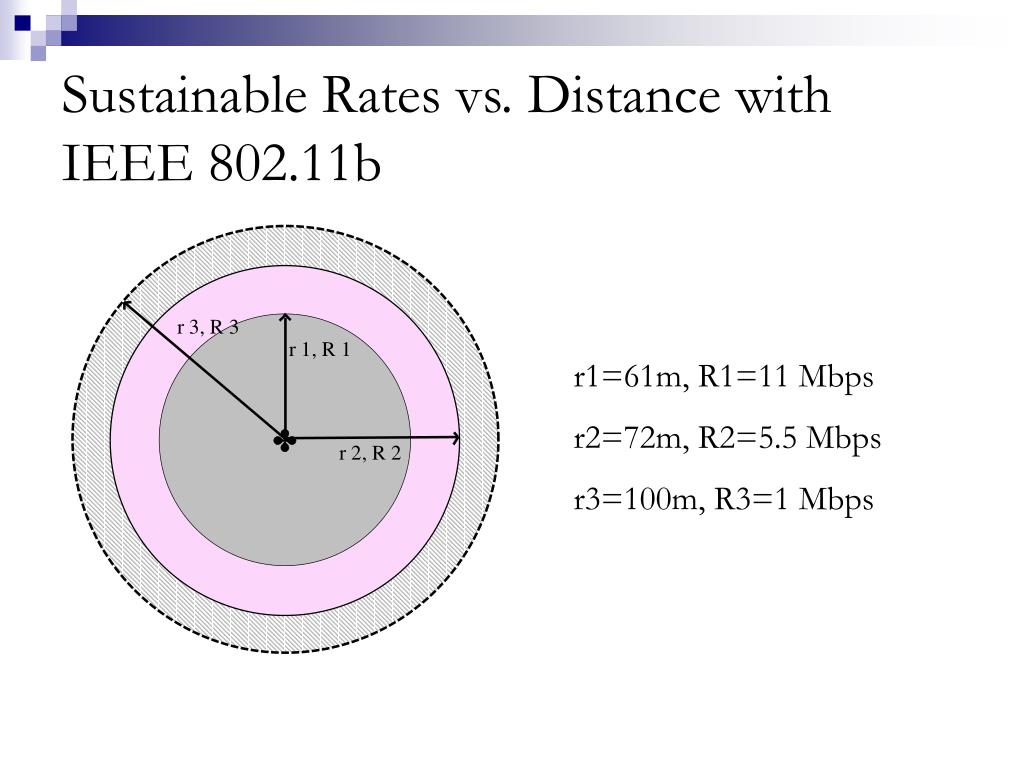

  17. Sustainable Rates vs. Distance with IEEE 802.11b r1=61m, R1=11 Mbps r2=72m, R2=5.5 Mbps r3=100m, R3=1 Mbps

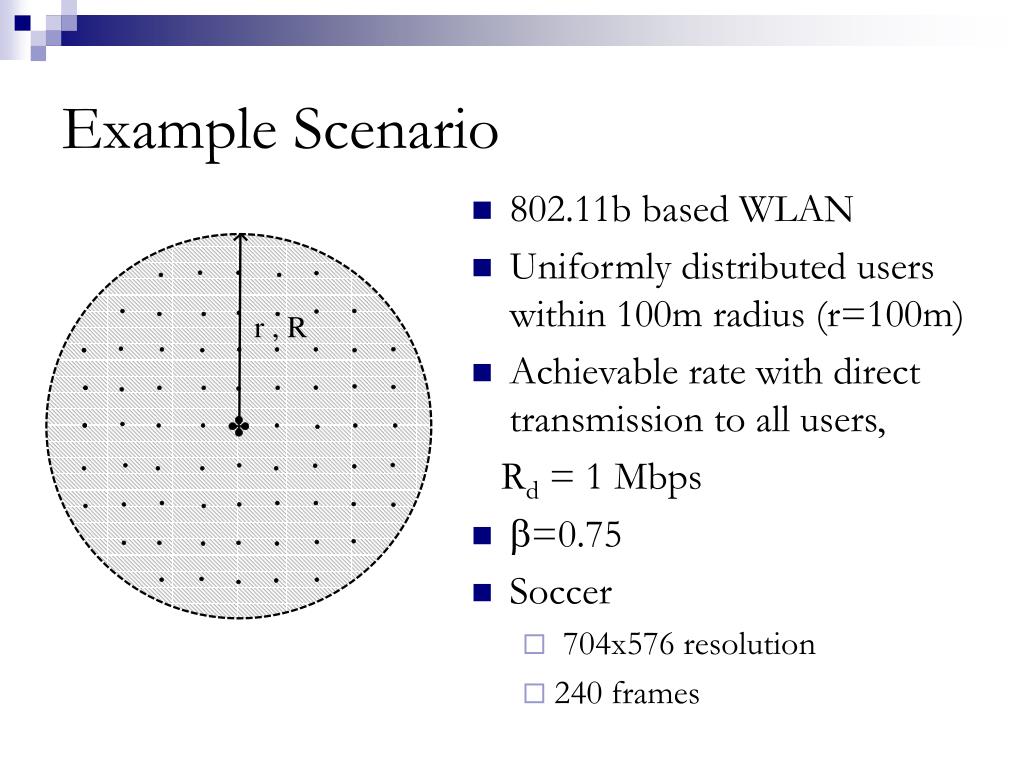

  18. Example Scenario • 802.11b based WLAN • Uniformly distributed users within 100m radius (r=100m) • Achievable rate with direct transmission to all users, Rd = 1 Mbps • b=0.75 • Soccer • 704x576 resolution • 240 frames

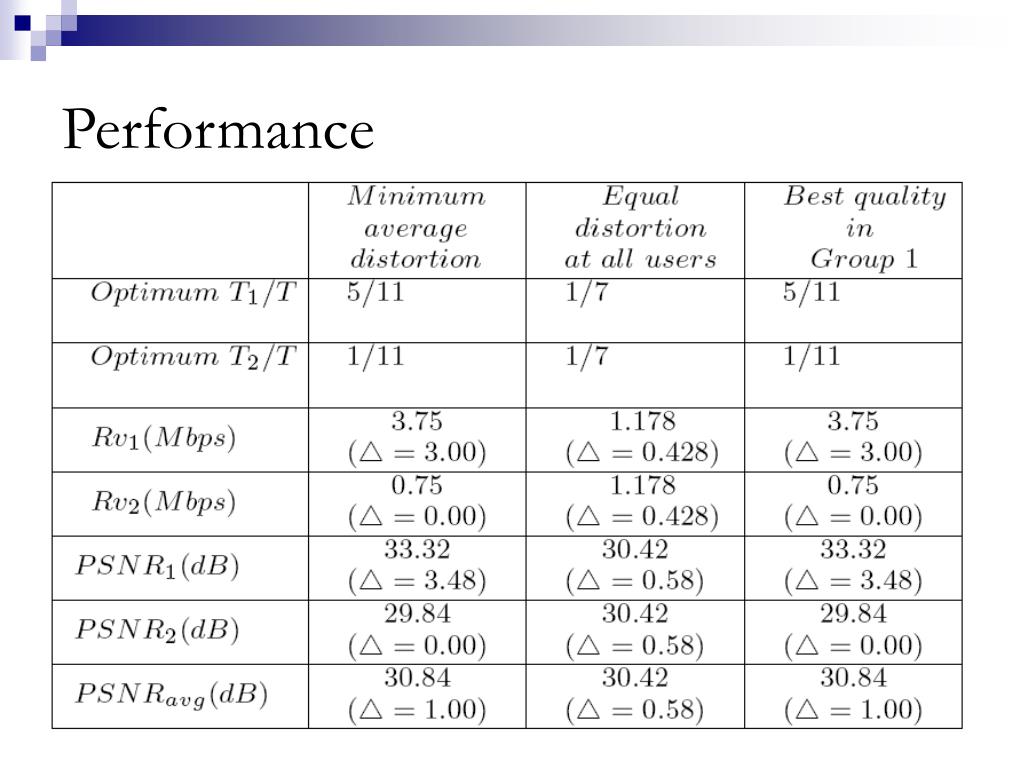

  19. Performance

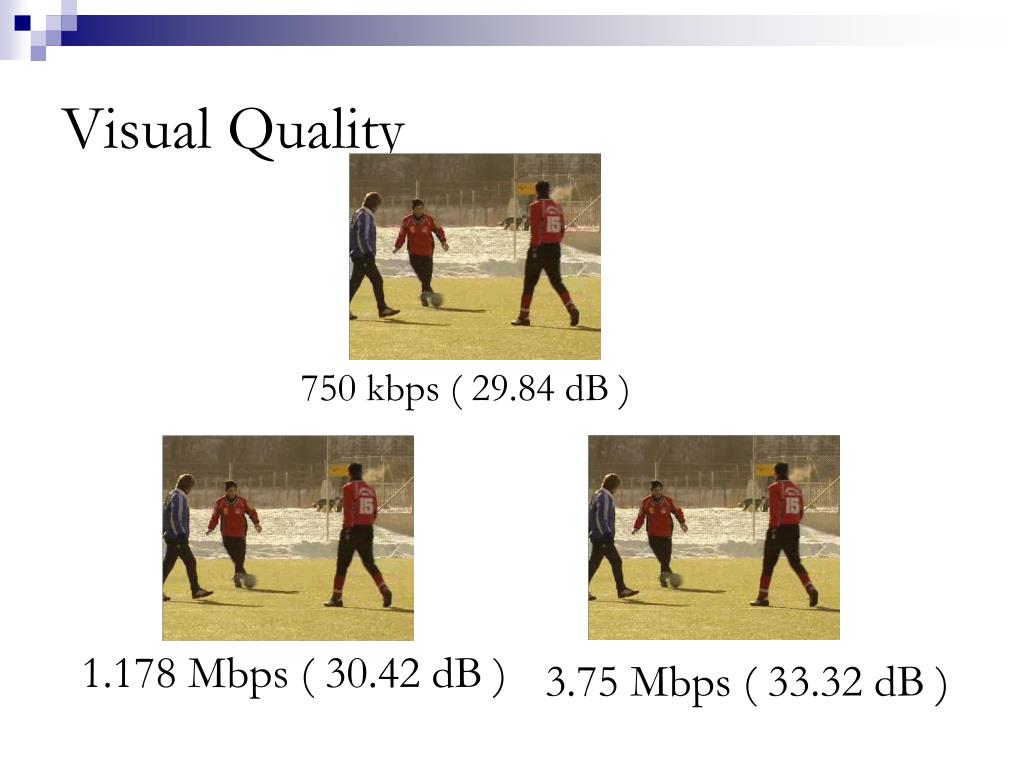

  20. Visual Quality 750 kbps ( 29.84 dB ) 1.178 Mbps ( 30.42 dB ) 3.75 Mbps ( 33.32 dB )

  21. Conclusion • User cooperation can improve the quality of service in video multicast • Equal quality at all users • Better quality at selected users • All better than direct transmission • Optimization of relay selection, user partition, and transmission scheduling depends on the chosen multicast performance criterion
