Autonomous tracking system ats

Autonomous Tracking System (ATS)

EDSGN 100, Section 002, Group 8

Pat Vander Neut, Cris Henderson, Dan Weinman, Allen Black, Christian Dorflinger


The problem

The Problem

  • Difficulty spotting hazardous objects and obstacles in Military convoys (blackout conditions)

  • Sensor system capable of:

    • Detecting position, distance, and formation of convoy

    • Detecting hazards in route and notifying drivers

The Need


Mission

Mission

  • Detect hazards

  • Notify drivers of road conditions

  • Allow time to react

  • Maintain formation of convoy

  • Efficiency

  • Durability

  • Accuracy


Sensor placement matrix

Sensor Placement Matrix


Sensor placement matrix weighted

Sensor Placement Matrix (weighted)


Sensor type matrix

Sensor Type Matrix


Sensor type matrix weighted

Sensor Type Matrix (weighted)


Aesa sensors

AESA Sensors

  • Active Electronically Scanned Array

  • New, developed for Air Force and naval Use

  • Innovations in:

    • detection

    • targeting

    • tracking

    • self-protection capabilities


Advantages of aesa

Advantages of AESA

  • Detection through numerous small transmit/receive (T/R) modules

  • Short to instantaneous (millisecond) scanning rates

  • Low probability of intercept

  • Several Detection modes- allows detection of Specific objects/surfaces

  • Energy efficient


Autonomous tracking system ats

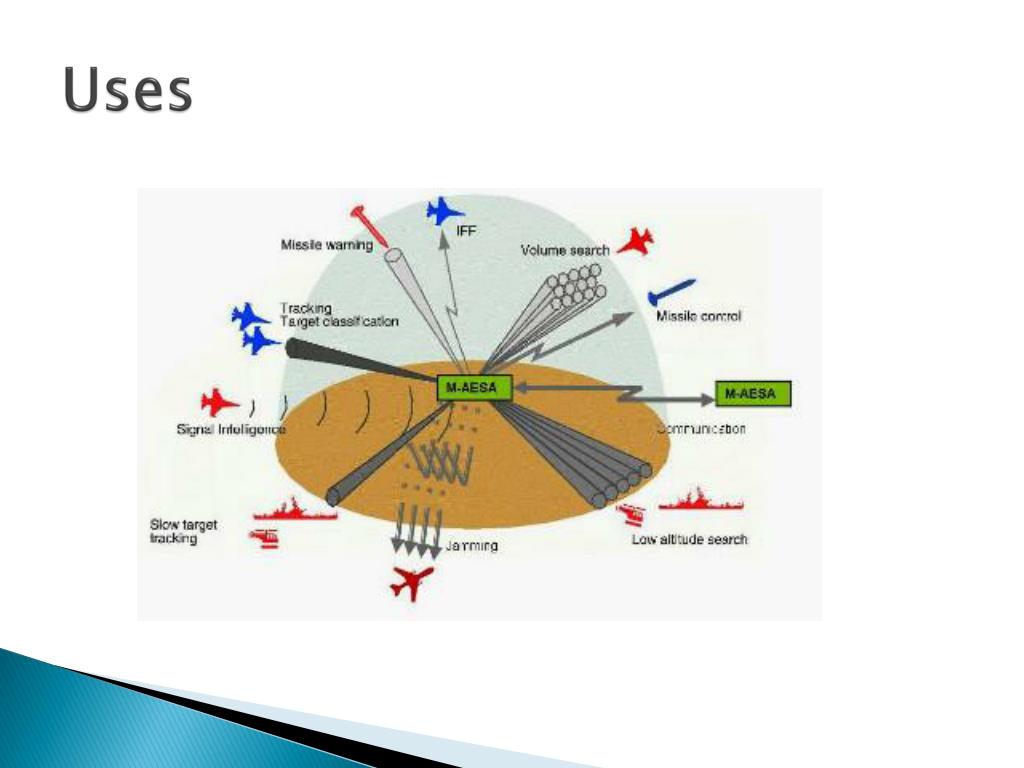

Uses


Maintaining formation

Maintaining Formation

  • Identification Friend or Foe (IFF) system

  • IR emitters tuned to night-vision wavelengths

  • Can only be detected using same wavelength

  • Determines position of Humvees in convoy

  • Range: up to 8km


Driver notification

Driver Notification

  • Interactive notification screen

  • Voice warnings

  • Flash warnings

  • User-friendly monitor

  • Keep track of:

    • Position

    • Hazards

    • Speed

    • Direction


Autonomous tracking system ats

25.0m

+1.50km/h

Lead Humvee

50.0km/h

0.0km/h

25.0km/h


Humvee sensor setup

Humvee Sensor Setup


Ied detection

IED Detection


The convoy

The Convoy


The end

The End

  • Thank You For Listening

  • Special Thanks To:

    • Xinli Wu

    • BAE Systems

  • And yes, it is dumpling maker compatible


Autonomous tracking system ats

DMS

Dumpling Maker System (DMS)


  • Login
