D esign o f h igh p erformance c oncrete hpc m ixture i n a gressige e nvironment l.jpg

DESIGN OF HIGH PERFORMANCE CONCRETE (HPC) MIXTURE IN AGRESSIGE ENVIRONMENT

United Arab Emirates University College of EngineeringCivil and Environmental Engineering DepartmentGraduation Project II

Prepared by:

SaeedKhamis Al Haddadi200203853

Nayel Rashid Al Shamsi200216968

MansourMohd Al Shebli200204979

SaeedNahyan Al Ameri 200204458

MuathMohd Al Mazrooei200205340

Adviser’s name:

Dr. Amr S. El Dieb

2st Semester 2007/2008


Outlines l.jpg

Outlines…

Introduction

Objective

Mix Design Methods

Experiment and Testing

Gant Chart


Slide3 l.jpg

  • Introduction…

  • HPC is defined as concrete which meets special performance and uniformity requirements that cannot always be achieved by using only the conventional materials

  • Concrete is composed principally of aggregates, Portland cements, water, and may contain other cementations materials and/or chemical admixtures.


Slide4 l.jpg

  • Introduction…

  • The selection of concrete proportions involves a balance between economy and requirements for place ability, strength, durability, and density (i.e. its performance).

  • HPC is characterized by its high performance in any of its properties or characteristics

  • Usually the term HPC is used to define high durable concrete (i.e. concrete characterized by high durability)


Slide5 l.jpg

Impact

Concrete

Environment

Impact

Concrete

Environment

Resistance

Deterioration

Durable Concrete

(HPC)

  • Introduction…

  • The required durability characteristics are governed by the application of concrete and by conditions expected to be encountered at the time of placement. These characteristics should be listed in the job specifications.


Objective l.jpg

Objective…

  • The effect of different SCM with various dosages on HPC mixes will be evaluated for various aggressive environments.

  • Different concrete mix design methods will be implemented and compared to design HPC mixes.

  • Control concrete mix will be designed having a compressive strength of 40 to 50 MPa, slump between 100 – 120 mm and the cement content is 350 kg/m3.


Mix design methods l.jpg

Mix Design Methods…

  • There are two well known mix design methods implemented by various codes :

  • BS 8328 mix design method.

  • ACI 211.1-91 mix design method.


Mix design criteria l.jpg

Mix Design Criteria

  • To perform a concrete mix design several criteria (i.e inputs) are needed together with the properties of the used materials

  • The criteria needed includes:

    • Required strength

    • Required slump

    • Minimum cement content

  • Properties of available or used materials; investigated in GPI


Bs method l.jpg

BS Method

Approximate compressive strength (N/mm2) of concrete mixes made with a free water/cement ratio 0.5


Bs method10 l.jpg

BS Method..

Relationship between compressive strength and free water-/cement ratio

From this graph w/c ratio is determined for the required strength

47

0.47


Bs method11 l.jpg

BS Method

Approximate free water content (Kg/m3) required to give various levels of workability.

Slump is adjusted by admixture dosage


Bs method12 l.jpg

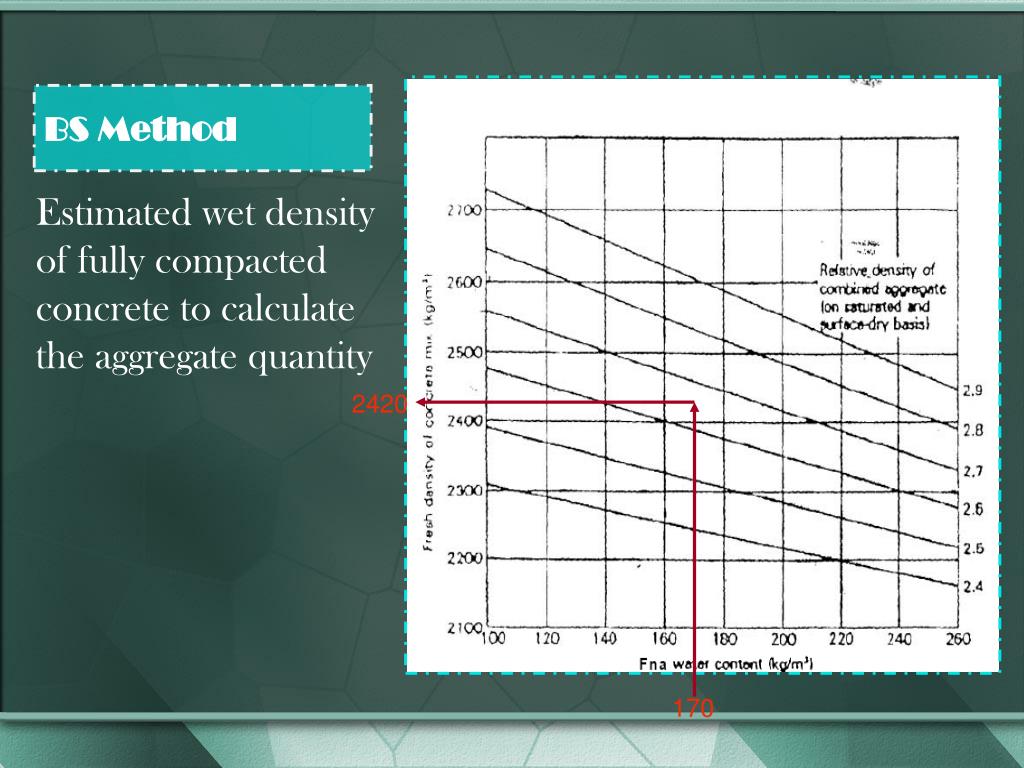

BS Method

Estimated wet density of fully compacted concrete to calculate the aggregate quantity

2420

170


Bs method13 l.jpg

BS Method

Determines the mixing ratio of fine and coarse aggregates depending on the grading zone of the fine aggregate (1,2,3 &4)


Bs method14 l.jpg

BS Method…

35%


Aci method l.jpg

ACI Method…

Relationship between water-cement or water- cementations

materials ratio and compressive strength of concrete


Aci method16 l.jpg

ACI Method…

Approximate mixing water and air content requirements for different slumps and nominal maximum sizes of aggregates


Aci method17 l.jpg

ACI Method

Volume of coarse aggregate per unit of volume of concrete


Discussion l.jpg

Discussion

  • After we used two methods we found ACI method is not appropriate to design our control mix because the maximum strength we can design using this method is 34 MPa and it is using cylinder not cube so BS method is used.

  • Also there isn’t any mix design method which considers the incorporation of supplementary materials such as Slag and Silica fume.

  • Typical concrete mix used in the country is designed using material investigated in GPI.


Slide19 l.jpg

Criteria for mix design

  • Parameters:

    • Silica fume

    • Slag

    • Combination of silica fume and slag

  • Many ready mix company in my country used silica fume in range of 8% and slag in range of 40% to 60% of cement content.

  • We will use 5% , 8%, and 15% of silica fume to make comparison between it.

  • Also we will used 25%,40% and 60% of slag to compare between it.

  • In addition, we will study the ternary blends ( silica fume and slag ).


  • Slide20 l.jpg

    Criteria for mix design

    Strength 40-50 MPa

    Slump 100- 120 mm“ controlled by admixture

    C.C. at least 350 kg/m3

    Mix Proportions/ m3

    Batch Quantities


    Expermint and testing l.jpg

    EXPERMINT AND TESTING


    Slide23 l.jpg

    Introduction

    SCM

    • SCM usually works in two ways:

    • As microfilling materials i.e. physical effect (in early stages)

    • Pozzolanic materials (in late stages)

    Microfilling Effect (Physical effect)


    Pozzolanic reaction l.jpg

    Pozzolanic Reaction

    SCM in finely divided form provides a source of reactive silica that in the presence of moisture will combine with CH to form C-S-H and other cementing.

    Typically slow down hydration, but significantly improve durability and long-term strength

    Introduction


    Pozzolanic reaction25 l.jpg

    Pozzolanic Reaction

    2C3S + 6H  C-S-H + 3CH

    2C2S + 4H  C-S-H + CH

    CH + SCM + H  C-S-H

    Introduction


    Hydration of c 3 s c 2 s l.jpg

    Hydration of C3S & C2S

    Introduction

    CH

    C-S-H


    Slide27 l.jpg

    SCM Material

    Silica Fume

    Result of the reduction of high-purity quartz with coal in an electric arc furnace in the manufacture of silicon or ferrosilicon alloy.

    Have large surface area


    Slide28 l.jpg

    Slag

    Made from iron blast-furnace slag.

    It is a non-metallic hydraulic cement consisting essentially of silicates and alumino-silicates of calcium.

    SCM Material


    Slide29 l.jpg

    Mixes

    Batch Quantities


    Slide30 l.jpg

    Lab strategy

    Batching Strategy

    Table 4.2.1


    Slide31 l.jpg

    Lab strategy

    • Testing Strategy

    Table 4.2.2


    Slide32 l.jpg

    Laboratory


    Slide33 l.jpg

    Laboratory


    Slide34 l.jpg

    Laboratory


    Slide35 l.jpg

    Laboratory


    Slide36 l.jpg

    Laboratory


    Slide37 l.jpg

    Testing

    We did four type of tests which are:

    • Compressive Strength (Cube Test):

      • Normal compressive strength

      • Compressive Strength in Sulfate Solution

    • Tensile Strength.

    • Sorptivity Test.

    • Resistivity Test


    Slide38 l.jpg

    Normal compressive strength

    Compressive Strength

    10 cm

    10 cm

    10 cm


    Slide39 l.jpg

    Normal compressive strength

    Figure 5.4: Compressive strength at 7, 28 and 56 days for different dosage of silica fume


    Slide40 l.jpg

    Normal compressive strength

    Figure 5.5: Compressive strength at 7, 28 and 56 days for mixes with different dosage of slag


    Slide41 l.jpg

    Normal compressive strength

    Figure 5.6: Compressive strength at 7, 28 and 56 days for mixes combination with slag and silica fume in different dosage.


    Slide42 l.jpg

    Compressive strength in sulfate solution

    100 Liter with 5% NaSO4

    Water heater


    Slide43 l.jpg

    Compressive strength in sulfate solution


    Silica fume effect l.jpg

    Compressive strength in sulfate solution

    Silica fume effect:

    Table 5.3.1.1: Test results for different percentage of SF


    Slide45 l.jpg

    Compressive strength in sulfate solution

    Silica fume effect:

    Figure 5.7: Effect of sulfate solution on cube strength in ambient temperature for mixes with different SF dosage


    Slide46 l.jpg

    Compressive strength in sulfate solution

    Silica fume effect:

    Figure 5.8: Effect of high temperature sulfate solution on cube strength for mixes with different dosage of SF


    Slide47 l.jpg

    Compressive strength in sulfate solution

    Silica fume effect:

    Table 5.3.1.2: Reduction in strength at different immersion periods for different percentages of Silica Fume


    Slide48 l.jpg

    Compressive strength in sulfate solution

    Silica fume effect:

    Figure 5.9:

    Difference in strength between hot results and ambient for differ percentages of SF in sulfate solution


    Slide49 l.jpg

    Compressive strength in sulfate solution

    Slag effect:

    Table 5.3.2.1: Test results for different percentage of Slag


    Slide50 l.jpg

    Compressive strength in sulfate solution

    Slag effect:

    Figure 5.10: Effect of ambient temperature sulfate exposure on mixes with different Slag contents


    Slide51 l.jpg

    Compressive strength in sulfate solution

    Slag effect:

    Figure 5.11: Effect of high temperature sulfate exposure on mixes with different Slag contents


    Slide52 l.jpg

    Compressive strength in sulfate solution

    Slag effect:

    Table 5.3.2.2: Reduction in compressive strength for slag mixes in sulfate solution


    Slide53 l.jpg

    Compressive strength in sulfate solution

    Slag effect:

    Figure 5.12: Difference in strength between hot results and ambient for differ percentages of Slag in sulfate solution


    Slide54 l.jpg

    Compressive strength in sulfate solution

    Combined slag & silica fume:

    Table 5.3.3.1: Test results for different percentage of Slag and Silica Fume


    Slide55 l.jpg

    Compressive strength in sulfate solution

    Combined slag & silica fume:

    Figure 5.13: Effect of high temperature sulfate exposure on mixes with combined slag and silica fume with different contents


    Slide56 l.jpg

    Compressive strength in sulfate solution

    Combined slag & silica fume:

    Figure 5.14: Effect of ambient temperature sulfate exposure on mixes with different Slag and Silica Fume contents


    Slide57 l.jpg

    Compressive strength in sulfate solution

    Combined slag & silica fume:

    Table 5.3.3.2: Reduction in compressive strength for combined slag and silica fume mixes in sulfate solution.


    Slide58 l.jpg

    Compressive strength in sulfate solution

    Combined slag & silica fume:

    Figure 5.15: Difference in strength between hot results and ambient for differ percentages of Slag and Silica Fume in sulfate solution


    Slide59 l.jpg

    Compressive strength in sulfate solution

    Strength Reduction:

    Table 5.3.4.1: Reduction in compressive strength for combined slag and silica fume mixes in sulfate solution


    Slide60 l.jpg

    Compressive strength in sulfate solution

    Strength Reduction:

    Figure 16: Strength reduction at 56 age


    Slide61 l.jpg

    2*Failure Load (N)

    π*200*100

    Ft =

    Tensile strength

    Splitting tensile Strength

    10 cm

    20 cm


    Slide62 l.jpg

    Tensile strength

    Table 5.4.1: Test results at 7 & 28 days of age


    Slide63 l.jpg

    Tensile strength

    Figure 5.18: Splitting tensile strength for silica fume mixes.


    Slide64 l.jpg

    Tensile strength

    Figure 5.19: Splitting tensile strength for slag mixes.


    Slide65 l.jpg

    Tensile strength

    Figure 5.20:

    Splitting tensile strength for combine slag & silica fume mixes.


    Slide66 l.jpg

    Sorptivity test

    ASTM C 1585; Sorptivity Test

    This test is based on the Hall’s theory and adopted in ASTM recently

    Require a concrete disc of at least 300gm weight

    Concrete specimens are oven dried

    The specimen’s sides are sealed using any sealant

    One surface of the specimen is exposed to water and the change in weight with time is measured (at least 5 measurements) over 30 minutes period

    Plot the graph between penetration depth (i) and square root of time (time1/2) to calculate Sorptivity


    Slide67 l.jpg

    Surface sealant

    (electrical vinyl tape)

    Container

    Water

    Concrete

    Specimen

    Circular support

    Sorptivity test


    Slide68 l.jpg

    Sorptivity test


    Slide69 l.jpg

    Constant

    Exposure time (min)

    Penetration depth (mm)

    Rate of Absorption

    i.e. Sorptivity (mm/min1/2)

    Sorptivity test

    • One dimensional flow through partially saturated concrete can be expressed using Hall’s expression


    Slide70 l.jpg

    i

    Slope = Sorptivity (S) mm/min1/2

    Constant = A

    Time1/2

    Sorptivity test

    Change in specimen weight (gm)

    Cross sectional area (mm2)

    Water density (gm/mm3)


    Slide71 l.jpg

    Sorptivity test

    Specimen Location and Code = C1-1

    Specimen Diameter (mm) = 100 mm


    Slide72 l.jpg

    Sorptivity test

    Table 5.1.1: Average Sorptivity test value at 28 and 56 days of age


    Slide73 l.jpg

    Sorptivity test

    Figure 5.1: Comparison of Sorptivity values between control mix and different dosage of silica fume.


    Slide74 l.jpg

    Sorptivity test

    Figure 5.2: Comparison of Sorptivity values between control mix and different dosage of Slag.


    Slide75 l.jpg

    Sorptivity test

    Figure 5.3: Comparison of Sorptivity values between control mix and different dosage of Slag and silica fume.


    Slide76 l.jpg

    Resistivity test

    • This test is based on the electrical conductivity of concrete.

    • electrolytic process that takes place by the movements of ions in the cement matrix.

    • This ionic movement will take place when contaminants such as chloride ions or carbon dioxide are introduced into the cement mortar matrix.

    • A highly permeable concrete will have a high conductivity and low electrical resistance.


    Slide77 l.jpg

    Resistivity test


    Slide78 l.jpg

    Resistivity test

    The concrete resistivity was considered to be a measure on how the concrete would protect the steel reinforcement against corrosion.

    Table 5.5.1: Resistivity Limits


    Slide79 l.jpg

    Resistivity test


    Slide80 l.jpg

    Resistivity test


    Slide81 l.jpg

    Resistivity test


    Slide82 l.jpg

    Conclusion


    Slide83 l.jpg

    Gant Chart


  • Login
