Vibrational Transitions

Vibrational Transitions. Simplest Case: Diatomic Molecule. Harmonic Oscillator Model: Two atoms connected by a spring. in Joules. in cm -1. v = vibrational quantum number (v = 0, 1, 2, …) n = classical vibrational frequency. k = force constant (related to the bond order).

leonard-klein
Download Presentation

Vibrational Transitions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

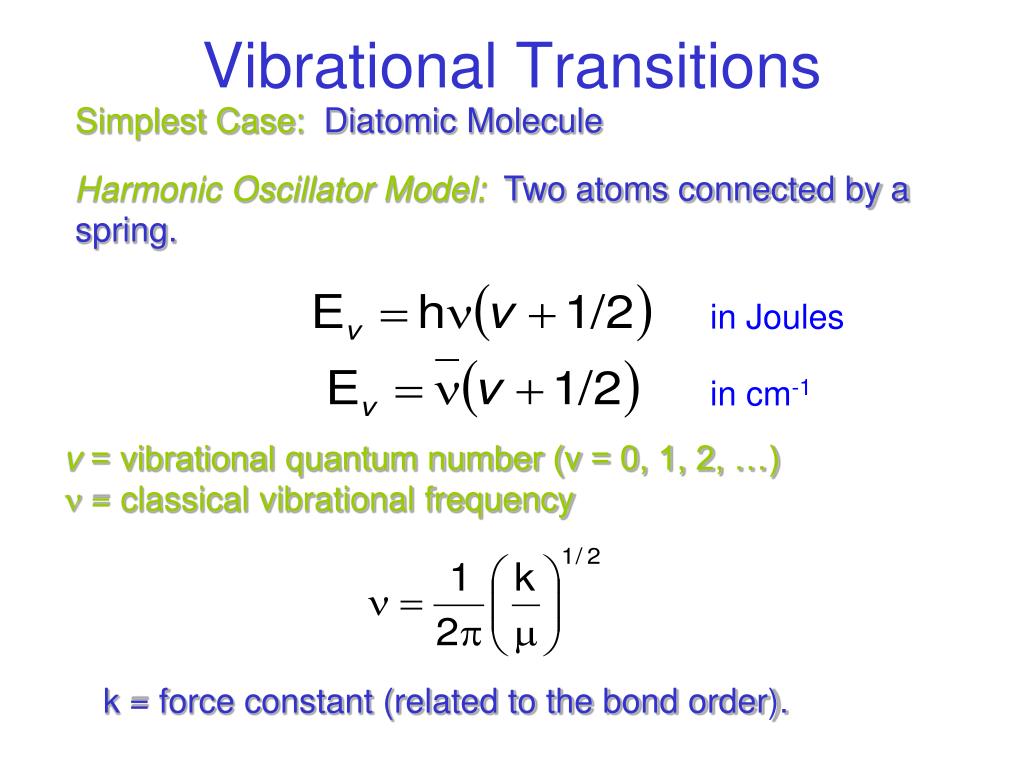

  1. Vibrational Transitions Simplest Case:Diatomic Molecule Harmonic Oscillator Model:Two atoms connected by a spring. in Joules in cm-1 v = vibrational quantum number (v = 0, 1, 2, …) n = classical vibrational frequency k = force constant (related to the bond order).

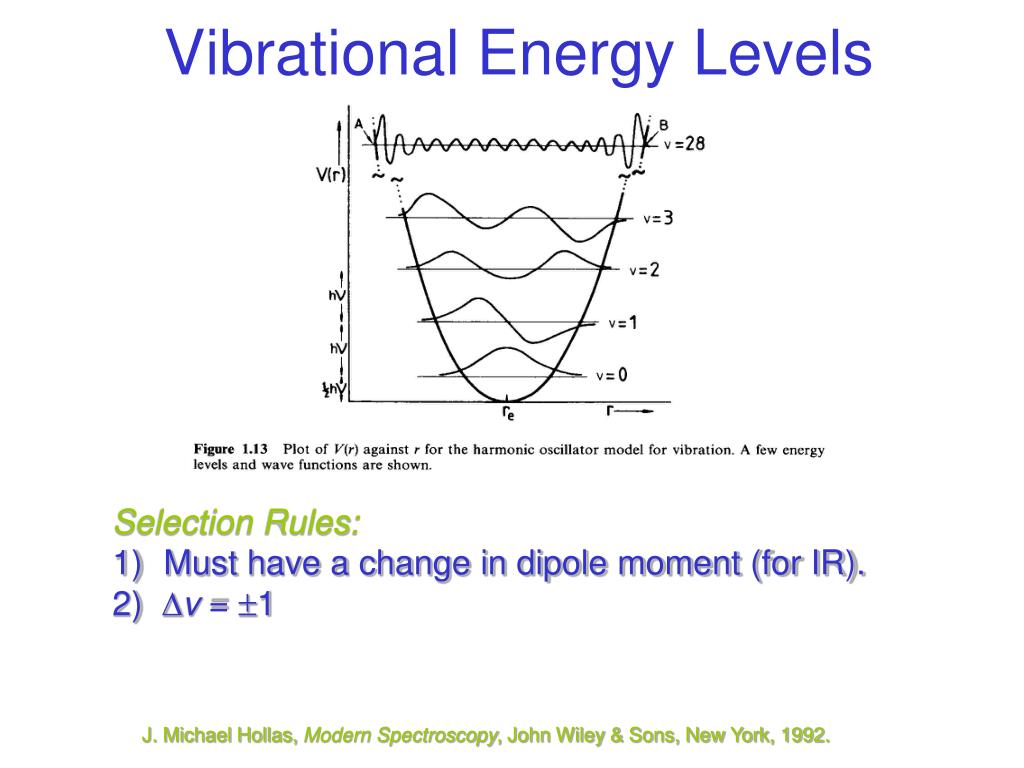

  2. Vibrational Energy Levels • Selection Rules: • Must have a change in dipole moment (for IR). • 2) Dv = 1 J. Michael Hollas, Modern Spectroscopy, John Wiley & Sons, New York, 1992.

  3. Anharmonicity Selection Rules: Dv = 1, 2, 3, … Dv = 2, 3, … are called overtones. Overtones are often weak because anharmonicity at low v is small. Ingle and Crouch, Spectrochemical Analysis

  4. Rotation – Vibration Transitions The rotational selection rule during a vibrational transition is: DJ = 1 Unless the molecule has an odd number of electrons (e.g. NO). Then, DJ = 0, 1 Bv signifies the dependence of B on vibrational level

  5. Rotation – Vibration Transitions If DJ = -1 P – Branch If DJ = 0 Q – Branch If DJ = +1 R – Branch Ingle and Crouch, Spectrochemical Analysis

  6. Rotation – Vibrational Spectra Why are the intensities different? J. Michael Hollas, Modern Spectroscopy, John Wiley & Sons, New York, 1992.

  7. Are you getting the concept? In an infrared absorption spectrum collected from a mixture of HCl and DCl, there are eight vibrational bands (with rotational structure) centered at the values listed below. Identify the cause (species and transition) for each band. Atomic masses H → 1.0079 amu D → 2.0136 amu 35Cl → 34.9689 amu 37Cl → 36.9659 amu

  8. Raman Spectra Selection Rule: DJ = 0, 2 J. Michael Hollas, Modern Spectroscopy, John Wiley & Sons, New York, 1992.

  9. Polyatomics If linear  (3N – 5) vibrational modes (N is the # of atoms) If non-linear  (3N – 6) vibrational modes Only those that have a change in dipole moment are seen in IR. http://jchemed.chem.wisc.edu/JCEWWW/Articles/WWW0001/index.html

  10. Linear Polyatomic How many vibrational bands do we expect to see? J. Michael Hollas, Modern Spectroscopy, John Wiley & Sons, New York, 1992.

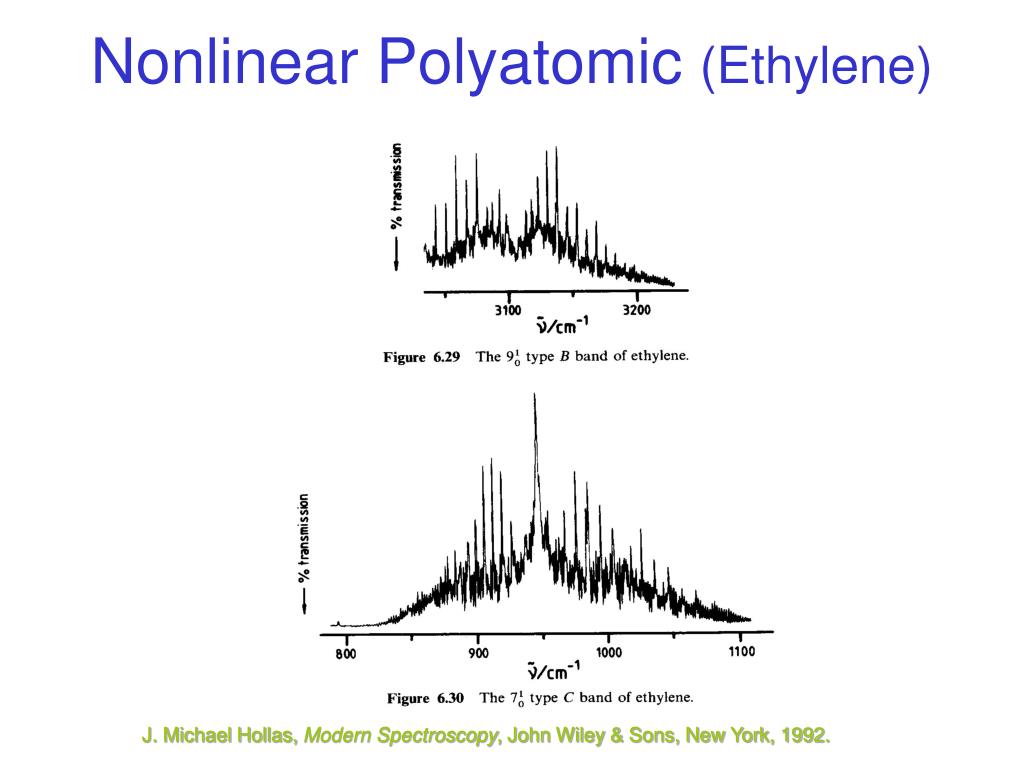

  11. Nonlinear Polyatomic (Ethylene) J. Michael Hollas, Modern Spectroscopy, John Wiley & Sons, New York, 1992.
