Aerodynamics. Project Olympus. Ballute Material. Ballute material is Kapton Filled with Helium Gas to Mars surface Pressure for landing and 100 Pa for Aerocapture Tethers are PBO. By Richard O’Connor. Mars Thermal Protection System (TPS). Low Heating Rates with Ballutes

leona
Download Presentation

Aerodynamics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

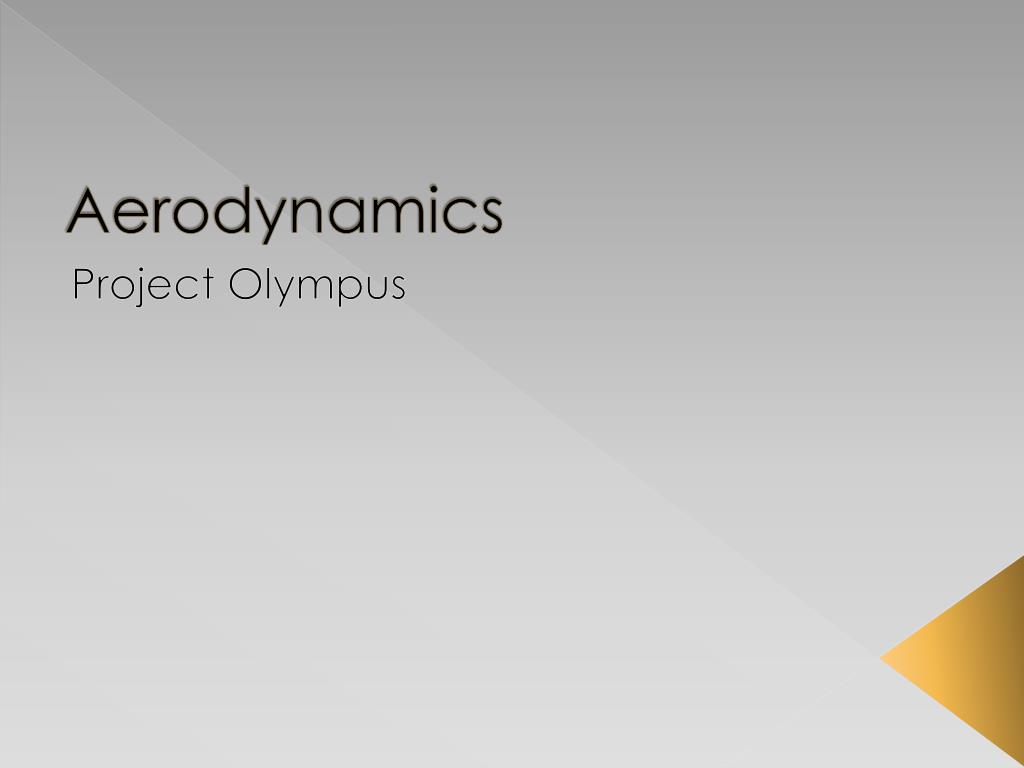

  1. Aerodynamics Project Olympus

  2. Ballute Material • Ballute material is Kapton • Filled with Helium Gas to Mars surface Pressure for landing and 100 Pa for Aerocapture • Tethers are PBO By Richard O’Connor

  3. Mars Thermal Protection System(TPS) • Low Heating Rates with Ballutes • Non-Ablators Carbon phenolic • If a Ballute is usable than this Heat shield will work

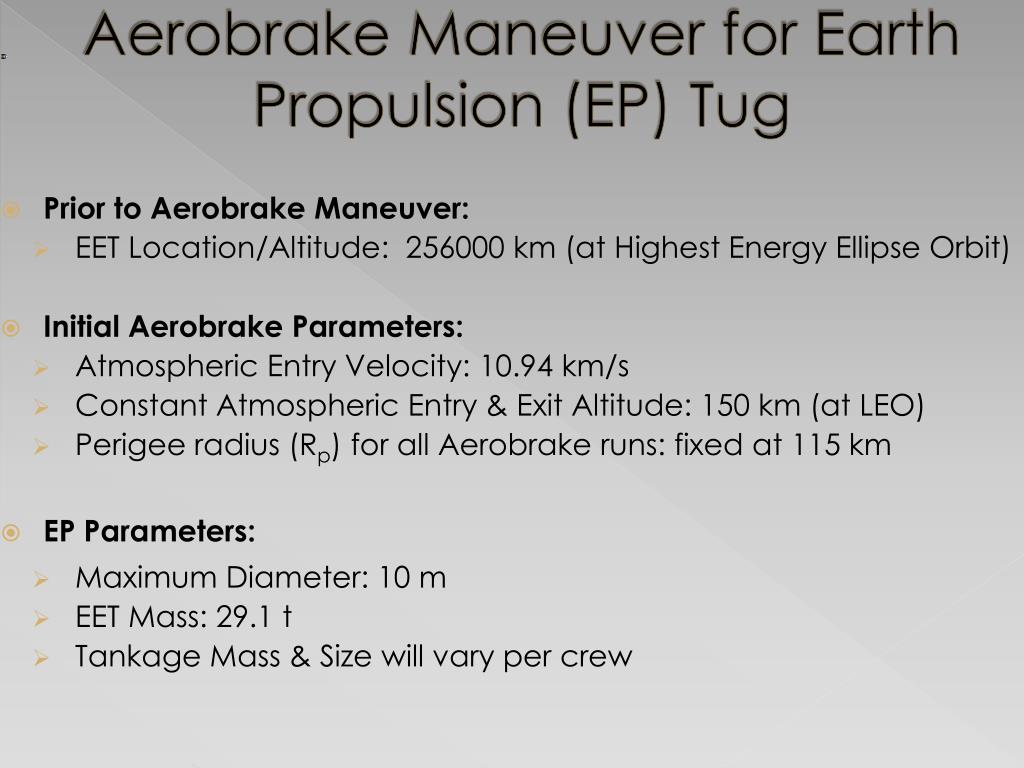

  4. Aerobrake Maneuver for Earth Propulsion (EP) Tug • Prior to Aerobrake Maneuver: • EET Location/Altitude: 256000 km (at Highest Energy Ellipse Orbit) • Initial Aerobrake Parameters: • Atmospheric Entry Velocity: 10.94 km/s • Constant Atmospheric Entry & Exit Altitude: 150 km (at LEO) • Perigee radius (Rp) for all Aerobrake runs: fixed at 115 km • EP Parameters: • Maximum Diameter: 10 m • EET Mass: 29.1 t • Tankage Mass & Size will vary per crew

  5. Aerobrake Maneuver Options: • Aerobrake #1= 3 Runs, Aerobrake # 2 = 7 Runs • Ablative Heat Shield Required: • Material: AVOCAT 5026-39H/CG • Heat Shield Mass Calculations:

  6. Earth - Aerobraking Tug

  7. Mars -Aerocapture Using the Atmospheric Drag to do a ΔV for entering into an Orbit

  8. Mars -Crew Landing From MLO • Working on pinpoint landing • Working on last 14km and handing over to hovering

  9. Mars -Cargo Entry • Some of the Cargo Missions will be Aerocaptured to LMO • Increased Mass gives a betterballute efficiency

  10. Earth Descent Vehicle (EDV) • Direct Re-entry into Earth • Use of Capsule with Subsonic Parachutessimilar to Apollo/Orion • PICA-X ablator

  11. Earth Re-entry Trajectory

  12. Earth Entry Capsule - Geometry • Heat shield: 3 m radius, 3 m nose radius, 3.6 cm thickness • Capsule total mass: 6.6 t • Crew compartment: cylindrical pressure vessel, 2.25 m tall x 3 m diameter • Docking/crew entry port on top side (for attaching to Transit Hab)
