Presentation Transcript

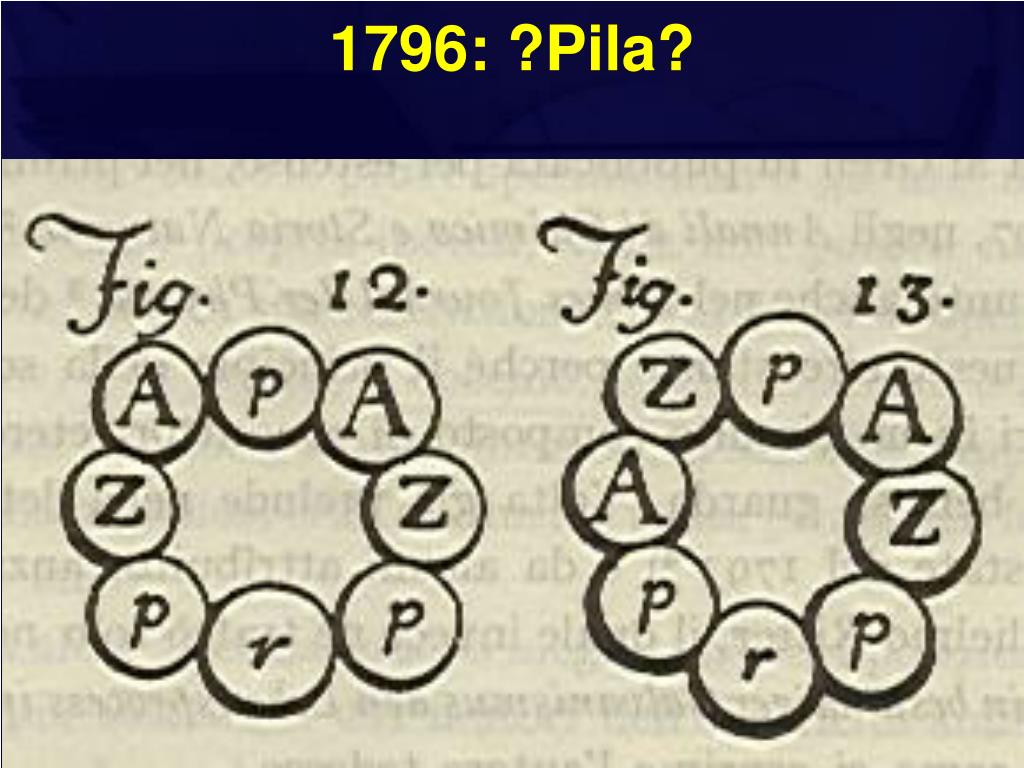

1796 pila l.jpg

1796: ?Pila?


Slide2 l.jpg

1797: L’elettrometro condensatore, l’eliminazione dei rivelatori organici, coppie bimetallicheRilevazione sbilancio del fluido senza la rana


200 hundred years ago the pile l.jpg

200 hundred years ago: the “pile”

  • From a region, Lombardy, once again under Austrian rule, the 20th of March 1800 a letter, written in French, is sent by an Italian scientist to the (British) Royal Society for publication in theTransactions. The author is not unknown, being a member of the Society and the recipient five years earlier of its Copley medal, but the letter is rather strange both in form and content: it claims nothing less than the discovery, today one would say the invention, of a perpetual electrical motion device, the “pile”; but rather than a proper scientific paper it is a collation of parts written in a great hurry.


Slide4 l.jpg

  • In this way the fifty-five year old Alessandro Volta, for twenty-two years professor of Experimental Physics, not of natural philosophy as reported in the Transactions, at Pavia University, communicated to the world the possibility of producing stable electrical currents, a result that was to change the way of life on this planet.


Letters to banks l.jpg

Letters to Banks


1799 invention of the pile l.jpg

1799: Invention of the “pile”

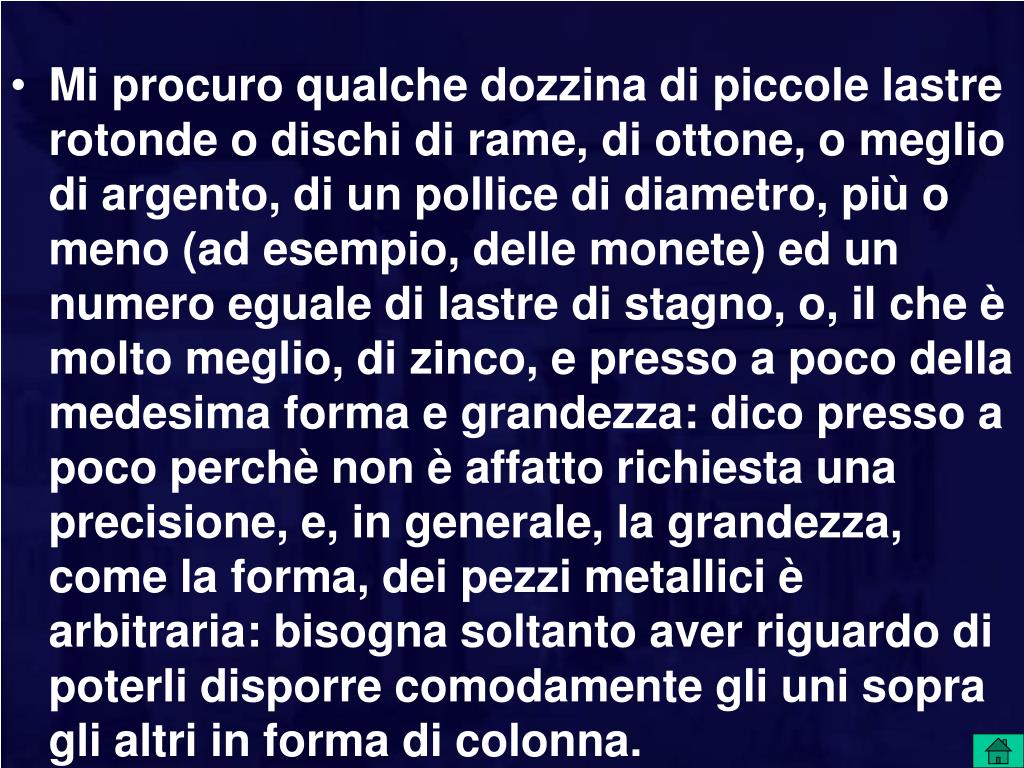

Slide7 l.jpg

  • Mi procuro qualche dozzina di piccole lastre rotonde o dischi di rame, di ottone, o meglio di argento, di un pollice di diametro, più o meno (ad esempio, delle monete) ed un numero eguale di lastre di stagno, o, il che è molto meglio, di zinco, e presso a poco della medesima forma e grandezza: dico presso a poco perchè non è affatto richiesta una precisione, e, in generale, la grandezza, come la forma, dei pezzi metallici è arbitraria: bisogna soltanto aver riguardo di poterli disporre comodamente gli uni sopra gli altri in forma di colonna.


Slide8 l.jpg

  • Preparo inoltre un numero assai grande di dischi di cartone, di pelle, o di qualche altra materia spugnosa capace di assorbire e di ritenere molto dell'acqua o dell'umore di cui bisognerà, per il successo delle esperienze, che essi siano ben annacquati. Queste fette o dischi, che chiamerò dischi ammolliti, li faccio un po' più piccoli che i dischi o piastre metalliche, affinchè, interposti tra questi nel modo che dirò subito, essi non debordino.


Uno sguardo pi accurato alla pila l.jpg

Uno sguardo più accurato alla pila

  • l’analogia con la torpedine

  • i corpi organici come rivelatori

  • la legge di Ohm

  • il contatto bimetallico

  • Qual è il modulo base della pila? La coppia bimetallica o il metallo-conduttore umido-metallo?


1799 volta inventa la pila l.jpg

1799 : Volta inventa la pila


La pila un ritorno ai rivelatori organici l.jpg

La pila: un ritorno ai rivelatori organici

  • Volta ribadisce la fattorizzazione ma ha dei problemi

  • I Francesi ribadiscono l’elettrostatica coulombiana

  • Gli Inglesi sottolineano le reazioni chimiche

  • Ancora oggi si dibatte


Volta 1801 14 l identit dei due fluidi l.jpg

Volta: 1801-14 L’identità dei due fluidi


Accepting the battery l.jpg

Accepting the battery

  • France: Coulombian electrostatics

    • “Institut” not really in favour of Volta’s ideas

  • Britain: Electrochemistry

  • Germany: Interactions and unity of forces


Volta s experimental contributions l.jpg

Volta’s experimental contributions

  • Electrophorus, electrometer, electric pistol, eudiometer, condenser, battery


Volta 1799 la pila coppia bimetallica e conduttore umido l.jpg

Volta: 1799 La pilaCoppia bimetallica e conduttore umido


Volta s conceptual contributions l.jpg

Volta’s conceptual contributions

  • Tension, charge, capacity; electromotive force, current, resistance

  • Factorisation of intensive and extensive factors Q=CT


Quantification and qualification l.jpg

Quantification and Qualification

  • The quantification of the Baconian sciences did not follow only the non linear inverse square law of the Newtonian-Coulombian way. Linear quantification of qualities achieved through factorisation also played a relevant and lasting role

  • For a fuller historical account the interplay between instruments and mathematics is not enough: we also need to focus on theoretical models and regulative principles

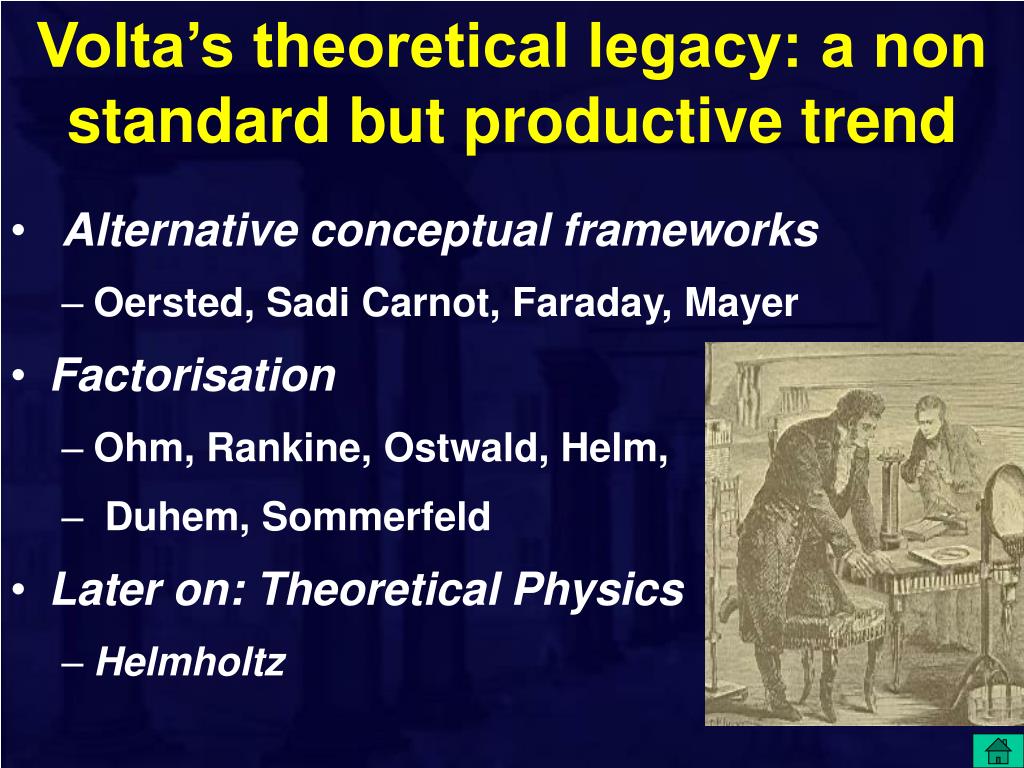

Volta s theoretical legacy a non standard but productive trend l.jpg

Volta’s theoretical legacy: a non standard but productive trend

  • Alternative conceptual frameworks

    • Oersted, Sadi Carnot, Faraday, Mayer

  • Factorisation

    • Ohm, Rankine, Ostwald, Helm,

    • Duhem, Sommerfeld

  • Later on: Theoretical Physics

    • Helmholtz


Volta s theoretical legacy l.jpg

Volta’s Theoretical Legacy

  • Ohm explicity referred to Volta and his law is based on the product of an intensive (V) and extensive (1/R) quantity: Ohm’s law: I=V/R

  • Carnot utilizes an approach similar to Volta’s one: the reestablishment of the equilibrium of the fluid (fire) through the tendency of an intensity factor (temperature)


Volta s theoretical legacy20 l.jpg

Volta’s Theoretical Legacy

  • Volta’s concept of (atmo) sphere of activity is echoed in Faraday’s electrotonic state, and the concept of vis attractiva in Faraday’s lines of force (flux tubes that attract and tend to enlarge). Lines of force, like vis attractiva, can also explain repulsion (attraction versus other bodies)

  • Mayer in 1843 gives the first energy interpretation of the electrophorus

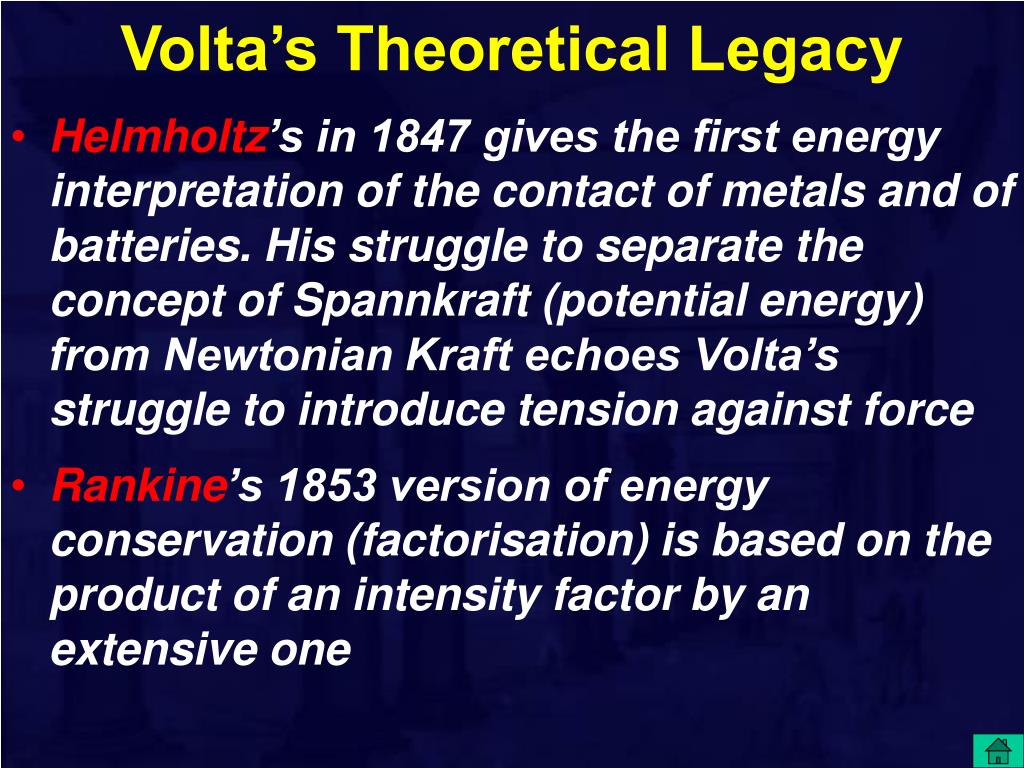

Volta s theoretical legacy21 l.jpg

Volta’s Theoretical Legacy

  • Helmholtz’s in 1847 gives the first energy interpretation of the contact of metals and of batteries. His struggle to separate the concept of Spannkraft (potential energy) from Newtonian Kraft echoes Volta’s struggle to introduce tension against force

  • Rankine’s 1853 version of energy conservation (factorisation) is based on the product of an intensity factor by an extensive one


Volta s theoretical legacy22 l.jpg

Volta’s Theoretical Legacy

  • Factorisation was a main part of the energetics in the works of Ostwald, Helm and Duhem

  • Sommerfeld still proposed this distinction in electromagnetism in the 1940’s, in his “advanced” textbook.

  • And so we can close the hermeneutical Voltaic circle!!!


Volta s primary sources l.jpg

Volta’s Primary Sources

  • Archives

  • Papers and Letters

  • Instruments


Volta s sources archives l.jpg

Volta’s Sources: Archives

Istituto Lombardo di Scienze e Lettere


Volta s sources works l.jpg

Volta’s Sources: Works

5 volumes: 1949-55

2 volumes: 1974-76

7 volumes: 1918-29


Volta s sources instruments l.jpg

Volta’s Sources: Instruments

Museo per la Storia dell’Università

di Pavia

Tempio Voltiano-Como


Volta s sources instruments27 l.jpg

Volta’s Sources: Instruments


Volta s sources instruments28 l.jpg

Volta’s Sources: Instruments


Volta s sources instruments29 l.jpg

Volta’s Sources: Instruments


Volta s historiography l.jpg

Volta’s Historiography

  • A bit of history of historiography is necessary

  • Massardi and Polvani

  • Heilbron

  • Pera e Bernardi

  • Pancaldi e Fregonese


The received view l.jpg

The Received View

  • Classical sciences (general physics, quadrivium) challenged by

  • Baconian Sciences (particular, experimental physics)

  • undergoing a process of quantification and mathematization along Newtonian-Coulombian lines

  • Enlightenment and quantification

  • “Standard Model” of particles and fluids and interactions


Volta s historiography massardi and polvani l.jpg

Volta’s Historiography: Massardi and Polvani

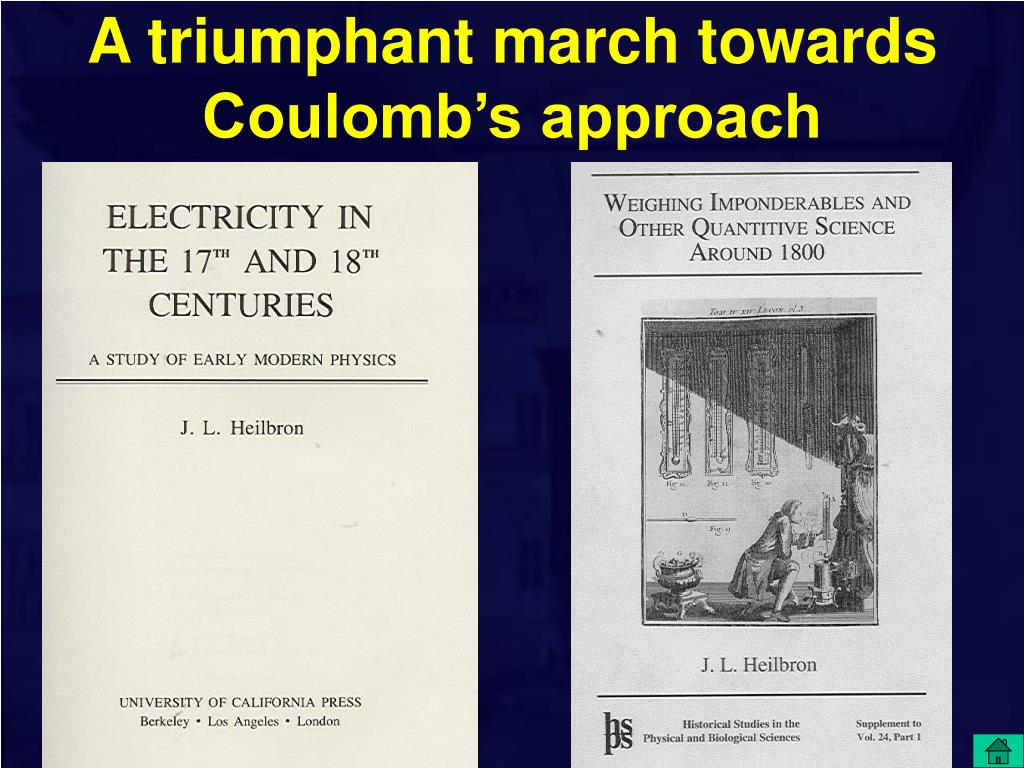

A triumphant march towards coulomb s approach l.jpg

A triumphant march towards Coulomb’s approach


Volta s historiography pera and bernardi l.jpg

Volta’s Historiography: Pera and Bernardi

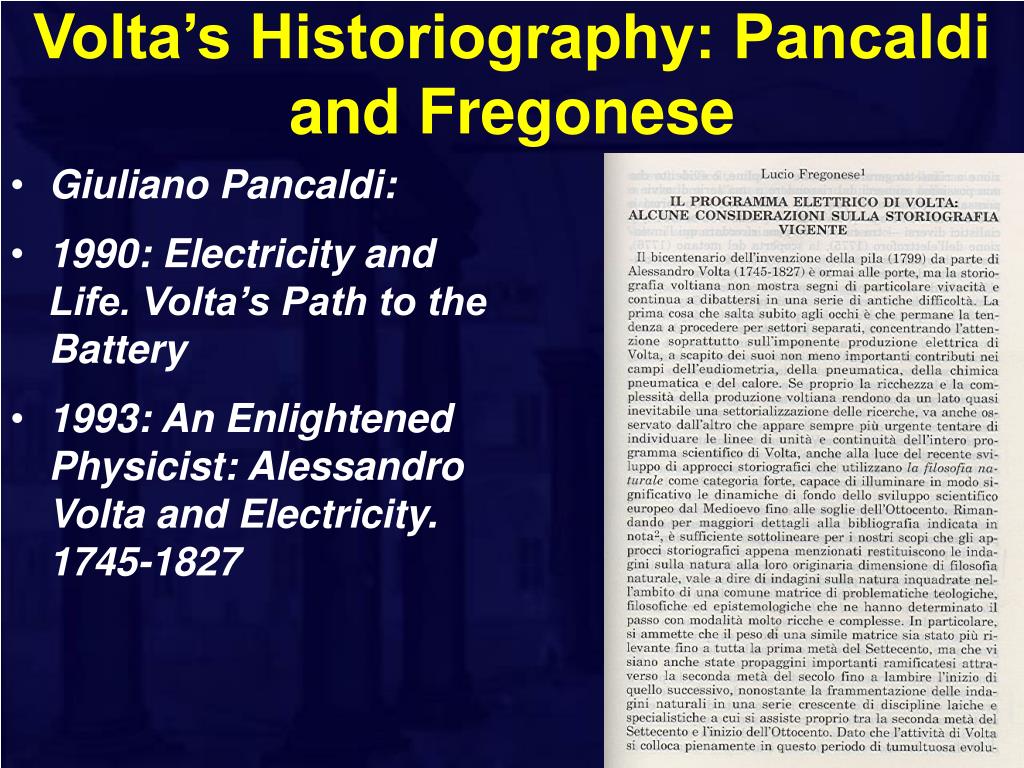

Volta s historiography pancaldi and fregonese l.jpg

Volta’s Historiography: Pancaldi and Fregonese

Giuliano Pancaldi:

1990: Electricity and Life. Volta’s Path to the Battery

1993: An Enlightened Physicist: Alessandro Volta and Electricity. 1745-1827


Volta s celebrations l.jpg

Volta’s celebrations

  • 1878 Pavia

  • 1899 Como

  • 1927 Como

  • 1999 Pavia, Como


History of celebrations 1878 pavia l.jpg

History of Celebrations: 1878 Pavia

  • Laurea Honoris Causa: Helmholtz; Maxwell


Volta s celebrations 1927 como l.jpg

Volta’s Celebrations: 1927 Como


Today l.jpg

Today

  • The Cabinet and Multimedia

  • Digitalising Collected Works and Manuscripts

  • Volta and the Web

  • The “Nuova Voltiana”


The cabinet and multimedia l.jpg

The Cabinet and Multimedia


Digitalising volta s sources l.jpg

Digitalising Volta’s Sources

5 volumes: 1949-55

2 volumes: 1974-76

7 volumes: 1918-29

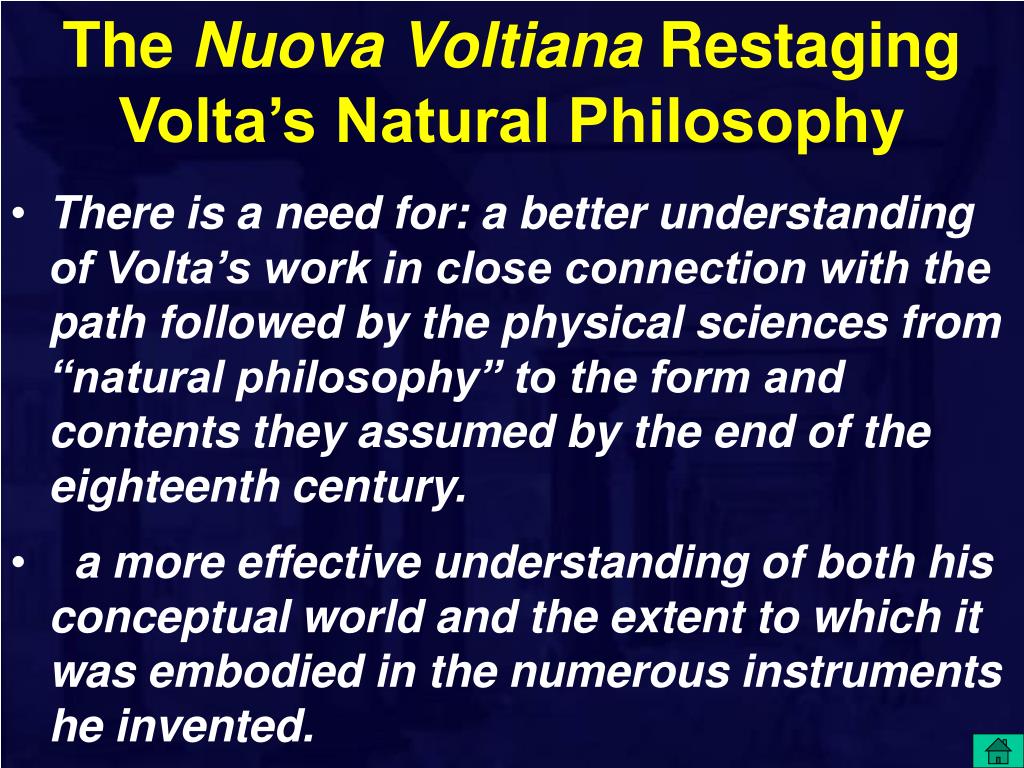

The nuova voltiana restaging volta s natural philosophy l.jpg

The Nuova Voltiana Restaging Volta’s Natural Philosophy

  • There is a need for: a better understanding of Volta’s work in close connection with the path followed by the physical sciences from “natural philosophy” to the form and contents they assumed by the end of the eighteenth century.

  • a more effective understanding of both his conceptual world and the extent to which it was embodied in the numerous instruments he invented.

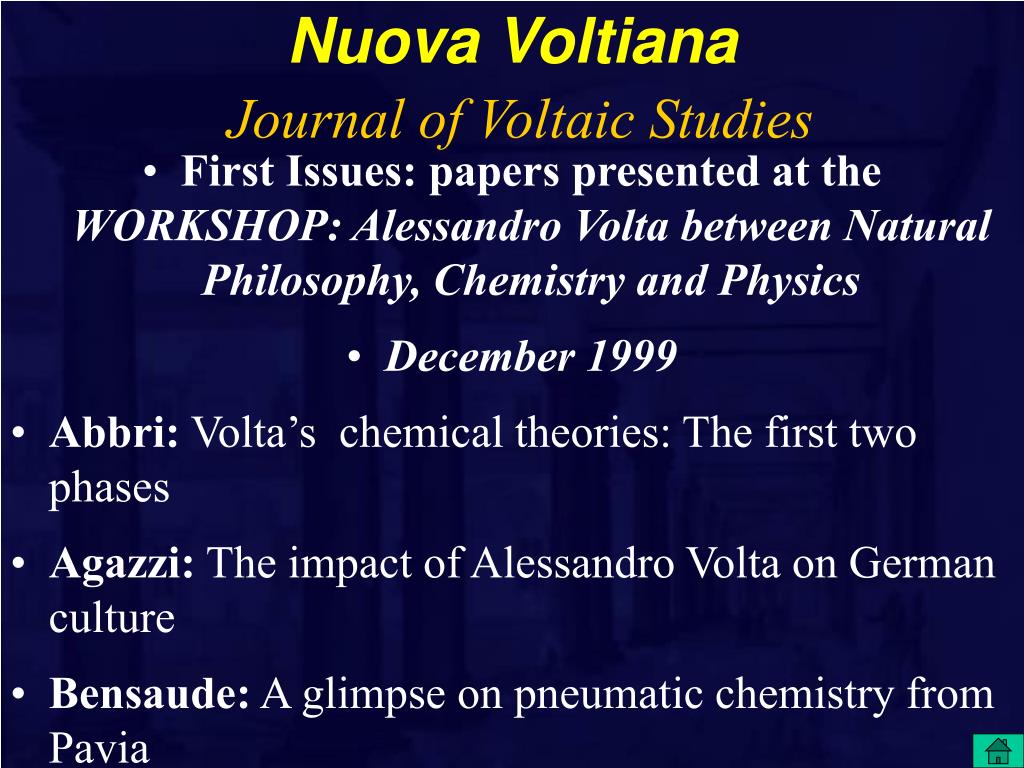

Nuova voltiana journal of voltaic studies l.jpg

Nuova VoltianaJournal of Voltaic Studies

  • First Issues: papers presented at the WORKSHOP: Alessandro Volta between Natural Philosophy, Chemistry and Physics

  • December 1999

  • Abbri: Volta’s chemical theories: The first two phases

  • Agazzi: The impact of Alessandro Volta on German culture

  • Bensaude: A glimpse on pneumatic chemistry from Pavia


Nuova voltiana l.jpg

Nuova Voltiana

  • Beretta: Volta and aerial medicine: Salubrity and respirability of air at the end of the 18th century

  • Bernardi: The controversy on animal electricity in eighteenth-century Italy: Galvani, Volta and other protagonists

  • Brambilla: Scientific and professional education in Lombardy, 1760-1803: Physics between medicine and engineering

  • Brenni-Bellodi: “The arms of the physicist” Volta and scientific instruments


Nuova voltiana45 l.jpg

Nuova Voltiana

  • Ciardi: Falling stars, instruments and myths. Alessandro Volta and the birth of modern meteorology

  • Gigli Berzolari: Volta's teaching in Como and Pavia: Moments of academic life under all flags

  • Hackmann: The enigma of Volta’s ‘contact tension’ and the development of the ‘dry pile’

  • Heilbron: Analogy in Volta's exact natural philosophy

  • Holmes: Phlogiston in the air


Nuova voltiana46 l.jpg

Nuova Voltiana

  • Home: Volta’s English connections

  • Hutchison: Forces and facts: Yet another fragment of the explanation for late 18C dynamism

  • Kipnis: Debating the nature of the voltaic electricity, 1800-1850

  • Kleinert: Volta and the German controversy about physics and Naturphilosophie, and Volta's relations with Johann Wilhelm Ritter

  • Kragh: Confusion and Controversy: Nineteenth-Century Theories of the Voltaic Pile


Nuova voltiana47 l.jpg

Nuova Voltiana

  • Martins: Romagnosi and Volta’s pile: Early difficulties in the interpretation of voltaic electricity

  • Pepe: Volta, the "Istituto Nazionale" and scientific communication in early 19th-century Italy

  • Seligardi: Volta and the synthesis of water: Some reasons for a missed discovery

  • Teichmann: Volta and the quantitative conceptualisation of electricity: From electrical capacity to the preconception of Ohm’s law


Volta and the web l.jpg

Volta and the Web

  • www.Cilea.it/Volta99

  • Click “Alessandro Volta” and see:

  • A biography

  • The Cabinet

  • The Collected Works

  • A bibliography


  • Login
