Summary

Limited area model weather prediction using COSMO with emphasis on the numerics of dynamical cores (including some remarks on the NEC vector supercomputer)

Weather and climate prediction on next generation supercomputers

22-25 Oct. 2012, UK MetOffice, Exeter

Michael Baldauf (DWD),

Oliver Fuhrer (MeteoCH), Bogdan Rosa, Damian Wojcik (IMGW)

M. Baldauf (DWD)


Summary

  • Summary

  • Revision ofthecurrentdynamicalcore (‚Runge-Kutta‘):redesignofthe fast wavessolver

  • Computationalaspects

    • on the NEC vectorcomputer

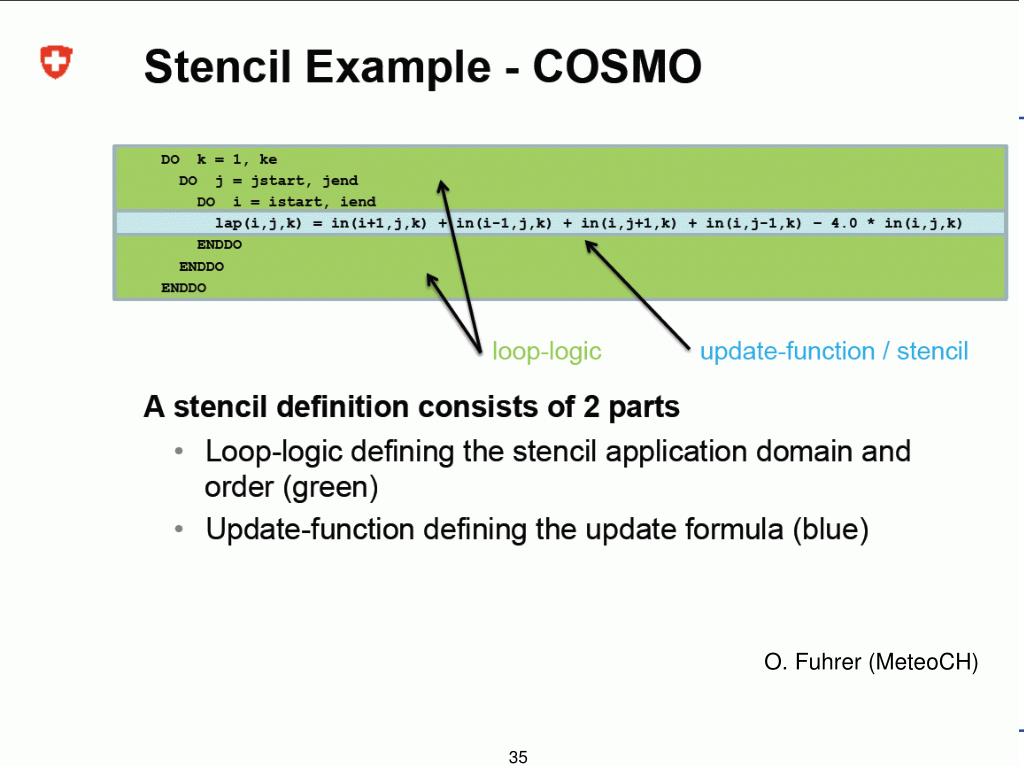

    • a stencillibraryfor COSMO

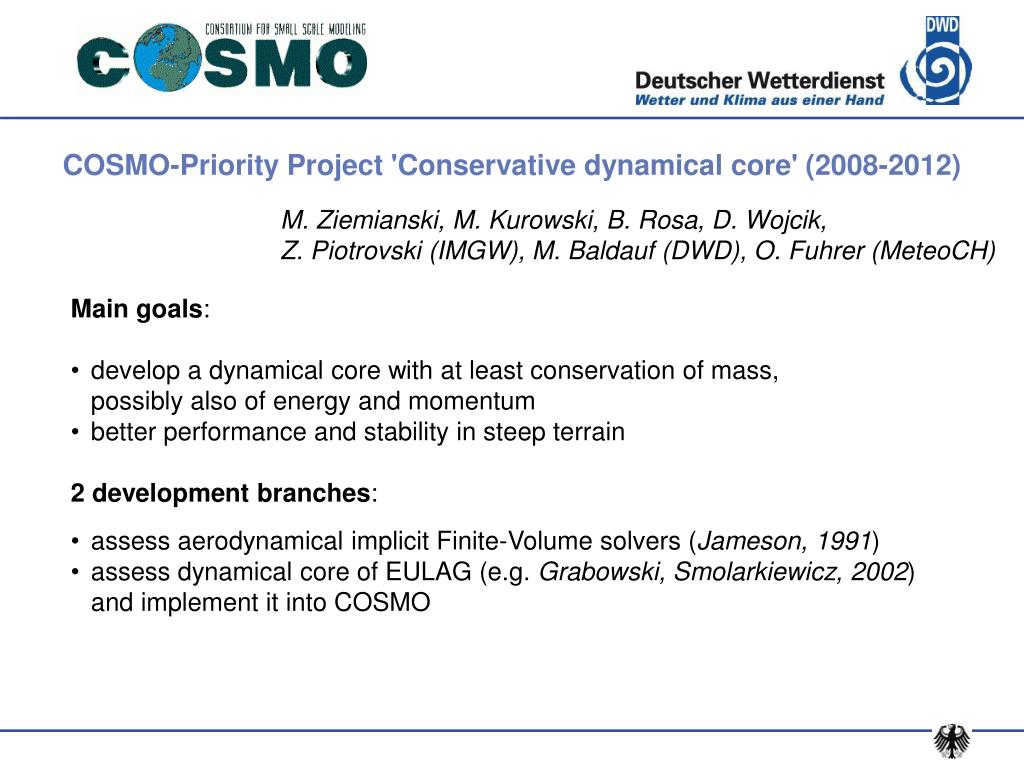

  • Alternative dynamicalcoredevelopments in COSMO

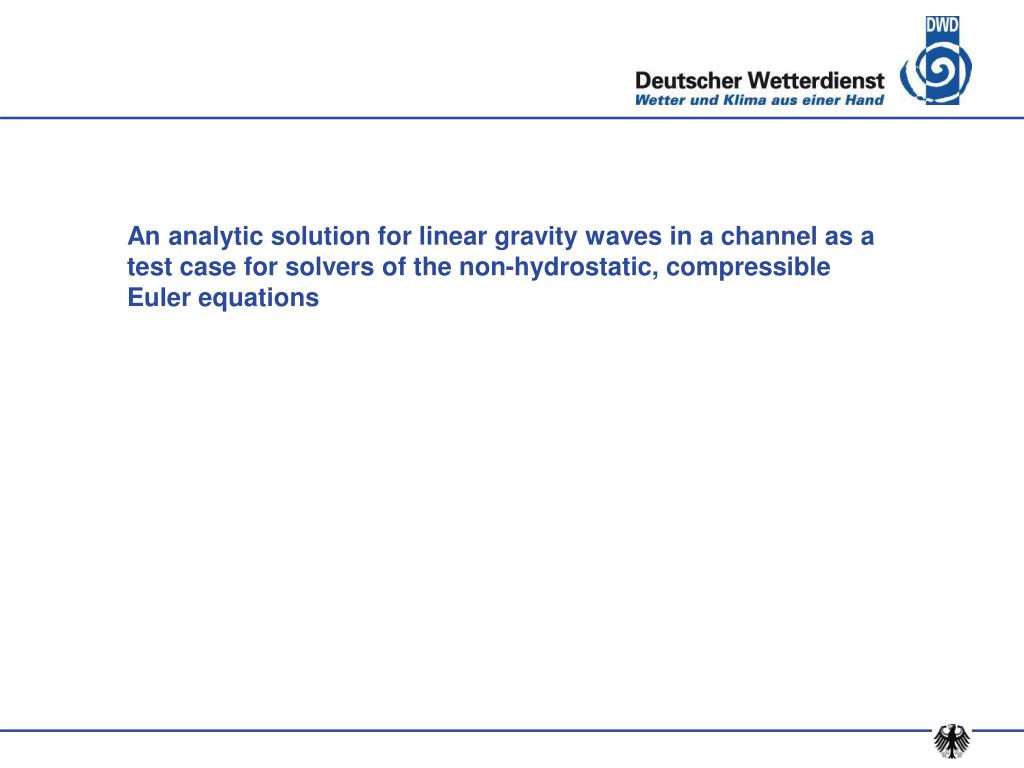

  • A modifiedidealisedtestcasewith an analyticsolutionforthecompressible Euler equations

M. Baldauf (DWD)


Summary

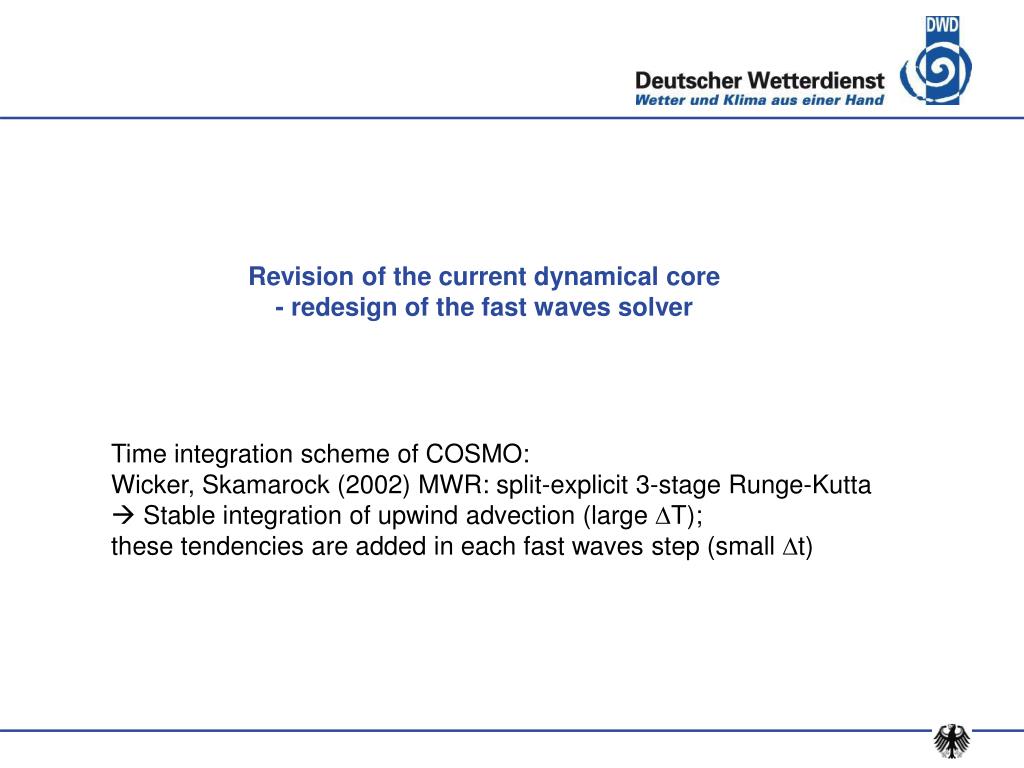

Revision of the current dynamical core

- redesign of the fast waves solver

Time integration scheme of COSMO:

Wicker, Skamarock (2002) MWR: split-explicit 3-stage Runge-Kutta

 Stable integration of upwind advection (large T); these tendencies are added in each fast waves step (small t)


Summary

‚Fast waves‘ processes (p'T'-dynamics):

artificial

divergence damping

stabil. whole RK-scheme

sound

buoyancy

D = divv

fu, fv, ... denote advection, Coriolis force and all physical parameterizations

Spatial discretization: centered differences (2nd order)

Temporal discretization: horizontally forward-backward, vertically implicit

(Skamarock, Klemp (1992) MWR, Baldauf (2010) MWR)

M. Baldauf (DWD)


Summary

  • Main changes towards the current solver:

  • improvement of the vertical discretization: use of weighted averaging operators for all vertical operations

  • divergence in strong conservation form

  • optional: complete 3D (=isotropic) divergence damping

  • optional: Mahrer (1984) discretization of horizontal pressure gradients

  • additionally some 'technical' improvements;

  • hopefully a certain increase in code readability

  • overall goal: improve numerical stability of COSMO

 new version fast_waves_sc.f90 contained in official COSMO 4.24

M. Baldauf (DWD)


Summary

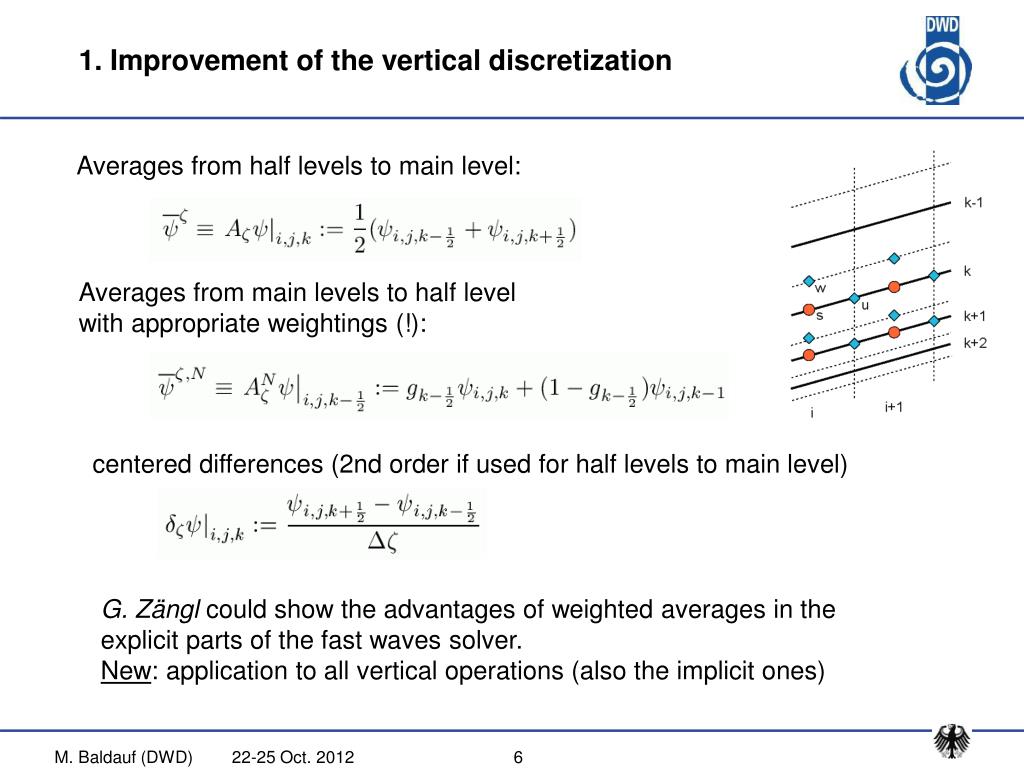

1. Improvement of the vertical discretization

Averages from half levels to main level:

Averages from main levels to half level

with appropriate weightings (!):

centered differences (2nd order if used for half levels to main level)

G. Zängl could show the advantages of weighted averages in the

explicit parts of the fast waves solver.

New: application to all vertical operations (also the implicit ones)

M. Baldauf (DWD)


Summary

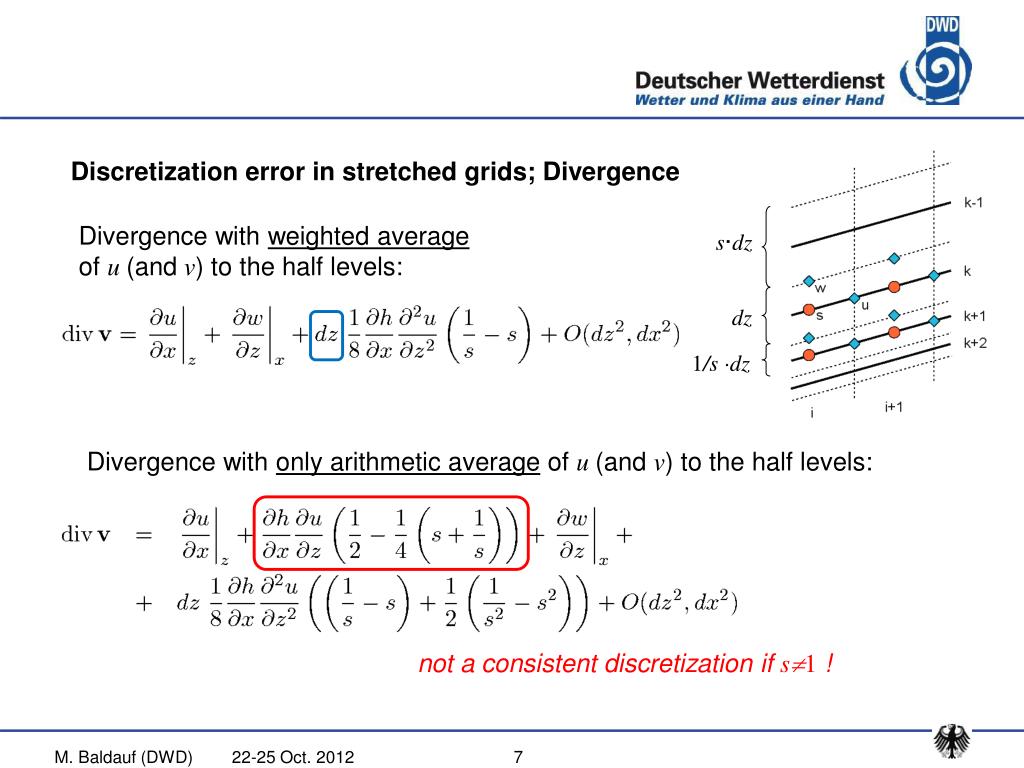

Discretization error in stretched grids; Divergence

Divergence with weighted average

of u (andv) to the half levels:

s·dz

dz

1/s ·dz

Divergence with only arithmetic average of u (and v) to the half levels:

not a consistent discretization if s1 !

M. Baldauf (DWD)

22-25 Oct. 2012

7


Summary

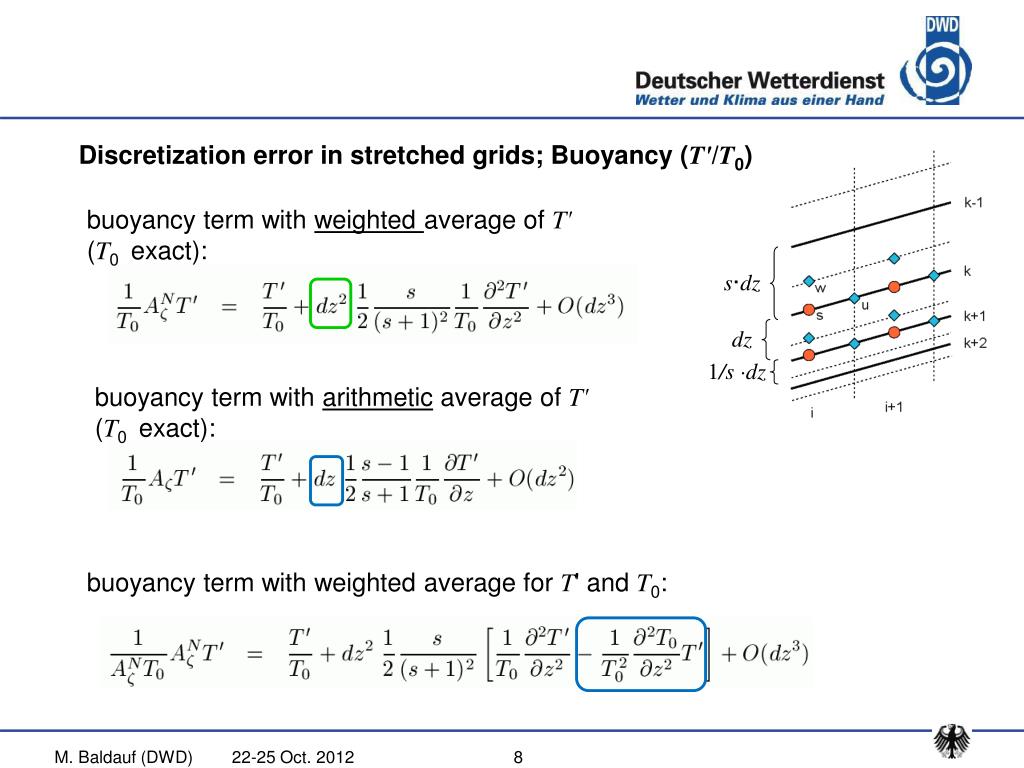

Discretization error in stretched grids; Buoyancy (T'/T0)

buoyancy term with weighted average of T'

(T0 exact):

s·dz

dz

1/s ·dz

buoyancy term with arithmetic average of T'(T0 exact):

buoyancy term with weighted average for T' and T0:

M. Baldauf (DWD)

22-25 Oct. 2012

8


Summary

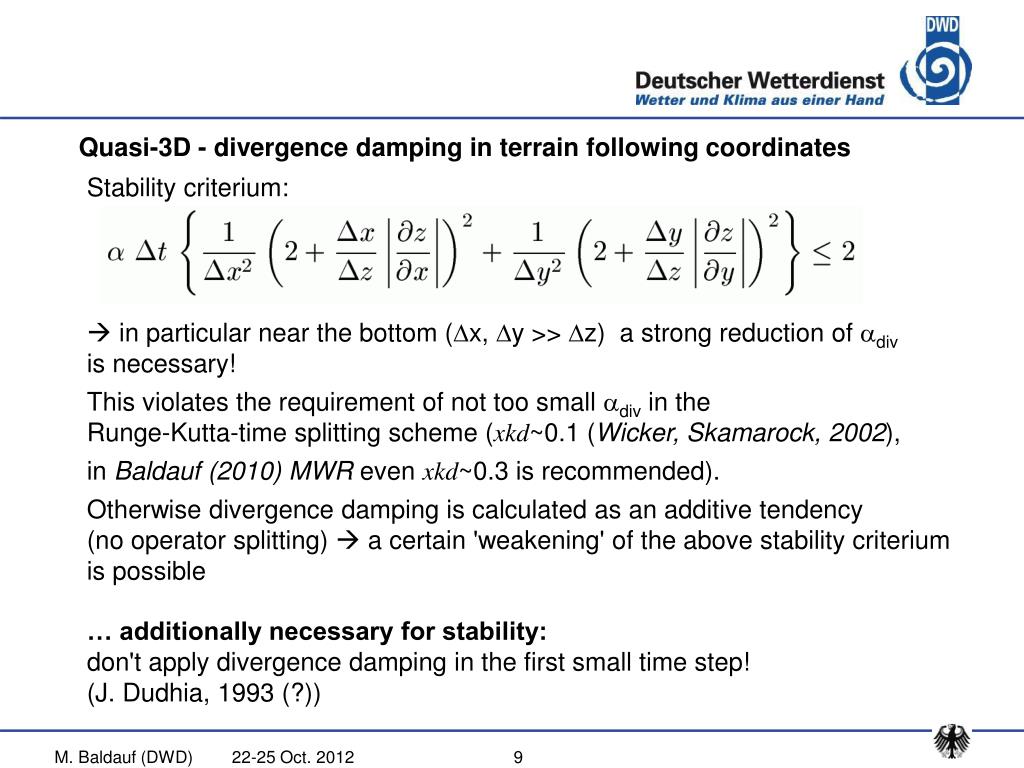

Quasi-3D - divergence damping in terrain following coordinates

Stability criterium:

  • in particular near the bottom (x, y >> z) a strong reduction of div is necessary!

  • This violates the requirement of not too small div in the Runge-Kutta-time splitting scheme (xkd~0.1 (Wicker, Skamarock, 2002),

  • in Baldauf (2010) MWR evenxkd~0.3 is recommended).

  • Otherwise divergence damping is calculated as an additive tendency (no operator splitting)  a certain 'weakening' of the above stability criterium is possible

… additionally necessary for stability:

don't apply divergence damping in the first small time step!(J. Dudhia, 1993 (?))

M. Baldauf (DWD)

22-25 Oct. 2012

9


Summary

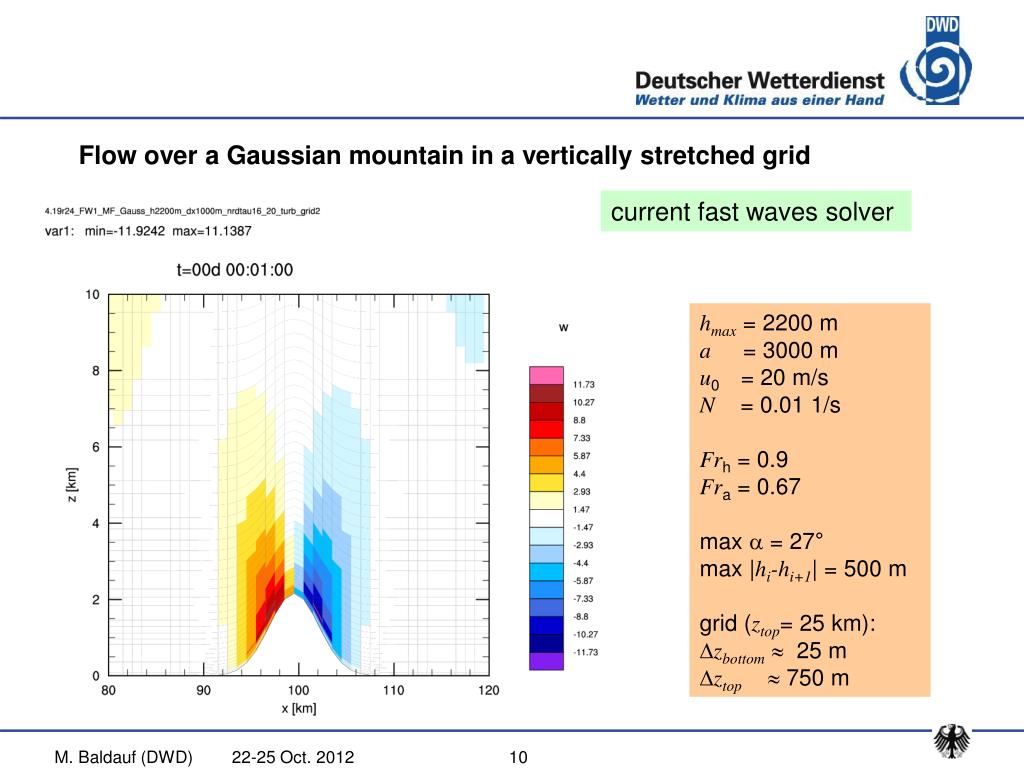

Flow over a Gaussian mountain in a vertically stretched grid

current fast waves solver

hmax = 2200 m

a = 3000 m

u0 = 20 m/s

N = 0.01 1/s

Frh = 0.9

Fra = 0.67

max  = 27°

max |hi-hi+1| = 500 m

grid (ztop= 25 km):

zbottom  25 m

ztop  750 m

M. Baldauf (DWD)


Summary

Flow over a Gaussian mountain in a vertically stretched grid

current fast waves solver

hmax = 2200 m

a = 3000 m

u0 = 20 m/s

N = 0.01 1/s

Frh = 0.9

Fra = 0.67

max  = 27°

max |hi-hi+1| = 500 m

grid (ztop= 25 km):

zbottom  25 m

ztop  750 m

M. Baldauf (DWD)


Summary

Flow over a Gaussian mountain in a vertically stretched grid

current fast waves solver

hmax = 2200 m

a = 3000 m

u0 = 20 m/s

N = 0.01 1/s

Frh = 0.9

Fra = 0.67

max  = 27°

max |hi-hi+1| = 500 m

grid (ztop= 25 km):

zbottom  25 m

ztop  750 m

M. Baldauf (DWD)


Summary

Flow over a Gaussian mountain in a vertically stretched grid

current fast waves solver

hmax = 2200 m

a = 3000 m

u0 = 20 m/s

N = 0.01 1/s

Frh = 0.9

Fra = 0.67

max  = 27°

max |hi-hi+1| = 500 m

grid (ztop= 25 km):

zbottom  25 m

ztop  750 m

M. Baldauf (DWD)


Summary

Flow over a Gaussian mountain in a vertically stretched grid

current fast waves solver

hmax = 2200 m

a = 3000 m

u0 = 20 m/s

N = 0.01 1/s

Frh = 0.9

Fra = 0.67

max  = 27°

max |hi-hi+1| = 500 m

grid (ztop= 25 km):

zbottom  25 m

ztop  750 m

M. Baldauf (DWD)


Summary

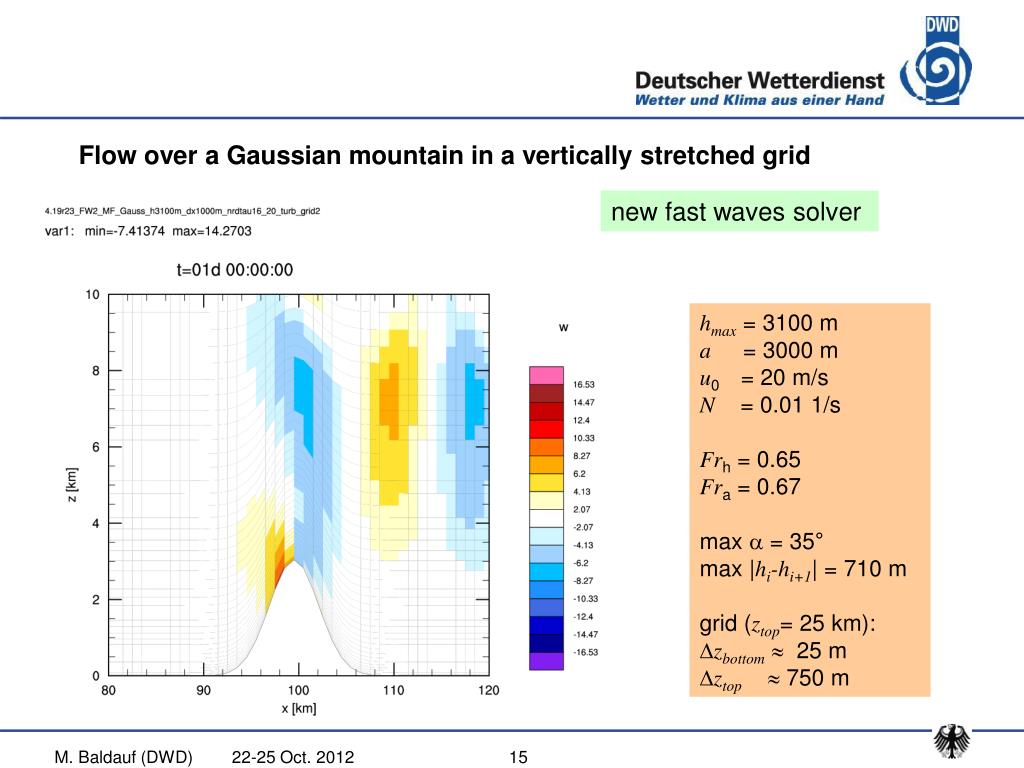

Flow over a Gaussian mountain in a vertically stretched grid

new fast waves solver

hmax = 3100 m

a = 3000 m

u0 = 20 m/s

N = 0.01 1/s

Frh = 0.65

Fra = 0.67

max  = 35°

max |hi-hi+1| = 710 m

grid (ztop= 25 km):

zbottom  25 m

ztop  750 m

M. Baldauf (DWD)


Summary

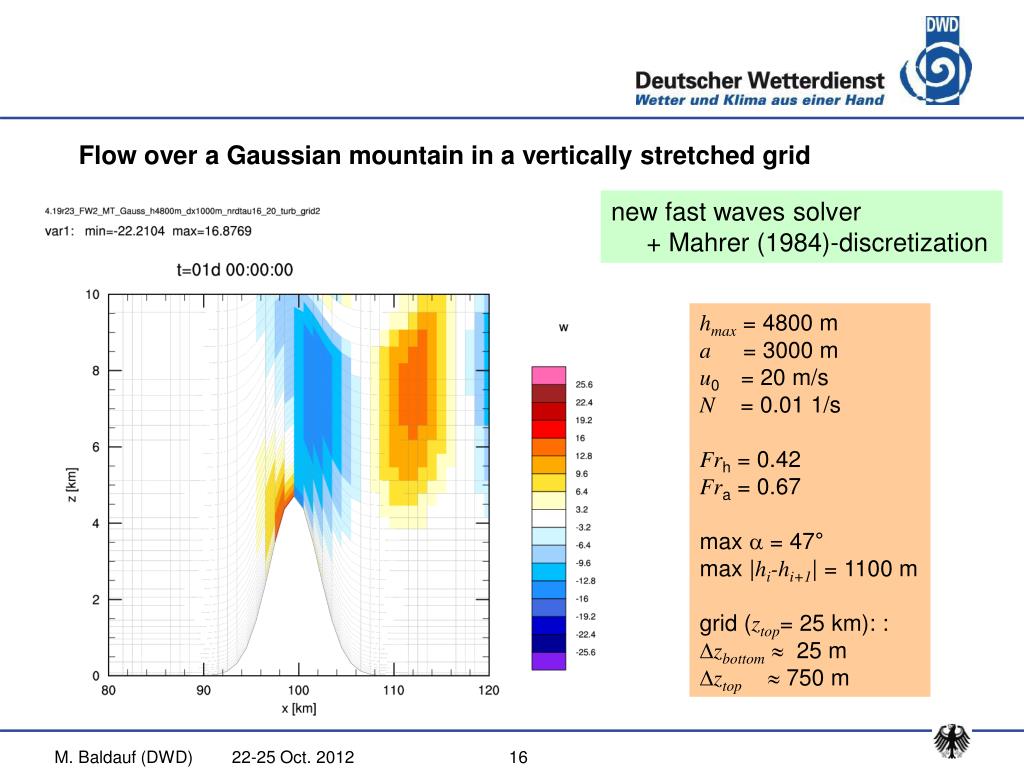

Flow over a Gaussian mountain in a vertically stretched grid

new fast waves solver

+ Mahrer (1984)-discretization

hmax = 4800 m

a = 3000 m

u0 = 20 m/s

N = 0.01 1/s

Frh = 0.42

Fra = 0.67

max  = 47°

max |hi-hi+1| = 1100 m

grid (ztop= 25 km): :

zbottom  25 m

ztop  750 m

M. Baldauf (DWD)


Summary

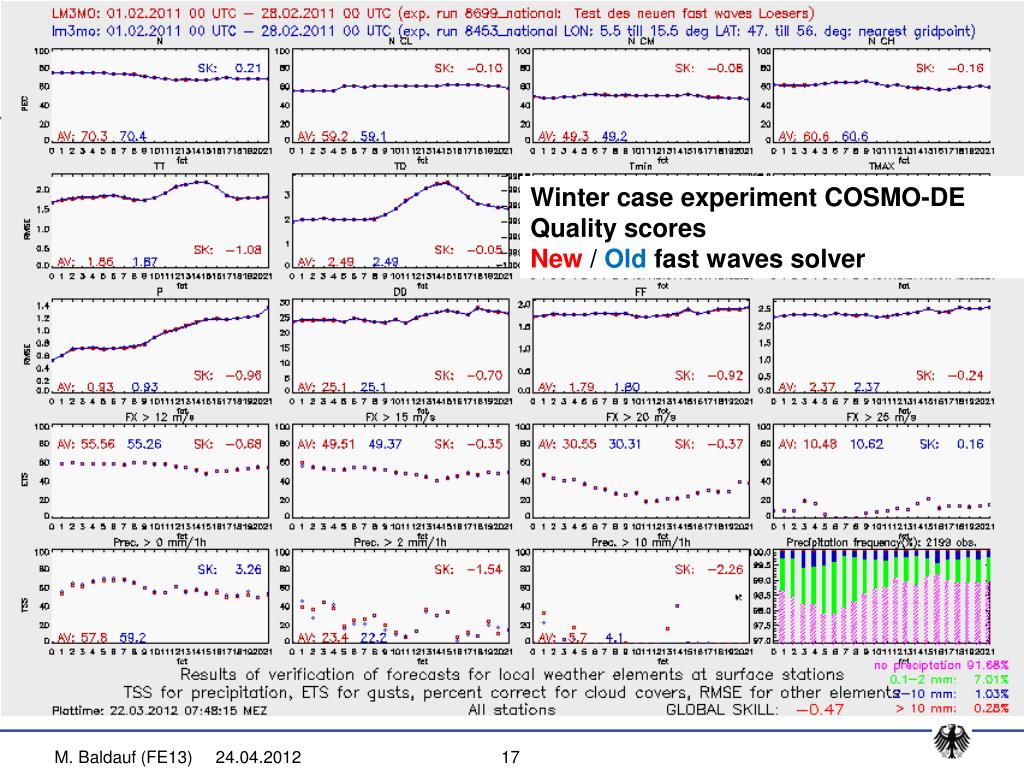

Winter case experiment COSMO-DE

Quality scores

New / Old fast waves solver

M. Baldauf (FE13)

24.04.2012

17


Summary

Summer case experiment COSMO-DE

Quality scores

New / Old fast waves solver

M. Baldauf (FE13)

24.04.2012

18


Summary

Summer case experiment COSMO-DE Hit rates

New / Old fast waves solver

M. Baldauf (FE13)

24.04.2012

19


Summary

Case study '13.07.2011, 0 UTC run' - 21h precipitation sum

new FW

Radar (RY/EY)

current FW


Summary

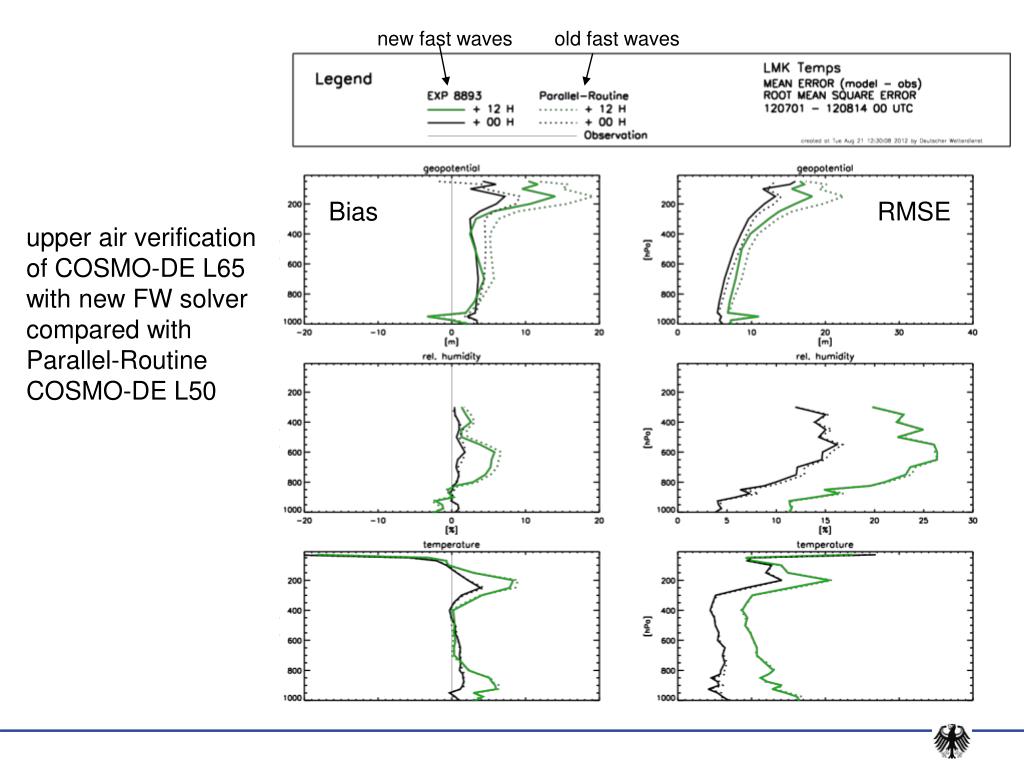

new fast waves

old fast waves

Bias

RMSE

upper air verification

of COSMO-DE L65

with new FW solver

compared with Parallel-Routine

COSMO-DE L50


Summary

  • Improved stability in real case applications

  • COSMO-DE 28.06.2011, 6 UTC runs (shear instability case)must be cured by Smagorinsky diffusionoperational deterministic and several COSMO-DE-EPS runscrashed after ~16 h

  • COSMO-DE 12.07.2011, 6 UTC run (‚explosion‘ of qr in Alps)only stable with Bott2_Strang

  • COSMO-DE L65, 15.07.2011, 12 UTC runmodel crash after 215 timesteps (~ 1.5 h)

  • COSMO-2, 16.06.2011, 0 UTC run (reported by O. Fuhrer)model crash after 1190 timesteps (~6.6 h)

  • ‚COSMO-1, 24.08.2011‘, resolution 0.01° (~ 1.1km) 1700 * 1700 grid points (reported by A. Seifert) model crash after 10 time steps

  • ...

  • COSMO-DE L65 run stable for 2 months ('1.7.-31.8.2012')

one counterexample: COSMO-EU (7 km) crash ('09.09.2012') by horizontal shear instability

 must be cured by Smagorinsky-diffusion

08-11 Oct. 2012

22


Summary

simulated radar reflectivity

COSMO-run with a resolution

of 0.01° (~ 1.1km)

1700 * 1700 grid points

model crash after 10 time steps

with the current fast waves solver

stable simulation with the new FW

from Axel Seifert (DWD)


Summary

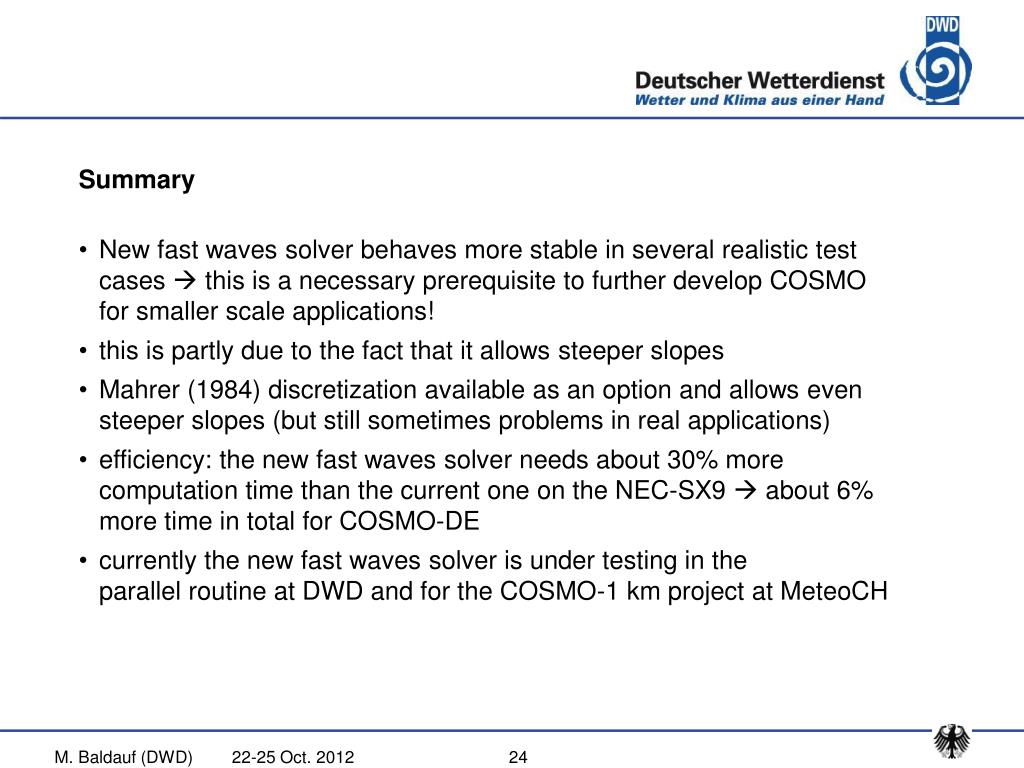

  • Summary

  • New fast waves solver behaves more stable in several realistic test cases  this is a necessary prerequisite to further develop COSMO for smaller scale applications!

  • this is partly due to the fact that it allows steeper slopes

  • Mahrer (1984) discretization available as an option and allows even steeper slopes (but still sometimes problems in real applications)

  • efficiency: the new fast waves solver needs about 30% more computation time than the current one on the NEC-SX9  about 6% more time in total for COSMO-DE

  • currently the new fast waves solver is under testing in the parallel routine at DWD and for the COSMO-1 km project at MeteoCH

M. Baldauf (DWD)


Summary

Computational aspects

Today computer performance is limited mostly by memory access, less by the compute operations = "Memory bandwidth bottleneck"

computational intensityCI := number of calculations / number memory accessesCI~1 would be nice; experience: CI~0.6 is realistic


Summary

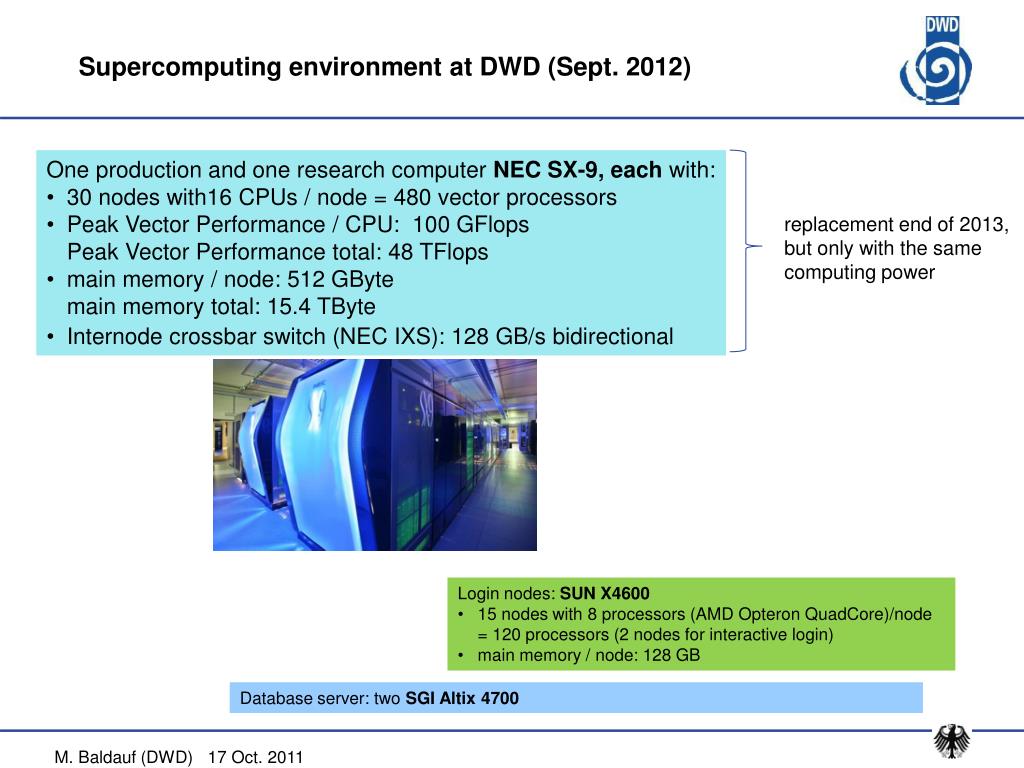

Supercomputing environment at DWD (Sept. 2012)

  • One production and one research computer NEC SX-9, each with:

  • 30 nodes with16 CPUs / node = 480 vector processors

  • Peak Vector Performance / CPU: 100 GFlopsPeak Vector Performance total: 48 TFlops

  • main memory / node: 512 GBytemain memory total: 15.4 TByte

  • Internode crossbar switch (NEC IXS): 128 GB/s bidirectional

replacement end of 2013,

but only with the same computing power

  • Login nodes: SUN X4600

  • 15 nodes with 8 processors (AMD Opteron QuadCore)/node = 120 processors (2 nodes for interactive login)

  • main memory / node: 128 GB

Database server: two SGI Altix 4700

M. Baldauf (DWD)

17 Oct. 2011


Summary

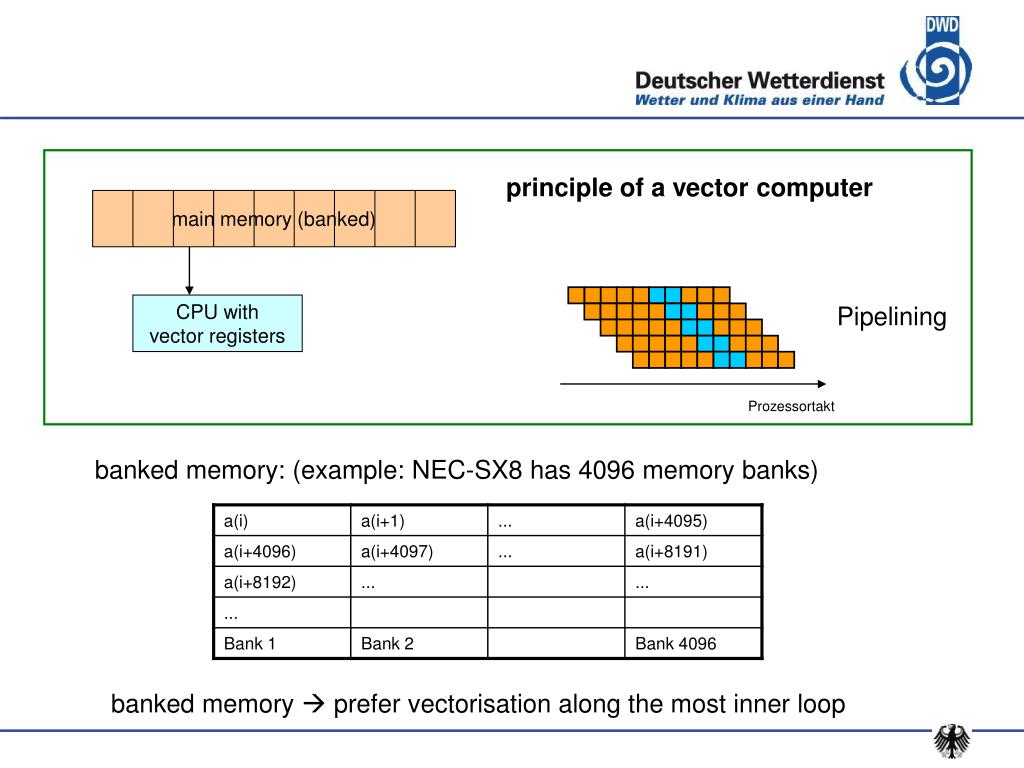

principle of a vector computer

main memory (banked)

CPU with

vector registers

Pipelining

Prozessortakt

banked memory: (example: NEC-SX8 has 4096 memory banks)

banked memory  prefer vectorisation along the most inner loop


Summary

  • Personal experience with optimization on the NEC SX9

  • Analysis tools (ftrace, use of compiler analysis directives) are good

  • Vectorisation for dynamical cores on structured mesh is not a problem

  • 'memory bandwidth bottleneck'  increase in 'computational intensity' (CI)

    • 'loop fusion' was the most important measure to reduce runtime(if multiple access to the same field element can be achieved)

    • ftrace-output for the new fast waves solver:

  • EXCLUSIVE MOPS MFLOPS V.OP AVER. BANK CONFLICT PROC.NAME

  • TIME[sec]( % ) RATIO V.LEN CPU PORT NETWORK

  • 61.331( 15.8) 49164.6 22572.2 98.30 207.8 4.120 22.510 fast_waves_sc

  • = ~22% of peak performance

  • Other optimizations (loop unrolling, …) are well done by the compiler (at least on structured grids)

  • there exist several compiler-direktives (!CDIR ...), which can increase the performance (e.g. use of the ADB (a relatively small cache (256 kB)).This is more for the NEC experts ...


Summary

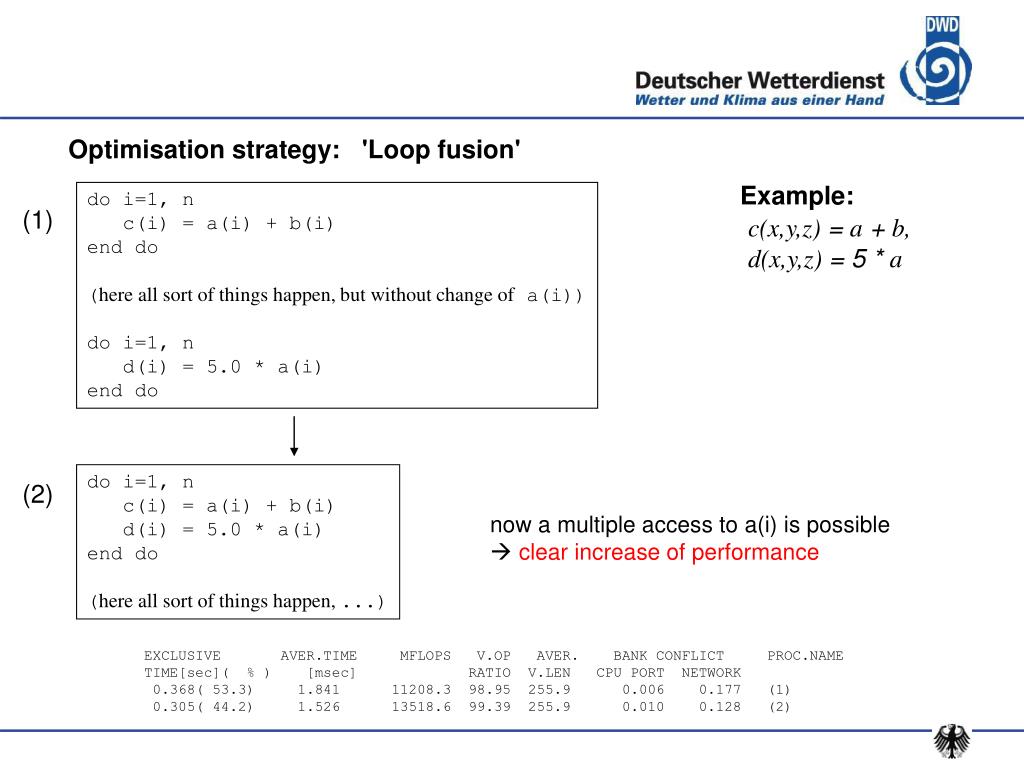

Optimisation strategy: 'Loop fusion'

Example:

do i=1, n

c(i) = a(i) + b(i)

end do

(here all sort of things happen, but without change of a(i))

do i=1, n

d(i) = 5.0 * a(i)

end do

(1)

c(x,y,z) = a + b,

d(x,y,z) = 5 * a

do i=1, n

c(i) = a(i) + b(i)

d(i) = 5.0 * a(i)

end do

(here all sort of things happen, ...)

(2)

now a multiple access to a(i) is possible  clear increase of performance

EXCLUSIVE AVER.TIME MFLOPS V.OP AVER. BANK CONFLICT PROC.NAME

TIME[sec]( % ) [msec] RATIO V.LEN CPU PORT NETWORK

0.368( 53.3) 1.841 11208.3 98.95 255.9 0.006 0.177 (1)

0.305( 44.2) 1.526 13518.6 99.39 255.9 0.010 0.128 (2)


Summary

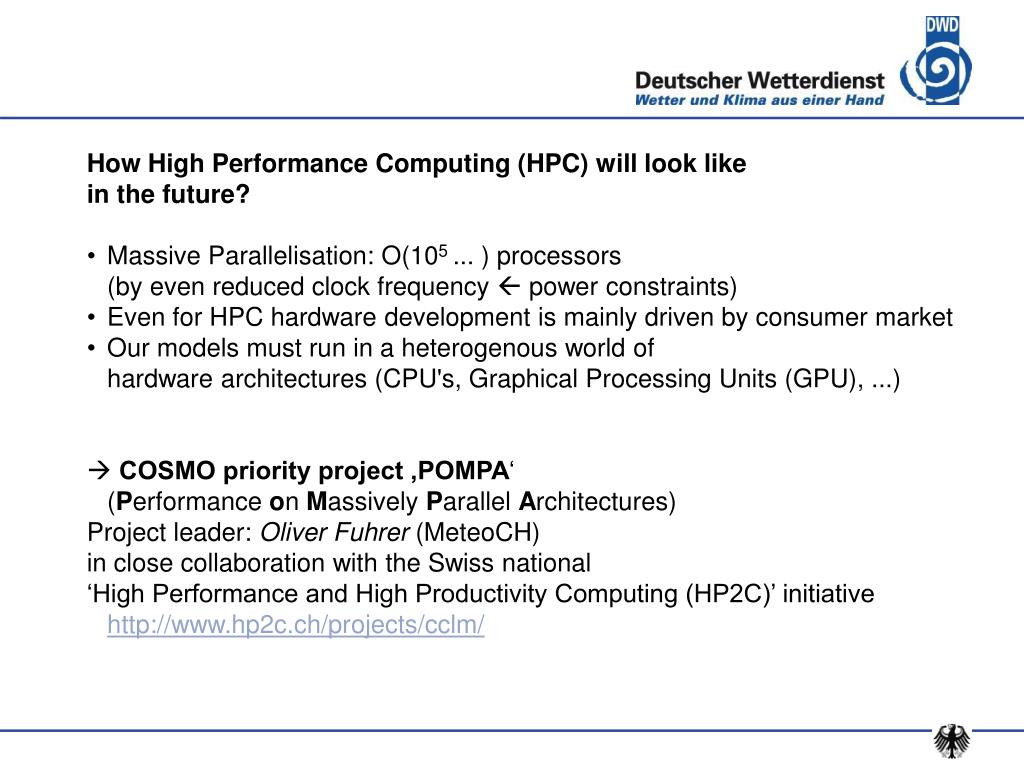

  • How High Performance Computing (HPC) will look like

  • in the future?

  • Massive Parallelisation: O(105 ... ) processors (by even reduced clock frequency  power constraints)

  • Even for HPC hardware development is mainly driven by consumer market

  • Our models must run in a heterogenous world ofhardware architectures (CPU's, Graphical Processing Units (GPU), ...)

  • COSMO priority project ‚POMPA‘ (Performance on Massively Parallel Architectures)

  • Project leader: Oliver Fuhrer (MeteoCH)

  • in close collaboration with the Swiss national

  • ‘High Performance and High Productivity Computing (HP2C)’ initiativehttp://www.hp2c.ch/projects/cclm/


Summary

Scalability of COSMO with 1500 1500  50 gridpoints, 2.8 km, 3 h, no output

  • Additionally: although the scalability of the computations (dnamics, physics) is not bad, the efficiency of the code is not satisfying:

    • NEC SX-9: 13 % of peak

    • IBM pwr6: about 5-6 % of peak

    • Cray XT4: about 3-4 % of peak (?)

source: Fraunhofer institute/SCAI, U. Schättler (DWD)


Summary

O. Fuhrer (MeteoCH)


Summary

O. Fuhrer (MeteoCH)

33


Summary

O. Fuhrer (MeteoCH)

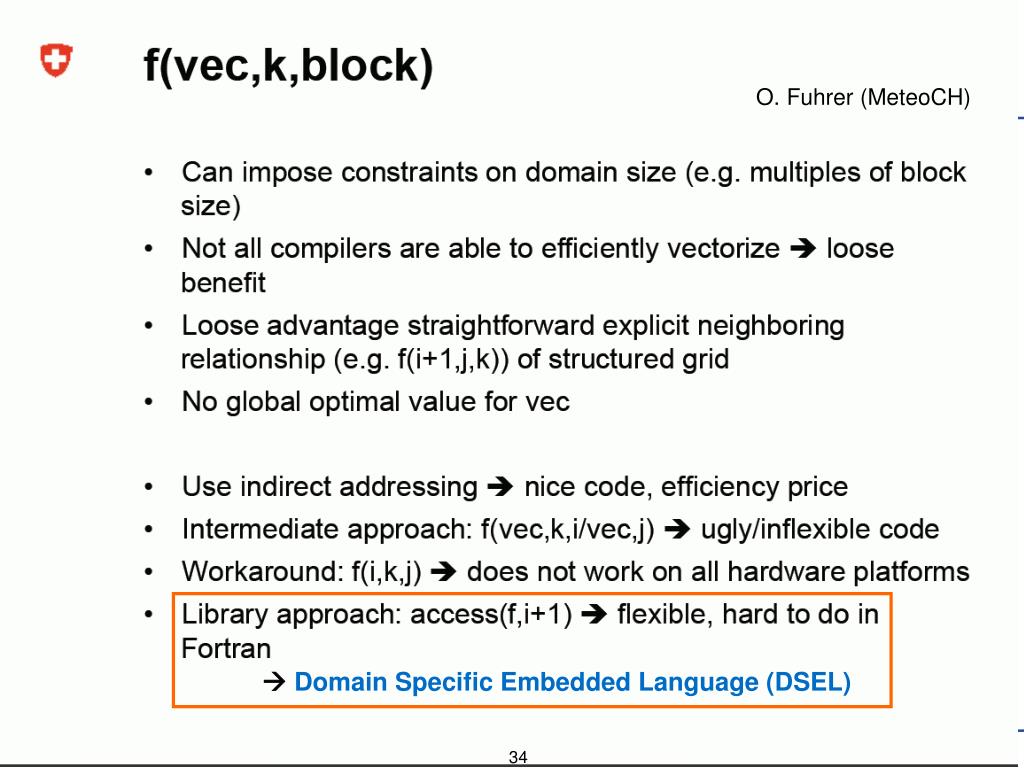

 Domain Specific Embedded Language (DSEL)

34


Summary

O. Fuhrer (MeteoCH)

35


Summary

O. Fuhrer (MeteoCH)

36


Summary

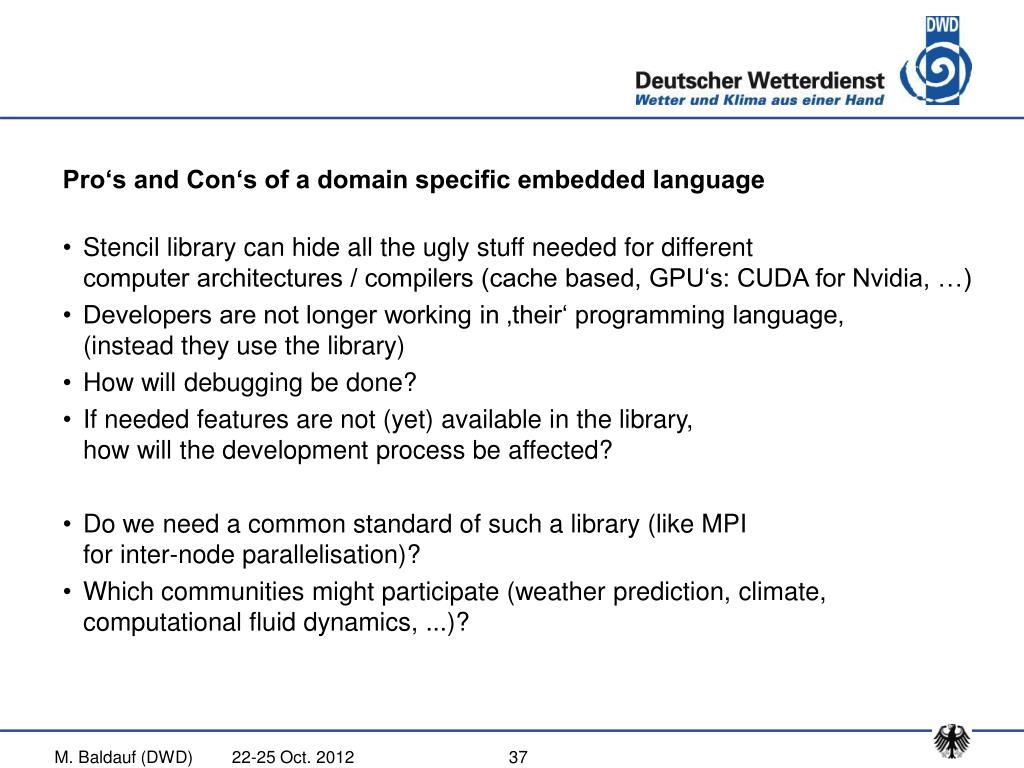

  • Pro‘s and Con‘s of a domain specific embedded language

  • Stencil library can hide all the ugly stuff needed for different computer architectures / compilers (cache based, GPU‘s: CUDA for Nvidia, …)

  • Developers are not longer working in ‚their‘ programming language,(instead they use the library)

  • How will debugging be done?

  • If needed features are not (yet) available in the library, how will the development process be affected?

  • Do we need a common standard of such a library (like MPIfor inter-node parallelisation)?

  • Which communities might participate (weather prediction, climate, computational fluid dynamics, ...)?

M. Baldauf (DWD)

22-25 Oct. 2012

37


Summary

Alternative dynamical core projects in COSMO


Summary

COSMO-Priority Project 'Conservative dynamical core' (2008-2012)

M. Ziemianski,M. Kurowski, B. Rosa, D. Wojcik, Z. Piotrovski (IMGW), M. Baldauf (DWD), O. Fuhrer (MeteoCH)

  • Main goals:

  • develop a dynamical core with at least conservation of mass, possibly also of energy and momentum

  • better performance and stability in steep terrain

  • 2 development branches:

  • assess aerodynamical implicit Finite-Volume solvers (Jameson, 1991)

  • assess dynamical core of EULAG (e.g. Grabowski, Smolarkiewicz, 2002)and implement it into COSMO


Summary

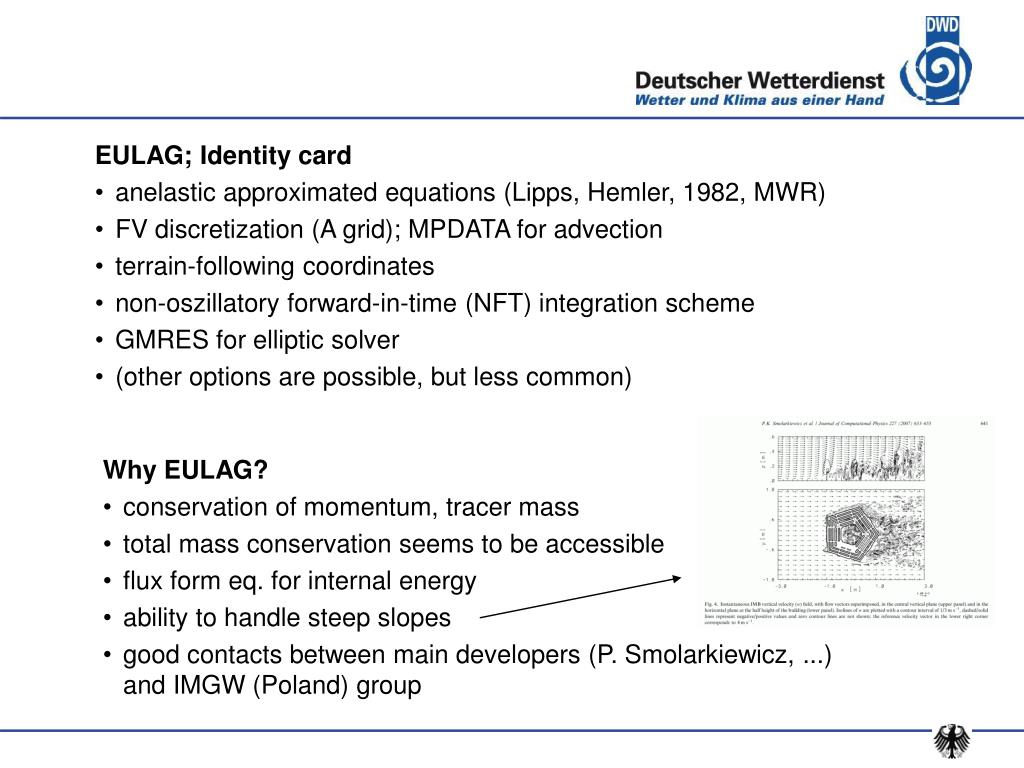

  • EULAG; Identity card

  • anelastic approximated equations (Lipps, Hemler, 1982, MWR)

  • FV discretization (A grid); MPDATA for advection

  • terrain-following coordinates

  • non-oszillatory forward-in-time (NFT) integration scheme

  • GMRES for elliptic solver

  • (other options are possible, but less common)

  • Why EULAG?

  • conservation of momentum, tracer mass

  • total mass conservation seems to be accessible

  • flux form eq. for internal energy

  • ability to handle steep slopes

  • good contacts between main developers (P. Smolarkiewicz, ...)and IMGW (Poland) group


Summary

  • Exercise: how to implement an existing dynamical core into another model?

  • ‚Fortran 90-style‘ (dynamic memory allocation, …) introduced into EULAG code

  • domain decomposition: same

  • Adaptation of EULAG data structures to COSMO:

    • arrayEULAG(1-halo:ie+halo, …, 1:ke+1)  arrayCOSMO(1:ie+2*halo, …, ke:1)

    • A-grid  C-grid

  • Rotated (lat-lon) coordinates in COSMO

  • Adaptation of boundary conditions:EULAG elliptic solver needs globally non-divergent flow adjust velocity at the boundaries

  • Physical tendencies are integrated inside of the NFT-scheme (in 1st order)


Summary

Example: Realistic Alpine flow

1. MOTIVATION

  • Simulations have been performed for domains covering the Alpine region

  • Three computational meshes with different horizontal resolutions have been used

    - standard domain with 496  336 61 grid points and horizontal resolution of 2.2 km (similar to COSMO 2 of MeteoSwiss)

    - the same as in COSMO 2 but with resolution 1.1 km in horizontal plane

    - truncated COSMO 2 domain (south-eastern part) with 0.55 km in horizontal resolution

  • Initial and boundary conditions and orography from COSMO model of MeteoSwiss. Simulation with the finest resolution has separately calculated unfiltered orography.

  • TKE parameterization of sub-scale turbulence and friction (COSMO diffusion-turbulence model)

  • Heat diffusion and fluxes turned on

  • Moist processes switched on

  • Radiation switched on (Ritter and Geleyn MWR 1992)

  • Simulation start at 00:00 UTC (midnight), 12 November 2009

  • Results are compared with Runge-Kutta dynamical core


Summary

Horizontal velocity at 500 m

‚12. Nov. 2009, 0 UTC + …‘

CE

24h

12h

RK

24h

12h


Summary

Vertical velocity

‚12. Nov. 2009, 0 UTC + …‘

CE

R-K


Summary

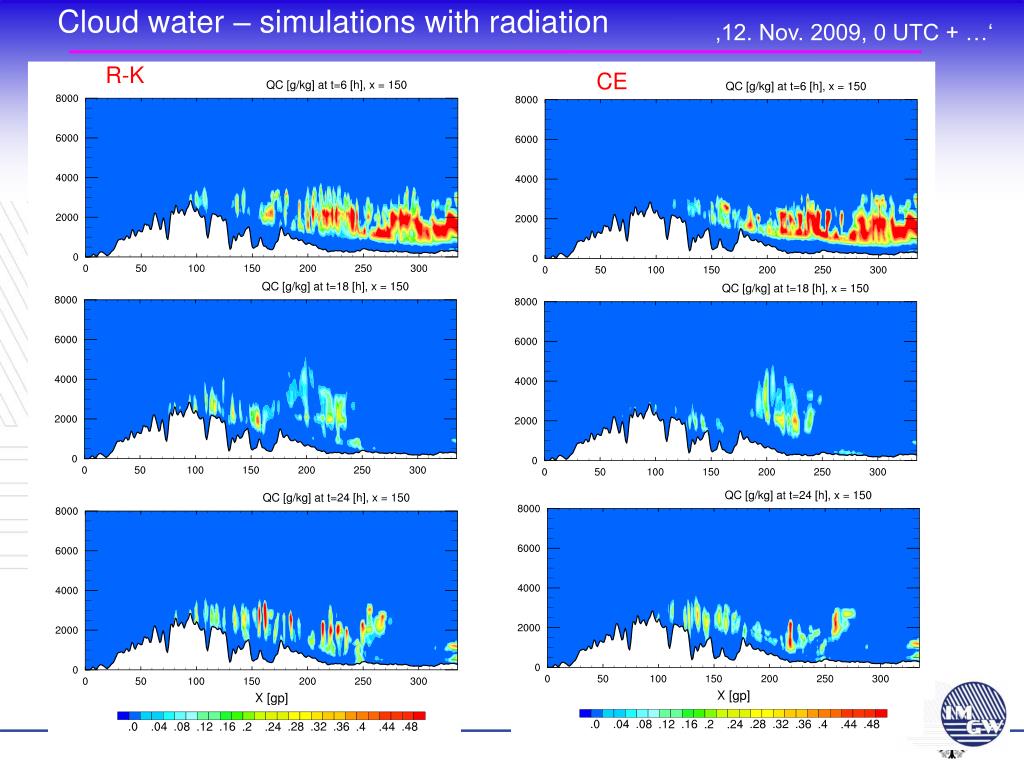

Cloud water – simulations with radiation

‚12. Nov. 2009, 0 UTC + …‘

1. MOTIVATION

R-K

CE


Summary

  • Summary

  • a new dynamical core is available in COSMO as a prototype

    • split-explicit, HE-VI (Runge-Kutta, leapfrog): finite difference, compressible

    • semi-implicit: finite difference, compressible

    • COSMO-EULAG: finite volume, anelastic

  • Realistic tests for Alpine flow with COSMO parameterization of friction, turbulence, radiation, surface fluxes.

  • For the performed tests no artificial smoothing was required to achieve stable solutions

  • The solutions are generally similar to Runge-Kutta results and introduce more spatial variability.

  • In large number of tests (idealized, semi-realistic and realistic) we have not found a case in which an anelastic approximation would be a limitation for NWP.

  • Outlook

  • Follow-up project „COSMO-EULAG operationalization (CELO)“ (2012-2015)project leader: Zbigniew Piotrowski (IMGW)


Summary

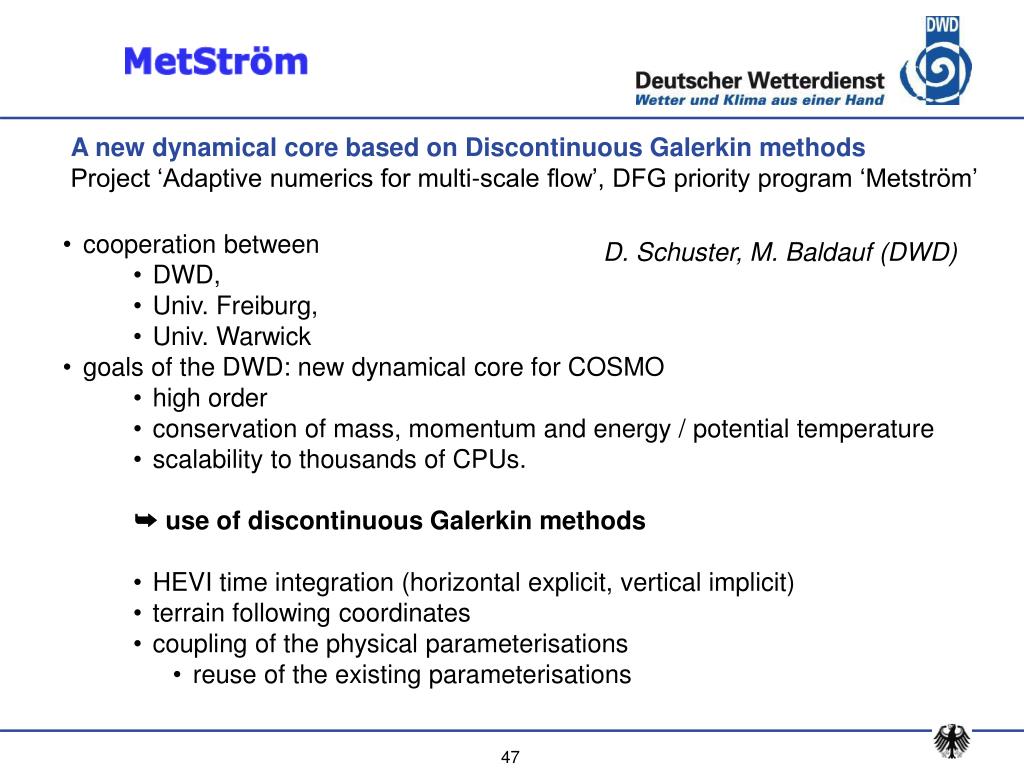

A new dynamical core based on Discontinuous Galerkin methods

Project ‘Adaptive numerics for multi-scale flow’, DFG priority program ‘Metström’

  • cooperation between

    • DWD,

    • Univ. Freiburg,

    • Univ. Warwick

  • goals of the DWD: new dynamical core for COSMO

    • high order

    • conservation of mass, momentum and energy / potential temperature

    • scalability to thousands of CPUs.

  • ➥use of discontinuous Galerkin methods

    • HEVI time integration (horizontal explicit, vertical implicit)

    • terrain following coordinates

    • coupling of the physical parameterisations

      • reuse of the existing parameterisations

D. Schuster, M. Baldauf (DWD)

47


Summary

COSMO-RK

test case linear mountain overflow

  • DG with

  • 3D linear polynomials

  • RK2 explicit time integration

COSMO-DG

Test case of:

Sean L. Gibbons. Impacts of sigma coordinates on the Euler and Navier-Stokes equations using continuous Galerkin methods. PhD thesis, Naval Postgradudate School, March 2009.

48


Summary

An analytic solution for linear gravity waves in a channel as a test case for solvers of the non-hydrostatic, compressible Euler equations


Summary

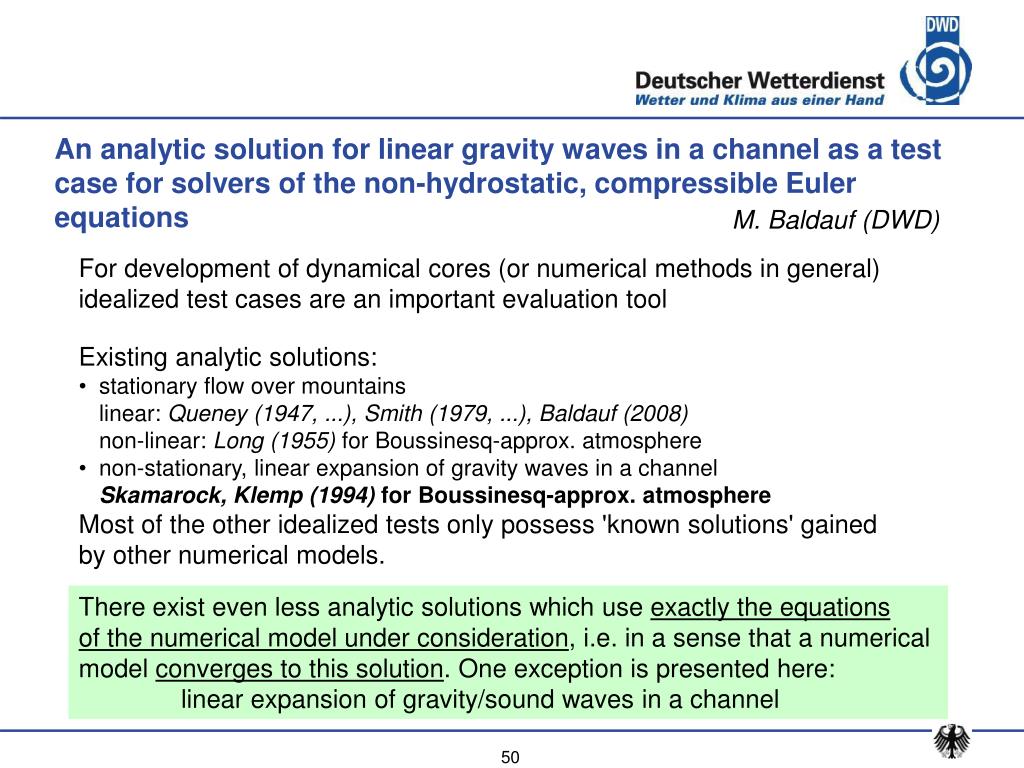

An analytic solution for linear gravity waves in a channel as a test case for solvers of the non-hydrostatic, compressible Euler equations

M. Baldauf (DWD)

For development of dynamical cores (or numerical methods in general)

idealized test cases are an important evaluation tool

  • Existing analytic solutions:

  • stationary flow over mountains linear: Queney (1947, ...), Smith (1979, ...), Baldauf (2008)non-linear: Long (1955) for Boussinesq-approx. atmosphere

  • non-stationary, linear expansion of gravity waves in a channelSkamarock, Klemp (1994) for Boussinesq-approx. atmosphere

  • Most of the other idealized tests only possess 'known solutions' gained

  • by other numerical models.

There exist even less analytic solutions which use exactly the equations

of the numerical model under consideration, i.e. in a sense that a numerical model converges to this solution. One exception is presented here:

linear expansion of gravity/sound waves in a channel

50


Summary

Non-hydrostatic, compressible, 2D Euler equations

in a flat channel (shallow atmosphere) on an f-plane

most LAMs using the compressible

equations should be able to exactly use

these equations in the dynamical core

For analytic solution only one further approximation is needed:

linearisation (= controlled

approximation) around an

isothermal, steady, hydrostatic

atmosphere at rest (f0 possible)

or with a constant basic flow U0 (and f=0)


Summary

Bretherton-, Fourier- and Laplace-Transformation 

Analytic solution for the Fourier transformed vertical velocity w

analogous expressions for ub(kx, kz, t), ...

The frequencies ,  are the gravity wave and acoustic branch, respecticely, of the

dispersion relation for compressible waves in a channel with height H;

kz = ( / H)  m

m=2

  cs / g

m=1

m=0

kx cs2 / g


Summary

Initialization similar to

Skamarock, Klemp (1994)

Small scale test

with a basic flow U0=20 m/s

f=0

Black lines: analytic solution

Shaded: COSMO


Summary

Initialisation similar to

Skamarock, Klemp (1994)

Large scale test

U0=0 m/s

f=0.0001 1/s

Black lines: analytic solution

Shaded: COSMO


Summary

Convergence properties of COSMO

  • COSMO has a spatial-temporal convergence rate of about 0.7...1

  • very fine resolution is necessary to recognize this convergence behaviour

T‘

w‘

order 1

order 1

order 0.7

L -error

L -error

order 0.7

L2 -error

L2 -error


Summary

Temporal order conditions

for the time-split RK3

slow processes (e.g. advection):

fast processes (e.g. sound, gravity wave expansion):

Insertion into the time-split RK3WS integration scheme:

ns := T / t

compare with exp [ T (Ps + Pf) ]  at most 2nd order, but only for:

slow process = Euler forward and ns; fast process can be of 2nd order

Baldauf (2010) MWR


Summary

  • Convergence properties of DUNE - small scale test

  • DUNE developed at Universities of Freiburg, Heidelberg, Stuttgart (Dedner et al., 2007)

  • Discontinuous Galerkin Method of 2nd order and 2nd order time integration (Heun-scheme)

  • Simulations performed by Slavko Brdar (Univ. Freiburg, Germany)

  • slightly better than 2nd order convergence (evaluation or setup problem on finest resolution?)

T‘

w‘

order 2

order 2

L -error

L -error

L2 -error

L2 -error


Summary

  • Summary

  • An analytic solution of the compressible, non-hydrostatic Euler equationswas derived a reliable solution for a well known test exist and can be used not only for qualitative comparisons but even as a reference solution for convergence tests

  • 'standard' approximations used: f-plane, shallow atmosphere,can be easily realised in every atmospheric model

  • only one further approximation for derivation: linearisation

  • for fine enough resolutions COSMO has a spatial-temporal convergence rate of about 0.7...1.(discretizations used: spatial 2..5 order, temporal: < 2nd order)

M. Baldauf, S. Brdar: An Analytic solution for Linear Gravity Waves in a Channel as a Test

for Numerical Models using the Non-hydrostatic, Compressible Euler Equations,

submitted to Quart. J. Roy. Met. Soc. (partly financed by the 'Metström' program of DFG)

Recently a similar solution for the compressible equations on the sphere was found

 talk at PDEs on the sphere


  • Login
