Ole for process control

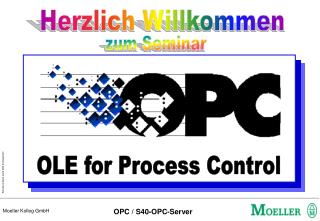

Herzlich Willkommen

zum Seminar

OLE for Process Control

OPC / S40-OPC-Server


Ole for process control

OLE - Object Linking and Embedding

Microsoft EXCEL-Objekt

in Powerpoint

OPC / S40-OPC-Server


Ole for process control

OPC-OLE for ProcessControl

Software-Bus

OPC / S40-OPC-Server


Ole for process control

Historie Treiberwildwuchs ??

ANY

Software-Treiber

Software-Treiber

Software-Treiber

OPC / S40-OPC-Server


Ole for process control

Plug & Play mit OPC (?!)

ANY

OPC-Client

OPC-Client

OPC-Client

OPC-Server

OPC-Server

OPC-Server

Software-Treiber

Software-Treiber

Software-Treiber

OPC / S40-OPC-Server


Ole for process control

Historie

OPC / S40-OPC-Server


Ole for process control

OPC - Entwicklungsstufen

Alarm

&

Events 1.0

OPC

Data Access 2.0

Historical

Data Access

OPC

Data Access 1.0

V

OPC / S40-OPC-Server


Ole for process control

OPC - Client-Server-Architektur

C++

OPC-Custom-Interface

Hersteller-

spezifische

Hard- und

Software-

Anbindung

Client

OPC-Server

VBA

VB

Delphi

OPC-Automation-Interface

Client

OPC / S40-OPC-Server


Ole for process control

OPC-Client

OPC-Client

OPC-Server

Sucom A

COM

D COM

D COM

OPC-

Server

Sucom A

TCP/IP

Verteilte Systeme

OPC / S40-OPC-Server


Ole for process control

OPC - Konfiguration

Zuweisen

+

Starten

Konfiguration

OPC-Server

Browser

Interface

OPC-

Client

OPC / S40-OPC-Server


Ole for process control

OPC - Klassenmodell

OPC-Server

OPC-Group

OPC-Group

OPC-Group

OPC-Item

OPC-Item

OPC-Item

OPC / S40-OPC-Server


Ole for process control

Moeller OPC-Sortiment

Konfigurator

S40 OPC-Server

S40-OPC-Server

Test-Client

Administrator

OPC / S40-OPC-Server


Ole for process control

OPC

Server

S40 OPC-Server

S40-OPC-Server

Sucom A

OPC / S40-OPC-Server


Ole for process control

OPC Konfigurator

Schnittstellen

Auswahl

SPS Auswahl

POE-Variablen

übernehmen

Skalierung

Alarmdefinition

Simulation

OPC / S40-OPC-Server


Ole for process control

S40 OPC-Konfigurator

Erstellung einer

OPC-Konfiguration

Demo

OPC / S40-OPC-Server


Ole for process control

OPC-Administrator

OPC

Admin

OPC / S40-OPC-Server


Ole for process control

OPC Test-Client verbinden

Status

Connect

OPC / S40-OPC-Server


Ole for process control

Server-Variablen übernehmen

OPC / S40-OPC-Server


Ole for process control

Client Zustandsanzeige

ICONICS OPC-Client

Softing OPC-Client

OPC / S40-OPC-Server


Ole for process control

+I4

B

+I1

+I2

I2

I4

I1

R

DT

T

STR

D

OPC - Datentypen

BOOL

BYTE/USINT

WORD/UINT

DWORD/UDINT

SINT

INT

DINT

REAL

STRING

DATE_AND_TIME

DATE

TIME_OF_DAY

OPC / S40-OPC-Server


Ole for process control

B

+

I1

Konfigurator Zusatzsymbole

A

I2

Alarm

Manuell

I2

M

Simulation

I2

S

Read/Write

Read Only

OPC / S40-OPC-Server


Ole for process control

OPC - Konvertierungen

OPC / S40-OPC-Server


Ole for process control

OPC - Simulation

Erzeugung eines neuen Simulationsregisters

Vorhandene

Simulationssignale

OPC / S40-OPC-Server


Ole for process control

1

1

OPC - Alarm & Events

Digital-Alarm

Limit-Alarm

TRUE

FALSE

HiHi

Hi

Lo

LoLo

OPC / S40-OPC-Server


Ole for process control

OPC - Limit Alarm

OPC / S40-OPC-Server


Ole for process control

OPC - Digital Alarm

OPC / S40-OPC-Server


Ole for process control

S40 - OPC-Server Kommunikationsmöglichkeiten

Modem

TCP / IP

Seriell

TCP/IP

(

RS232

(

Telefonleitung

CoBox

CoBox

139.1.14.189

139.1.14.190

OPC / S40-OPC-Server
