  1. Loop Trainer GNI0003H PP

  2. Reason for Study • Because the Loop Trainer gives instructors the capability to control water flow, pressure and temperature, it can be used to simulate almost any scenario in real time. GNI0003H PP

  3. Reason for Study • The Loop Trainer can also be used to simulate special conditions, such as radiation control areas and to train employees on clearance and tagging procedures as well as maintenance and operation tasks. GNI0003H PP

  4. Objectives • Given the Loop Trainer System Description EXPLAIN the system function of: • Cooling Water Loop • Heat Transfer Loop • Recirculation Loop • Loop Cross-connections GNI0003H PP

  5. Objectives • Given the Loop Trainer System Description EXPLAIN the following components: • Electrical Power Sources • Cooling Water Pumps • Heat Transfer Pump • Recirculation Pump GNI0003H PP

  6. Objectives • Given the Loop Trainer System Description EXPLAIN the following components: • Motor Operated Valves • Air Operated Valves • Solenoid Valves • Controls GNI0003H PP

  7. Objectives • Given TAP-414, “TTF Flow Loop Trainer Operation,” PERFORM a walk-through of how to place the loop trainer in service (Laboratory). GNI0003H PP

  8. Objectives • Given “TTF Flow Loop Trainer Qualification Checkout Card QCC INQ0007H,” REVIEW the elements required to obtain the qualification. GNI0003H PP

  9. GNI0003H PP

  10. Cooling Water Storage Tank Valve locations GNI0003H PP

  11. Cooling Water Storage Tank Valves Isolation Valve Instrument Isolation Valve Drain Valve GNI0003H PP

  12. Cooling Water Pump A Cooling Water Pump B GNI0003H PP

  13. 1CW-016, Cooling Water Pumps Suction Strainer GNI0003H PP

  14. 1CW-015, Cooling Water Pumps Pressure Switch Isolation Valve PS-9010, Pressure Switch GNI0003H PP

  15. 1CW-017, Cooling Water Pump 1A Suction Isolation Valve 1CW-018, Cooling Water Pump 1B Suction Isolation Valve GNI0003H PP

  16. 1CW-002, Cooling Water Pump 1A Discharge Isolation Valve 1CW-004, Cooling Water Pump 1B Discharge Isolation Valve GNI0003H PP

  17. 1CW-009, Cooling Water Pump Recirculation Valve GNI0003H PP

  18. Emergency Stop Buttons for Cooling Water Pumps GNI0003H PP

  19. GNI0003H PP

  20. Mechanical Lab 120 Components GNI0003H PP

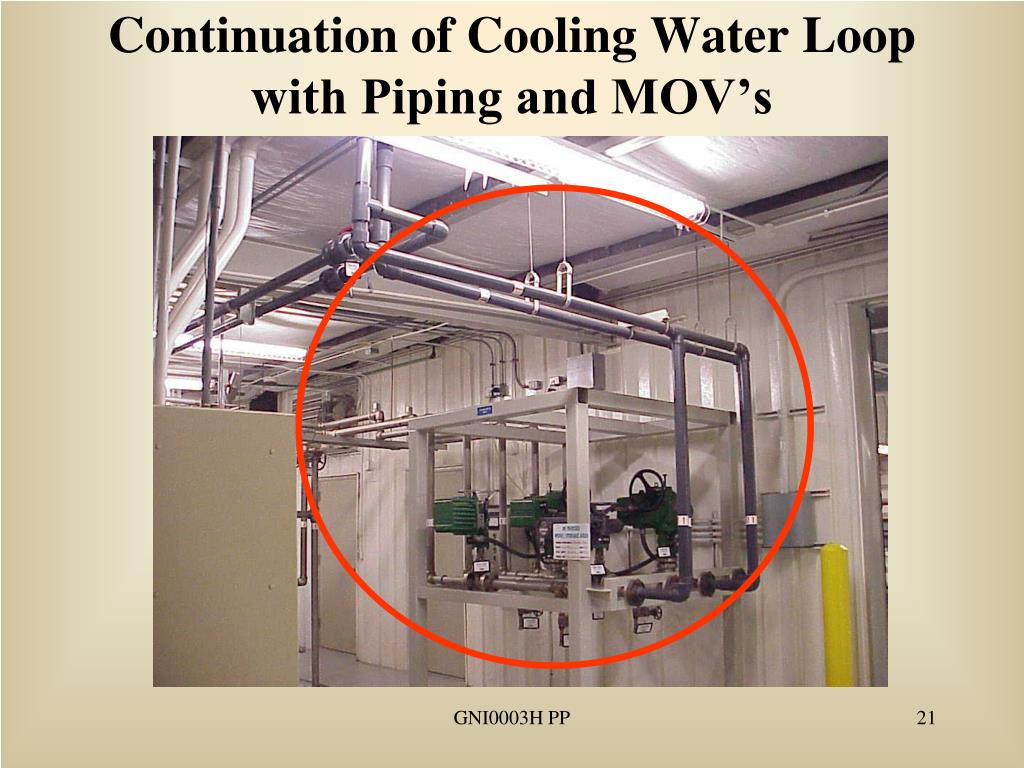

  21. Continuation of Cooling Water Loop with Piping and MOV’s GNI0003H PP

  22. MOV’s for Cooling Water Loop GNI0003H PP

  23. 1CW-005, LP Heater #1 Inlet Tube Side Isolation Valve 1CW-023, LP Heater #1 Inlet Tube Side Drain Valve GNI0003H PP

  24. 1CW-006, LP Heater #1 Outlet Tube Side Isolation Valve 1CW-021, Cooling Water Outlet Header Drain Valve GNI0003H PP

  25. 1CW-007, LP Heater #2 Inlet Tube Side Isolation Valve 1CW-024, LP Heater #2 Inlet Tube Side Drain Valve GNI0003H PP

  26. 1CW-008, LP Heater #2 Outlet Tube Side Isolation Valve 1CW-022, Cooling Water Outlet Header Drain Valve GNI0003H PP

  27. 1CW-020, TCV for LP Heater #2 1CW-019, TCV for LP Heater #1 GNI0003H PP

  28. LCV 2001 & 2002 M/A Stations on Loop Trainer Control Panel for 1CW-019 & 1CW-020 Temperature Control Valves GNI0003H PP

  29. 1CW-9 Switch to OPEN GNI0003H PP

  30. MCC GNI0003H PP

  31. MCC Main Breaker GNI0003H PP

  32. GNI0003H PP

  33. GNI0003H PP

  34. Loop Trainer Control Panel GNI0003H PP

  35. GNI0003H PP

  36. GNI0003H PP

  37. GNI0003H PP

  38. GNI0003H PP

  39. 1CW-9 Switch to MODULATE GNI0003H PP

  40. LCV 2001 & 2002 Stations GNI0003H PP

  41. Emergency Stop Buttons for Cooling Water Pumps GNI0003H PP

  42. Cooling Water Pumps can be stopped from Loop Trainer Control Panel GNI0003H PP

  43. General View of Heat Transfer Loop GNI0003H PP

  44. Hot Water Storage Tank LP #1 & #2 Heaters Loop Trainer Control Panel MOV’s for Cooling Water Loop GNI0003H PP

  45. LP Heater #1 Hot Water Storage Tank LP Heater #2 GNI0003H PP

  46. LP Heater #1 LP Heater #2 GNI0003H PP

  47. View from Rear of Lab 120 Flow Loop MOV’s for Cooling Water Loop LP #1 & #2 Heaters GNI0003H PP

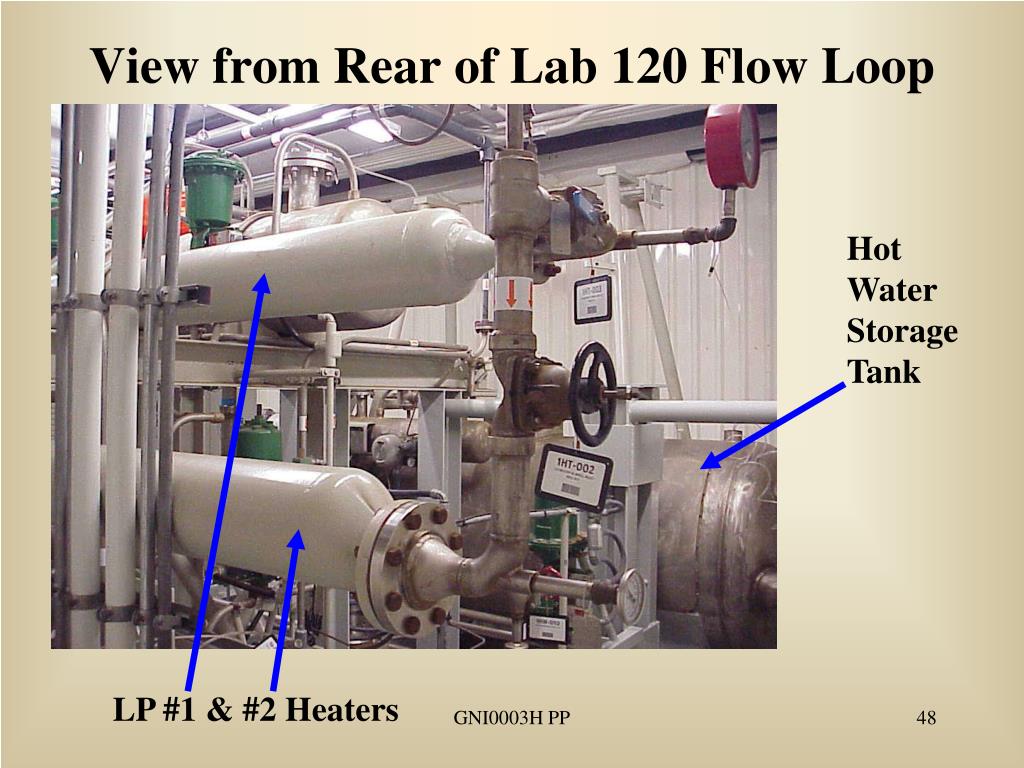

  48. View from Rear of Lab 120 Flow Loop Hot Water Storage Tank LP #1 & #2 Heaters GNI0003H PP

  49. Fill Connection for Heat Transfer Loop (near Relief Valve 1HT-017) GNI0003H PP

  50. Heat Transfer Loop High Point Vent Valve 1HT-019 GNI0003H PP
