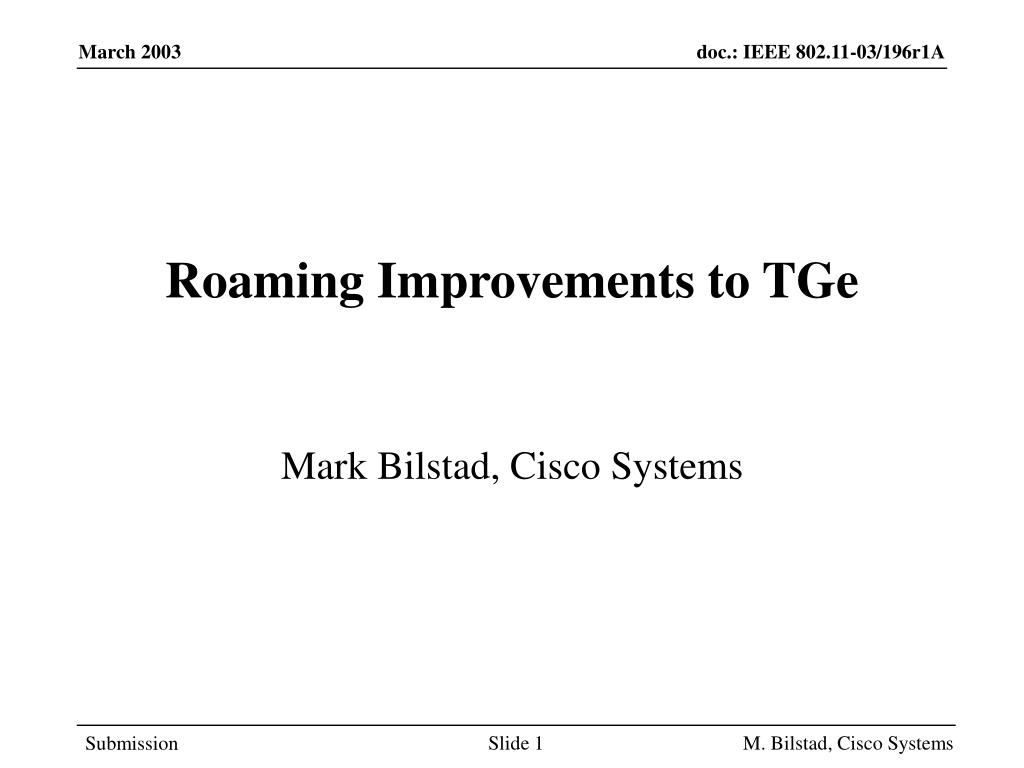

  1. Roaming Improvements to TGe Mark Bilstad, Cisco Systems M. Bilstad, Cisco Systems

  2. Motivations • Resolve several comments related to roaming performance, including comment numbers 860, 861, 862, 863 • Alternate resolution to 181, 182, 186, 187, 189, 369, 864, 865, 880 • Respond to general mandate from task group to maintain and improve roaming performance in light of QoS application needs M. Bilstad, Cisco Systems

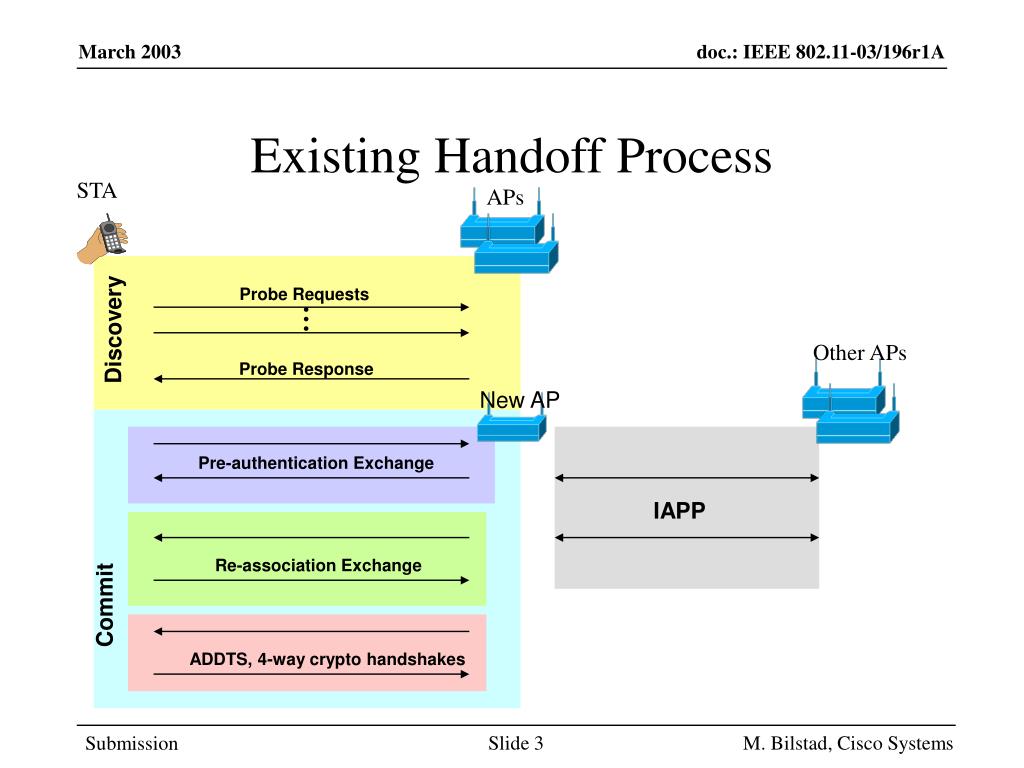

  3. Probe Requests … Probe Response Pre-authentication Exchange Re-association Exchange ADDTS, 4-way crypto handshakes Existing Handoff Process STA APs Discovery Other APs New AP IAPP Commit M. Bilstad, Cisco Systems

  4. Design Considerations • Discovery phase: QoS must be part of new AP selection • Client needs some confidence that its TSPECs will be accepted by the new AP while in the discovery phase • But, AP needs to be able to respond to probe requests quickly (must not require a query to admissions control) • Commit phase: QoS handshakes must not slow this down • TSPEC information should be allowed to be piggybacked on existing messages rather than sent in discrete action frames • Allow grouping of multiple TSPEC elements, regardless of frame M. Bilstad, Cisco Systems

  5. AP Authenticator Ideally, compress roaming to: Client Supplicant Probe Request Probe Response: available admission capacity (predictor) Reassociate Request: TSPEC(2), TCLAS Reassociate Response: status,TSPEC(2) M. Bilstad, Cisco Systems

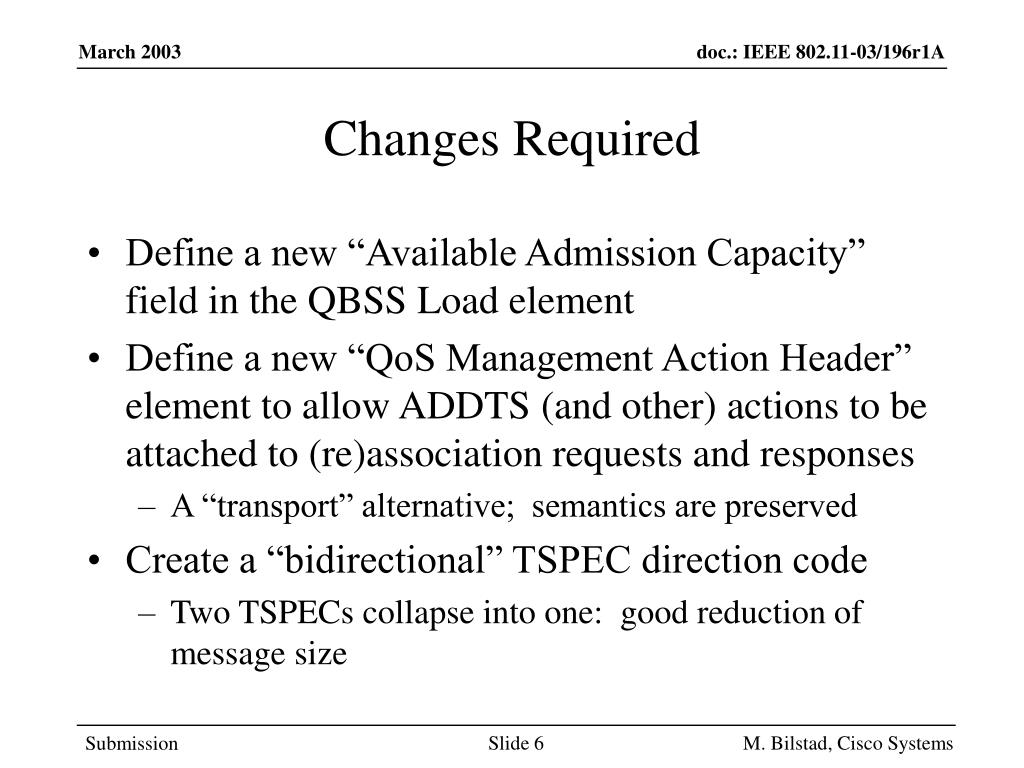

  6. Changes Required • Define a new “Available Admission Capacity” field in the QBSS Load element • Define a new “QoS Management Action Header” element to allow ADDTS (and other) actions to be attached to (re)association requests and responses • A “transport” alternative; semantics are preserved • Create a “bidirectional” TSPEC direction code • Two TSPECs collapse into one: good reduction of message size M. Bilstad, Cisco Systems

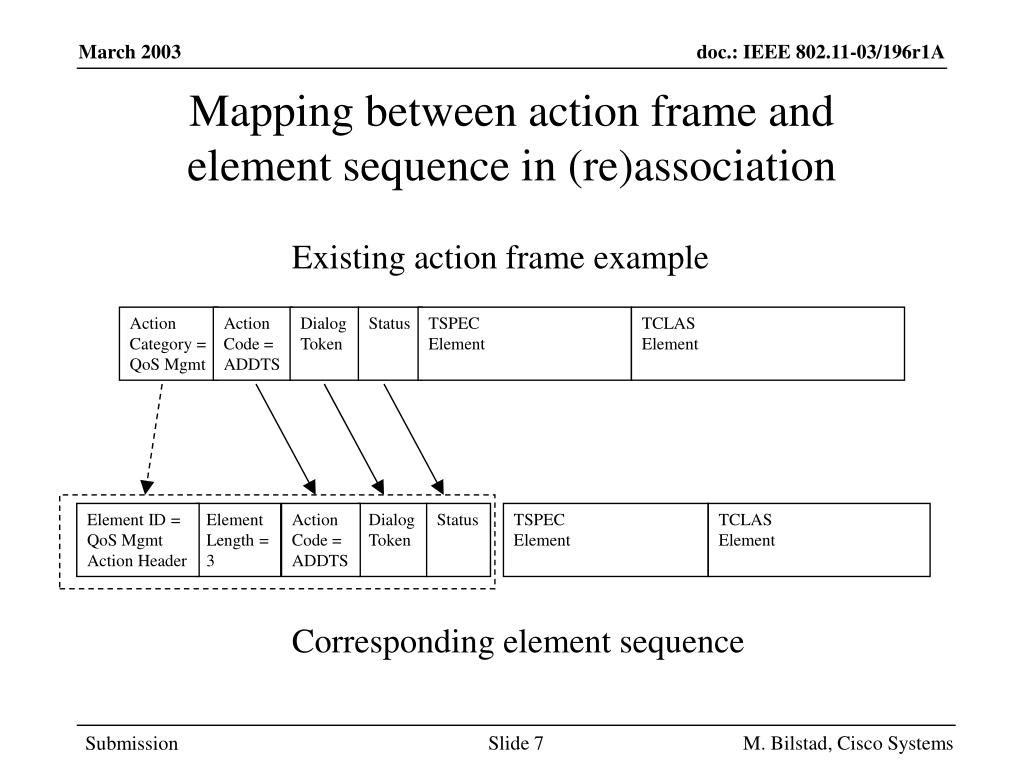

  7. Mapping between action frame andelement sequence in (re)association Existing action frame example Action Category = QoS Mgmt Action Code = ADDTS Dialog Token Status TSPEC Element TCLAS Element Element ID = QoS Mgmt Action Header Element Length = 3 Action Code = ADDTS Dialog Token Status TSPEC Element TCLAS Element Corresponding element sequence M. Bilstad, Cisco Systems
