Enthalpy and Entropy Lesson # 10

Enthalpy and Entropy Lesson # 10. There are two factors that determine the relative amount of reactants and products at equilibrium. Reactions tend to proceed toward minimum enthalpy . Reactions tend to go toward maximum entropy. Enthalpy is PE – In an Exothermic Reaction.

leigh
Download Presentation

Enthalpy and Entropy Lesson # 10

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

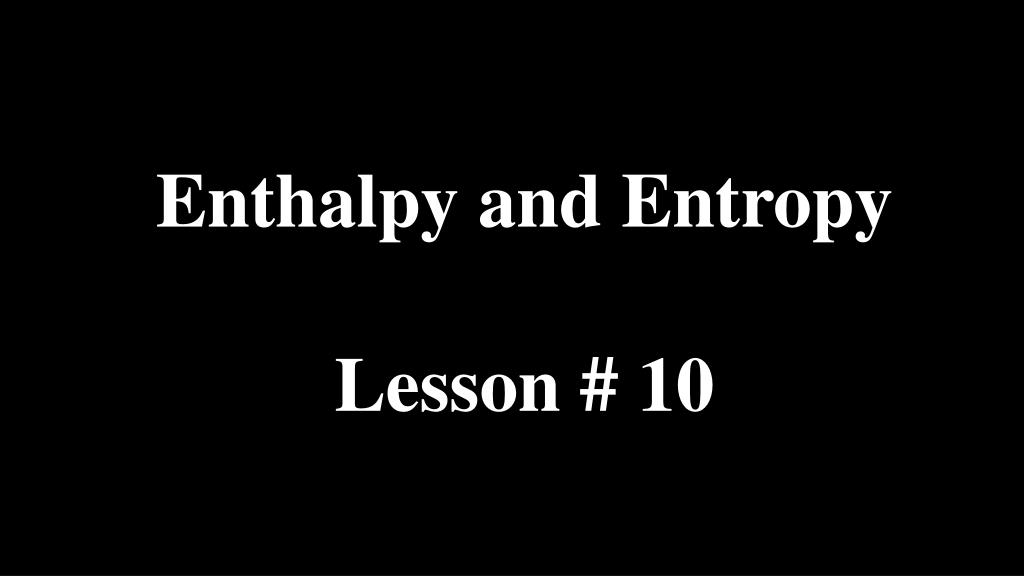

  1. Enthalpy and Entropy Lesson # 10

  2. There are two factors that determine the relative amount of reactants and products at equilibrium. Reactions tend to proceed toward minimum enthalpy. Reactions tend to go toward maximum entropy

  3. Enthalpyis PE – In an Exothermic Reaction A + B = C + energy Products are Favoured The low side (side with the energy) is always favoured- minimum

  4. Enthalpyis PE – In an Endothermic Reaction A + energy= B + C Reactants are Favoured The low side (side with the energy) is always favoured- minimum

  5. Entropy is randomness or a measure of how spread out, or broken up the system is. Less entropy (s) (l) (aq) (g) MoreEntropy Less Entropy More Entropy H2O(l) H2O(g) Watch Simulation H2O(s) H2O(l) NaCl(aq) NaCl(s) N2O4(g) 2NO2(g) P6O9(g) 3P2O3(g) glass broken glass clean room messy room

  6. You can tell the yeild of a reaction with enthalpy and entropy √max entropy√ min enthalpy √ ⇌ √ equlibrium √ ⇌ products favoured √ If they are both on one side that side is favoured If they are on different sides it’s an equilibrium

  7. Are the products or Reactants favoured? 0 gases 1 gas ? + E 1. Zn(s) + 2HCl(aq) H2(g) + ZnCl2(aq)ΔH = -252 KJ ↔ Forentropy- only look at phase symbols- mainly gases √ max entropy Large Keq √min enthalpy Products are favoured Which Way? Goes to Completion Right or left? High yield

  8. Products Reactants ⇌

  9. Are the Products or Reactants favoured? ? + E 2. N2O4(g) 2NO2(g)ΔH = +20 KJ ↔ 1 gas 2 gases √ max entropy √min enthalpy Which Way? Keq is about 1 Right or left? Equilibrium

  10. reactants Products ⇌

  11. Are the Products or Reactants favoured? ? 3. 3C(s) + 3H2(g) + 45 KJ C3H6(g) ↔ √ max entropy √min enthalpy Keq is small Reactants are favoured Low yield Reaction does not occur!

  12. reactants ⇌ products

  13. Describe the change in entropy and enthalpy for an endothermic equilibrium system. Enthalpy must increase Entropy must increase I’m Entropy Maximum entropy Must be on the opposite side Minimum enthalpy

  14. 5. Describe the change in entropy and enthalpy for an exothermic equilibrium system. I’m Entropy Maximum entropy Enthalpy is decreasing Minimum enthalpy Entropy is decreasing

  15. 6. Describe entropy and enthalpy as increasing or decreasing. Zn(s) + 2HCl(aq) → H2(g) + ZnCl2(aq)ΔH = -252 KJ √ max entropy √ min enthalpy Enthalpy decreases Entropy increases

  16. 7. Describe entropy and enthalpy as increasing or decreasing. 3C(s) + 3H2(g) + 45 KJ → C3H6(g) √ min enthalpy √ max entropy Enthalpy increases Entropy decreases

  17. Equilibrium is a compromise between the tendencies toward minimum enthalpy and maximum entropy.
