Presentation Transcript


Slide2 l.jpg

Bronzelite LED

The GM5012 Series in grounds virtually disappear, but still pack quite a punch! LED and MR16 sources put the light right where you want it. For a durable, maintenance-free in ground, specify the GM5 Series!

UL Listed for both outdoor and indoor use, cUL outdoor only. Cool external temperatures - all below 38°C! - so the luminaire is cool to the touch, including the lens. Perfect for high pedestrian traffic and plant life applications. Exceeds European Standard EN 563 for both 1 second (85°C for composite, 80°C for glass) and 4 seconds (74°C for composite, 70°C for glass) of contact

12W LED at 12 Volts – Cool White – 4000K or Warm White – 3000K

Requires Remote Magnetic 60htz Transformer – IP66/68 Rated


Slide3 l.jpg

Bronzelite LED

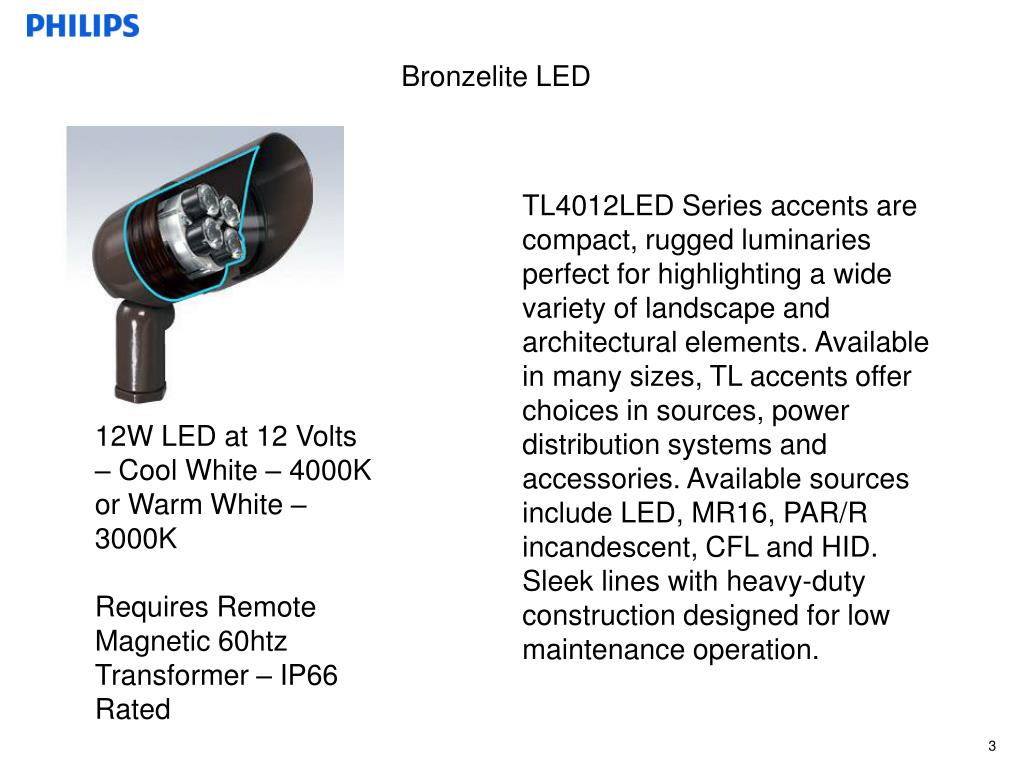

TL4012LED Series accents are compact, rugged luminaries perfect for highlighting a wide variety of landscape and architectural elements. Available in many sizes, TL accents offer choices in sources, power distribution systems and accessories. Available sources include LED, MR16, PAR/R incandescent, CFL and HID. Sleek lines with heavy-duty construction designed for low maintenance operation.

12W LED at 12 Volts – Cool White – 4000K or Warm White – 3000K

Requires Remote Magnetic 60htz Transformer – IP66 Rated


Slide4 l.jpg

Bronzelite LED

The popular TL7000 is now available in LED as the TL7012. Available in three optics, wide, medium and narrow. Each of these optics come in both warm and cool white color temperatures. The rugged, heavy-duty construction of the TL Series ensures long-lasting and low maintenance operation

17W LED Standard

70 CRI

50,000 hours of Operation at 25 degrees C and 70% lumen maintenance – IP66 Rated


Slide5 l.jpg

Bronzelite LED

Bronzelite LED bricklytes are designed as a matched replacement for a standard sized brick. The choice of horizontal, vertical or frosted lens unit fits discretely into a brick space and enables light to be directed where it is needed.

Cool external temperatures - all below 38°C! - so the luminaire is cool to the touch, including the lens. Perfect for high pedestrian traffic and plant life applications. Exceeds European Standard EN 563 for both 1 second (74°C for coated metal, 80°C for glass) and 4 seconds (61°C for coated metal, 70°C for glass) of contact.

Available with (5) 1 Watt LEDs in either Cool White at 5500K or Warm White at 3000K.

Available in 120 Volts only

IP66 Rated


Slide6 l.jpg

Bronzelite LED

The versatile 4012LED Series freestanding underwater fountain and Wet/Dry (LED version) luminaries accent decorative fountains, reflection pools and their features.

UL Listed for both outdoor and indoor use, totally submerged (wet) or totally exposed (dry), cUL outdoor submerged only.

Cool external temperatures - all below 31°C when underwater! - so the luminaire is cool to the touch, including the lens. Perfect for high pedestrian traffic and plant life applications. Exceeds European Standard EN 563 for both 1 second (85°C for composite, 80°C for glass) and 4 seconds (74°C for composite, 70°C for glass) of contact

12W LED at 12 Volts – Cool White – 4000K or Warm White – 3000K

Requires Remote Magnetic 60htz Transformer – IP66/68 Rated


Slide7 l.jpg

Bronzelite LED

PTL3316D Path Lights are available with dome (LED & T-3) or flat (T-3 only) roofs. LED and T-3 halogen sources provide even illumination in a compact, durable, beautiful luminaries.

UL Listed for both outdoor and indoor use, cUL outdoor only. Cool external temperatures - all below 36°C! - so the luminaire is cool to the touch, including the lens. Perfect for high pedestrian traffic and plant life applications. Exceeds European Standard EN 563 for both 1 second (74°C for coated metal, 80°C for glass) and 4 seconds (61°C for coated metal, 70°C for glass) of contact.

6 Watt LED – Available in Cool White – 6000K or Warm White 3000K

Requires Remote Magnetic 60 Hz Transformer – IP66 Rated


Slide8 l.jpg

Bronzelite LED

PTLA119D LED - Mushrooms are perfect path lights for illuminating walkways and other pedestrian areas. LED and T-3 halogen sources provide even illumination in a compact, durable, beautiful luminaries.

UL Listed for both outdoor and indoor use, cUL outdoor only. Cool external temperatures - all below 43°C! - so the luminaire is cool to the touch, including the lens. Perfect for high pedestrian traffic and plant life applications. Exceeds European Standard EN 563 for both 1 second (74°C for coated metal, 80°C for glass) and 4 seconds (61°C for coated metal, 70°C for glass) of contact.

6 Watt LED – Available in Cool White – 6000K or Warm White 3000K

Requires Remote Magnetic 60 Hz Transformer – IP66 Rated


Slide9 l.jpg

Bronzelite LED

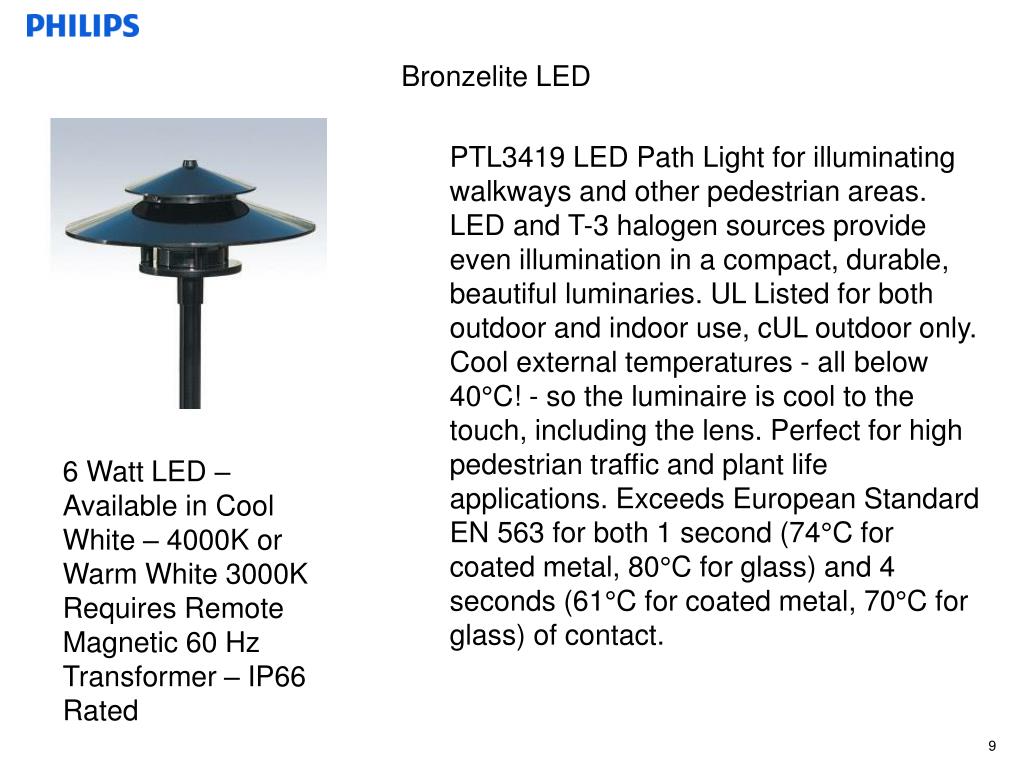

PTL3419 LED Path Light for illuminating walkways and other pedestrian areas. LED and T-3 halogen sources provide even illumination in a compact, durable, beautiful luminaries. UL Listed for both outdoor and indoor use, cUL outdoor only. Cool external temperatures - all below 40°C! - so the luminaire is cool to the touch, including the lens. Perfect for high pedestrian traffic and plant life applications. Exceeds European Standard EN 563 for both 1 second (74°C for coated metal, 80°C for glass) and 4 seconds (61°C for coated metal, 70°C for glass) of contact.

6 Watt LED – Available in Cool White – 4000K or Warm White 3000K

Requires Remote Magnetic 60 Hz Transformer – IP66 Rated


Slide10 l.jpg

Bronzelite Underwater

The 5000RGS Series freestanding underwater fixtures are designed for use in smaller shallower decorative fountains and reflection pools. These nickel-plated fixtures are barely visible during the day but their engineered optics are fully adjustable by way of a swivel yoke assembly to provide stunning lighting effects at night. The versatile 5000 Series fixtures offer a variety of lamp options in both low voltage and line voltage; from 75W MR16 to 500W T4 quartz. Fixtures are factory lamped.


Slide11 l.jpg

Bronzelite Underwater

The 5000RGT Series freestanding underwater fixtures are designed for use in smaller shallower decorative fountains and reflection pools. These nickel-plated fixtures are barely visible during the day but their engineered optics are fully adjustable by way of a swivel yoke assembly to provide stunning lighting effects at night. The versatile 5000 Series fixtures offer a variety of lamp options in both low voltage and line voltage; from 75W MR16 to 500W T4 quartz. Fixtures are factory lamped


Slide12 l.jpg

Bronzelite Underwater

The 6025RG freestanding underwater fixture is designed for use in medium to large decorative fountains and reflection pools using up to 250 watt PAR38/40 incandescent lamps. The 6025 is manufactured of cast bronze and includes a cast bronze rock guard as standard. It is fully adjustable by way of a swivel yoke assembly to optimize any lighting effect.


Slide13 l.jpg

Bronzelite Underwater

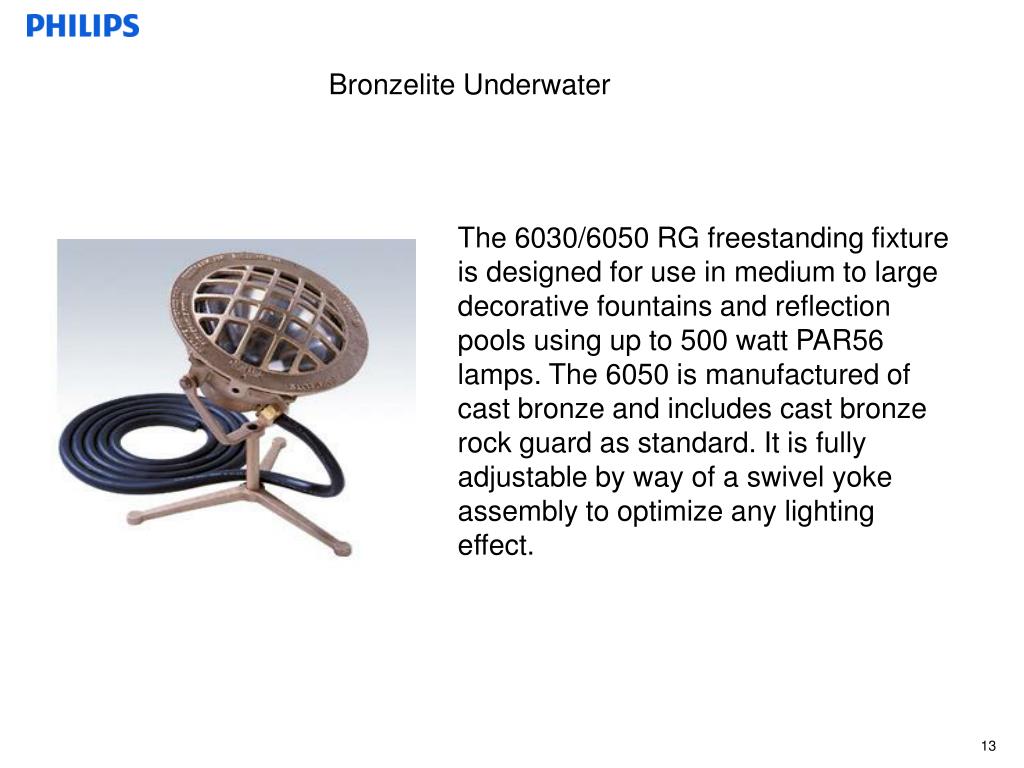

The 6030/6050 RG freestanding fixture is designed for use in medium to large decorative fountains and reflection pools using up to 500 watt PAR56 lamps. The 6050 is manufactured of cast bronze and includes cast bronze rock guard as standard. It is fully adjustable by way of a swivel yoke assembly to optimize any lighting effect.


Slide14 l.jpg

Bronzelite Underwater

The 5100RG Series niche-mounted underwater fixtures are designed for use in smaller, shallower decorative fountains and reflection pools. These nickel-plated fixtures are barely visible during the day but their engineered optics are adjustable 25° from vertical with 360° rotation to provide stunning lighting effects at night. 5100 series fixtures can be either wall or floor mounted. The versatile 5100 Series fixtures offer a variety of lamp options in both low voltage and line voltage; from 75W MR16 to 500W T4 quartz. Fixtures are factory lamped.


Slide15 l.jpg

Bronzelite Underwater

The 6125RG niche-mounted underwater fixture is designed for use in medium to large decorative fountains and shallow reflection pools using up to 250 watt R40 quartz or 150 watt PAR38 incandescent lamps. Using PAR38 150W maximum, it is dual UL listed for both submersible and wet locations enabling it to be used in situations requiring intermittent operation above water level. The 6125 is manufactured of cast bronze and includes a cast bronze rock guard as standard. It is adjustable 25° from vertical with 360° rotation to provide stunning lighting effects at night.


Slide16 l.jpg

Bronzelite Underwater

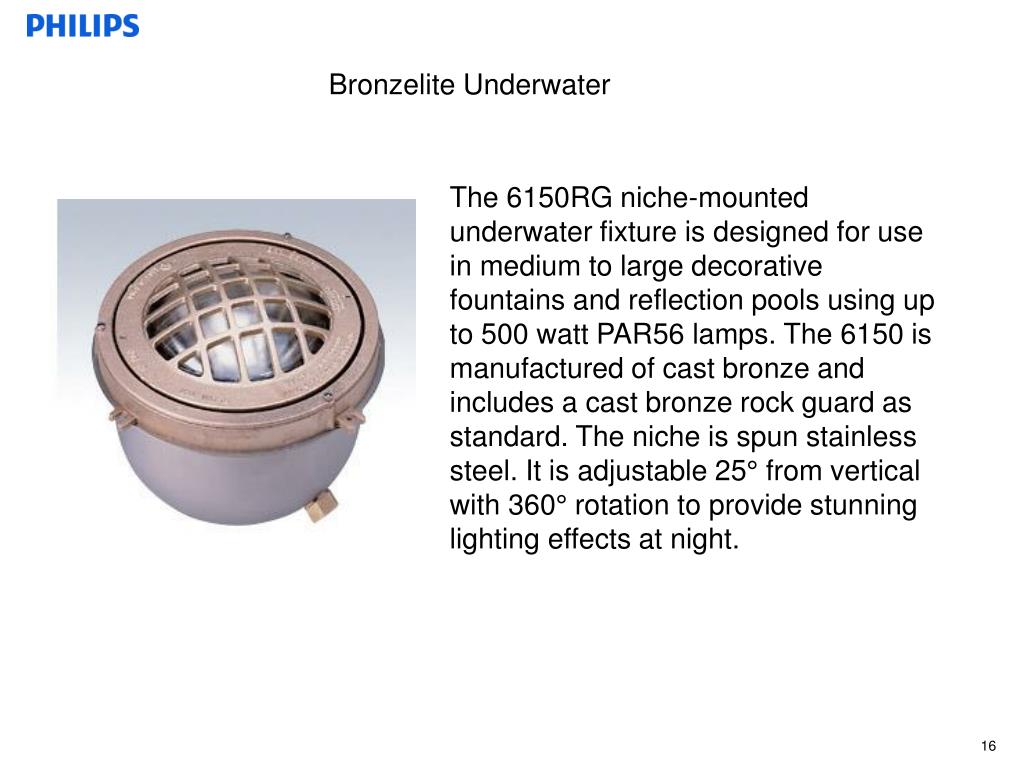

The 6150RG niche-mounted underwater fixture is designed for use in medium to large decorative fountains and reflection pools using up to 500 watt PAR56 lamps. The 6150 is manufactured of cast bronze and includes a cast bronze rock guard as standard. The niche is spun stainless steel. It is adjustable 25° from vertical with 360° rotation to provide stunning lighting effects at night.


Slide17 l.jpg

Bronzelite Underwater

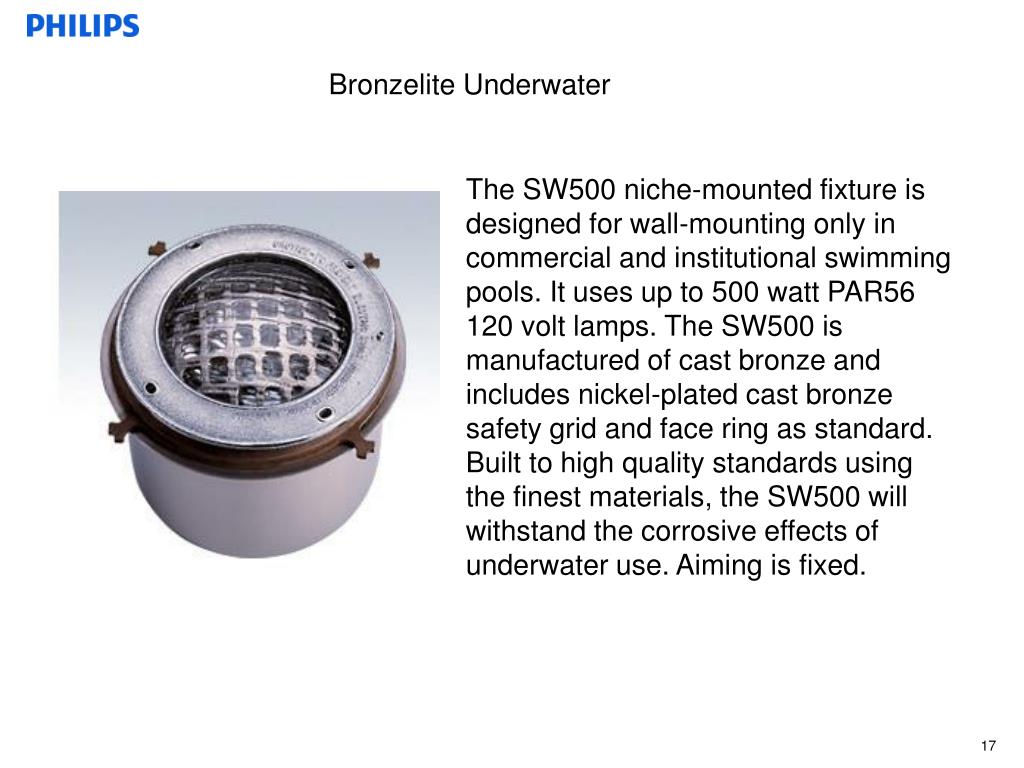

The SW500 niche-mounted fixture is designed for wall-mounting only in commercial and institutional swimming pools. It uses up to 500 watt PAR56 120 volt lamps. The SW500 is manufactured of cast bronze and includes nickel-plated cast bronze safety grid and face ring as standard. Built to high quality standards using the finest materials, the SW500 will withstand the corrosive effects of underwater use. Aiming is fixed.


Slide18 l.jpg

Bronzelite Underwater

The BU6000 wet niche underwater fixture provides accent illumination for reflection pools, fountains and waterfalls. Its compact size contemporary rectangular lens and natural bronze fixture housing, tamper resistant fasteners, stainless steel niche and silicone lens ensure reliable, low maintenance service. Available for 116 watt incandescent or 300 watt quartz lamps. Dry location up to 50 watt incandescent.


Slide19 l.jpg

Bronzelite In Ground

The DB8 and DB8 Cool Lens Series in ground fixture is a rugged and effective lighting luminaries for use in a wide variety of outdoor lighting applications. A tough composite housing, molded tempered borosilicate glass lens and high temperature silicone gasket give positive protection to the optical and electrical components.Light distributions include spot and flood reflectors for E17, PAR and T6 lamps. Equipped to use the latest Philips Solid State and Lamina LED modules. IP66/67 Rated


Slide20 l.jpg

Bronzelite In Ground

Strength, durability and performance are the hallmarks of all DB5000 specification-grade in ground fixtures. Regardless of optics selected, excellent lighting performance can be achieved with various setback and spacing due to the unique versatility of the DB5000's TOUCH-AIM® optical package. It includes a high-temperature composite lamping module with clear borosilicate or molded spread lens with CAM-LATCH™ closure system - simply twist to secure, no tools required! – IP66/68 Rated


Slide21 l.jpg

Bronzelite In Ground

The DB3000 Series variable height in ground fixture is a rugged and effective lighting instrument for use in a wide variety of outdoor lighting applications. A tough polyester composite sealed in ground fixture with molded soda-lime lens and high-temperature silicone gaskets give positive protection to optical and electrical components. This fixture is contained within a rugged PVC sleeve that can be installed from flush to 20" above finished grade, making this fixture a must in planting areas. Optional finishes on the well sleeve make the DB3000 a pleasing architectural accent as well as a durable precision lighting instrument. IP65/67 Rated


Slide22 l.jpg

Bronzelite In Ground

The G6025 grade-mounted submersible well light is a real floodlight; UL listed in both wet location and submersible categories. This fixture is designed and intended for use in low areas of the landscape prone to flooding. It provides excellent landscape illumination using up to 250 watt incandescent PAR and R lamps. The G6025INC is constructed with a heavy cast bronze lamp housing and safety grill within a PVC well sleeve. Dry location up to 150 watt. IP65/67 Rated


Slide23 l.jpg

Bronzelite In Ground

The G5000 Series grade-mounted well-light provides excellent landscape illumination using H.I.D. sources up to 150 watts and incandescent lamps up to 150 watts. The fixtures are constructed with a heavy cast aluminum or optional cast bronze lamp housing and safety grill within a PVC well sleeve. IP65/67 Rated


Slide24 l.jpg

Bronzelite In Ground

The GM2000 Series is a compact grade-mounted up light designed to provide spectacular lighting results with high performance miniature light sources. 70 Watt Metal Halide maximum lamping. The high-strength composite fixture will accept a broad range of lamp types to fulfill any landscape lighting application. It is ideal for illuminating tress and shrubbery, architectural surfaces, corporate signage and outdoor sculpture. IP65/67 Rated


Slide25 l.jpg

Bronzelite In Ground

The GM4000 Series grade-mounted lighting is a flexible series offering high performance optics and a complete choice of light sources including mercury vapor, metal halide, high pressure sodium and incandescent/quartz. Higher wattages of up to 250 watt H.I.D. and up to 500 watt incandescent available for more demanding lighting tasks including larger area wall washing and taller flag poles. IP65/67 Rated


Slide26 l.jpg

Bronzelite In Ground

The G8000 in ground fixture is a rugged and effective lighting luminaire for use in a wide variety of outdoor lighting applications. A tough polyester composite housing, molded tempered soda-lime lens and high-temperature silicone gasket give positive protection to optical and electrical components. The lens is rated at 2,600 pound live-load for walk-over applications. Maximum lamp wattage of 150 Watt HID and Incandescent and 42 Watt Compact Fluorescent. IP65/67 Rated


Slide27 l.jpg

Bronzelite In Ground

The G7000 Series in ground fixture is a rugged and effective lighting luminaire for use in a wide variety of outdoor lighting applications. A tough polyester composite housing, molded tempered soda-lime lens and high-temperature silicone gasket give positive protection to optical and electrical components. The lens is rated at 2,200 pound live-load for walk-over applications. Maximum lamp wattage of 100 Watt HID and Incandescent and 42 Watt Compact Fluorescent. IP65/67 Rated


Slide28 l.jpg

Bronzelite In Ground

The GM1000 is a compact in ground fixture designed for blending into landscape settings. The fixture is available with a standard cast bronze lens ring with an optional cast stainless steel lens ring or optional cast bronze directional rock guard. Maximum lamping of 100 Watt Incandescent, 32 Watt Compact Fluorescent and 75 Watt Low Voltage with Integral Transformer. IP65/67 Rated


Slide29 l.jpg

Bronzelite Accent

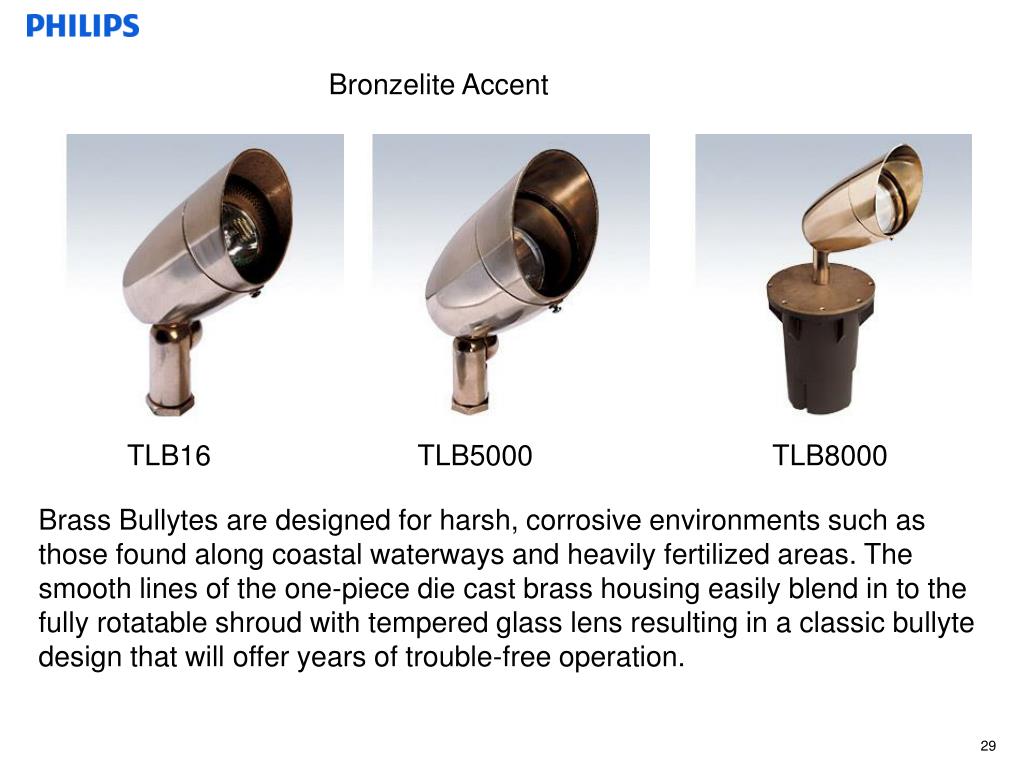

TLB16

TLB5000

TLB8000

Brass Bullytes are designed for harsh, corrosive environments such as those found along coastal waterways and heavily fertilized areas. The smooth lines of the one-piece die cast brass housing easily blend in to the fully rotatable shroud with tempered glass lens resulting in a classic bullyte design that will offer years of trouble-free operation.


Slide30 l.jpg

Bronzelite Accent

The Bronzelite TL3 and TL4050 Series Accent luminaires are designed to produce precise beam patterns utilizing T3, MR8 or MR11 lamps. The rugged and durable housing and shroud are die cast aluminum with a variety of powder coat finishes. The 12 volt mounting arm is used with a low voltage transformer for open settings and terrains to enhance and beautify architectural building materials and landscape.


Slide31 l.jpg

Bronzelite Accent

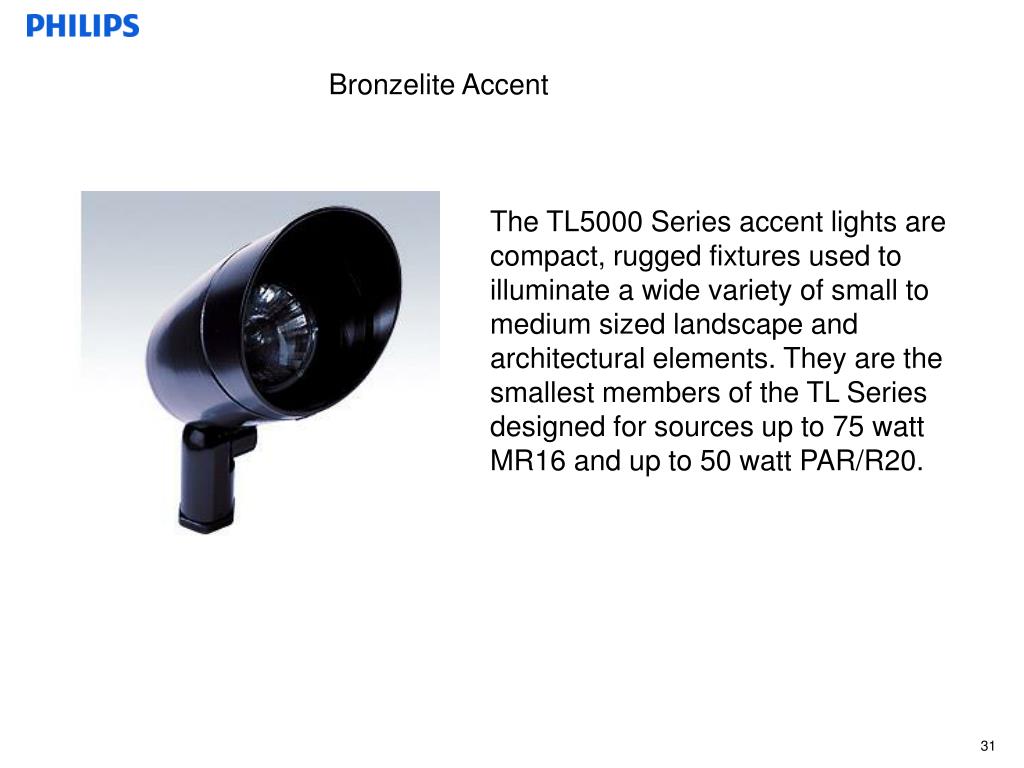

The TL5000 Series accent lights are compact, rugged fixtures used to illuminate a wide variety of small to medium sized landscape and architectural elements. They are the smallest members of the TL Series designed for sources up to 75 watt MR16 and up to 50 watt PAR/R20.


Slide32 l.jpg

Bronzelite Accent

The TL6000 Series accent lights are small, rugged fixtures used to illuminate a wide variety of small to medium sized landscape and architectural elements. They are the mid-size members of the TL Series designed for sources up to 100 watt PAR/R30.


Slide33 l.jpg

Bronzelite Accent

The TL7000 Series accent lights are rugged fixtures used to illuminate a wide variety of medium to large sized landscape and architectural elements. They are the largest member of the TL Series designed for sources up to 300 watt PAR38 and R40 incandescent and quartz lamps; up to 150W PAR38, R40 and E17 lamps; and 18/26/32 watt compact fluorescent.


Slide34 l.jpg

Bronzelite Accent

The FL5000 Series fixtures feature a heavy-duty cast aluminum fixture housing, glare shield and weatherproof gasketing. Available lamping includes Incandescent up to 300 Watts. Metal Halide and High Pressure Sodium up to 150 Watts. All HID units are supplied with a composite ballast enclosure for greater durability and ease of installation.


Slide35 l.jpg

Bronzelite Accent

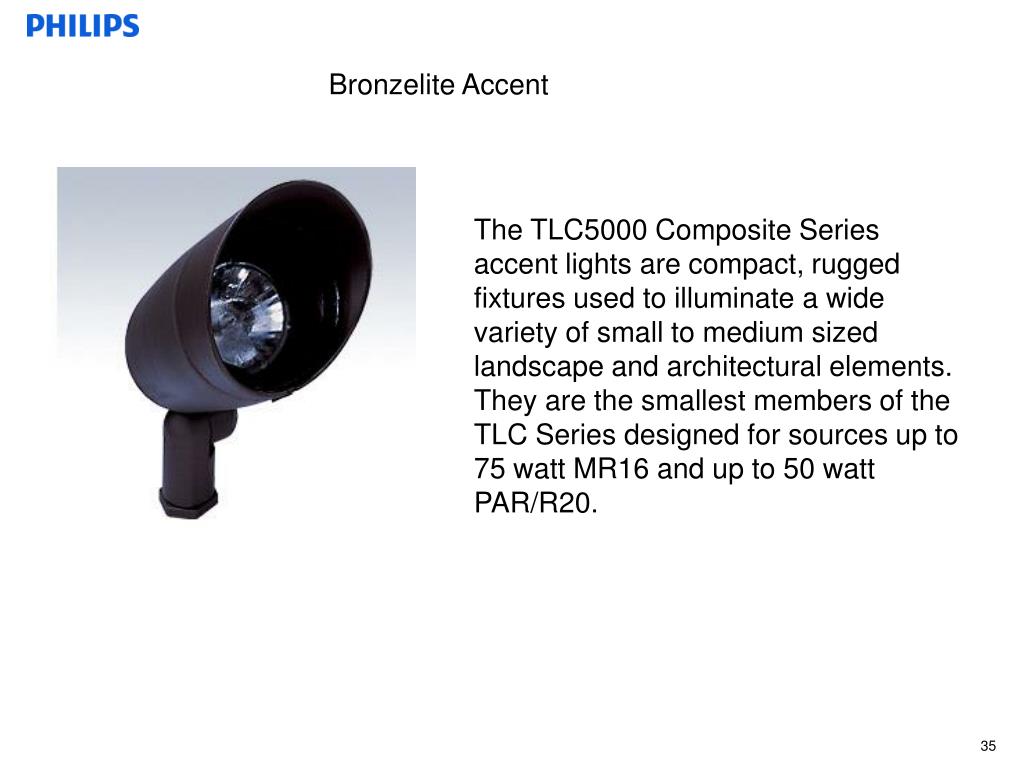

The TLC5000 Composite Series accent lights are compact, rugged fixtures used to illuminate a wide variety of small to medium sized landscape and architectural elements. They are the smallest members of the TLC Series designed for sources up to 75 watt MR16 and up to 50 watt PAR/R20.


Slide36 l.jpg

Bronzelite Accent

The TLC6000 Composite Series accent lights are small, rugged fixtures used to illuminate a wide variety of small to medium sized landscape and architectural elements. They are the mid-size members of the TLC Series designed for sources up to 100 watt PAR/R30.


Slide37 l.jpg

Bronzelite Accent

The TLC7000 Composite Series accent lights are rugged fixtures used to illuminate a wide variety of medium to large sized landscape and architectural elements. They are the largest member of the TLC Series designed for sources up to 150 watt PAR 38 and R40 incandescent and quartz lamps and up to 150W PAR38, R40 and E17 lamps.


Slide38 l.jpg

Bronzelite Accent

TL11 Architectural Flood Light provides bright, even illumination in commercial applications and is well suited for signs, wall washing and silhouetting. The housing is constructed of cast aluminum with an integral shroud. Finishes include black, bronze or white thermoset powder coat with hand applied Verde available.

The low profile TL11 (75 watt T4 halogen lamp, included) is but one of the several TL series floodlights available.


Slide39 l.jpg

Bronzelite Accent

The TL12 (75 watt A19 incandescent lamp) is one of the larger fixtures in the TL series floodlights along with the TLF13 (13 watt PL-S fluorescent lamp) and the TLF14 (2-9 watt PL-S fluorescent lamps). The family of fixtures also includes the low profile TL11 (75 watt T4 halogen lamp, included).


Slide40 l.jpg

Bronzelite Accent

The FL7000 Series architectural floodlight is a ground-mounted up light designed to provide even illumination without hotspots.The reflector is precision-formed from hammertone aluminum and an integral hinged lens bracket pivots down for lens removal and re-lamping. The FL7000 is constructed of extruded aluminum with a thermoset polyester powder coat for lasting beauty. Available in Three sizes up to 70 Watt HID and 2x54 Watt Fluorescent.


Slide41 l.jpg

Bronzelite Accent

The FL9000 Series architectural floodlight is a ground-mounted up light designed to provide even illumination without hotspots. The reflector is precision-formed from hammertone aluminum and an integral hinged lens bracket pivots down for lens removal and re-lamping. The FL9000 is constructed of die-cast aluminum with a thermoset polyester powder coat for lasting beauty. Available in 250 Watt HID and 300 Watt Incandescent.


Slide42 l.jpg

Bronzelite Step Lights

Designed as a matched replacement for a standard sized brick, Bronzelite Brick lights are available in fluorescent, incandescent, LED and low voltage sources. The choice of horizontal, vertical or frosted lens unit fits discretely into a brick space and enables light to be directed where it is needed.


Slide43 l.jpg

Durable high performance recessed Bronzelite Step Lights offer superior performance with ease of installation and service. The WLA2 and WLB2 are available in incandescent, HID, fluorescent and low voltage sources to address all of your step light needs.

Bronzelite Step Lights


Slide44 l.jpg

Bronzelite Step Lights

The WLA3 Recessed Round Step Light combines elegant styling with multiple lamping options. Maximum 70 Watt HID, 42 Watt Compact Fluorescent, 50 Watt Low Voltage and 60 Watt Incandescent.

The WLA3 Round Step Light has a cast louver face plate with a shadow-free frosted lens. Maximum 70 Watt HID, 42 Watt Compact Fluorescent, 50 Watt Low Voltage and 60 Watt Incandescent.


Slide45 l.jpg

Bronzelite Step Lights

The WLA4 Step Light is a fully recessed wall light with a capacity of 100W metal halide, high pressure sodium and 42W fluorescent. The unobtrusive design mounts flush with the wall surface, and the louvered front is hinged for easy re-lamping. The sturdy copper-free aluminum die cast housing will not oxidize, and the fixture is finished with a corrosion resistant thermoset polyester powder coat.


Slide46 l.jpg

Bronzelite Step Lights

The WLA5 Step Light is a recessed wall fixture featuring a water tight polycarbonate lens. The wide light pattern is ideal for critical lighting applications like walkways and stairs where safety is paramount. The copper-free die cast aluminum WLA5 will not oxidize, and the fixture is finished with a corrosion resistant thermoset polyester powder coat. The WLA5 features a field adjustable lighting assembly for symmetrical or asymmetrical light distribution with a lighting capacity of up to 100 Watt Metal Halide and High Pressure Sodium.


Slide47 l.jpg

Bronzelite Path Lights

Designed for heavy-duty commercial applications, the RD1, RF1, and RC1 bollards provide rugged durability with architectural style. The cylindrical lens and die-cast louvers enable even, glare-free illumination in a 360 degree pattern utilizing incandescent, compact fluorescent, metal halide or high pressure sodium lamps. The louvers also provide cut-off 5 degrees below horizontal. A removable 180 degree internal shield is provided. Maximum 100 Watt HID, 42 Watt Compact Fluorescent and 100 Watt Incandescent lamping.


Slide48 l.jpg

Bronzelite Path Lights

Stylish and slim, the Bronzelite RD6 and RF6 bollard provides powerful yet cost effective solutions to driveway and walkway lighting needs. The glass refractor optics - Type 5 with or without house side shield - direct light outward for maximum spacing. The cone optics provide an efficient, even illumination. Available in 24", 30" and 38" heights. Maximum 100 Watt HID, 42 Watt Compact Fluorescent and 100 Watt Incandescent lamping.


Slide49 l.jpg

Bronzelite Path Lights

The RD8 and RF8 bollards provide unsurpassed optical versatility to fulfill a wide range of lighting needs, including driveway, sidewalk and pathway. The glass refractor optics - Type 5 with or without house side shield and Type 3 - direct light outward for maximum spacing. The cone optics provide an efficient, even illumination. Specular and white powder-coated louvers direct light downward for optimum control. Available in 24", 30", 36" and 42" heights. Maximum 100 Watt HID, 42 Watt Compact Fluorescent and 100 Watt Incandescent lamping.


Slide50 l.jpg

Bronzelite Path Lights

The RFHD1, RCHD1 and RFHD1 bollards provide rugged durability with architectural style. The cylindrical lens and die-cast louvers enable even, glare-free illumination in a 360 degree pattern utilizing incandescent, compact fluorescent, metal halide or high pressure sodium lamps. The louvers also provide cut-off 5 degrees below horizontal. A removable 180 degree internal shield is provided. Maximum 100 Watt HID, 42 Watt Compact Fluorescent and 100 Watt Incandescent lamping.


Slide51 l.jpg

Bronzelite Path Lights

The Bronzelite SL6000, SL7000 and SL8000 bollard and beacon feature compact size and architectural styling. They are perfect for low level lighting of commercial walkways, driveways, deck and pool areas. The cylindrical lens and louvered head enable the bollard to project even illumination in a 360° pattern while reducing glare and directing light downward. A removable 180° internal shield is provided. Maximum 100 Watt HID, 42 Watt Compact Fluorescent and 100 Watt Incandescent lamping.


Slide52 l.jpg

The Bronzelite Difference

  • For over 40 Years, Bronzelite’s specification grade architectural outdoor, in-ground, landscape and underwater luminaries have delivered the highest levels of Quality, Innovation and Performance.

  • That’s why architects, engineers and other lighting professionals keep coming back. There’s a great deal of comfort knowing that the lighting products that they specify today will still be providing the same optimum performance years down the road.

  • Choose Bronzelite for years of high performance with low maintenance for your architectural and commercial lighting projects.
