Presentation Transcript


Alkanes structure and conformation l.jpg

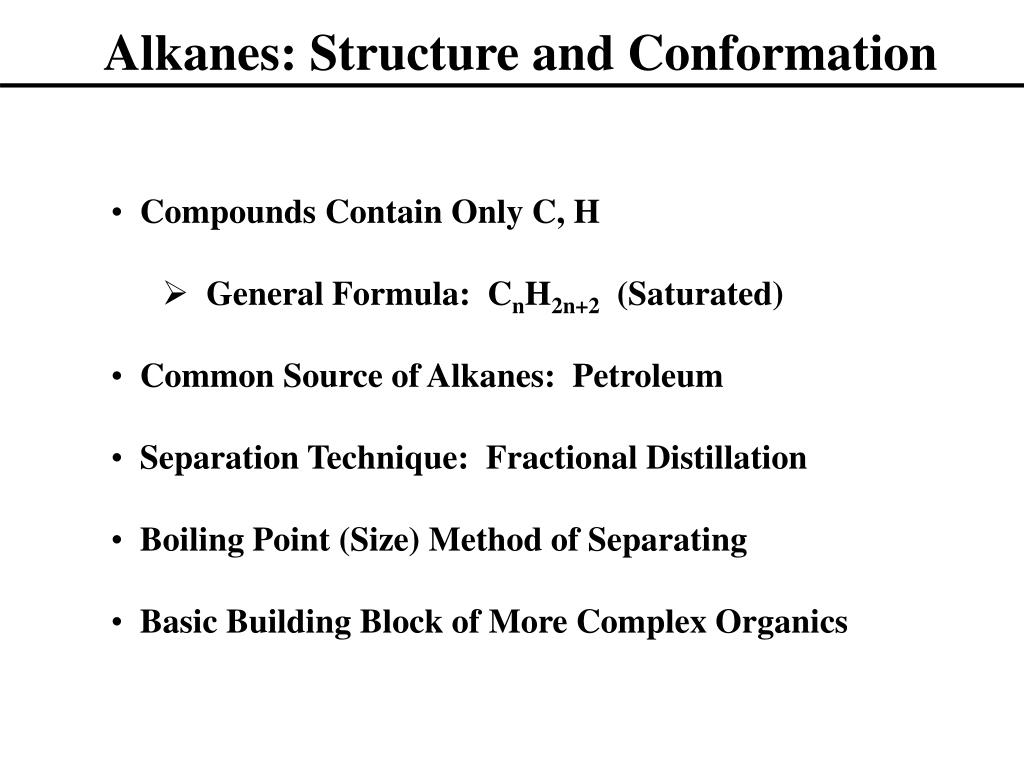

Alkanes: Structure and Conformation

  • Compounds Contain Only C, H

    • General Formula: CnH2n+2 (Saturated)

  • Common Source of Alkanes: Petroleum

  • Separation Technique: Fractional Distillation

  • Boiling Point (Size) Method of Separating

  • Basic Building Block of More Complex Organics


Alkane shape straight chains l.jpg

Alkane Shape: Straight Chains

  • “Straight Chain” Better Termed “Unbranched”

  • Actually Zig-Zag Structures (Tetrahedral Carbon Atoms)

  • All Carbons sp3 Hybridized


Branched alkanes simple l.jpg

Branched Alkanes: Simple

  • Constitutional Isomers: Same Formula; Different Connectivity

    • Butane and Isobutane: C4H10

    • Pentane, Isopentane, Neopentane: C5H12

    • Different Properties: BP, MP, Density, Refractive Index etc.

    • Number of Constitutional Isomers Increases w/ # of Carbons


Alkane nomenclature the rules l.jpg

Alkane Nomenclature: The Rules

Unbranched Alkanes


Alkyl group nomenclature l.jpg

Alkyl Group Nomenclature

Unbranched Alkyl Groups


Branched alkanes l.jpg

Branched Alkanes

  • Locate Longest Continuous Chain (Parent Name)

  • Number Carbons in Chain; Begin @ End Nearest Substituent

  • Use Number of C on Parent Chain; Locate Substituents

  • Assign C Number to Each Substituent

  • Use Same C Number If Multiple Substituents

  • If Substituents Identical, Use Di-, Tri-, Tetra- Designations

  • Equal Length Chains Compete, Parent Chain Most Substituted

  • First Branches Equivalent; Choose Lowest Possible # Set


Branched alkanes examples l.jpg

Branched Alkanes: Examples


Branched alkanes examples8 l.jpg

Branched Alkanes: Examples

  • Once Long Chain Found; Simplify w/ Alkyl Abbreviations


Branched alkyl groups l.jpg

Branched Alkyl Groups

  • Can Name as Simple Alkane w/ “yl” Ending Replacing “ane”


Alkyl halides l.jpg

Alkyl Halides

  • Alkyl Halides Named as “Halo”-Alkane

    • “Halo” = Fluoro, Chloro, Bromo, Iodo


Alcohols l.jpg

Alcohols

  • Note the “-ol” Ending

  • Use Same Di-, Tri-, Tetra- to Indicate Multiple

  • We’ll Designate Alcohols as Priority Groups (Give Low #)


Monocyclic alkanes alcohols l.jpg

Monocyclic Alkanes/Alcohols

Lowest Number

Set

  • “Cyclo” Added  Indicates Cyclic Structure


Bicyclic alkanes l.jpg

Bicyclic Alkanes


Terminal alkenes l.jpg

Terminal Alkenes

Feature an “ene” Ending


Alkenes non terminal l.jpg

Alkenes: Non-Terminal


Alkynes l.jpg

Alkynes


Properties of alkanes l.jpg

Properties of Alkanes

  • Boiling Point Increases Regularly for Unbranched

  • Branching Lowers Boiling Points (Van der Waals, SA)

  • Melting Point in Unbranched Increases Regularly Within

  • ODD or EVEN Numbered Series (Not Both)

  • Density Less Than 1.0 g/mL (Less Than H2O)

  • Solubility: Quite Insoluble in H2O; Less Dense  Float

    • Non Polar (Like Dissolves Like)

    • No Hydrogen Bonding


Sigma bonds in hydrocarbons l.jpg

Sigma Bonds in Hydrocarbons

  • Alkane Sigma (s) Bonds Formed From sp3 Hybridized C

  • These Bonds Can Freely Rotate

  • Temporary Shapes Adapted via Rotation: CONFORMERS

  • Conformers can have Different Energies

  • Need to Have a System for Depicting Various Conformations

    • Newman Projections

    • Sawhorse Formulas


Newman projections sawhorse formula l.jpg

Newman Projections/Sawhorse Formula

  • R Groups 180° Apart (Anti Conformation)

  • 4 Atom Angle (3 Bond Angle) is a Dihedral (Torsional) Angle

  • Having Large Groups Anti is Low in Energy


Newman projections sawhorse formula20 l.jpg

Newman Projections/Sawhorse Formula

  • When R Groups 0° Apart (Ecclipsed Conformation)

  • Having Large Groups Anti is High in Energy

  • Can Adapt any Range of Conformations in Between


Conformational analysis butane l.jpg

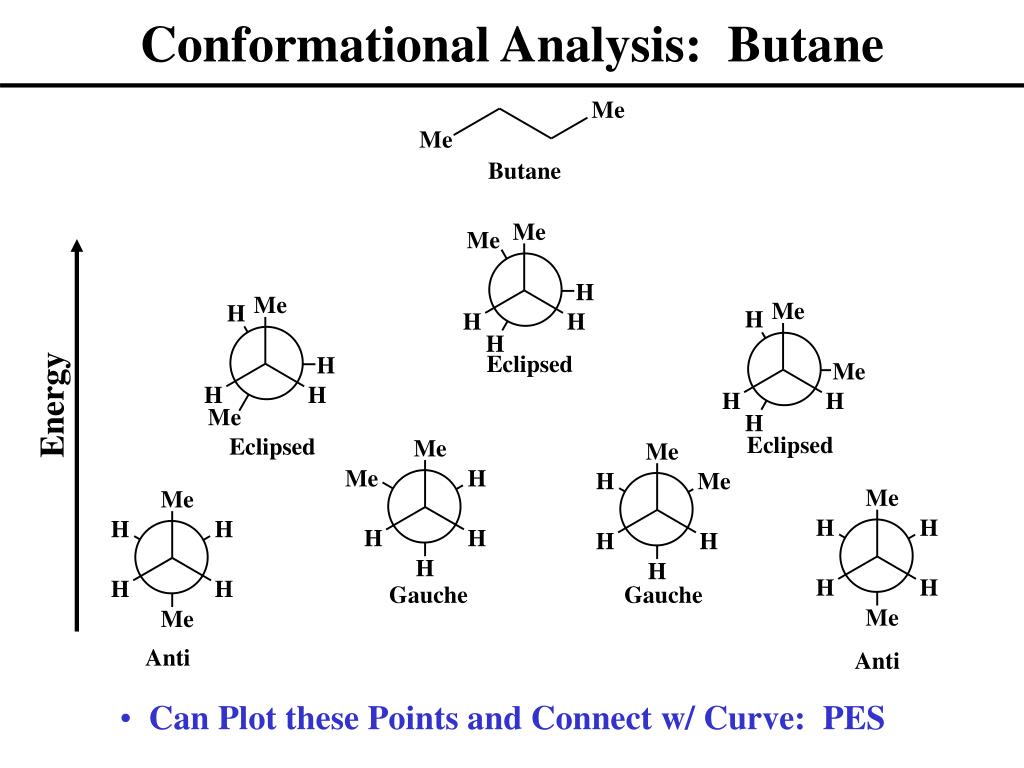

Conformational Analysis: Butane

Energy

  • Can Plot these Points and Connect w/ Curve: PES


Cyclohexane conformation l.jpg

Cyclohexane Conformation

  • Cyclohexanes Adapt Chair Conformations (Boats and Others)

  • Ax: Axial (Straight up and Down on Chair)

  • Eq: Equatorial (Parallel to Next Bonds over in Chair)


Cyclohexane conformation cis l.jpg

Cyclohexane Conformation: Cis

  • Methyls are Cis (Same); Two Energy Equivalent Chairs

  • Ring Flips Interchange Chair Conformations


Cyclohexane conformation trans l.jpg

Cyclohexane Conformation: Trans

  • Methyls are Cis (Same); Two Energy Inequivalent Chairs

  • Diequatorial Much More Stable than Diaxial Conformation


Cyclohexane conformation notes l.jpg

Cyclohexane Conformation: Notes

  • With Multiple Same Substituents; More Equatorial = Better

  • Larger Groups Tend to Adopt Equatorial Positions

  • tert-butyl Groups Nearly Always Equatorial

    • Conformation Setters (Lock Ring)

    • Set Other Groups Relative to tert-butyl

  • Fused Rings (Decalin, for Example) Can be Drawn as Chairs


Reactions hydrogenation l.jpg

Reactions: Hydrogenation

  • Addition of Hydrogen (H2) Across a Multiple (p) Bond

  • Ethanol (CH3CH2OH) is a Common Solvent


Reactions alkyl halide reducation l.jpg

Reactions: Alkyl Halide Reducation

  • Zn Transfers Electrons to C of Alkyl Halide

  • Alkyl Halide is Reduced (Reduction = Gains Electrons)

  • Zn: Good Two Electron Donor (Reductant, Reducing Agent)


Reactions alkylation of terminal alkynes l.jpg

Reactions: Alkylation of Terminal Alkynes

  • NaNH2 (-NH2) to Deprotonate Alkyne (Acid/Base Reaction)

  • Anion Reacts with Alkyl Halide (Bromide); Displaces Halide

  • Alkyl Group Added to Alkyne

  • Alkyl Halide Must be 1° or Me; No Branching at 2nd (b) Carbon
