Presentation Transcript

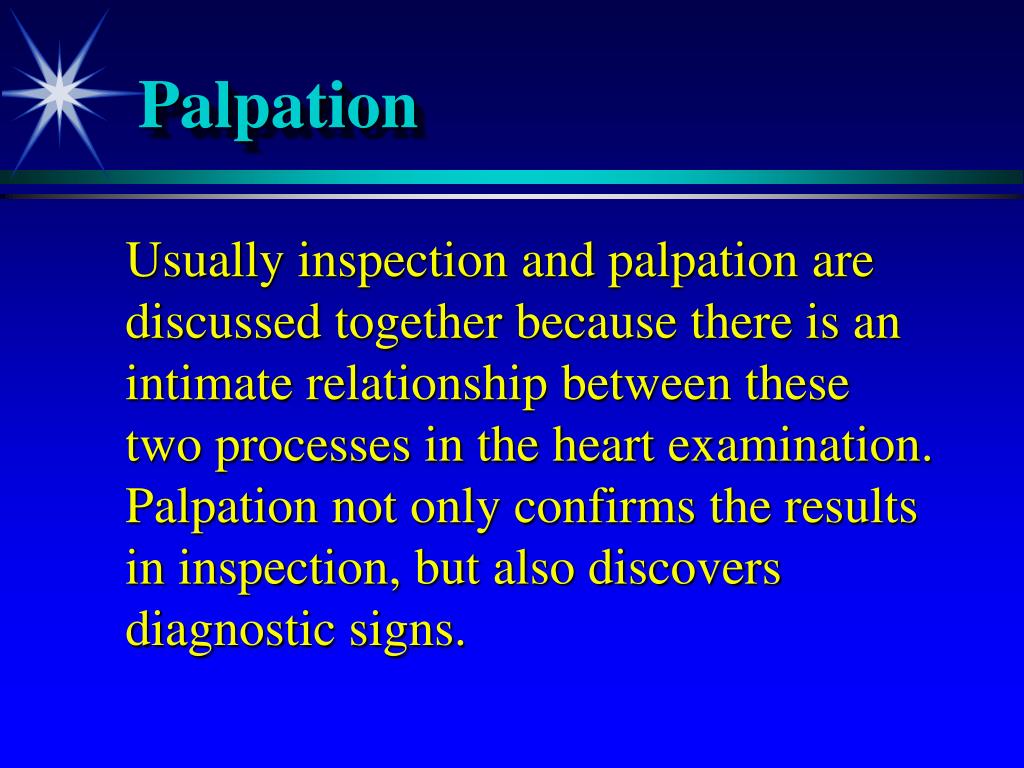

Usually inspection and palpation are discussed together because there is an intimate relationship between these two processes in the heart examination. Palpation not only confirms the results in inspection, but also discovers diagnostic signs.


Through careful palpation, the examiner should aim to determine the location and size of the cardiac apex impulse, characterize its contour, and identify any abnormal precordial pulsations.

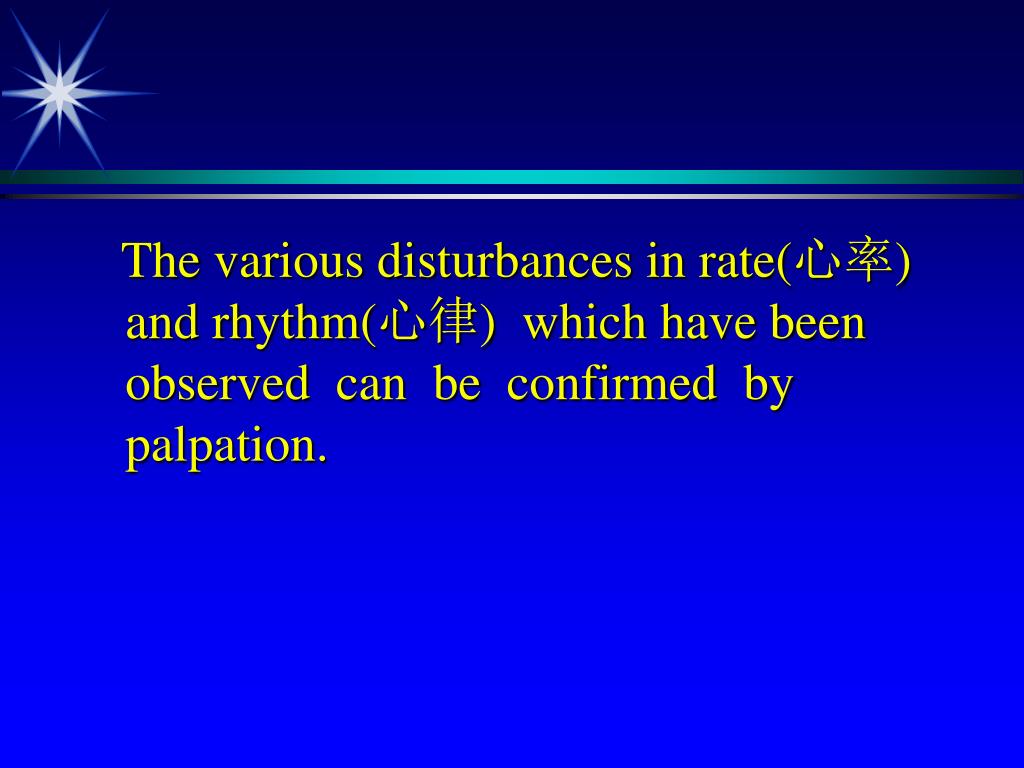

The various disturbances in rate(心率) and rhythm(心律) which have been observed can be confirmed by palpation.

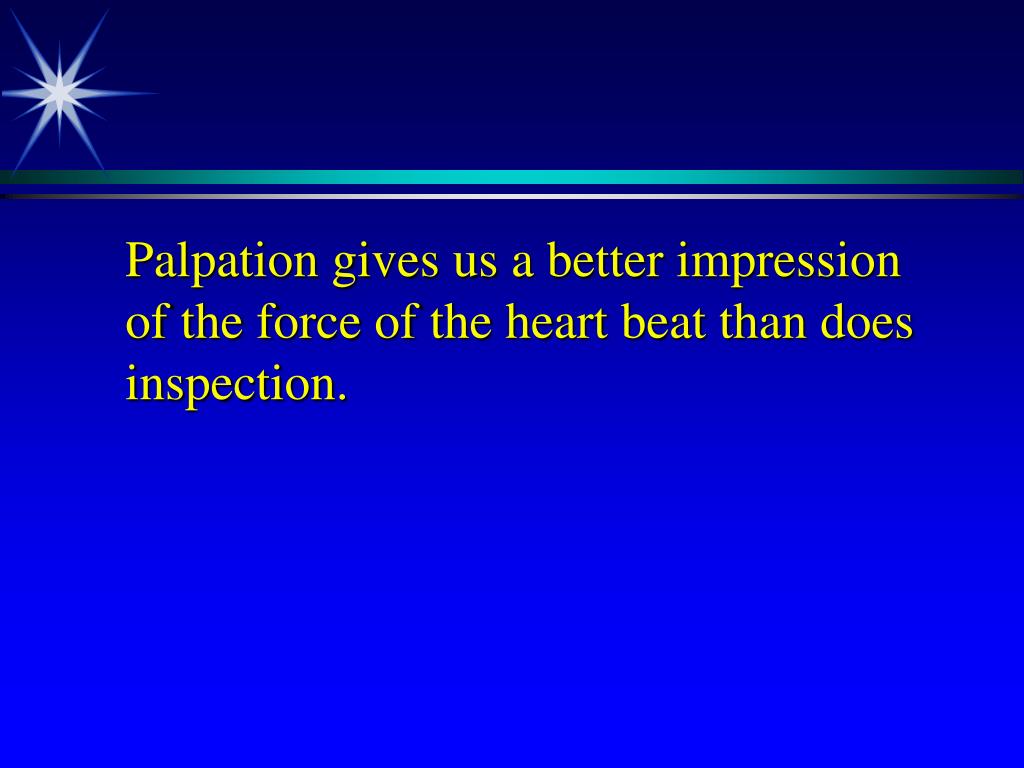

Palpation gives us a better impression of the force of the heart beat than does inspection.

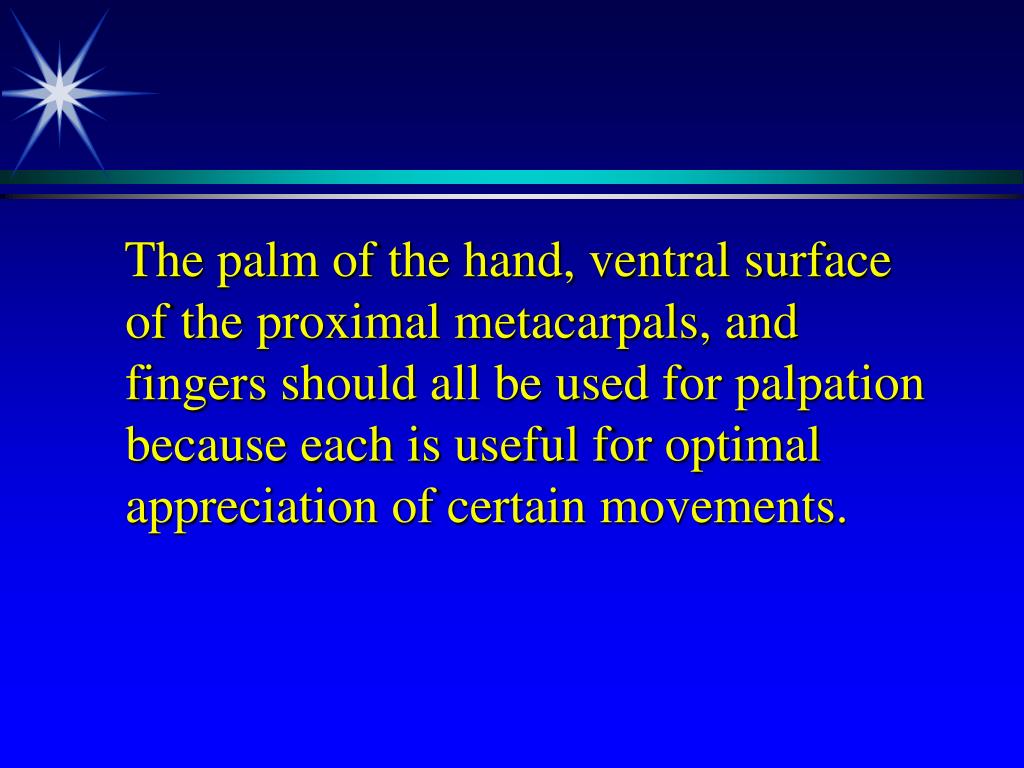

The palm of the hand, ventral surface of the proximal metacarpals, and fingers should all be used for palpation because each is useful for optimal appreciation of certain movements.


Thrill examination by palm


Apical impulse examination by finger

Apical impulse

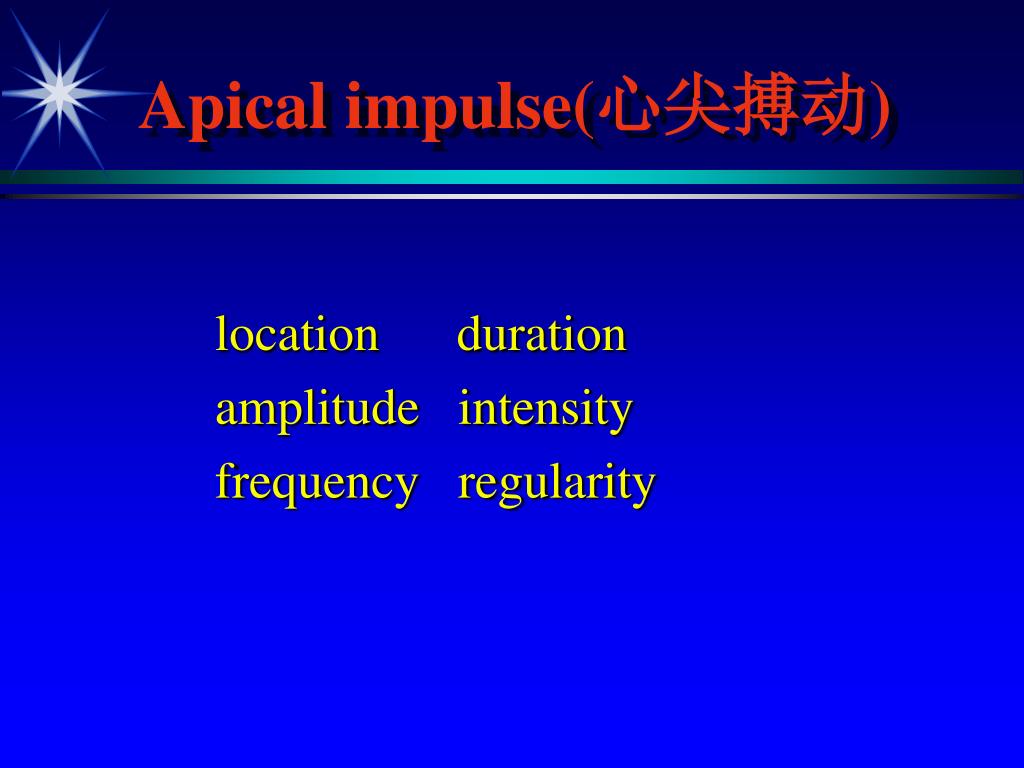

Apical impulse(心尖搏动)

location duration

amplitude intensity

frequency regularity

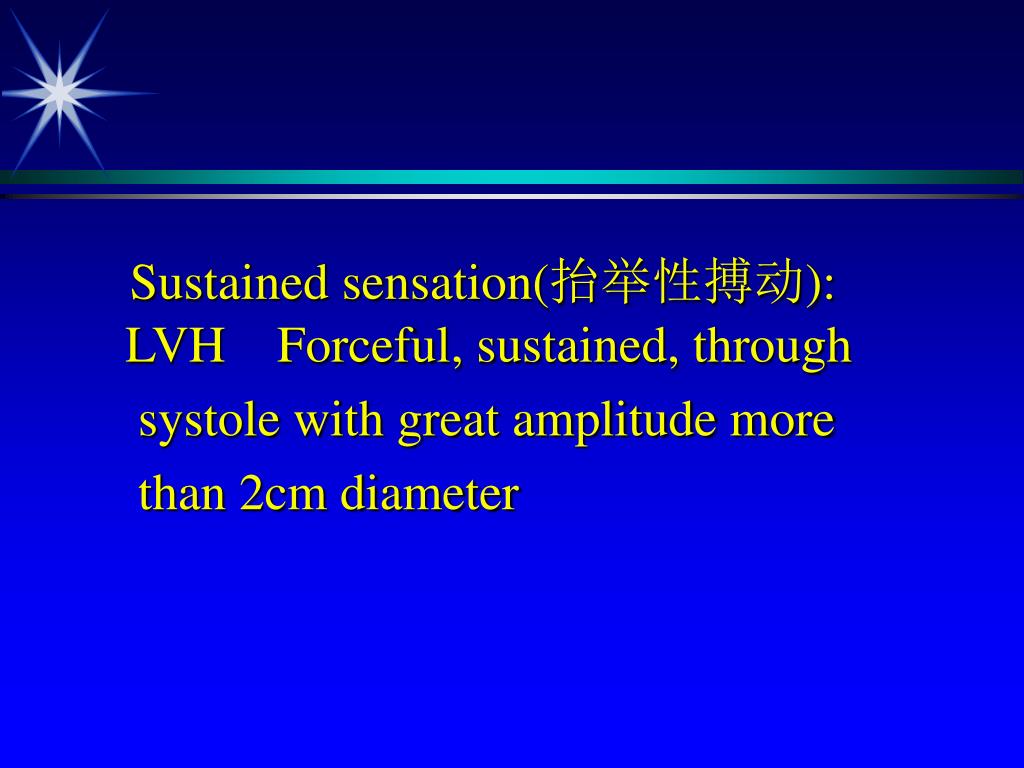

Sustained sensation(抬举性搏动): LVH Forceful, sustained, through

systole with great amplitude more

than 2cm diameter

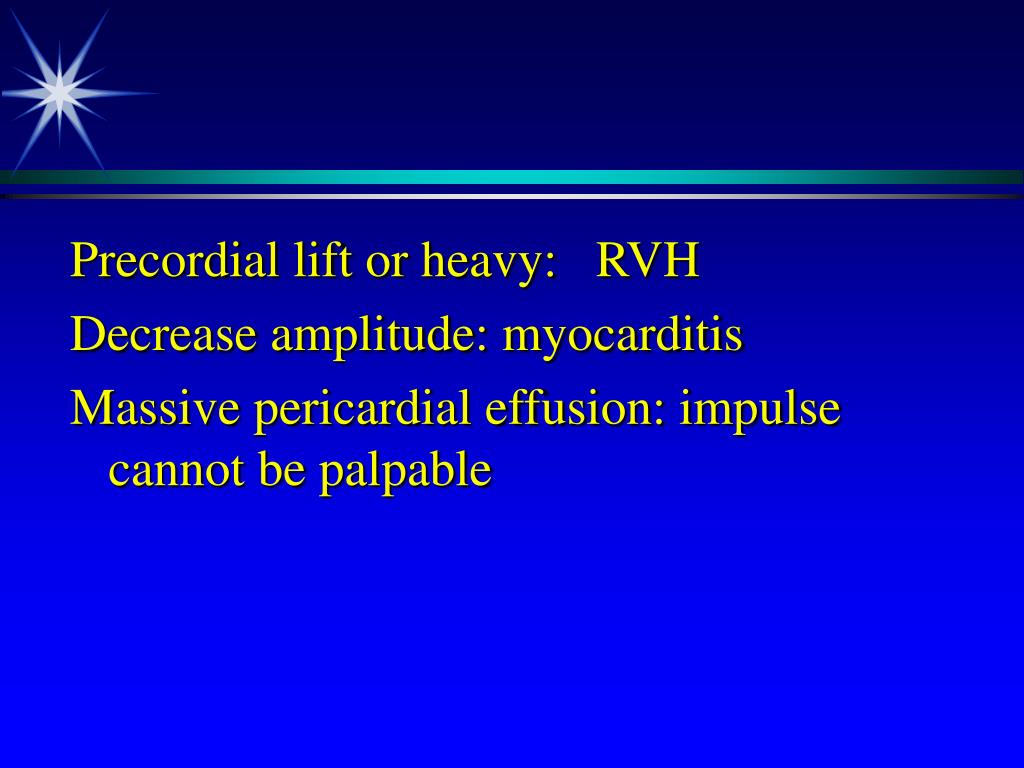

Precordial lift or heavy: RVH

Decrease amplitude: myocarditis

Massive pericardial effusion: impulse cannot be palpable

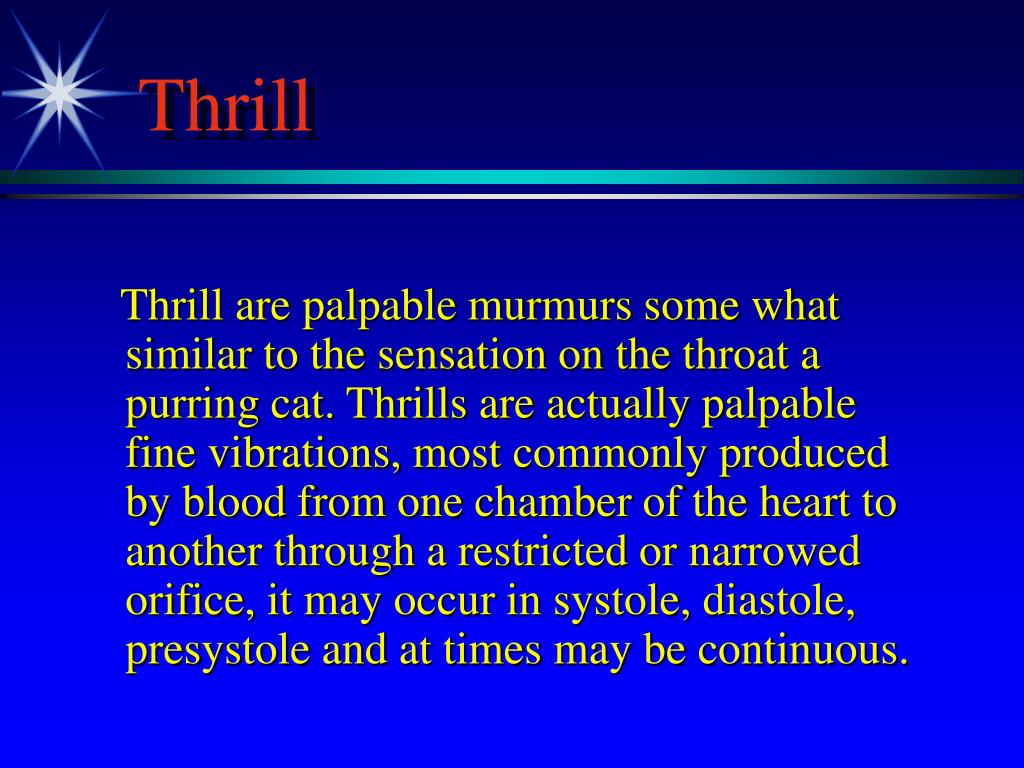

Thrill are palpable murmurs some what similar to the sensation on the throat a purring cat. Thrills are actually palpable fine vibrations, most commonly produced by blood from one chamber of the heart to another through a restricted or narrowed orifice, it may occur in systole, diastole, presystole and at times may be continuous.

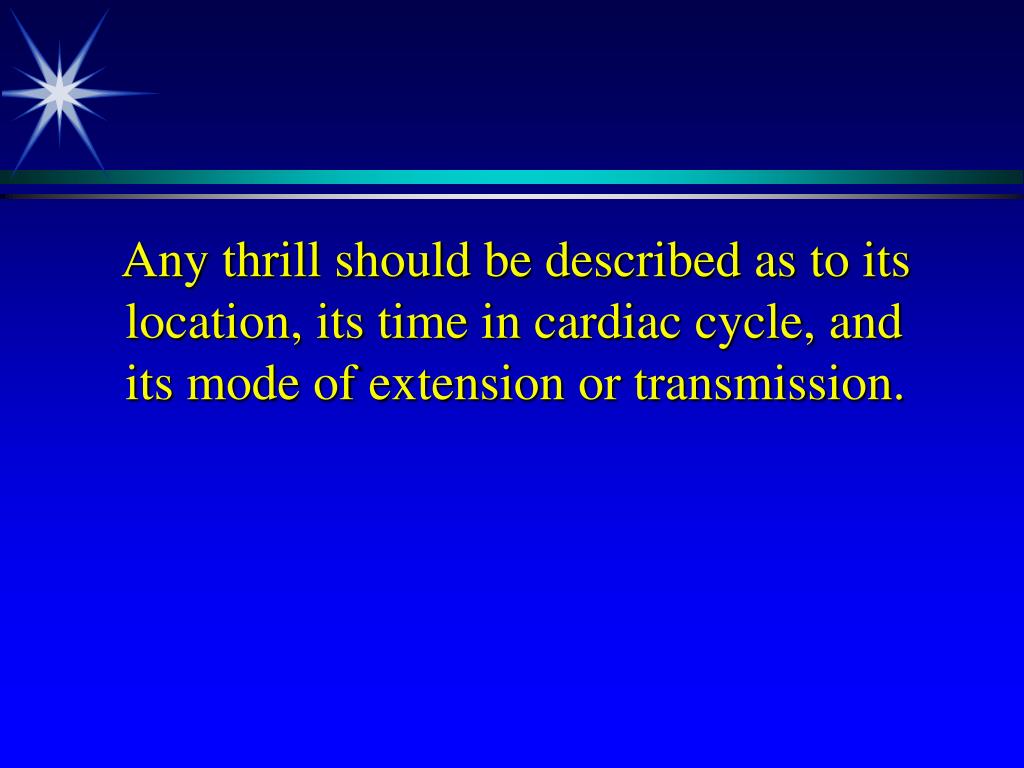

Any thrill should be described as to its location, its time in cardiac cycle, and its mode of extension or transmission.

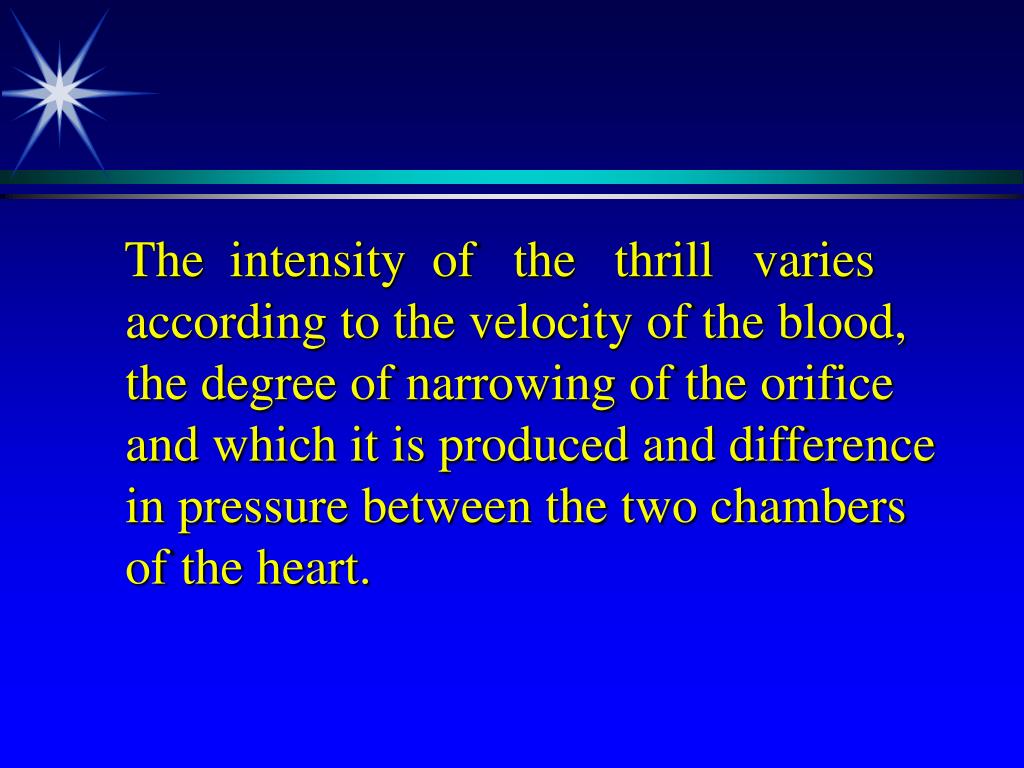

The intensity of the thrill varies according to the velocity of the blood, the degree of narrowing of the orifice and which it is produced and difference in pressure between the two chambers of the heart.

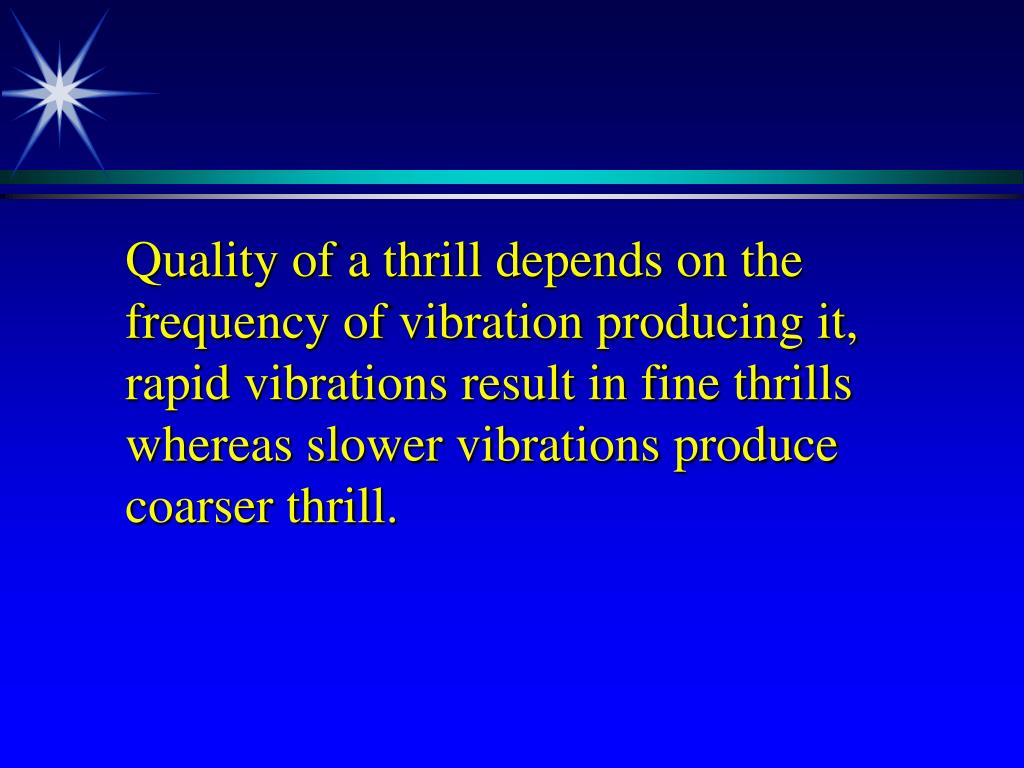

Quality of a thrill depends on the frequency of vibration producing it, rapid vibrations result in fine thrills whereas slower vibrations produce coarser thrill.

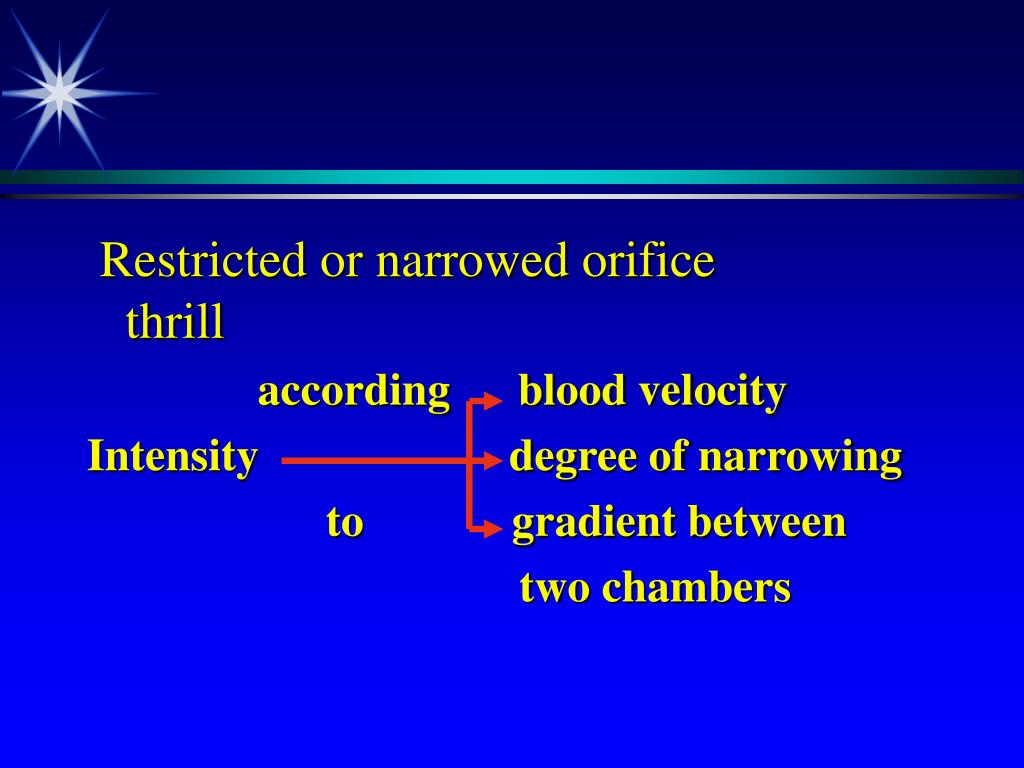

Restricted or narrowed orifice thrill

according blood velocity

Intensity degree of narrowing

to gradient between

two chambers

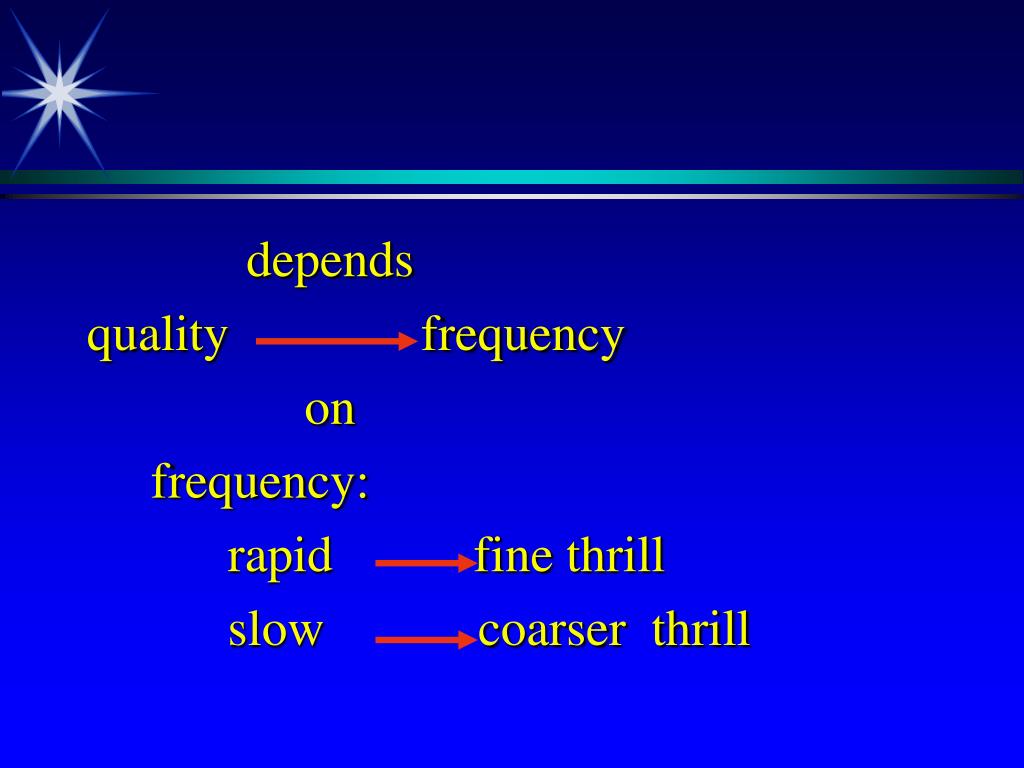

quality frequency



rapid fine thrill

slow coarser thrill

Diastolic thrill

Diastolic thrill

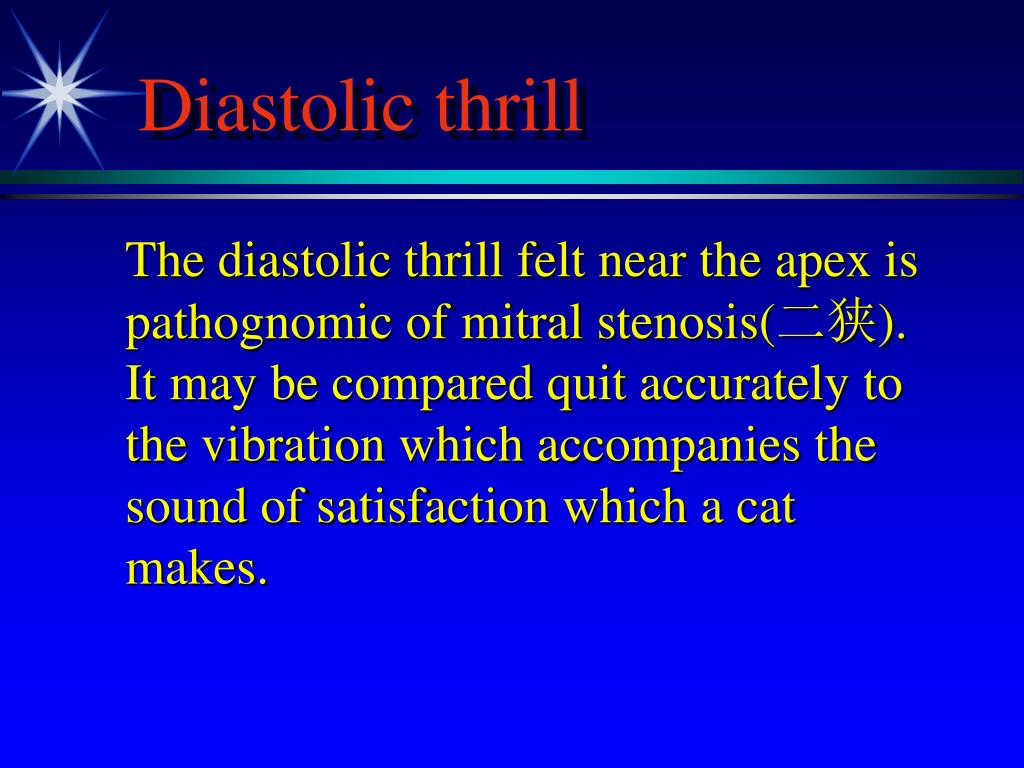

The diastolic thrill felt near the apex is pathognomic of mitral stenosis(二狭). It may be compared quit accurately to the vibration which accompanies the sound of satisfaction which a cat makes.


It is usually felt only over a small area at or near the point of maximum impulse. It may not be felt when the patient is lying quietly in bed,

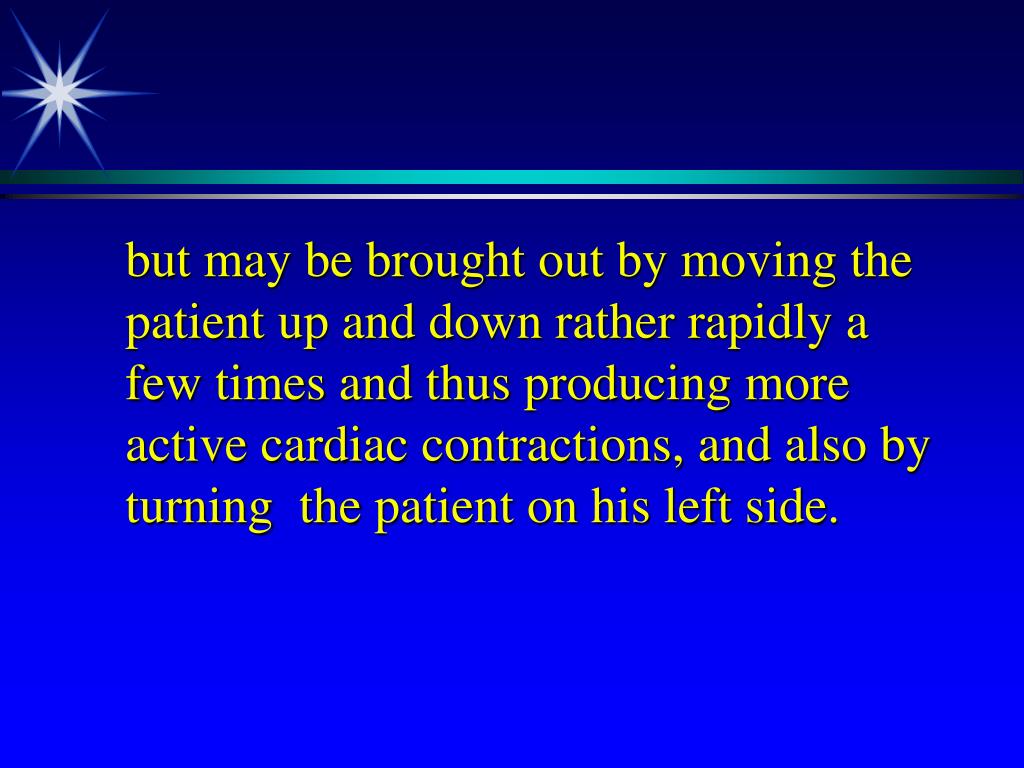

but may be brought out by moving the patient up and down rather rapidly a few times and thus producing more active cardiac contractions, and also by turning the patient on his left side.

Systolic thrill

Systolic thrill

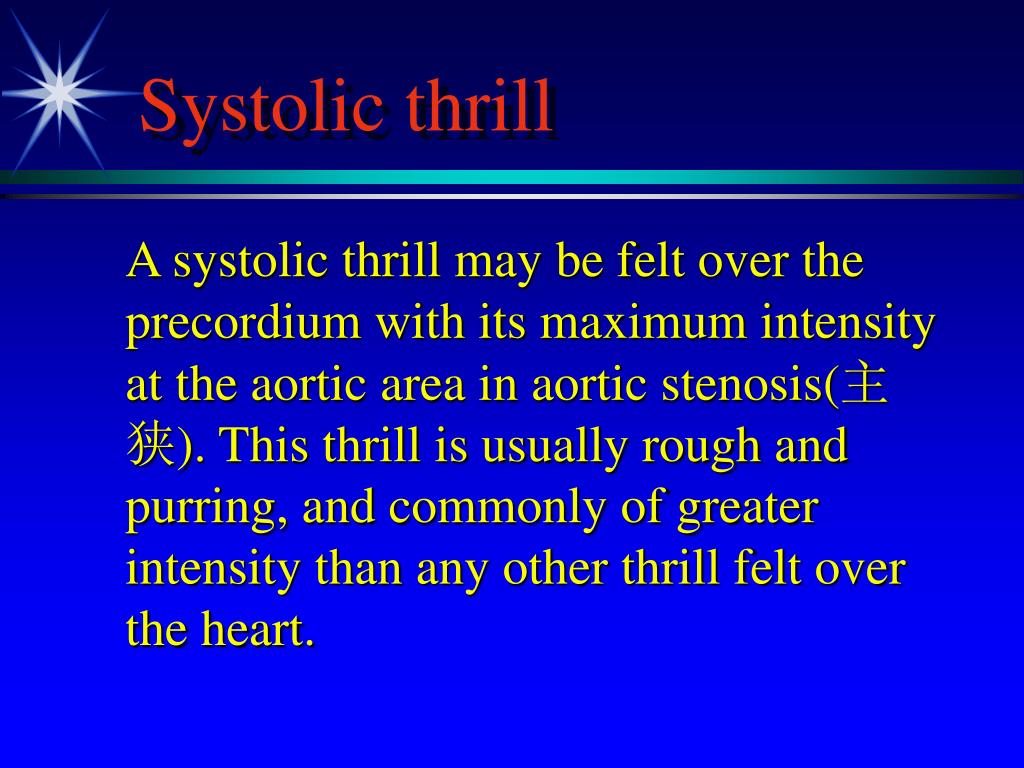

A systolic thrill may be felt over the precordium with its maximum intensity at the aortic area in aortic stenosis(主狭). This thrill is usually rough and purring, and commonly of greater intensity than any other thrill felt over the heart.

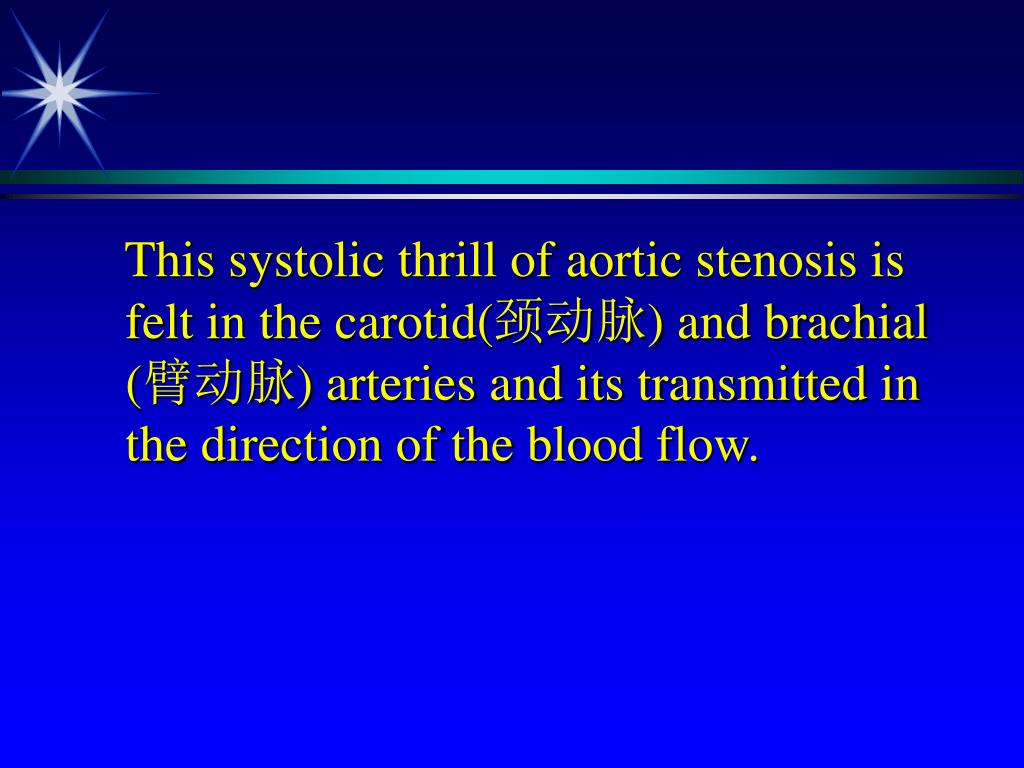

This systolic thrill of aortic stenosis is felt in the carotid(颈动脉) and brachial (臂动脉) arteries and its transmitted in the direction of the blood flow.

Systolic thrill1

Systolic thrill

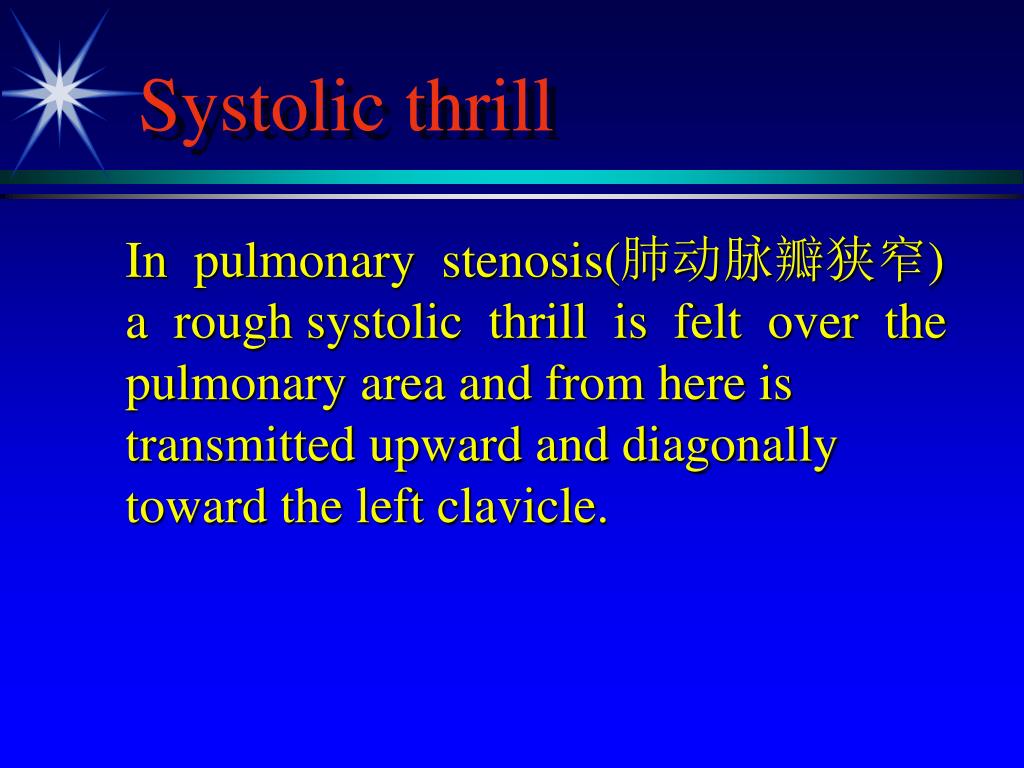

In pulmonary stenosis(肺动脉瓣狭窄) a rough systolic thrill is felt over the pulmonary area and from here is transmitted upward and diagonally toward the left clavicle.

Systolic thrill2

Systolic thrill

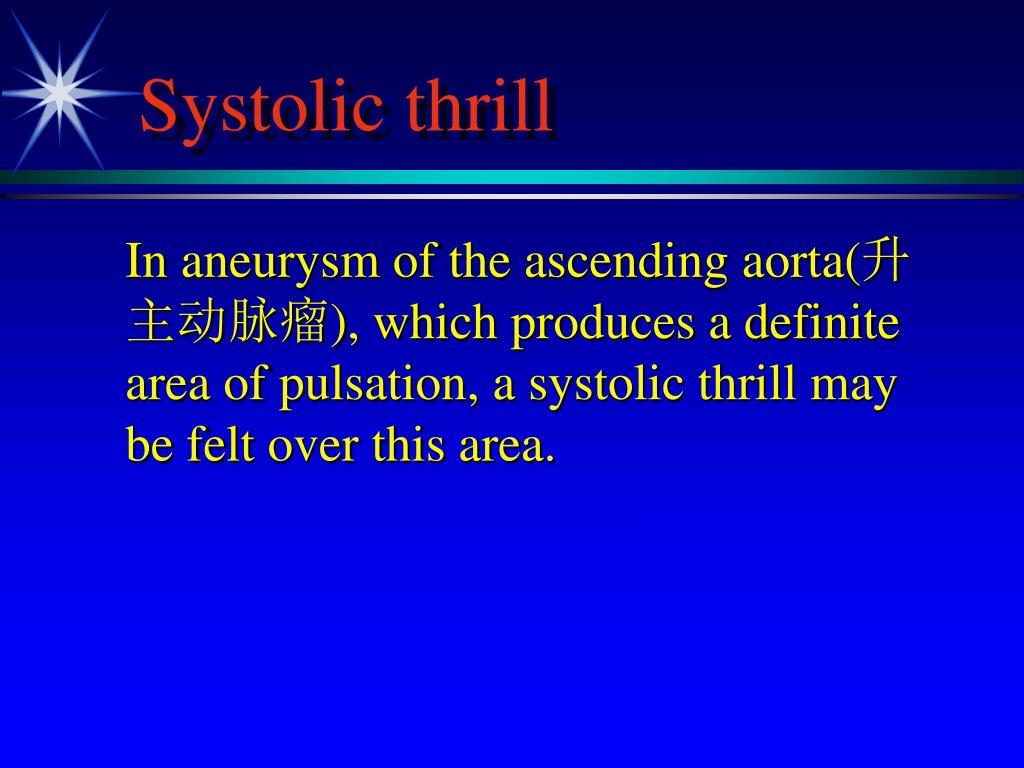

In aneurysm of the ascending aorta(升主动脉瘤), which produces a definite area of pulsation, a systolic thrill may be felt over this area.

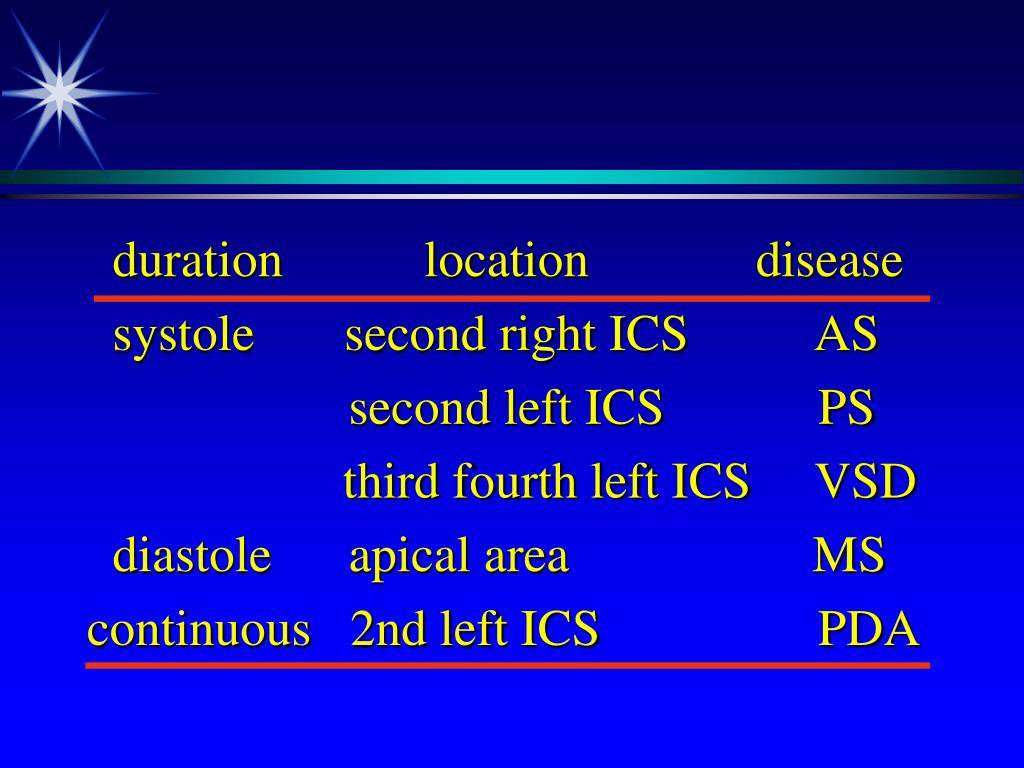

duration location disease

systole second right ICS AS

second left ICS PS

third fourth left ICS VSD

diastole apical area MS

continuous 2nd left ICS PDA

Pericardial friction rub

Pericardial friction rub

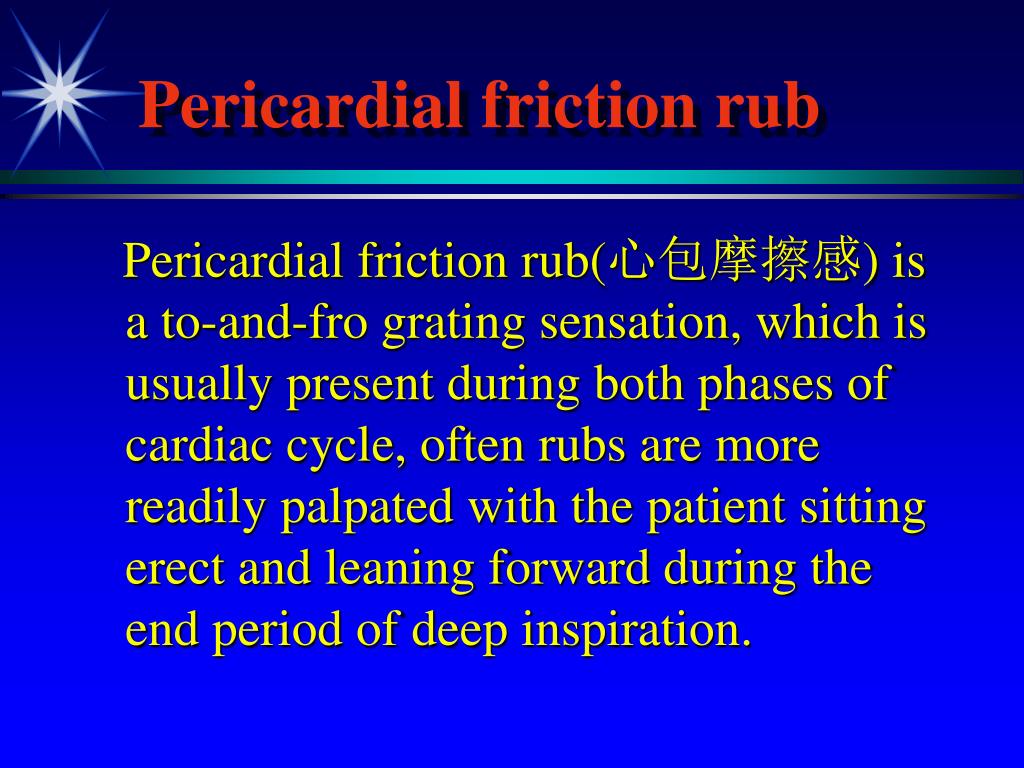

Pericardial friction rub(心包摩擦感) is a to-and-fro grating sensation, which is usually present during both phases of cardiac cycle, often rubs are more readily palpated with the patient sitting erect and leaning forward during the end period of deep inspiration.

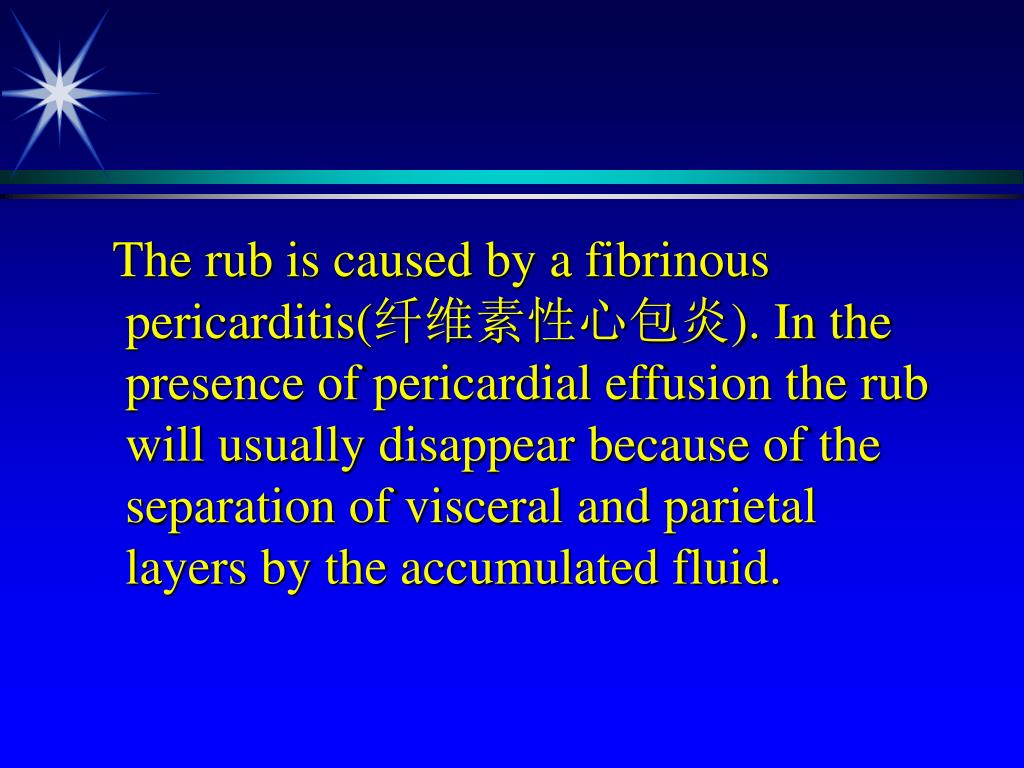

The rub is caused by a fibrinous pericarditis(纤维素性心包炎). In the presence of pericardial effusion the rub will usually disappear because of the separation of visceral and parietal layers by the accumulated fluid.

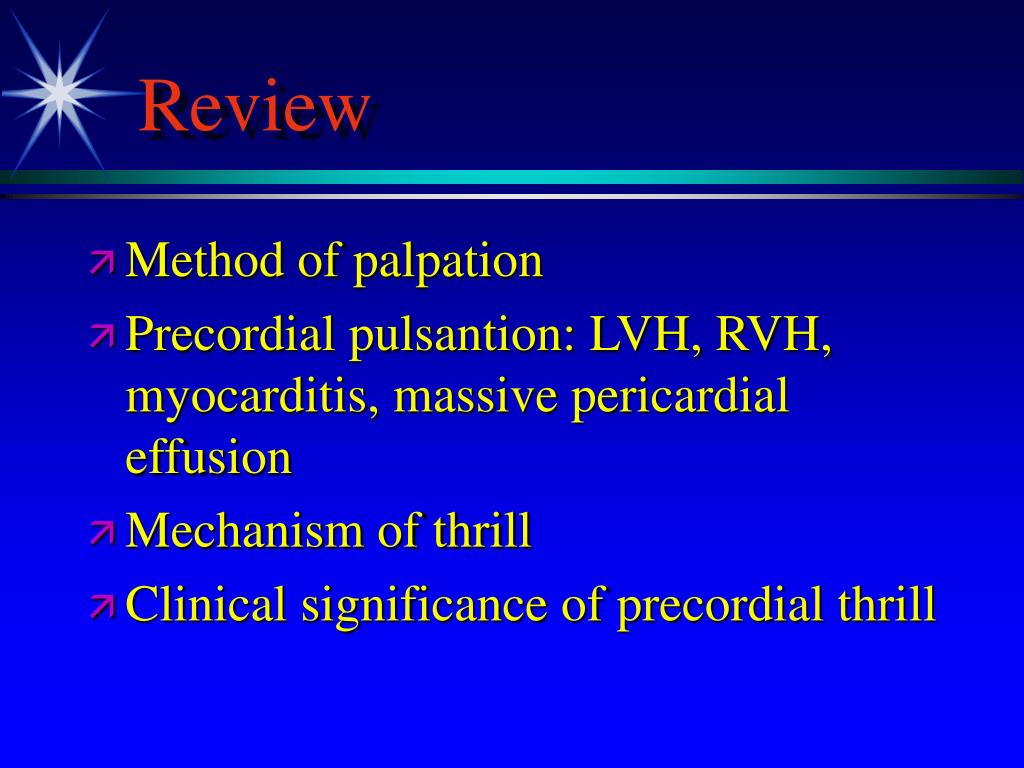

  • Method of palpation

  • Precordial pulsantion: LVH, RVH, myocarditis, massive pericardial effusion

  • Mechanism of thrill

  • Clinical significance of precordial thrill




A. 在心尖区触及收缩期震颤可见于二狭

B. 临床上凡触及震颤均可认为心脏有器质性病变

C. 触诊有震颤的部位多数可听到杂音

D. 在胸骨右缘第2肋间触及收缩期震颤可见于主狭

E. 在胸骨左缘第2肋间触及收缩期震颤可见于肺动脉瓣狭窄

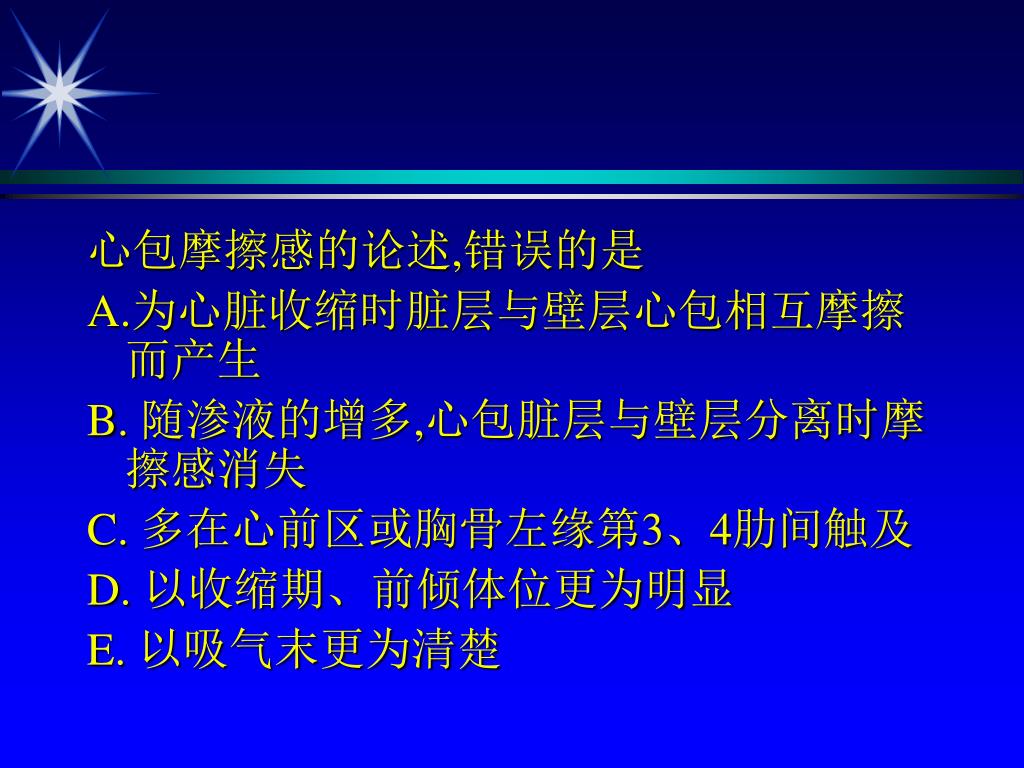

B. 随渗液的增多,心包脏层与壁层分离时摩擦感消失

C. 多在心前区或胸骨左缘第3、4肋间触及

D. 以收缩期、前倾体位更为明显

E. 以吸气末更为清楚

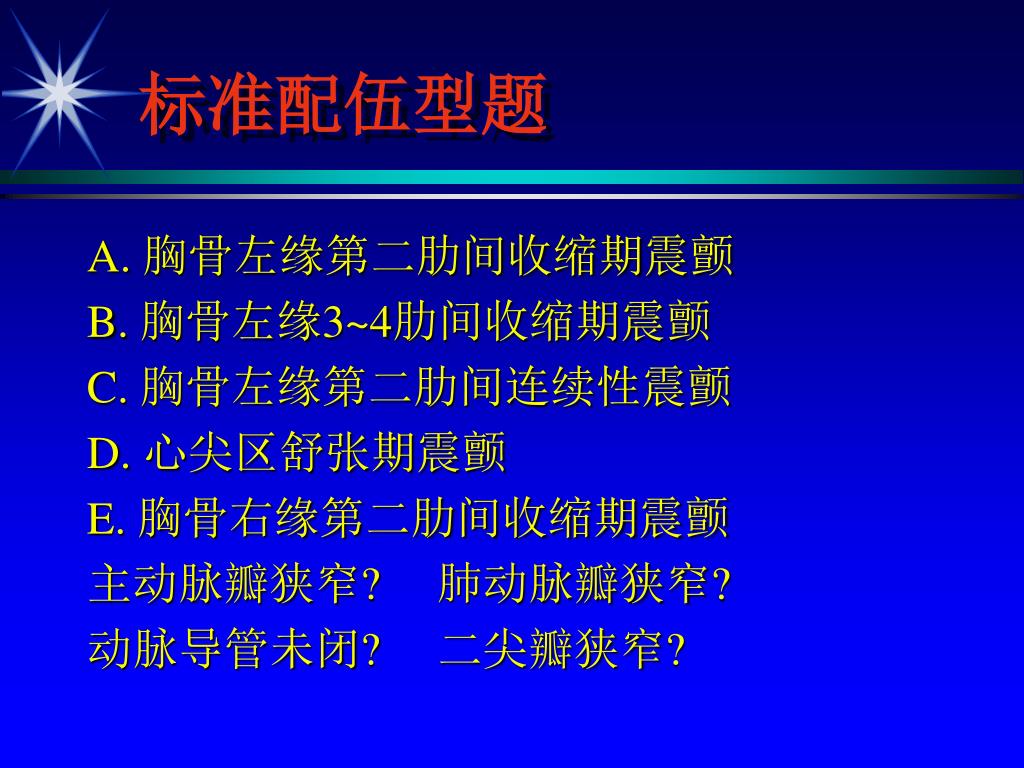

A. 胸骨左缘第二肋间收缩期震颤

B. 胸骨左缘3~4肋间收缩期震颤

C. 胸骨左缘第二肋间连续性震颤

D. 心尖区舒张期震颤

E. 胸骨右缘第二肋间收缩期震颤

主动脉瓣狭窄? 肺动脉瓣狭窄?

动脉导管未闭? 二尖瓣狭窄?
