  1. Management of Arrythmias According to AHA Guidelines Dr Omar SCM Pharmacology

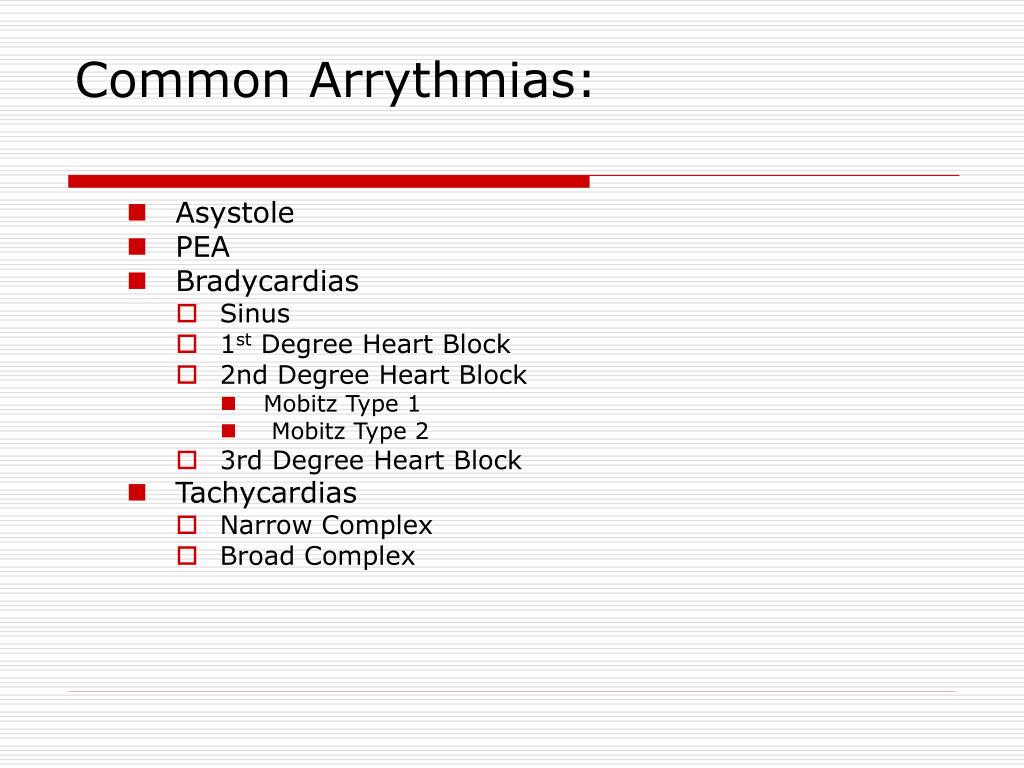

  2. Common Arrythmias: • Asystole • PEA • Bradycardias • Sinus • 1st Degree Heart Block • 2nd Degree Heart Block • Mobitz Type 1 • Mobitz Type 2 • 3rd Degree Heart Block • Tachycardias • Narrow Complex • Broad Complex

  3. Asystole

  4. Asystole

  5. Causes: H’s and T’s • Hypoxia (CNS events) • Hypokalemia/hyperkalemia (and other electrolytes) • Hypothermia/hyperthermia • Hypoglycemia/hyperglycemia • Hypovolemia (tank/anaphylaxis, gravid)

  6. Causes: H’s and T’s (cont’d) • Trauma • Tamponade • Thrombosis (pulmonary) • Thrombosis (coronary) • Tablets (ODs, drugs, etc) • Tension (pneumothorax, asthma)

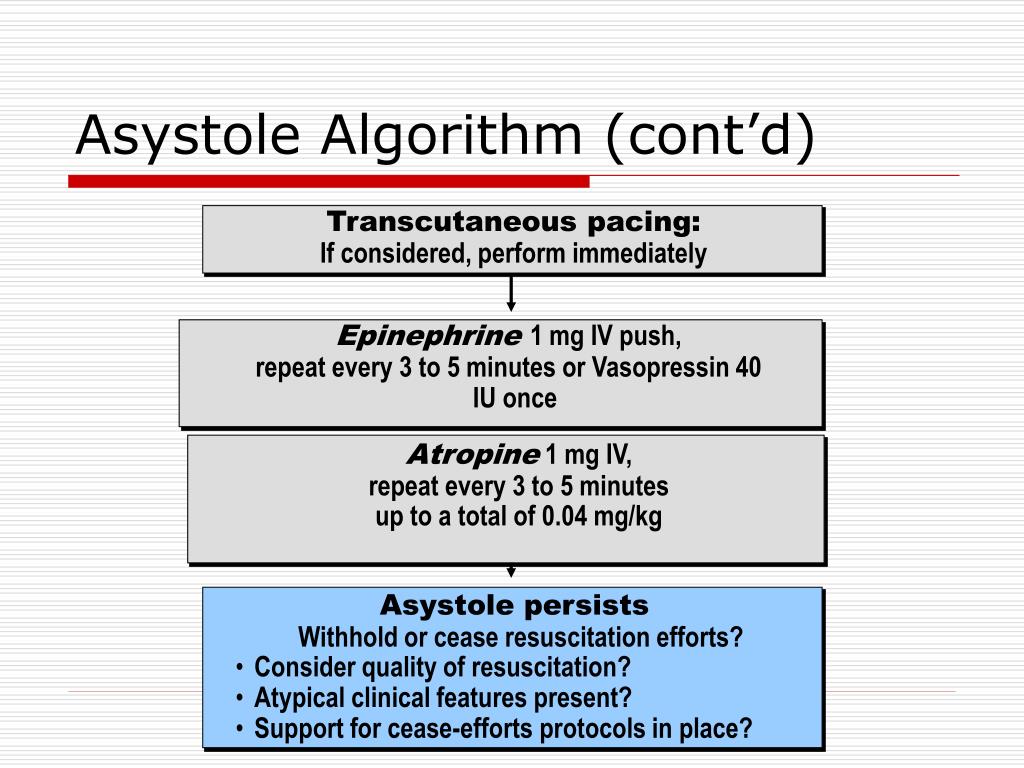

  7. Asystole Algorithm (cont’d) Transcutaneous pacing: If considered, perform immediately Epinephrine1 mg IV push, repeat every 3 to 5 minutes or Vasopressin 40 IU once Atropine 1 mg IV, repeat every 3 to 5 minutes up to a total of 0.04 mg/kg Asystole persistsWithhold or cease resuscitation efforts? • Consider quality of resuscitation? • Atypical clinical features present? • Support for cease-efforts protocols in place?

  8. Pulseless ElectricalActivity

  9. Pulseless Electrical Activity Primary ABCD Survey Focus: basic CPR and defibrillation • Check responsiveness • Activate emergency response system • Call for defibrillator A Airway: open the airway B Breathing: provide positive-pressure ventilations C Circulation: give chest compressions D Defibrillation: assess for VF/pulseless VT, shock if indicated

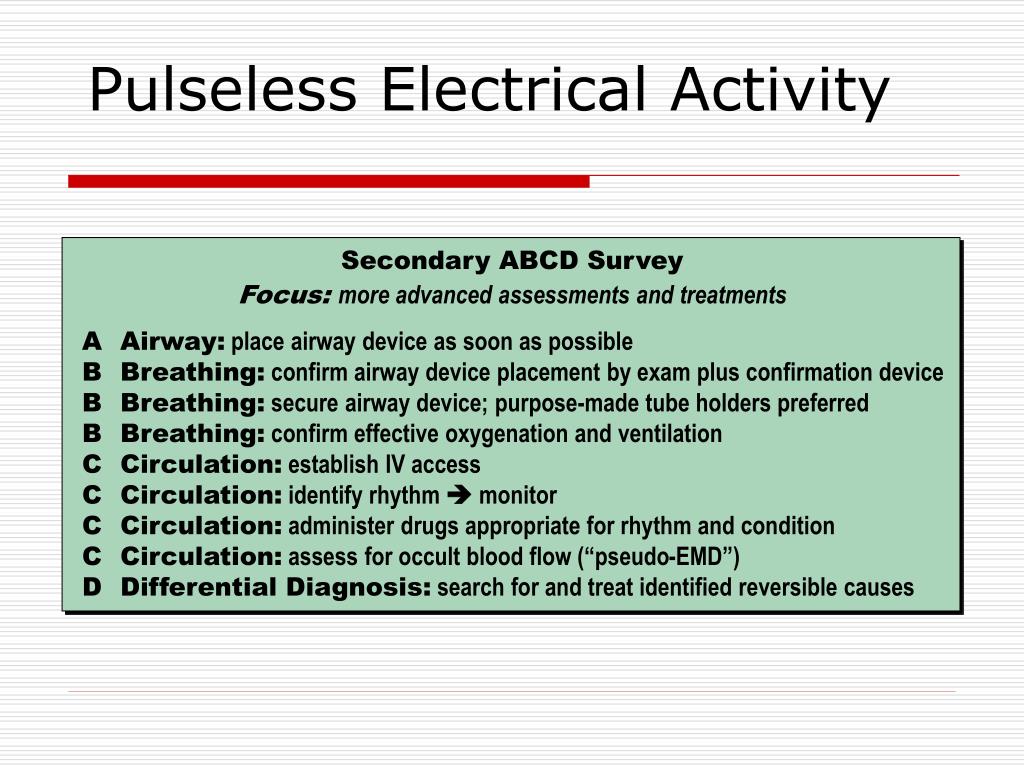

  10. Pulseless Electrical Activity Secondary ABCD Survey Focus: more advanced assessments and treatments A Airway: place airway device as soon as possible B Breathing: confirm airway device placement by exam plus confirmation device B Breathing: secure airway device; purpose-made tube holders preferred B Breathing: confirm effective oxygenation and ventilation C Circulation: establish IV access C Circulation: identify rhythm monitor C Circulation: administer drugs appropriate for rhythm and condition C Circulation: assess for occult blood flow (“pseudo-EMD”) D Differential Diagnosis: search for and treat identified reversible causes

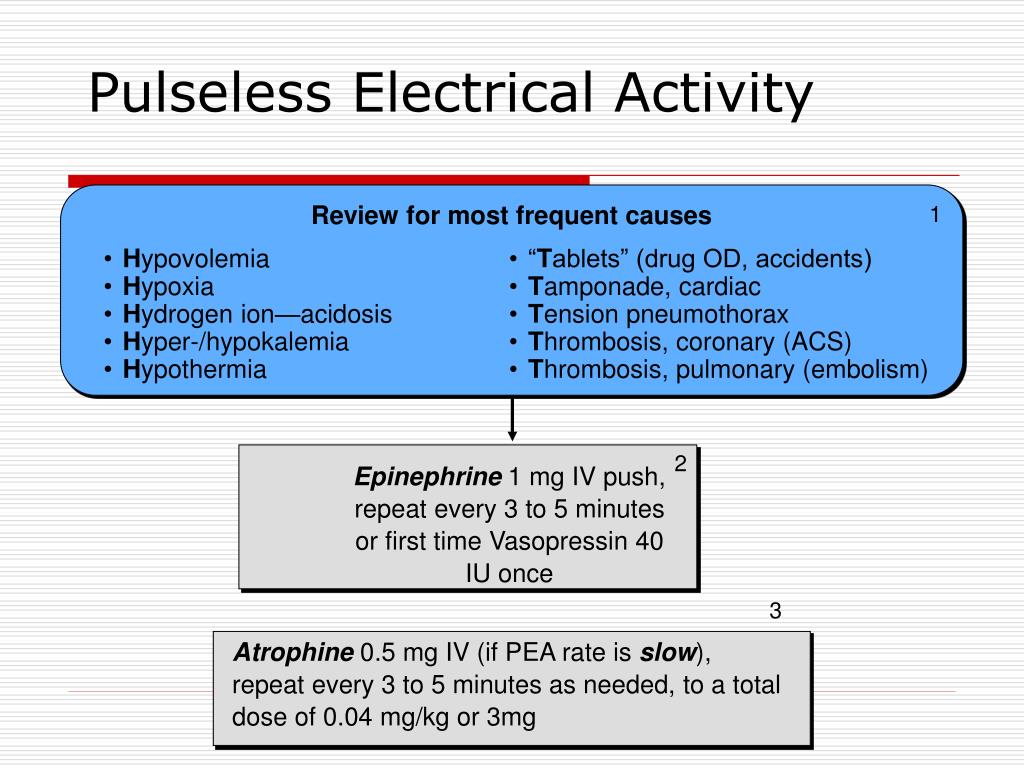

  11. Pulseless Electrical Activity 1 Review for most frequent causes • Hypovolemia • Hypoxia • Hydrogen ion—acidosis • Hyper-/hypokalemia • Hypothermia • “Tablets” (drug OD, accidents) • Tamponade, cardiac • Tension pneumothorax • Thrombosis, coronary (ACS) • Thrombosis, pulmonary (embolism) 2 Epinephrine 1 mg IV push, repeat every 3 to 5 minutes or first time Vasopressin 40 IU once 3 Atrophine 0.5 mg IV (if PEA rate is slow), repeat every 3 to 5 minutes as needed, to a totaldose of 0.04 mg/kg or 3mg

  12. Pulseless Electrical Activity

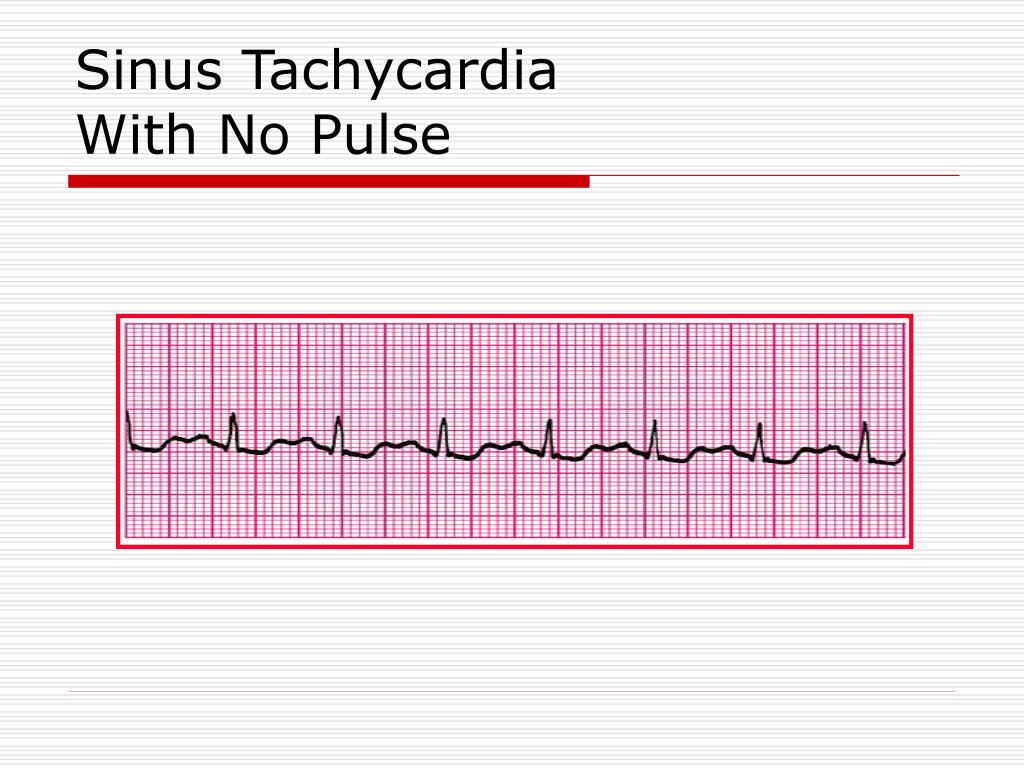

  13. Sinus Tachycardia With No Pulse

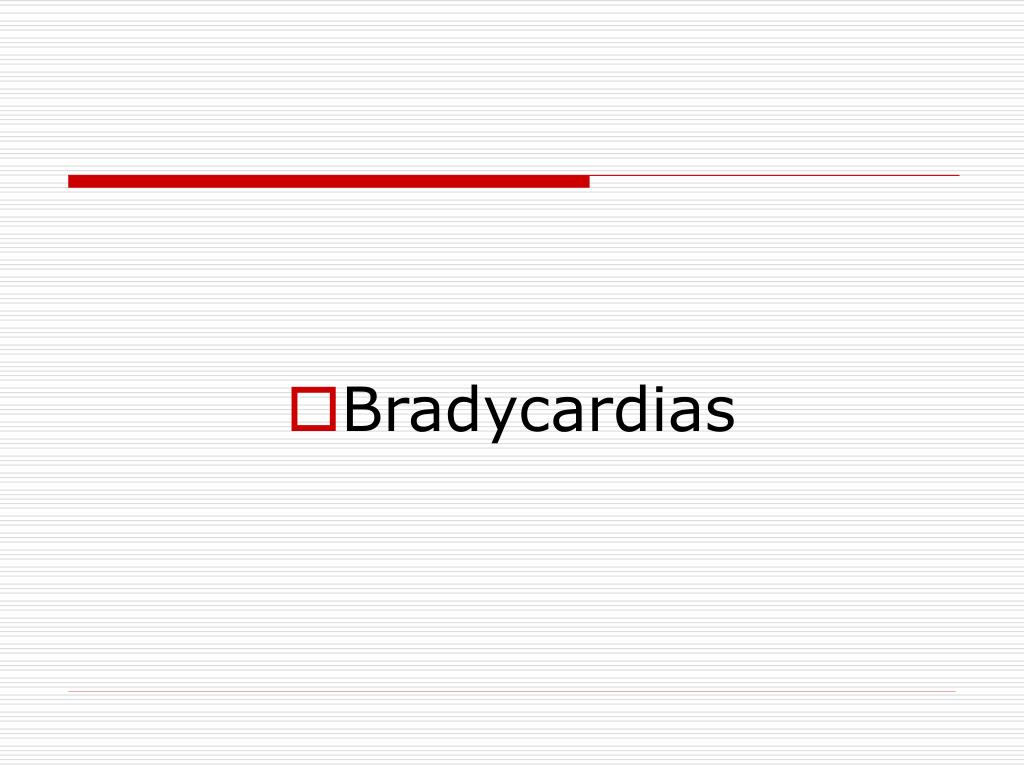

  14. Bradycardias

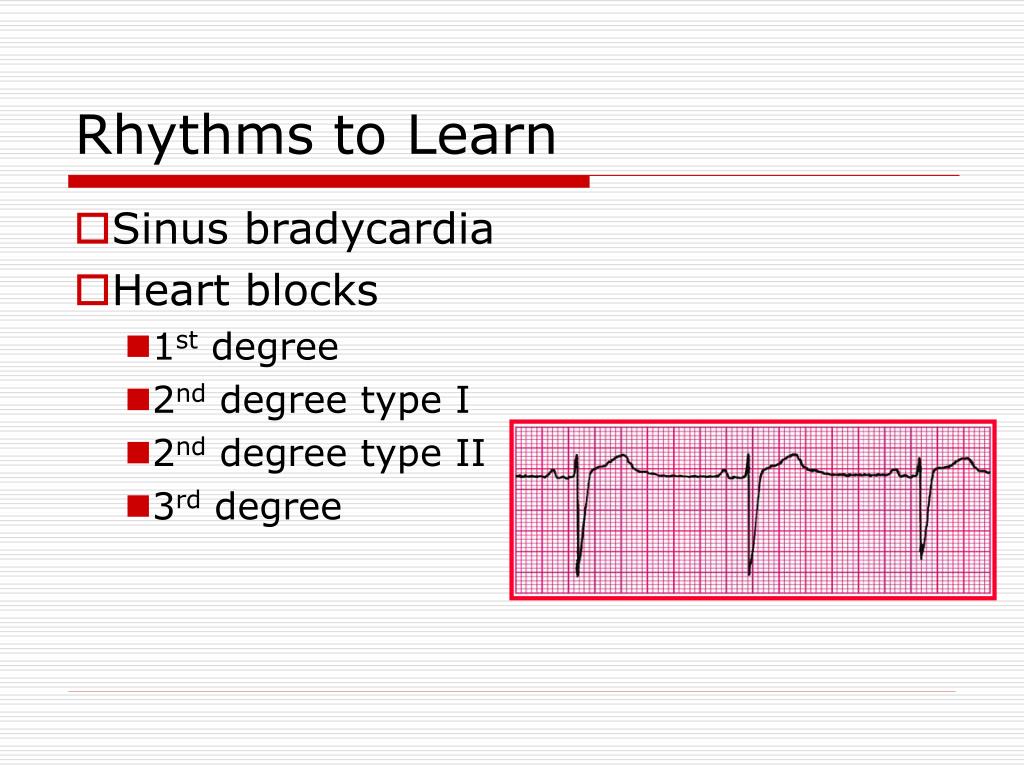

  15. Rhythms to Learn • Sinus bradycardia • Heart blocks • 1st degree • 2nd degree type I • 2nd degree type II • 3rd degree

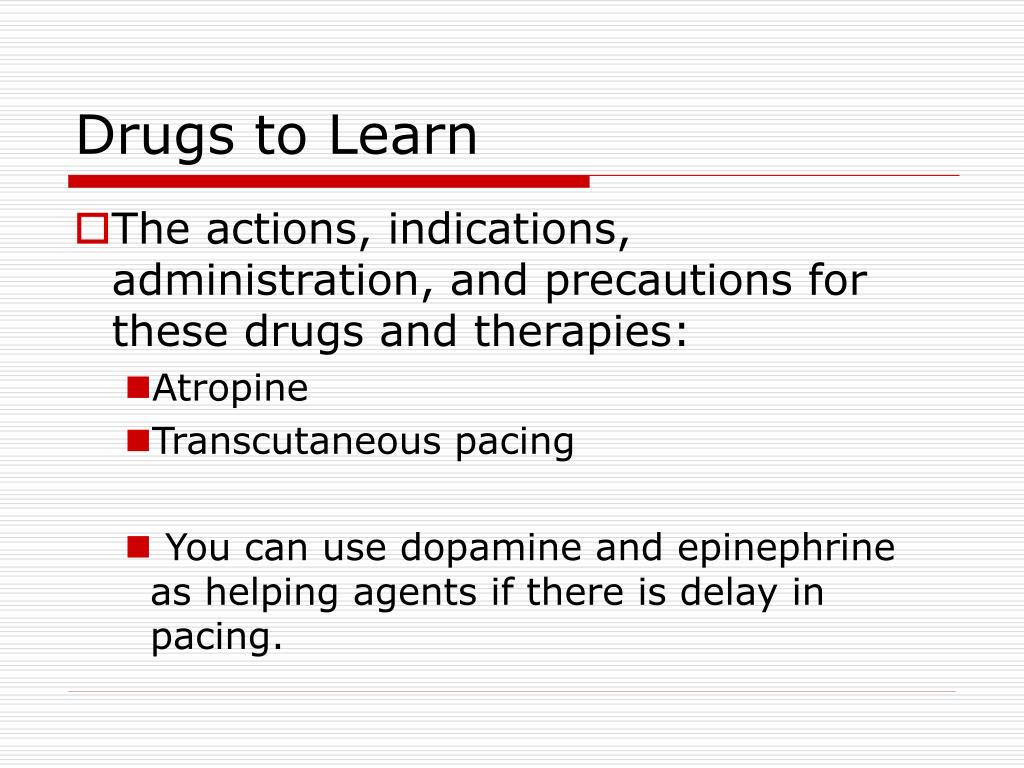

  16. Drugs to Learn • The actions, indications, administration, and precautions for these drugs and therapies: • Atropine • Transcutaneous pacing • You can use dopamine and epinephrine as helping agents if there is delay in pacing.

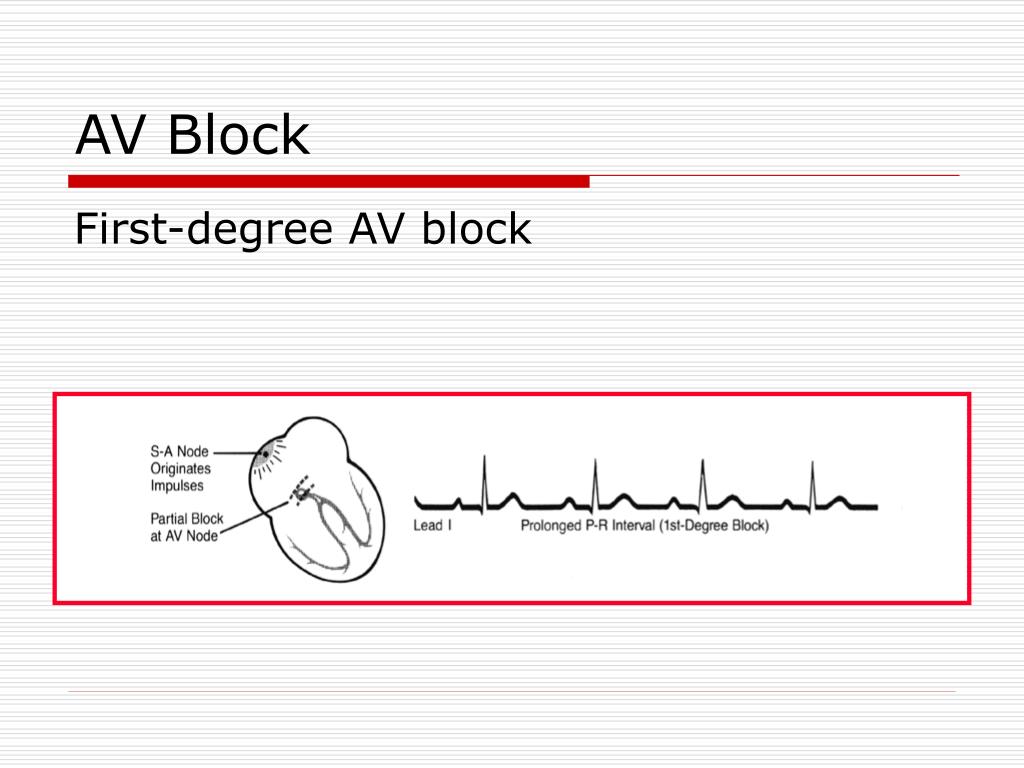

  17. AV Block First-degree AV block

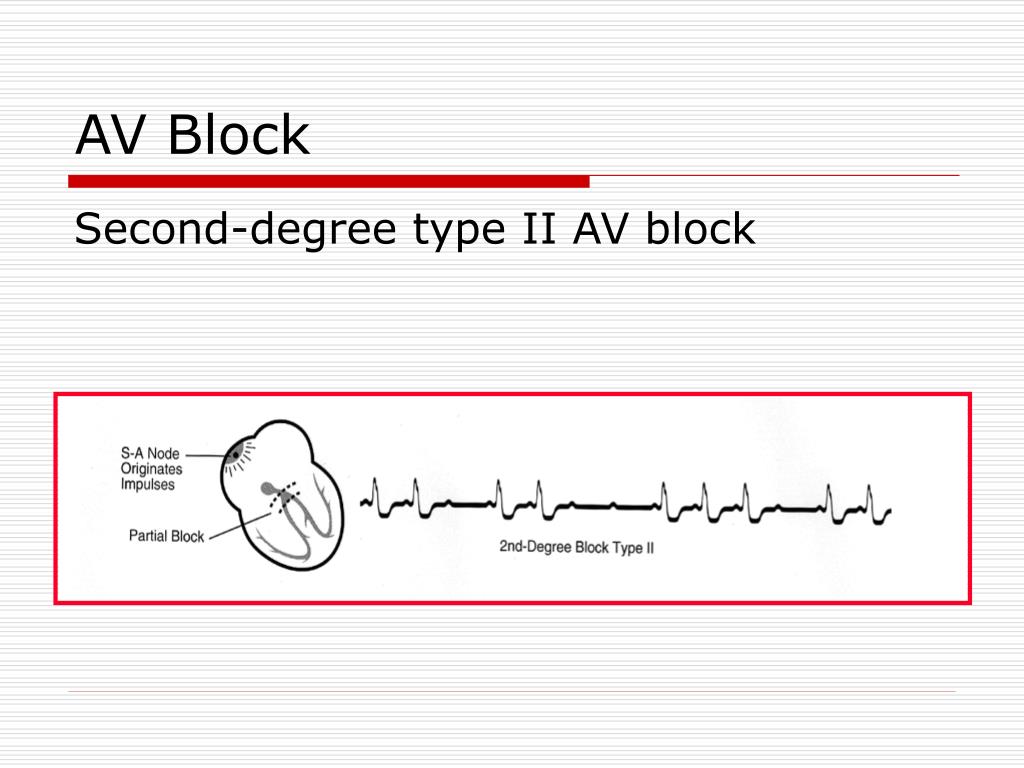

  18. AV Block Second-degree type II AV block

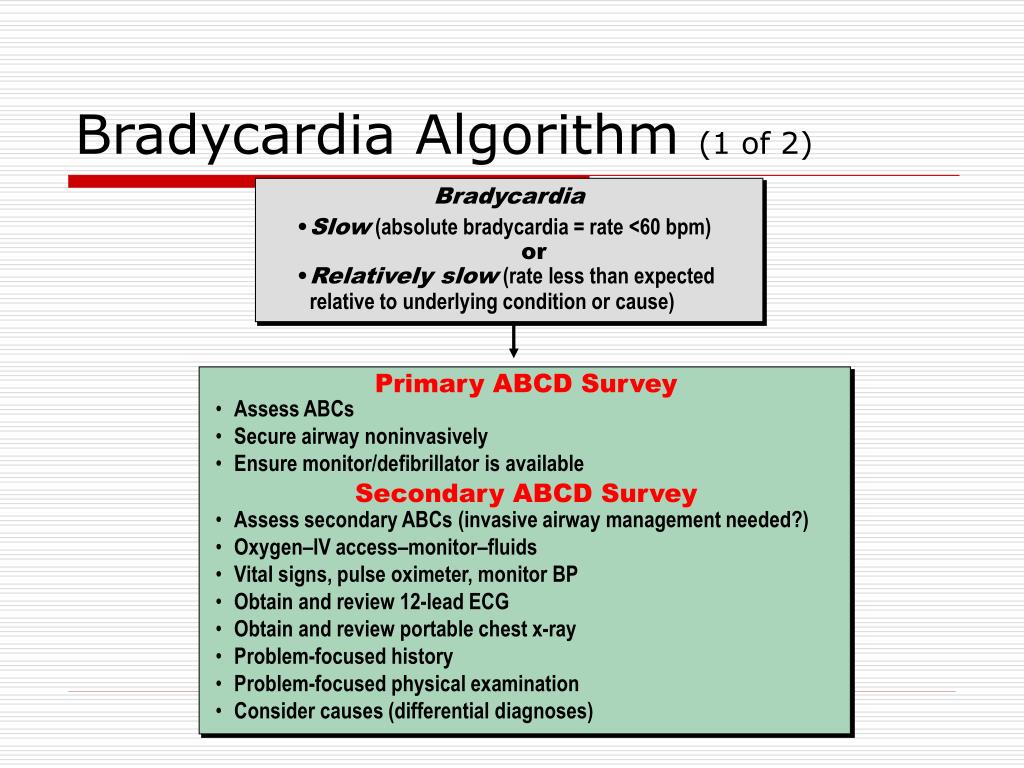

  19. Bradycardia Algorithm (1 of 2) Bradycardia • Slow (absolute bradycardia = rate <60 bpm) • or • Relatively slow (rate less than expected relative to underlying condition or cause) Primary ABCD Survey • Assess ABCs • Secure airway noninvasively • Ensure monitor/defibrillator is available Secondary ABCD Survey • Assess secondary ABCs (invasive airway management needed?) • Oxygen–IV access–monitor–fluids • Vital signs, pulse oximeter, monitor BP • Obtain and review 12-lead ECG • Obtain and review portable chest x-ray • Problem-focused history • Problem-focused physical examination • Consider causes (differential diagnoses)

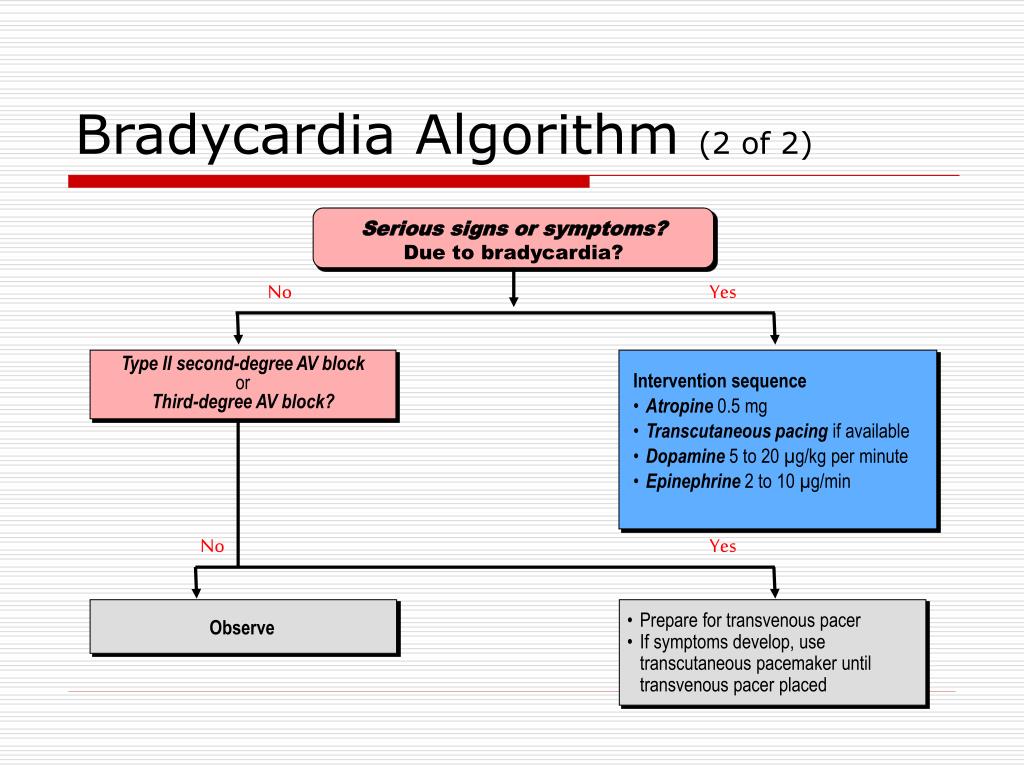

  20. Bradycardia Algorithm (2 of 2) Serious signs or symptoms? Due to bradycardia? No Yes Type II second-degree AV block or Third-degree AV block? • Intervention sequence • Atropine0.5 mg • Transcutaneous pacingif available • Dopamine 5 to 20 µg/kg per minute • Epinephrine 2 to 10 µg/min No Yes • Prepare for transvenous pacer • If symptoms develop, use transcutaneous pacemaker until transvenous pacer placed Observe

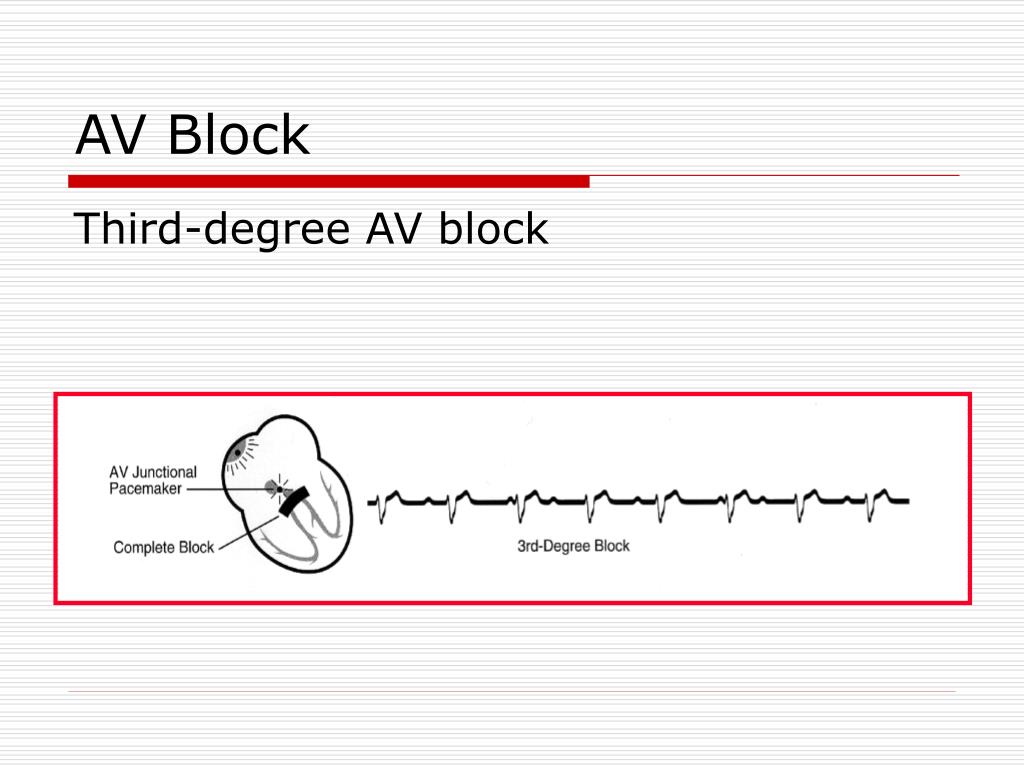

  21. AV Block Third-degree AV block

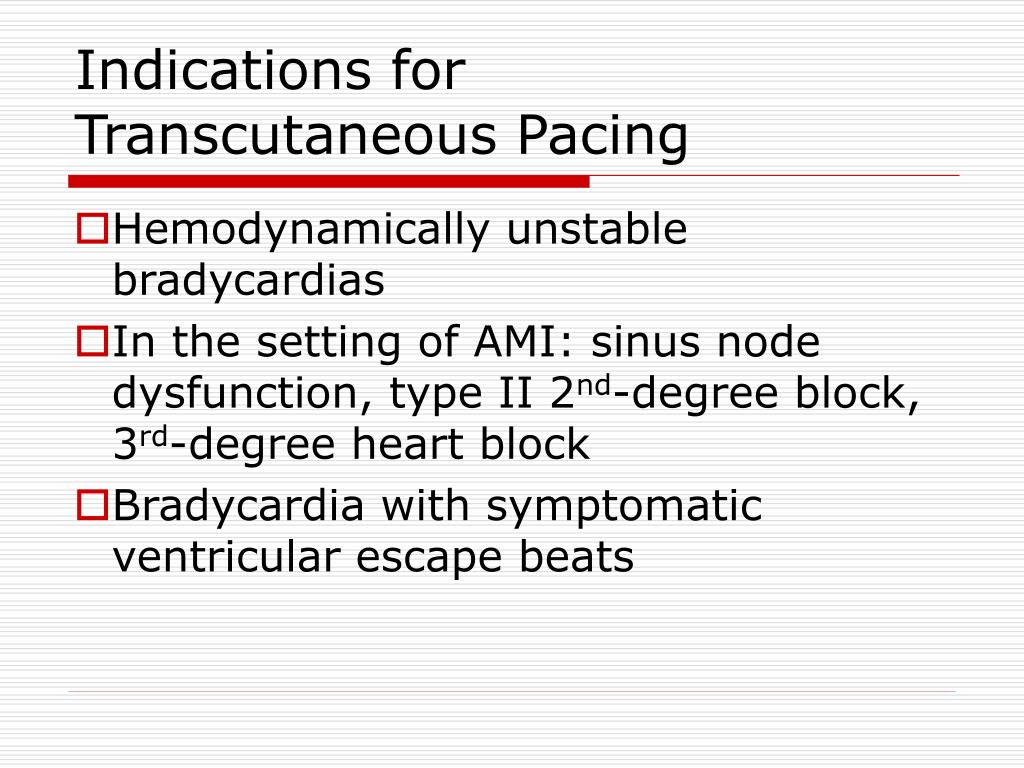

  22. Indications for Transcutaneous Pacing • Hemodynamically unstable bradycardias • In the setting of AMI: sinus node dysfunction, type II 2nd-degree block, 3rd-degree heart block • Bradycardia with symptomatic ventricular escape beats

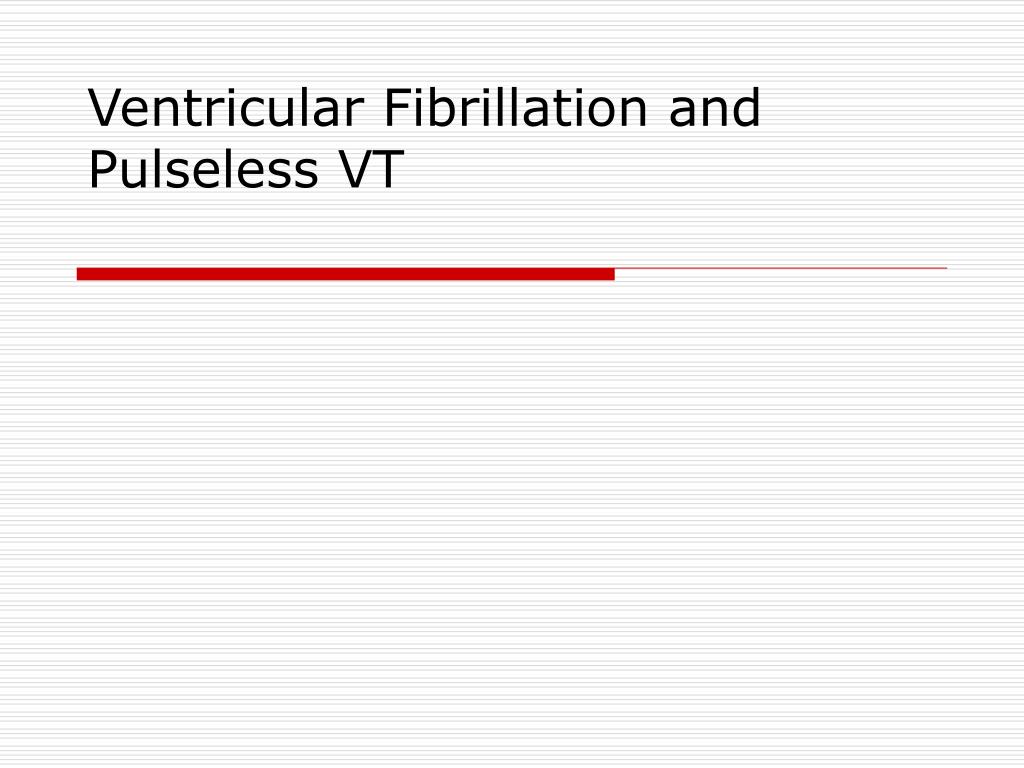

  23. Ventricular Fibrillation and Pulseless VT

  24. VF and Defibrillation • VF: rhythm causing “all” sudden cardiac arrest • VF: useless quivering of heart  no blood flow • VF treatment: only one therapy works  defibrillation • Defibrillation success: chances drop every minute

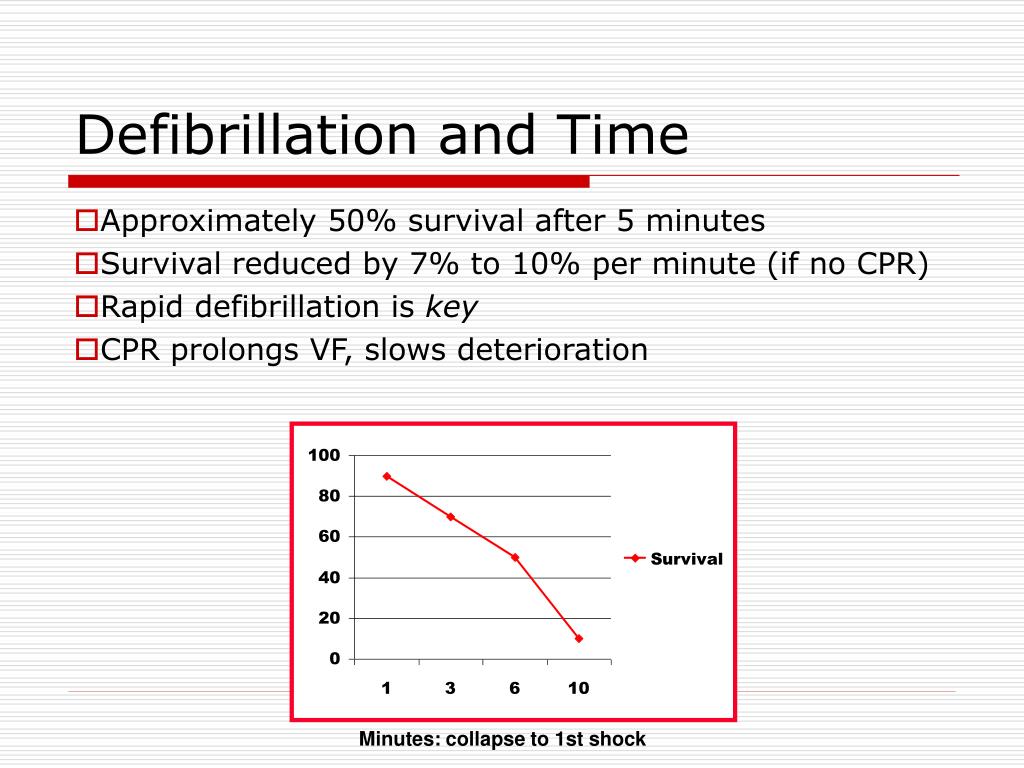

  25. Defibrillation and Time • Approximately 50% survival after 5 minutes • Survival reduced by 7% to 10% per minute (if no CPR) • Rapid defibrillation is key • CPR prolongs VF, slows deterioration Minutes: collapse to 1st shock

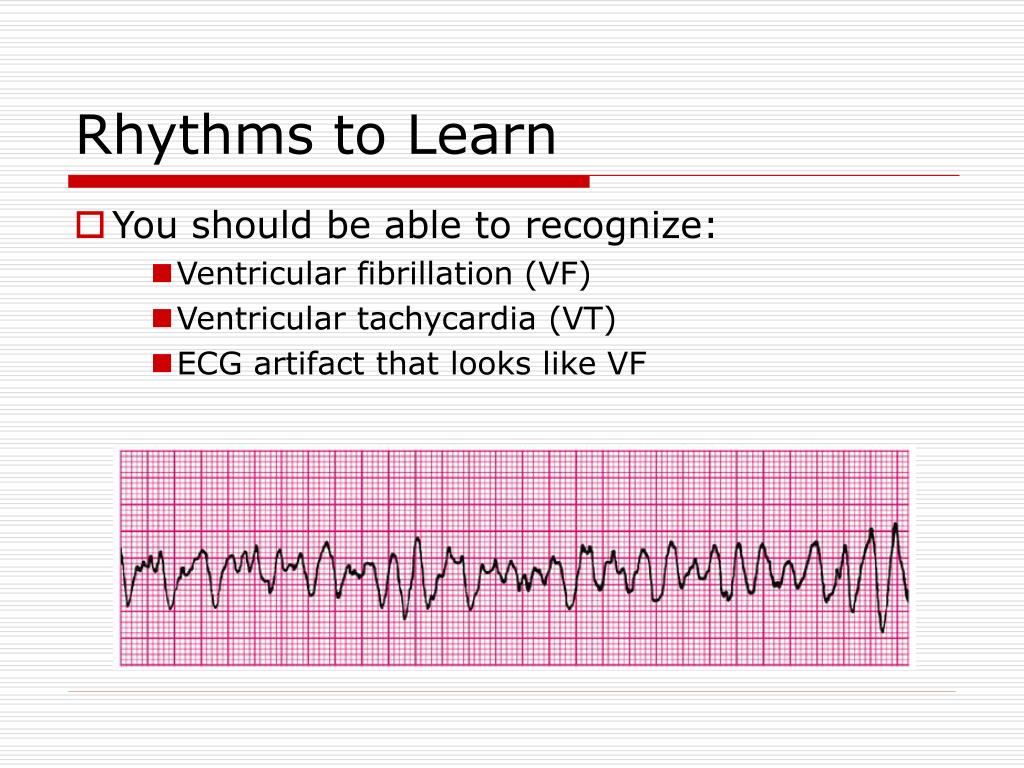

  26. Rhythms to Learn • You should be able to recognize: • Ventricular fibrillation (VF) • Ventricular tachycardia (VT) • ECG artifact that looks like VF

  27. ECC Handbook Drugs to Learn Describe indications, contraindications, dosages for: • Epinephrine • Amiodarone • Lidocaine

  28. Primary ABCD Survey Focus: basic CPR and defibrillation • Check responsiveness • Activate emergency response system • Call for defibrillator A Airway: open the airway B Breathing: provide positive-pressure ventilations C Circulation: give chest compressions D Defibrillation: assess for and shock VF/pulseless VT,(, 360 J, or equivalent biphasic) VF/Pulseless VT Rhythm after first shocks & 2 mins. CPR

  29. VF/Pulseless VT (cont’d) Persistent or recurrent VF/VT Secondary ABCD Survey Focus: more advanced assessments and treatments A Airway: place airway device as soon as possible B Breathing: confirm airway device placement by exam plus confirmation device B Breathing: secure airway device; purpose-made tube holders preferred B Breathing: confirm effective oxygenation and ventilation C Circulation: establish IV access C Circulation: identify rhythm  monitor C Circulation: administer drugs appropriate for rhythm and condition D Differential Diagnosis: search for and treat identified reversible causes

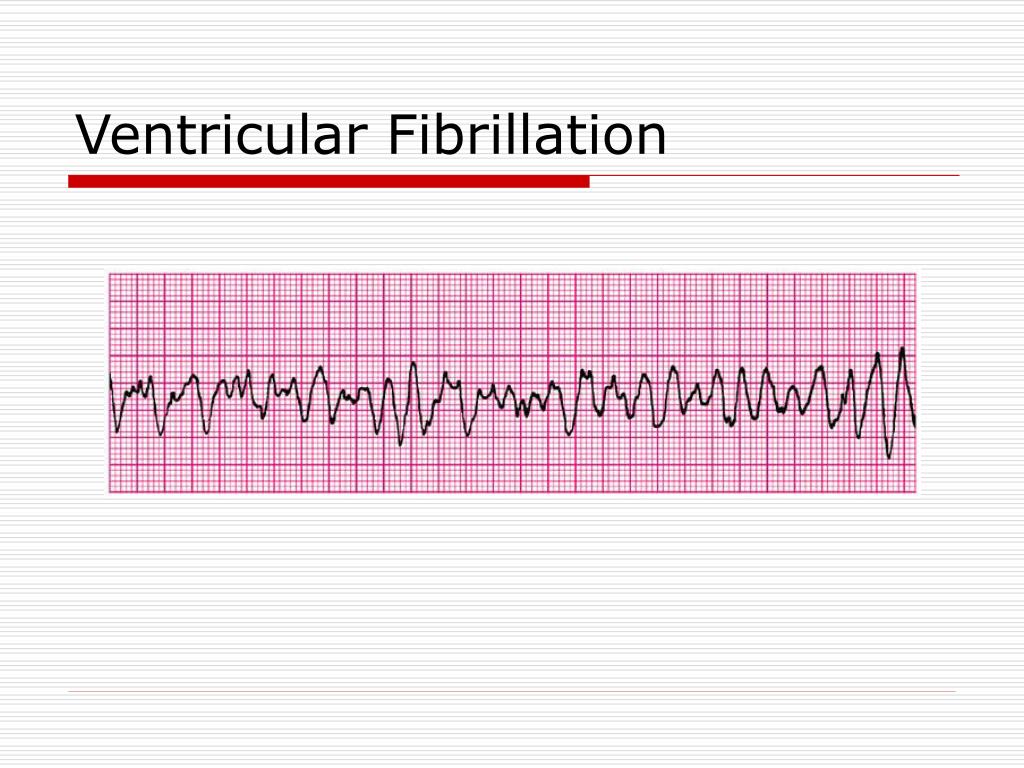

  30. Ventricular Fibrillation

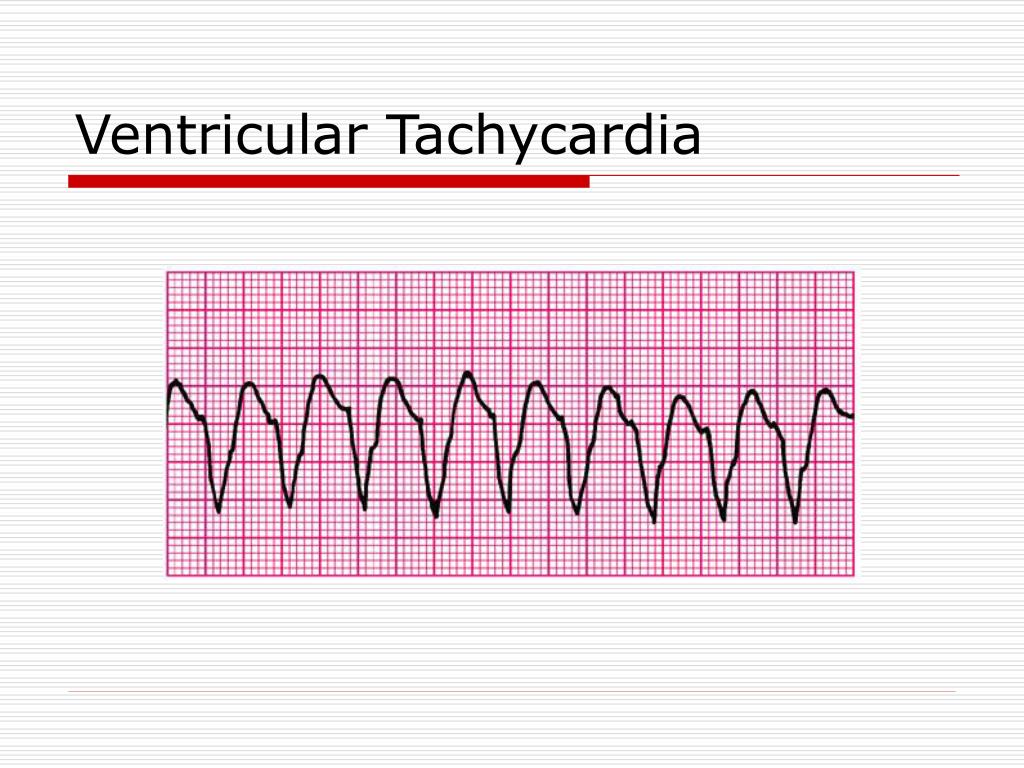

  31. Ventricular Tachycardia

  32. Shock-Resistant VF/Pulseless VT • Does patient show persistent or recurrent VF/VT? • After IV is started: vasopressin or epinephrine? • Consider antiarrhythmics: use amiodarone? lidocaine? procainamide? magnesium?

  33. VF/Pulseless VT (cont’d) ? • Epinephrine 1 mg IV push, repeat every 3 to 5 minutes • or • Vasopressin 40 U IV, single dose, 1 time only Resume attempts to defibrillate 1 x 360 J (or equivalent biphasic) within 30 to 60 seconds Consider antiarrhythmics: • Amiodarone (llb for persistent or recurrent VF/pulseless VT) • Lidocaine (Indeterminate for persistent or recurrent VF/pulseless VT) • Magnesium (llb if known hypomagnesemic state) Resume attempts to defibrillate

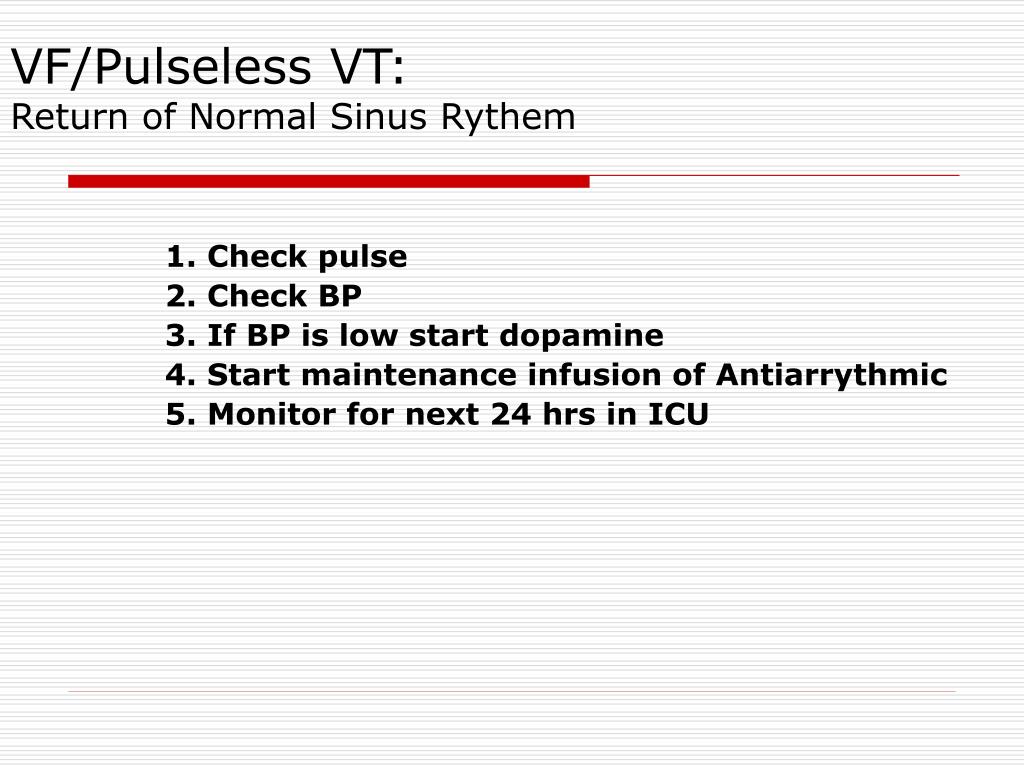

  34. VF/Pulseless VT: Return of Normal Sinus Rythem 1. Check pulse 2. Check BP 3. If BP is low start dopamine 4. Start maintenance infusion of Antiarrythmic 5. Monitor for next 24 hrs in ICU

  35. Unstable Tachycardia

  36. Classify Specific Tachycardia • Narrow complex tachycardias a. Atrial Flutter b. Atrial Fibrillation c. SVT 2. Wide complex tachycardia ( VT )

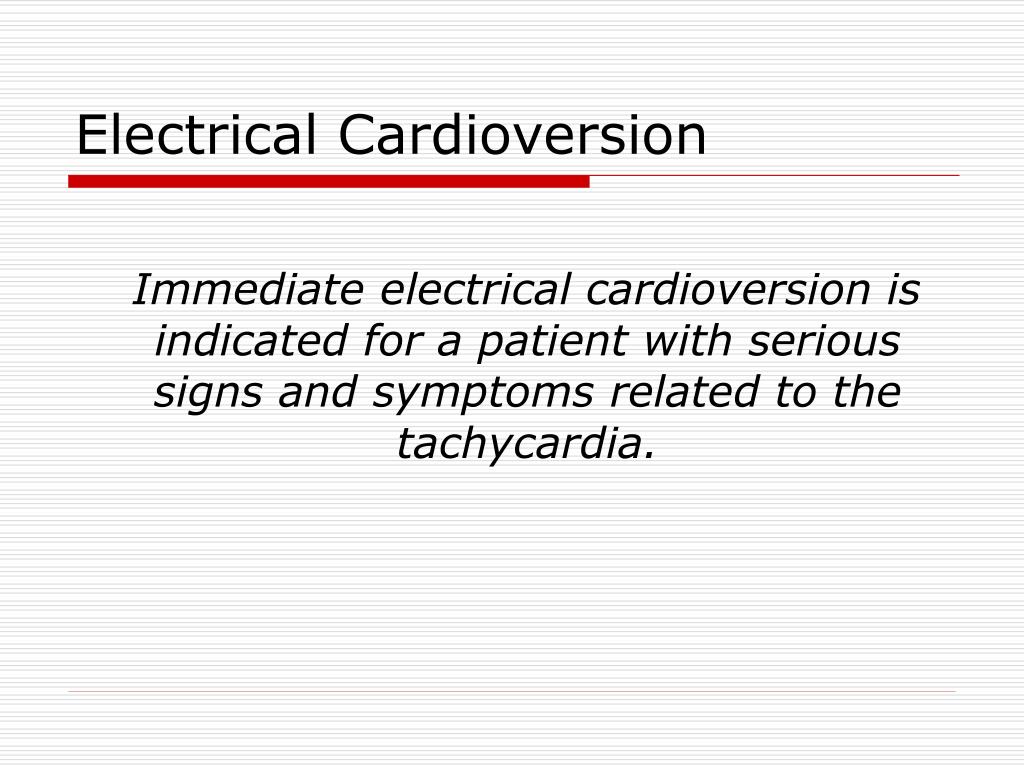

  37. Electrical Cardioversion Immediate electrical cardioversion isindicated for a patient with serious signs and symptoms related to the tachycardia.

  38. Sinus Tachycardia

  39. Sinus Tachycardia • Symptoms and treatment • Pain—analgesia • Anxiety—sedation • Hyperdynamic state—-blockade • Hypovolemia—volume replacement

  40. Supraventricular Arrhythmias • Atrial flutter and fibrillation with hemodynamic compromise • Promptly restore normal sinus rhythm • Synchronized DC cardioversion or rapid atrial pacing • Avoid verapamil if hypotension or LV failure present

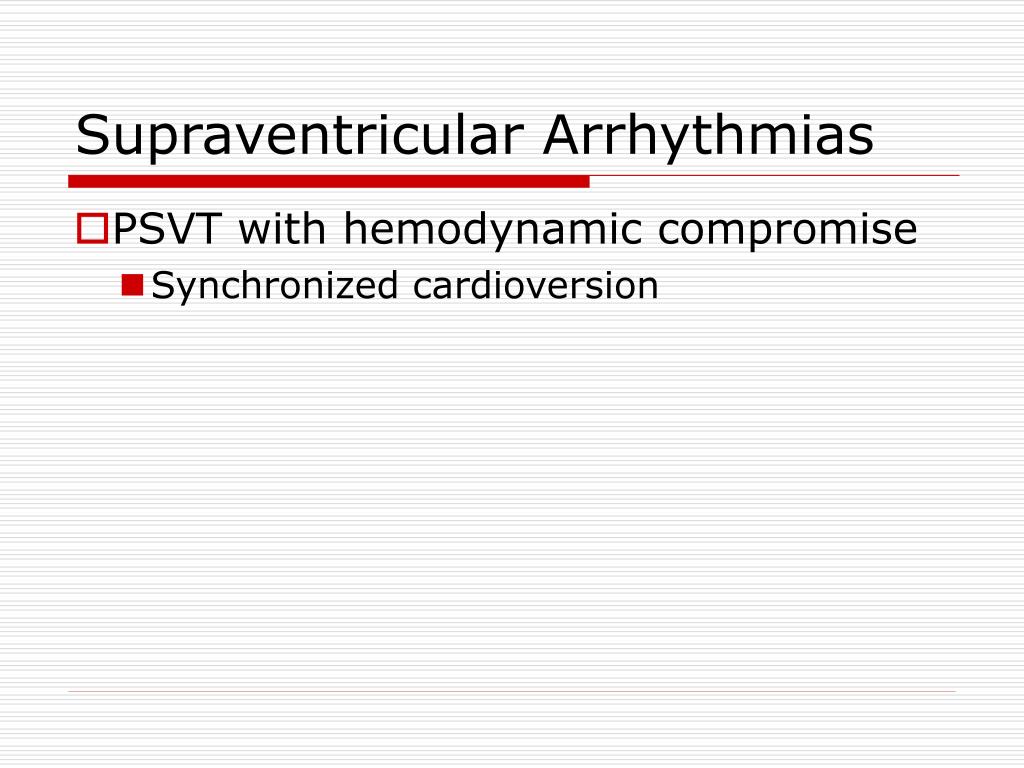

  41. Supraventricular Arrhythmias • PSVT with hemodynamic compromise • Synchronized cardioversion

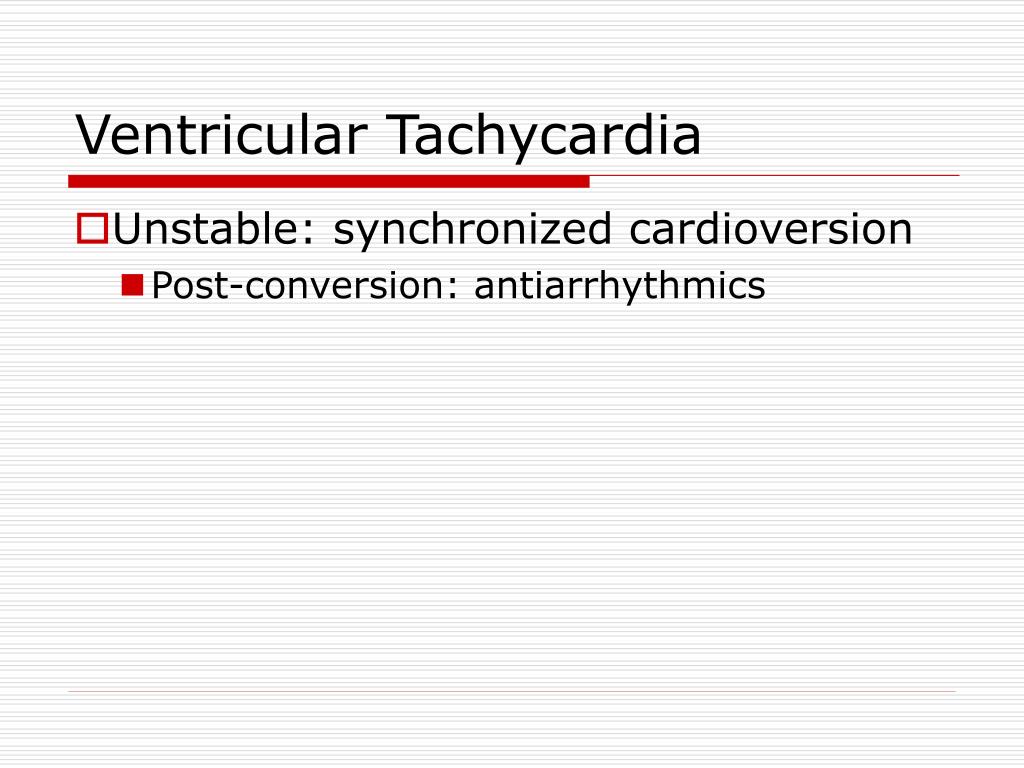

  42. Ventricular Tachycardia • Unstable: synchronized cardioversion • Post-conversion: antiarrhythmics
