Construction methods

Construction Methods

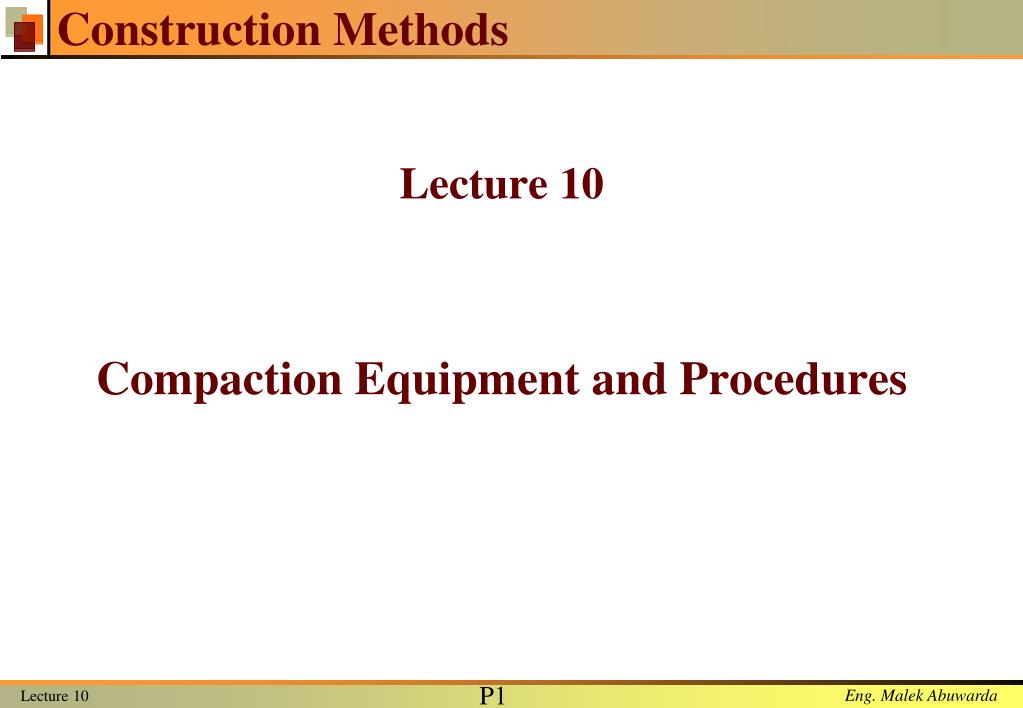

Lecture 10

Compaction Equipment and Procedures


Compaction equipment and procedures
Compaction Equipment and Procedures

  • Types of Compaction Equipment


Compaction equipment and procedures1
Compaction Equipment and Procedures

  • Types of Compaction Equipment


Compaction equipment and procedures2
Compaction Equipment and Procedures

  • Sheepsfoot Rollers

    • Sheepsfoot rollers are drums with a large number of projections.

    • These rollers are most effective in compacting clayey soils.

    • The area of each of these projections may range from 25 to 85cm2



Compaction equipment and procedures4
Compaction Equipment and Procedures

  • Tamping Foot Compactor


Compaction equipment and procedures5
Compaction Equipment and Procedures

  • Tamping Foot Compactor


Compaction equipment and procedures6
Compaction Equipment and Procedures

  • Tamping Foot Compactor

    • It is suitable for compacting all fined-grained soils, but is generally not suitable for use on cohesionless granular soils.

    • The compacted depth is limited to 20cm

    • This type roller does not adequately compact the upper 5 to 8 cm of the soil, therefore, for the last lift it should be followed with a pneumatic or smooth-drum roller.


Compaction equipment and procedures7
Compaction Equipment and Procedures

  • Tamping Foot Compactor


Compaction equipment and procedures8
Compaction Equipment and Procedures

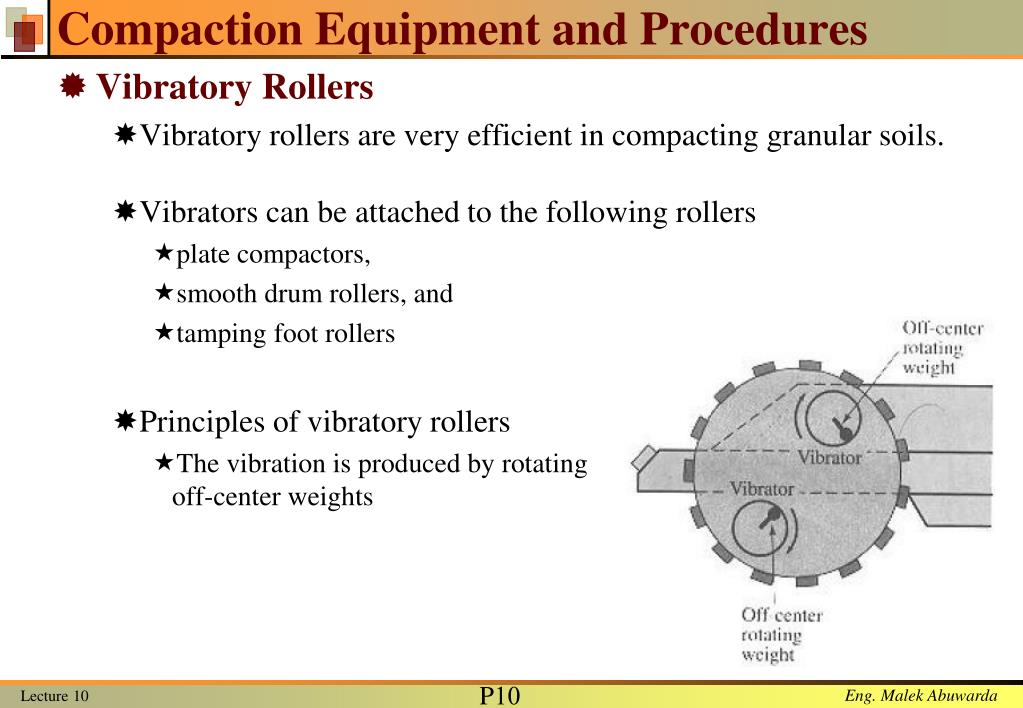

  • Vibratory Rollers

    • Vibratory rollers are very efficient in compacting granular soils.

    • Vibrators can be attached to the following rollers

      • plate compactors,

      • smooth drum rollers, and

      • tamping foot rollers

    • Principles of vibratory rollers

      • The vibration is produced by rotating off-center weights


Compaction equipment and procedures9
Compaction Equipment and Procedures

  • Smooth Drum Vibratory Soil Compactor


Compaction equipment and procedures10
Compaction Equipment and Procedures

  • Smooth Drum Vibratory Soil Compactor

    • This roller uses vibratory action in conjunction with ballast weight of the drum to compact.

    • One of the most effective means of attaining density for cohesionless materials.

    • It is a relatively light roller therefore maximum loose-lift depth is 25cm


Compaction equipment and procedures11
Compaction Equipment and Procedures

  • Vibratory Tamping Foot Compactor


Compaction equipment and procedures12
Compaction Equipment and Procedures

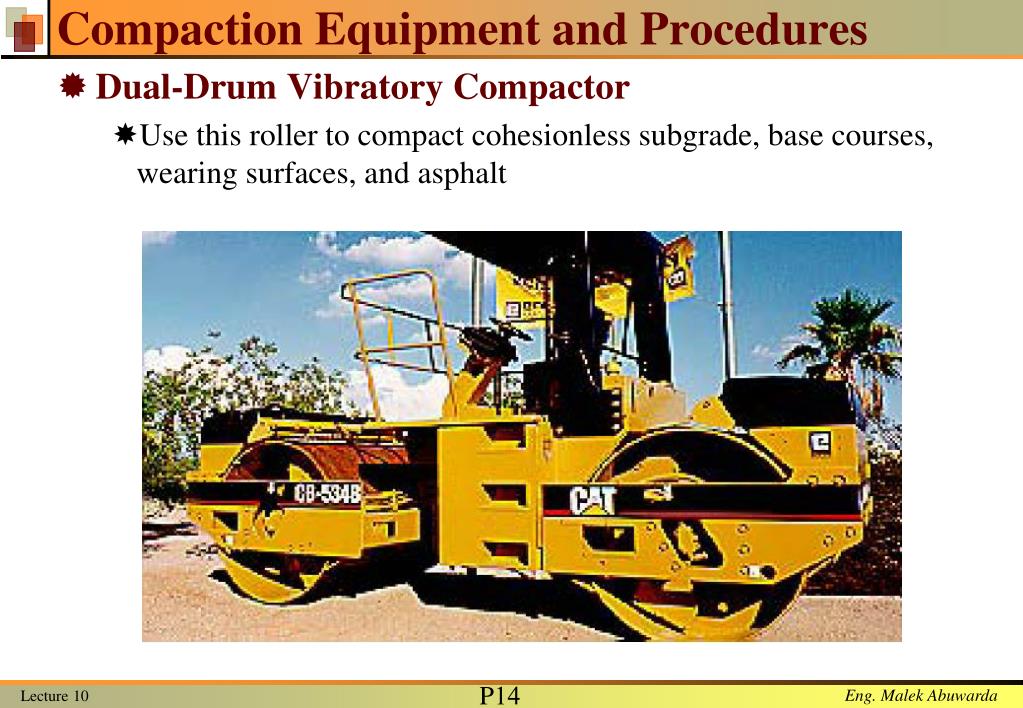

  • Dual-Drum Vibratory Compactor

    • Use this roller to compact cohesionless subgrade, base courses, wearing surfaces, and asphalt


Compaction equipment and procedures13
Compaction Equipment and Procedures

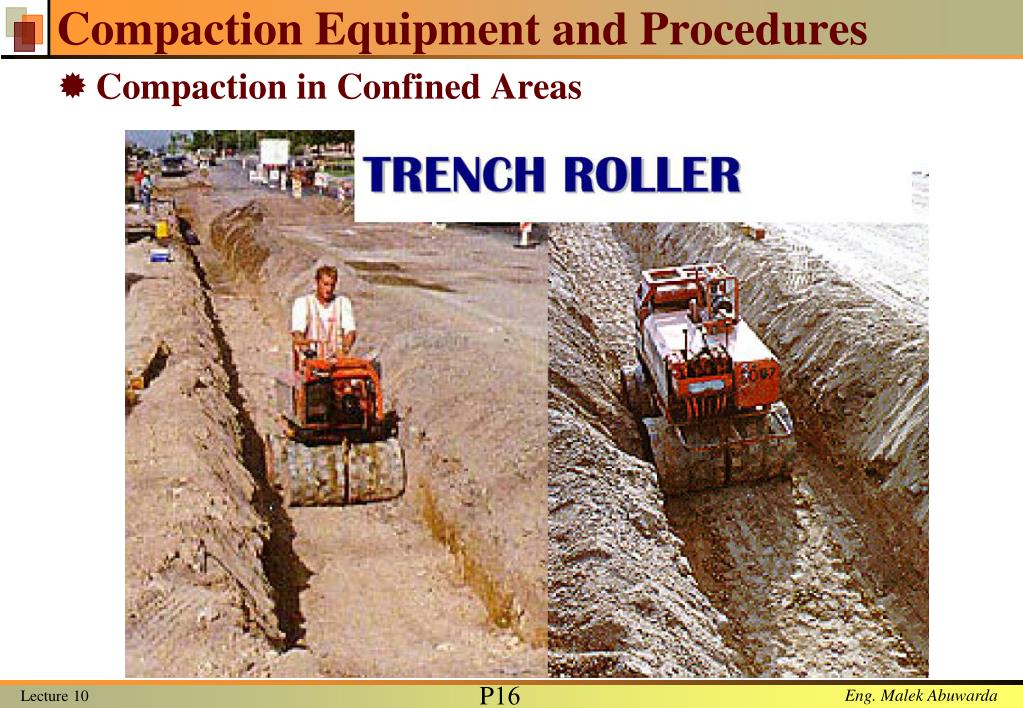

  • Compaction in Confined Areas


Compaction equipment and procedures14
Compaction Equipment and Procedures

  • Compaction in Confined Areas


Compaction equipment and procedures15
Compaction Equipment and Procedures

  • Compaction in Confined Areas


Compaction equipment and procedures16
Compaction Equipment and Procedures

  • Dynamic Compaction

    • This process primarily consists of dropping a heavy weight repeatedly on the ground at regular intervals.

    • The weight of the hammer varies over a range of 8 to 35 tons.

    • The height of the hammer drop varies between 10 to 30 meter.

    • Can achieve densification to a depths of about 10 meter


Compaction equipment and procedures17
Compaction Equipment and Procedures

  • Selection of Compaction Equipment


Compaction equipment and procedures18
Compaction Equipment and Procedures

  • Selection of Compaction Equipment
