Lewis Diagrams for Polyatomic Ions

Lewis Diagrams for Polyatomic Ions. Polyatomic Ions. Polyatomic ions are covalently bonded atoms that together have an overall charge. Lewis diagrams for polyatomic ions:. Determine the # of valence e- for each atom in the molecule and draw the dot diagram as if it were covalent BUT

lawrence-emerson
Download Presentation

Lewis Diagrams for Polyatomic Ions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lewis Diagrams for Polyatomic Ions

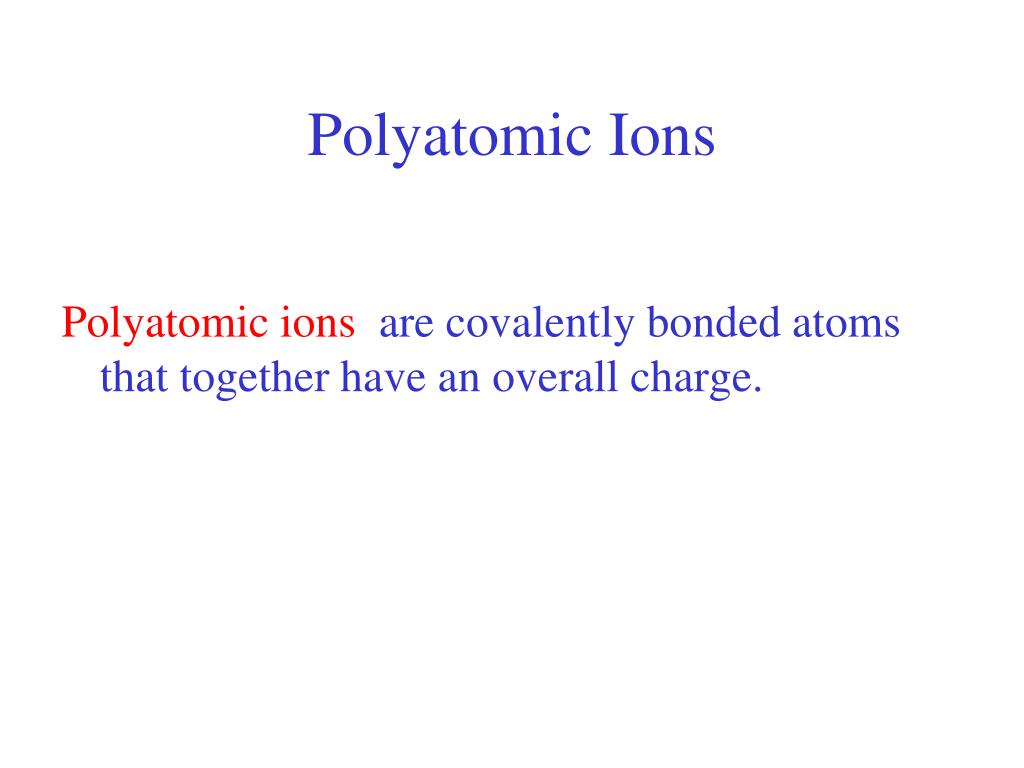

  2. Polyatomic Ions Polyatomic ions are covalently bonded atoms that together have an overall charge.

  3. Lewis diagrams for polyatomic ions: • Determine the # of valence e- for each atom in the molecule and draw the dot diagram as if it were covalent BUT • SUBTRACT one electron (usually from the central atom) for each +ve charge. • ADD one electron (usually from the central atom) for each -ve charge.

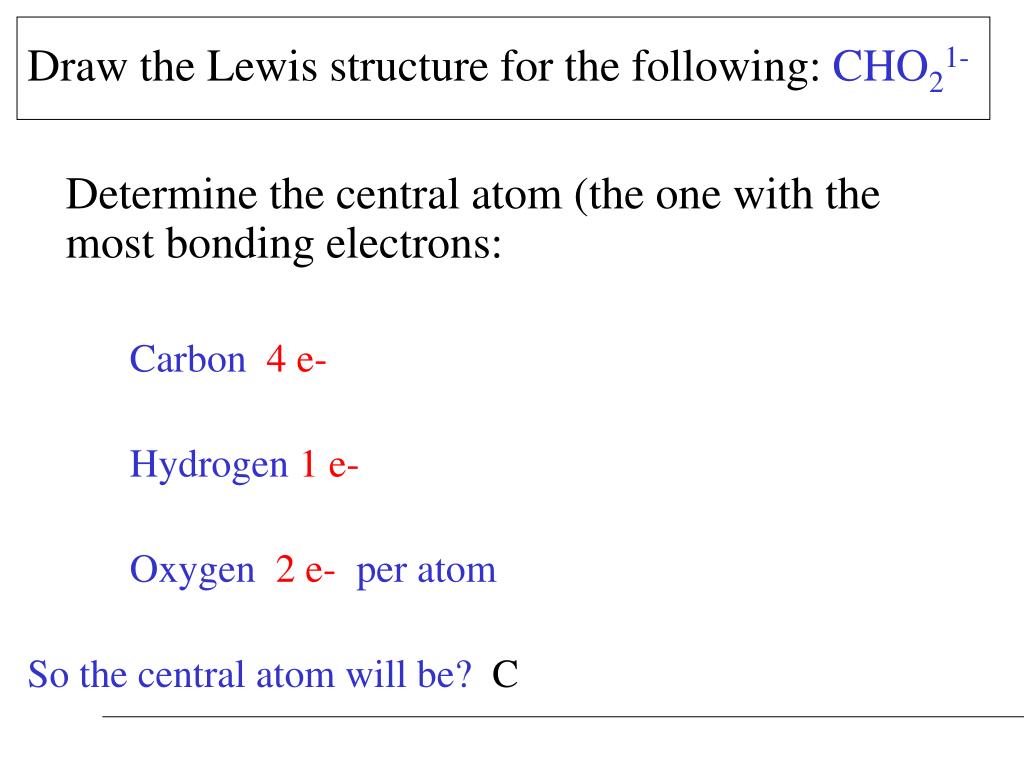

  4. Draw the Lewis structure for the following:CHO21- Determine the central atom (the one with the most bonding electrons: Carbon 4 e- Hydrogen 1 e- Oxygen 2 e- per atom So the central atom will be? C

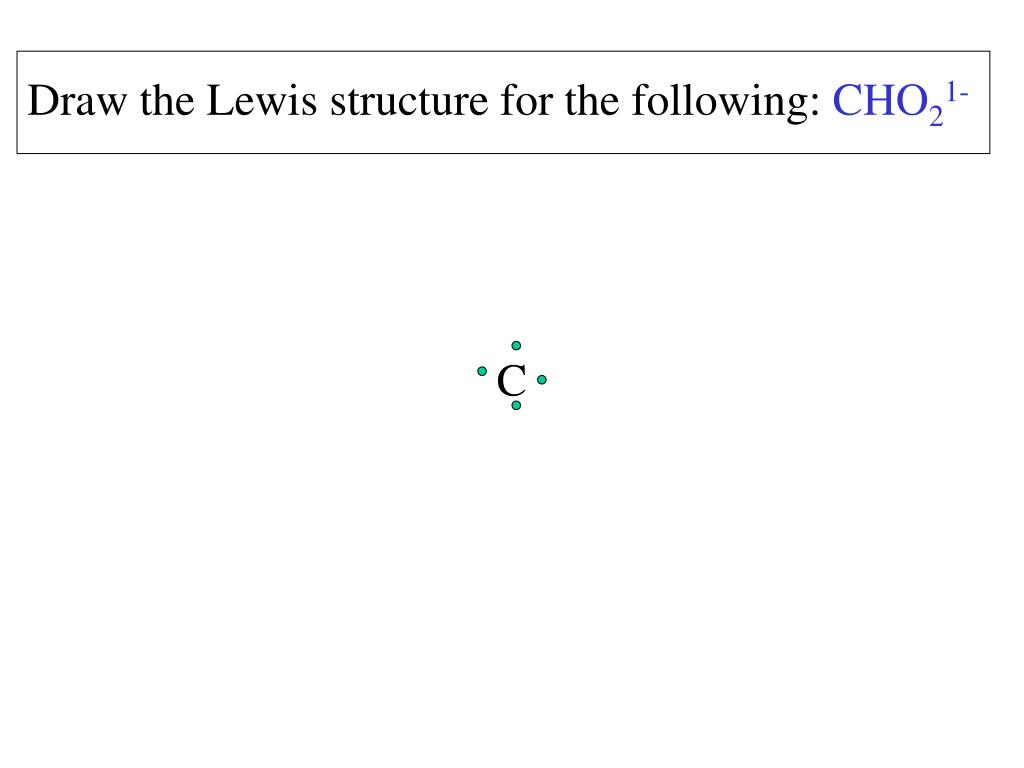

  5. Draw the Lewis structure for the following:CHO21- C

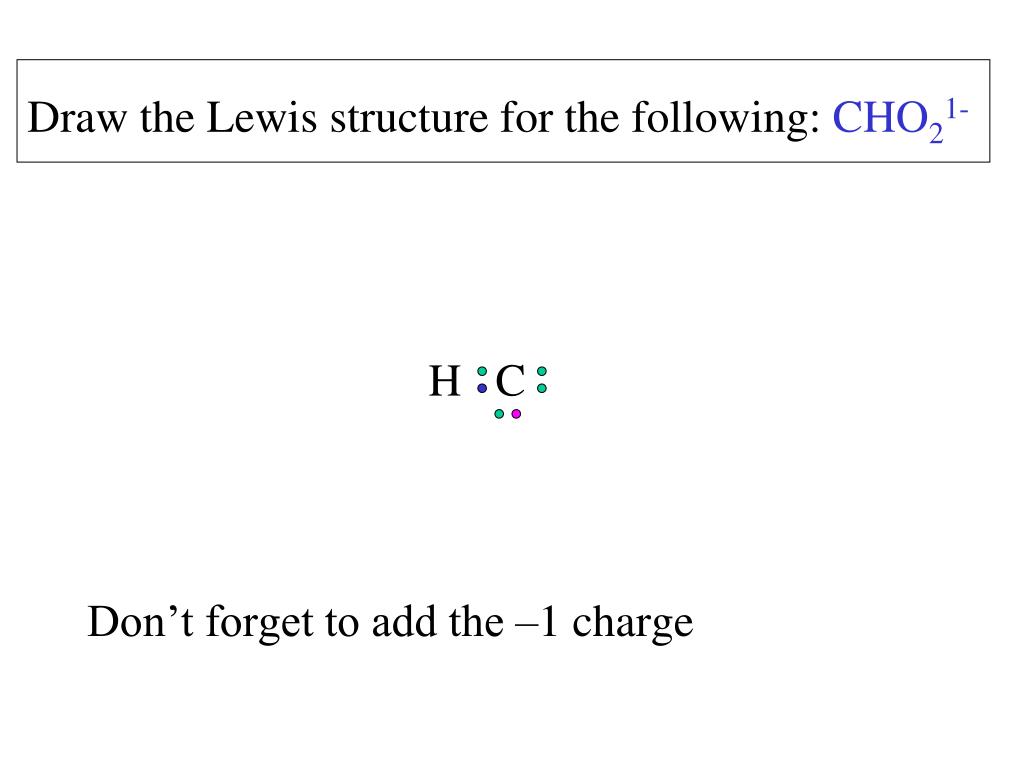

  6. Draw the Lewis structure for the following:CHO21- H C Don’t forget to add the –1 charge

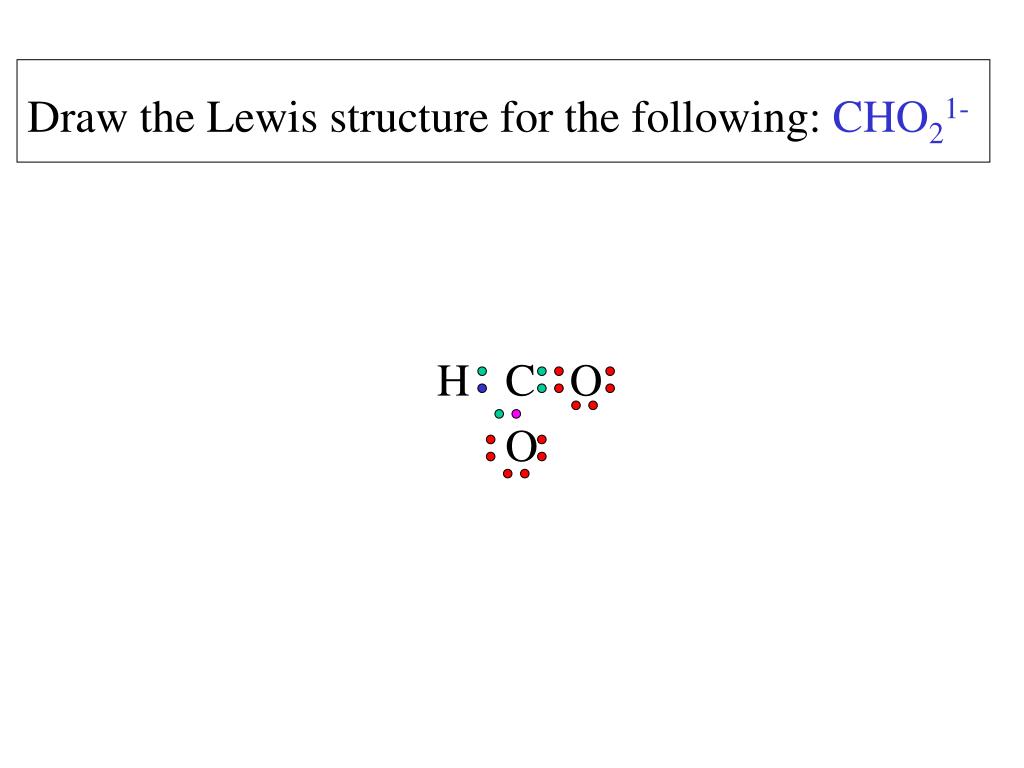

  7. Draw the Lewis structure for the following:CHO21- H C O O

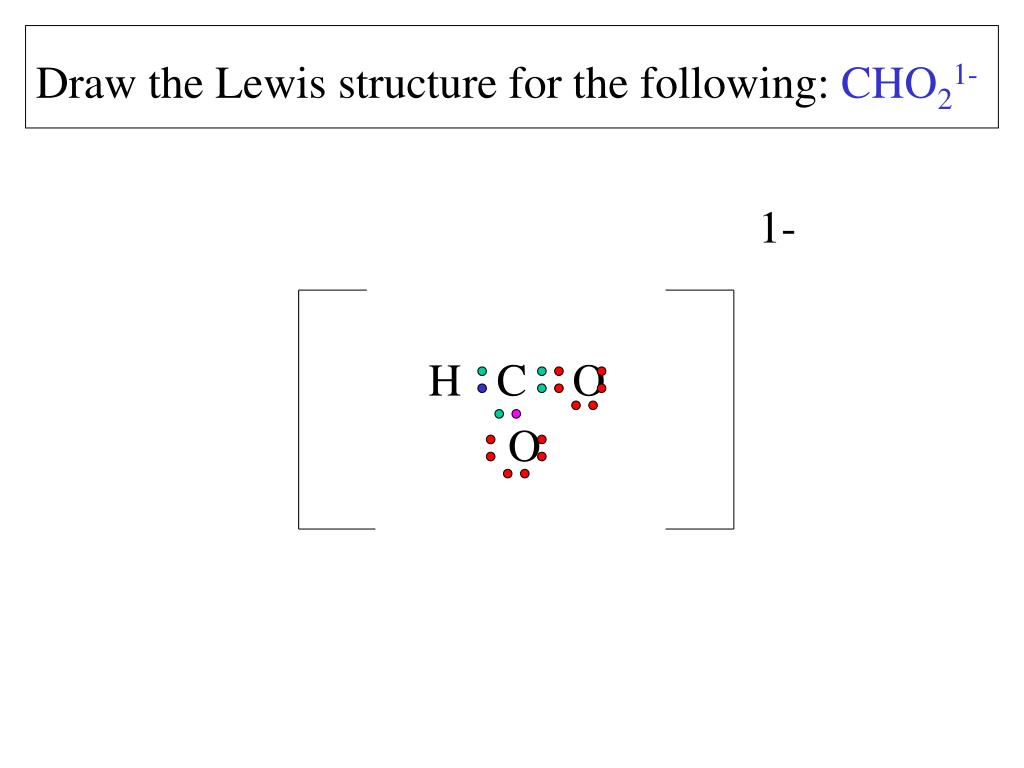

  8. Draw the Lewis structure for the following:CHO21- 1- H C O O

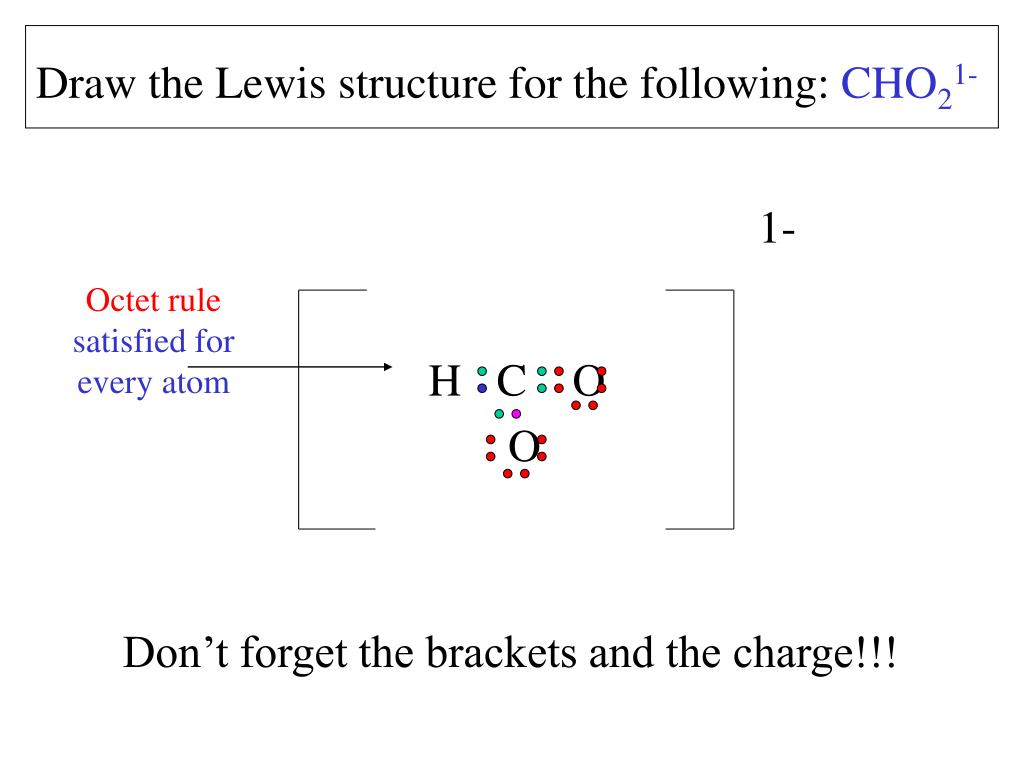

  9. Draw the Lewis structure for the following:CHO21- 1- H C O O Octet rule satisfied for every atom Don’t forget the brackets and the charge!!!

  10. NH4+ Determine the central atom:

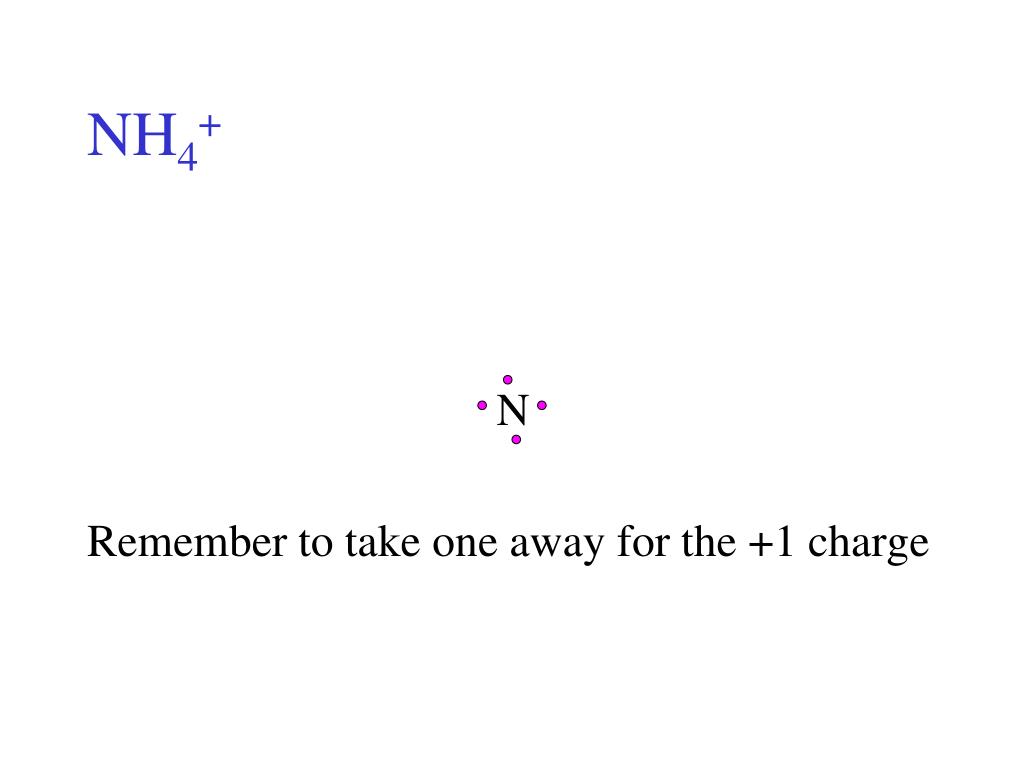

  11. NH4+ N Remember to take one away for the +1 charge

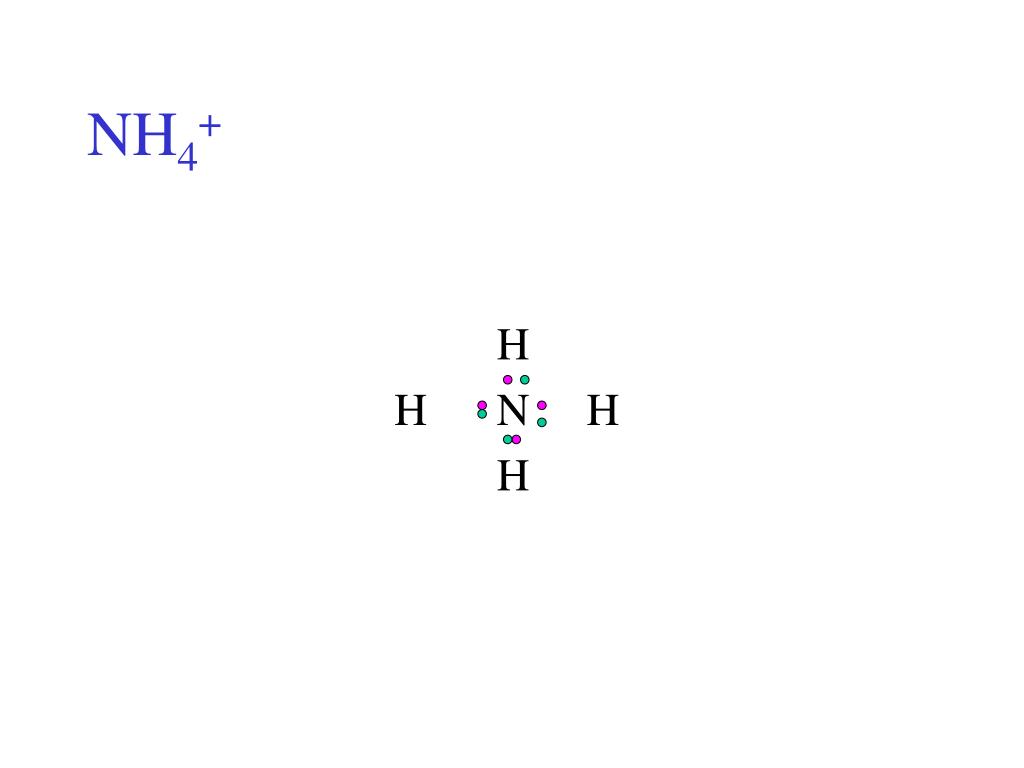

  12. NH4+ H H N H H

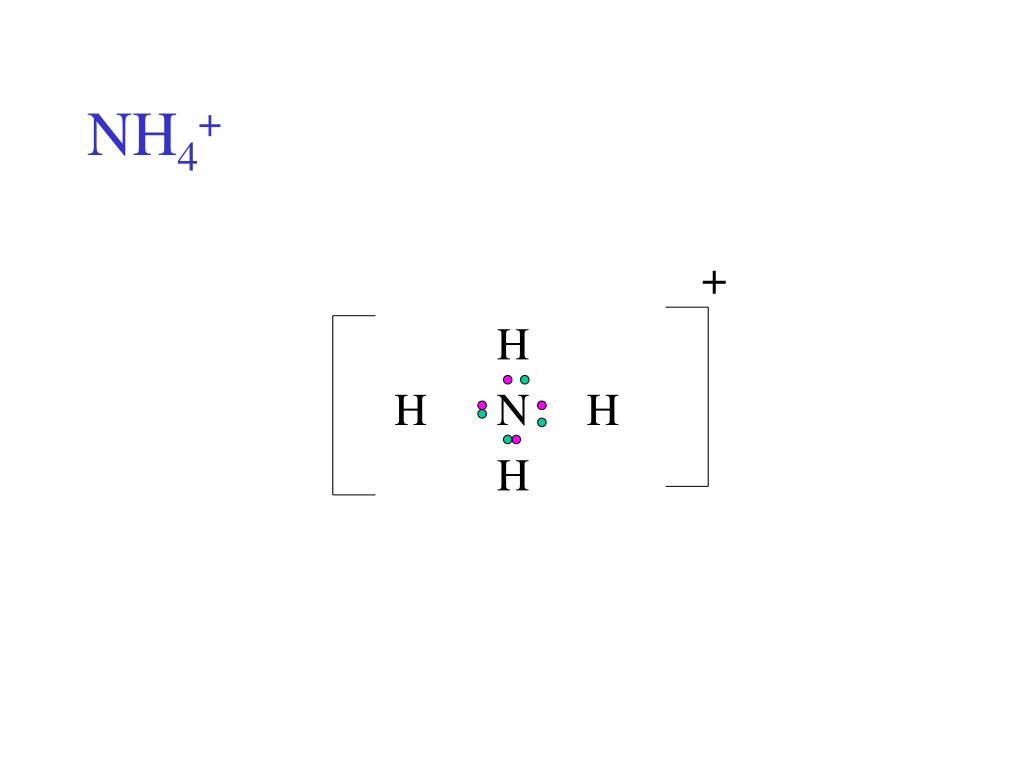

  13. NH4+ + H H N H H

  14. CO32-

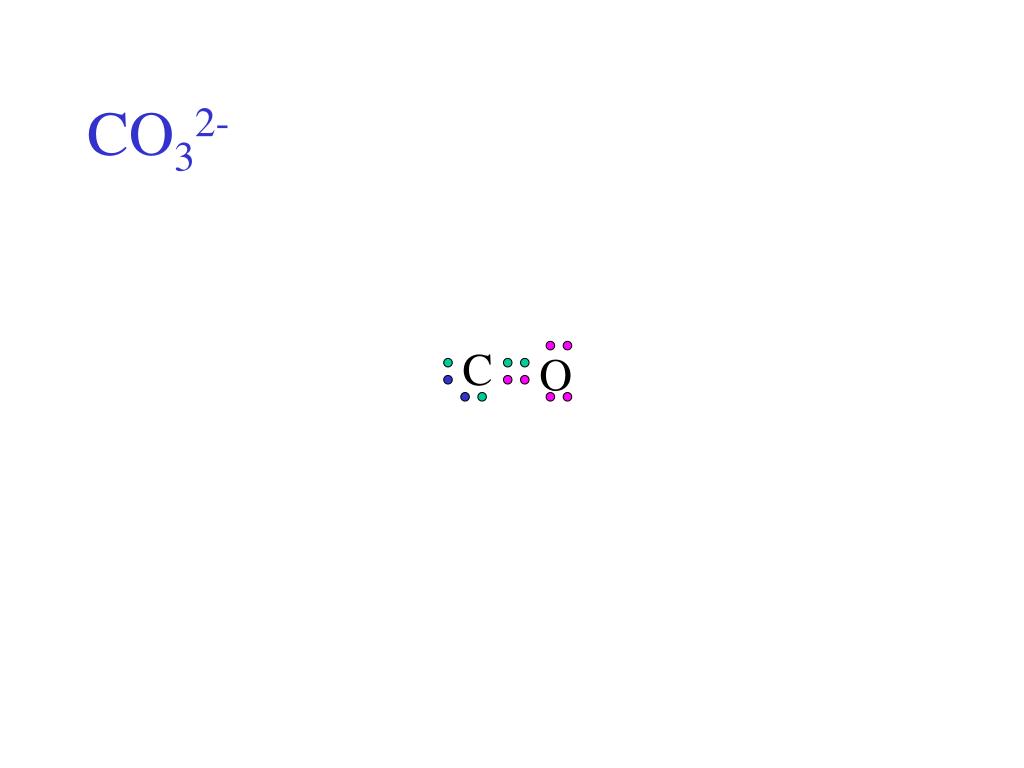

  15. CO32- C

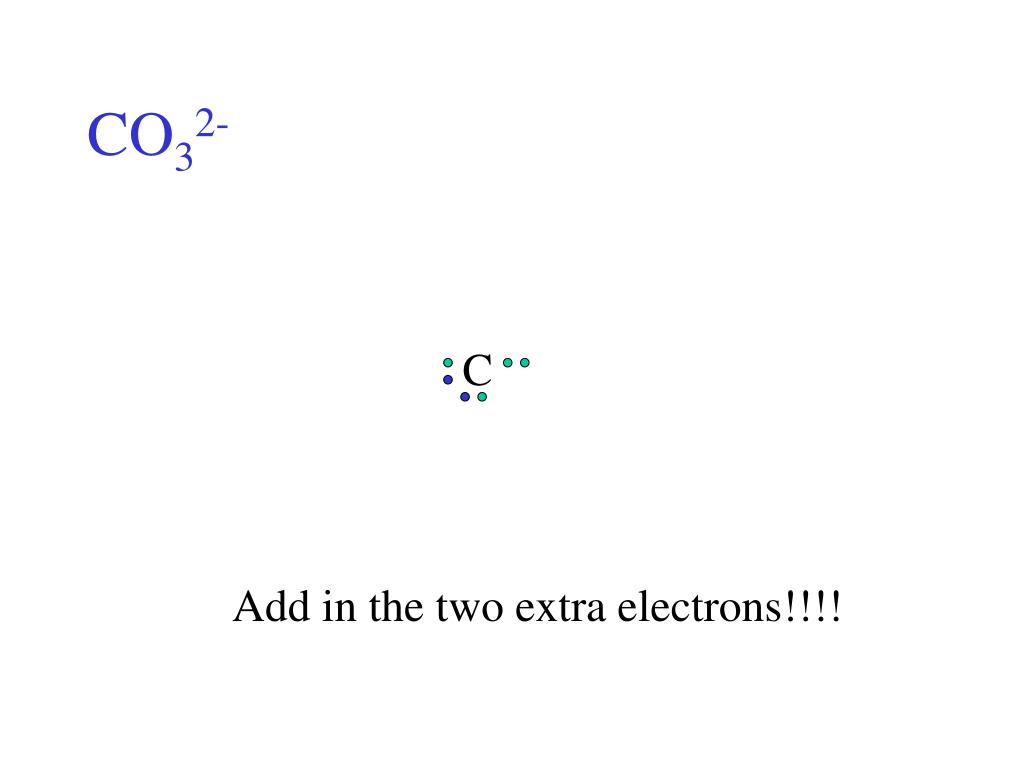

  16. CO32- C Add in the two extra electrons!!!!

  17. CO32- C O

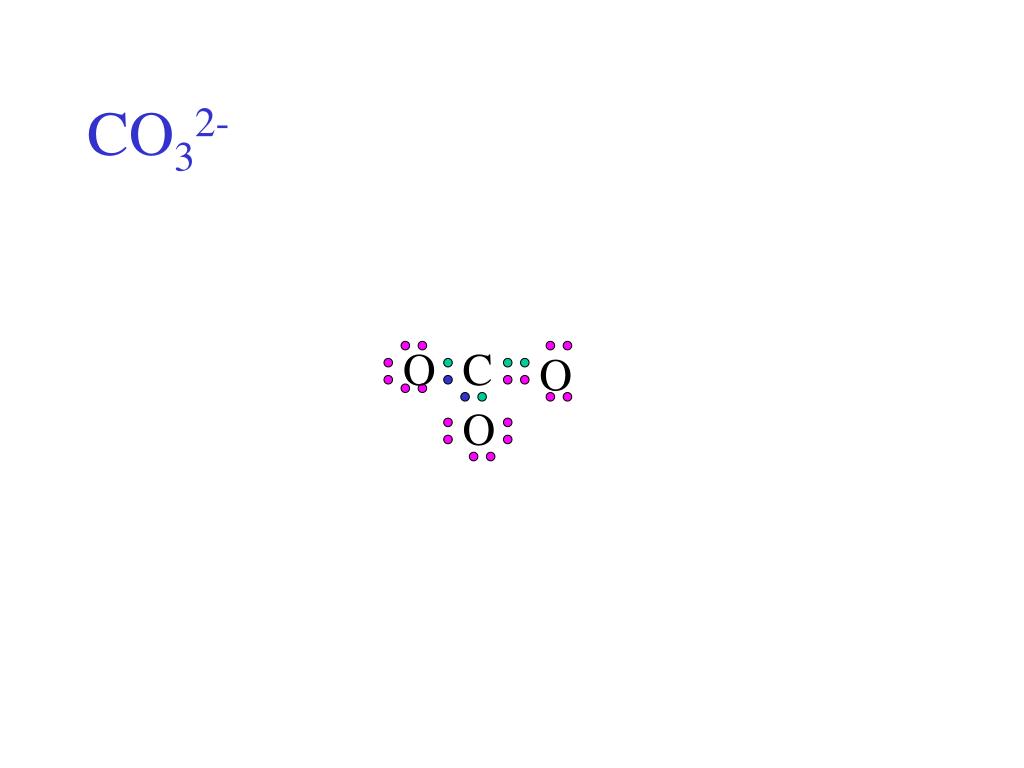

  18. CO32- O C O O

  19. CO32- 2- O C O O Don’t forget the brackets and the charge!!!

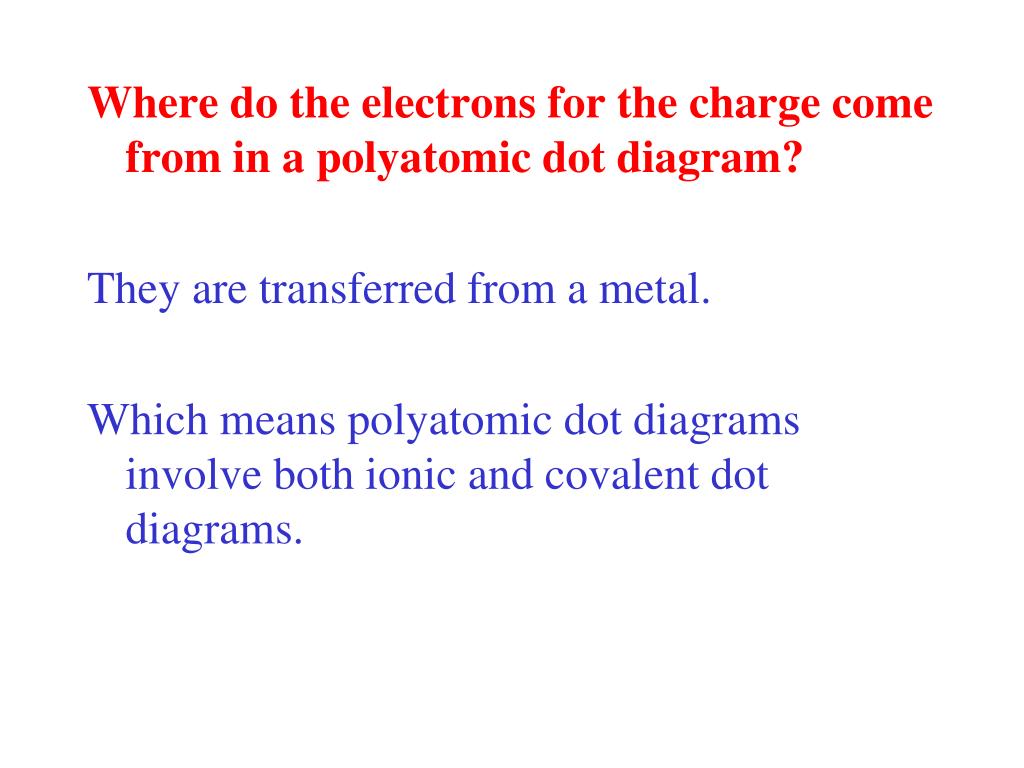

  20. Where do the electrons for the charge come from in a polyatomic dot diagram? They are transferred from a metal. Which means polyatomic dot diagrams involve both ionic and covalent dot diagrams.

  21. Draw the dot diagram for NaCNO First draw the dot diagram for the polyatomic. Na1+ CNO1-

  22. CNO1-

  23. CNO1- 1- O C N

  24. CNO1- 1- O C N Now finish the ionic dot diagram by drawing the dot diagram for the metal.

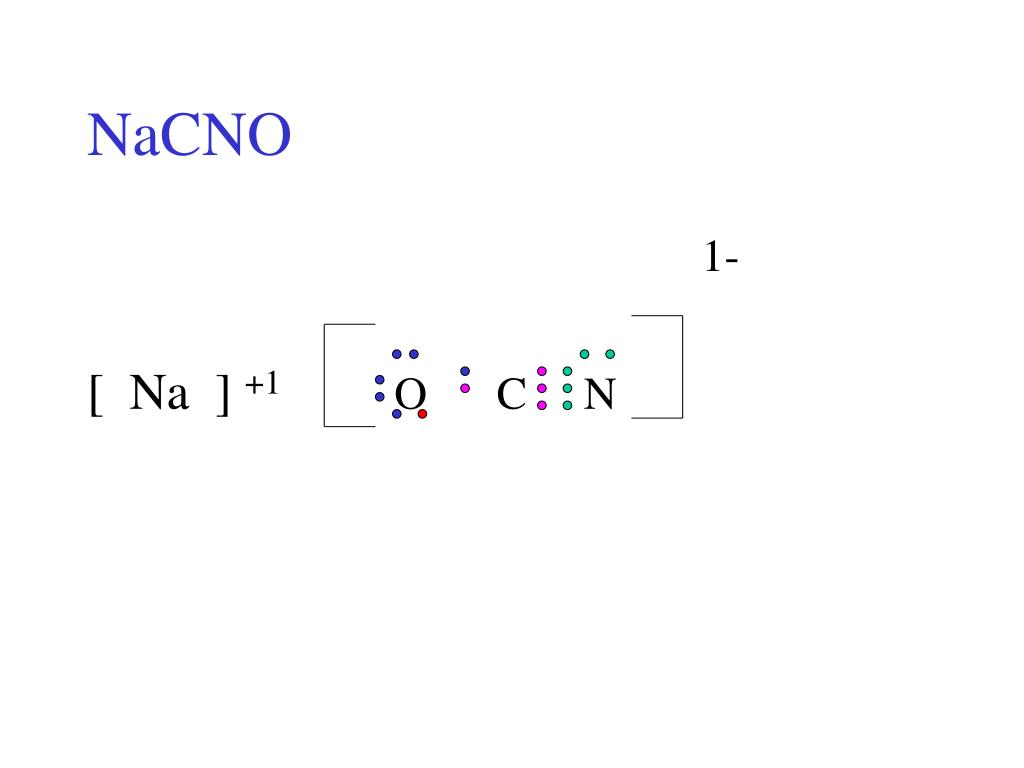

  25. NaCNO 1- [ Na ] +1 O C N

  26. Recall Ionic Dot Diagrams Draw the dot diagram for NaBr.

  27. NaBr Na Br

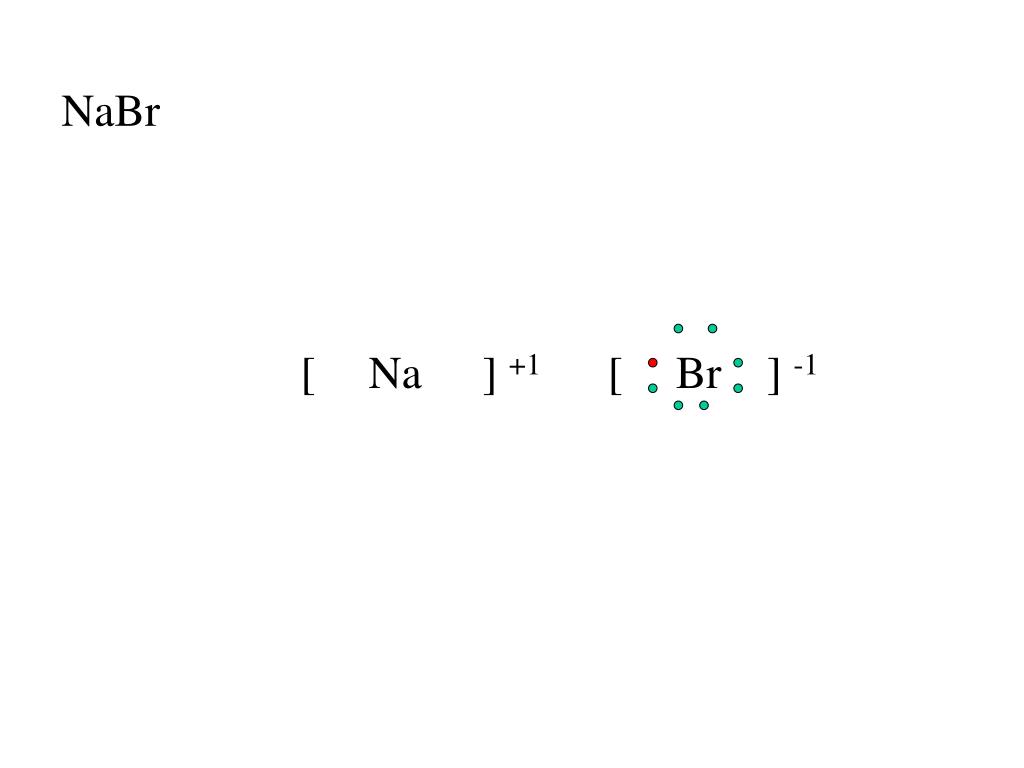

  28. NaBr [ Na ] +1 [ Br ] -1
