Introduction to a pit-less lever scale “concrete deck”

The scale to be shown is a B-Tek Side/rail Side/lever electromechanical Platform is 60’x11’ on a pier design foundation The foundation has (2) 10’approaches The scale utilizes a heavily reinforced concrete deck “Field installed” The scale has 8” clearance. Features:

lavinia-peterson
Download Presentation

Introduction to a pit-less lever scale “concrete deck”

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The scale to be shown is a B-Tek Side/rail Side/lever electromechanical Platform is 60’x11’ on a pier design foundation The foundation has (2) 10’approaches The scale utilizes a heavily reinforced concrete deck “Field installed” The scale has 8” clearance Features: Only (2) tension load cells and a (4) section lever system. Safety side rails are part of the scale’s design. 6” heavily reinforced concrete deck poured on top of the cross channels 11’ wide inside the beams no extra charge. Dependable lever system design and only (2) load cells minimize exposure to lightning. Introduction to a pit-less lever scale “concrete deck”

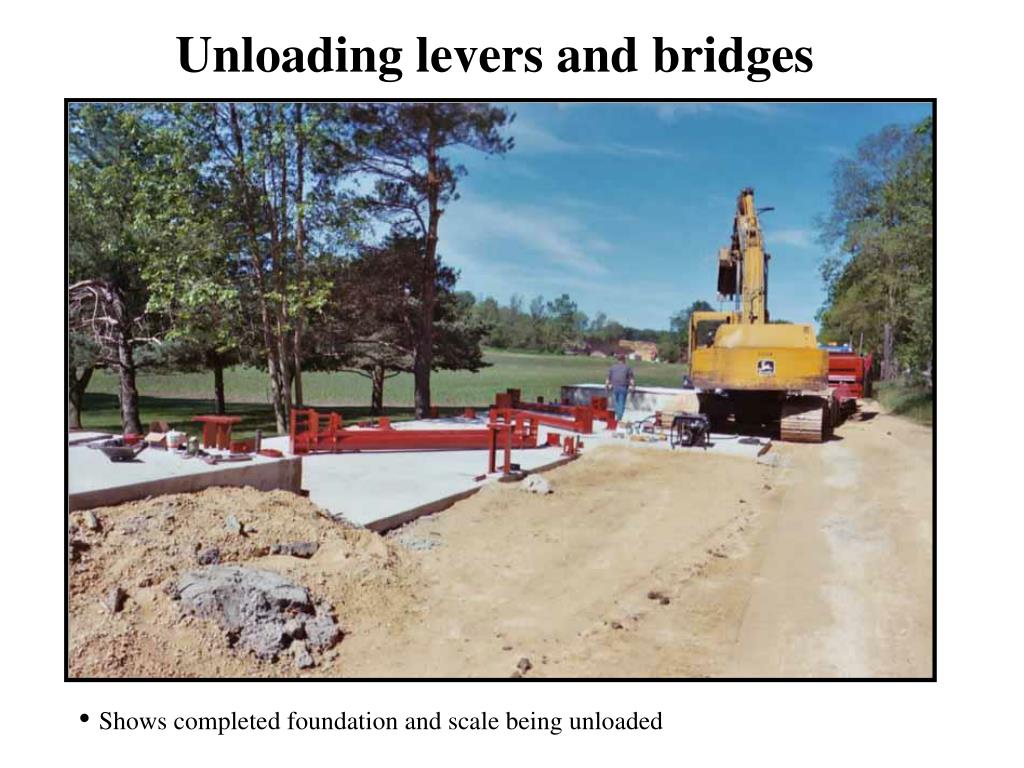

  2. Unloading levers and bridges • Shows completed foundation and scale being unloaded

  3. Setting the levers • Outboard designed levers being set on the piers • Notice the four section design with the two stands for the load cells

  4. Shows the outboard levers with the two load cell stands Notice the 9’ slab toward the center of the scale for the scale house Scale installed

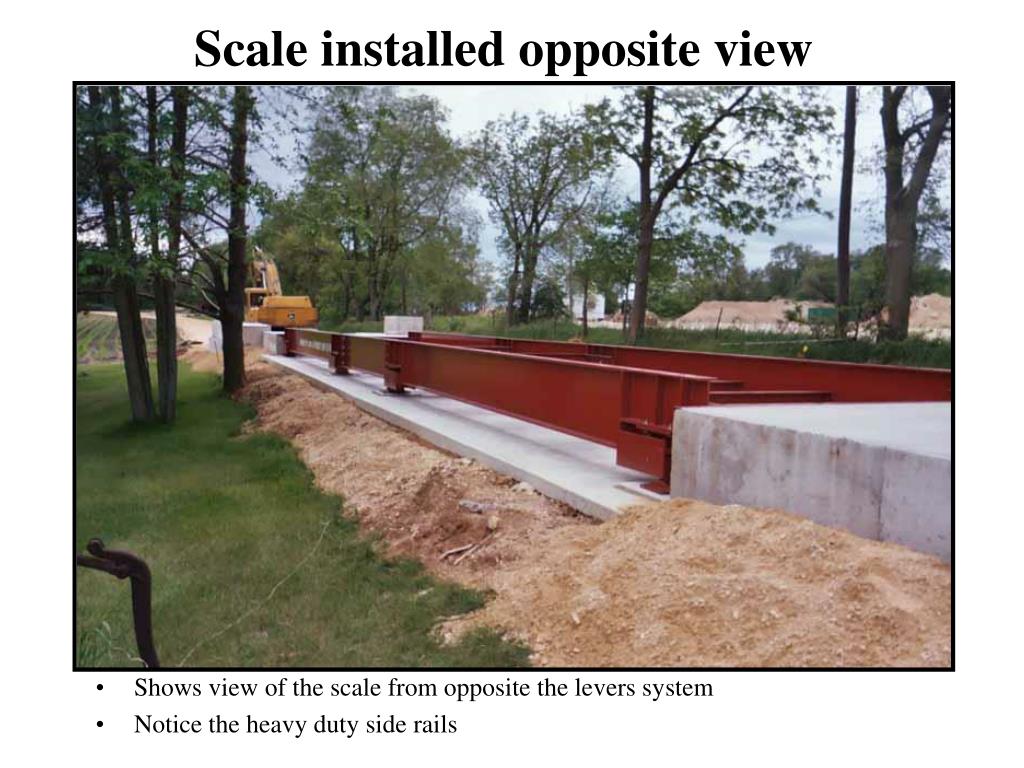

  5. Shows view of the scale from opposite the levers system Notice the heavy duty side rails Scale installed opposite view

  6. Top View • Scale top view before concrete deck • Back-up sheeting and reinforcing to be install on top of cross channels

  7. Concrete deck installed, shows the height of the side rail Start of the scale house construction Deck Poured

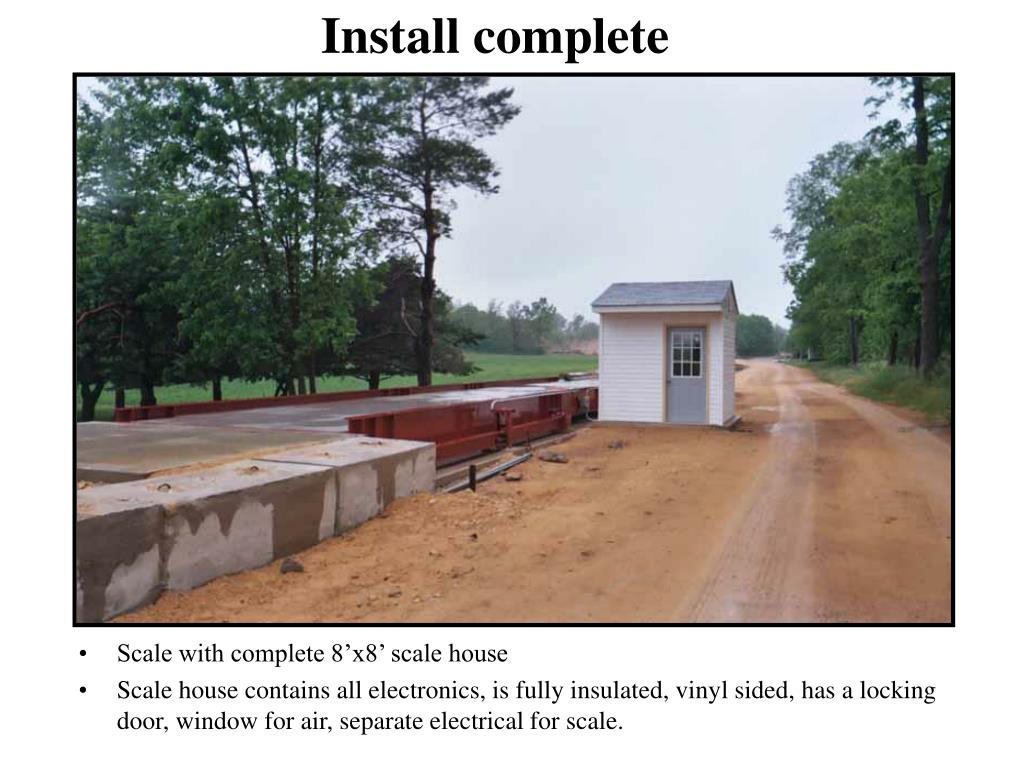

  8. Scale with complete 8’x8’ scale house Scale house contains all electronics, is fully insulated, vinyl sided, has a locking door, window for air, separate electrical for scale. Install complete
