Windows Object Manager

CS 470 -- Spring 2002


Overview

Overview

  • The object paradigm

  • NT Objects and the Object Manager

  • Object Structure

  • Object Naming

  • Object Handles

  • Object Retention and Resource Limits


Objects in windows nt 2k xp

Objects in Windows NT/2K/XP

  • Provide a uniform access method

  • Provide human readable names

  • Centralize security

  • Uniform charging method for use of resources

  • Uniform object retention method

  • Support resource inheritance by child processes


Examples of objects

Examples of Objects

  • Processes and Threads (Process Manager)

  • Sections (Memory Manager)

  • File (I/O Manager)

  • Events, Semaphores, Mutants, Timers

  • Access Tokens (Security system)

  • Object Directories, Symbolic Links (Object Manager)

  • Registry keys and many more…


Process structure

Process Structure

Access

Token

Virtual Address Space Description

Process

Object Table

Handle 1

Thread a

Handle 2

File c

Handle 3

Section f


Object manager

Object Manager

  • Creates and deletes objects

  • Sole source of handles for accessing objects

  • At each use of handle, verifies access is allowed by the particular user

  • Deletes temporary objects when no longer needed

  • Enforces quotas for various object types


Object creation

Object Creation

  • Allocation of memory for the object

  • Attaches security descriptor (who can do what to the object)

  • Insertion into object directory structure

  • Create handle and return to caller


Opening objects

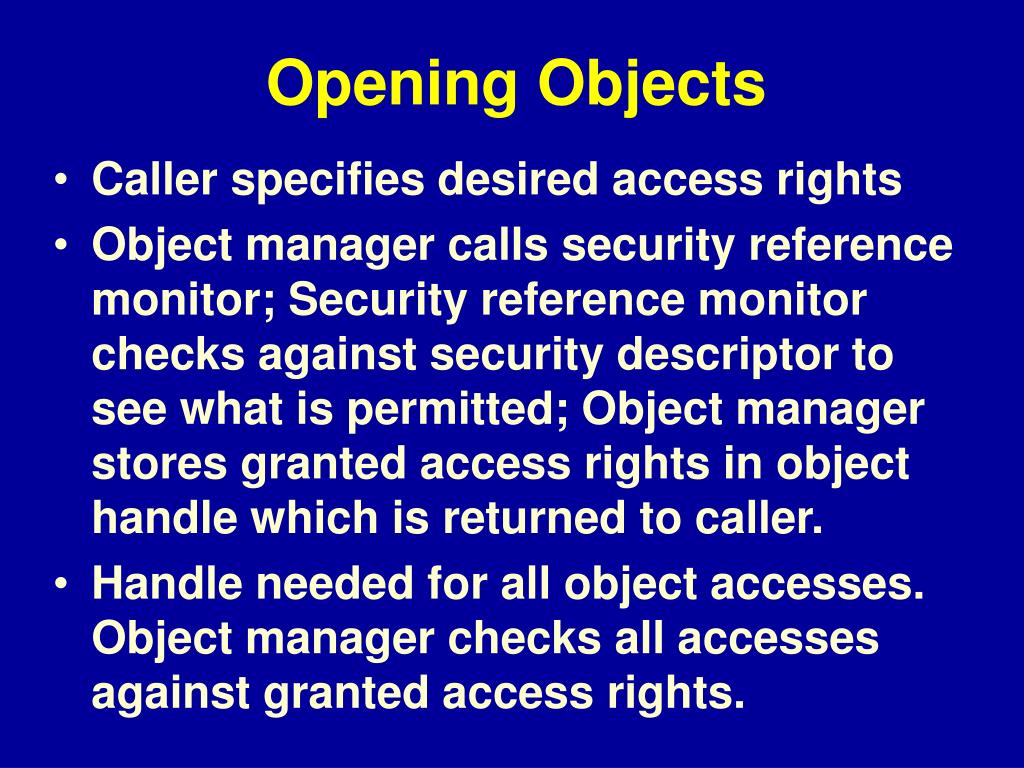

Opening Objects

  • Caller specifies desired access rights

  • Object manager calls security reference monitor; Security reference monitor checks against security descriptor to see what is permitted; Object manager stores granted access rights in object handle which is returned to caller.

  • Handle needed for all object accesses. Object manager checks all accesses against granted access rights.


Object structure

Object Structure

Type

Object

Object 1

Object 2

Name

Type name

Directory

Access Types

Object

Header

Sec Desc

Etc.

Etc.

Handle Database

Handle Count

Object

Body

Object

Type

Specific

Proc1 Handle

Proc1 Count

Etc.

Object 3


Object header entries

Object name

Object directory

Security Descriptor

Quota Charges

Open handle count

Open handle database

Reference Count

Kernel/user mode

Type Object Pointer

Object Header Entries


Type object attributes

Object Type Name

Access Types

Synchronizable?

Pool Type

Default Quota Charges

Generic Rights Map

Methods: open, close, delete, parse, query name, query/set security

Type Name, e.g. process

Possible access methods

Can threads wait on this

Allowed to page out?

How much to charge

(paged, non-paged pool)

What is GEN. READ, etc?

Routines called by object manager during various generic services

Type Object Attributes


Generic object services

Close

Duplicate Handle

Query object

Query security

Set Security

Wait for single object

Wait for multiple objects

Invalidates handle

Shares an object

Get info about attributes

Get security descriptor

Set security descriptor

Synchronize with 1 object

Synchronize with multiple objects

Generic Object Services


Object names

Object Names

  • Used to distinguish objects, to find objects, and to share objects.

  • Name lookup is expensive -- so done only during creation (to put in object tree) and open.

  • Each computer (which may be a multiprocessor) has its own name space.

  • Name space is a single tree


Object directory object type

Object Directory Object Type

Type Name

Object Directory

Methods

Parse

Name List

Body

Create object dir

Open object dir

Query object dir

Services


Symbolic link object type

Symbolic Link Object Type

Symbolic Link

Type Name

Substitute String

Creation Date

Body

Create Symbolic Link

Open Symbolic Link

Query Symbolic Link

Services


Symbolic link example

Symbolic Link Example

\

Device

DosDevices

Floppy0

A:

mark1

\Device\Floppy0

Mark1.c

Mark1.ppt


Object handles

Object Handles

  • Index into a process’s object table. So they are valid only in the process.

  • Obtained by creating, opening, inheriting, or receiving a duplicated handle from another process.

  • Attributes: Protect from Close, Audit on Close, Inheritable.

Granted Access Rights

Pointer to Object

Attributes


Retention and quotas

Retention and Quotas

  • Object Retention via open handle count and then by reference count

  • Quotas for use of paged pool, non-paged pool, paging file, and security descriptor. Limits are soft until memory manager disallows extension.

  • Typically single Quota Block for session, but Windows 2K/XP has jobs


  • Login
