2. Agenda • History • What is it? • Manufactures of hardware • Types of smart cards • Smart Card classification • What is inside the Card (Chip)? • Smart Card technology OS Support • Smart Card Standardization • Why do we need this technology? • Advantages • Disadvantages • Emerging Smart Card Technology (IP) • Conclusion

3. History of Smart Card Technology • 1967 - Jürgen Dethloff invents the smart card computer • 1971 - Patent issued of solid state memory card • 1972 - 1993 Patents, standards and “security through obscurity” choke off applications and innovation • 1974 - New patent to integrate memory and CPU • 1976 - First commercial smart card created • 1983 - European phone applications & DOD military ID • 1984 - Smart Card technology in banking sector in France • 1990 - Phillips offer 512 bit RSA ex in 1.5sec • 1994 - Europay/Mastercard/Visa spec for electronic cash • 1994 - MAOSCO and Keycorp create programmable smart cards

4. History of Smart Card Technology • 1995 - Korea issues 1.5 million bus fare contact less smart cards • 1996 - Zeitcontrol and Schlumberger provide high-level languages. • 1996 Java launches version 1.0 • 1996 - Atlanta Olympics uses smart cards for merchants • 1996 - SGS Thompson offers RSA in 60msec • 1997 - MS plans smart card login support for Win98/NT 5.0 • 1998 - Microsoft contributes a real file system and application development tools. • 2000 - Smart cards become Internet nodes.

5. What is it? A typical smart card is a credit-card size embedded system containing an 8-bit microprocessor or up to 32 bits processor, ROM to hold programs such as card operating system and immutable data, EEPROM to hold customer-specific data such as user name, secret keys as well as account numbers, RAM to hold transient data during computation and serial I/O, USB or PCMCIA to communicate with the host computer through card readers.

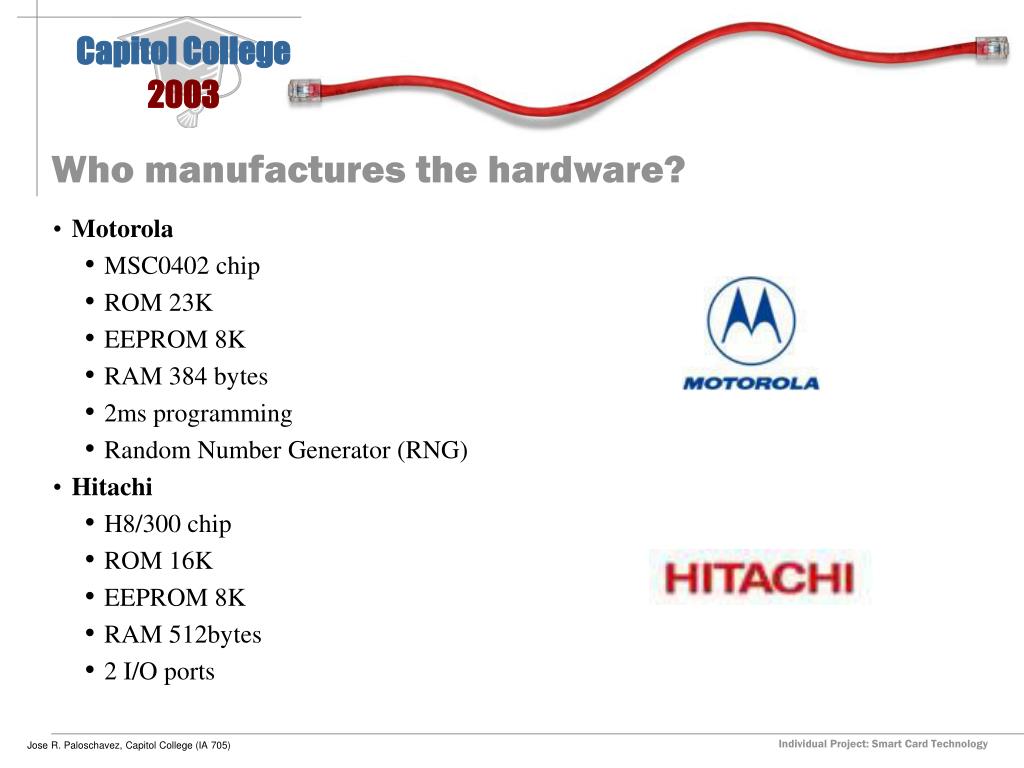

6. Who manufactures the hardware? • Motorola • MSC0402 chip • ROM 23K • EEPROM 8K • RAM 384 bytes • 2ms programming • Random Number Generator (RNG) • Hitachi • H8/300 chip • ROM 16K • EEPROM 8K • RAM 512bytes • 2 I/O ports

7. Who manufactures the hardware? (cont) • GPM2K card by Gemplus • Modest data storage, with some security used for retail loyalty, low value purse, vending, general data storage (Health cards, ID cards, portable files) • 256 bits ROM • 1792 bits application storage

8. Contact interface E²PROM memory Microprocessor Contactless interface Types of Smart Cards • Contact Cards must be inserted into a reader • Contactless Cards powered by an RF signal using inductive coils • Combi-Cards can be powered by insertion or RF Compatible ISO7816-4 ISO 14443 - A (Mifare Pro) or 14443 - B (Moto / ST)

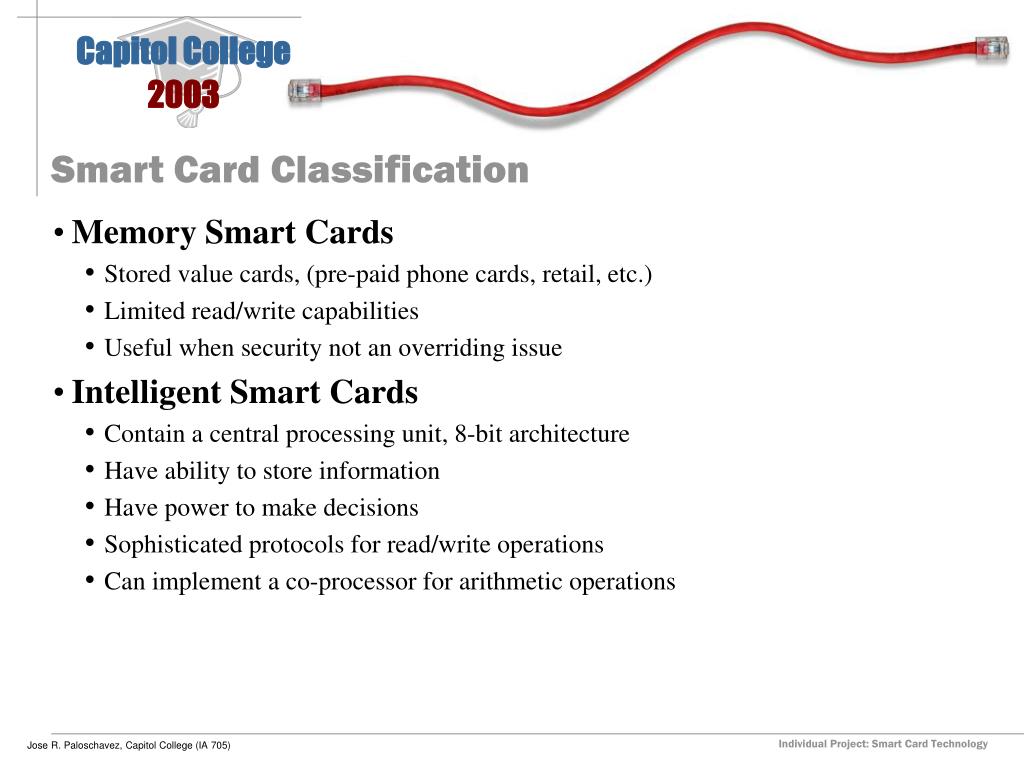

9. Smart Card Classification • Memory Smart Cards • Stored value cards, (pre-paid phone cards, retail, etc.) • Limited read/write capabilities • Useful when security not an overriding issue • Intelligent Smart Cards • Contain a central processing unit, 8-bit architecture • Have ability to store information • Have power to make decisions • Sophisticated protocols for read/write operations • Can implement a co-processor for arithmetic operations

10. Fero-Electric Random Access Memory (FRAM) • Contactless ‘walk and wave’ operation • Read & write to the card by Radio Frequency • Non-volatile: maintain data for ~10 years • Card is powered by an RF signal • Store 128-512 bytes in a card • Used mostly for access control

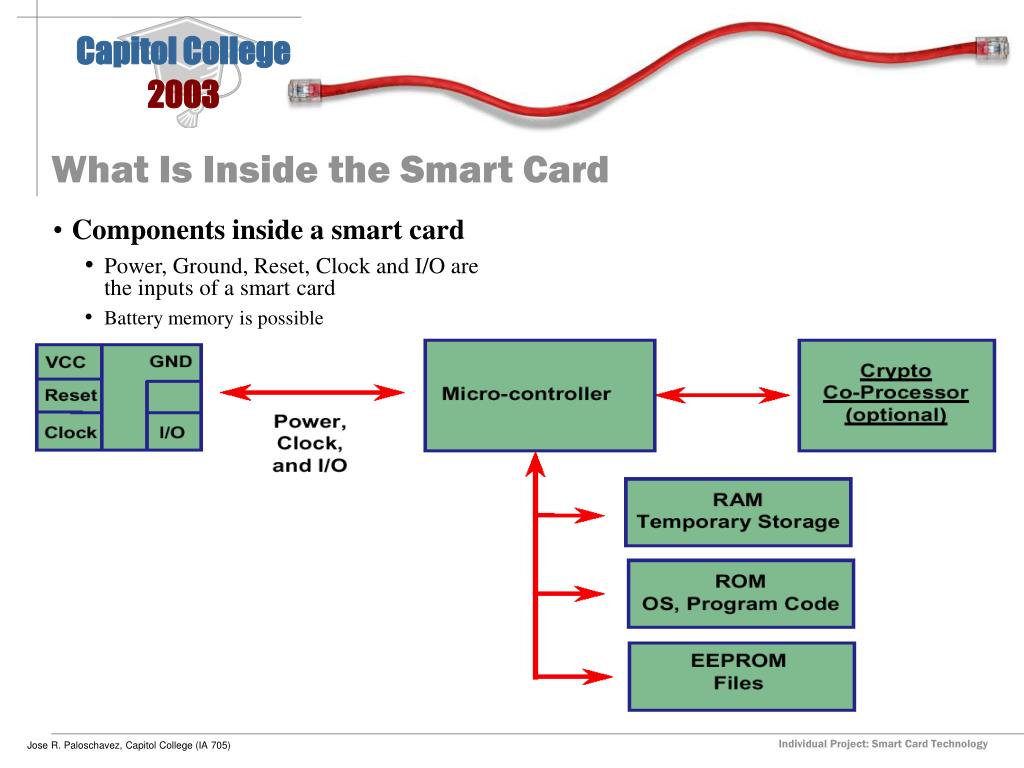

11. What Is Inside the Smart Card • Components inside a smart card • Power, Ground, Reset, Clock and I/O are the inputs of a smart card • Battery memory is possible

12. Inside the Card “Chip”

13. Smart Card Technology OS Support • *SCFS (Smart Card File System), Smart Card is considered as a a directory of a host OS • 3COM, PalmOS • *Java Virtual Machine by Sun • *Microsoft Card SDK • *MultiOS for multi-application • Friendly development environment (Compiling and Loading) at host * will discuss

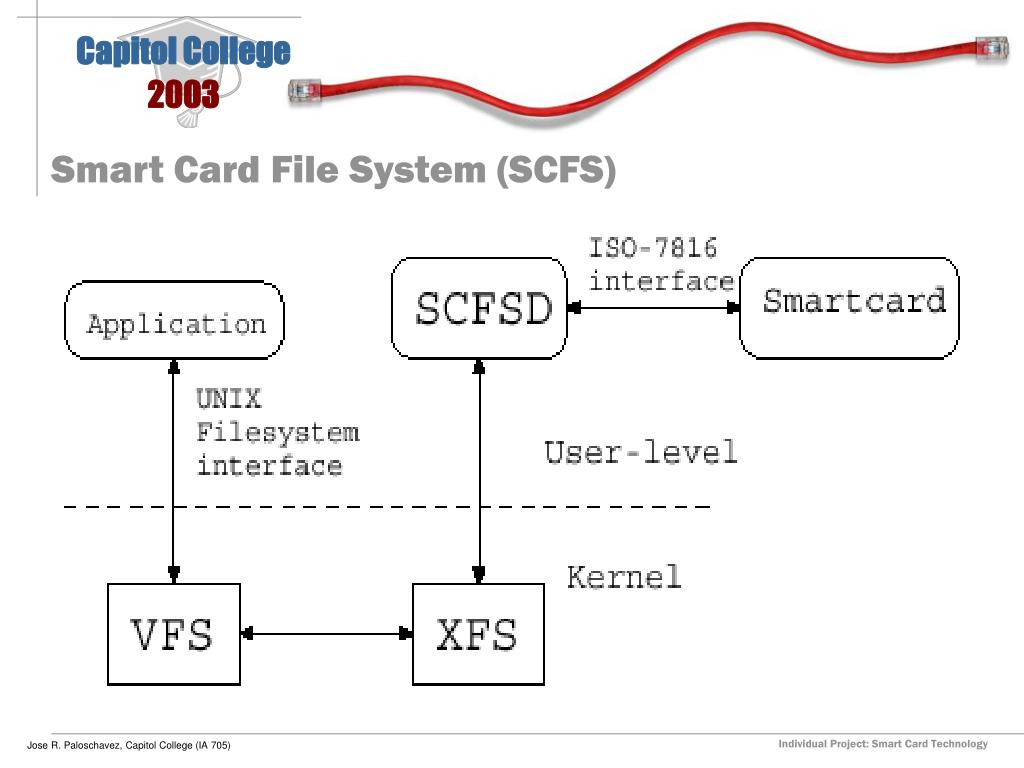

14. Smart Card File System (SCFS)

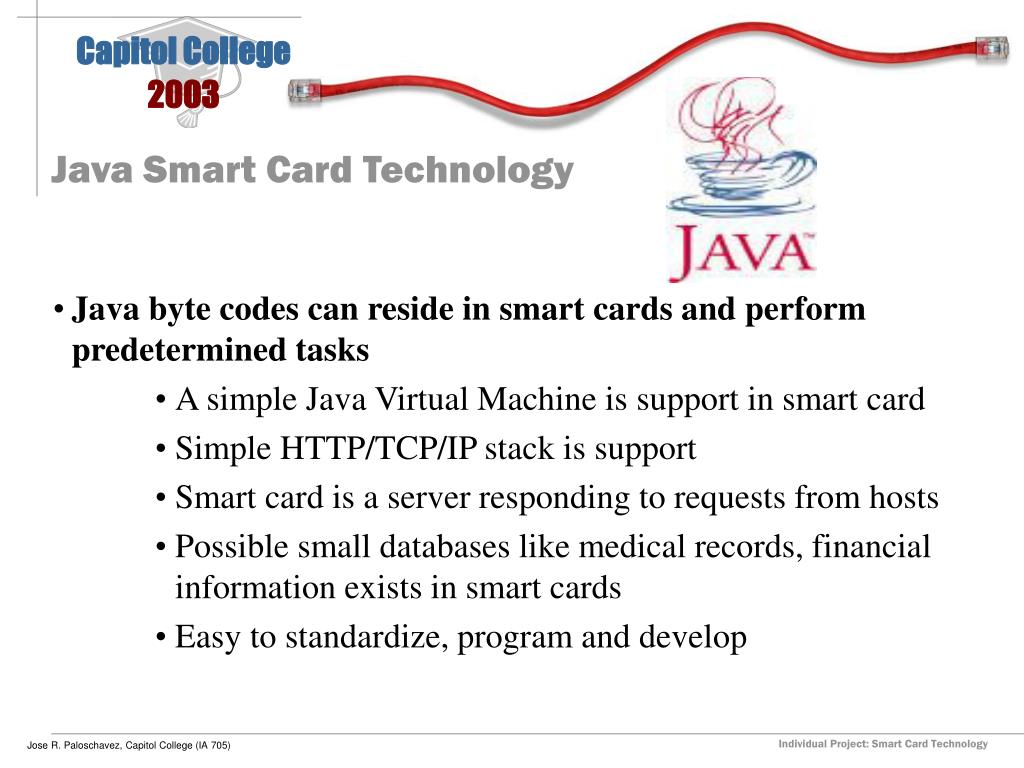

15. Java Smart Card Technology • Java byte codes can reside in smart cards and perform predetermined tasks • A simple Java Virtual Machine is support in smart card • Simple HTTP/TCP/IP stack is support • Smart card is a server responding to requests from hosts • Possible small databases like medical records, financial information exists in smart cards • Easy to standardize, program and develop

16. SC49 Implementation Statistics • ROM • Java Card Interpreter 4KB • Smart Card Primitives 8KB • RAM • Java Card Interpreter 200MB • Smart Card Primitives 90MB • CPU • Java Card Interpreter 1.5 codes/sec • Smart Card Primitives 300K instrs/sec

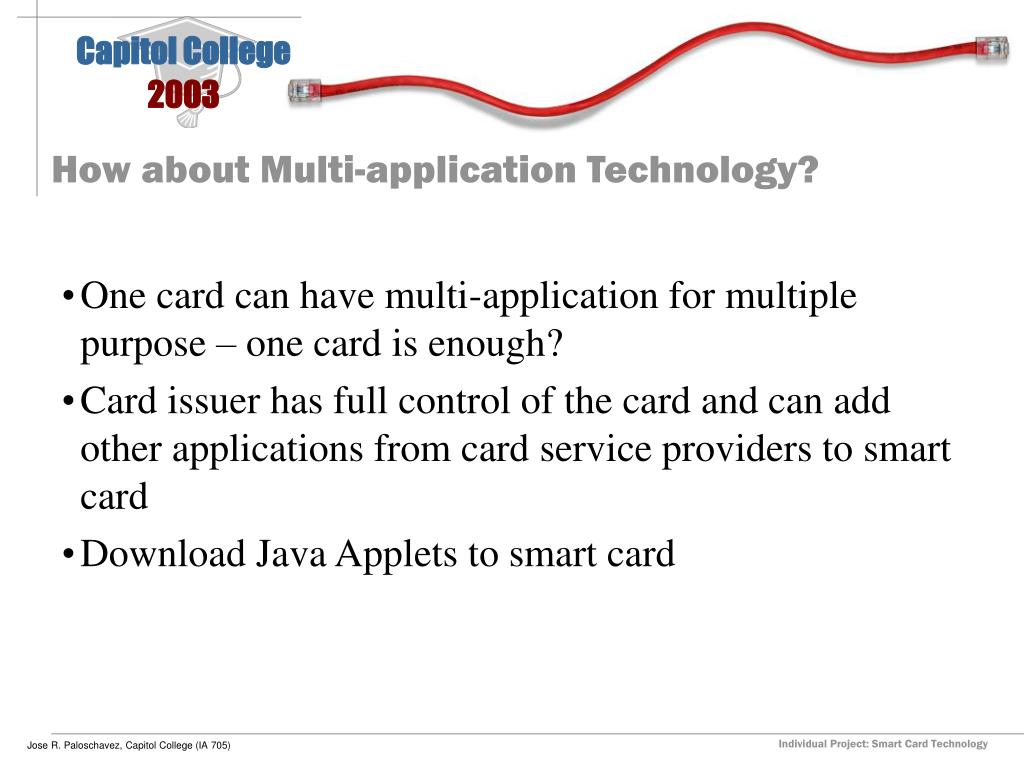

17. How about Multi-application Technology? • One card can have multi-application for multiple purpose – one card is enough? • Card issuer has full control of the card and can add other applications from card service providers to smart card • Download Java Applets to smart card

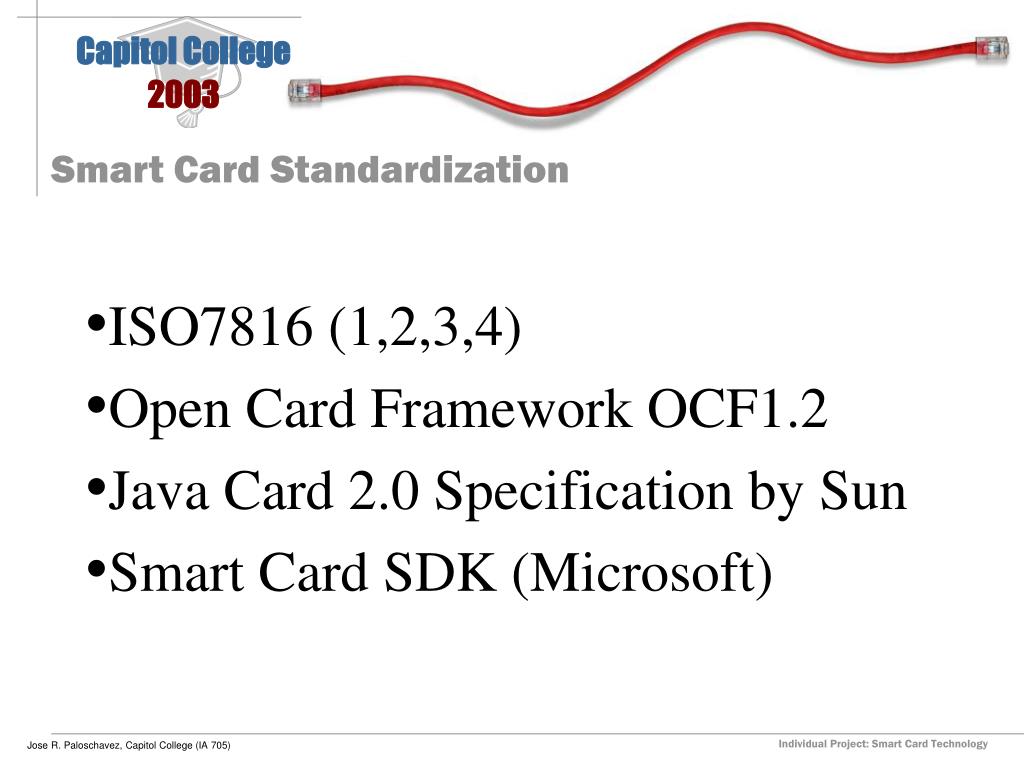

18. Smart Card Standardization • ISO7816 (1,2,3,4) • Open Card Framework OCF1.2 • Java Card 2.0 Specification by Sun • Smart Card SDK (Microsoft)

19. Smart Card Standardization (cont) • ISO7816 • #1 to #3: Physical Properties: dimension , mechanical stress, power, resistant to static electronic and radiation, electronic signal and transmission protocol • #4: a set of commands across all industries to provide access, security and transmission of card data, e.g. commands to read, write and update records

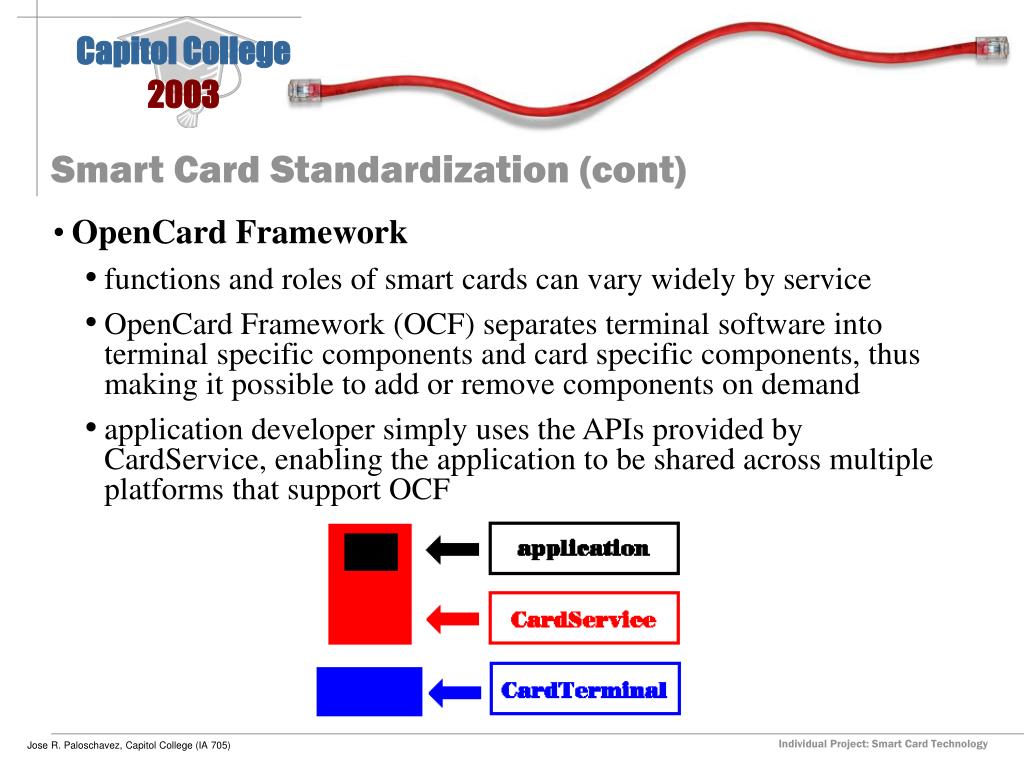

20. Smart Card Standardization (cont) • OpenCard Framework • functions and roles of smart cards can vary widely by service • OpenCard Framework (OCF) separates terminal software into terminal specific components and card specific components, thus making it possible to add or remove components on demand • application developer simply uses the APIs provided by CardService, enabling the application to be shared across multiple platforms that support OCF

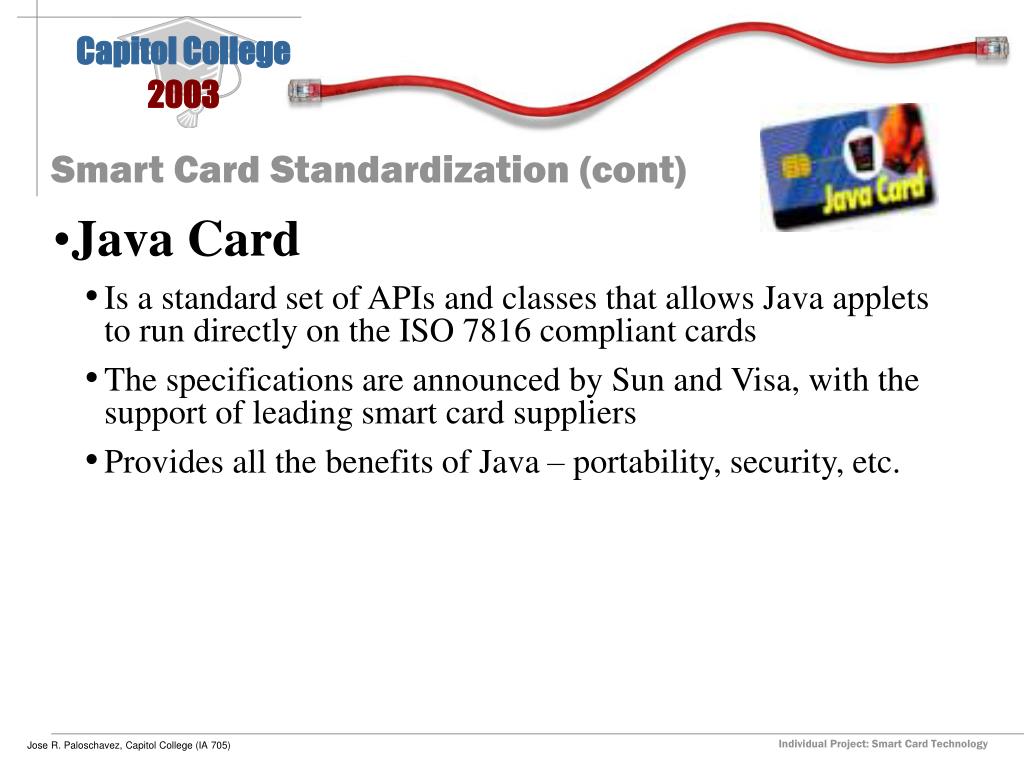

21. Smart Card Standardization (cont) • Java Card • Is a standard set of APIs and classes that allows Java applets to run directly on the ISO 7816 compliant cards • The specifications are announced by Sun and Visa, with the support of leading smart card suppliers • Provides all the benefits of Java – portability, security, etc.

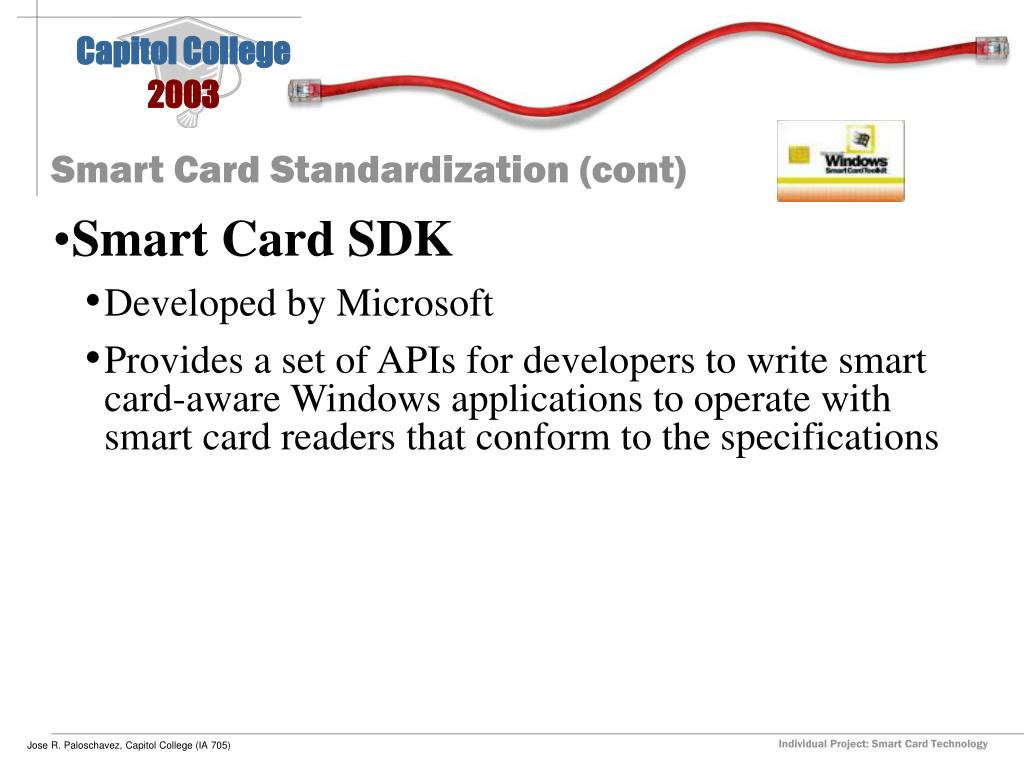

22. Smart Card Standardization (cont) • Smart Card SDK • Developed by Microsoft • Provides a set of APIs for developers to write smart card-aware Windows applications to operate with smart card readers that conform to the specifications

23. Why do we need this technology? • Secure Technique Point Of View • Password based system (Kerberos) suffers from dictionary attack • Create a list of words, names • Derive keys from the words in the list • Obtain a <plaintext, ciphertext> pair • Decrypt ciphertext with the derived key • Smart card is able to store long random key (password) in advance and provides it as login in

24. Why do we need this technology? Cont. • Application Point Of View • Internet and electronic business prompts the distribution of smart card • Platform (Hardware and OS) independent programming language (Java) matches the portability of smart card • Multi-application cards make one card be able to do everything; You do not need carry student ID, driver ID, credit card, ATM card, medical card and etc

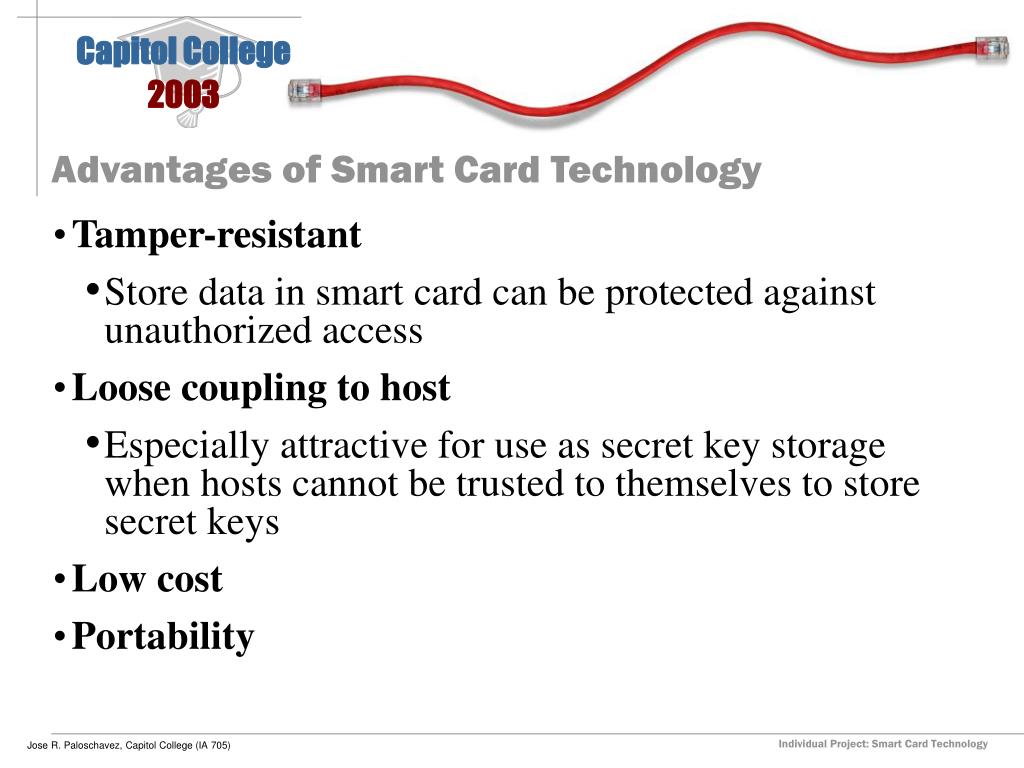

25. Advantages of Smart Card Technology • Tamper-resistant • Store data in smart card can be protected against unauthorized access • Loose coupling to host • Especially attractive for use as secret key storage when hosts cannot be trusted to themselves to store secret keys • Low cost • Portability

26. Disadvantages of Smart Card Technology • Low performance • Slow processor • Slow I/O channel • Small memory (ROM, EEPROM and RAM) • Unsuitable for computation-intensive task (cryptography) • Executable code size is strictly limited, hens OS, security algorithms and protocols should be simplified • New technologies may improve the performance • Interoperation and standardization is relatively difficult • Card specific attacks (invasive or non-invasive) • Invalid card holder • PIN + Smart Card • Biometric + Smart Card

27. Emerging Smart Card Technology (IP) • End-to-End Security • Standards-Based Card-Edge Interoperability • Web-Based Application Development • Direct Addressing • More Points of Acceptance • Remote Card Management • Multiple Non-Proprietary Implementations

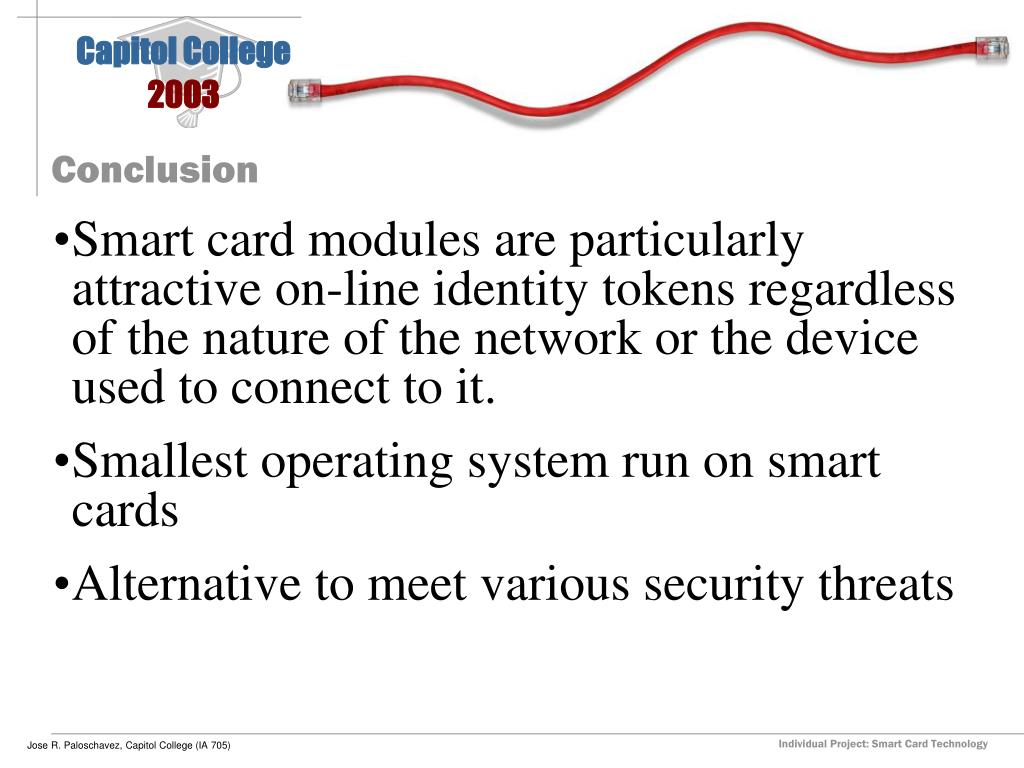

28. Conclusion • Smart card modules are particularly attractive on-line identity tokens regardless of the nature of the network or the device used to connect to it. • Smallest operating system run on smart cards • Alternative to meet various security threats

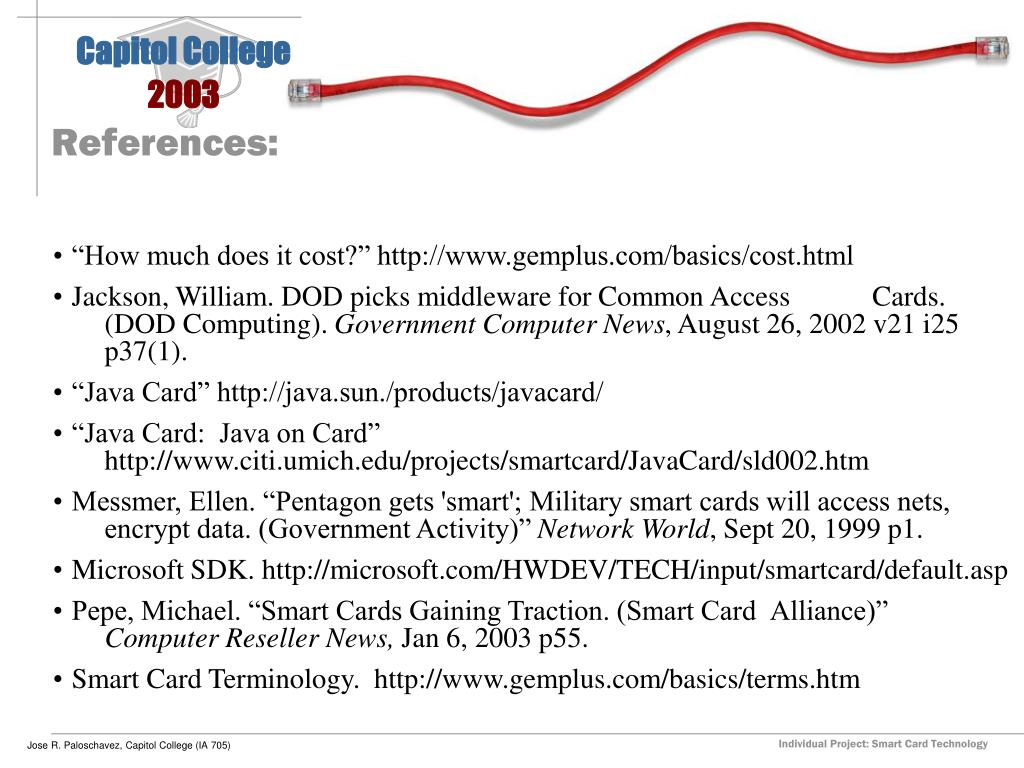

29. References: • “How much does it cost?” http://www.gemplus.com/basics/cost.html • Jackson, William. DOD picks middleware for Common Access Cards. (DOD Computing). Government Computer News, August 26, 2002 v21 i25 p37(1). • “Java Card” http://java.sun./products/javacard/ • “Java Card: Java on Card” http://www.citi.umich.edu/projects/smartcard/JavaCard/sld002.htm • Messmer, Ellen. “Pentagon gets 'smart'; Military smart cards will access nets, encrypt data. (Government Activity)” Network World, Sept 20, 1999 p1. • Microsoft SDK. http://microsoft.com/HWDEV/TECH/input/smartcard/default.asp • Pepe, Michael. “Smart Cards Gaining Traction. (Smart Card Alliance)” Computer Reseller News, Jan 6, 2003 p55. • Smart Card Terminology. http://www.gemplus.com/basics/terms.htm
