  1. Unraveling The Mystery of Stepper Motor Technology Jeramé Chamberlain Nippon Pulse America, Inc., USA

  2. What is a Open LoopStepper Motor System? • What Are Stepper Motors? • How Do Stepper Motors Work? • Troubleshoot & Test Stepper Motors

  3. Basic Stepper Application

  4. PHASE A S N S ● PHASE B PHASE B N PHASE A Stepper Motor Coil

  5. N S ● N S N S ● ● PHASE A PHASE A One PhaseStep Sequence S N S S N ● PHASE B PHASE B PHASE B PHASE B N STEP 1 STEP 2 PHASE A Two PhaseStepper Motor PHASE A PHASE A PHASE A N N S PHASE B PHASE B PHASE B PHASE B S STEP 4 STEP 3 PHASE A PHASE A

  6. Types of Stepper Motors • Permanent-Magnet (PM) • PM rotor & electromagnetic coil • Variable Reluctance (VR) • No PM, no residual torque • Hybrid – NEMA Sizing • Combined PM & VR Technology

  7. Cross Section of A TwoPhase Hybrid Motor

  8. PM & Hybrid Stepper Motors

  9. Bipolar Coil Winding • Current flow and electromagnetic polarity is reverses in the windings • Each phase is a single winding

  10. Unipolar Coil Winding • Current flow and electromagnetic polarity is NOT reversed in the windings. Polarity comes from alternately energized windings • Sometimes calledfour-phase steppers

  11. Motors Need MaintenanceSteppers – Not So Much • Stalled motors burn up • Steppers operate in stall condition • Most brushes go bad • Steppers are brushless • All bearings go bad • Quality Stepper bearings are rated from 90-100K hours • People break them • Hammers don’t fix Steppers

  12. Ohmmeter Test With Steppers • Bipolar • Always 4 leads • Resistance is the same in both windings and both directions • Some 8 lead motors can be connected as bipolar

  13. Ohmmeter Test With Steppers • Unipolar • 5 or 6 leads • Resistance from each phase to Common is the same in both directions • If 5 leads, two commons connected • Some 8 lead motors can be Unipolar

  14. Unipolar Windings & Wire Colors

  15. Bipolar Windings & Wire Colors

  16. Stepper Motor Electronic System • CPU, Controller, Sequencer, Driver • One or more parts can be combined, based on motion complexity

  17. Controller Receives & Coordinates • A dedicated controller generates motion profiles that produce smoother motor operation than just with a CPU.

  18. Controller Manages & Interpolates • Some controllers provide interpolation between motors to produce smooth XYZ motions – CNC Machines

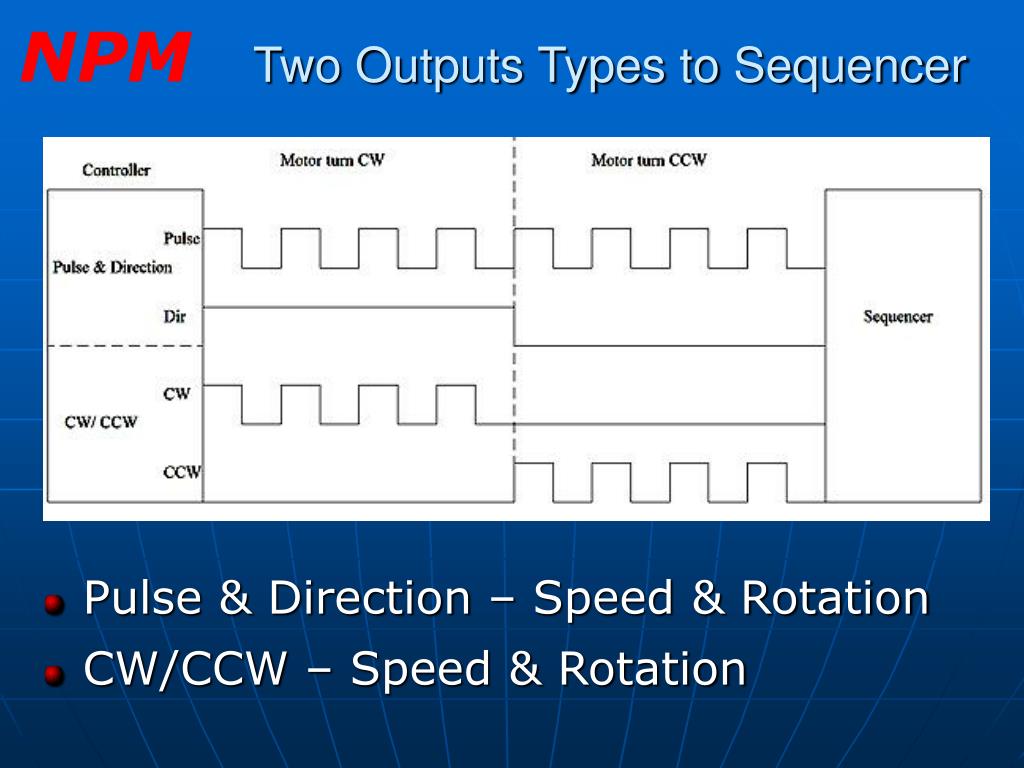

  19. Two Outputs Types to Sequencer • Pulse & Direction – Speed & Rotation • CW/CCW – Speed & Rotation

  20. One Controller – Two Output Types • Pulse & Direction – Speed & Rotation • CW/CCW – Speed & Rotation • Pulse & Direction is the most common format used in the USA • PCL6045B can output both formats

  21. Stepper Motor Sequencers • Sequencers read speed and direction from controller and deliver excitation sequence to the driver

  22. Bipolar Stepper Drivers • When Q1a and Q4a (green) are on, current flows in one direction • When Q2a and Q3a (red) are turned on, current flow is reversed

  23. Unipolar Stepper Drivers • Half the drive electronics of bipolar, and 30% less torque • However, unipolar coils allow a higher pulse rate than bipolar, before becoming saturated.

  24. Constant Current - Constant Voltage

  25. Current Lags Voltage in an Inductor • Torque from stepper motors is generated by current, not voltage • PWM or Chopper drive manages current through a switch, applied at higher voltages to induce more winding current • Chopper delivers more torque at higher speeds

  26. Half Stepping A Stepper Motor • Easiest way to accomplish half stepping is by using 1-2 phase excitation • Divides a stepper’s full step angle by two 7.5°/2 = 3.25° per half step • 30% loss of torque depending on step rate when compared to full step • Winding is not energized during each alternating half step

  27. N S ● S N S N ● ● PHASE A PHASE A Half SteppingSequence S N S S N ● PHASE B PHASE B PHASE B PHASE B N STEP 1 STEP 3 PHASE A Two PhaseStepper Motor PHASE A PHASE A PHASE A N N N N S S PHASE B PHASE B PHASE B PHASE B S S STEP 4 STEP 2 PHASE A PHASE A

  28. Microstepping A Stepper Motor • Full step can be broken into as many as 512 parts • Current is limited through each winding. • Unequal pull on the magnet means it moves toward the weaker winding • Torque falls rapidly as speed increases • Steps are not constant for positioning • Microstepping should only be used for smooth movement.

  29. Combined Sequencer & Translator
