What is Comminution

From Kelly and Spottiswood Intro Min Proc, Wiley, 1982. What is Comminution. From Wikipedia: Comminution describes the movement of the particle size distribution (grains, drops, bubbles) into a range of finer particle sizes . From Kelly and Spottiswood Intro Min Proc, Wiley, 1982.

latoya
Download Presentation

What is Comminution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

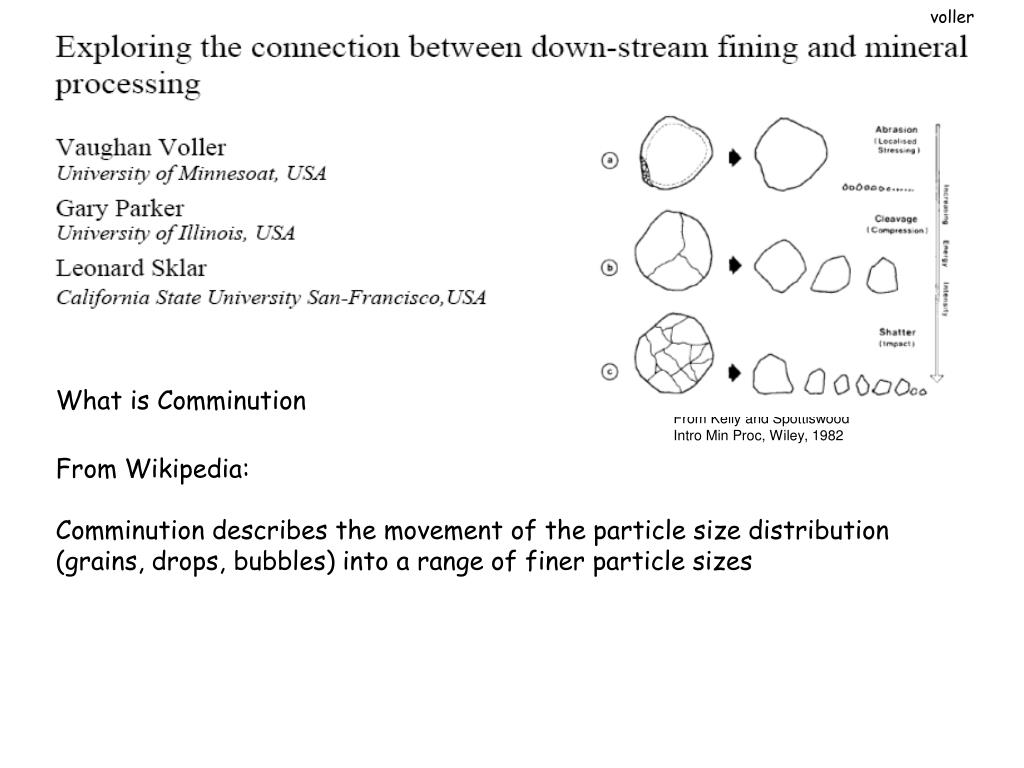

  1. From Kelly and Spottiswood Intro Min Proc, Wiley, 1982 What is Comminution From Wikipedia: Comminution describes the movement of the particle size distribution (grains, drops, bubbles) into a range of finer particle sizes

  2. From Kelly and Spottiswood Intro Min Proc, Wiley, 1982 Product can be shipped and used Directly in BF Comminution Critical in Mineral Processing grinding

  3. From Kelly and Spottiswood Intro Min Proc, Wiley, 1982 2/17 Comminution in Landscape Dynamics Glacial abrasion Debris Flow weathering Saltation Sklar and Dietrich Down Stream Fining x Sternberg’s law

  4. From Kelly and Spottiswood Intro Min Proc, Wiley, 1982 A Thing to Know For a Given Energy What is the Reduction in Particle Size— The Comminution Laws Main Result Suggest How Sternberg law for down stream Fining could be modified by Mineral Engineering Results

  5. The Comminution Laws Rittinger (1867): xF After q events Kick (1885): Energy for each event DE=Constant After q events E = q DE 6/17 From Kelly and Spottiswood Intro Min Proc, Wiley, 1982 Consider a simplistic comminution operation that for each event reduces the particle size by a factor of 1/2

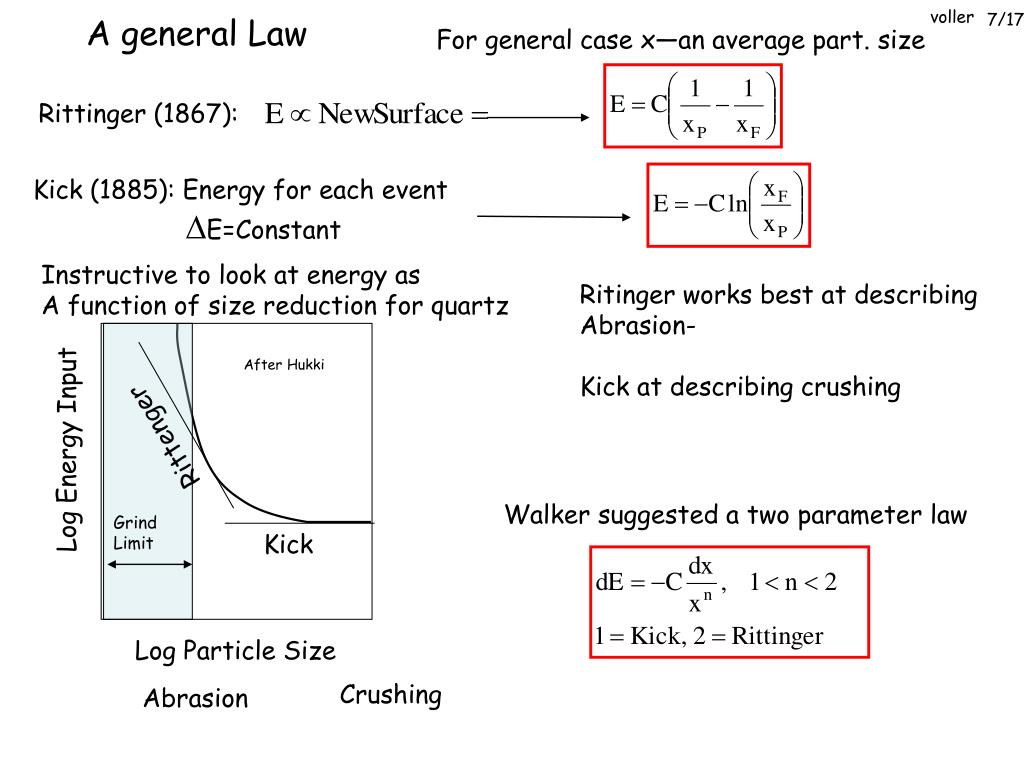

  6. Instructive to look at energy as A function of size reduction for quartz After Hukki Rittenger Log Energy Input Grind Limit Kick Log Particle Size Kick (1885): Energy for each event DE=Constant Crushing Abrasion 7/17 A general Law For general case x—an average part. size Rittinger (1867): Ritinger works best at describing Abrasion- Kick at describing crushing Walker suggested a two parameter law

  7. Question: What is relation of To Down Stream Fining Sternberg’s Law x Kick Rittinger wear Set E = x (distance down stream) and x = D particle size Is Sternberg Kick An alternative Ritinger Could it make a difference

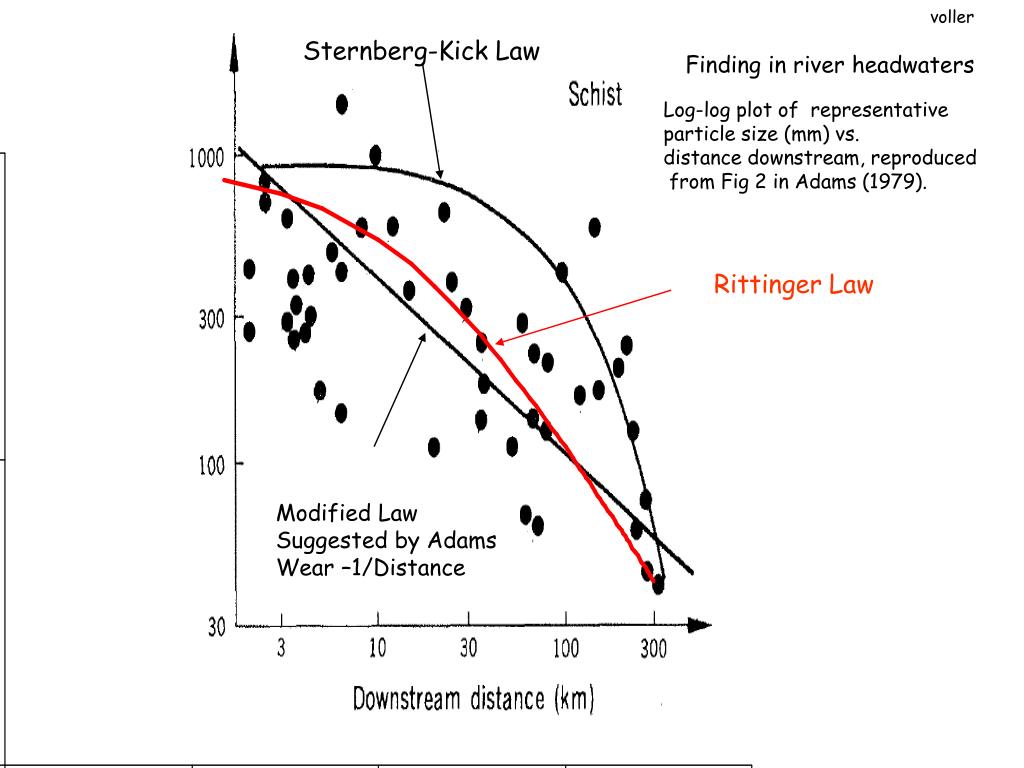

  8. Sternberg-Kick Law Finding in river headwaters Log-log plot of representative particle size (mm) vs. distance downstream, reproduced from Fig 2 in Adams (1979). Rittinger Law Modified Law Suggested by Adams Wear –1/Distance

  9. Quartz/Schist Ratio Sternberg-Kick Law Modified Law Suggested by Adams Wear –1/Distance Rittinger Law

  10. Mineral Laws of Comminution Inform Geomorphic Laws of Comminution What about two parameter laws Sklar: shows very good comparison With lab simulations of fining a is wear What is n?
