L1Calo upgrade discussion

1. L1Calo upgrade discussion Samuel Silverstein Stockholm University • Overview • Issues • Latency • Rates • Schedule • Proposed upgrade strategy • R&D

2. Upgrade phases (for this talk) • Phase I (before calorimeter upgrades): • Two projects • FPGA-based MCM replacement for PPr • CMM++ in CP and JEP, options for • Limited topo algorithms in CMM++ modules • Topological processing in separate TP • Phase II (digital calorimeter readout to USA15) • "Level 0": topological algorithms on finer-granularity "mini towers" built in RODs, plus muon objects • Fixed, low latency (< 3.2 s) • "Level 1": full calorimeter resolution, plus objects from muon and ID triggers • Longer latency, possibly asynchronous

3. CP 1 CP 0 CP 3 CP 2 Jet 1 Jet 0 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 SNAP12 Phase I with CMM++ (one example) 1 of 2 160 Mbit/s 160 Mbit/s 12 Run faster? 6 12 160 Mbit/s 6 To CTP Can use half of CP ROIs Quadrant border data To CTP

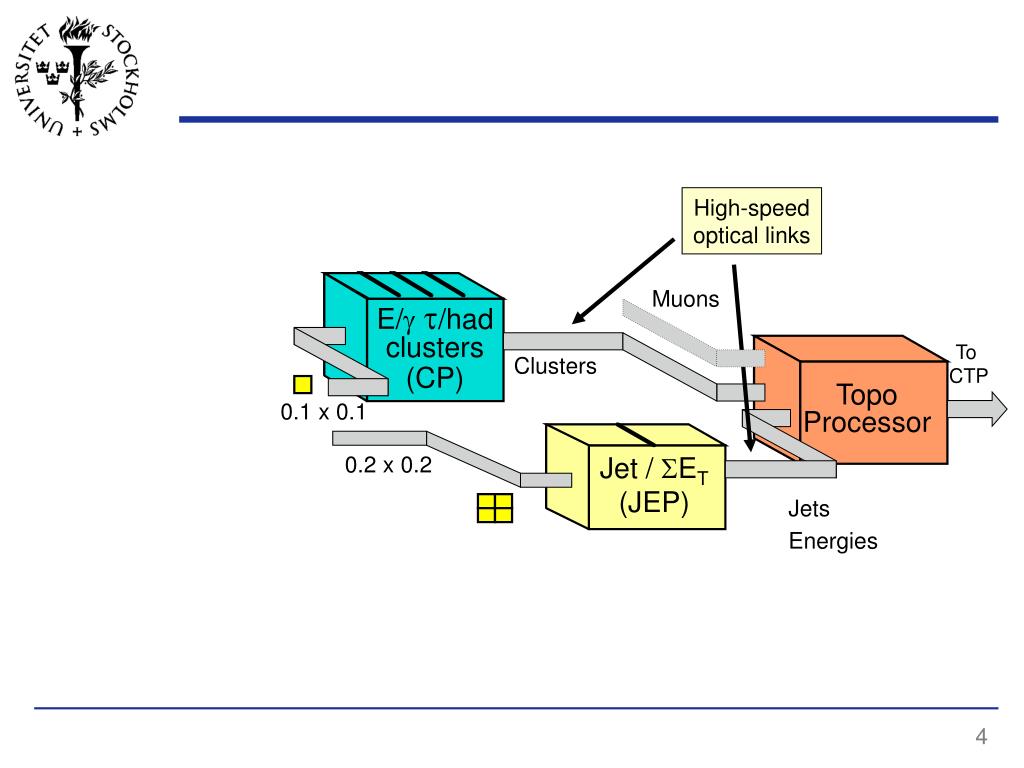

4. Topo Processor E/gt/had clusters (CP) 0.2 x 0.2 Jet / SET (JEP) High-speed optical links Muons To CTP Clusters 0.1 x 0.1 Jets Energies

5. Phase II concept • Latency and rates • Fast L0 (40 MHz in, up to 500 kHz out, <3.2s) • Slower L1 (500 kHz in, <75-100 kHz out, >9.6s) • Level 0: • Finer-granularity "mini towers" with e.g. Et, fine-location of shower maxima, longitudinal profiles, quality flags, etc. • Multi-crate L0Calo processor: sliding-window algorithms to identify features • L0Topo: trigger algorithms using calo and muon objects • L0 ROIs sent to L1Track to gather track candidates • Level 1: • Refined L0 algorithms with full calorimeter data • L1Topo: trigger algorithms using calo, muon, track objects

6. Phase II concept (Murrough)

7. Latency issues • Phase I: • Latency envelope 2.5 s • May currently be as few as 10 BCs from limits • Phase II: • L0 trigger limited to 3.2 s (by muons) • Tile and (esp) LAr digital processing add additional latency • At least three sequential multi-Gbit links in L0 RTDP • Need to evaluate and limit all potential sources of latency

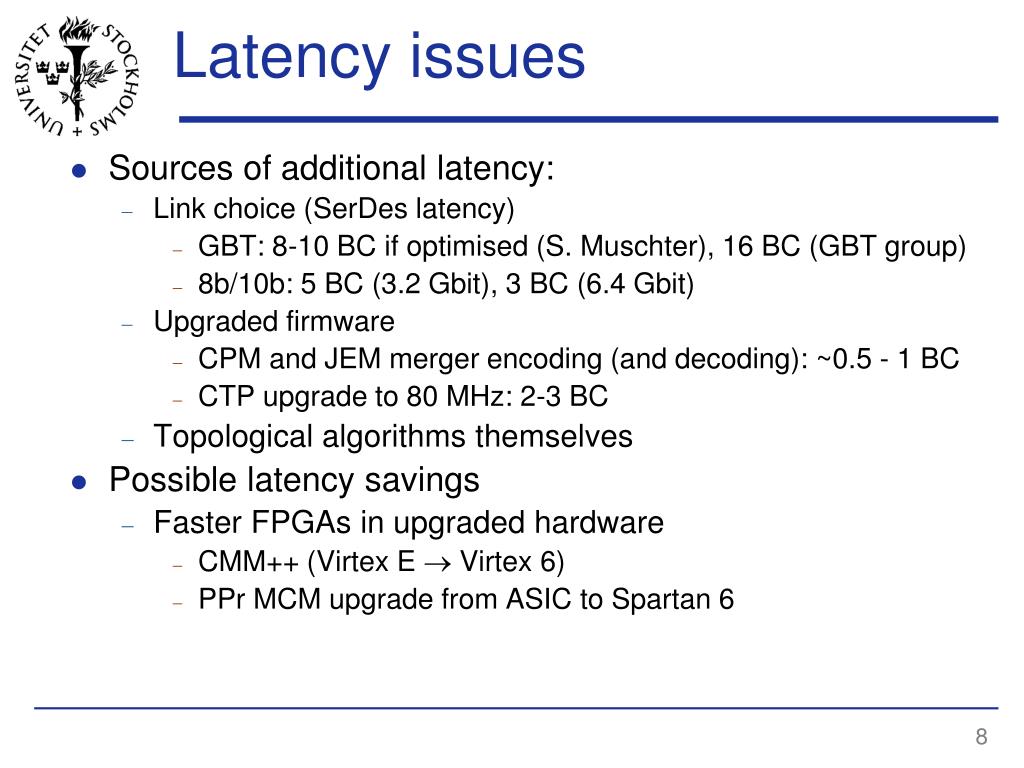

8. Latency issues • Sources of additional latency: • Link choice (SerDes latency) • GBT: 8-10 BC if optimised (S. Muschter), 16 BC (GBT group) • 8b/10b: 5 BC (3.2 Gbit),3 BC (6.4 Gbit) • Upgraded firmware • CPM and JEM merger encoding (and decoding): ~0.5 - 1 BC • CTP upgrade to 80 MHz: 2-3 BC • Topological algorithms themselves • Possible latency savings • Faster FPGAs in upgraded hardware • CMM++ (Virtex E  Virtex 6) • PPr MCM upgrade from ASIC to Spartan 6

9. Rate issues • Conflicting demands at sLHC • L1 tracker concept relies on high L0 trigger rate • Richard Brenner: >500 kHz • Muon detector cannot handle high L0 trigger rate • < 200 kHz • No obvious options • Upgrade muon electronics • Many inaccessible boards. Years to disassemble and replace • Muon system ignores L0A, reads out after L1A • L1A latency too long. Data lost • "Private trigger" for muons? • Won't work....how do we decide which L0A will be accepted by L1? Data lost. • How do we proceed?

10. Schedule issues • Phase I: • CMM++ should be ready for deployment by 2015 • Need to start Phase I soon • May be needed before calorimeter upgrade (2017-19) • but discarded when calorimeters are upgraded • Phase II: • Large, completely new system! • Concurrent with calorimeter upgrade (2017-19) • Need to start Phase II soon • Problem: Phase I and II development in parallel • conflicting demands on manpower, organisation, etc

11. Proposed strategy • Focus on Phase II • "Staged" deployment: • L0Calo/L0Topo in time for calo upgrades • 2017-2019 timescale • Fixed latency, maximum 3.2 s • Run at <75 kHz until L1 is ready • L0Topo compatible with CMM++ outputs • Usable as TP in Phase-1 system (see next slide) • L1 trigger ready for ID upgrade • Increase L0 rate to 500 kHz • Asynchronous processing?

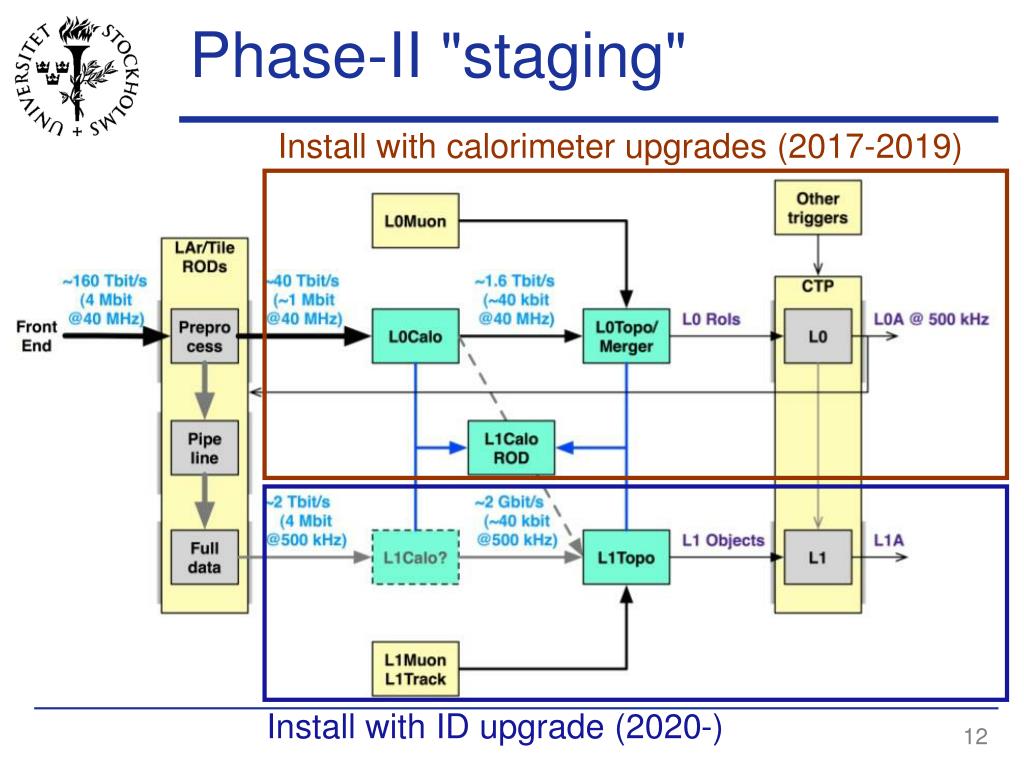

12. Phase-II "staging" Install with calorimeter upgrades (2017-2019) Install with ID upgrade (2020-)

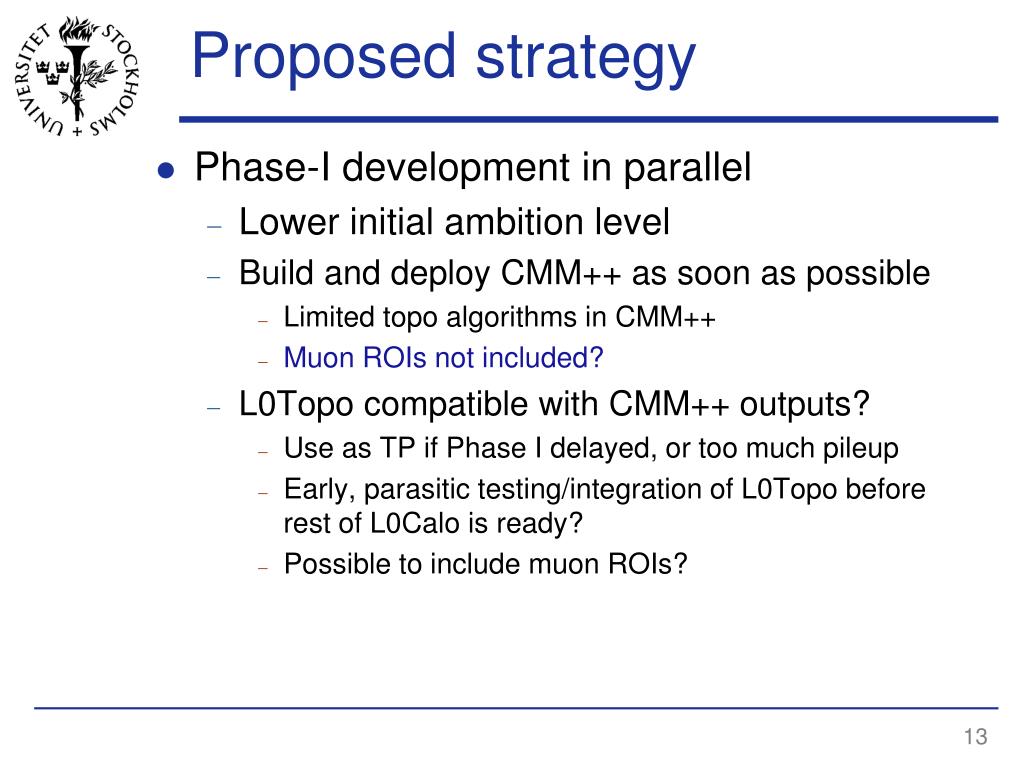

13. Proposed strategy • Phase-I development in parallel • Lower initial ambition level • Build and deploy CMM++ as soon as possible • Limited topo algorithms in CMM++ • Muon ROIs not included? • L0Topo compatible with CMM++ outputs? • Use as TP if Phase I delayed, or too much pileup • Early, parasitic testing/integration of L0Topo before rest of L0Calo is ready? • Possible to include muon ROIs?

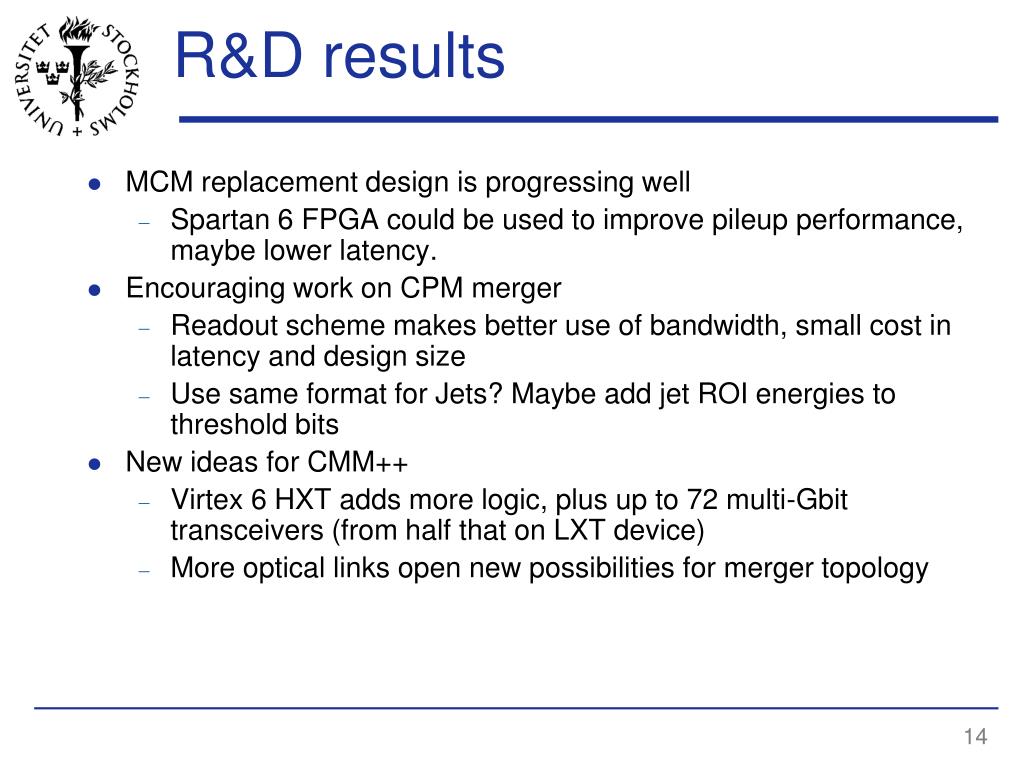

14. R&D results • MCM replacement design is progressing well • Spartan 6 FPGA could be used to improve pileup performance, maybe lower latency. • Encouraging work on CPM merger • Readout scheme makes better use of bandwidth, small cost in latency and design size • Use same format for Jets? Maybe add jet ROI energies to threshold bits • New ideas for CMM++ • Virtex 6 HXT adds more logic, plus up to 72 multi-Gbit transceivers (from half that on LXT device) • More optical links open new possibilities for merger topology

15. R&D results • New results from GOLD • Encouraging link latency results • Experience with new HXT FPGAs • Understanding of phase II HW issues, including power, board density, etc • Stockholm link test board • High-speed links can be run with TTC • Latency results compatible with GOLD 8b/10b measurements • IPG during empty LHC BCs • Similar scheme needed for any 8b/10b link. • New algorithm studies • Many algorithms possible with CMM++ only • Interesting idea to combine jet and energy  transverse mass • Need to focus on questions of bandwidth (vs. processing power): how much information is needed, and where?

16. Discussion?
