  1. Sophomore ClinicENGR 01-202 5, CRN 20686Introduction to PIC Programming in C James K. Beard, Ph.D.

  2. Topics • Requirements • What do we need to do? • What do we have to accomplish this? • PIC 16F876A Capabilities • The Program Issues • The PWM • The rest of the program • The C Program Code • Issues • What do you do? • What can you do to improve your project once it is all working? Sophomore Clinic

  3. Basic Requirements • Notional Functions (Your design may differ) • Drive H-Bridges for Two bi-directional DC motors • Drive Electromagnet On-Off • Controls on HMI • Two potentiometers on thumbwheels • Three pushbuttons • Use a PIC 16F876A • Three buses • A Bus for up to five analog signals • B and C Bus are eight bits bi-directional • 4 MHz clock • C Code for the PIC using CCS PIC C Sophomore Clinic

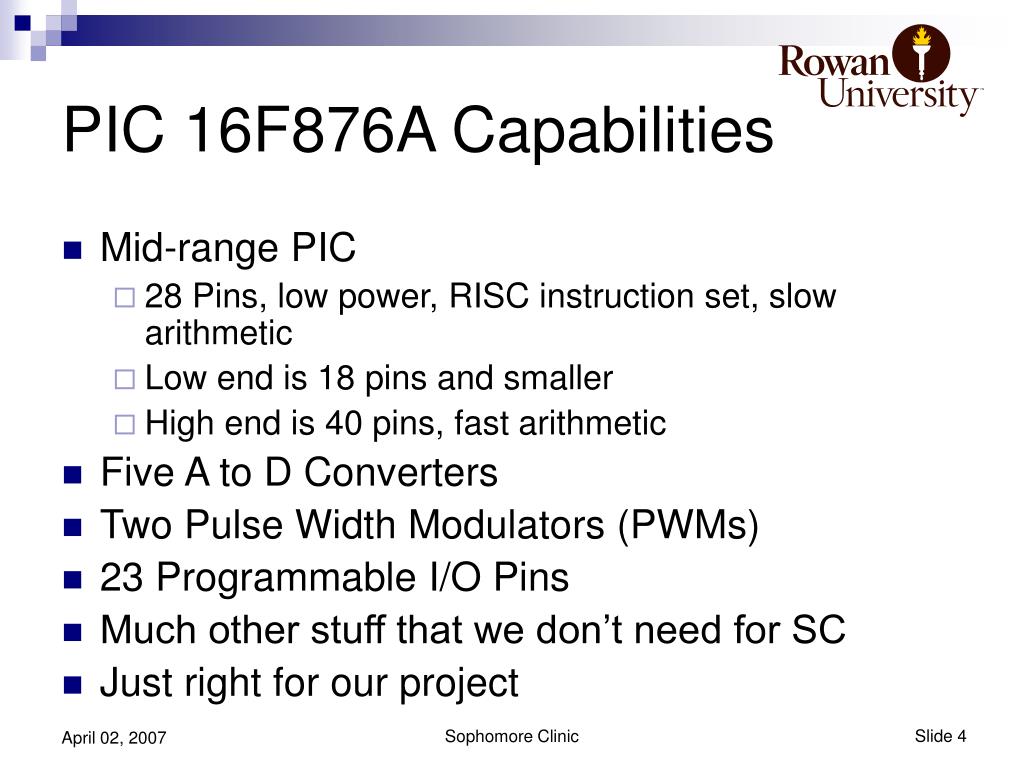

  4. PIC 16F876A Capabilities • Mid-range PIC • 28 Pins, low power, RISC instruction set, slow arithmetic • Low end is 18 pins and smaller • High end is 40 pins, fast arithmetic • Five A to D Converters • Two Pulse Width Modulators (PWMs) • 23 Programmable I/O Pins • Much other stuff that we don’t need for SC • Just right for our project Sophomore Clinic

  5. The PIC 16F876A Sophomore Clinic

  6. PIC 16F876A Buses • Bus A • Six individually programmable I/O lines • Analog or digital inputs and digital outputs • Up to 5 ADC inputs • Programmable pull-ups for switched inputs • Bus B • Eight individually programmable digital I/O lines • Programmable pull-ups • Bus C – eight individually programmable I/O lines Sophomore Clinic

  7. Devices in the PIC 16F876A • Processor • Memory • 8 K of 14-bit instruction flash memory • 368 bytes of program memory • 256 bytes of EEPROM • Five 10-bit ADCs • Some configurable with references • One configurable with both high and low reference • Two oscillators • Backup 2.5 MHz R-C clock oscillator • Quartz clock up to 10 MHz Sophomore Clinic

  8. Devices (Continued) • RS-232 mapped to C I/O commands like printf • Computer on null modem cable is a PIC terminal • Uses only two pins, C6 and C7 • Called the Master Synchronous Serial Port (MSSP) • Coupled with memory-mapped UART • Three timers • 14 interrupts • Two capture/compare/PWM (CCP) modules Sophomore Clinic

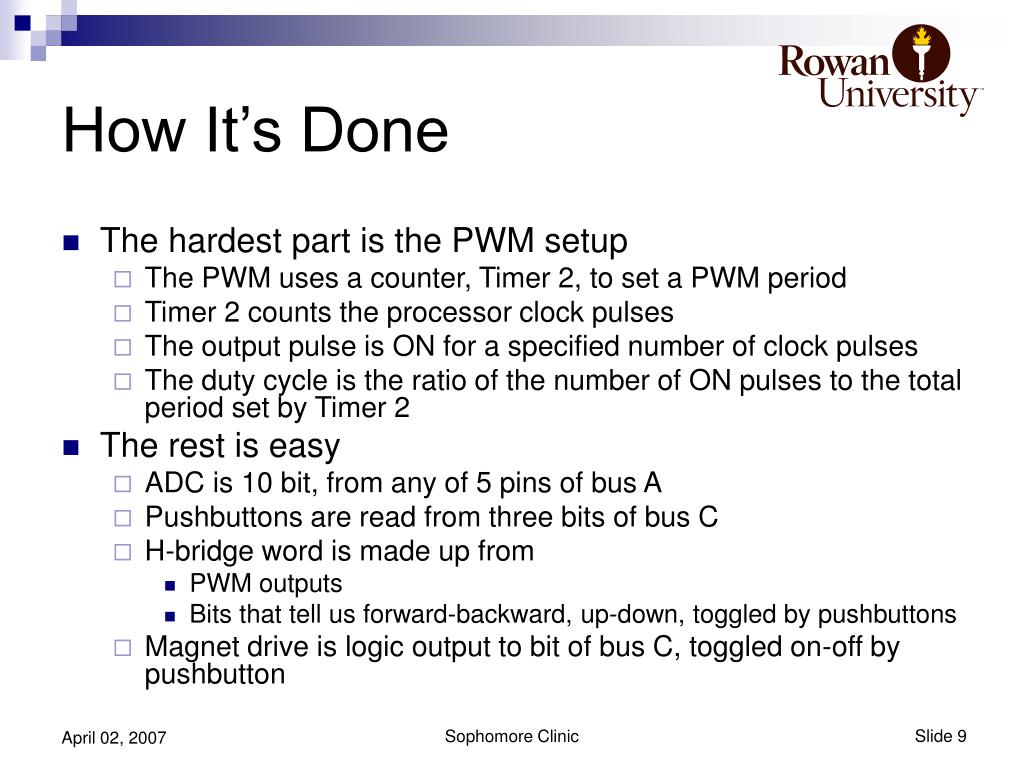

  9. How It’s Done • The hardest part is the PWM setup • The PWM uses a counter, Timer 2, to set a PWM period • Timer 2 counts the processor clock pulses • The output pulse is ON for a specified number of clock pulses • The duty cycle is the ratio of the number of ON pulses to the total period set by Timer 2 • The rest is easy • ADC is 10 bit, from any of 5 pins of bus A • Pushbuttons are read from three bits of bus C • H-bridge word is made up from • PWM outputs • Bits that tell us forward-backward, up-down, toggled by pushbuttons • Magnet drive is logic output to bit of bus C, toggled on-off by pushbutton Sophomore Clinic

  10. Your Resources • The CCS PIC C Compiler MCU • Only for mid-range PIC microcontrollers • Other compilers for high-end PIC microcontrollers • The file 16F876A.h in your compiler • The PIC Project Board Programmer-Debugger • Available in room 237 • Power supplies and lab equipment help you integrate your project • Books • The PIC MCU C Compiler Reference Manual, comes with the compiler • The C Programming Language, 2nd Edition Kernighan & Ritchie, Prentice Hall (1988), ISBN-10: 0131103628, ISBN-13: 978-0131103627, about $40 from Amazon • PIC micro MCU C, Nigel Gardner, about $15 from Microchip, Inc. Sophomore Clinic

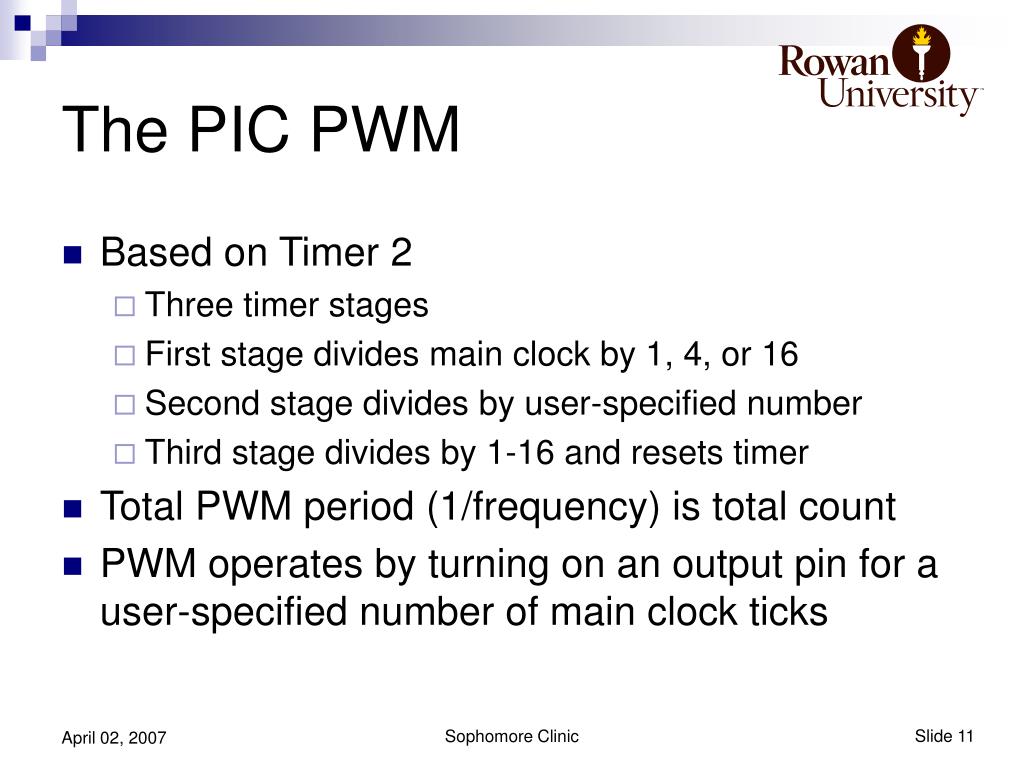

  11. The PIC PWM • Based on Timer 2 • Three timer stages • First stage divides main clock by 1, 4, or 16 • Second stage divides by user-specified number • Third stage divides by 1-16 and resets timer • Total PWM period (1/frequency) is total count • PWM operates by turning on an output pin for a user-specified number of main clock ticks Sophomore Clinic

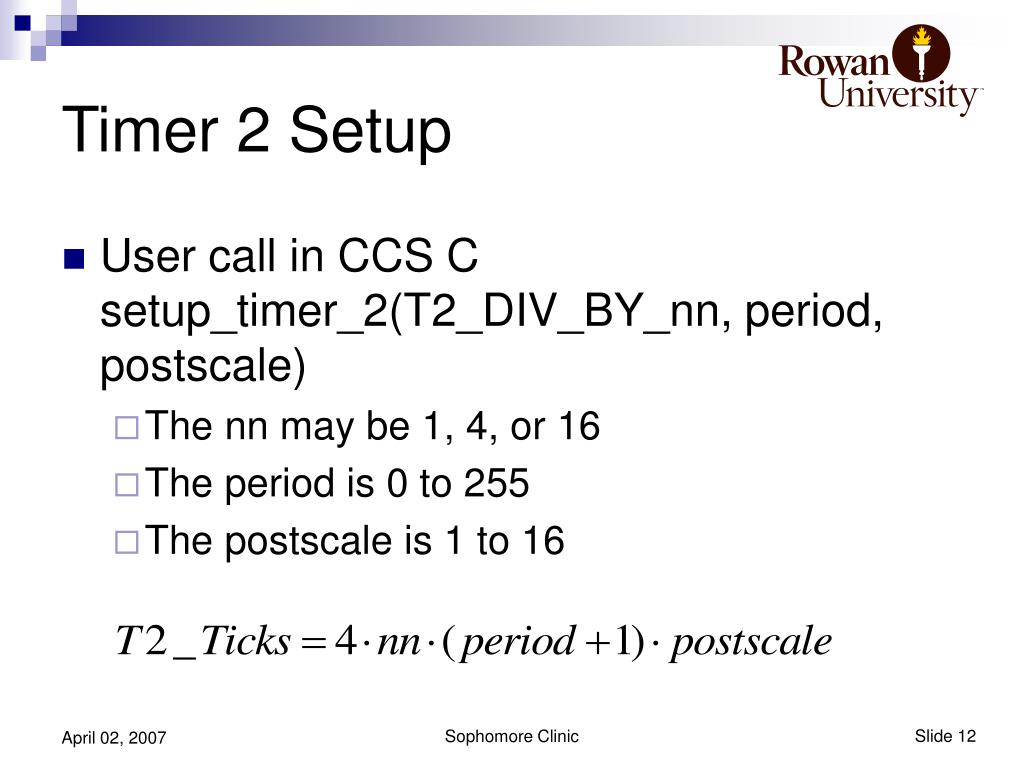

  12. Timer 2 Setup • User call in CCS C setup_timer_2(T2_DIV_BY_nn, period, postscale) • The nn may be 1, 4, or 16 • The period is 0 to 255 • The postscale is 1 to 16 Sophomore Clinic

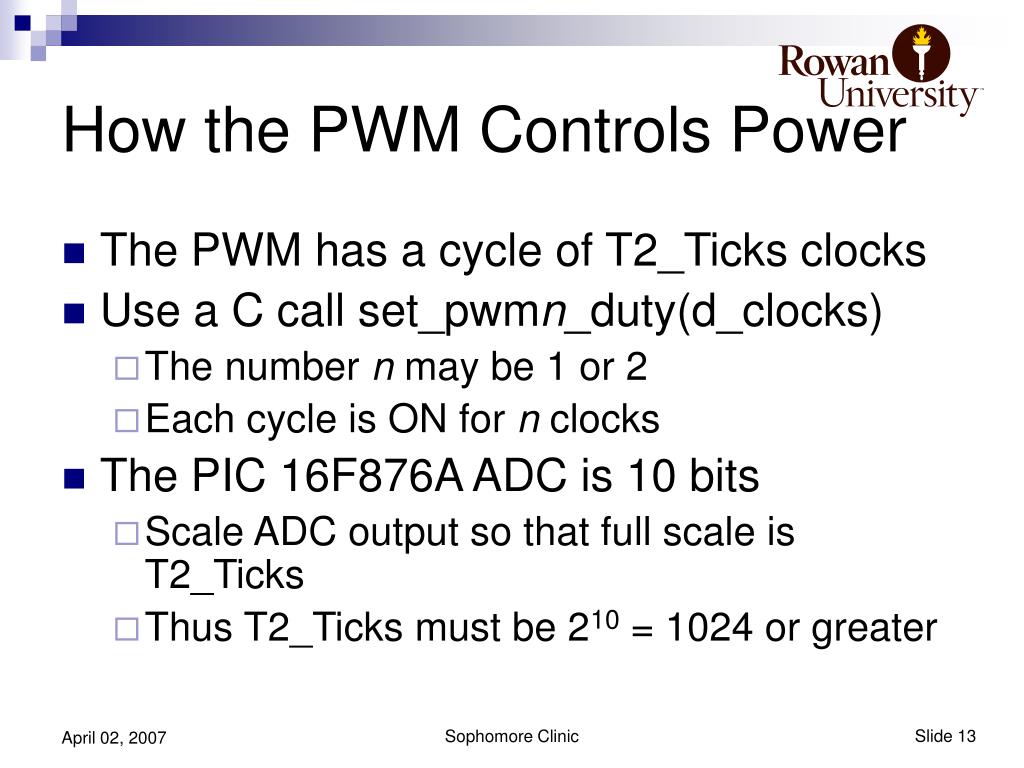

  13. How the PWM Controls Power • The PWM has a cycle of T2_Ticks clocks • Use a C call set_pwmn_duty(d_clocks) • The number n may be 1 or 2 • Each cycle is ON for n clocks • The PIC 16F876A ADC is 10 bits • Scale ADC output so that full scale is T2_Ticks • Thus T2_Ticks must be 210 = 1024 or greater Sophomore Clinic

  14. One Way for Timer 2 Usage Processor Clock of 4 MHz, period is 255, postscale is 1 Sophomore Clinic

  15. The H-Bridge Driver • PWM output is read back into the processor • PWM output is the drive signals for two of the four H-bridge MOSFETs • The other two signals are zero • Which are used depends on direction of motor • PWM bits are put into proper position in control byte with shifts • Combine to form 8-bit H-bridge drive word • Output on pins B0 through B7 Sophomore Clinic

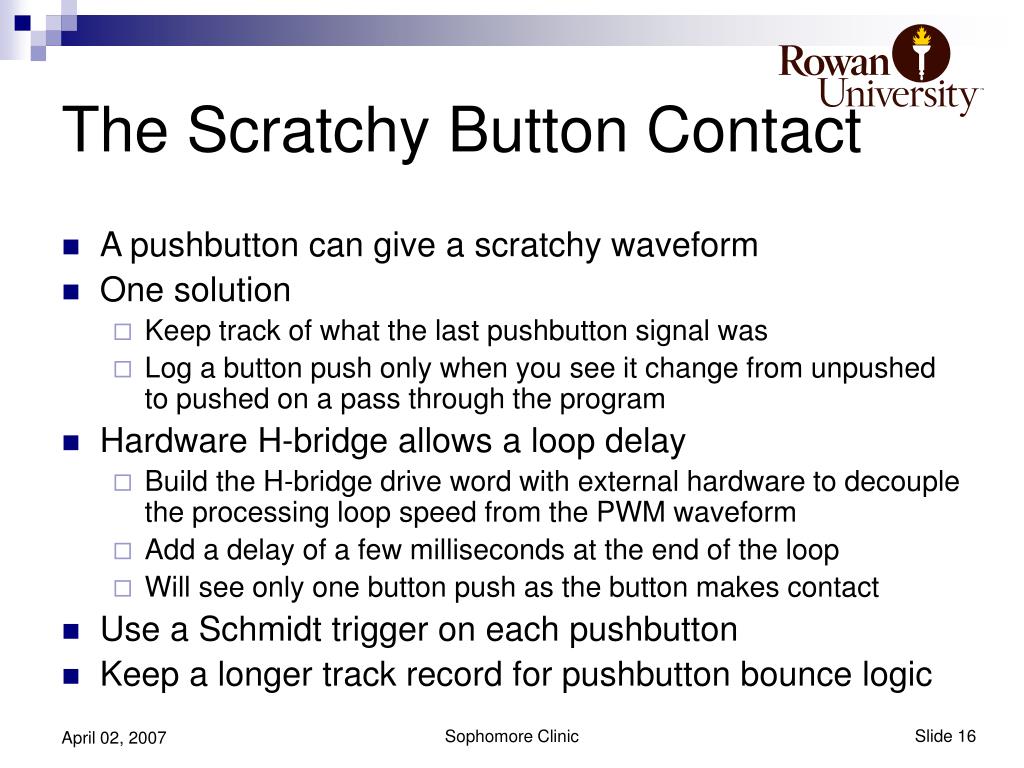

  16. The Scratchy Button Contact • A pushbutton can give a scratchy waveform • One solution • Keep track of what the last pushbutton signal was • Log a button push only when you see it change from unpushed to pushed on a pass through the program • Hardware H-bridge allows a loop delay • Build the H-bridge drive word with external hardware to decouple the processing loop speed from the PWM waveform • Add a delay of a few milliseconds at the end of the loop • Will see only one button push as the button makes contact • Use a Schmidt trigger on each pushbutton • Keep a longer track record for pushbutton bounce logic Sophomore Clinic

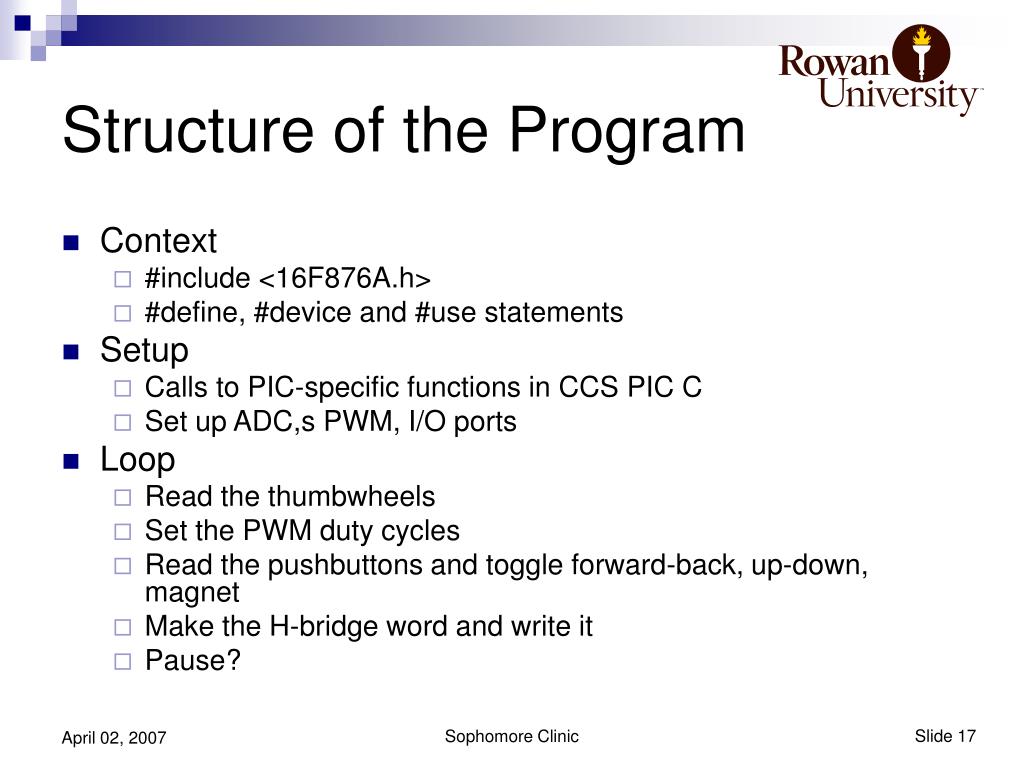

  17. Structure of the Program • Context • #include <16F876A.h> • #define, #device and #use statements • Setup • Calls to PIC-specific functions in CCS PIC C • Set up ADC,s PWM, I/O ports • Loop • Read the thumbwheels • Set the PWM duty cycles • Read the pushbuttons and toggle forward-back, up-down, magnet • Make the H-bridge word and write it • Pause? Sophomore Clinic

  18. Pin-out of PIC 16F876A Pins Used in Project Shown in Red Sophomore Clinic

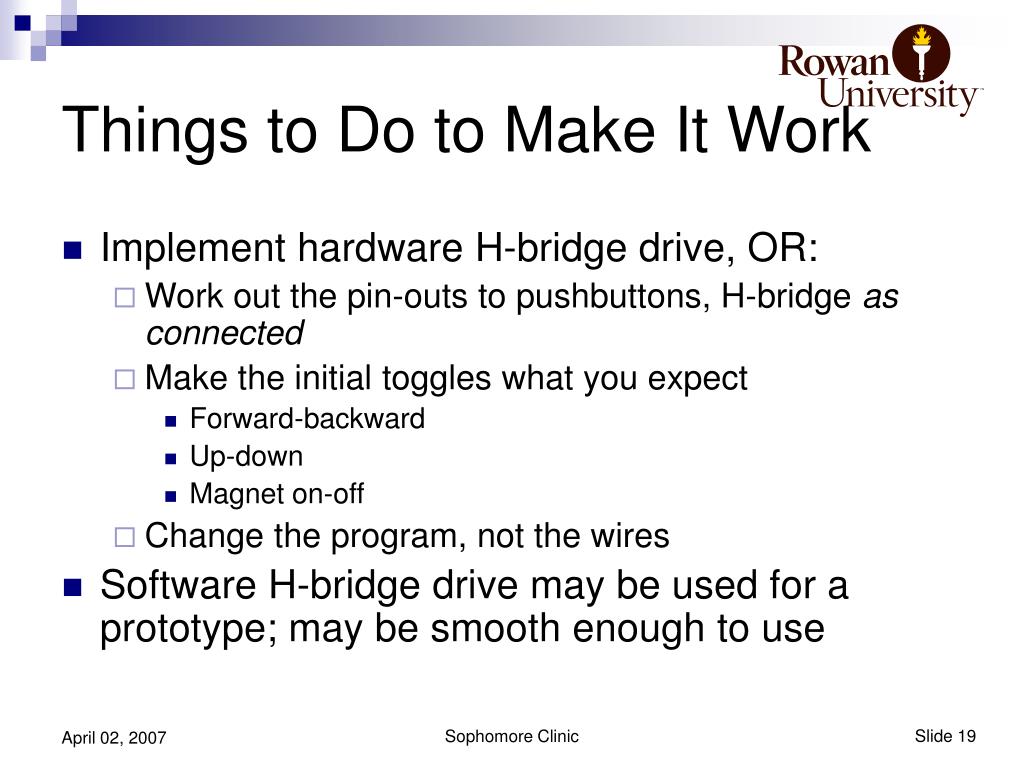

  19. Things to Do to Make It Work • Implement hardware H-bridge drive, OR: • Work out the pin-outs to pushbuttons, H-bridge as connected • Make the initial toggles what you expect • Forward-backward • Up-down • Magnet on-off • Change the program, not the wires • Software H-bridge drive may be used for a prototype; may be smooth enough to use Sophomore Clinic

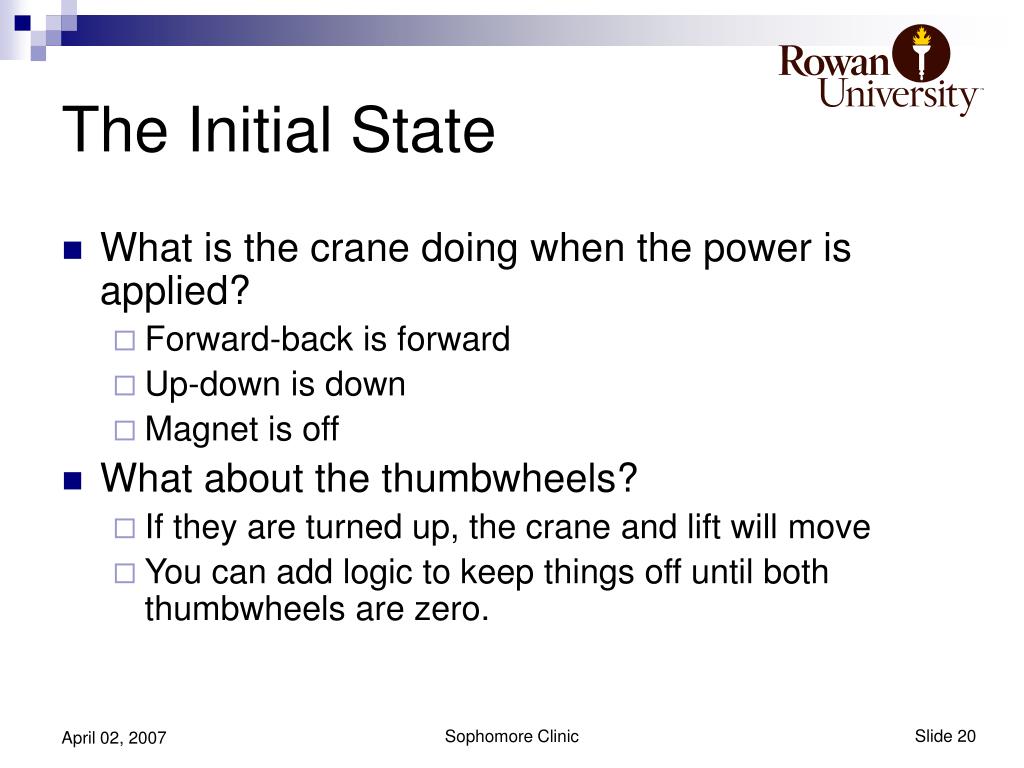

  20. The Initial State • What is the crane doing when the power is applied? • Forward-back is forward • Up-down is down • Magnet is off • What about the thumbwheels? • If they are turned up, the crane and lift will move • You can add logic to keep things off until both thumbwheels are zero. Sophomore Clinic

  21. What About Pushbutton Bounce? • Some elementary logic is already there • Toggles forward-back, etc. only when pushbutton transitions from un-pushed to pushed between loops • If the loop is fast and the button is slow, this can happen more than once • One solution: Add a delay in the loop • The controls only need to be read 10 to100 times a second • Experimentation may give you a good delay number that provides robust key bounce performance with the pushbuttons • Another solution • Keep a history of several pushbutton outputs • Average them or perform logic to provide robust determination of when to toggle the bits Sophomore Clinic

  22. The C Program Code • Environment • Include the processor definitions for the 16F876A • Define the constants • Specific compiler directives • Initialization • Declare all the variables and initialize them • Set up ADCs, PWM, and I/O • Processing loop • Read the thumbwheels and pushbuttons • Formulate the H-bridge driver outputs • Output the H-bridge and magnet drive outputs • Repeat Sophomore Clinic

  23. Environment #include <16F876A.h> #fuses HS,NOWDT,NOPROTECT,NOLVP #device ADC=10 //10 bits right justified in a 16 bit word #use delay(clock=10000000) //Put your clock rate here; 4 MHz == 4000000 //#use rs232(baud=9600, xmit=PIN_C6, rcv=PIN_C7) //RS-232 not used #define scale_shift 4 //log2(T2_Ticks/2^(ADC bits)); see below #define speedpos 0 //Propulsion is bottom 4 bits #define liftpos 4 //Lift is top 4 bits Sophomore Clinic

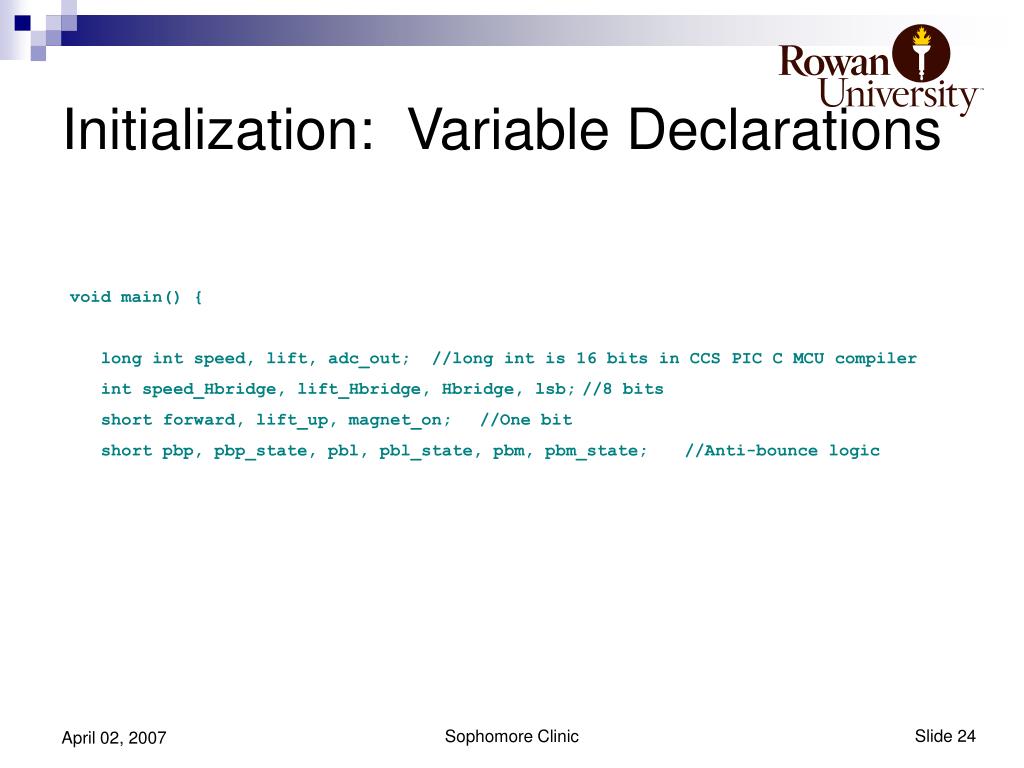

  24. Initialization: Variable Declarations void main() { long int speed, lift, adc_out; //long int is 16 bits in CCS PIC C MCU compiler int speed_Hbridge, lift_Hbridge, Hbridge, lsb; //8 bits short forward, lift_up, magnet_on; //One bit short pbp, pbp_state, pbl, pbl_state, pbm, pbm_state; //Anti-bounce logic Sophomore Clinic

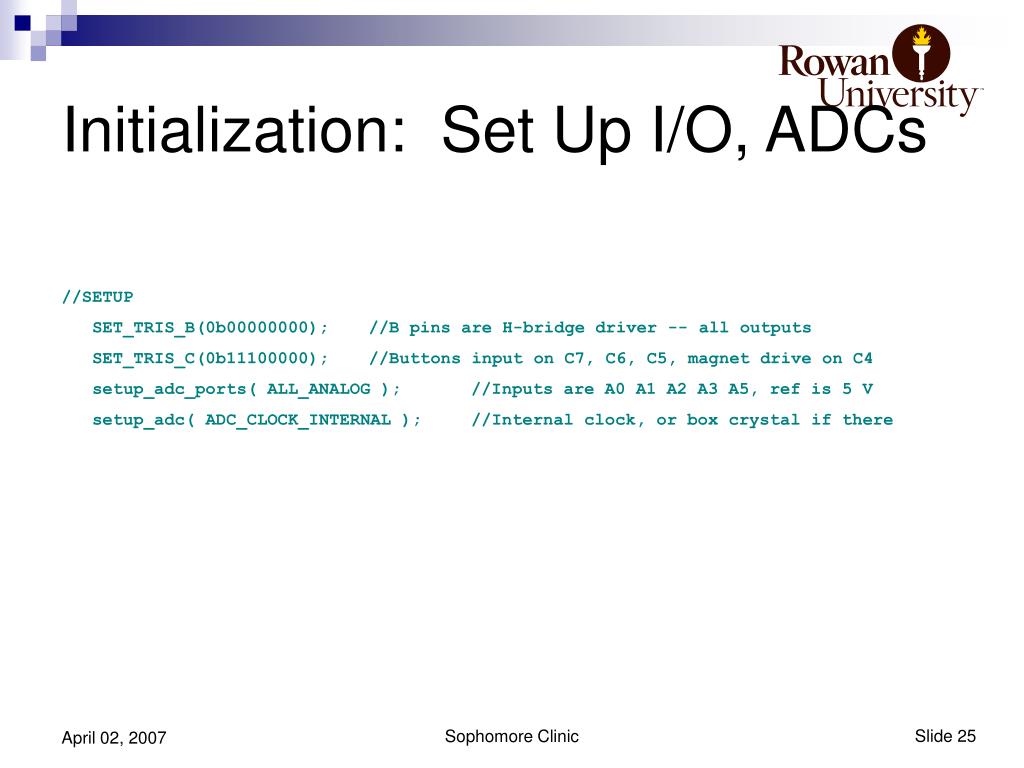

  25. Initialization: Set Up I/O, ADCs //SETUP SET_TRIS_B(0b00000000); //B pins are H-bridge driver -- all outputs SET_TRIS_C(0b11100000); //Buttons input on C7, C6, C5, magnet drive on C4 setup_adc_ports( ALL_ANALOG ); //Inputs are A0 A1 A2 A3 A5, ref is 5 V setup_adc( ADC_CLOCK_INTERNAL ); //Internal clock, or box crystal if there Sophomore Clinic

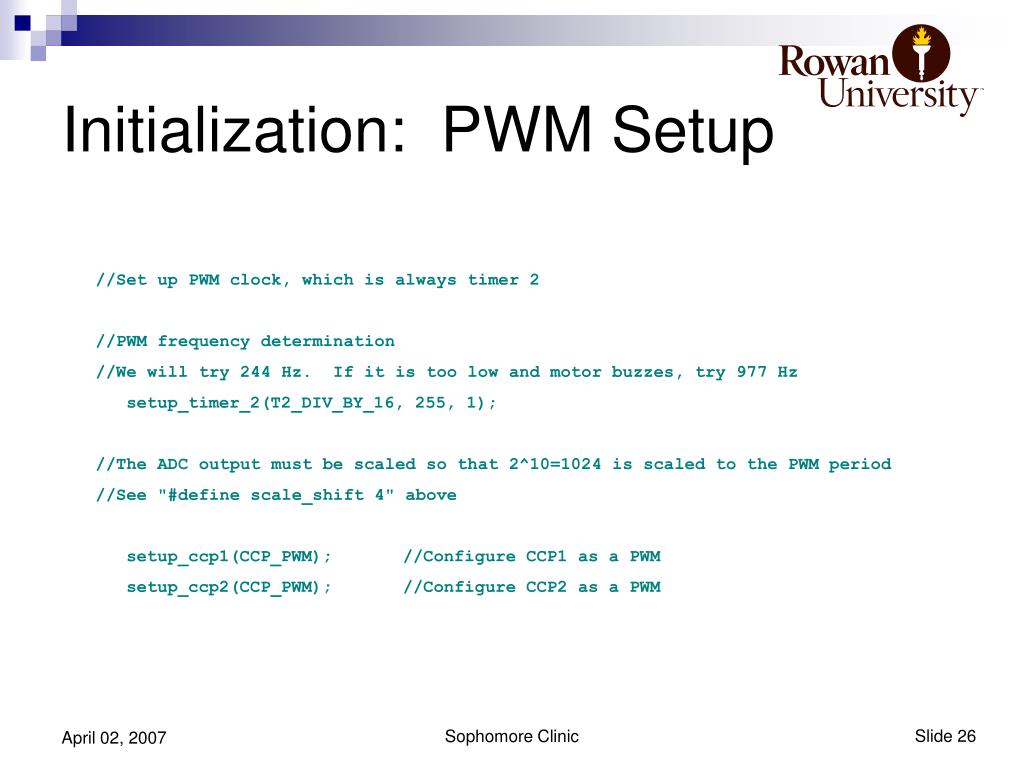

  26. Initialization: PWM Setup //Set up PWM clock, which is always timer 2 //PWM frequency determination //We will try 244 Hz. If it is too low and motor buzzes, try 977 Hz setup_timer_2(T2_DIV_BY_16, 255, 1); //The ADC output must be scaled so that 2^10=1024 is scaled to the PWM period //See "#define scale_shift 4" above setup_ccp1(CCP_PWM); //Configure CCP1 as a PWM setup_ccp2(CCP_PWM); //Configure CCP2 as a PWM Sophomore Clinic

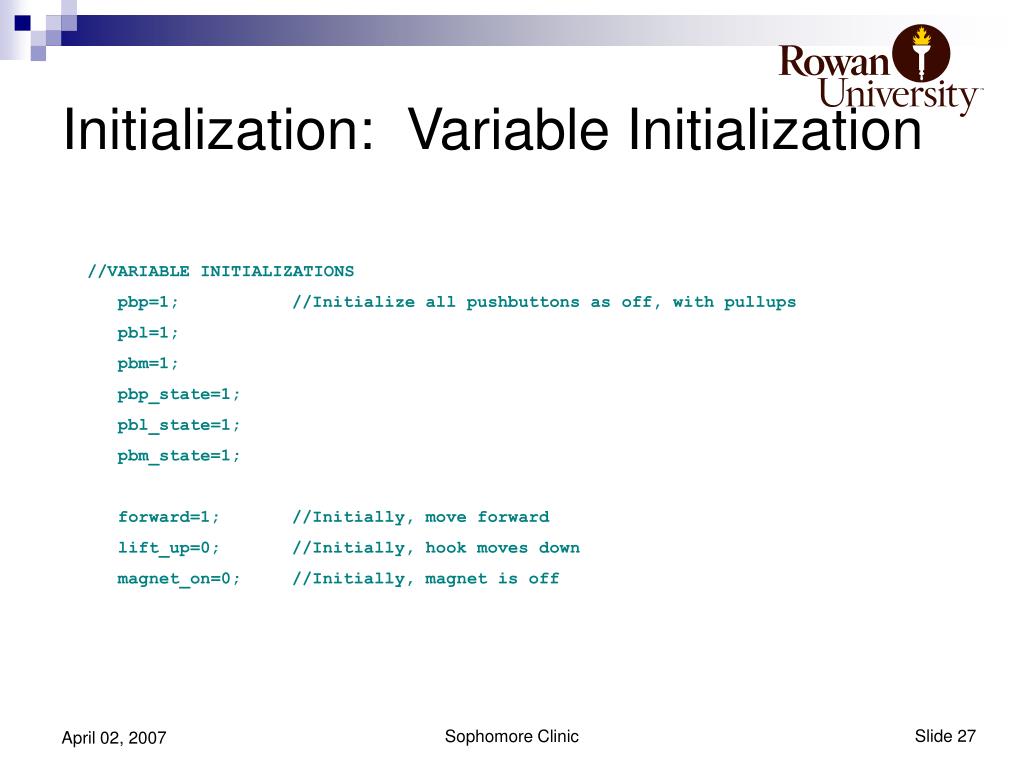

  27. Initialization: Variable Initialization //VARIABLE INITIALIZATIONS pbp=1; //Initialize all pushbuttons as off, with pullups pbl=1; pbm=1; pbp_state=1; pbl_state=1; pbm_state=1; forward=1; //Initially, move forward lift_up=0; //Initially, hook moves down magnet_on=0; //Initially, magnet is off Sophomore Clinic

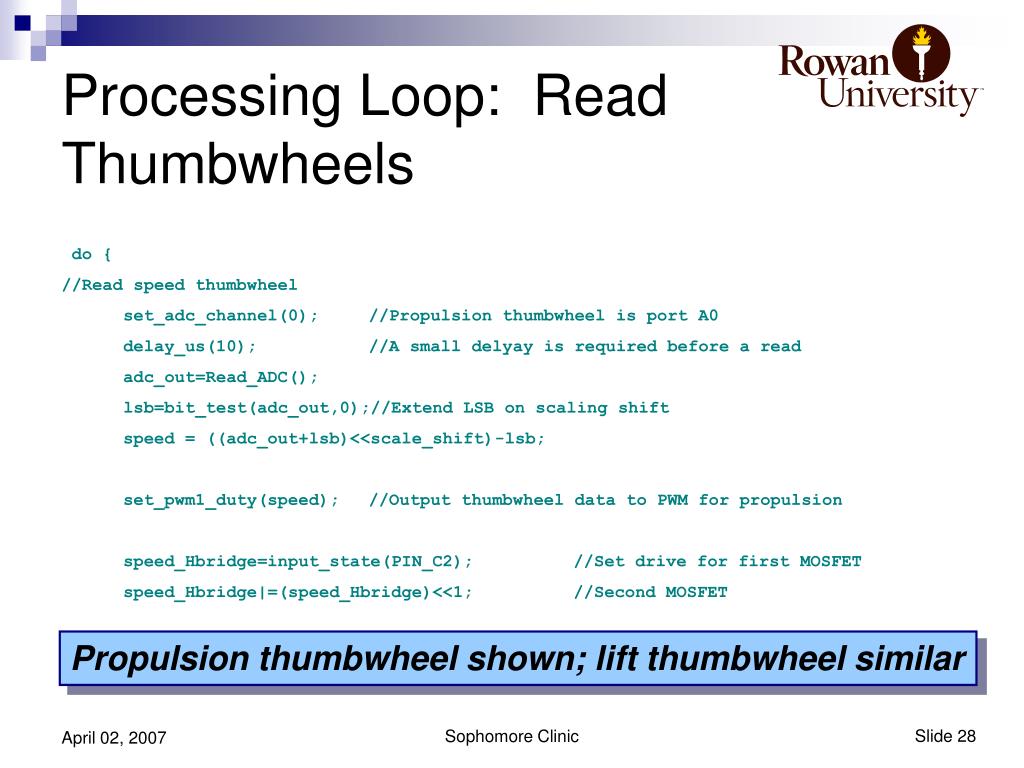

  28. Processing Loop: Read Thumbwheels do { //Read speed thumbwheel set_adc_channel(0); //Propulsion thumbwheel is port A0 delay_us(10); //A small delyay is required before a read adc_out=Read_ADC(); lsb=bit_test(adc_out,0);//Extend LSB on scaling shift speed = ((adc_out+lsb)<<scale_shift)-lsb; set_pwm1_duty(speed); //Output thumbwheel data to PWM for propulsion speed_Hbridge=input_state(PIN_C2); //Set drive for first MOSFET speed_Hbridge|=(speed_Hbridge)<<1; //Second MOSFET Propulsion thumbwheel shown; lift thumbwheel similar Sophomore Clinic

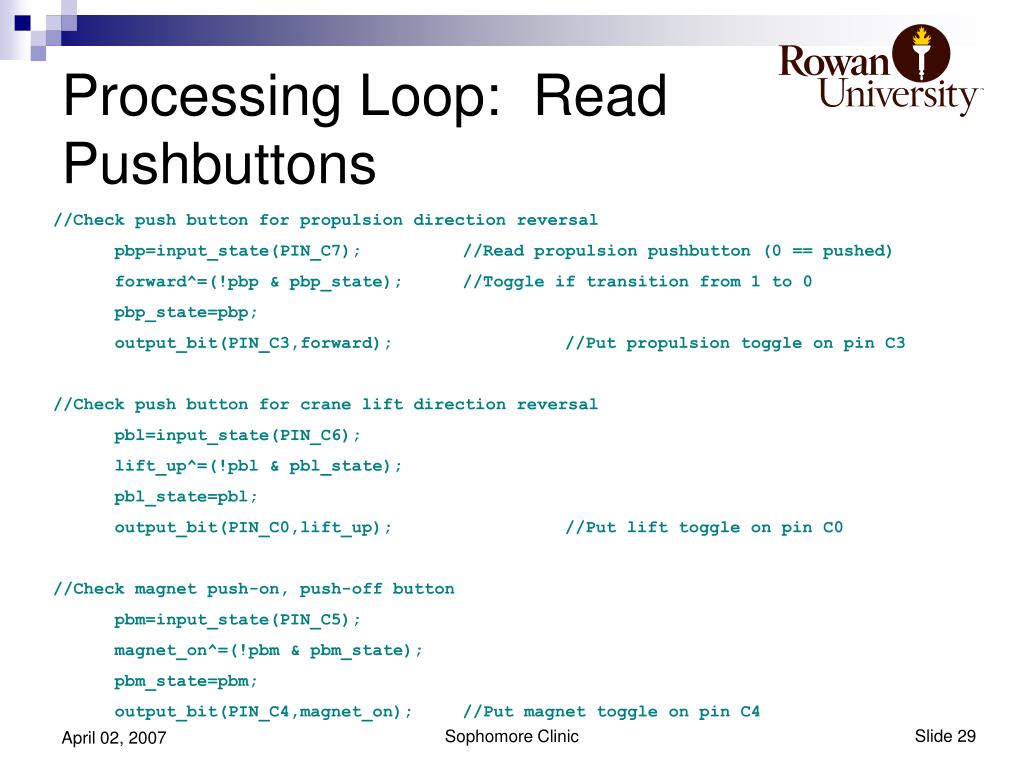

  29. Processing Loop: Read Pushbuttons //Check push button for propulsion direction reversal pbp=input_state(PIN_C7); //Read propulsion pushbutton (0 == pushed) forward^=(!pbp & pbp_state); //Toggle if transition from 1 to 0 pbp_state=pbp; output_bit(PIN_C3,forward); //Put propulsion toggle on pin C3 //Check push button for crane lift direction reversal pbl=input_state(PIN_C6); lift_up^=(!pbl & pbl_state); pbl_state=pbl; output_bit(PIN_C0,lift_up); //Put lift toggle on pin C0 //Check magnet push-on, push-off button pbm=input_state(PIN_C5); magnet_on^=(!pbm & pbm_state); pbm_state=pbm; output_bit(PIN_C4,magnet_on); //Put magnet toggle on pin C4 Sophomore Clinic

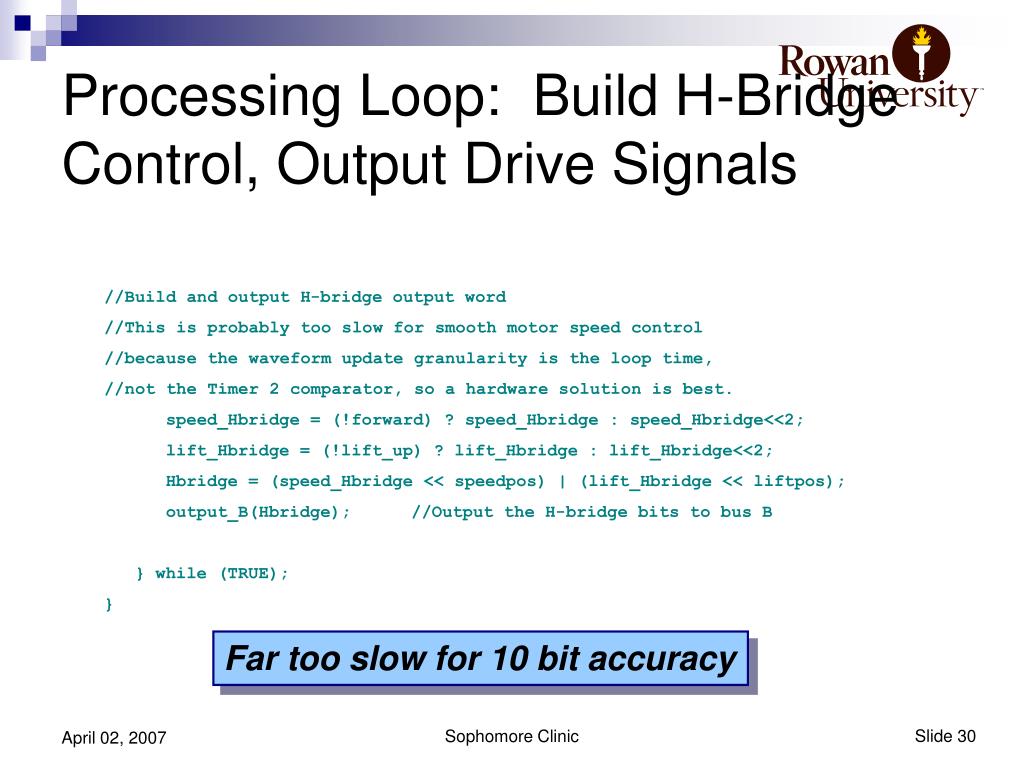

  30. Processing Loop: Build H-Bridge Control, Output Drive Signals //Build and output H-bridge output word //This is probably too slow for smooth motor speed control //because the waveform update granularity is the loop time, //not the Timer 2 comparator, so a hardware solution is best. speed_Hbridge = (!forward) ? speed_Hbridge : speed_Hbridge<<2; lift_Hbridge = (!lift_up) ? lift_Hbridge : lift_Hbridge<<2; Hbridge = (speed_Hbridge << speedpos) | (lift_Hbridge << liftpos); output_B(Hbridge); //Output the H-bridge bits to bus B } while (TRUE); } Far too slow for 10 bit accuracy Sophomore Clinic

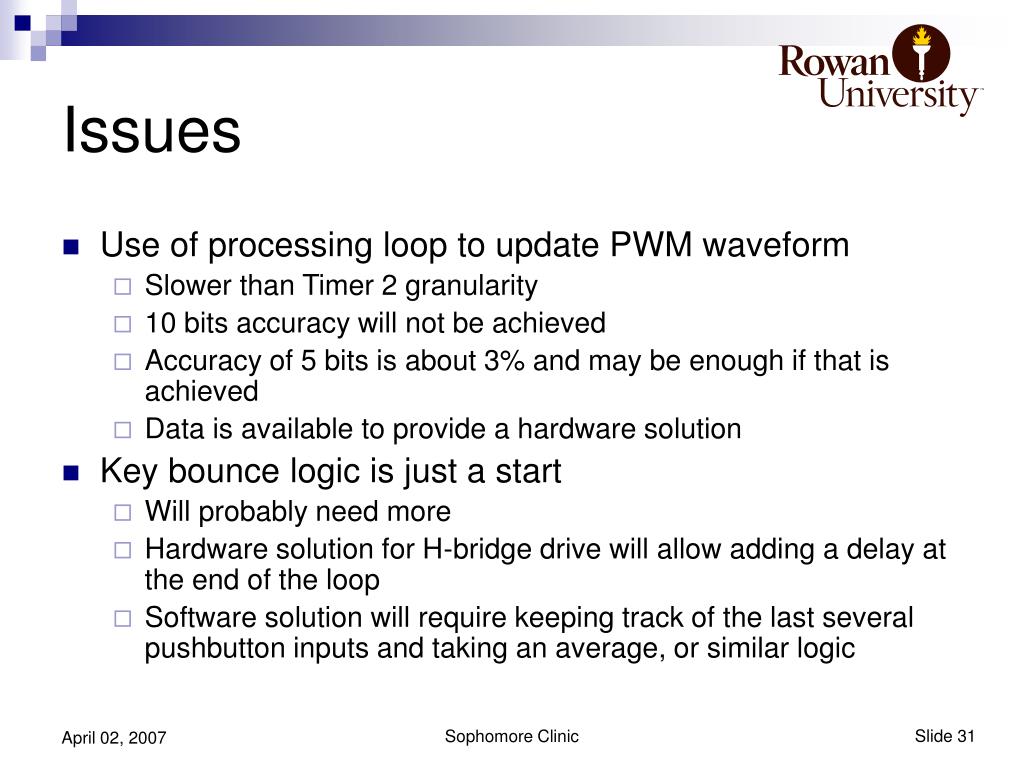

  31. Issues • Use of processing loop to update PWM waveform • Slower than Timer 2 granularity • 10 bits accuracy will not be achieved • Accuracy of 5 bits is about 3% and may be enough if that is achieved • Data is available to provide a hardware solution • Key bounce logic is just a start • Will probably need more • Hardware solution for H-bridge drive will allow adding a delay at the end of the loop • Software solution will require keeping track of the last several pushbutton inputs and taking an average, or similar logic Sophomore Clinic

  32. Other Things You Can Do • Add a pushbutton that stops everything • Add logic to program • Reset the PIC microcontroller • Make the forward-back and up-down pushbuttons up-stop-down instead • Add a button that is pushed when the crane gets to the end of the rails that stops the propulsion, or reverses it • Make the relationship between the thumbwheel and the motors something other than linear to improve control and feel • Whatever you can think of Sophomore Clinic

  33. Summary • You have your project ready to go • Hand unit • Crane motors • PIC and H-bridge boards • Electromagnet • Put your PIC board on a programmer-debugger in room 237 • Run the program and wring out the glitches • Use your own ideas to improve the program and your project Sophomore Clinic
