  1. Emergency calls related work done in IETF Gabor Bajko May 22, 2006

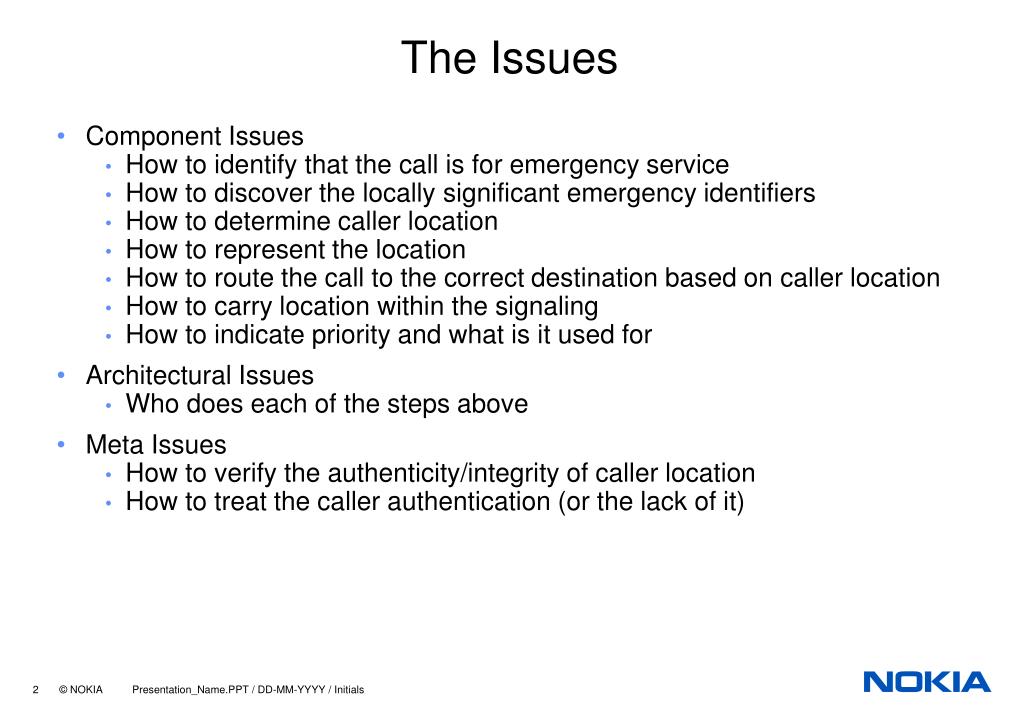

  2. The Issues • Component Issues • How to identify that the call is for emergency service • How to discover the locally significant emergency identifiers • How to determine caller location • How to represent the location • How to route the call to the correct destination based on caller location • How to carry location within the signaling • How to indicate priority and what is it used for • Architectural Issues • Who does each of the steps above • Meta Issues • How to verify the authenticity/integrity of caller location • How to treat the caller authentication (or the lack of it)

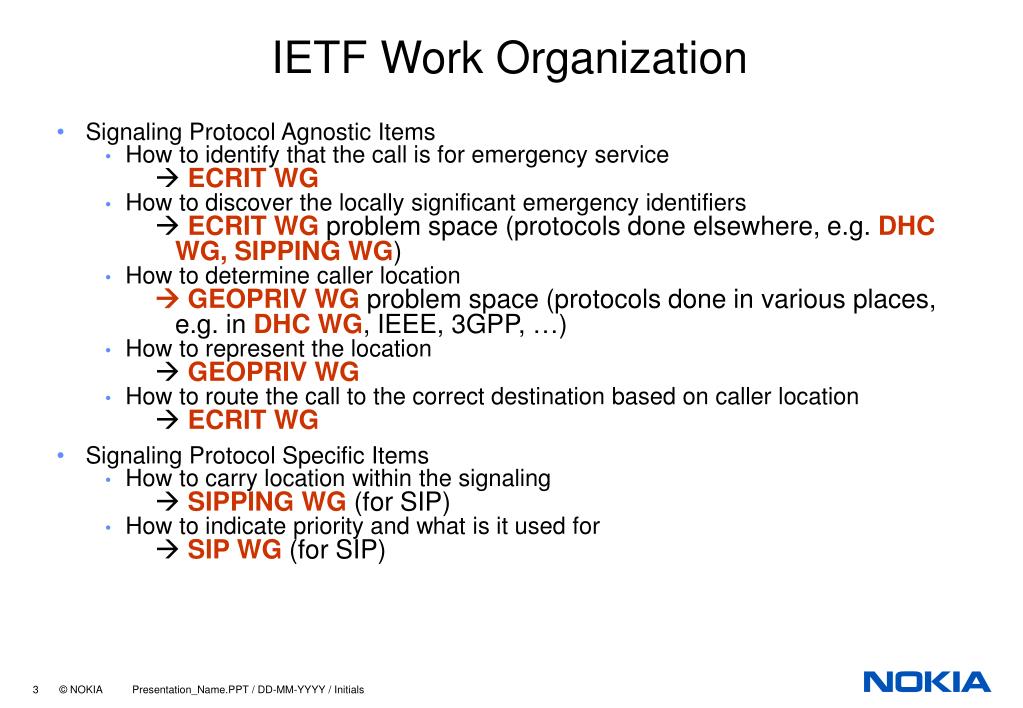

  3. IETF Work Organization • Signaling Protocol Agnostic Items • How to identify that the call is for emergency service  ECRIT WG • How to discover the locally significant emergency identifiers  ECRIT WG problem space (protocols done elsewhere, e.g. DHC WG, SIPPING WG) • How to determine caller location  GEOPRIV WG problem space (protocols done in various places, e.g. in DHC WG, IEEE, 3GPP, …) • How to represent the location  GEOPRIV WG • How to route the call to the correct destination based on caller location  ECRIT WG • Signaling Protocol Specific Items • How to carry location within the signaling  SIPPING WG (for SIP) • How to indicate priority and what is it used for  SIP WG (for SIP)

  4. Service URN • Current draft: draft-ietf-ecrit-service-urn-03.txt. Recently put in WGLC • It defines the “service” URN namespace with sub-services • These URNs are supposed to be protocol elements and not text describing the service (and not necessarily shown to the user) • There are a number of sub-services defined under the URN:service:sos, with global meaning. The terminal would probably need to have an interpreter which recognises the services provided in that network and displays e.g. the icon and/or the name of it in the user’s language on the GUI. • Service URNs are NOT routable, they need to be translated into routable addresses • It is hierarchical: If "URN:service:" 'x.y.z' exists, the URNs 'x' and 'x.y' are also valid service URNs. If the queried service ‘x.y.z’ does not exists, the resolution for ‘x.y’ or eventually ‘x’ could be returned as a matching result • The client would do the query well before emergency is needed, and keep the info up-to-date in terminals’ cache.

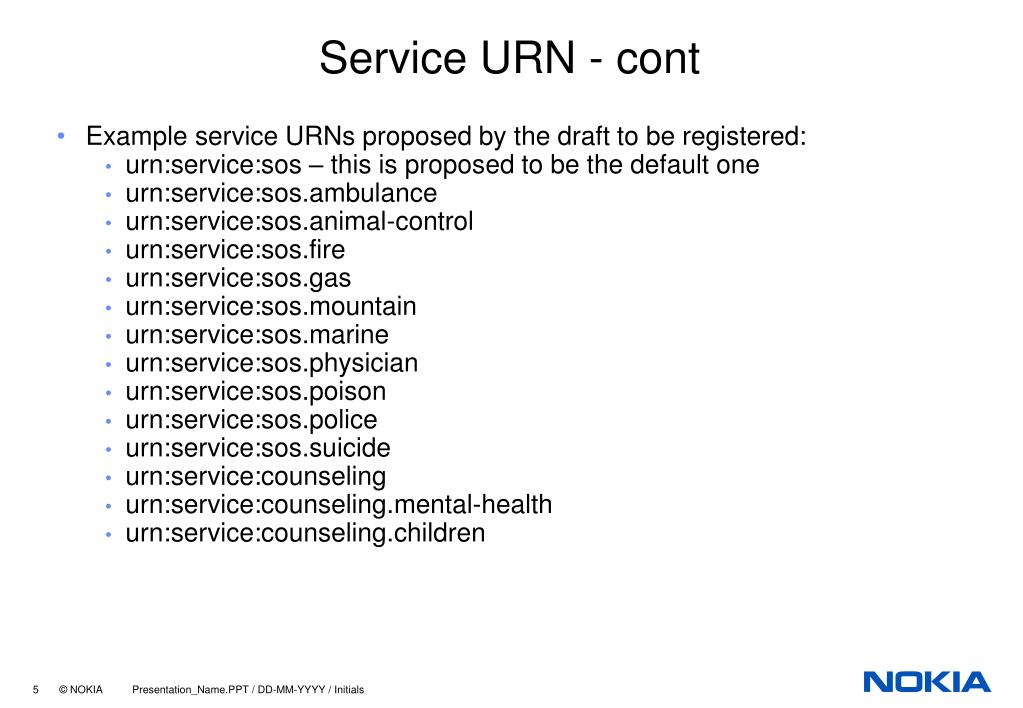

  5. Service URN - cont • Example service URNs proposed by the draft to be registered: • urn:service:sos – this is proposed to be the default one • urn:service:sos.ambulance • urn:service:sos.animal-control • urn:service:sos.fire • urn:service:sos.gas • urn:service:sos.mountain • urn:service:sos.marine • urn:service:sos.physician • urn:service:sos.poison • urn:service:sos.police • urn:service:sos.suicide • urn:service:counseling • urn:service:counseling.mental-health • urn:service:counseling.children

  6. LoST (draft-hardie-ecrit-lost-00.txt) • LoST: Location-to- Service Translation Protocol (name might change) • It is an early draft, many details still missing • XML-based protocol for mapping service identifiers and geospatial or civic location information (PIDF-LO) to service contact URIs (carrying protocol to be chosen) • It requires the client to know the address of the LoST server. • The ultimate goal is that the LoST server provides the client with a concrete address to contact (which could be a service contact URI –PSAP URI-, a tel. number, IP address, etc.) • It recommends that when the LoST server is contacted and the requested service does not exist, then the resolution of the more specific service is returned (on the e-mail exploder it was suggested that in this case the service URN itself to be returned too). E.g.: in case urn:service:sos.fire does not exists, the address of the server hosting urn:service:sos would be returned. • Finding LoST server address: • A new S-NSPTR application service tag is defined: SURN; and a new label is registered: “SURN.sos” E.g.: the S-NAPTR query is made to SURN.sos:LoST (and this would return a result containing the URI to contact using LoST protocol for emergency services)  all this to find the LoST server (adv: dynamic, DDDS could be used)

  7. Location – GEOPRIV WG • How to determine caller location • DHCP for coordinate based location: RFC 3825 • DHCP for civic location: draft-ietf-geopriv-dhcp-civil (in RFC Editor Queue) • A separate query protocol (based on IP address): draft-linsner-geopriv-lcp • A similar HTTP-based protocol: draft-winterbottom-geopriv-held-sighting • Location can be provided by value or by reference • draft-winterbottom-location-uri • How to represent location • PIDF-LO: RFC 4119 • Several drafts now on PIDF-LO usages and clarifications

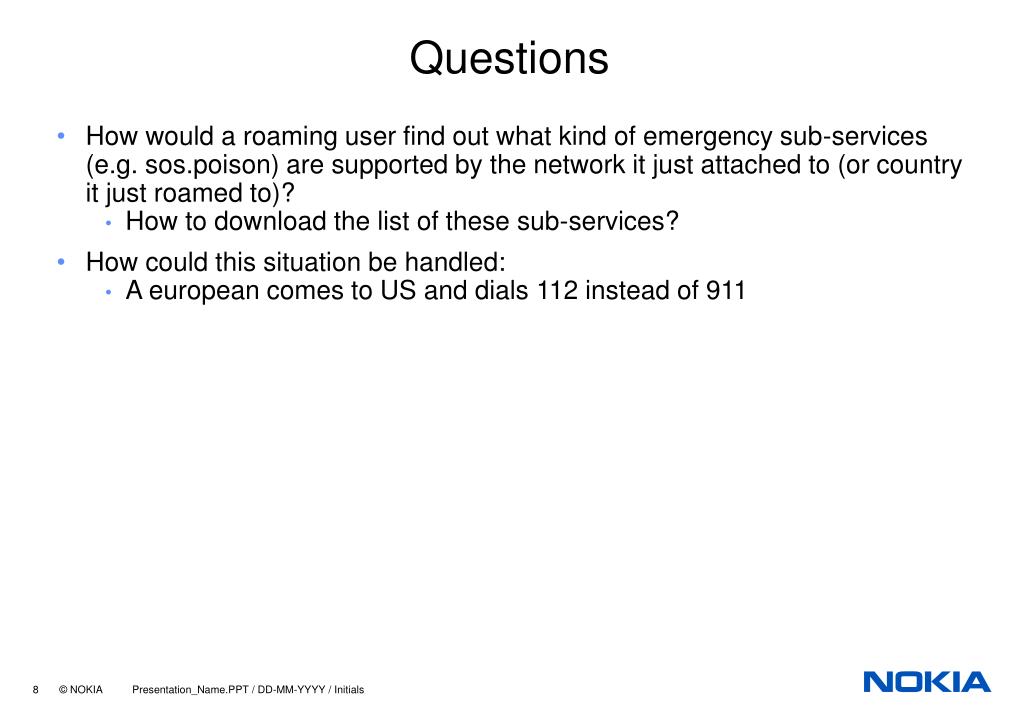

  8. Questions • How would a roaming user find out what kind of emergency sub-services (e.g. sos.poison) are supported by the network it just attached to (or country it just roamed to)? • How to download the list of these sub-services? • How could this situation be handled: • A european comes to US and dials 112 instead of 911

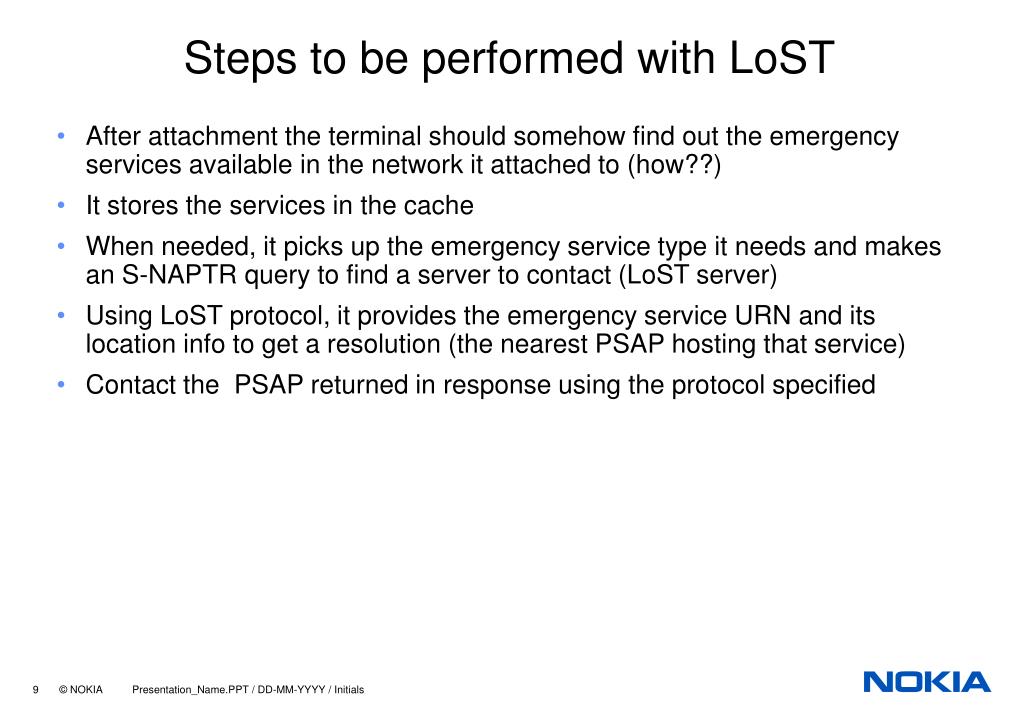

  9. Steps to be performed with LoST • After attachment the terminal should somehow find out the emergency services available in the network it attached to (how??) • It stores the services in the cache • When needed, it picks up the emergency service type it needs and makes an S-NAPTR query to find a server to contact (LoST server) • Using LoST protocol, it provides the emergency service URN and its location info to get a resolution (the nearest PSAP hosting that service) • Contact the PSAP returned in response using the protocol specified

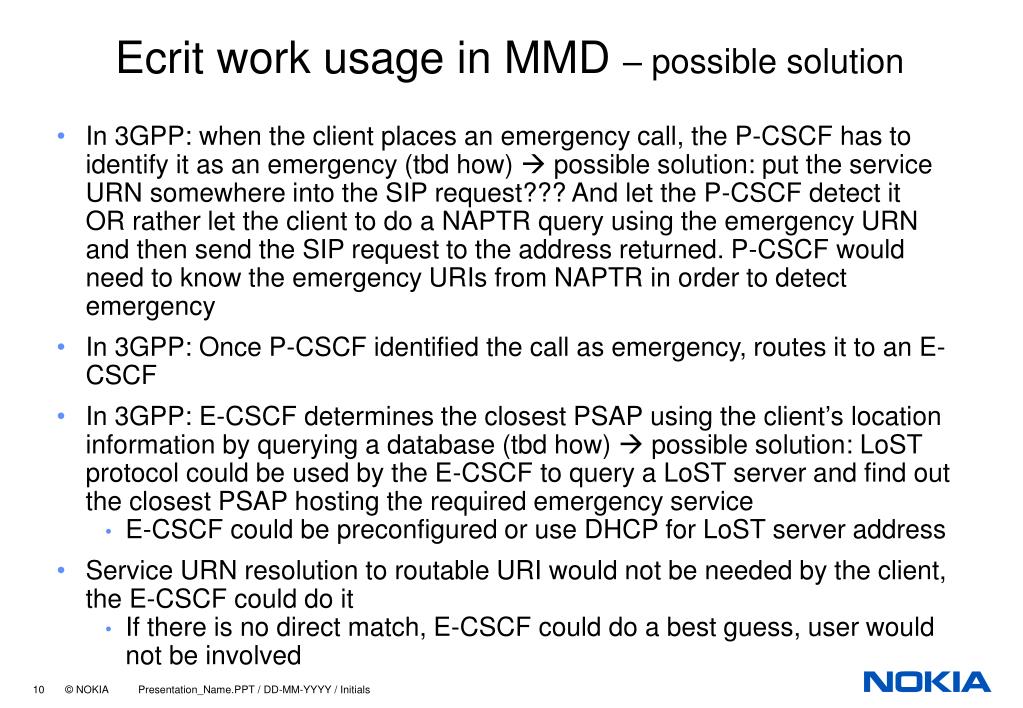

  10. Ecrit work usage in MMD – possible solution • In 3GPP: when the client places an emergency call, the P-CSCF has to identify it as an emergency (tbd how)  possible solution: put the service URN somewhere into the SIP request??? And let the P-CSCF detect itOR rather let the client to do a NAPTR query using the emergency URN and then send the SIP request to the address returned. P-CSCF would need to know the emergency URIs from NAPTR in order to detect emergency • In 3GPP: Once P-CSCF identified the call as emergency, routes it to an E-CSCF • In 3GPP: E-CSCF determines the closest PSAP using the client’s location information by querying a database (tbd how)  possible solution: LoST protocol could be used by the E-CSCF to query a LoST server and find out the closest PSAP hosting the required emergency service • E-CSCF could be preconfigured or use DHCP for LoST server address • Service URN resolution to routable URI would not be needed by the client, the E-CSCF could do it • If there is no direct match, E-CSCF could do a best guess, user would not be involved
