  1. The Gas Giants

  2. The Gas Giants • Together they account for 99.5% of our planetary system

  3. Size-Mass Relationship • As with terrestrials, composition can be guessed from mean density. But the high compressibility of volatiles must be accounted for • Initially, as they accrete mass they grow in radius • But at a mass of ~300 earth masses, further accretion causes the radius to decrease.

  4. Composition • T=0 K models • T>0K • Jupiter and Saturn are well matched by H+He models • Require some ice/rock as well • Uranus and Neptune are much better represented by an icy composition. • 1

  5. Recall: Moment of Inertia • The moment of inertia is a measure of degree of concentration • Related to the “inertia” (resistance) of a spinning body to external torques • Shows giant planets are centrally concentrated: cores?

  6. Shapes • Rotation induces significant flattening of compressible material

  7. Heat Balance • The average temperature of Jupiter is 160 K. Is it in thermal equilibrium? (Assume a visible albedo of 0.43, but a perfect blackbody in the infrared). • An infrared picture of Jupiter

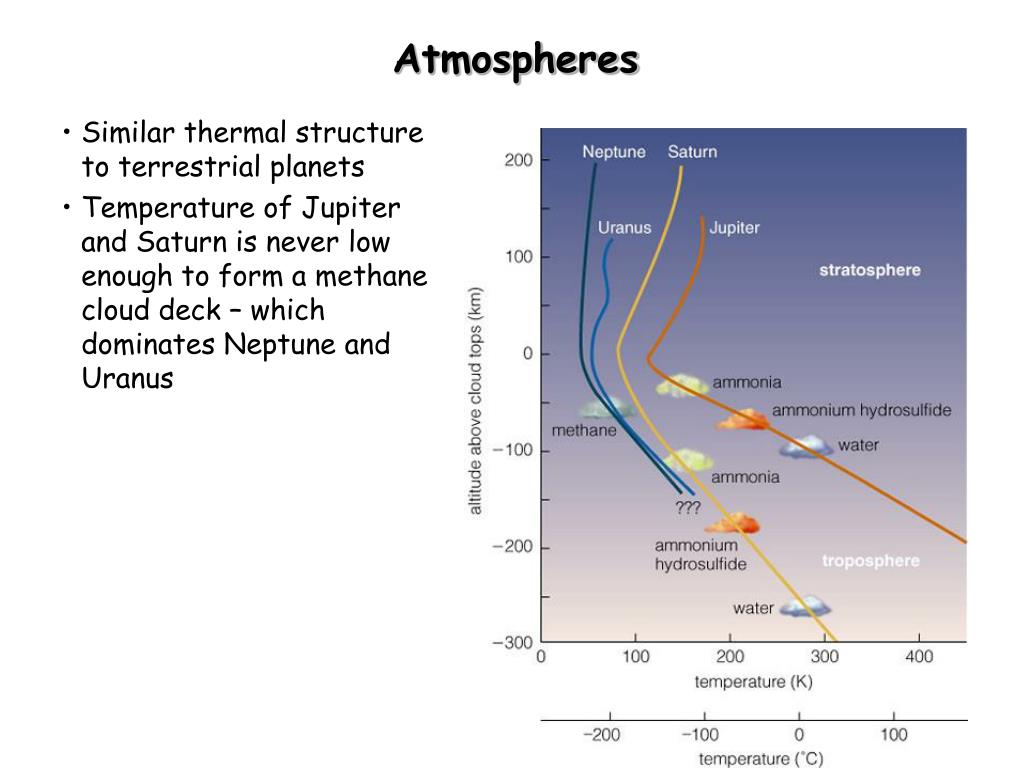

  8. Atmospheres • Similar thermal structure to terrestrial planets • Temperature of Jupiter and Saturn is never low enough to form a methane cloud deck – which dominates Neptune and Uranus

  9. H at high temperatures and pressures • Atmosphere of Jupiter and Saturn is mostly “liquid” H2. • At very high pressures, H atoms dissociate from each other and their electrons • Forms a metallic liquid • Good conductor • Maximum of Earth-based laboratory experiments STP

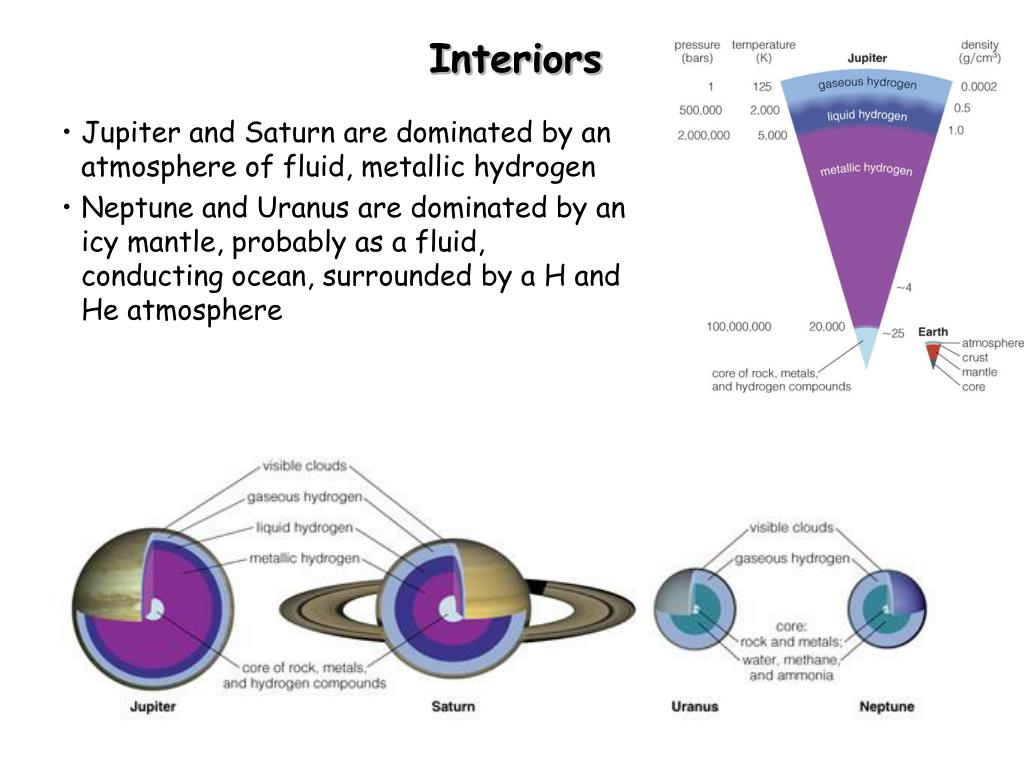

  10. Interiors • Jupiter and Saturn are dominated by an atmosphere of fluid, metallic hydrogen • Neptune and Uranus are dominated by an icy mantle, probably as a fluid, conducting ocean, surrounded by a H and He atmosphere

  11. Cloud patterns • Surface features are due to forms and colourations of the highest cloud layers

  12. Magnetospheres • The giant planets have strong magnetic fields • Likely due to the convective, metallic hydrogen interior • Interact with solar wind (and atmosphere of Io) to produce spectacular aurorae

  13. Summary: The Gas Giants

  14. Break

  15. Jupiter • This shows Voyager 1's approach during a period of over 60 Jupiter days. • Notice the difference in speed and direction of the various zones of the atmosphere. • The interaction of the atmospheric clouds and storms shows how dynamic the Jovian atmosphere is.

  16. Cloud motions in Jupiter’s atmosphere • The Coriolis force diverts N-S motion into E-W motion, in distinct zonal bands (5 in each hemisphere).

  17. Infared and Optical • Regions of white in visible light are dark in infrared • internal heat is blocked by the clouds • Darkest visible bands are brightest in the infrared • seeing deeper into the atmosphere where it is hotter • Red spot also dark in IR: cool, high altitude storm

  18. Jupiter’s atmosphere • Rising air from the deeper layers cools and forms clouds as it rises; we see deeper where the high ammonia clouds have been depleted by precipitation, much as on Earth rain will often mean clearer skies.

  19. Great Red Spot • Red colour probably from red phosphorous • A large eddy caused by rising hot gas and the Coriolis force

  20. Oval BA • A White oval storm, similar to the Red Spot but smaller • Formed from colliding storms in 1998 • Recently turned Red • May be bringing material to the upper atmosphere, where reactions with UV solar rays change the colour.

  21. Oval BA • Near collision in July 2006 • Is now the size of Earth with winds reaching 645 km/s, similar to the Great Red Spot • July 2006 • Feb 2006

  22. Saturn

  23. Saturn… views never seen before • From the Cassini spacecraft http://saturn.nasa.jpl.gov

  24. Saturn… views never seen before • From the Cassini spacecraft http://saturn.nasa.jpl.gov • night side of Saturn is partly lit by light reflected from its own ring system. Earth Faint E-ring, created by fountains from Enceladus

  25. Earth from Saturn

  26. Crossing the ring plane

  27. Internal heating • Saturn radiates more energy than it receives, by the same amount as Jupiter does • But Saturn is smaller, and this cannot all be gravitational energy • It is thought that He forms droplets and sinks downward, releasing gravitational energy • Thermal infrared picture of Saturn

  28. Storm at the pole Storms on Saturn • Like Jupiter, Saturn shows large storms • These are usually harder to see, however

  29. Uranus and Neptune • Uranus • Bluish green colour, with far fewer atmospheric features than Jupiter and Saturn • Neptune

  30. Colours of Uranus and Neptune

  31. Uranus and Neptune: Interiors • Likely have a rocky core, but are dominated by a fluid, icy and ionic ocean • Surrounded by an atmosphere rich in H and He • Uranus is the only gas giant that does not emit much more heat than it receives from the Sun • Internal convection disrupted? • Consistent with lack of storms

  32. Uranus’ tilt • Uranus has an axis of rotation pointing almost directly toward the Sun • Interestingly, prevailing winds are still E-W, so the Coriolis force dominates the weather patterns.
