  1. Chapter 7 Potential Energy and Energy Conservation

  2. Goals for Chapter 7 • To use gravitational potential energy for vertical motion • To use elastic potential energy for a body attached to a spring • To solve problems involving conservativeand non-conservative forces

  3. Potential Energy • Energy associated with a particular positionof a body when subjected to or acted on by forces. • Field Forces act on bodies even if not touching, like gravity, magnetism, electricity • Direct Contact forces, like springs • Energy associated with position is potential energy. • Example: Gravitational potential energy is Ugrav = mgy for a position “y”. • But what is “y”? Where is “y” = 0?? • Potential Energy is RELATIVE, not absolute…

  4. Gravitational potential energy Changein gravitational potential energy is related to work done by gravity.

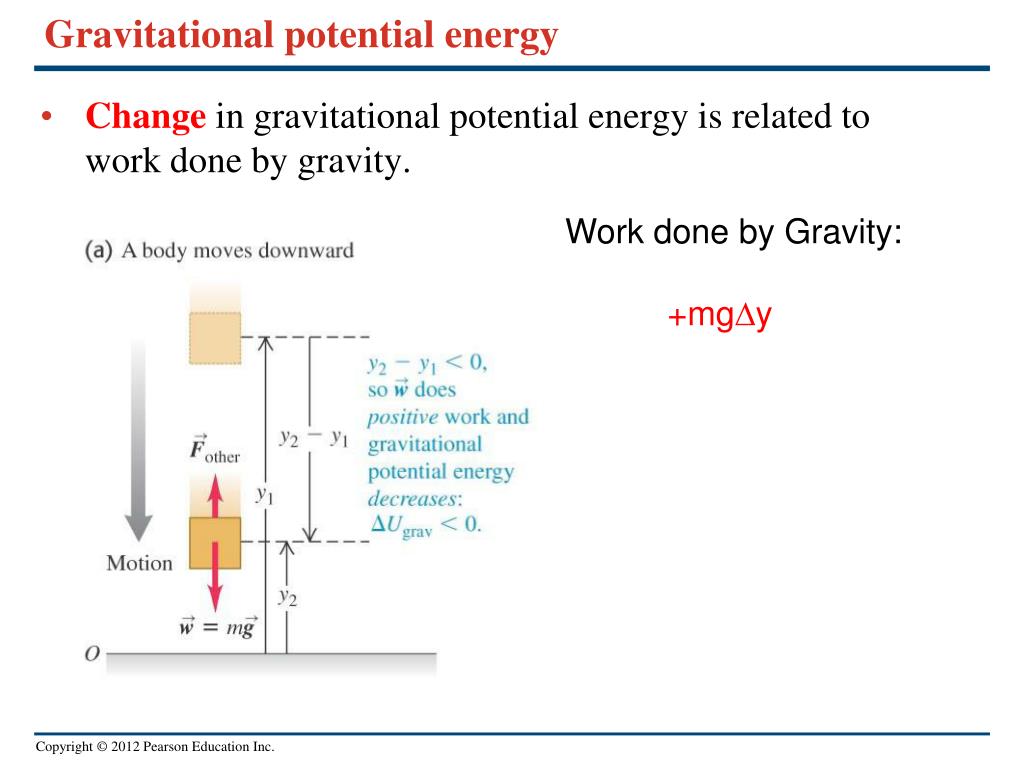

  5. Gravitational potential energy Changein gravitational potential energy is related to work done by gravity. Work done by Gravity: +mgDy

  6. Gravitational potential energy Changein gravitational potential energy is related to work done by gravity. Work done by Gravity: +mgDy Initial Potential Energy: mgy1 Final Potential Energy: mgy2

  7. Gravitational potential energy Changein gravitational potential energy is related to work done by gravity. Work done by Gravity: +mgDy Initial Potential Energy: mgy1 Final PE: mgy2 Difference: PEfinal – PE initial (mgy2 – mgy1)<0

  8. Gravitational potential energy Changein gravitational potential energy is related to work done by gravity..

  9. Gravitational potential energy Changein gravitational potential energy is related to work done by gravity.. Work done by Gravity: -mgDy Initial Potential Energy: mgy1 Final PE: mgy2 Difference: PEfinal – PE initial (mgy2 – mgy1)>0

  10. Gravitational potential energy Either moving DOWN or UP, changein gravitational potential energy is equal in magnitude and opposite in sign to work done by gravity. Work done by Gravity down: mgDy Difference: PEfinal – PE initial (mgy2 – mgy1)< 0

  11. Gravitational potential energy Either moving DOWN or UP, changein gravitational potential energy is equal in magnitude and opposite in sign to work done by gravity. Work done by Gravity up: -mgDy Difference: PEfinal – PE initial (mgy2 – mgy1)>0

  12. The conservation of mechanical energy • The total mechanical energy of a system is the sum of its kinetic energy and potential energy. • A quantity that always has the same value is called a conserved quantity.

  13. The conservation of mechanical energy When only force of gravity does work on a system, total mechanical energy of that system is conserved. This is an example of the conservation of mechanical energy. Gravity is known as a “conservative” force

  14. An example using energy conservation • 0.145 kg baseball thrown straight up @ 20m/s. How high?

  15. An example using energy conservation • 0.145 kg baseball thrown straight up @ 20m/s. How high? • Use Energy Bar Graphs to track total, KE, and PE:

  16. When forces other than gravity do work • Now add the launch force! (move hand .50 m upward while accelerating the ball)

  17. When forces other than gravity do work • Now add the launch force! (move hand .50 m upward while accelerating the ball)

  18. Work and energy along a curved path • We can use the same expression for gravitational potential energy whether the body’s path is curved or straight.

  19. Energy in projectile motion – example 7.3 • Two identical balls leave from the same height with the same speed but at different angles. Prove they have the same speed at any height h (neglecting air resistance)

  20. Motion in a vertical circle with no friction • Speed at bottom of ramp of radius R = 3.00 m?

  21. Motion in a vertical circle with no friction • Speed at bottom of ramp of radius R = 3.00 m?

  22. Motion in a vertical circle with no friction • Normal force DOES NO WORK!

  23. Motion in a vertical circle with friction • Revisit the same ramp as in the previous example, but this time with friction. • If his speed at bottom is 6.00 m/s, what was work by friction?

  24. Moving a crate on an inclined plane with friction • Slide 12 kg crate up 2.5 m incline without friction at 5.0 m/s. • With friction, it goes only 1.6 m up the slope. • What is fk? • How fast is it moving at the bottom?

  25. Moving a crate on an inclined plane with friction • Slide 12 kg crate up 2.5 m incline without friction at 5.0 m/s. • With friction, it goes only 1.6 m up the slope. • What is fk? • How fast is it moving at the bottom?

  26. Work done by a spring • Work on a block as spring is stretched and compressed.

  27. Elastic potential energy • A body is elastic if it returns to its original shape after being deformed. • Elastic potential energy is the energy stored in an elastic body, such as a spring. • The elastic potential energy stored in an ideal spring is Uel = 1/2 kx2. • Figure 7.14 at the right shows a graph of the elastic potential energy for an ideal spring.

  28. Situations with both gravitational and elastic forces • When a situation involves both gravitational and elastic forces, the total potential energy is the sum of the gravitational potential energy and the elastic potential energy: U = Ugrav + Uel. • Figure 7.15 below illustrates such a situation. • Follow Problem-Solving Strategy 7.2.

  29. Motion with elastic potential energy • Glider of mass 200 g on frictionless air track, connected to spring with k = 5.00 N/m. Stretch it 10 cm, and release from rest. • What is velocity when x = 0.08 m?

  30. Motion with elastic potential energy • Glider of mass 200 g on frictionless air track, connected to spring with k = 5.00 N/m. Stretch it 10 cm, and release from rest. • What is velocity when x = 0.08 m?

  31. A system having two potential energies and friction • Gravity, a spring, and friction all act on the elevator. • 2000 kg elevator with broken cables moving at 4.00 m/s • Contacts spring at bottom, compressing it 2.00 m. • Safety clamp applies constant 17,000 N friction force as it falls.

  32. A system having two potential energies and friction • What is the spring constant k for the spring so it stops in 2.00 meters?

  33. Conservative and nonconservative forces • A conservative force allows conversion between kinetic and potential energy. Gravity and the spring force are conservative. • The work done between two points by any conservative force • a) can be expressed in terms of a potential energy function. • b) is reversible. • c) is independent of the path between the two points. • d) is zero if the starting and ending points are the same.

  34. Conservative and nonconservative forces • A conservative force allows conversion between kinetic and potential energy. Gravity and the spring force are conservative. • A force (such as friction) that is not conservative is called a non-conservative force, or a dissipativeforce.

  35. Frictional work depends on the path • Move 40.0 kg futon 2.50 m across room; slide it along paths shown. How much work required if mk = .200

  36. Conservative or nonconservative force? • Suppose force F = Cx in the y direction. What is work required in a round trip around square of length L?

  37. Conservation of energy • Nonconservative forces do not store potential energy, but they do change the internal energy of a system. • The law of the conservation of energy means that energy is never created or destroyed; it only changes form. • This law can be expressed as K + U + Uint = 0.

  38. Force and potential energy in one dimension • In one dimension, a conservative force can be obtained from its potential energy function using • Fx(x) = –dU(x)/dx

  39. Force and potential energy in one dimension • In one dimension, a conservative force can be obtained from its potential energy function using • Fx(x) = –dU(x)/dx

  40. Force and potential energy in two dimensions • In two dimension, the components of a conservative force can be obtained from its potential energy function using • Fx = –U/dx and Fy = –U/dy

  41. Energy diagrams • An energy diagram is a graph that shows both the potential-energy function U(x) and the total mechanical energy E.

  42. Force and a graph of its potential-energy function
