Java interfaces and abstract classes 3

Java Interfaces and Abstract Classes (3)

Chris Loftus

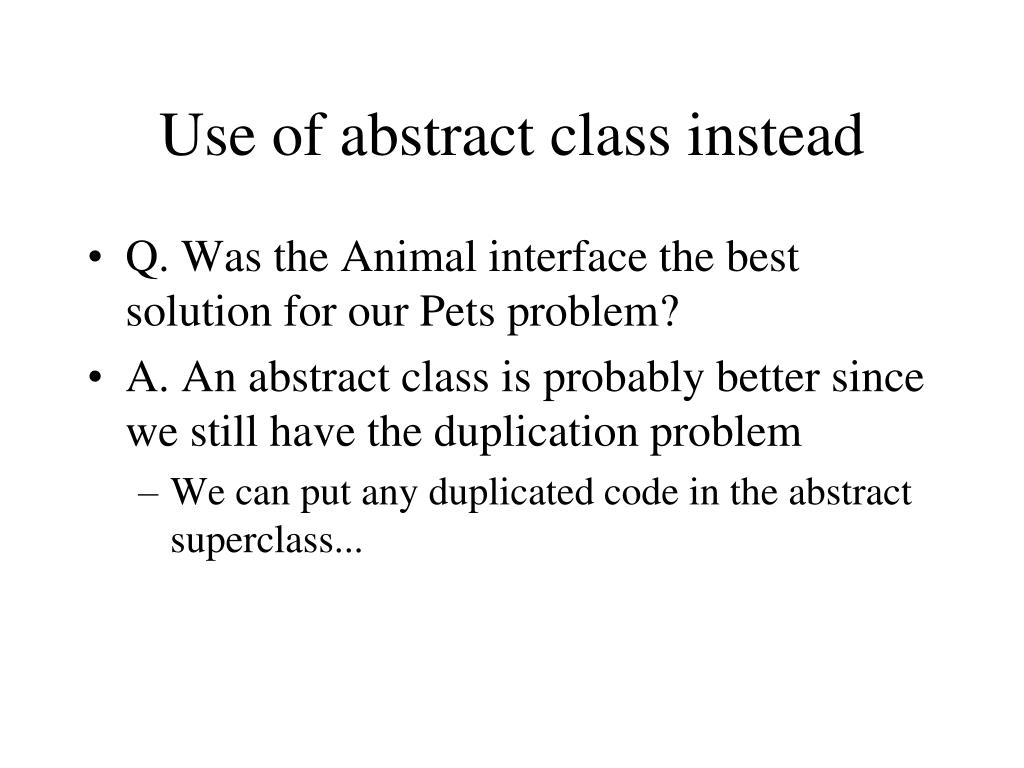

Use of abstract class instead

Use of abstract class instead

  • Q. Was the Animal interface the best solution for our Pets problem?

  • A. An abstract class is probably better since we still have the duplication problem

    • We can put any duplicated code in the abstract superclass...


Uml class diagram using an abstract class

UML class diagram using an Abstract class

-myPets

*

Pets

-myPets: Pet[]

-numPets: int

+addPet(newPet: Pet):void

+showSound():void

TestPets

+main(…)

{abstract}

Pet

- name: String

+Pet()

+getName():String {final}

+sound():String

Cat

+sound():String

Fish

+getKind():String

Dog

+sound():String

HappyCat

+HappyCat()

+sound():String


Demo notes

Demo (notes)

  • Pet is now an abstract class

  • Abstract means we cannot create an object of this class, cannot use new Pet()

  • I want to create instances of Cats, Dogs etc but not the abstract concept of Pet

  • Pet is used to store the pet name and provide getName and sound methods in one place...

  • Why use private for name rather than protected?...


Demo notes1

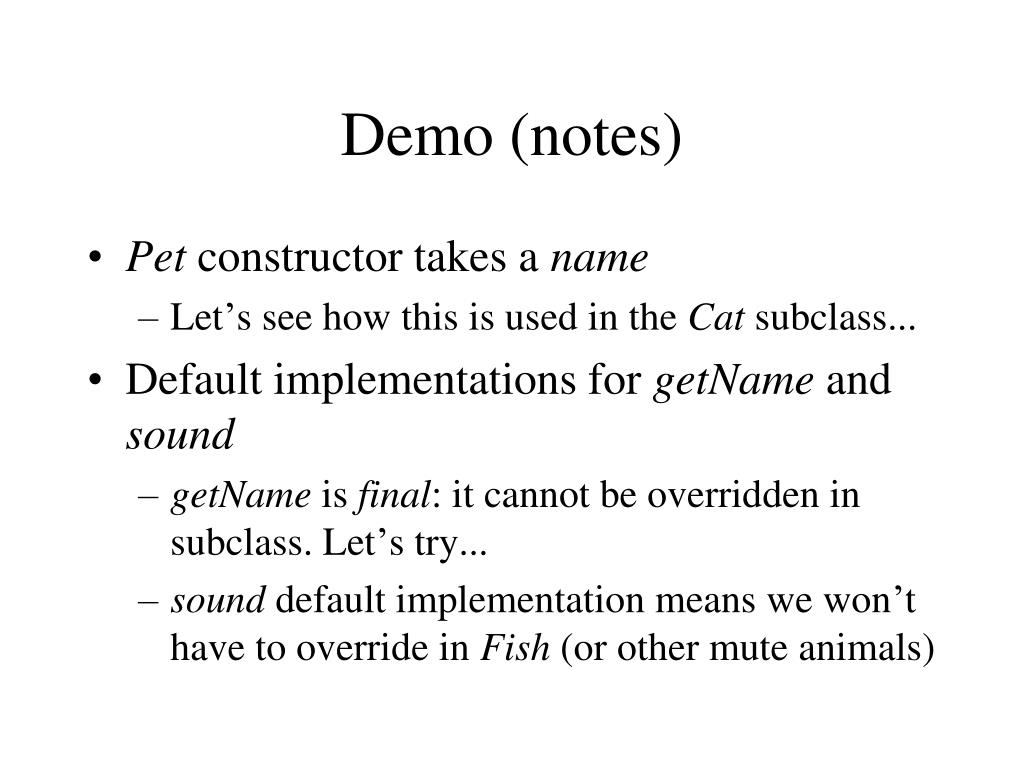

Demo (notes)

  • Pet constructor takes a name

    • Let’s see how this is used in the Cat subclass...

  • Default implementations for getName and sound

    • getName is final: it cannot be overridden in subclass. Let’s try...

    • sound default implementation means we won’t have to override in Fish (or other mute animals)


Demo notes2

Demo (notes)

  • Can also make methods abstract

    • I demonstrated this with sound...

    • Rather like methods in an interface so can still act like a contract...

    • Notice how Fish now does not compile since it must have a sound implementation...


Abstract classes vs interfaces

Abstract classes vs interfaces

  • Use abstract classes instead of or as well as interfaces if you have default implementations and somewhere to store common data

  • Interfaces are good when you don’t know what the implementation will look like and want to specify a contract that future implementation classes (including abstract classes) must meet...


Demo notes happycat

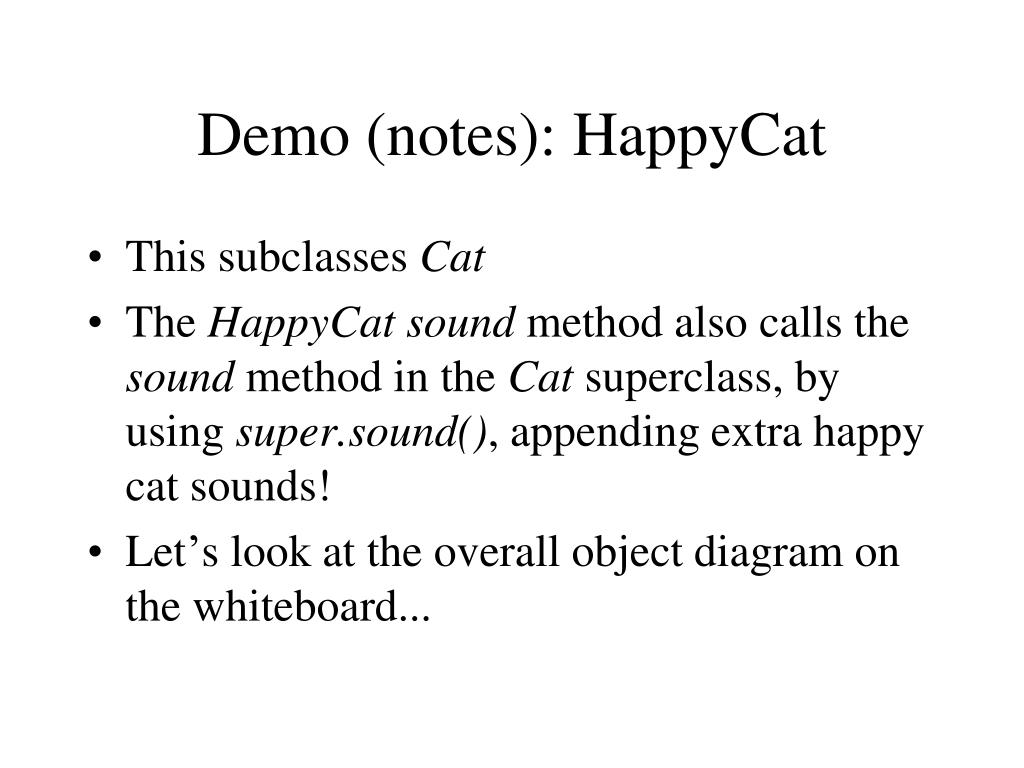

Demo (notes): HappyCat

  • This subclasses Cat

  • The HappyCatsound method also calls the sound method in the Cat superclass, by using super.sound(), appending extra happy cat sounds!

  • Let’s look at the overall object diagram on the whiteboard...


Polymorphism

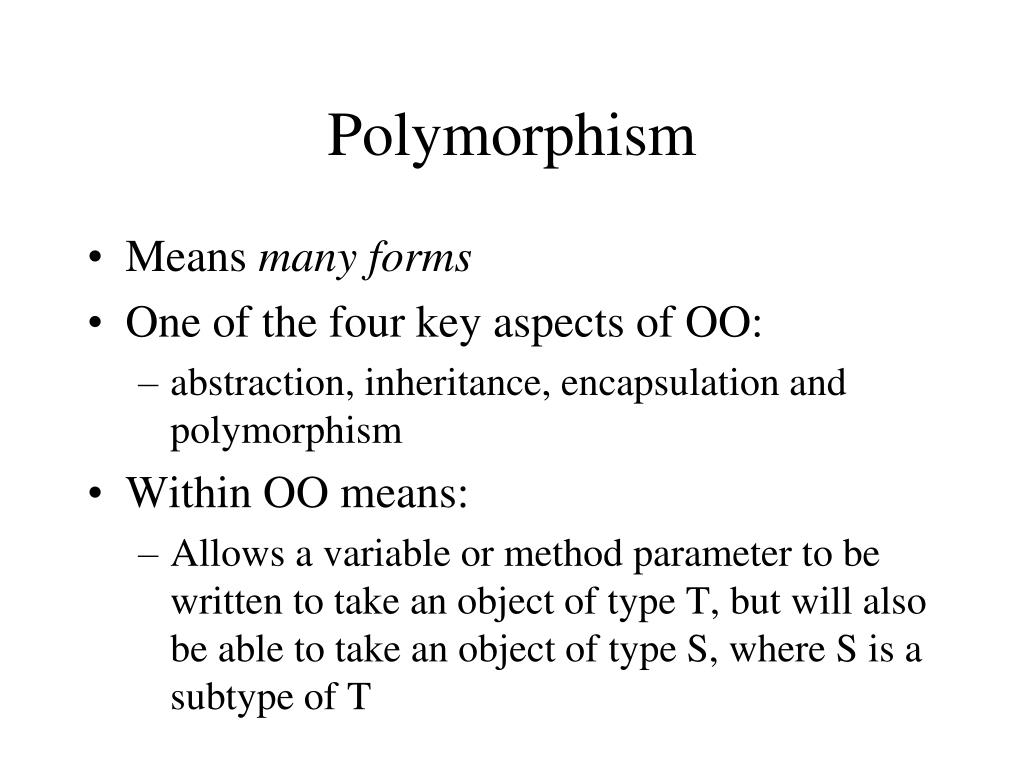

Polymorphism

  • Means many forms

  • One of the four key aspects of OO:

    • abstraction, inheritance, encapsulation and polymorphism

  • Within OO means:

    • Allows a variable or method parameter to be written to take an object of type T, but will also be able to take an object of type S, where S is a subtype of T


Examples

Examples

-myPets

{abstract}

Pet

*

S <: T (S is a subtype of T)

T >: S (T is a supertype of S)

S v1;

T v2 = v1; // Is allowed

Q: Given the UML class diagram is this allowed?

Pet p = new Fish();

Cat c = p;

Cat

Fish

Dog

HappyCat

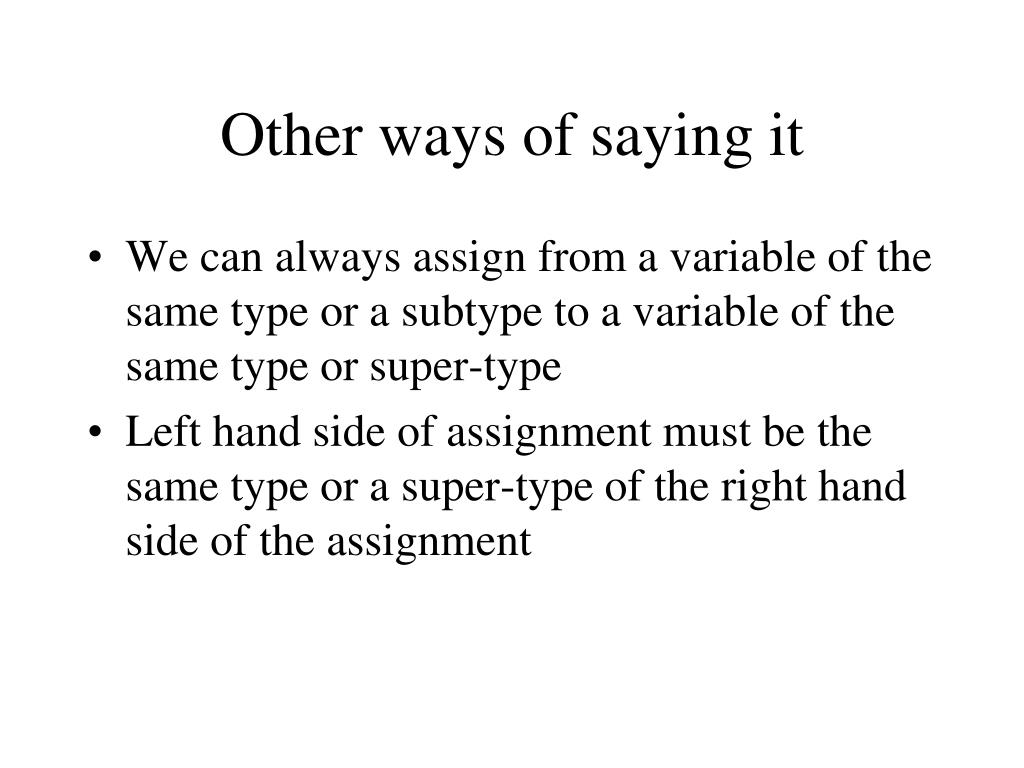

Other ways of saying it

Other ways of saying it

  • We can always assign from a variable of the same type or a subtype to a variable of the same type or super-type

  • Left hand side of assignment must be the same type or a super-type of the right hand side of the assignment


Liskov substitution principle

Liskov Substitution Principle

  • Polymorphism as shown above is also called the Liskov Substitution Principle after Barbara Liskov in her 1993 paper:

    • Family values: A behavioural notion of subtyping, MIT Technical Report, TR-562b

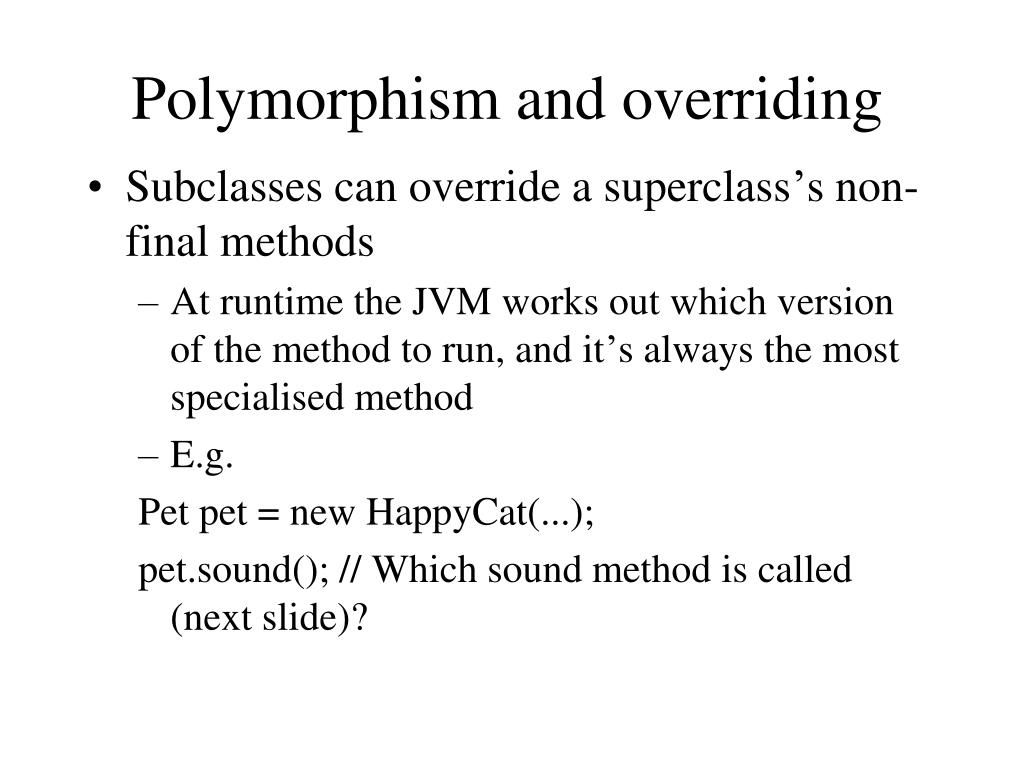

Polymorphism and overriding

Polymorphism and overriding

  • Subclasses can override a superclass’s non-final methods

    • At runtime the JVM works out which version of the method to run, and it’s always the most specialised method

    • E.g.

      Pet pet = new HappyCat(...);

      pet.sound(); // Which sound method is called (next slide)?


Java interfaces and abstract classes 3

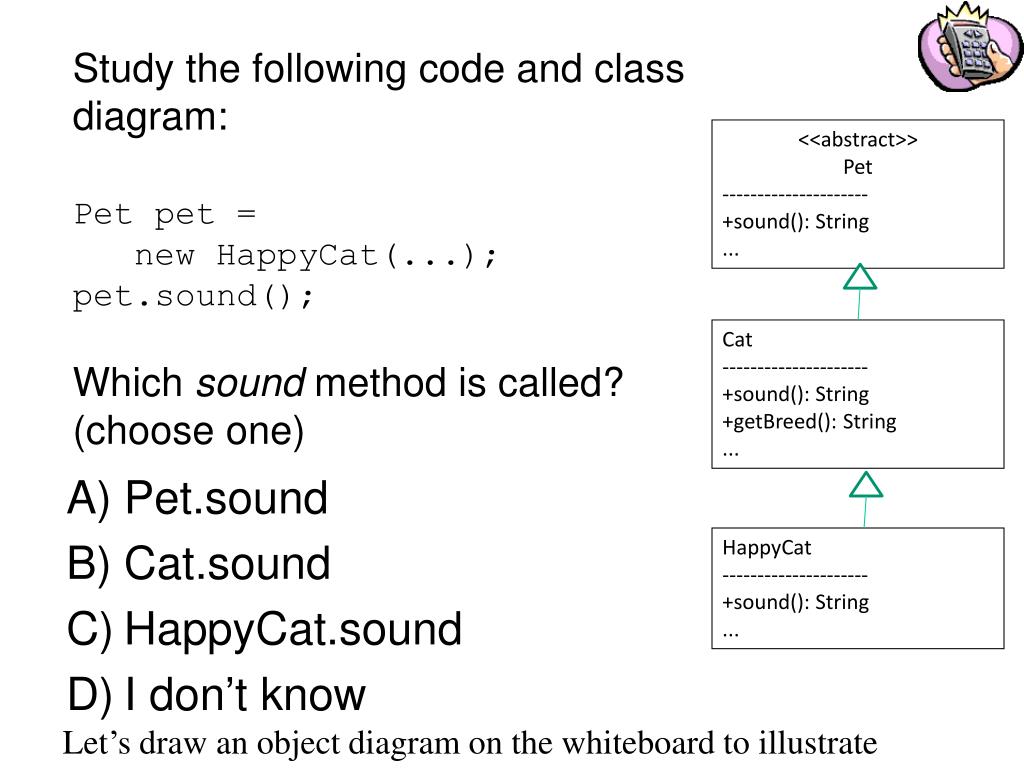

Study the following code and class diagram:Pet pet = new HappyCat(...);pet.sound();Which sound method is called? (choose one)

<<abstract>>

Pet

---------------------

+sound(): String

...

  • Pet.sound

  • Cat.sound

  • HappyCat.sound

  • I don’t know

Cat

---------------------

+sound(): String

+getBreed(): String

...

HappyCat

---------------------

+sound(): String

...

  • Let’s draw an object diagram on the whiteboard to illustrate


Yes or no pet pet new happycat

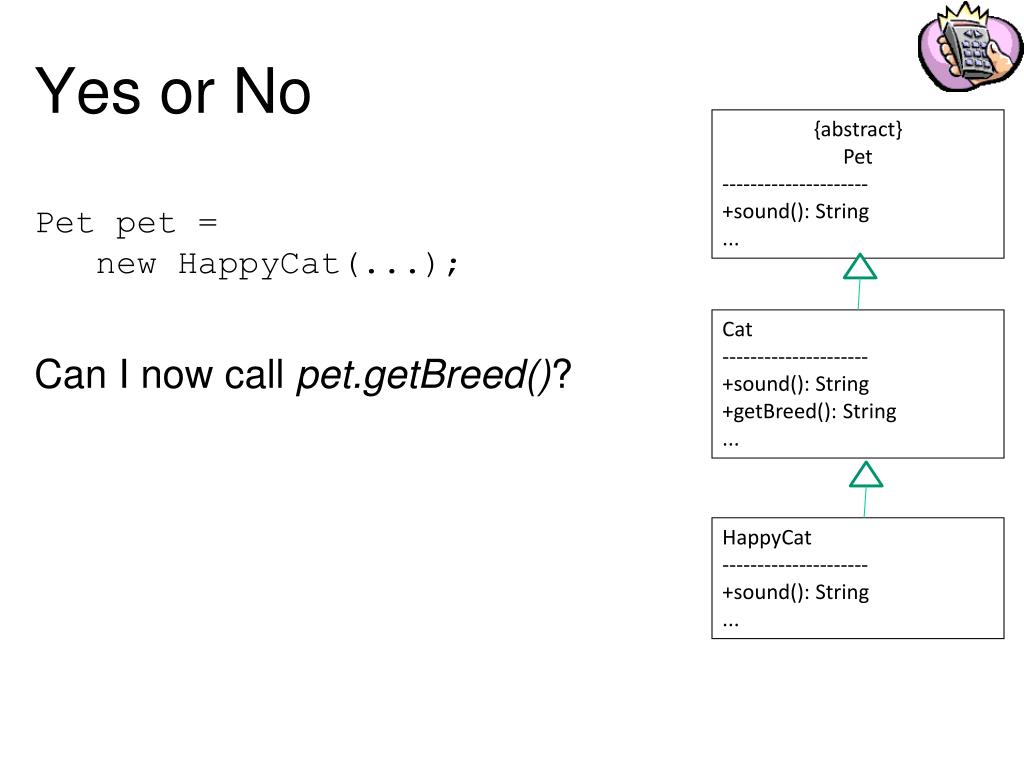

Yes or NoPet pet = new HappyCat(...);

{abstract}

Pet

---------------------

+sound(): String

...

Can I now call pet.getBreed()?

Cat

---------------------

+sound(): String

+getBreed(): String

...

HappyCat

---------------------

+sound(): String

...


Polymorphism and overriding1

Polymorphism and overriding

  • What do we need to do to access the getBreed() method?

  • We use a cast operator

    Pet pet;

    // pet = ... Assume some code here

    Cat c = (Cat)pet;

    c.getBreed();

  • What could go wrong here at runtime? (next slide)...


Java interfaces and abstract classes 3

{abstract}

Pet

---------------------

+sound(): String

...

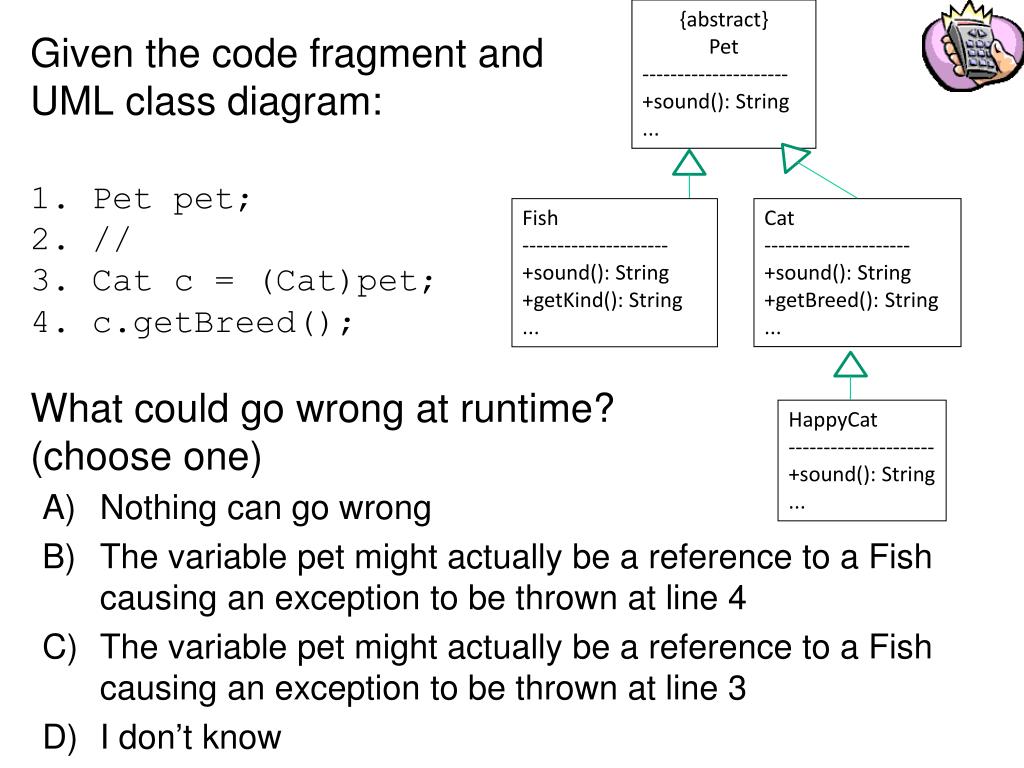

Given the code fragment and UML class diagram:1. Pet pet;2. // 3. Cat c = (Cat)pet;4. c.getBreed();What could go wrong at runtime?(choose one)

Fish

---------------------

+sound(): String

+getKind(): String

...

Cat

---------------------

+sound(): String

+getBreed(): String

...

  • Nothing can go wrong

  • The variable pet might actually be a reference to a Fish causing an exception to be thrown at line 4

  • The variable pet might actually be a reference to a Fish causing an exception to be thrown at line 3

  • I don’t know

HappyCat

---------------------

+sound(): String

...


More on casting

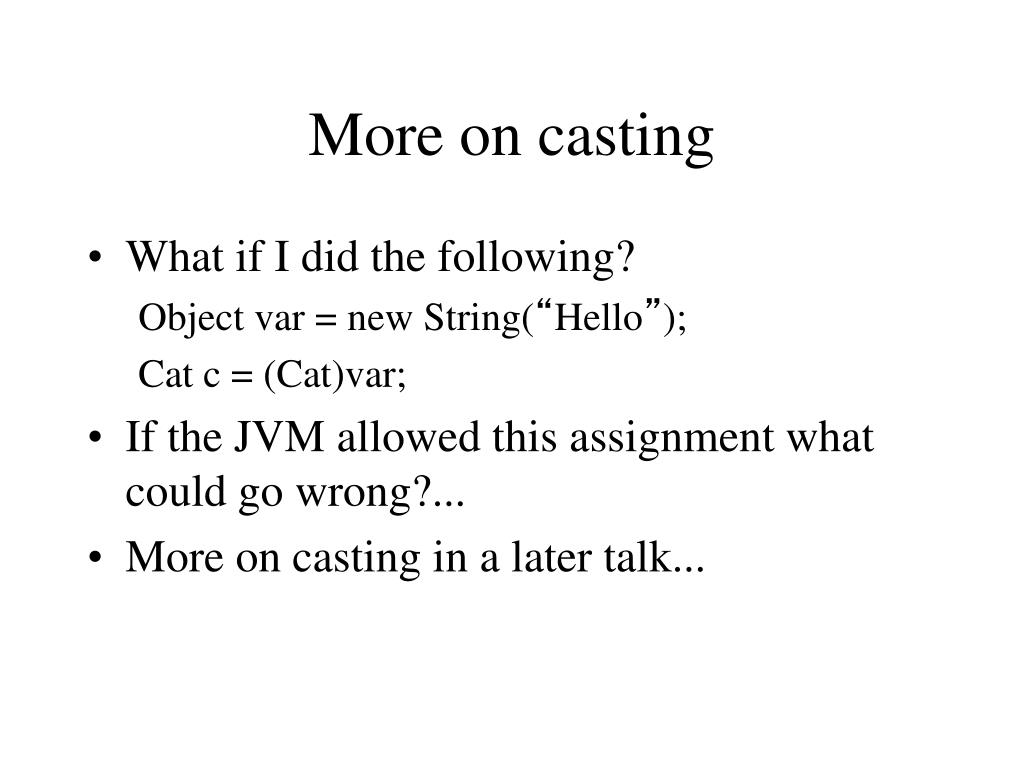

More on casting

  • What if I did the following?

    Object var = new String(“Hello”);

    Cat c = (Cat)var;

  • If the JVM allowed this assignment what could go wrong?...

  • More on casting in a later talk...
