The Islamic University Of Gaza

Faculty Of Engineering

Electrical Engineering Department

Advanced Technical English

Programmable Logic controllers (PLC)

BY : Marwan Hammouda 120030606

Sabri Mohammed Radi 120030171

To : Dr . Basil Hamad


Functions of controllers

Functions of Controllers :

  • On-off control

  • Sequential control

  • Feedback control

  • Mation control


Control devices

Control Devices:

  • Mechanical control

  • Pneumatic control

  • Electromechanical control

  • Electronic control

  • Computer control


Programmable logic controllers plcs

Programmable Logic controllersPLCs

  • Were introduced in 1968

  • Were primarily intended to replace relay devices , so it is appropriate to be familiar with the components used in relay devices


Plcs continue

PLCs (continue)

  • The National Electrical Manufacturing Associatioin (NEMA) defines the PLC as

    “A digitally operating electronic apparatus which uses a programmable memory for the internal storage of instructions by implementing specific functions such as logic sequencing, timing, counting, and arithmetic to control, through digital or analog input/output modules, various types of machines or processes. The digital computer which is used to perform the functions of a programmable controller is considered to be within this scope. Excluded are drum and other similar mechanical sequencing controllers."


Why is the plc

Why is the PLC ?

  • Cost effective for controlling complex systems.

  • Flexible and can be reapplied to control other systems quickly and easily

  • Computational abilities allow more sophisticated control.

  • Trouble shooting aids make programming easier and reduce downtime

  • Reliable components make these likely to operate for years before failure


Plc architecture

PLC Architecture


Plc components

PLC Components :

  • Processor : The processor (CPU) scans the status of the input peripheral , examines the control logic to see what action to take , and then excute the appropriate output response

  • Memory : the control program and the peripheral status are stored in the memory

    ROM( Read Only Memory )

    RAM (Random Access Memory),

    PROM (Programmable Read Only Memory), EEPROM (Electric Erasable Programmable ROM),

    EPROM (Erasable Programmable Read Only Memory), EAPROM (Electronically Alterable Programmable


Plc components continue

PLC Components (continue)

  • Input/Output :

    modular plug-in periphery

    Ac voltage input and output

    Dc voltage input and output

    Low level analog input

    High level analog input and output

    Specail purpose modulas

  • Powre supply : Ac power

  • Peripherals : Hand-Held Programmer ( HHP)

    CRT programmer

    Operetor console

    Printer

    Simulator

    EPROM loader

    Graphics processor

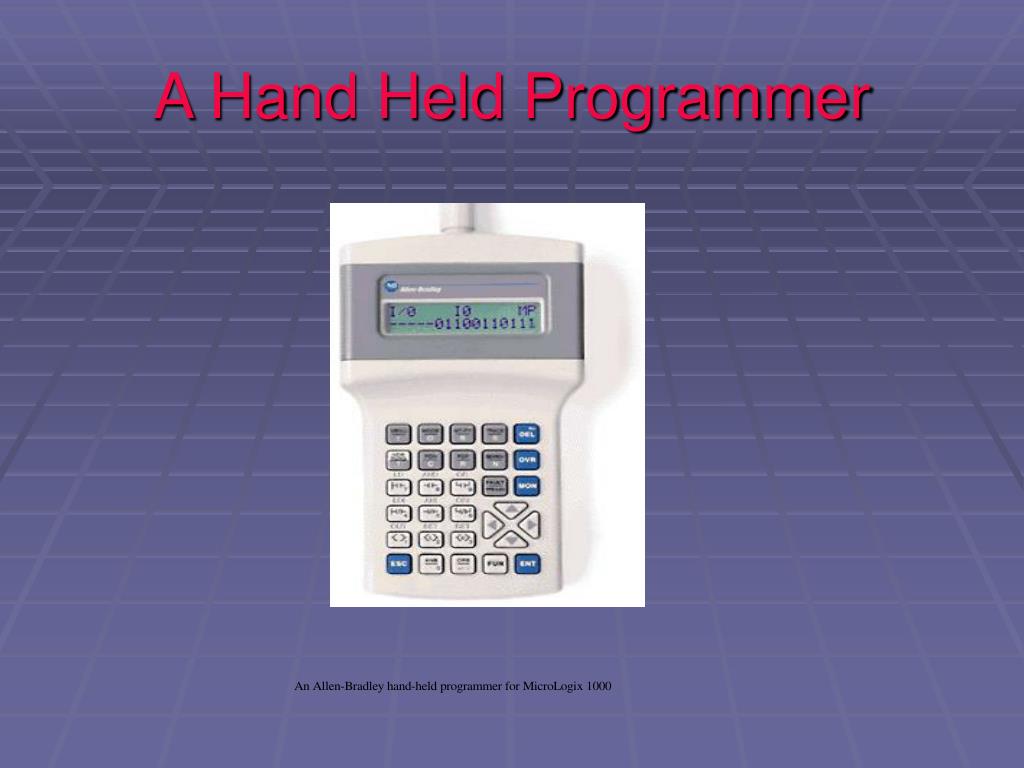

A hand held programmer

A Hand Held Programmer


Plc programming

PLC Programming

  • Ladder Diagram - most common

  • Structure Text Programming (ST)

  • Functional Block Programming (FB)

  • Instruction List (IL)

  • Sequential Function Chart (SFC)


Ladder diagram

Ladder Diagram

A ladder diagram (also called contact symbology) is a means of graphically representing the logic required in a relay logic system.

Rail

Rung


Plc ladder diagram instructions

1) Relay,

2) Timer and counter,

3) Program control,

4) Arithmetic,

5) Data manipulation,

6) Data transfer, and

7) Others, such as sequencers.

Hint : Relay , timer and counter instructions are the most fundemental because they correspond to what is on a ladder diagram and are avaliable on all PLCs so we limit our disscusion to them

PLC Ladder DiagramINSTRUCTIONS


Relay

Relay

A Relay consists of two parts, the coil and the contact(s).

Contacts:

a. Normally open-| |-

b. Normally closed-|/|-

c. Positive transition sensing -|P|-

d. Negative transition sensing-|N|-

Coil:

a. Coil-( )-

b. negative coil-(/)-

c. Set Coil-(S)-

d. Reset Coil-(R)-

contact

coil

input


Relay continue

Relay (continue)

Coil:

e. Retentive memory Coil-(M)-

f. Set retentive memory Coil-(SM)-

g. Reset retentive memory Coil -(RM)-

h. Positive Transition-sensing Coil-(P)-

h. Negative Transition-sensing Coil-(N)-

(set coil latches the state, reset coil deenergize the set coil. retentive coil retain the state after power failure.)


Timers and counters

Timers:

a. Retentive on delay-(RTO)-

b. Retentive off delay-(RTF)-

c. Reset-(RST)-

Counter:

a. Counter up-(CTU)-

b. Counter down-(CTD)-

c. Counter reset-(CTR)-

TIMERS AND COUNTERS

Input

True False True

RTO counting stop counting

resume

RTF stop counting stop

RTO reach PR value, output ON

RTF reach PR value, output OFF

PR value in 0.1 second


Timers and counters continue

TIMERS AND COUNTERS(continue)

5

COUNTER

TIMER
