Presentation Transcript

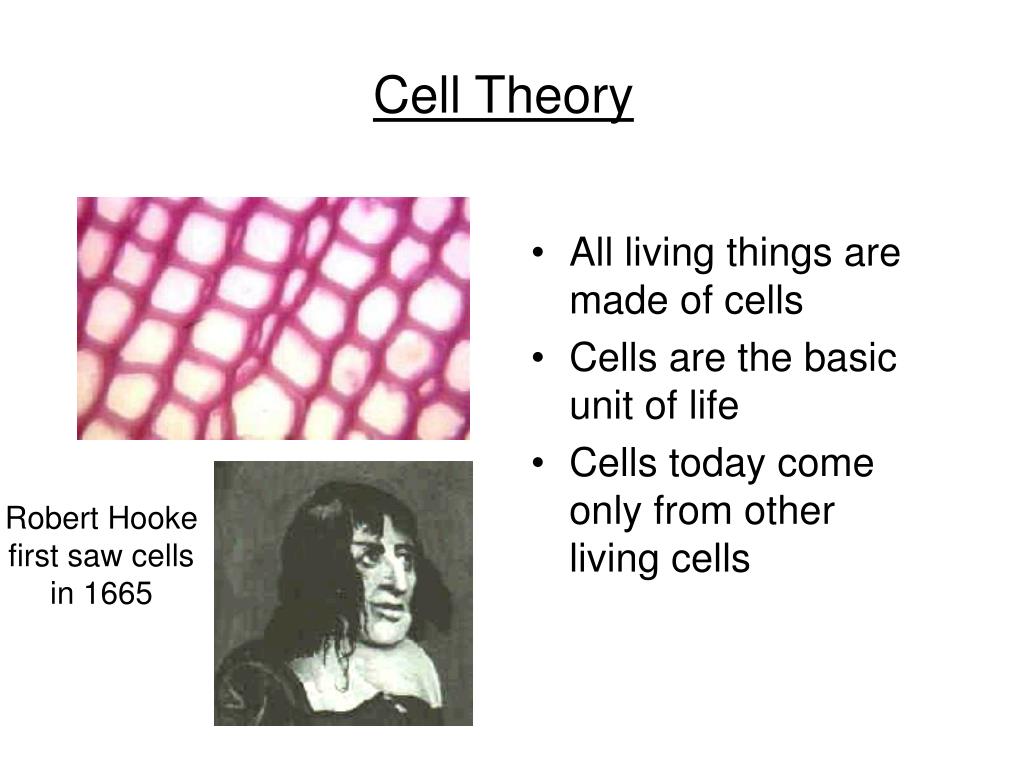

Cell theory

Cell Theory

  • All living things are made of cells

  • Cells are the basic unit of life

  • Cells today come only from other living cells

Robert Hooke first saw cells in 1665

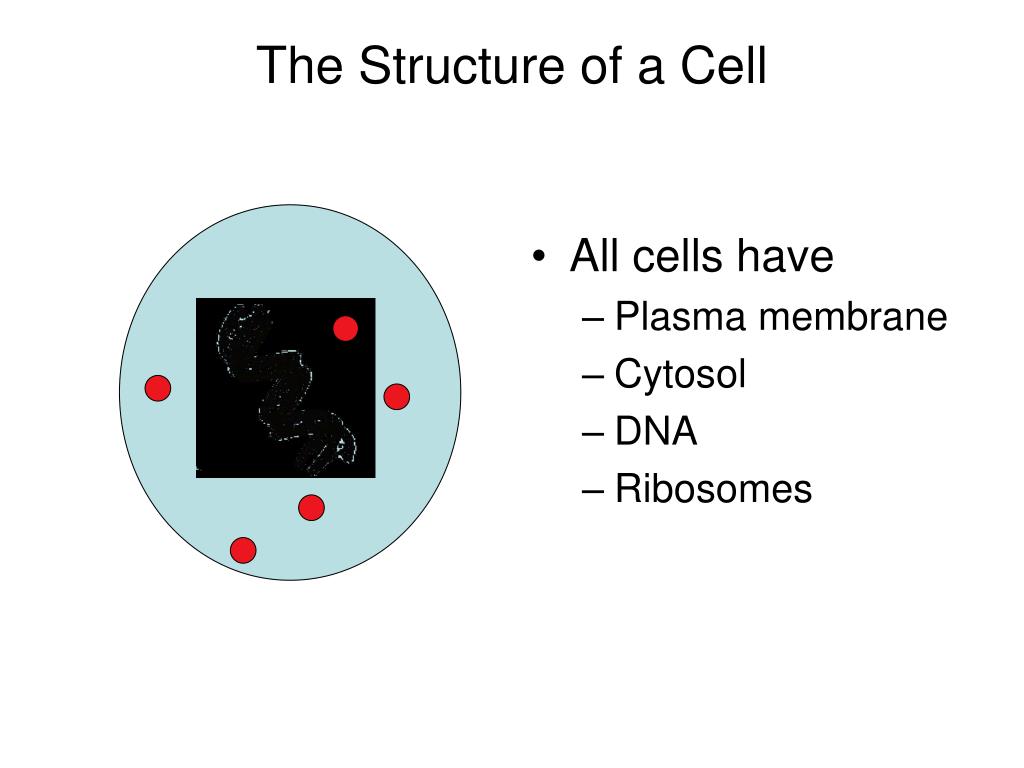

The structure of a cell

The Structure of a Cell

  • All cells have

    • Plasma membrane

    • Cytosol

    • DNA

    • Ribosomes


Two major types of cells

Two Major Types of Cells

  • Prokaryotic

    • No membrane bound organelles

    • Make up Domains Archaea and Eubacteria

  • Eukaryotic

    • Membrane-bound organelles

    • Make up Kingdoms Plantae, Animalia, Protista, and Fungi


A prokaryotic cell

A prokaryotic cell

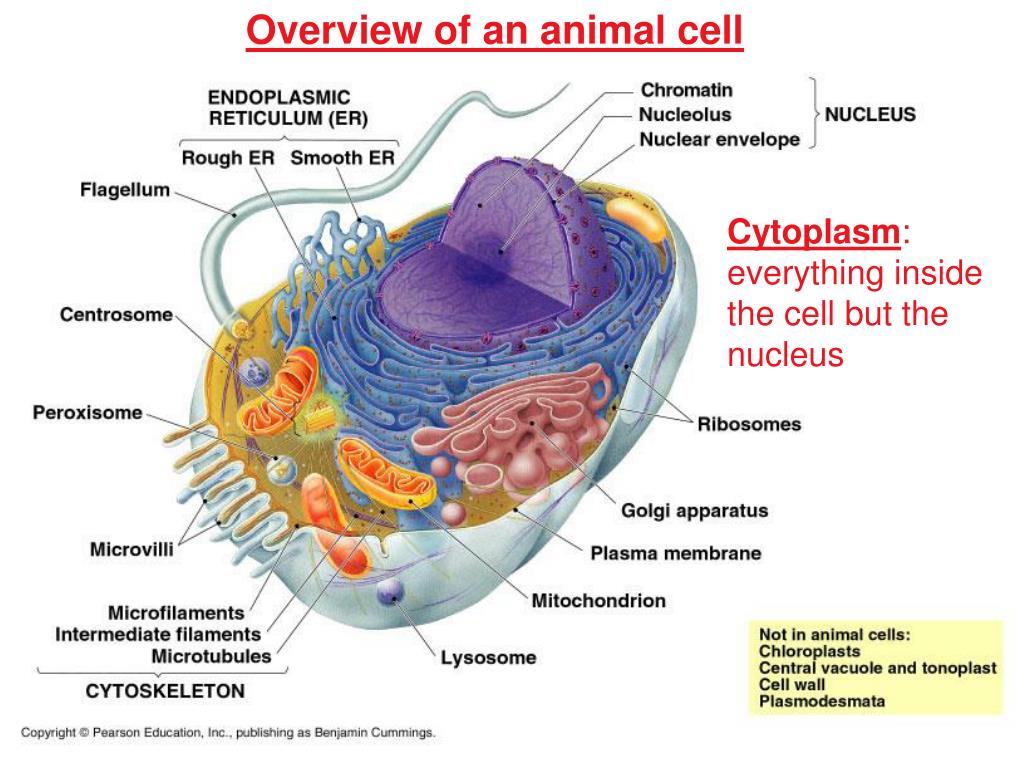

Overview of an animal cell

Overview of an animal cell

Cytoplasm:

everything inside the cell but the nucleus


Overview of a plant cell

Overview of a plant cell


Cell size

Cell size

The human body has over 5 billion cells. The largest animal is the blue whale, Balaenoptera musculus. It is known to reach lengths over 100 feet (30+ meters) and weigh 120 tons.


Cell size1

Cell size

So, why aren’t there organisms composed of one really big cell?


Surface area and volume

Surface Area and Volume

  • Surface area of a sphere = 4r2

  • Volume of a sphere = (4/3) r3

  • So as a sphere gets bigger,

  • its volume increases faster than its surface area


  • Figure 7 5 geometric relationships explain why most cells are microscopic

    Figure 7.5 Geometric relationships explain why most cells are microscopic

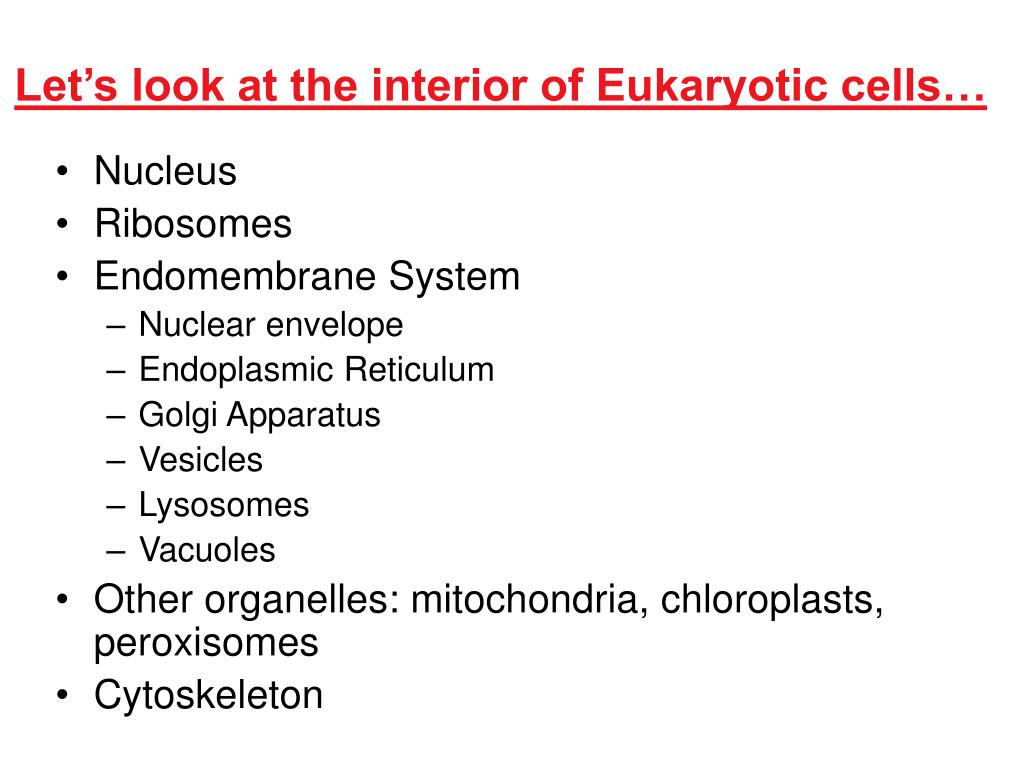

    Let s look at the interior of eukaryotic cells

    Let’s look at the interior of Eukaryotic cells…

    • Nucleus

    • Ribosomes

    • Endomembrane System

      • Nuclear envelope

      • Endoplasmic Reticulum

      • Golgi Apparatus

      • Vesicles

      • Lysosomes

      • Vacuoles

    • Other organelles: mitochondria, chloroplasts, peroxisomes

    • Cytoskeleton


    Dna rna protein a diagrammatic overview of information flow in a cell

    DNA RNA  protein: a diagrammatic overview of information flow in a cell


    Figure 7 9 the nucleus and its envelope

    Figure 7.9 The nucleus and its envelope

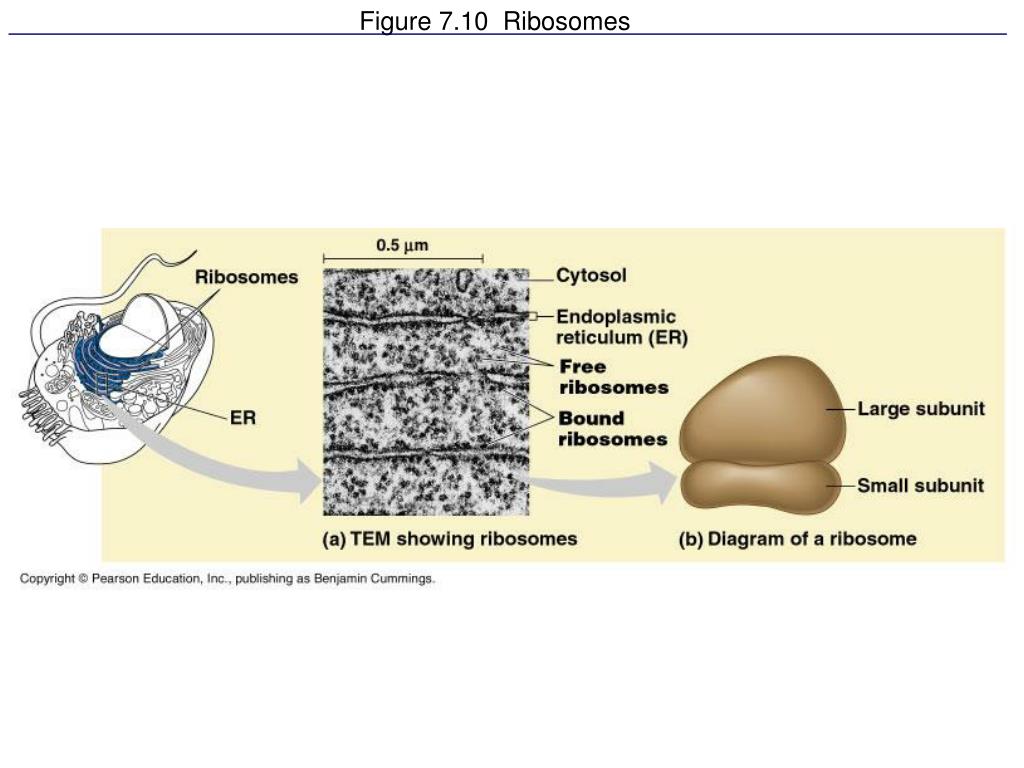

    Figure 7 10 ribosomes

    Figure 7.10 Ribosomes


    Figure 7 11 endoplasmic reticulum er

    Figure 7.11 Endoplasmic reticulum (ER)

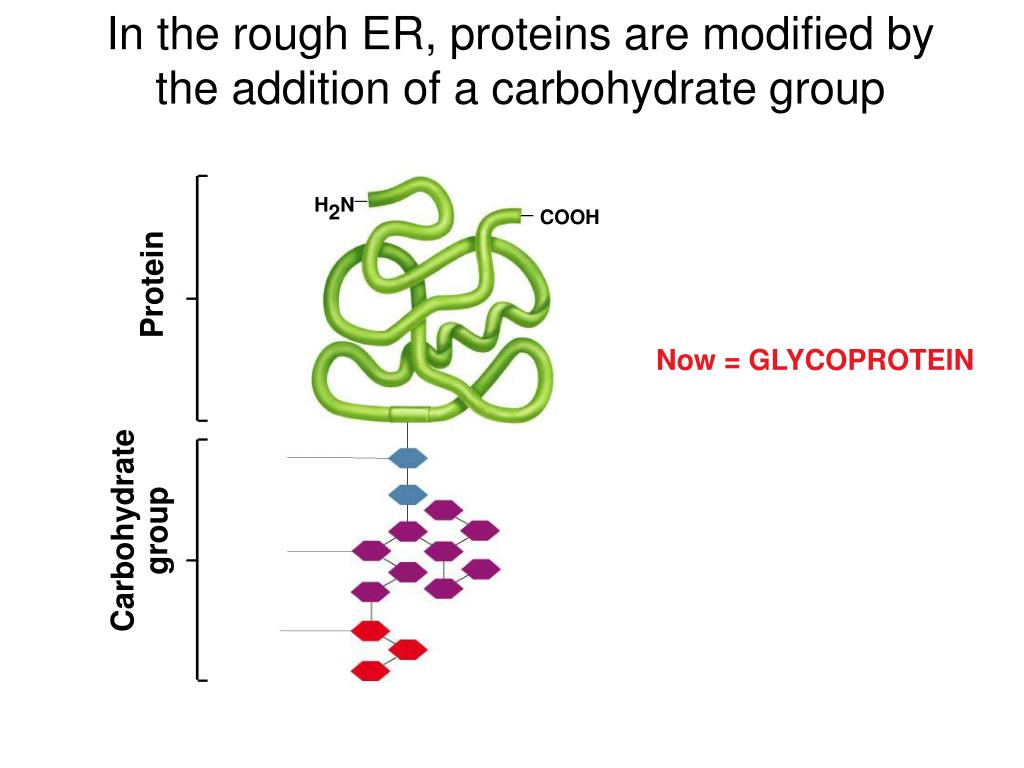

    In the rough er proteins are modified by the addition of a carbohydrate group

    In the rough ER, proteins are modified by the addition of a carbohydrate group

    H2N

    COOH

    Protein

    Now = GLYCOPROTEIN

    Carbohydrate group

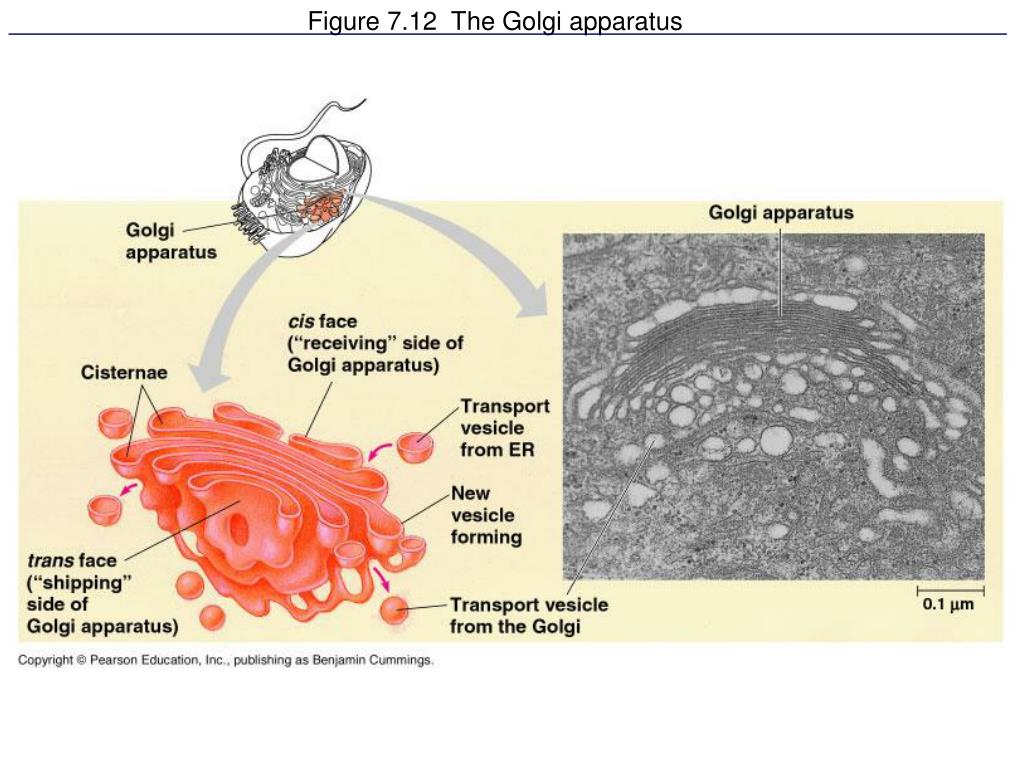

    Figure 7 12 the golgi apparatus

    Figure 7.12 The Golgi apparatus


    Cell theory

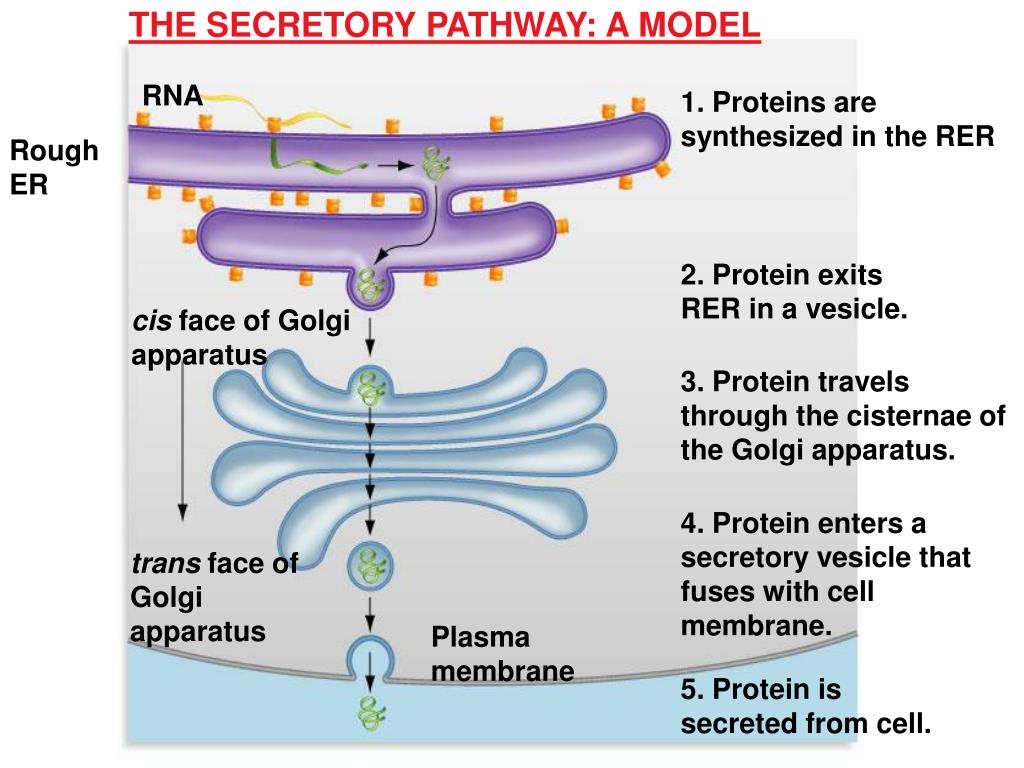

    THE SECRETORY PATHWAY: A MODEL

    RNA

    1. Proteins are synthesized in the RER

    Rough ER

    2. Protein exits RER in a vesicle.

    cis face of Golgi apparatus

    3. Protein travels through the cisternae of the Golgi apparatus.

    4. Protein enters a secretory vesicle that fuses with cell membrane.

    trans face of Golgi apparatus

    Plasma membrane

    5. Protein is secreted from cell.


    Figure 7 13 lysosomes

    Figure 7.13 Lysosomes


    Figure 7 14 the formation and functions of lysosomes layer 1

    Figure 7.14 The formation and functions of lysosomes (Layer 1)

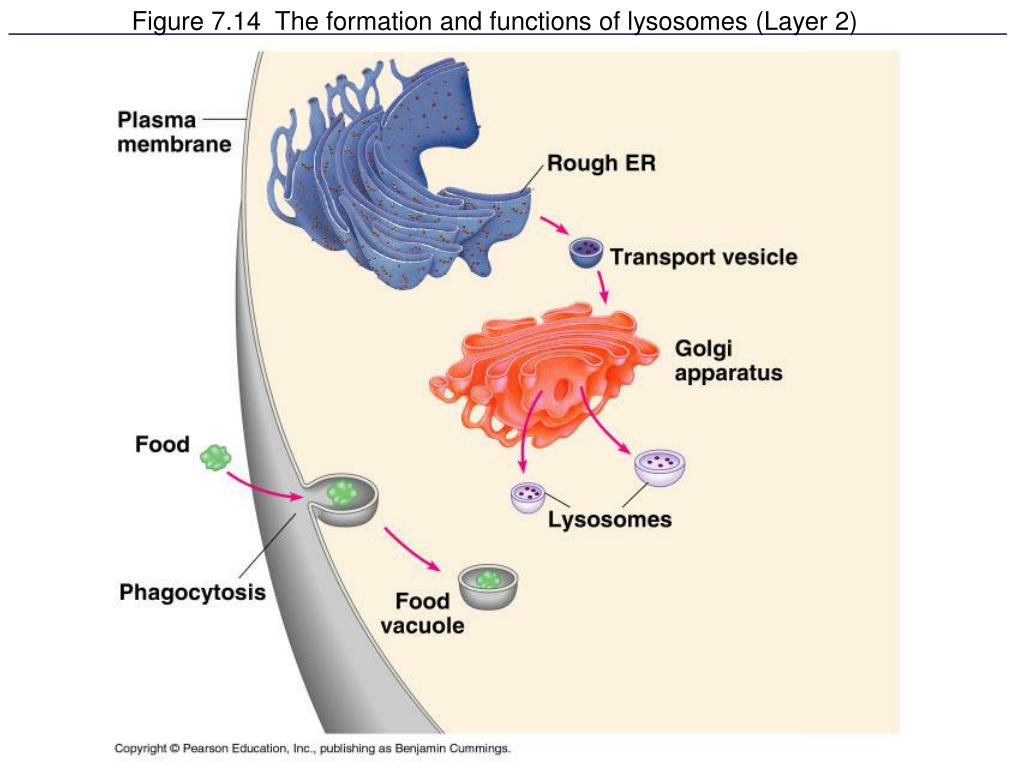

    Figure 7 14 the formation and functions of lysosomes layer 2

    Figure 7.14 The formation and functions of lysosomes (Layer 2)

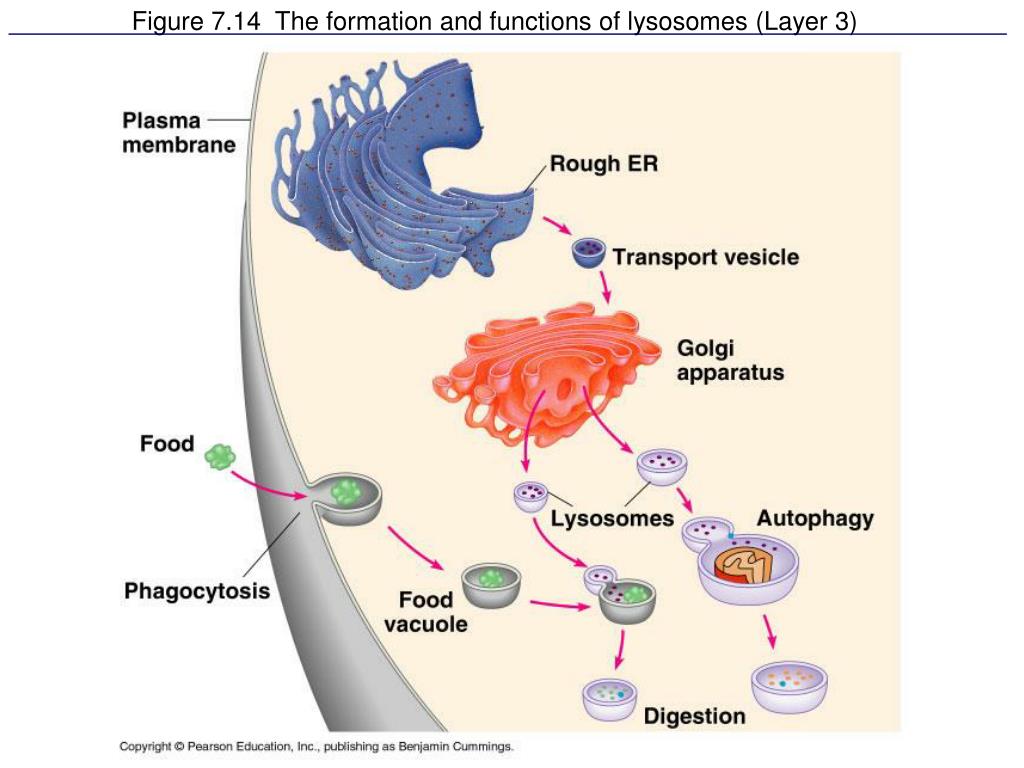

    Figure 7 14 the formation and functions of lysosomes layer 3

    Figure 7.14 The formation and functions of lysosomes (Layer 3)

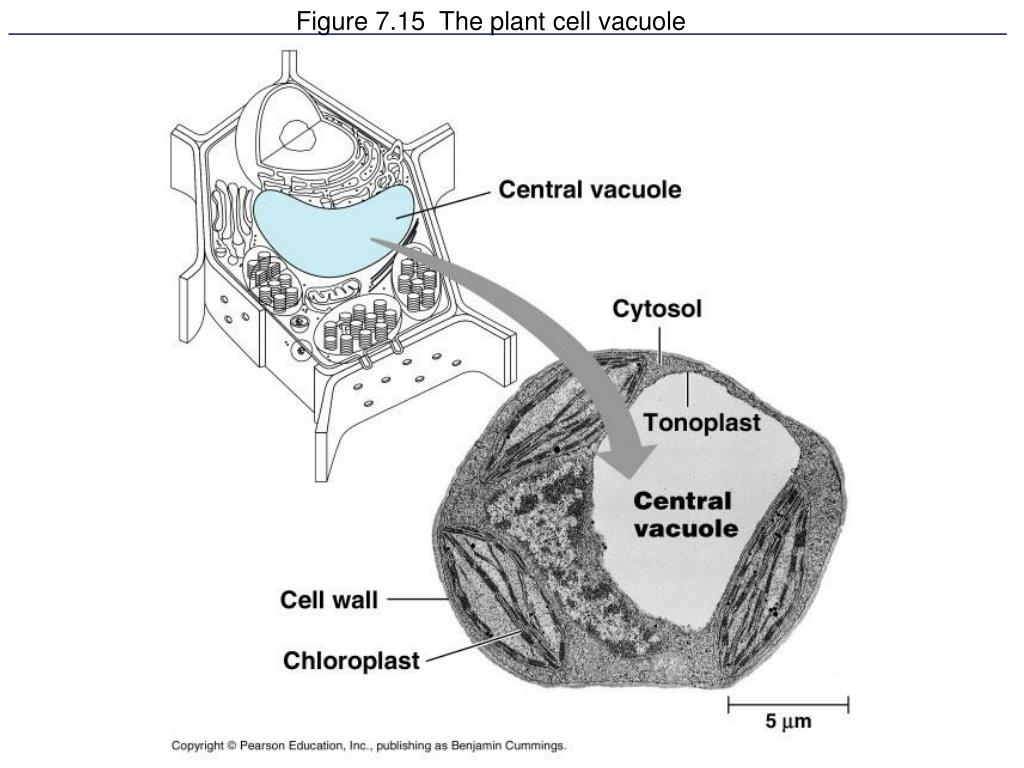

    Figure 7 15 the plant cell vacuole

    Figure 7.15 The plant cell vacuole

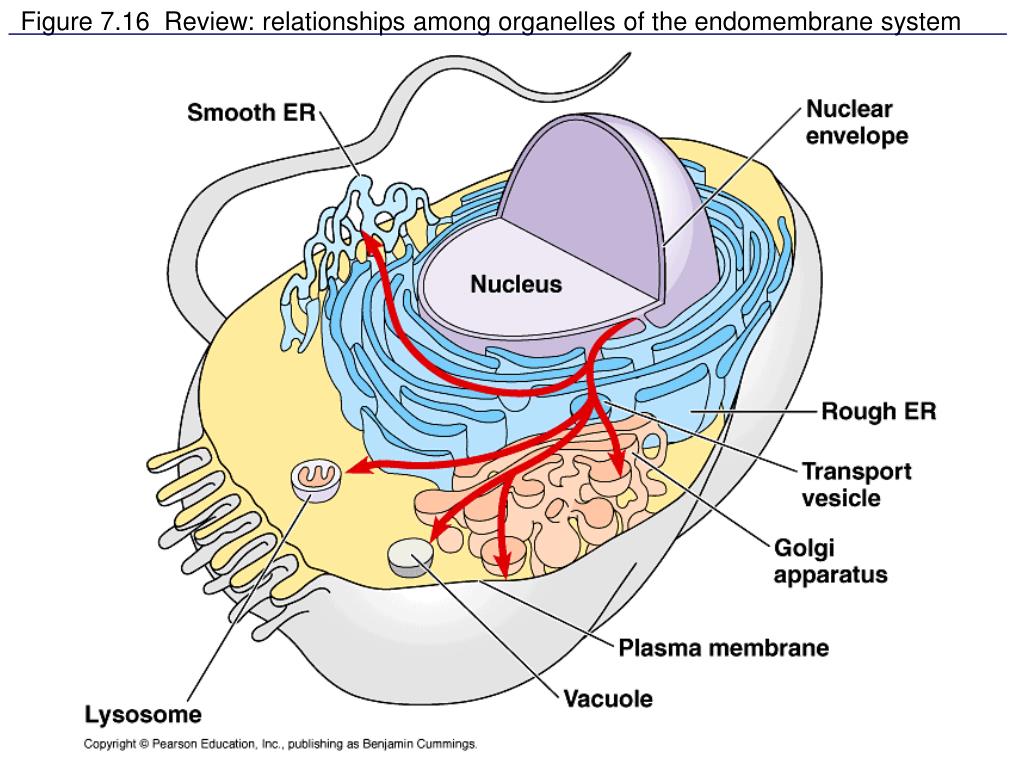

    Figure 7 16 review relationships among organelles of the endomembrane system

    Figure 7.16 Review: relationships among organelles of the endomembrane system
