Atomic Structure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

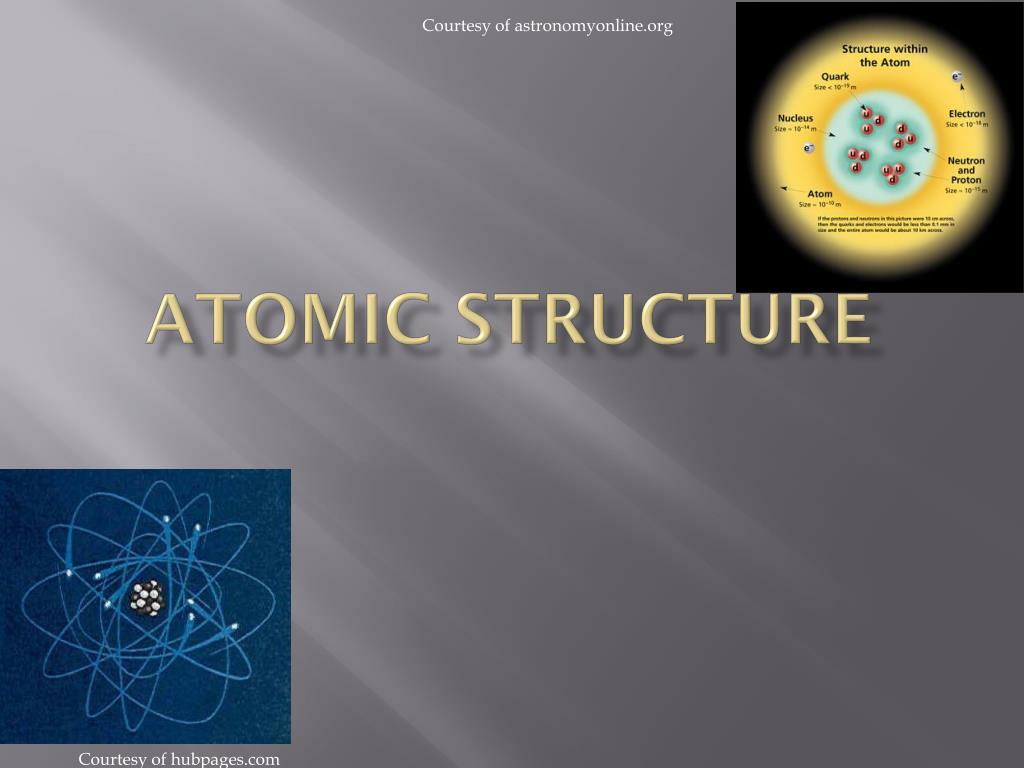

  1. Courtesy of astronomyonline.org Atomic Structure Courtesy of hubpages.com

  2. History of Atomic Structure

  3. Famous Experiments/Models • J.J. Thomson's Plum Pudding model • Raisins are the negatively charged particles(electrons) • Electrons float in a pudding of positive charge (equal to negative charge) which makes neutral atom • Niels Bohr • Bohr model, shows electrons orbiting in specific energy shells (each shell containing a set electron limit) around nucleus • Robert Millikan • Found the mass of electron to be 1/1836 amu • Ernest Rutherford • Gold foil experiment • Alpha particles fired at gold. Some are deflected which proves a small dense nucleus in the center. J.J. Thomson’s model (top), Rutherford (bottom) Courtesy of en.wikipedia.org

  4. Protons • Positively charged subatomic particles in a atom • In a neutral atom # of protons= # of electrons • The positive charge and negative (electrons) charge should cancel each other out • Located in nucleus of atom along with neutrons • Mass of 1amu • Equal to the atomic number • Protons define which atom is which element • If # of protons change then it becomes a different element Courtesy of nasa.gov

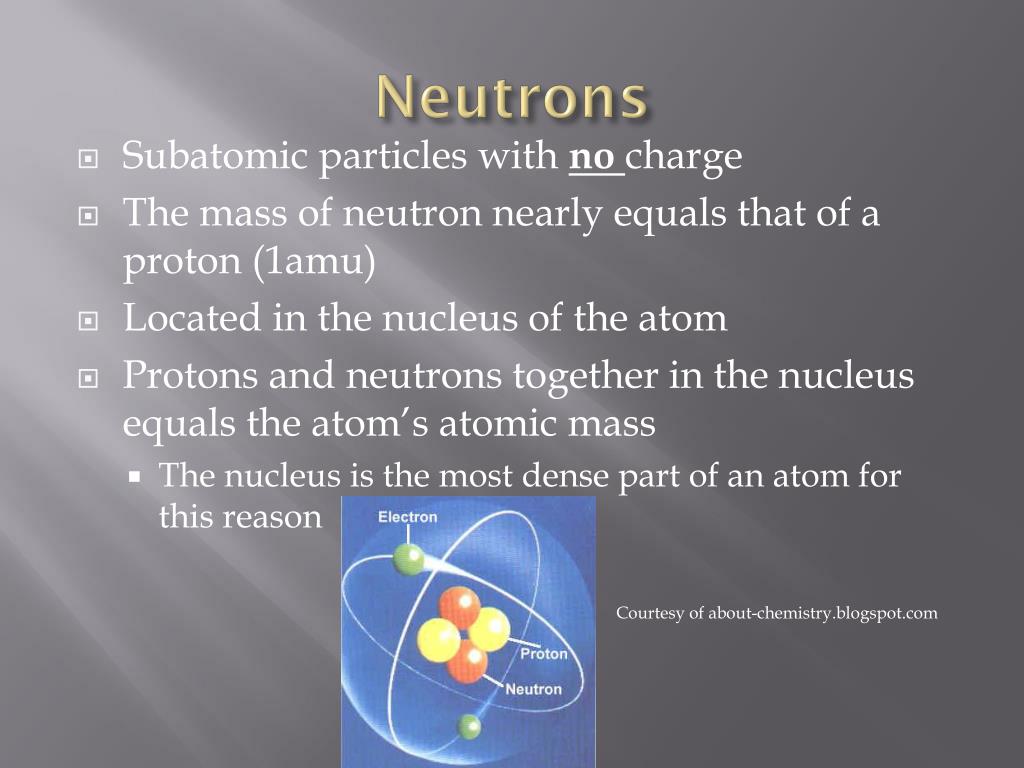

  5. Neutrons • Subatomic particles with no charge • The mass of neutron nearly equals that of a proton (1amu) • Located in the nucleus of the atom • Protons and neutrons together in the nucleus equals the atom’s atomic mass • The nucleus is the most dense part of an atom for this reason Courtesy of about-chemistry.blogspot.com

  6. Electrons • Negatively charged subatomic particle • Surrounding nucleus is electron cloud • This is where electrons lie in specific orbital shells • Mass of 1/1836 amu, almost zero • The electron cloud accounts for very little of the atom’s mass • Ions are formed by loosing electrons (positive ion) and by gaining electrons (negative ions) Courtesy of greenenergybuild.com Courtesy of renesas.com

  7. Nucleus • The nucleus is in the center of the atom • Contains protons and neutrons • Almost all the mass is contained in the nucleus • Nucleus is very small compared to the actual atom • If the atom were the size of a stadium the nucleus would be a marble • Nucleus is very dense • A nucleus the size of a pea would weigh 250 tons Courtesy of www.safetyoffice.uwaterloo.ca

  8. Elements/Atomic Numbers/Mass • Atomic number is the number of protons in a atom • Protons = electrons in a neutral atom • The periodic table is ordered by atomic numbers • Mass=protons + neutrons Courtesy of msu.edu

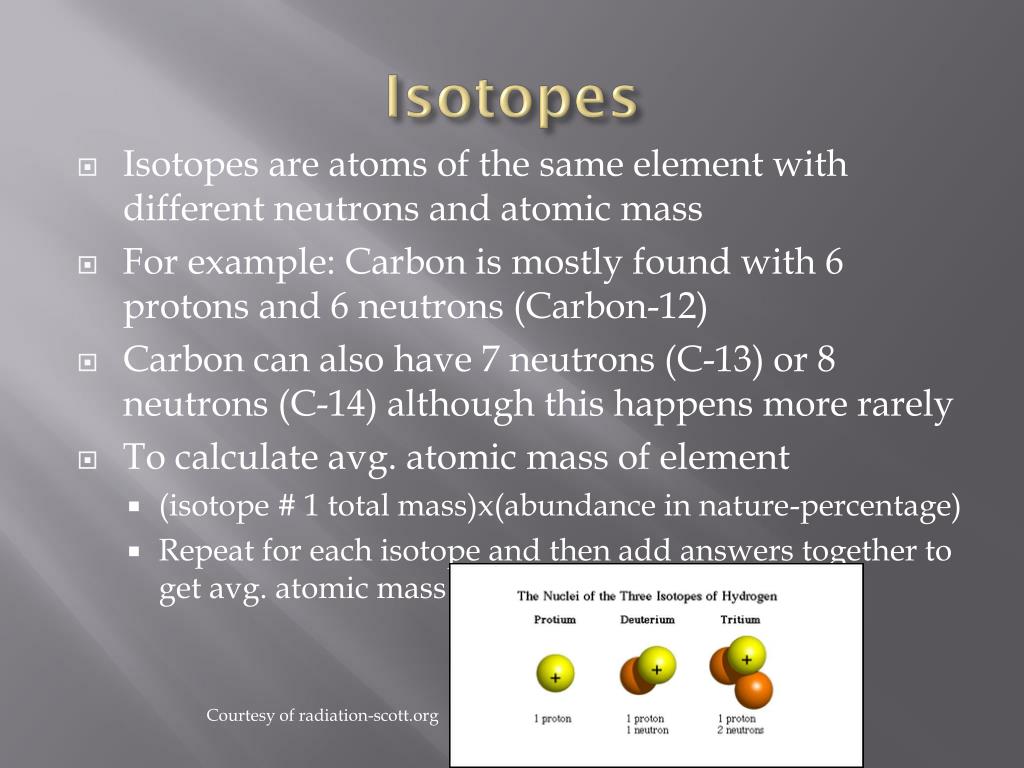

  9. Isotopes • Isotopes are atoms of the same element with different neutrons and atomic mass • For example: Carbon is mostly found with 6 protons and 6 neutrons (Carbon-12) • Carbon can also have 7 neutrons (C-13) or 8 neutrons (C-14) although this happens more rarely • To calculate avg. atomic mass of element • (isotope # 1 total mass)x(abundance in nature-percentage) • Repeat for each isotope and then add answers together to get avg. atomic mass Courtesy of radiation-scott.org

  10. Sources • Bowles, Richard. "Atomic Structure." Richard Bowles Website. N.p., 29 Sept.      2010. Web. 29 Sept. 2010. <http://richardbowles.tripod.com/chemistry/      structure/structure.htm>. • Buescher, Lee. "Atomic Structure Timeline." Lee Buescher's Science Lab.      Watertown High School, 2010. Web. 25 Sept. 2010.      <http://atomictimeline.net/index.php>. • Carpi, Anthony. "Atomic Structure." The Natural Science Pages. N.p., 1999. Web.      25 Sept. 2010. <http://web.jjay.cuny.edu/~acarpi/NSC/3-atoms.htm>. • Wilbraham, Antony C., Dennis D. Staley, and Michael S. Matta. "Atomic Structure." Chemistry. Expanded 4th ed. Menlo Park: Addison-Wesley , 1997.      82-106. Print. Courtesy of mrjarretwalker.blogspot.com Courtesy mrstrong.wikis.msad52.org
