  1. Cooling Solutions – RC and HACS

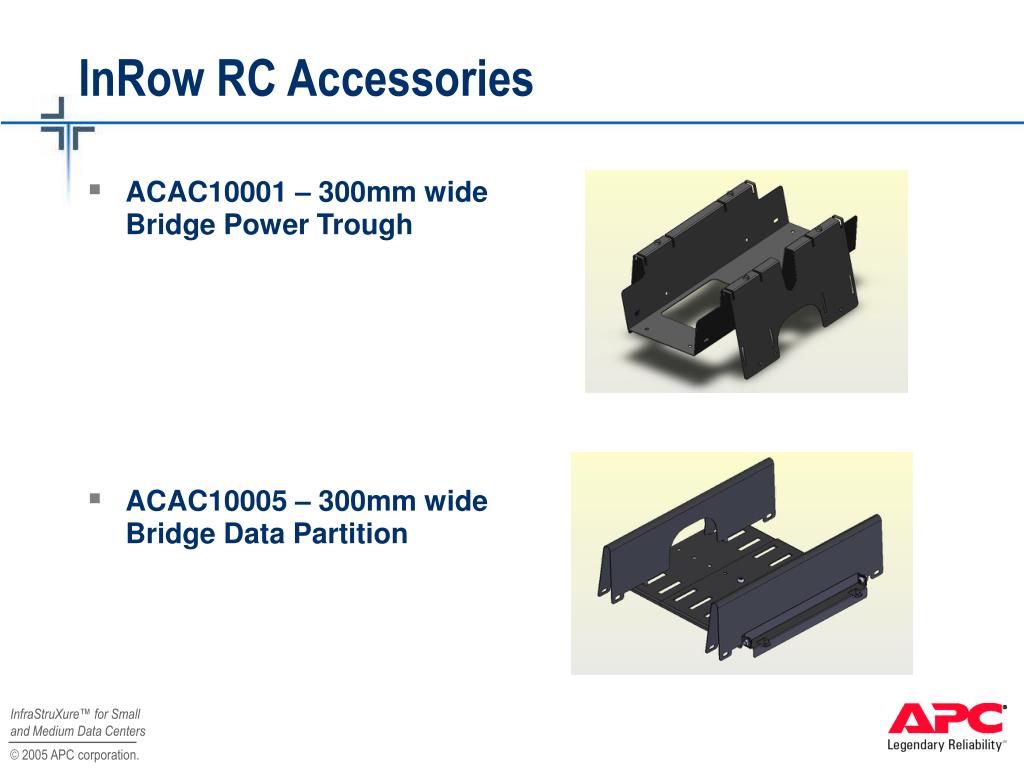

  2. InRow RC Accessories • ACAC10001 – 300mm wide Bridge Power Trough • ACAC10005 – 300mm wide Bridge Data Partition

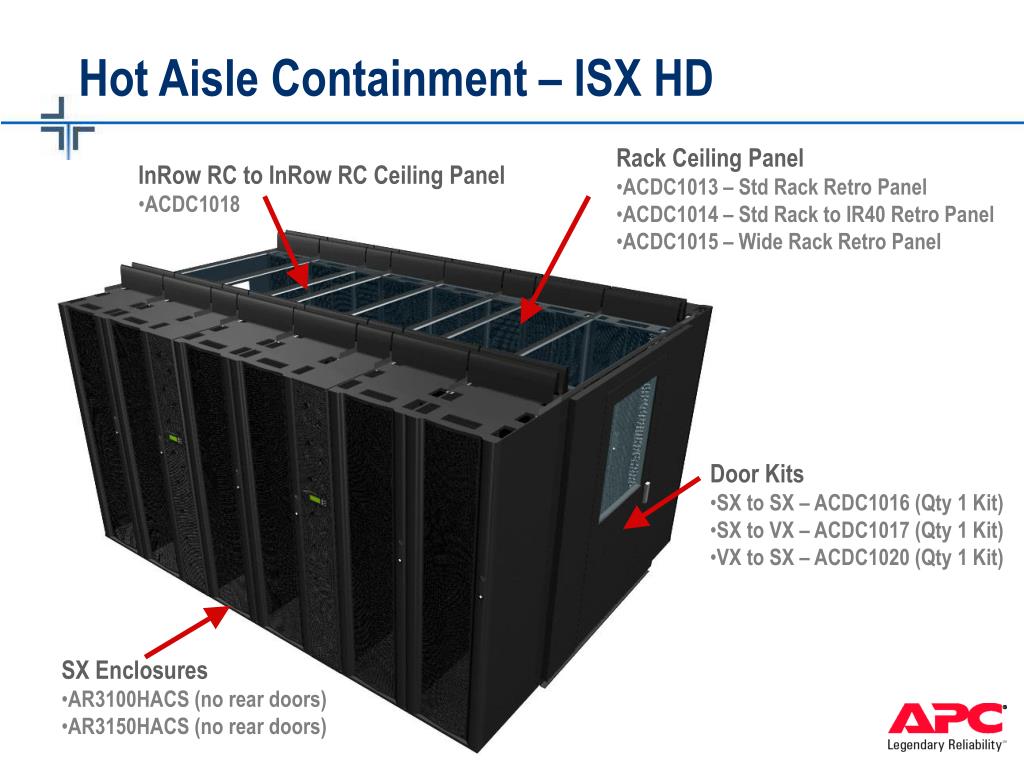

  3. Hot Aisle Containment – ISX HD • Rack Ceiling Panel • ACDC1013 – Std Rack Retro Panel • ACDC1014 – Std Rack to IR40 Retro Panel • ACDC1015 – Wide Rack Retro Panel • InRow RC to InRow RC Ceiling Panel • ACDC1018 • Door Kits • SX to SX – ACDC1016 (Qty 1 Kit) • SX to VX – ACDC1017 (Qty 1 Kit) • VX to SX – ACDC1020 (Qty 1 Kit) • SX Enclosures • AR3100HACS (no rear doors) • AR3150HACS (no rear doors)

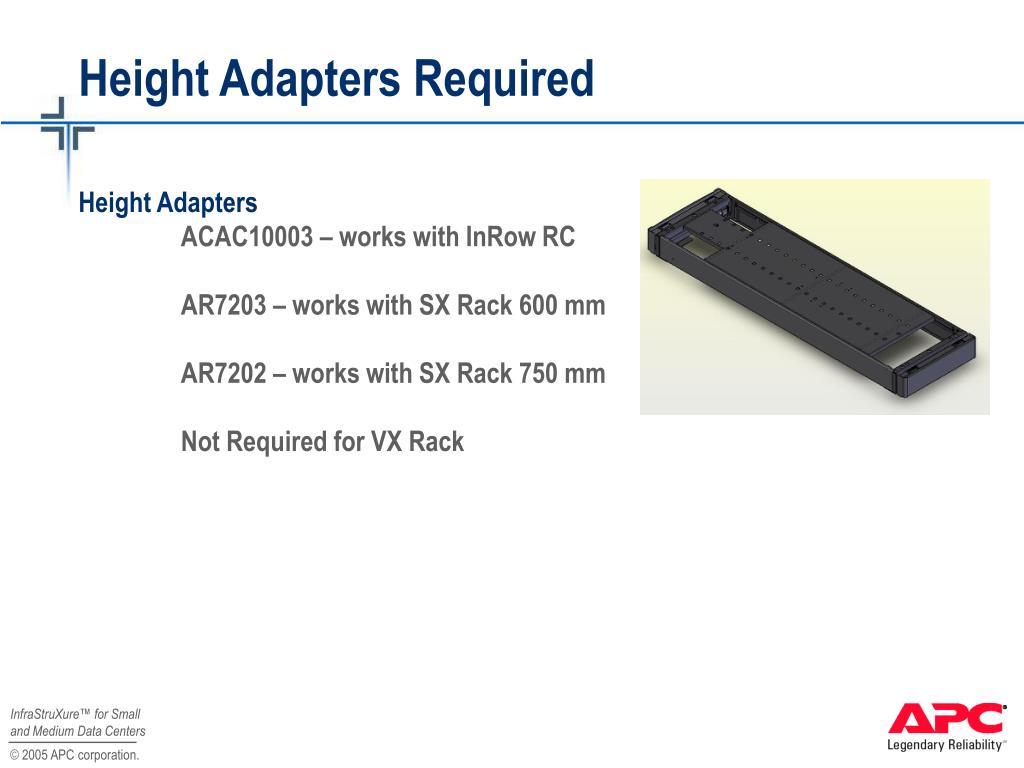

  4. Height Adapters Required Height Adapters ACAC10003 – works with InRow RC AR7203 – works with SX Rack 600 mm AR7202 – works with SX Rack 750 mm Not Required for VX Rack

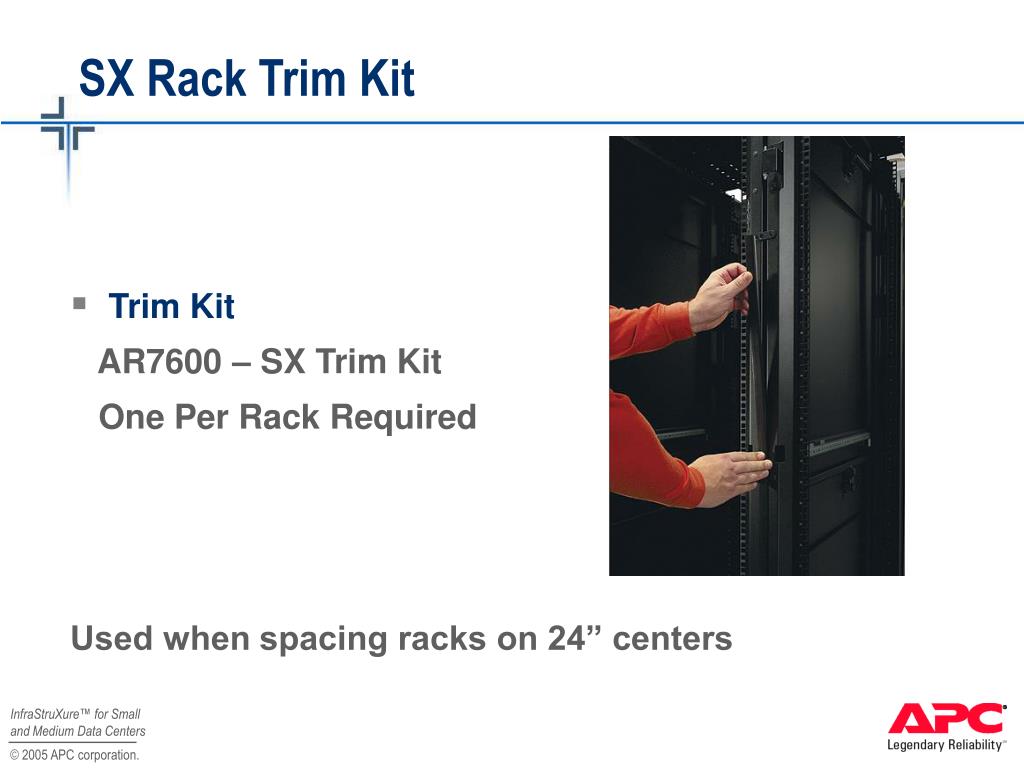

  5. SX Rack Trim Kit • Trim Kit AR7600 – SX Trim Kit One Per Rack Required Used when spacing racks on 24” centers

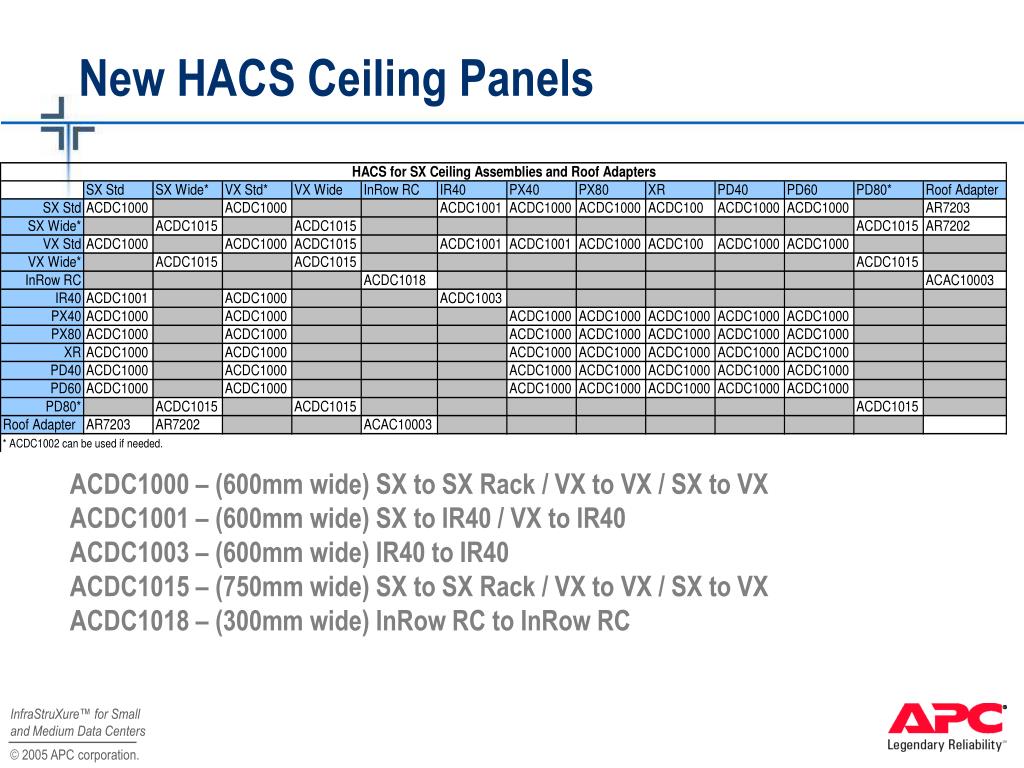

  6. New HACS Ceiling Panels ACDC1000 – (600mm wide) SX to SX Rack / VX to VX / SX to VX ACDC1001 – (600mm wide) SX to IR40 / VX to IR40 ACDC1003 – (600mm wide) IR40 to IR40 ACDC1015 – (750mm wide) SX to SX Rack / VX to VX / SX to VX ACDC1018 – (300mm wide) InRow RC to InRow RC

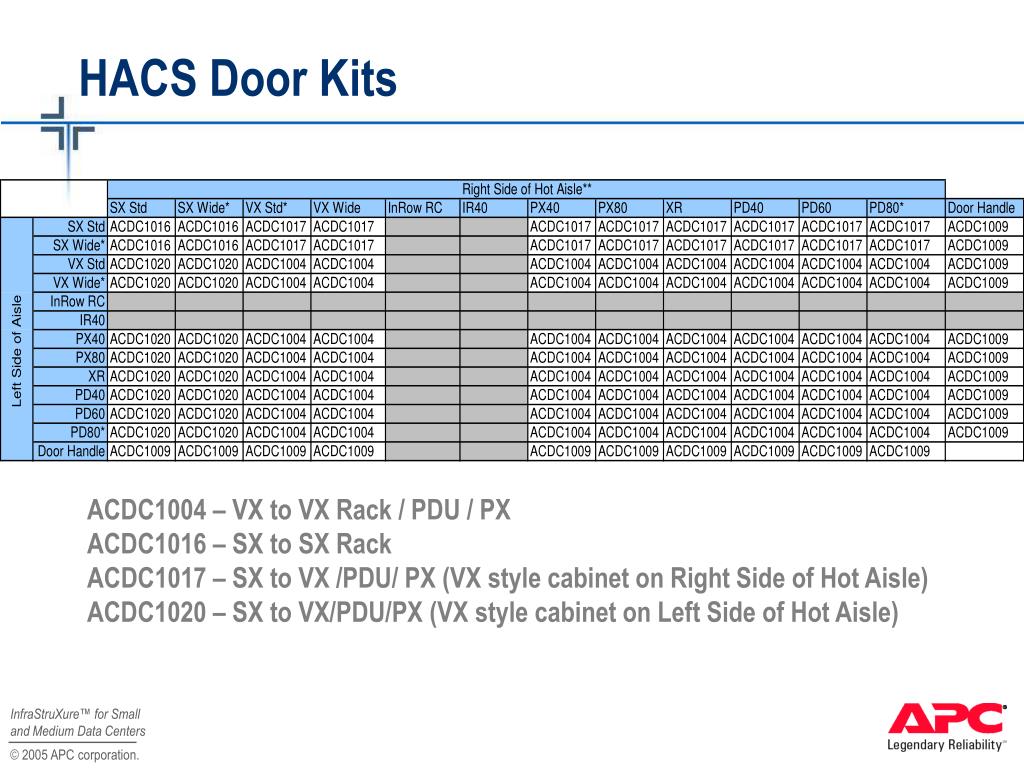

  7. HACS Door Kits ACDC1004 – VX to VX Rack / PDU / PX ACDC1016 – SX to SX Rack ACDC1017 – SX to VX /PDU/ PX (VX style cabinet on Right Side of Hot Aisle) ACDC1020 – SX to VX/PDU/PX (VX style cabinet on Left Side of Hot Aisle)
