Presentation Transcript

Intramuscular injections l.jpg

Intramuscular Injections

Slide2 l.jpg


  • -After giving this review session student/co-worker will be able to confidently administer an intramuscular injection, know sites used for injections, and demonstrate different techniques of giving an intramuscular injection.

  • -Perform giving IM injections.

  • -Demonstrate correct technique for giving IM injections.

  • -Identify equipment used for giving IM injections.

  • -Demonstrate and explain: Z track method and Air lock technique.

  • -Demonstrate correct disposal of used needle.

  • -Explain and be able to identify how the patient tolerated the IM injection.

In this session learner will be educated in im injections l.jpg

-In this session learner will be educated in IM injections-

  • -Where to give an IM injection.

  • -Technique for giving IM injection

  • -Demonstrate different method for giving an IM injection.

  • -Equipment needed to perform an IM injection.

Equipment needed to perform an im injection l.jpg

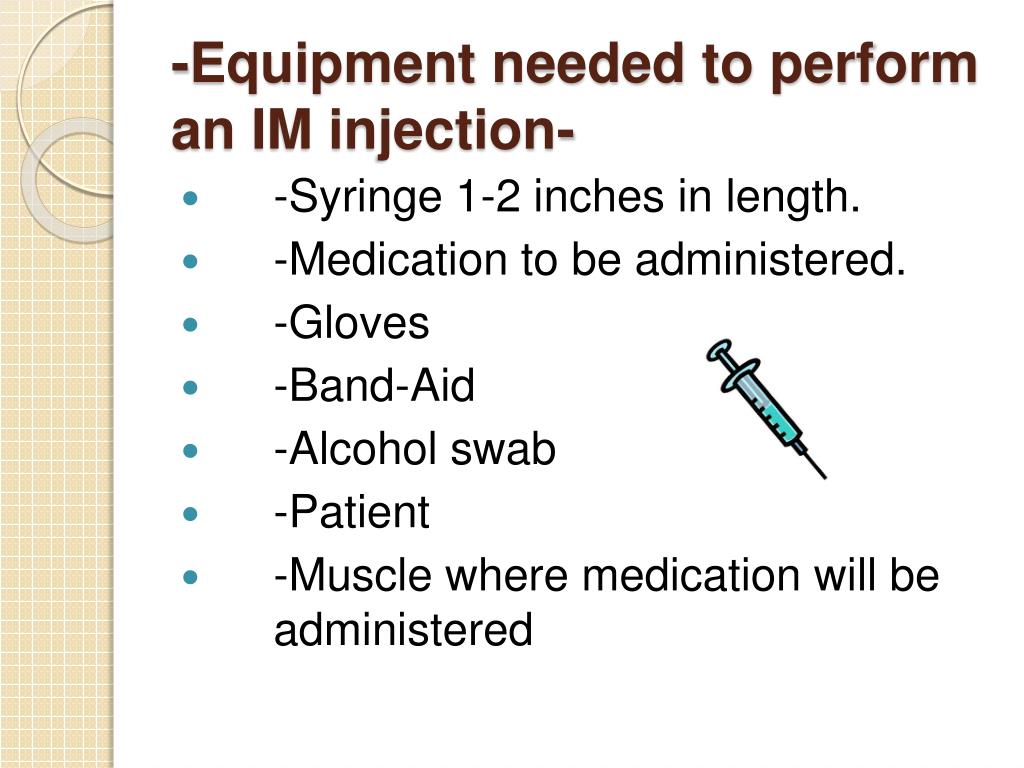

-Equipment needed to perform an IM injection-

  • -Syringe 1-2 inches in length.

  • -Medication to be administered.

  • -Gloves

  • -Band-Aid

  • -Alcohol swab

  • -Patient

  • -Muscle where medication will be administered

Choosing the site to administer medication l.jpg

-Choosing the site to administer medication-

-There are several different sites an IM injection can be given.-

Site determination-

  • -Stage of patients development.

  • -Body build

  • -Physical condition

  • -Amount of the medication to be given

Sites l.jpg


  • Mid Deltoid- common site, upper arm, 3 fingers width.

  • Dorsalgluteal- look out for sciatic nerve, given in the butt.

  • Rectus femoris- right on top of the thigh.

  • Ventrolgluteal- side of the butt, or on the hip.

  • Vastislateralis- outer thigh, in the middle.

How to find sites l.jpg

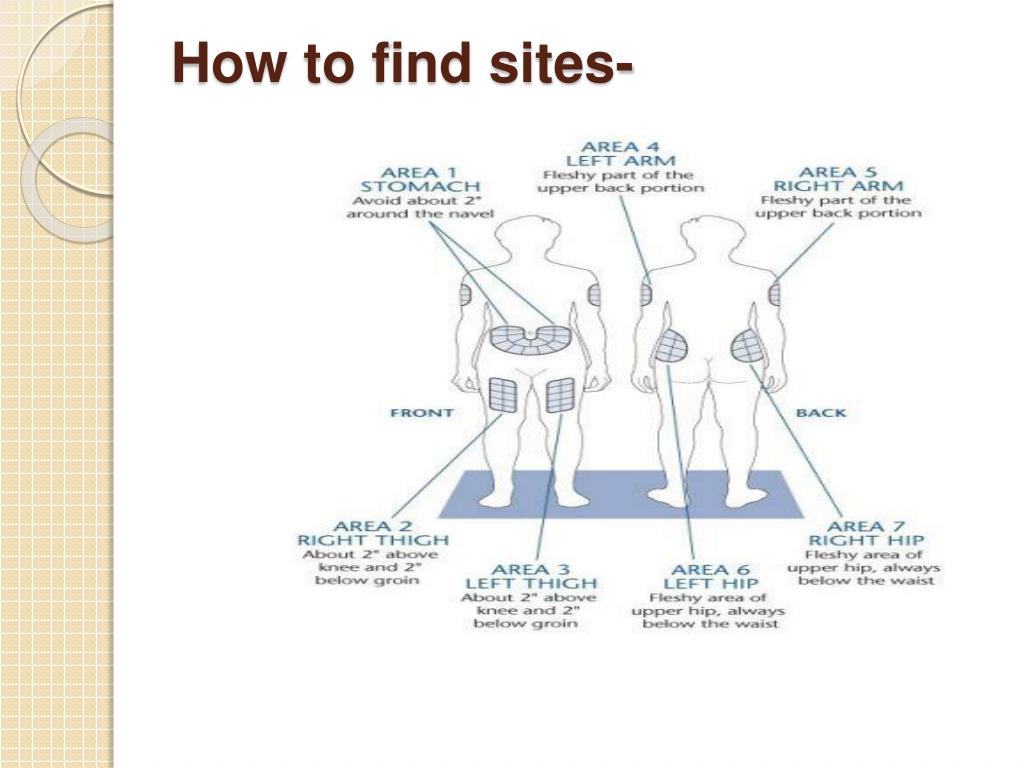

How to find sites-

Slide8 l.jpg

Mid Deltoid-

  • -Is on the upper arm.

  • - Take 3 fingers and place them at the top of the shoulder.

  • -At the end of the third finger in the middle of the muscle is where the injection can be made.

Slide9 l.jpg



  • -Injection is in the butt.

  • -Watch out for the sciatic nerve.

  • -Have patient stand or lay face down with toes pointing inward. (relaxes muscle)

  • -Divide the buttocks into 4 quadrants; give the injection in the outer, upper quadrant toward the hip.

  • -DO NOT give to children who are not walking yet. (Muscles are not developed enough)

Slide10 l.jpg


  • -Good for adults and small children.

  • - Find the upper part of the hip.

  • -Place palm on hip (greater trochater), with fingers point to the ground, and make a very large “V” with your pointer finger and middle finger.

  • -In the middle of the “V” is where the injection can be done.

Slide11 l.jpg

Rectus Femoris

  • -On the anterior thigh, above the knee.

  • -Used mostly by people who have to get themselves injections.

  • -This is painful, because the muscles in the anterior thigh are tense when given.

Slide12 l.jpg


  • -Most preferred site.

  • -Given to children under 5 years of age.

  • - Patient should be sitting when this injection is to be given.

  • -On the outer thigh about half way between the knee and the hip.

Technique of giving an intramuscular injection l.jpg

-Technique of Giving an Intramuscular Injection-

  • -Check the 5 rights of medication administration.

  • -Choose the site the IM injection.

  • -Check the patient for any allergies.

  • -Gather you supplies needed to perform IM injection.

  • -Wash your hands.

  • -Put on gloves.

  • -Open alcohol swab and in a circular motion, clean area in a 2 inch diameter at the site of the intended IM injection.

  • -Let fully dry.

Continued l.jpg


  • -Pull skin around the clean site taut.

  • - take needle in dominate hand between the thumb and the index finger.

  • - At a 90 degree angle, plunge the needle into the skin in a dart like motion.

  • -Depending on the site and the condition of the patient, determine how far the needle is going to have to go into the skin to be in the muscle.

  • -Stabilize the needle with the non dominate hand.

  • -Use dominate hand to pull back on the plunger and aspirate or blood. (If there is blood aspirated back into the needle, remove and dispose in a sharps container. start from the beginning.)

  • -Push the medication at a slow and steady pace. Remember to hold the needle as steady as possible.

Continued15 l.jpg


  • To take the needle out, quickly pull up at a 90 degree angle.

  • -Make sure to cover the needle immediately after withdrawing it from the skin.

  • -Apply some pressure at the site with the alcohol swab that was used to clean the site.

  • -Message the site to help disperse the medication that was just given.

  • -Cover site with Band-Aid.

  • -Dispose of needle into a sharps container.

  • -Throw away gloves and wash hands.

  • -Observe the patient for signs of any allergic reaction, N&V, or any other adverse reactions that may go along with the medication.

  • - Always remember to document.

Different methods of giving im injections l.jpg

-Different Methods of Giving IM injections-

  • -Just giving IM injection and massaging site-

  • - Z track

  • - Air lock

Just giving im injections and messaging site l.jpg

Just giving IM injections and messaging site-

  • -Just dose of medication given.

  • -Message site after to help disperse medication in to the muscle.

Z track method l.jpg

Z track method-

  • -Used for medications that can cause irritation, can be used for all IM medications.

  • -Pull skin at the site to the side.

  • - Still give the injection at 90 degree angle.

  • -When shin is let go and needle removed the needle track is cut off and the medication can not leak out.

  • -This will decrease irritation and bruising of the skin.

Air lock technique l.jpg

Air lock Technique-

  • -Medication is drawn up.

  • -0.2mL of air can be added to the medication.

  • -This will ensure that all the medication has been pushed though the needle.

  • - Still given at a 90 degree angle.

  • -Make sure medication is given first and the air lock second.

  • -Seals needle track so medication will not go into the subquncaneaus tissue, which can cause pain, soreness and bruising.

Review l.jpg

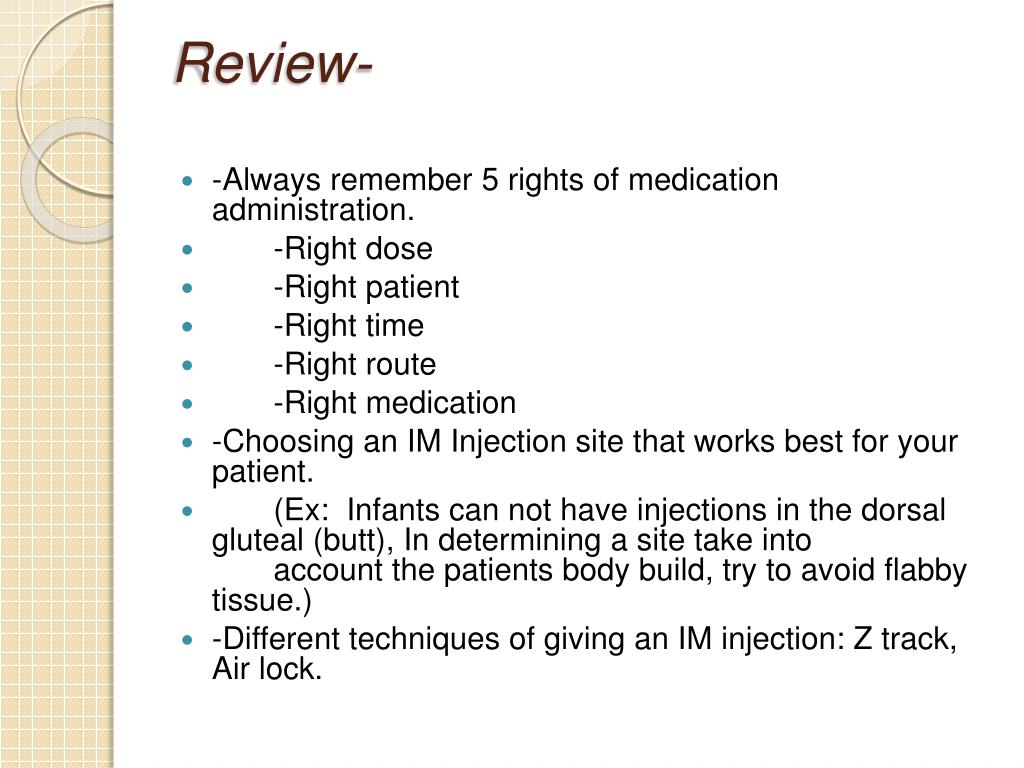

  • -Always remember 5 rights of medication administration.

  • -Right dose

  • -Right patient

  • -Right time

  • -Right route

  • -Right medication

  • -Choosing an IM Injection site that works best for your patient.

  • (Ex: Infants can not have injections in the dorsal gluteal (butt), In determining a site take into account the patients body build, try to avoid flabby tissue.)

  • -Different techniques of giving an IM injection: Z track, Air lock.

Evaluation l.jpg


Slide22 l.jpg

  • 1.) Name the site that should not be used for children who are not walking yet?

Slide23 l.jpg

  • Dorsal gluteal.

Slide24 l.jpg

  • -Describe Z track method:

Slide25 l.jpg

  • pullingskin to the side, then giving the shot, cutting off the needle track.

Slide26 l.jpg

  • 2.) How do you clean a site for injection?

Slide27 l.jpg

  • Alcohol swab, 2inches around the site in diameter, let dry completely.

Slide28 l.jpg

  • 3.)How do you determine where to give a mid deltoid IM injection?

Slide29 l.jpg

  • Upperarm, 3 fingers down from the top of the shoulder. In the middle of the arm. Use patients non dominate arm.
