Managing server core without breaking a sweat

Required Slide

SESSION CODE: WSV321

Managing Server Core without Breaking a Sweat!

Joachim Nässlander

Solution Architect Microsoft Infrastructure and EUC

Dell Inc.


Managing server core without breaking a sweat

The goal of a Server Core installation is

to get it on the network

and make it remotely manageable.


75 minutes of what

75 Minutes of What?

  • How Core was born

  • Why Core?

  • Installation scenarios

  • Initial configuration

  • Local Management

  • Remote Management


How core was born

How Core Was Born

  • Customer feedback

  • Removal of requirements

  • Four inital roles

  • Focus areas

  • Side benefits


Why core

Why Core?

  • Footprint

  • Attack surface

  • Management

  • Patching


Footprint

Footprint

”The memory footprint in RAM for Server Core has been reduced to less than 100MB, compared to roughly 130MB for Windows Server 2008 and 244MB for Windows Server 2003, which didn’t have a Server Core install option.” (Ward Ralston, http://www.windowsitpro.com/article/virtualization/why-you-need-windows-server-2008-r2.aspx)

Windows Server 2008 R2 Core

HD ~3.0 GB

RAM 512 MB for install

(runs on 64!)

Windows Server 2008 R2

HD ~7.0 GB

RAM 512 MB for install


Footprint disk usage

Footprint – Disk Usage

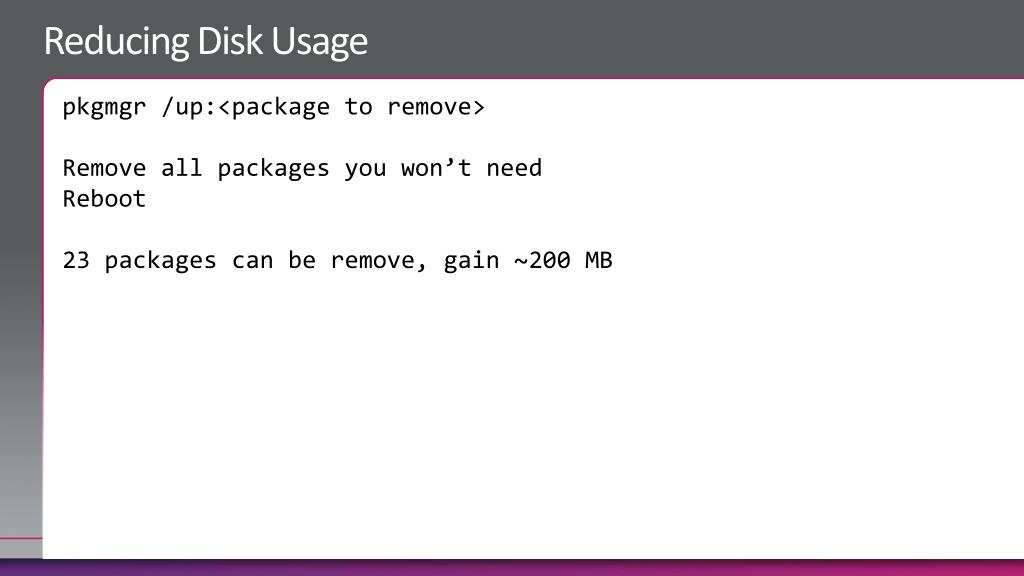

Reducing disk usage

Reducing Disk Usage

pkgmgr/up:<package to remove>

Remove all packages you won’t need

Reboot

23 packages can be remove, gain ~200 MB


Patches

Patches

”Over time, the number of reboots for patching or security updates is significantly reduced for a Server Core installation of which the benefits are obvious.  In some cases, customers can see up to a 60% reduction in patch requirements and the number of reboots on a monthly basis.”(David B Cross, http://blogs.technet.com/b/windowsserver/archive/2010/05/07/server-core-best-practice-for-applications-on-windows-server.aspx)


Patches1

Patches

Source: Microsoft bulletins / Andrew Mason


Installation

Installation

Manual installation

Automated deployment

Template


Is it core

Is it Core?

Separate SKU

0C Datacenter (core installation)

27 Server Datacenter without Hyper-V (core installation)

0E Server Enterprise (core installation)

29 Server Enterprise without Hyper-V (core installation)

2A Microsoft Hyper-V Server

0D Server Standard (core installation)

28 Server Standard without Hyper-V (core installation)

1D Web Server (core installation)


Is it core1

Is It Core?

Joachim NässlanderSolution Architect Microsoft Infrastructure & End User ComputingDell Inc.

DEMO


Is it core2

Is it Core?

WMI / WMIC / PowerShell

WMI: “Select OperatingSystemSKUfrom Win32_OperatingSystem”

WMIC: ”OS get operatingsystemsku”

14 = E = Enterprise Core

Convert to HEX

Complete table of available SKU’s:

http://msdn.microsoft.com/en-us/library/ms724358.aspx


Initial configuration

Initial Configuration

Joachim NässlanderSolution Architect Microsoft Infrastructure & End User ComputingDell Inc.

DEMO

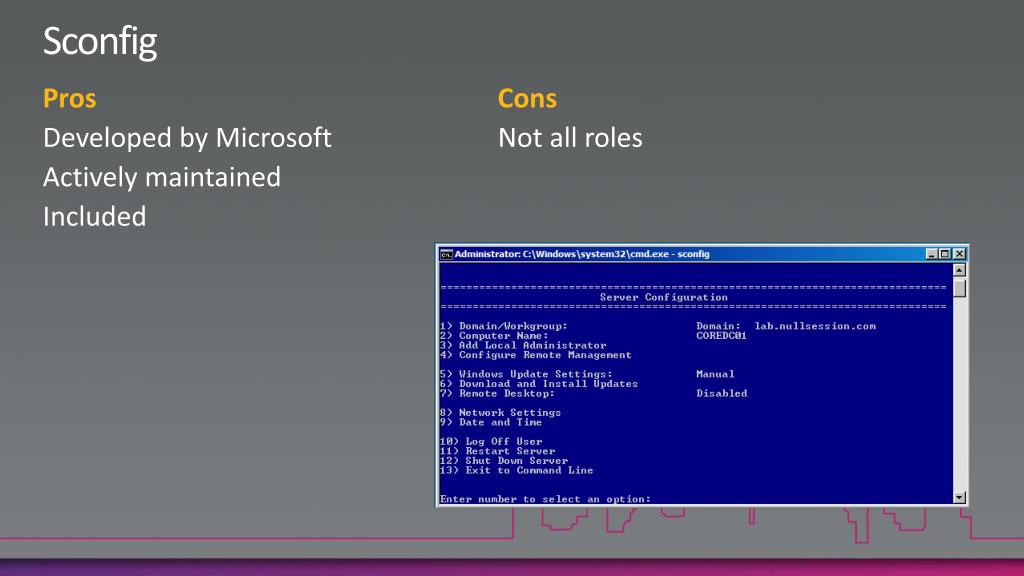

Sconfig

Sconfig

  • Cons

  • Not all roles

Pros

Developed by Microsoft

Actively maintained

Included

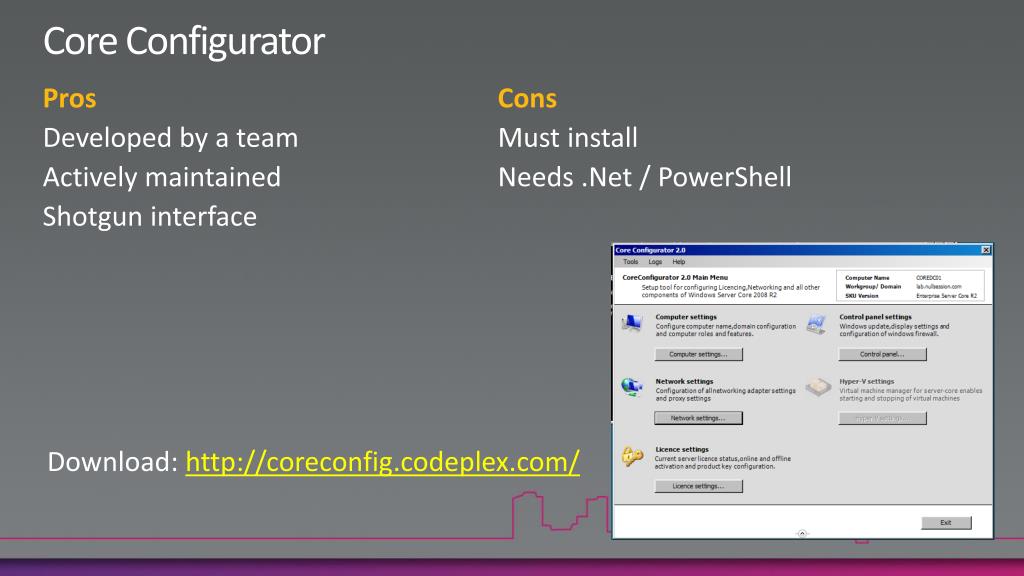

Core configurator

Core Configurator

  • Cons

  • Must install

  • Needs .Net / PowerShell

Pros

Developed by a team

Actively maintained

Shotgun interface

Download: http://coreconfig.codeplex.com/


Core configuration console r2

Core Configuration Console R2

  • Cons

  • No support

  • Privately developed

  • Not all roles supported

  • Not shotgun

Pros

Standard commands

Free

No installation / features needed

Easily extended

Download: http://ccc.codeplex.com

or http://www.nullsession.com


Smart x core configurator

Smart-X Core Configurator

  • Cons

  • Needs install

  • Not free

Pros

Shotgun interface

Developed by company

Download: http://www.smart-x.com


Managing server core without breaking a sweat

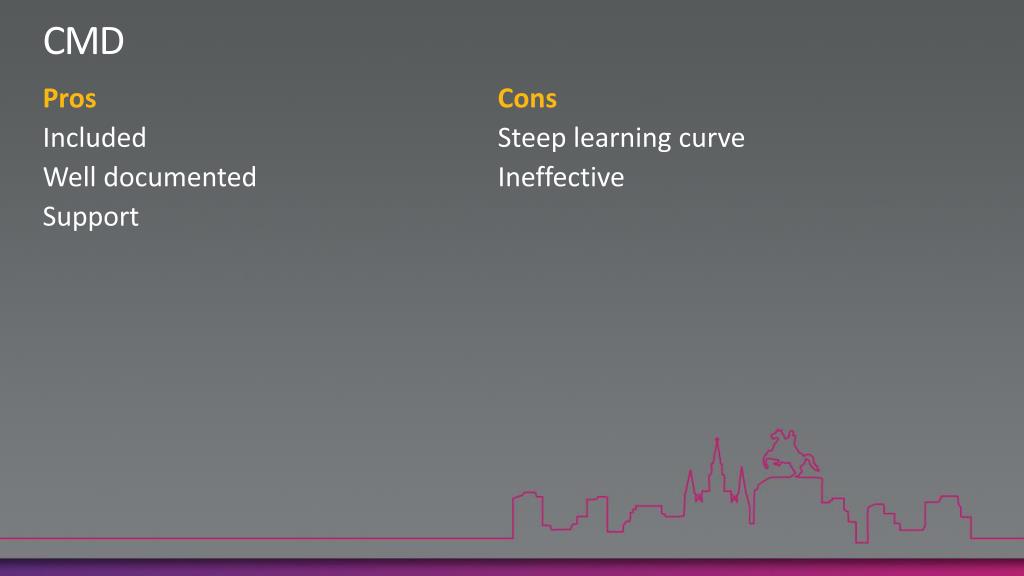

CMD

  • Cons

  • Steep learning curve

  • Ineffective

Pros

Included

Well documented

Support

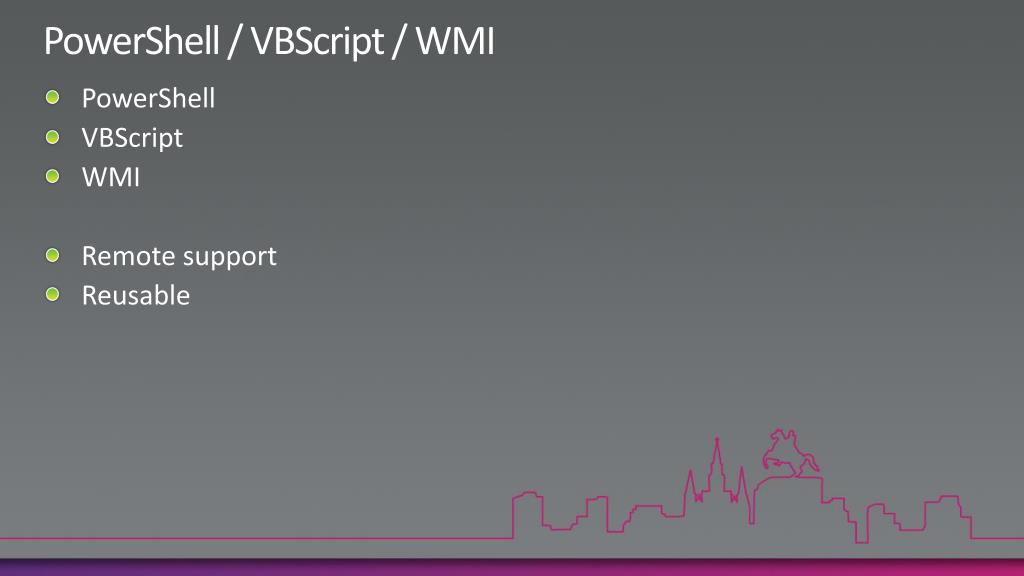

Powershell vbscript wmi

PowerShell / VBScript / WMI

  • PowerShell

  • VBScript

  • WMI

  • Remote support

  • Reusable


Powershell

PowerShell

  • Add .Net Framework

  • Add PowerShell

  • Configure


Powershell1

PowerShell

C:\> start /wait ocsetupNetFx2-ServerCore (WoW-64)

C:\> start /wait ocsetupMicrosoftWindowsPowerShell (Wow-64)

C:\> powershell

PS C:\> import-module ServerManager

PS C:\> set-executionpolicyremotesigned (unrestricted)

PS C:\> enable-psremoting


Local management of roles

Local Management of Roles

  • Specific commands for roles

    • Active Directory

      • DSADD, DSGET + more

    • DNS

      • DNSCMD

    • Network Configuration / Firewall / DHCP

      • NETSH


Local management

Local Management

Joachim NässlanderSolution Architect Microsoft Infrastructure & End User ComputingDell Inc.

DEMO

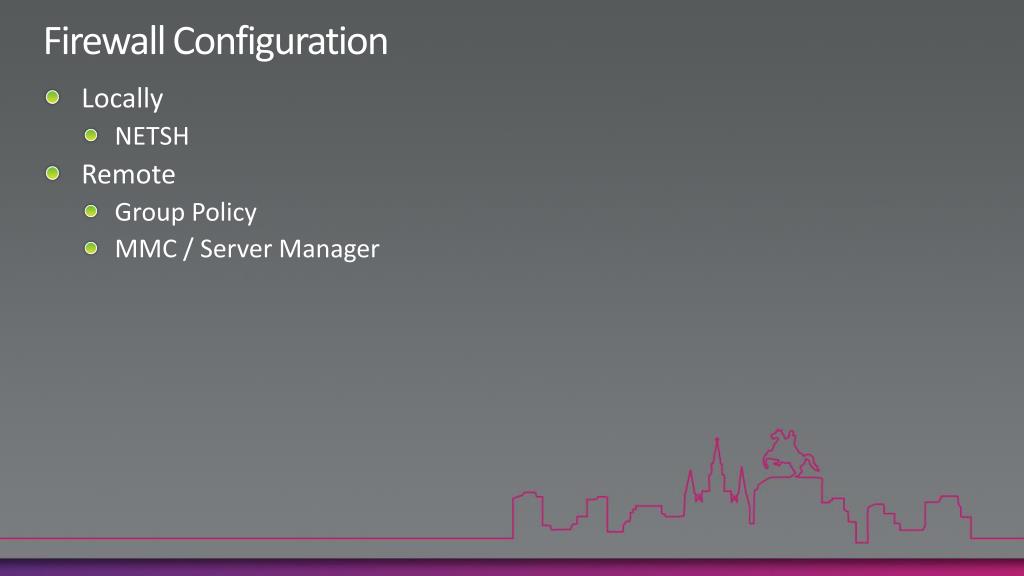

Firewall configuration

Firewall Configuration

  • Locally

    • NETSH

  • Remote

    • Group Policy

    • MMC / Server Manager


Remote management of roles

Remote Management of Roles

  • Firewall configuration

  • Server Manager

  • Remote Server Administration Tools / MMC


Remote management

Remote Management

Joachim NässlanderSolution Architect Microsoft Infrastructure & End User ComputingDell Inc.

DEMO


Conclusion

Conclusion

  • Learning curve

  • Security

  • Management


Related content

Required Slide

Speakers, please list the Breakout Sessions, Interactive Sessions, Labs and Demo Stations that are related to your session.

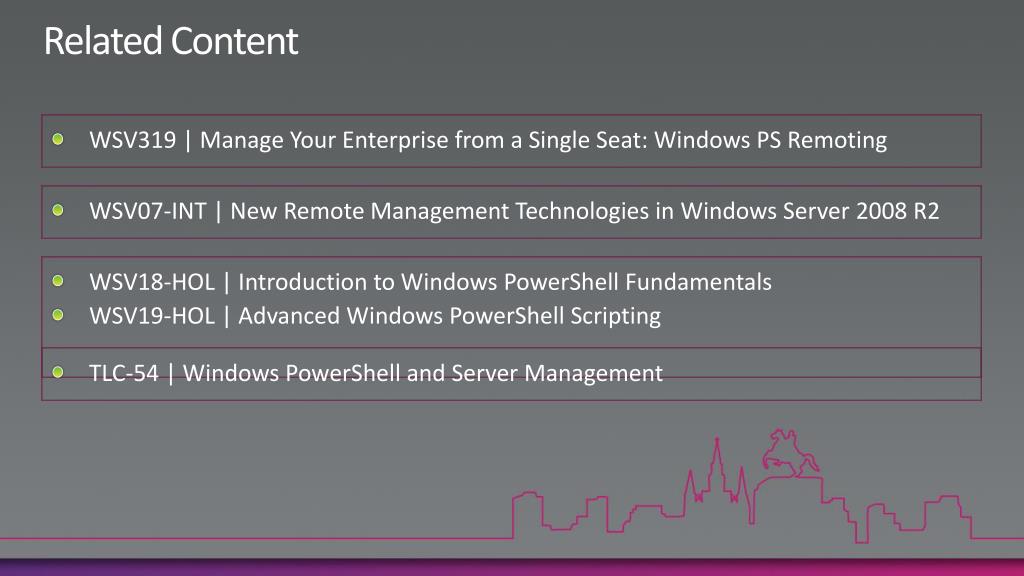

Related Content
