  1. Introduction to Asterisk with Vincente D’Ingianni Director of Professional Services Binary Systems, Inc. vincente@binary-systems.com

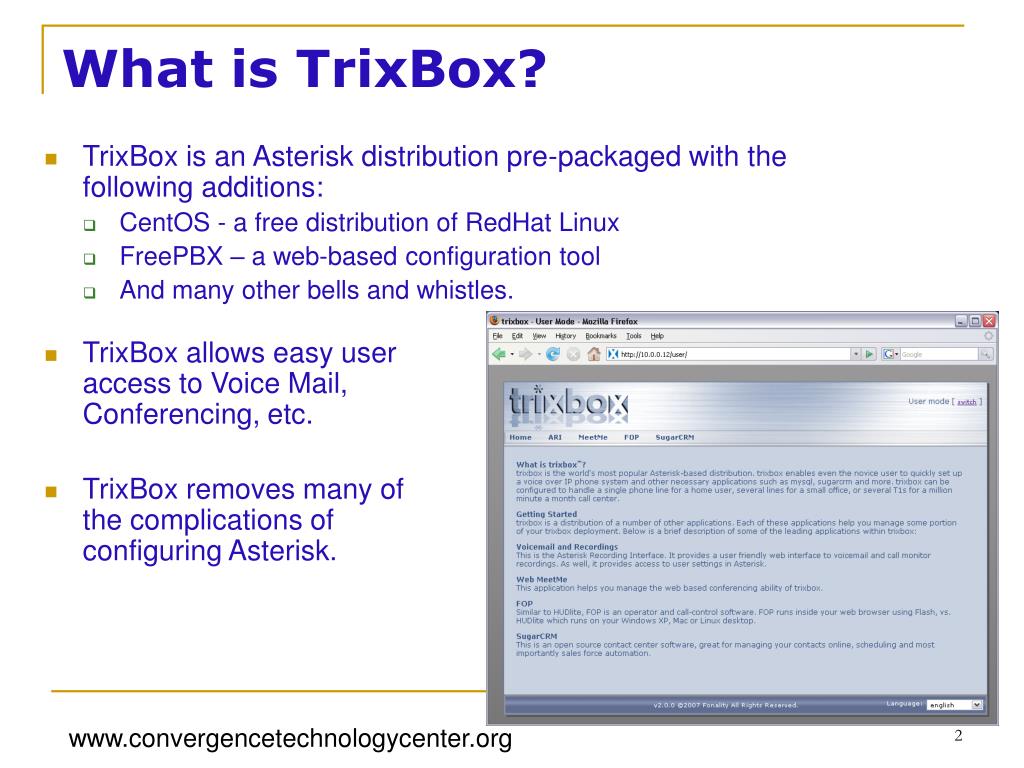

  2. What is TrixBox? • TrixBox is an Asterisk distribution pre-packaged with the following additions: • CentOS - a free distribution of RedHat Linux • FreePBX – a web-based configuration tool • And many other bells and whistles. • TrixBox allows easy user access to Voice Mail, Conferencing, etc. • TrixBox removes many of the complications of configuring Asterisk.

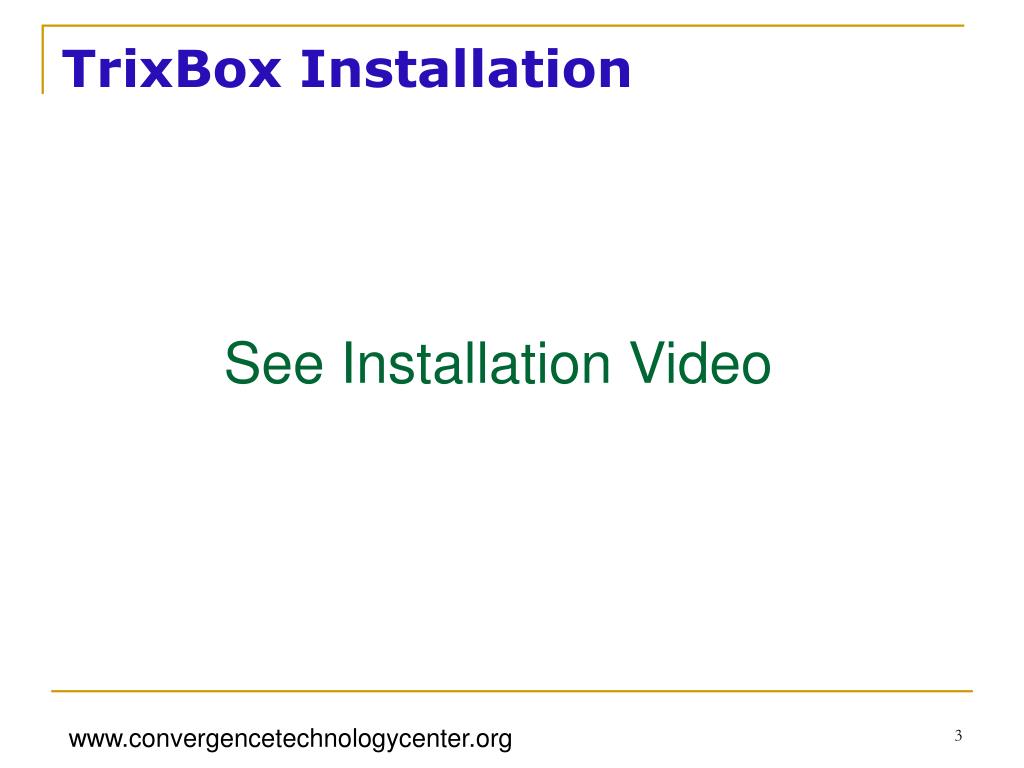

  3. TrixBox Installation See Installation Video

  4. TrixBox Admin Login • Default UserID: maint • Default Password: password

  5. TrixBox Admin Mode • Allows configuration of your Asterisk system through FreePBX or configuration files.

  6. FreePBX Module Admin • Feature modules must be installed prior to configuration. • Install the following modules: • Feature Code Admin • VoiceMail • IVR • Ring Groups • Time Conditions • Music on Hold • Info Services • Backup & Restore • Click “Process” when done.

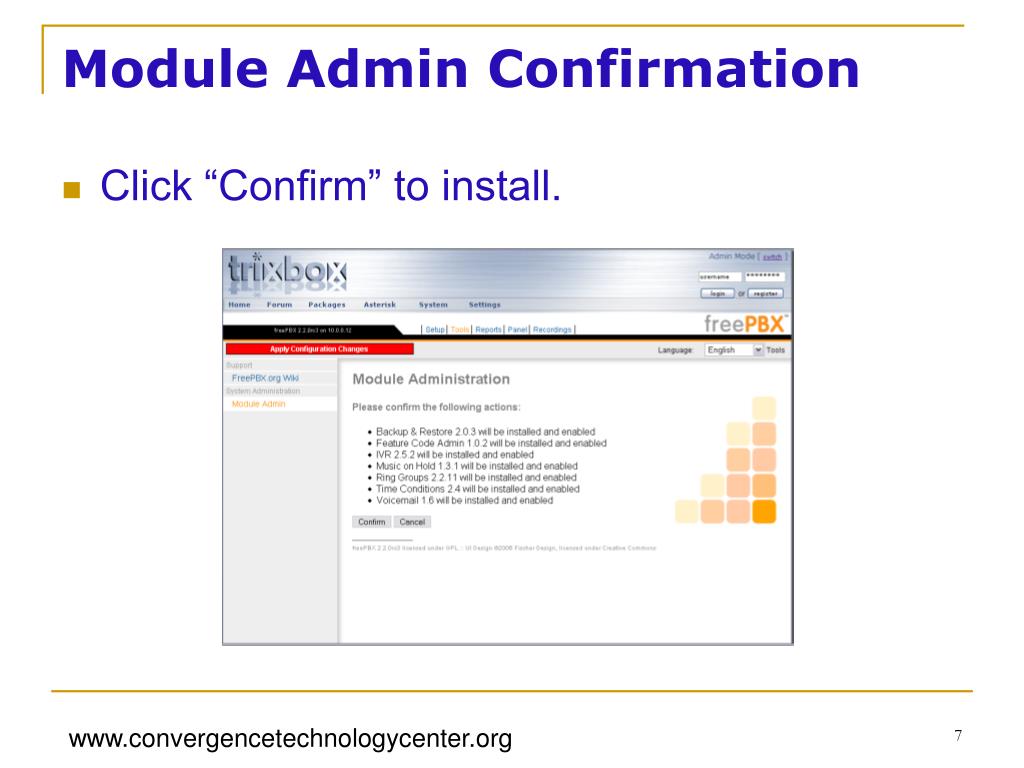

  7. Module Admin Confirmation • Click “Confirm” to install.

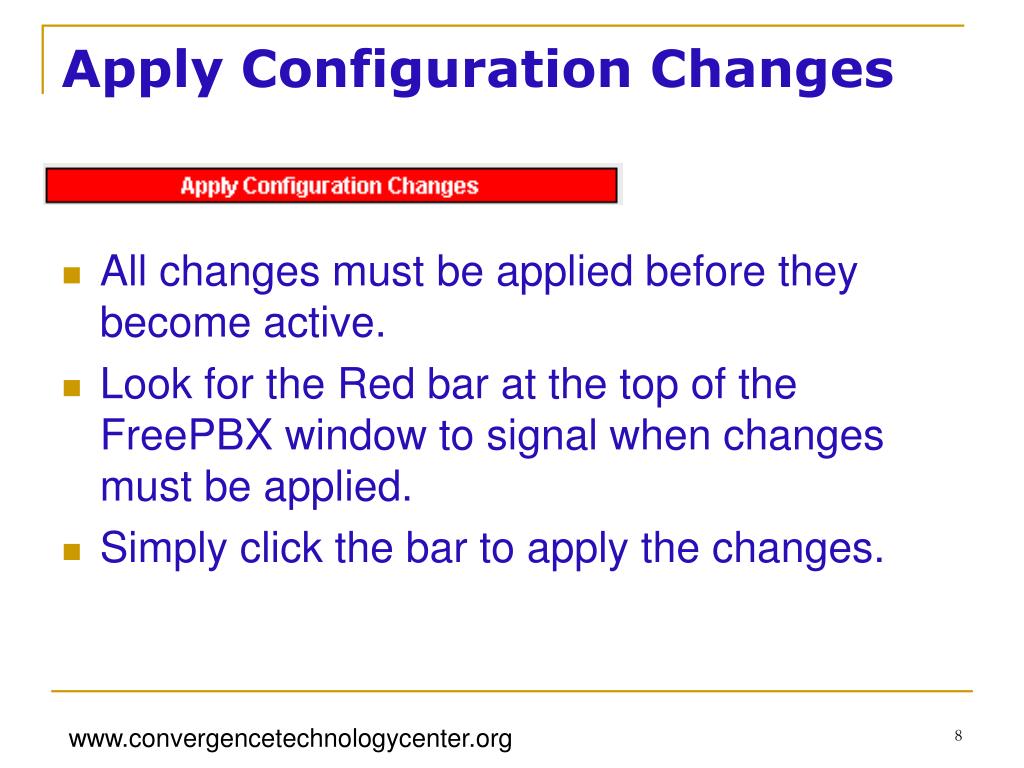

  8. Apply Configuration Changes • All changes must be applied before they become active. • Look for the Red bar at the top of the FreePBX window to signal when changes must be applied. • Simply click the bar to apply the changes.

  9. FreePBX Configuration • Return to FreePBX Setup to see your new modules.

  10. Configure SIP Extensions • Add phone extensions to your PBX.

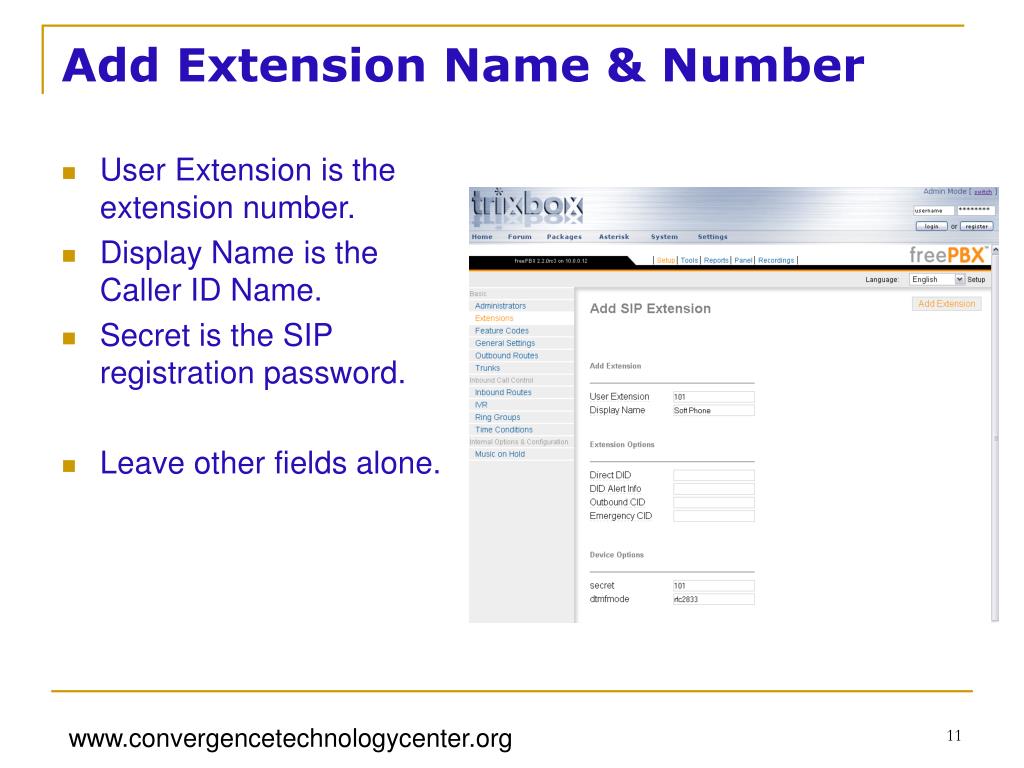

  11. Add Extension Name & Number • User Extension is the extension number. • Display Name is the Caller ID Name. • Secret is the SIP registration password. • Leave other fields alone.

  12. Fax, Privacy, Recording, and VoiceMail • Other features for the extension can be configured here. • Click “Submit” when finished. • Add other extensions as necessary. • Don’t forget to click the “Apply Changes” bar.

  13. Configure X-Lite Soft Phone • Download and install the X-Lite Soft Phone from www.counterpath.com • Configure your Soft Phone to match the exensions in FreePBX. • Point the Soft Phone to the IP address of the Asterisk system. • Configure multiple Soft Phones on other computers for each extension.

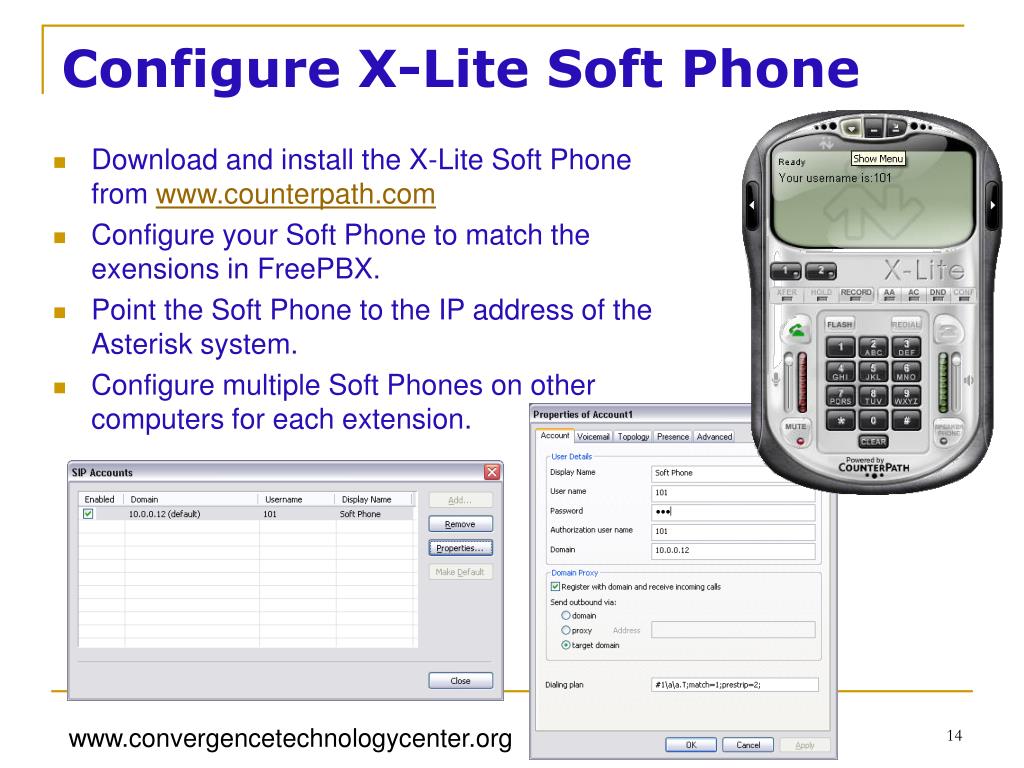

  14. Configure X-Lite Soft Phone • Download and install the X-Lite Soft Phone from www.counterpath.com • Configure your Soft Phone to match the exensions in FreePBX. • Point the Soft Phone to the IP address of the Asterisk system. • Configure multiple Soft Phones on other computers for each extension.

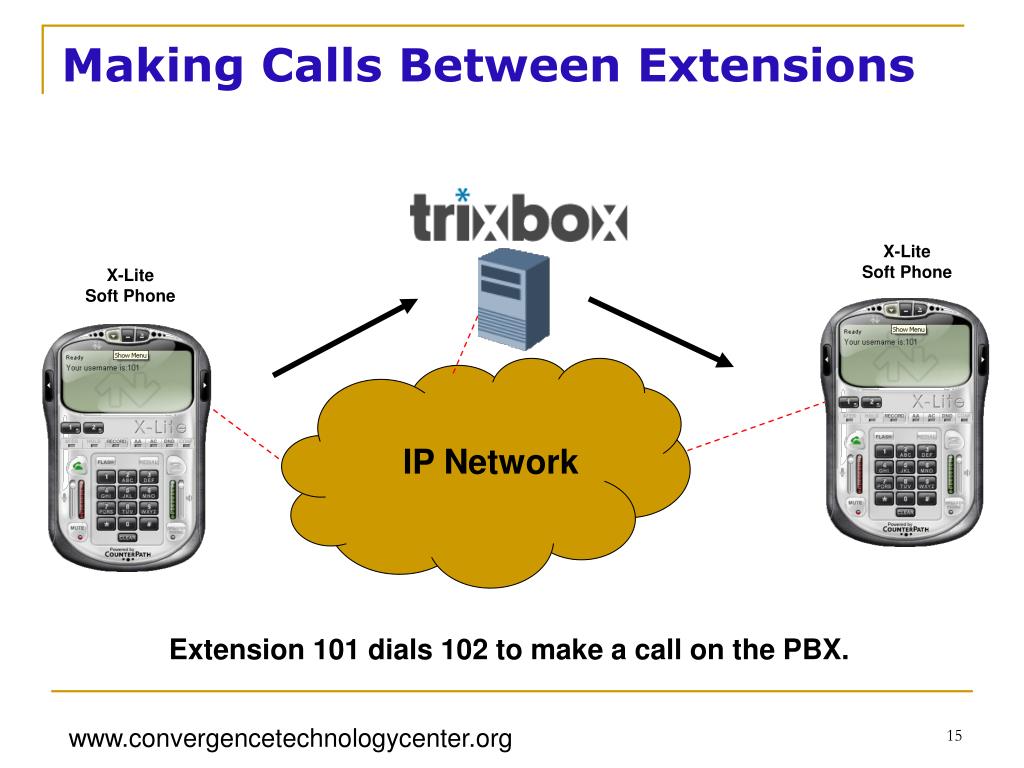

  15. IP Network Making Calls Between Extensions X-Lite Soft Phone X-Lite Soft Phone Extension 101 dials 102 to make a call on the PBX.

  16. Simple IAX2 Trunking • Create a “Virtual Trunk” between two Asterisk PBXs.

  17. Simple IAX2 Trunking • Leave the top fields blank

  18. Simple IAX2 Trunking • Put the Peer PBX IP address on the PEER Details • Configure both PEER and USER type=friend There is no registration or password required between PBXs, so do not implement this on a real system unless you are sure of what you are doing.

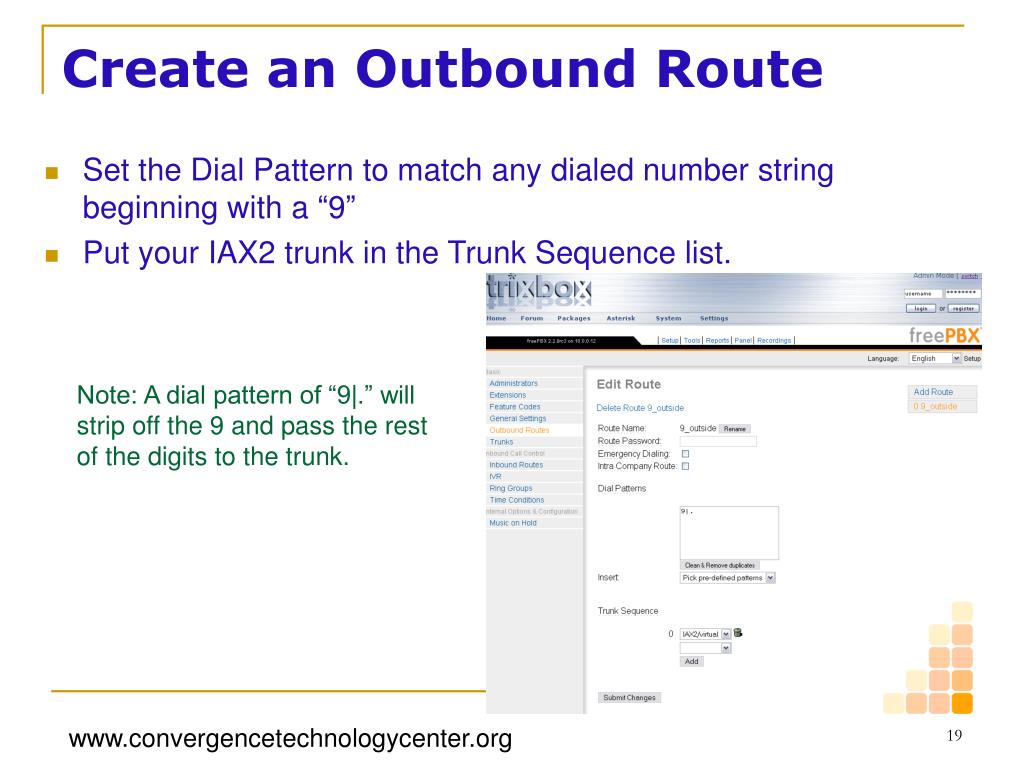

  19. Create an Outbound Route • Set the Dial Pattern to match any dialed number string beginning with a “9” • Put your IAX2 trunk in the Trunk Sequence list. Note: A dial pattern of “9|.” will strip off the 9 and pass the rest of the digits to the trunk.

  20. Create an Inbound Route • Allow inbound calls from any trunk to be routed to a specific destination. • By not specifying a DID Number or Caller ID Number, any inbound call will match.

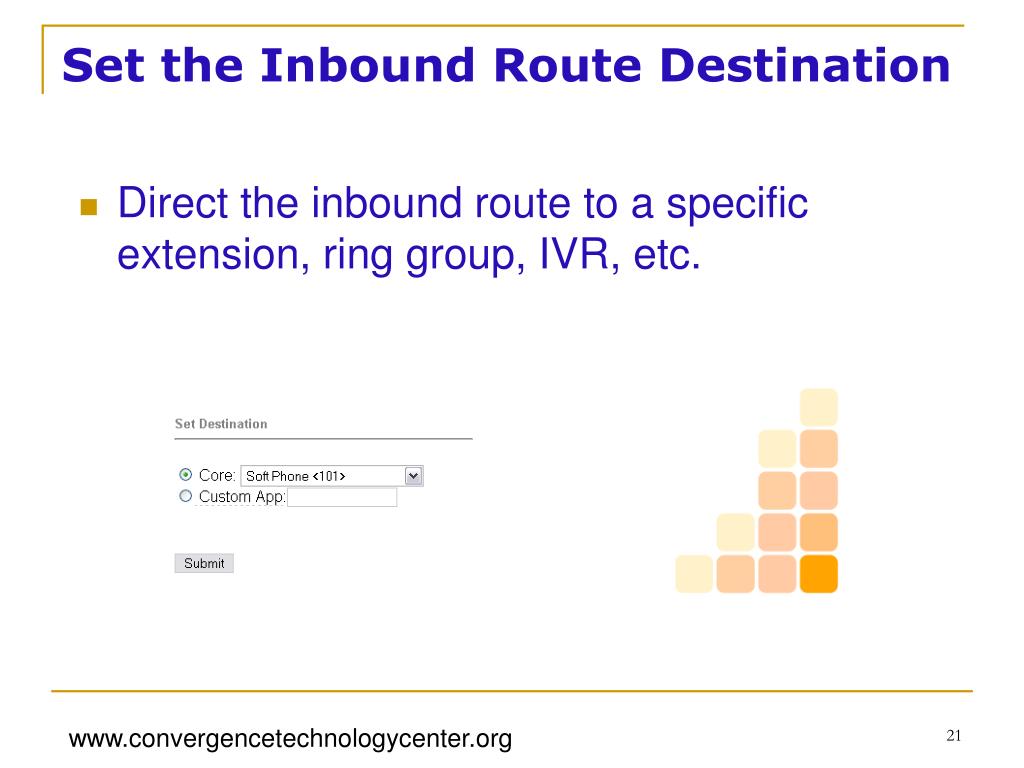

  21. Set the Inbound Route Destination • Direct the inbound route to a specific extension, ring group, IVR, etc.

  22. General Settings • Adjust the Voice Mail, Faxes, Security, etc. Allow anonymous inbound SIP Calls makes testing easy, but can be a security risk.

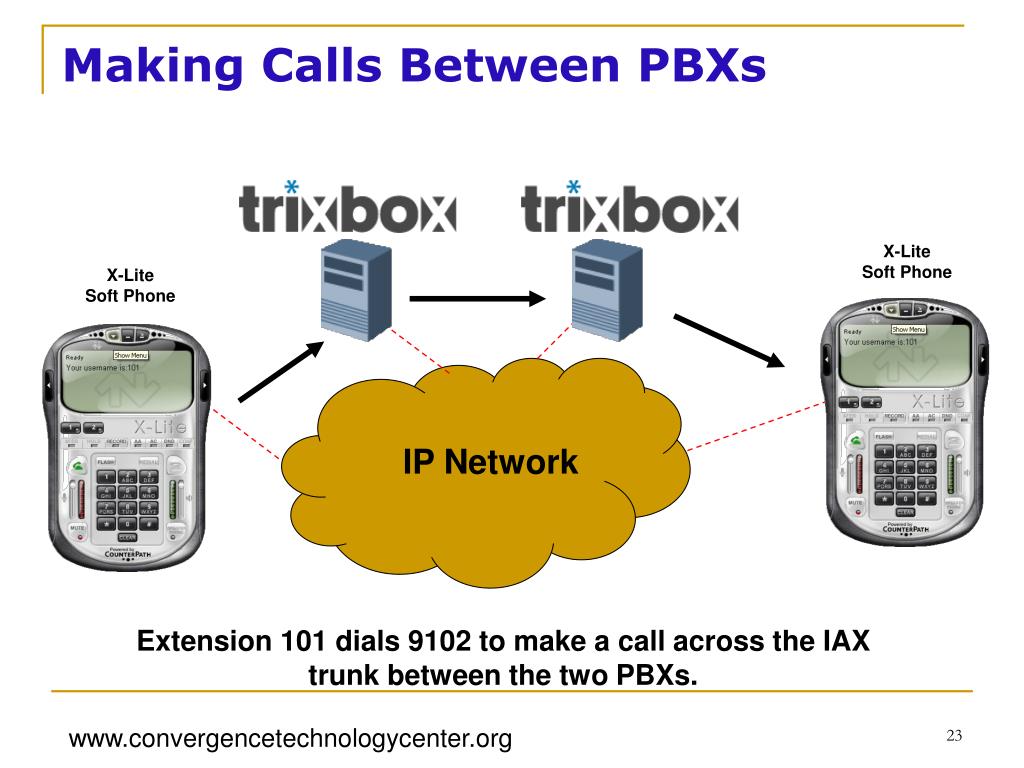

  23. IP Network Making Calls Between PBXs X-Lite Soft Phone X-Lite Soft Phone Extension 101 dials 9102 to make a call across the IAX trunk between the two PBXs.

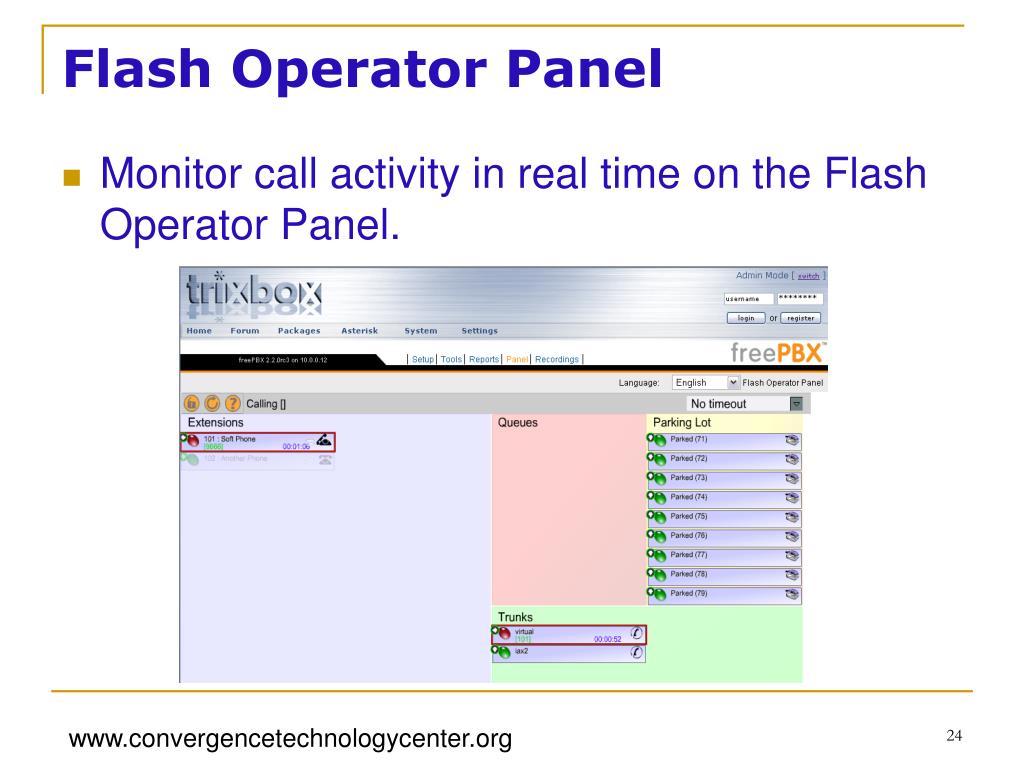

  24. Flash Operator Panel • Monitor call activity in real time on the Flash Operator Panel.

  25. Congratulations • You have now created a fully functional VoIP PBX system ideal for teaching communication fundamentals. • Expand the system with real VoIP Gateways or SIP termination to the PSTN for real applications. • Experiment with IVRs, Ring Groups, Time-of-Day routing, etc. • Best of all, it is free!
