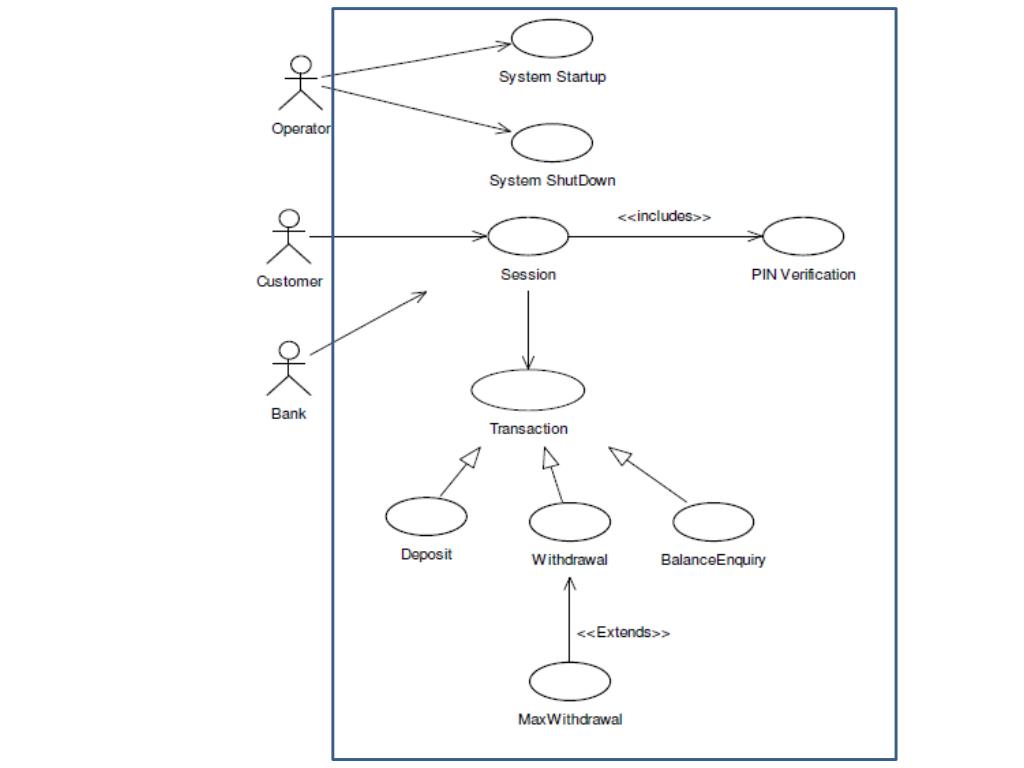

Withdrawal transaction use case

Withdrawal Transaction Use Case

Primary Actor: Customer

Pre-conditions:

The customer must have a valid ATM card and PIN.

Post-conditions:

The customer receives the cash amount that he wanted to withdraw, with a receipt, if indicated.

The customer’s account balance is updated in the system.

Normal flow of events:

1. The customer inserts ATM card into the ATM machine and enters PIN.

2. The system validates the ATM card and PIN .

3. The customer selects the ‘Cash Withdrawal’ option from the Options Menu.

Alternate flow of events:

1. The customer has entered invalid PIN; The

system prompts the customer to

enter a valid PIN.

2. If ATM card is not compatible-The system rejects the ATM card and displays an error message

….


Withdrawal transaction use case

Review


Withdrawal transaction use case

«local precondition»

Have a license

To motorway tollgate

Go to the station with a friend

Catch the ticket

Buy the ticket

Obliterate the ticket

The friend goes home

Exit to xxxxx

tollgate

Get

luggage

ready

Go home with the car

Study for 5 minutes

Go to Heaven/

Hell ;)

Go to Heaven/Hell ;)

Fill up with fuel

Pay the ticket

Get off the train

Go home with bus

Catch the train

Car crash

Turn on the car

[else]

[on car]

[the tank is full]

[on train]

The train

derail

When the train

arrives

to xxxxx

[else]

[xxxxx is a long way]


Withdrawal transaction use case

Strategy Pattern


Withdrawal transaction use case

Decorator Pattern


Withdrawal transaction use case

UML Summary

  • UML: a graphical language for modeling and designing software

  • Semi-formal models using syntax and semantics

  • UML 2.0 standard

  • 3 stages of design before coding: business modeling (initiation), requirement analysis (what to do), architecture (how to do it)

  • UML as a family of languages: extensibility - UML for real-time systems, e.g., meta-class, constraints

  • Best open source UML tools: http://apps.open-libraries.com/best-OPEN-source-uml-tools/


Withdrawal transaction use case

UML Diagrams Summary

  • Use Case Diagram: actor and use cases

    • 2 usage: mainly for requirement (sometimes business modeling), a communication between users, customers, designers

    • 4 elements: actor, system boundary, use cases, association

    • 4 rules to write good use case diagram: less ambiguity, complete, consistent, no design details - cross check with text requirement

    • 3 use case relations: include, extend, generalization/specialization

    • 4 key elements in use cases: name, actor, pre/post conditions, flow (main, alternative flows), sometimes relations with other use cases


Withdrawal transaction use case

UML Diagrams Summary

  • Sequence diagram: object interactions

    • Requirement analysis – describe use cases, find more objects

    • 4 elements: objects (actor), lifetime, activation, messages


Withdrawal transaction use case

UML Diagrams Summary

  • Class Diagram: class and class relations

    • Requirement and architecture design

    • 3 elements: name, attribute (optional), operation (optional)

    • 2 types of class relations: association (aggregation/composition), generalization/specialization – inheritance

    • Identify names in the requirement as classes


Withdrawal transaction use case

UML Diagrams Summary

  • Activity diagram: capture an activity/action -- unit of executable functionality

    • Business modeling, requirement - both data and control flow, concurrent modeling

    • 2 types of elements

    • Activity nodes

      • Parameter nodes

      • Action nodes

      • Control nodes: decision/merge, join/fork, initial/final/flow final

      • Object nodes (pin): value pin, exceptional pin

    • Activity edges

      • Direct, Weight (optional) - the minimum number of tokens that must traverse the edge at the same time

      • Control /object edges


  • Login
