Quick review: identify this stage of the diploid cell cycle.

Quick review: identify this stage of the diploid cell cycle. Prophase. Quick review: identify this stage of the diploid cell cycle. telophase. Quick review: identify this stage of the diploid cell cycle. anaphase. Quick review: identify this stage of the diploid cell cycle. Prophase.

lance-spence
Download Presentation

Quick review: identify this stage of the diploid cell cycle.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Quick review: identify this stage of the diploid cell cycle. Prophase

  2. Quick review: identify this stage of the diploid cell cycle. telophase

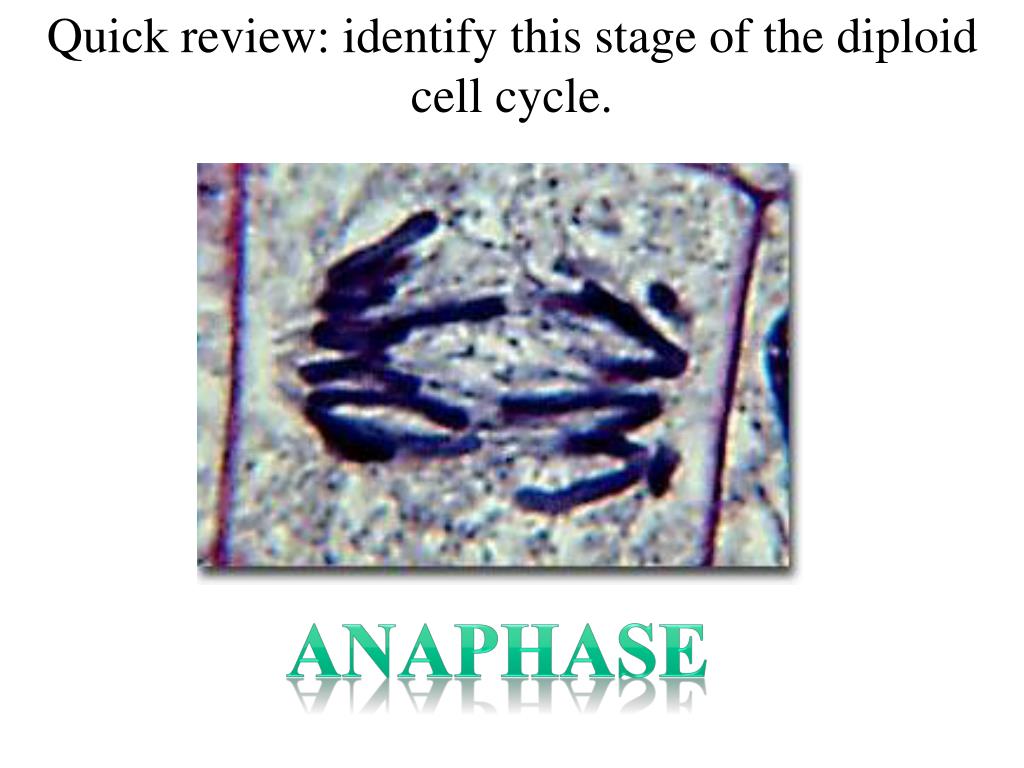

  3. Quick review: identify this stage of the diploid cell cycle. anaphase

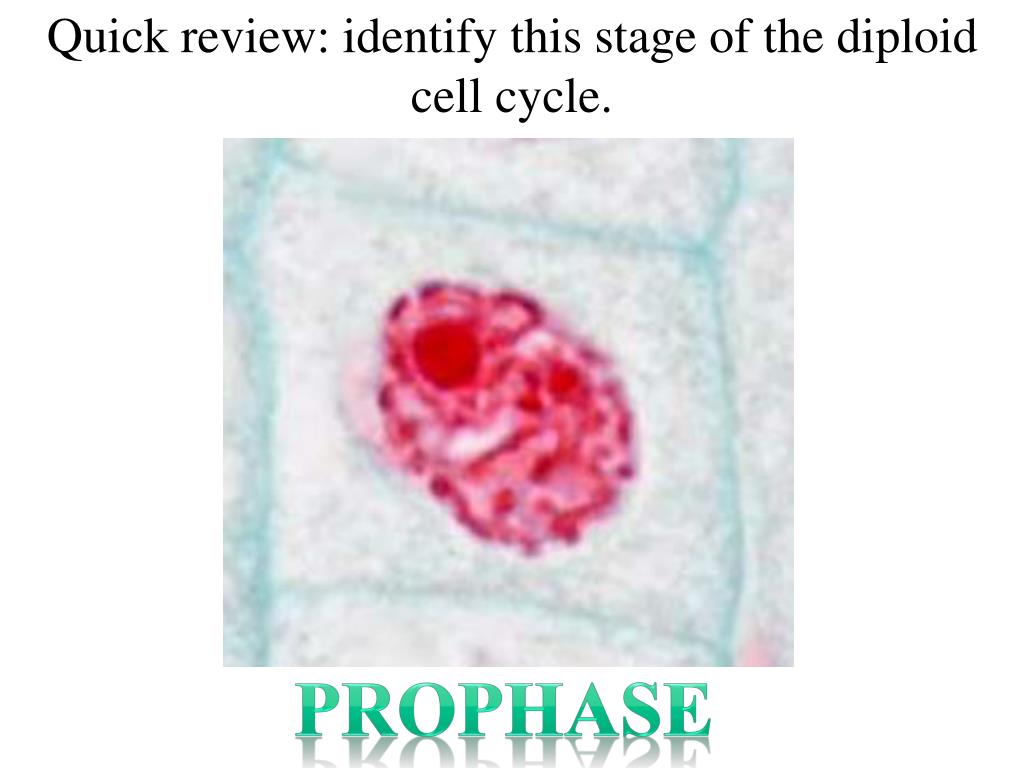

  4. Quick review: identify this stage of the diploid cell cycle. Prophase

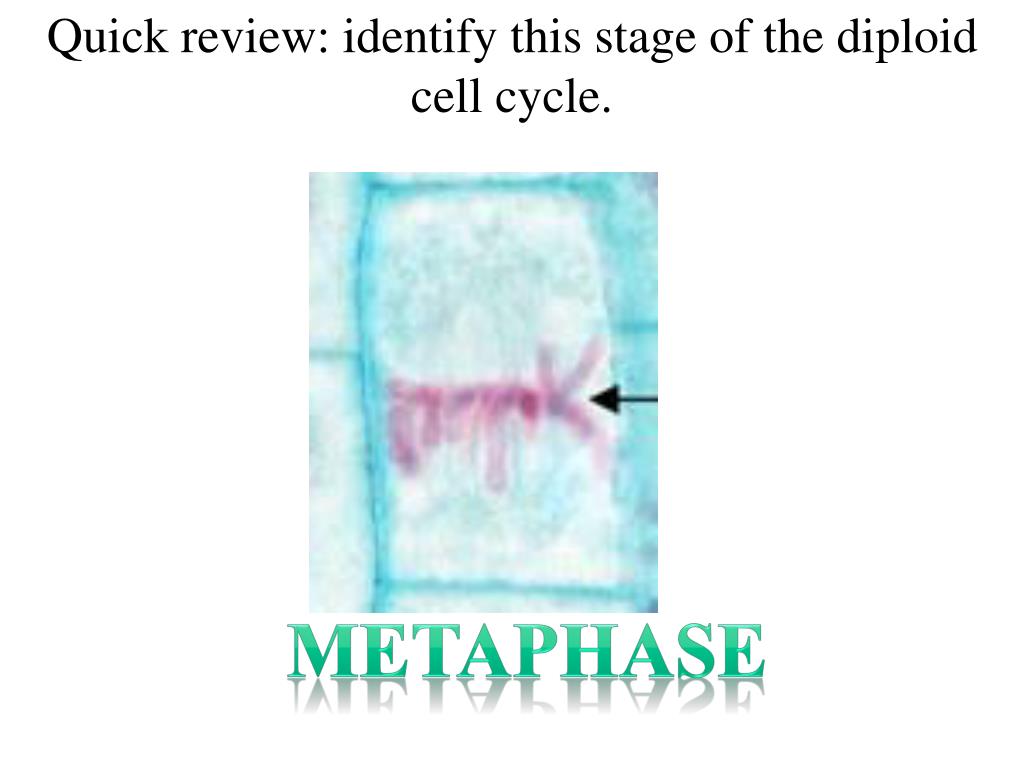

  5. Quick review: identify this stage of the diploid cell cycle. metaphase

  6. Quick review: identify this stage of the diploid cell cycle. interphase

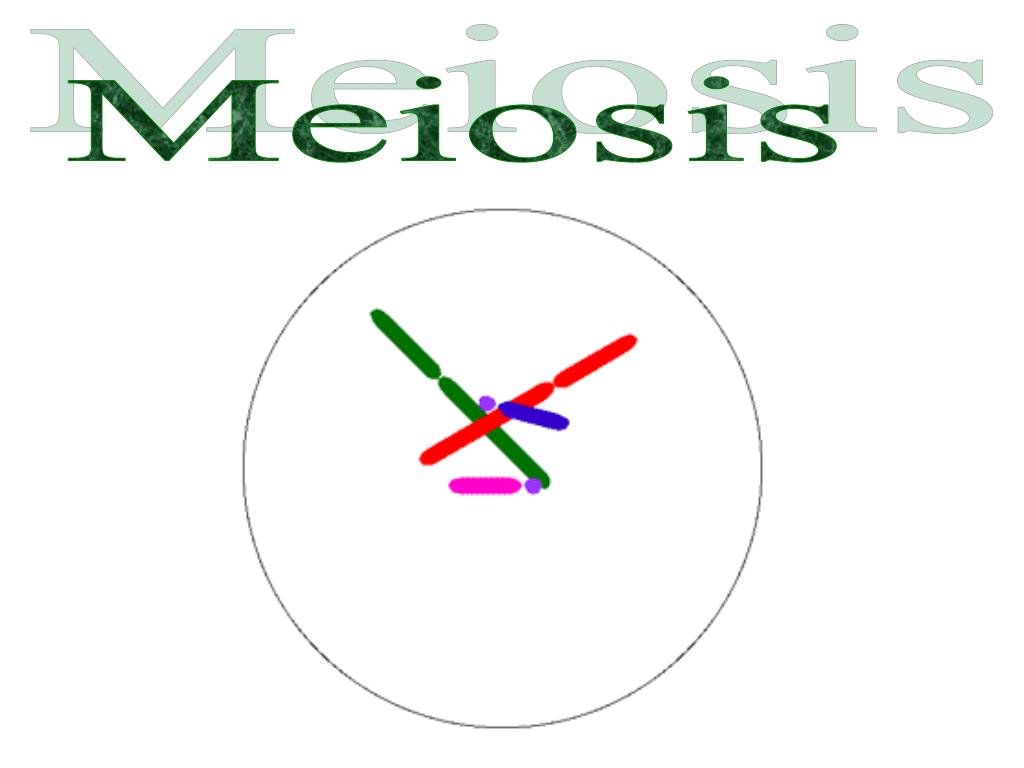

  7. Meiosis

  8. Meiosis Meiosis Meiosis Meiosis • Defined: Process where the chromosome number is reduced by half • Gametes created (egg & sperm) • End Result: Four Haploid Cells

  9. Interphase • Same process (G1, S, G2) • Chromatin duplicated

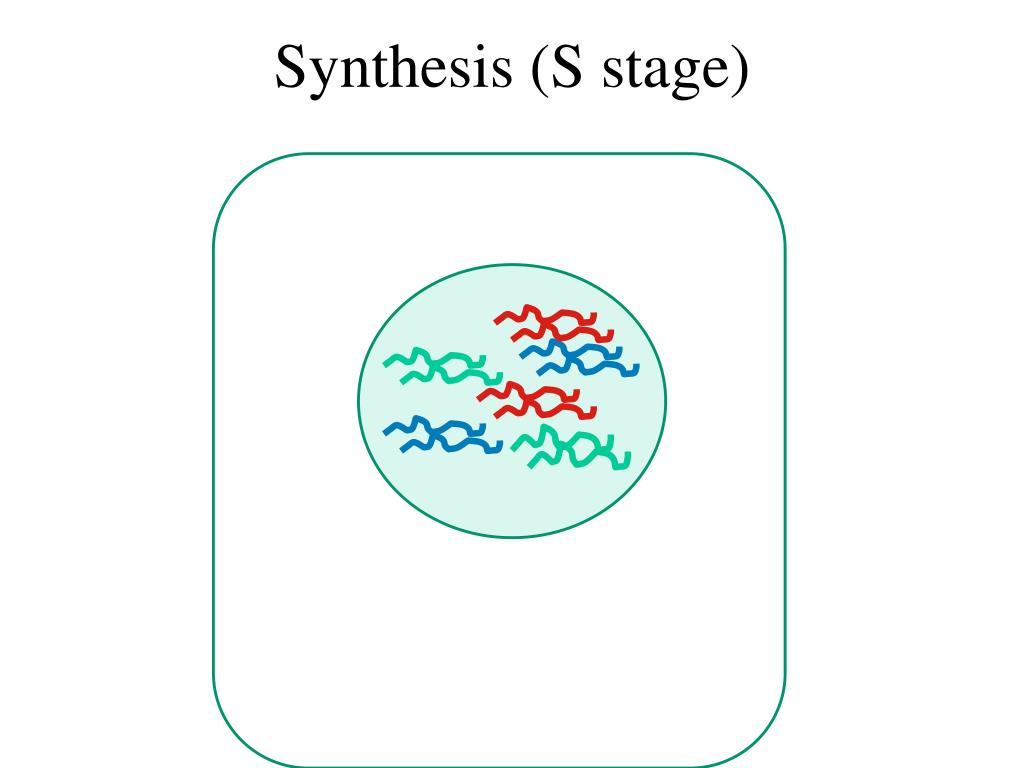

  10. Synthesis (S stage)

  11. Prophase 1 • Similar as mitosis, except… • Two Events: • 1) Synapsis: Pairing of homologous chromosomes • Dad’s #1 chromosome pairs with Mom’s #1, etc… • The four paired chromatids equals a TETRAD • 2) Crossing Over: Exchange of genes

  12. Early Prophase

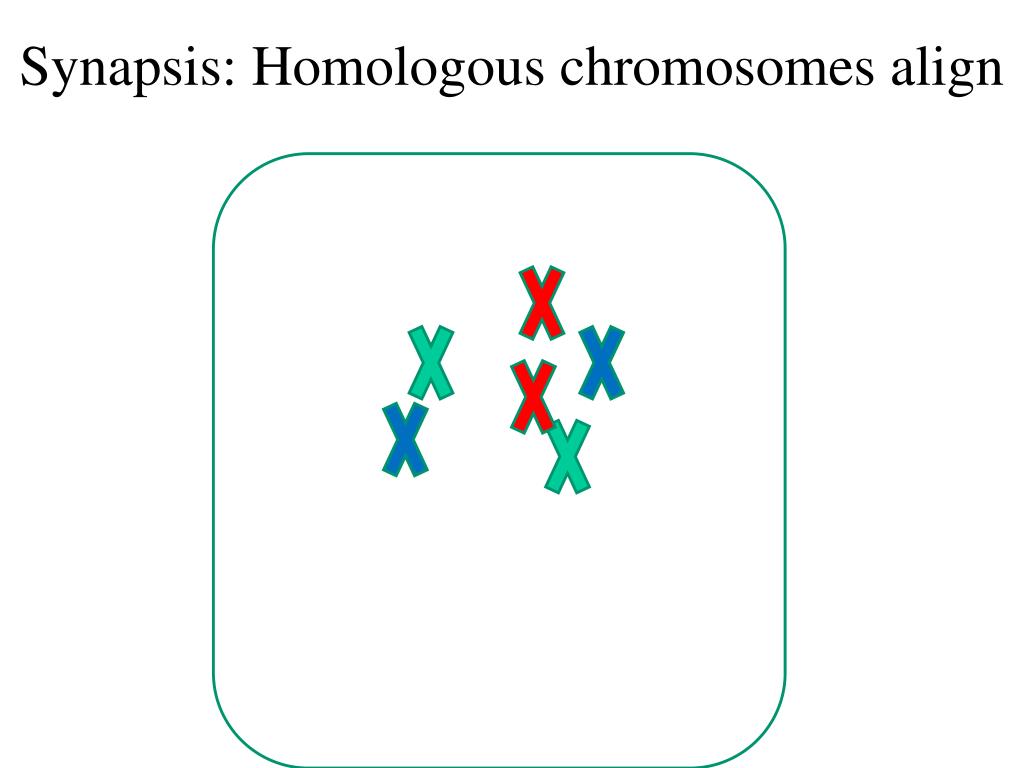

  13. Synapsis: Homologous chromosomes align

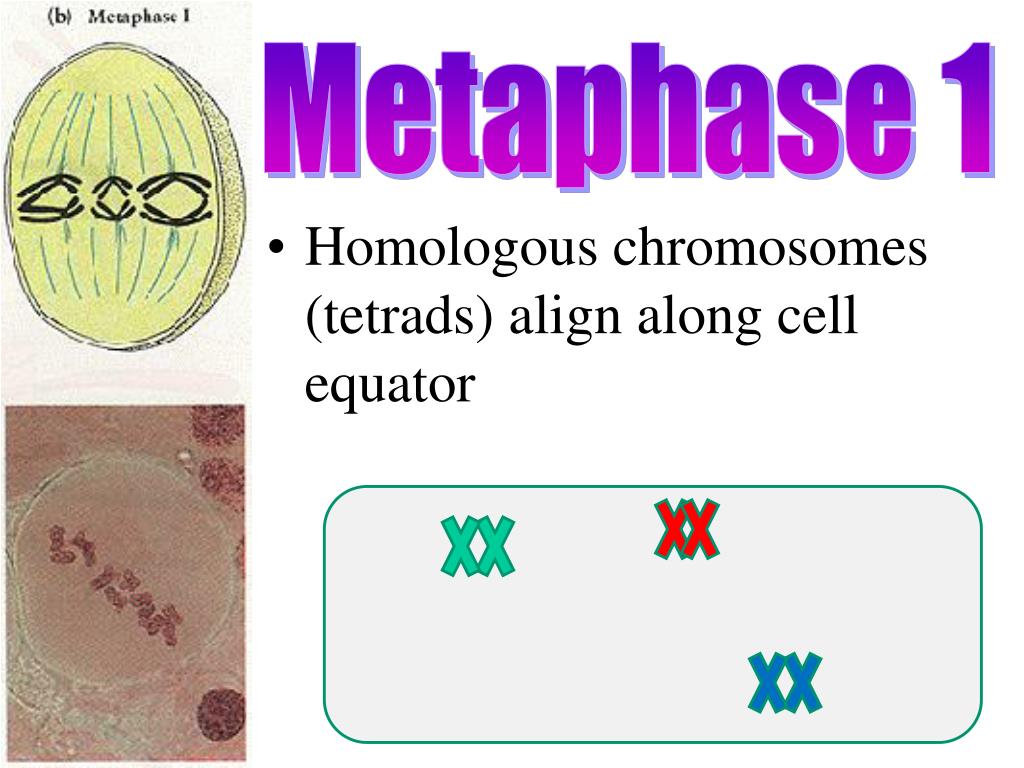

  14. Metaphase 1 • Homologous chromosomes (tetrads) align along cell equator

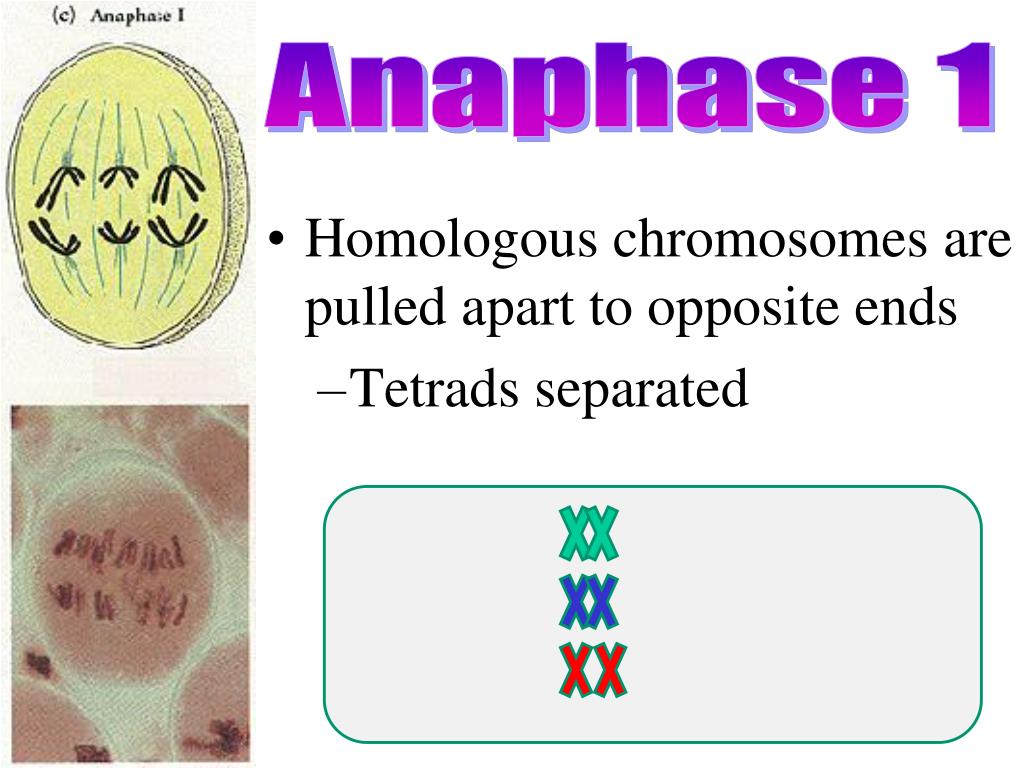

  15. Anaphase 1 • Homologous chromosomes are pulled apart to opposite ends • Tetrads separated

  16. Telophase 1 • Cytokinesis divides the cells • Each cell contains 1 of the homologous chromosomes (23 total)

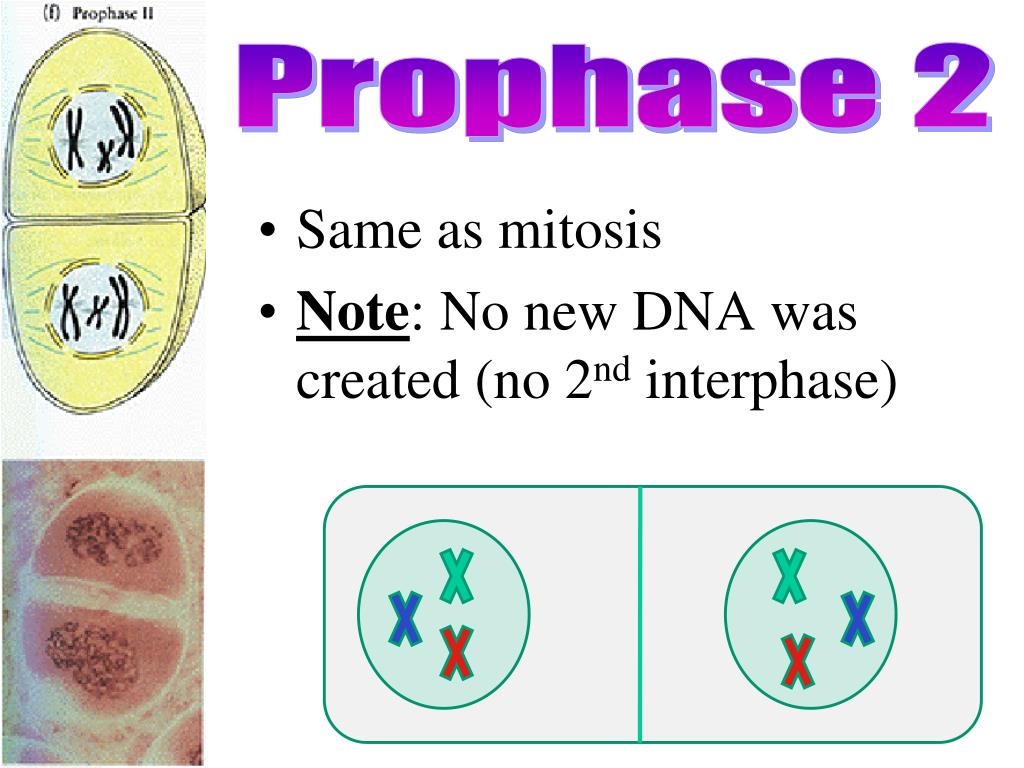

  17. Prophase 2 • Same as mitosis • Note: No new DNA was created (no 2nd interphase)

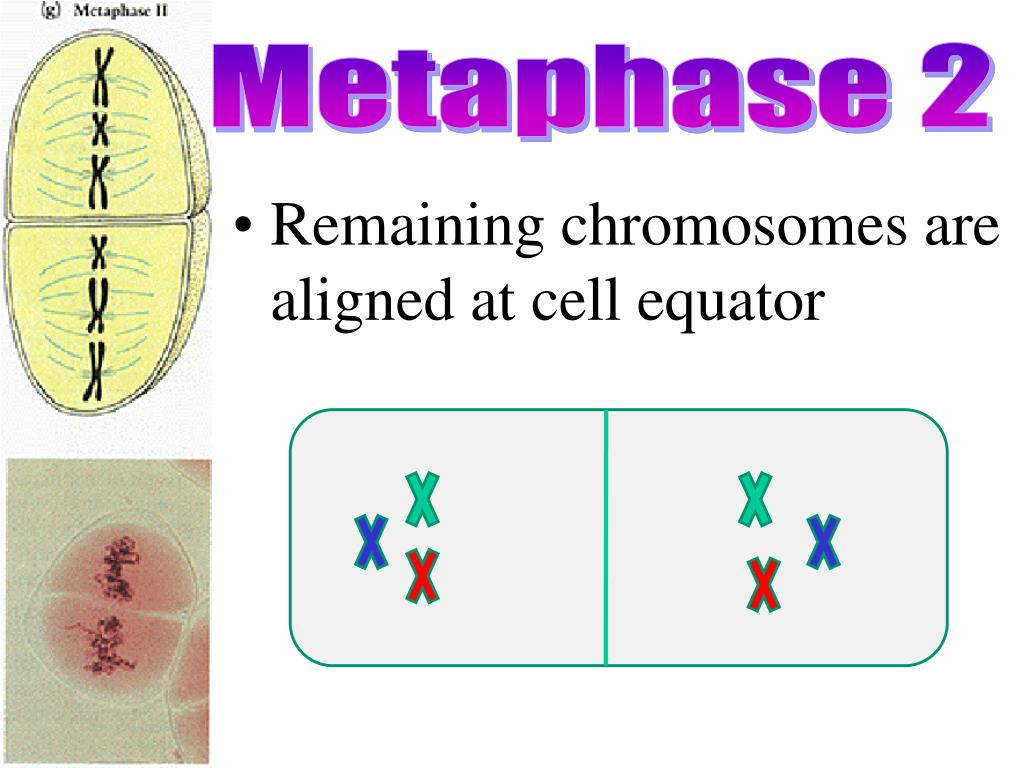

  18. Metaphase 2 • Remaining chromosomes are aligned at cell equator

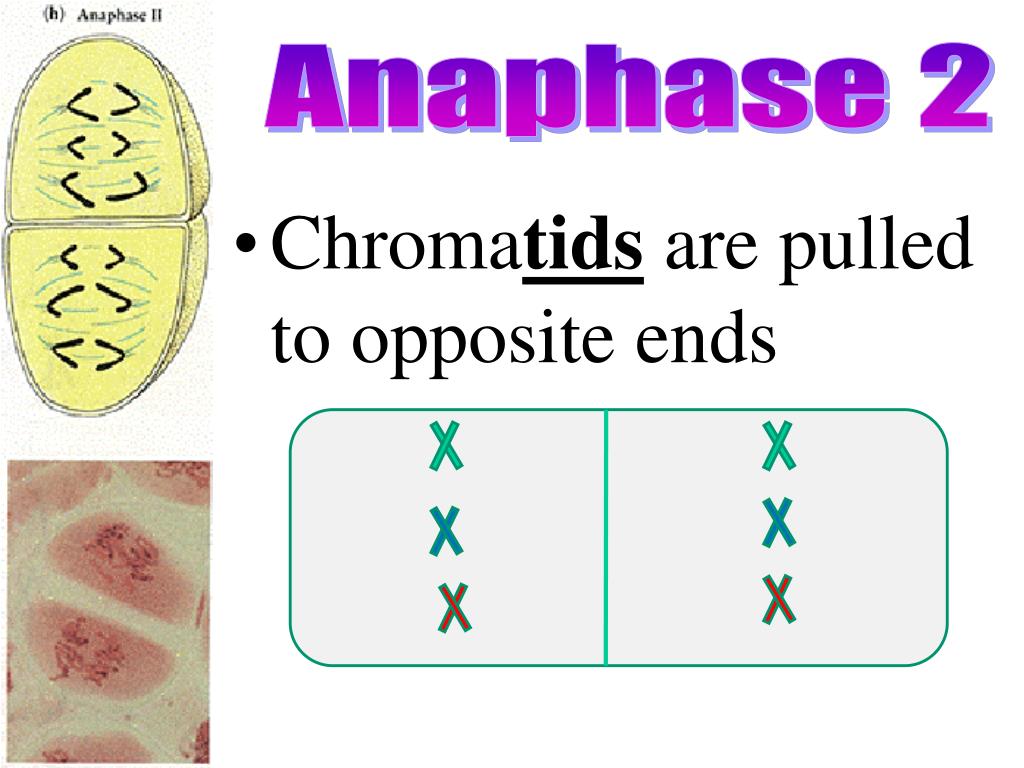

  19. Anaphase 2 • Chromatids are pulled to opposite ends

  20. Telophase 2 • Nucleus reforms on the four new cells • Cytokinesis divides the cytoplasm • Chromatids uncoil • End Result: Four haploid cells

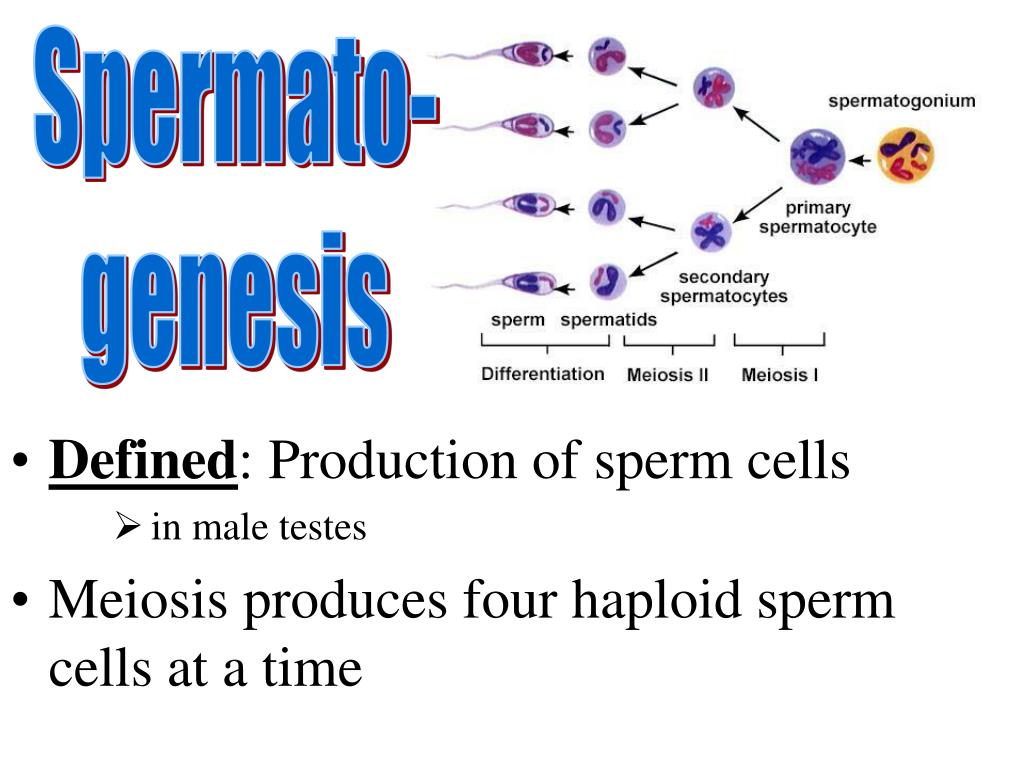

  21. Spermato- genesis • Defined: Production of sperm cells • in male testes • Meiosis produces four haploid sperm cells at a time

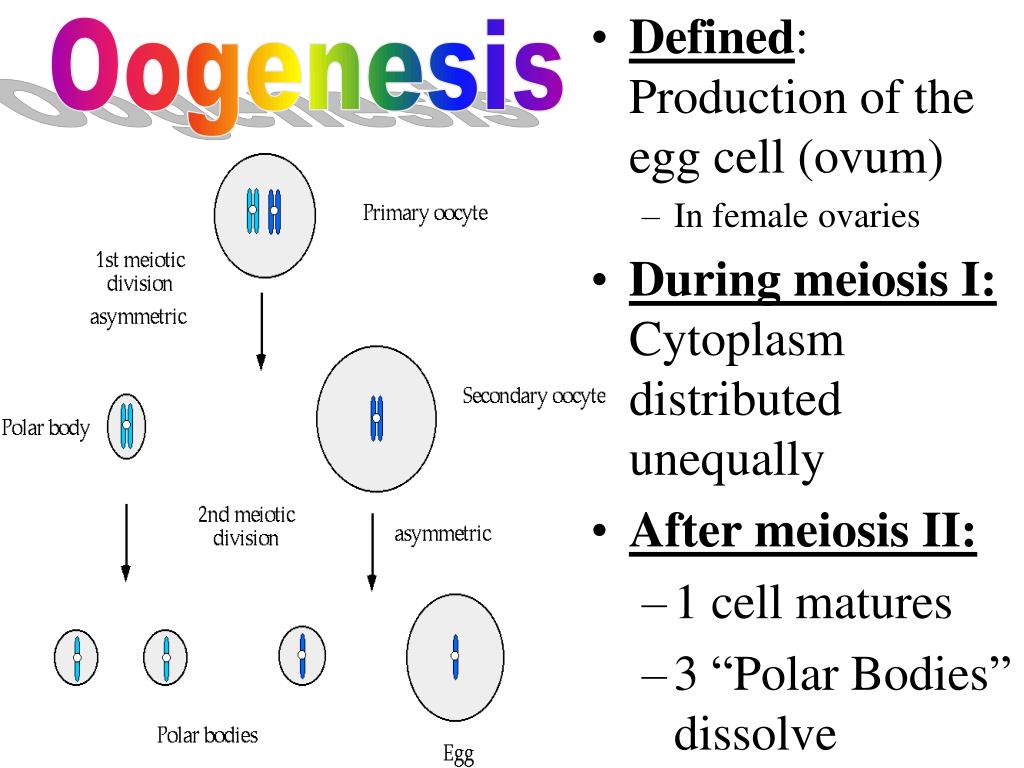

  22. Oogenesis • Defined: Production of the egg cell (ovum) • In female ovaries • During meiosis I: Cytoplasm distributed unequally • After meiosis II: • 1 cell matures • 3 “Polar Bodies” dissolve

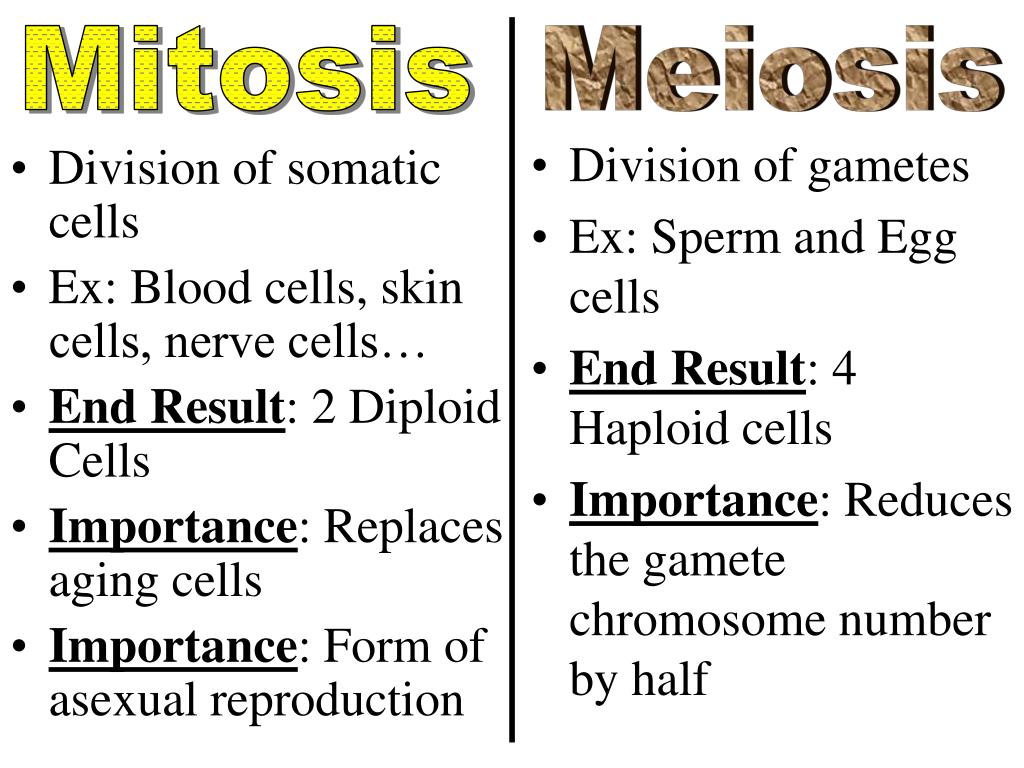

  23. Division of somatic cells Ex: Blood cells, skin cells, nerve cells… End Result: 2 Diploid Cells Importance: Replaces aging cells Importance: Form of asexual reproduction Division of gametes Ex: Sperm and Egg cells End Result: 4 Haploid cells Importance: Reduces the gamete chromosome number by half Mitosis Meiosis
