1. Robust Defenses for Cross-Site Request Forgery Adam Barth, Collin Jackson, John C. Mitchell Stanford University, published on CCS ’08 Presented by: HAN Jin

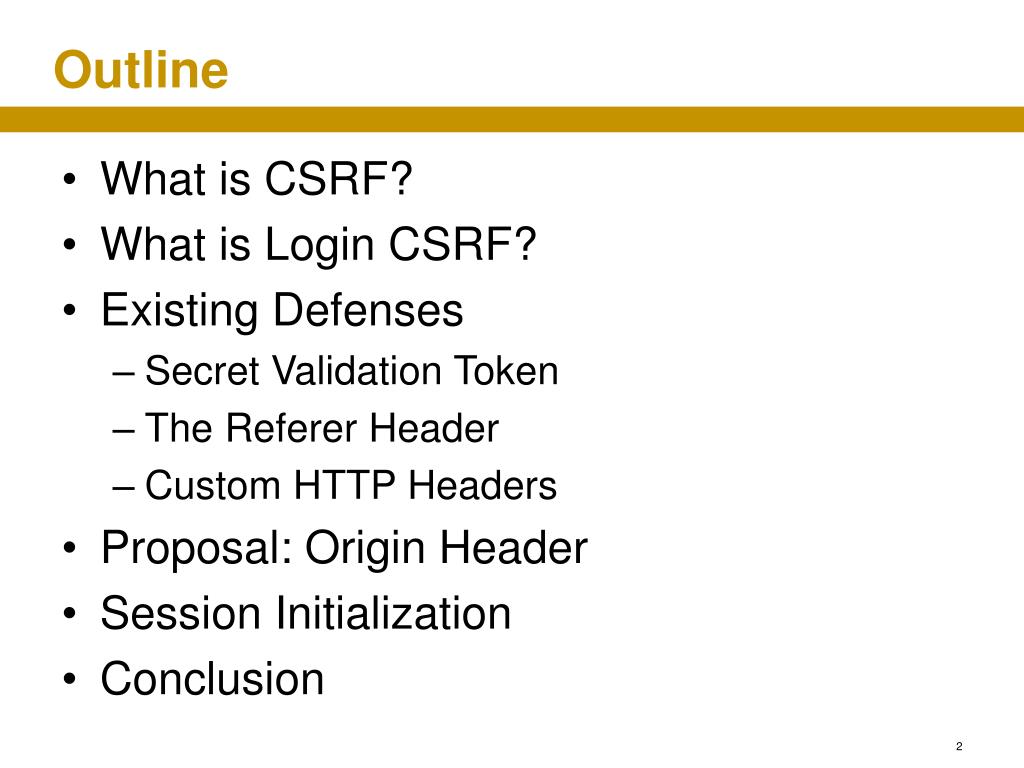

2. Outline • What is CSRF? • What is Login CSRF? • Existing Defenses • Secret Validation Token • The Referer Header • Custom HTTP Headers • Proposal: Origin Header • Session Initialization • Conclusion

3. Outline • What is CSRF? • What is Login CSRF? • Existing Defenses • Secret Validation Token • The Referer Header • Custom HTTP Headers • Proposal: Origin Header • Session Initialization • Conclusion

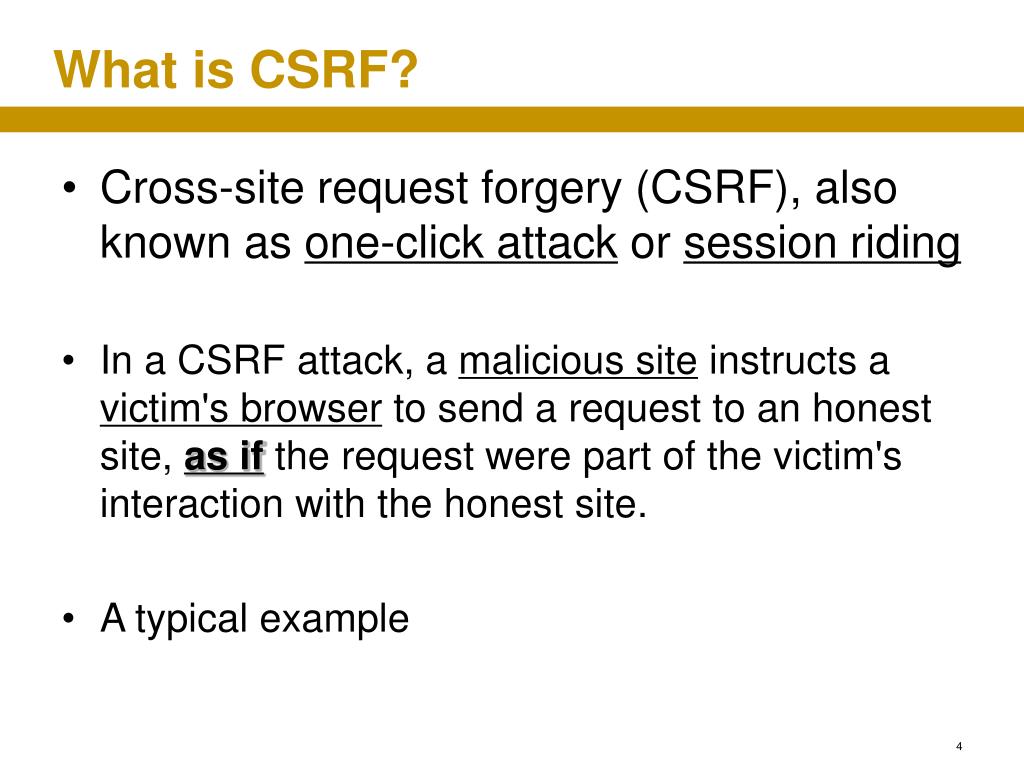

4. What is CSRF? • Cross-site request forgery (CSRF), also known as one-click attack or session riding • In a CSRF attack, a malicious site instructs a victim's browser to send a request to an honest site, as if the request were part of the victim's interaction with the honest site. • A typical example

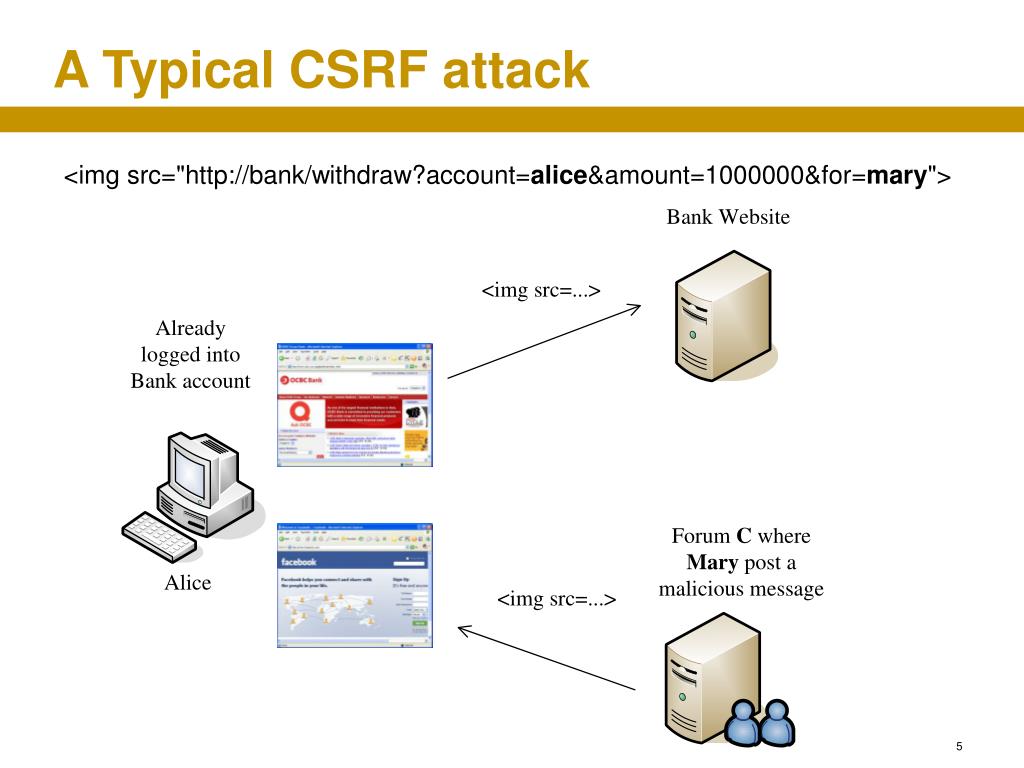

5. A Typical CSRF attack <img src="http://bank/withdraw?account=alice&amount=1000000&for=mary">

6. CSRF Harmfulness • Gmail CSRF vulnerability in 2007: • Forward all of David Airey’s email to the attacker, allowed attacker to control davidairey.com • 18 million users of eBay's Internet Auction Co. at Auction.co.kr in Korea lost personal information in February 2008 • An active exploit of CSRF against residential ADSL routers in Mexico in early 2008 • An e-mail with a malicious IMG tag was sent to victims. By accessing the image in the mail, the user initiated a router command to change the DNS entry of a leading Mexican bank, making any subsequent access by a user to the bank go through the attacker's server

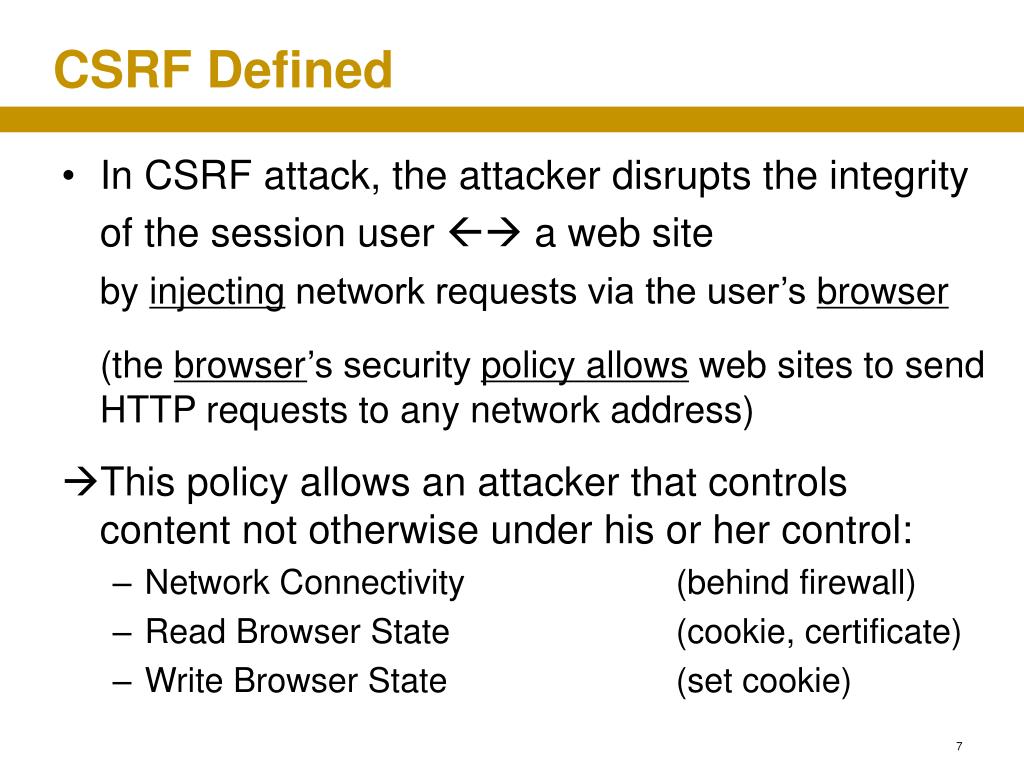

7. CSRF Defined • In CSRF attack, the attacker disrupts the integrity of the session user  a web site by injecting network requests via the user’s browser (the browser’s security policy allows web sites to send HTTP requests to any network address) This policy allows an attacker that controls content not otherwise under his or her control: • Network Connectivity (behind firewall) • Read Browser State (cookie, certificate) • Write Browser State (set cookie)

8. In-Scope Threats (of CSRF) • Forum Poster • sites permit users to submit passive content, such as images and hyperlinks. • Web Attacker • own domain name (e.g attacker.com), valid HTTPS certificate ($10), user visit attacker.com • Network Attacker • control user’s network connection. E.g. evil roter, compromised DNS server • Out-of-Scope Threats • Cross-site scripting (XSS), Malware, DNS Rebinding, Certificate Errors, Phishing, User Tracking

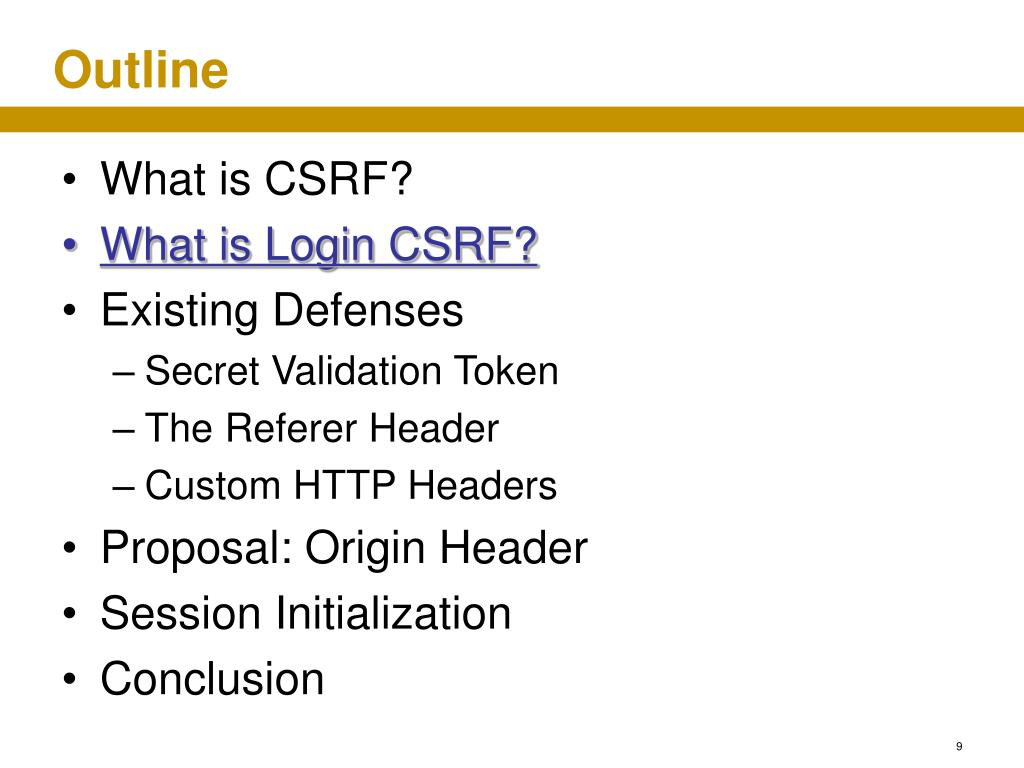

9. Outline • What is CSRF? • What is Login CSRF? • Existing Defenses • Secret Validation Token • The Referer Header • Custom HTTP Headers • Proposal: Origin Header • Session Initialization • Conclusion

10. Login CSRF attack

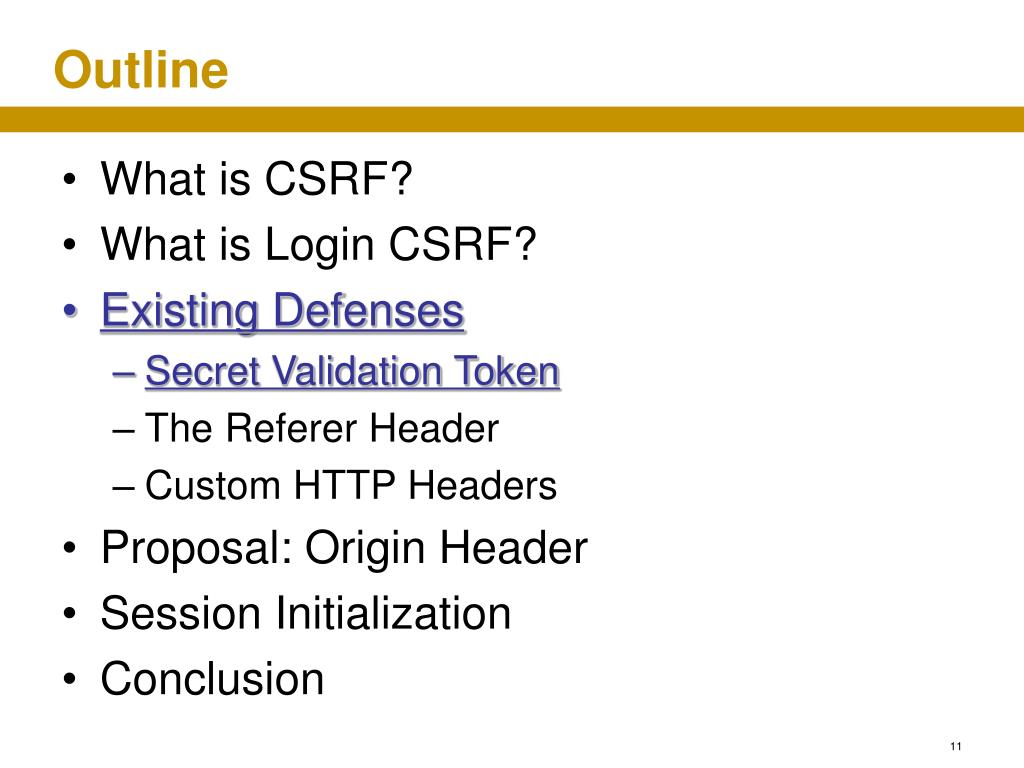

11. Outline • What is CSRF? • What is Login CSRF? • Existing Defenses • Secret Validation Token • The Referer Header • Custom HTTP Headers • Proposal: Origin Header • Session Initialization • Conclusion

12. Secret Validation Token • Secret Validation Token: • send additional information in each HTTP request which can be used to determine whether the request came from an authorized source • can defend login CSRF • difficult to implement, forget to implement • before login, no session to bind the CSRF token • the site must: • first create a “pre-session” • implement token-based CSRF protection • and then transit to a real session after succesful authentication

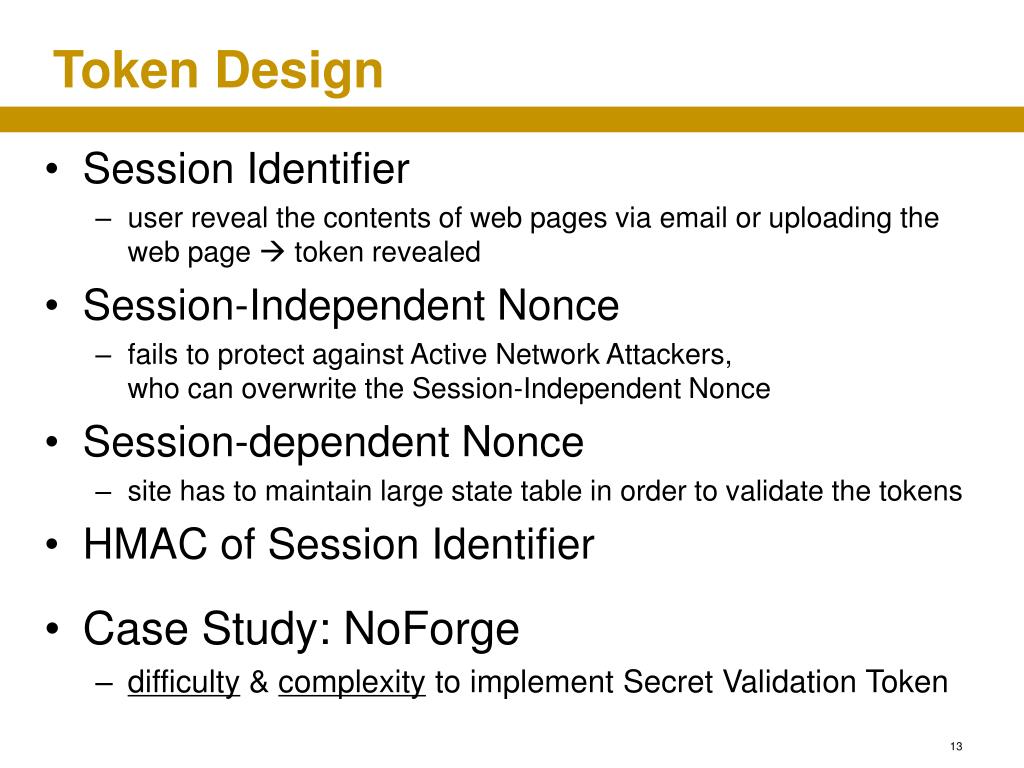

13. Token Design • Session Identifier • user reveal the contents of web pages via email or uploading the web page  token revealed • Session-Independent Nonce • fails to protect against Active Network Attackers, who can overwrite the Session-Independent Nonce • Session-dependent Nonce • site has to maintain large state table in order to validate the tokens • HMAC of Session Identifier • Case Study: NoForge • difficulty & complexity to implement Secret Validation Token

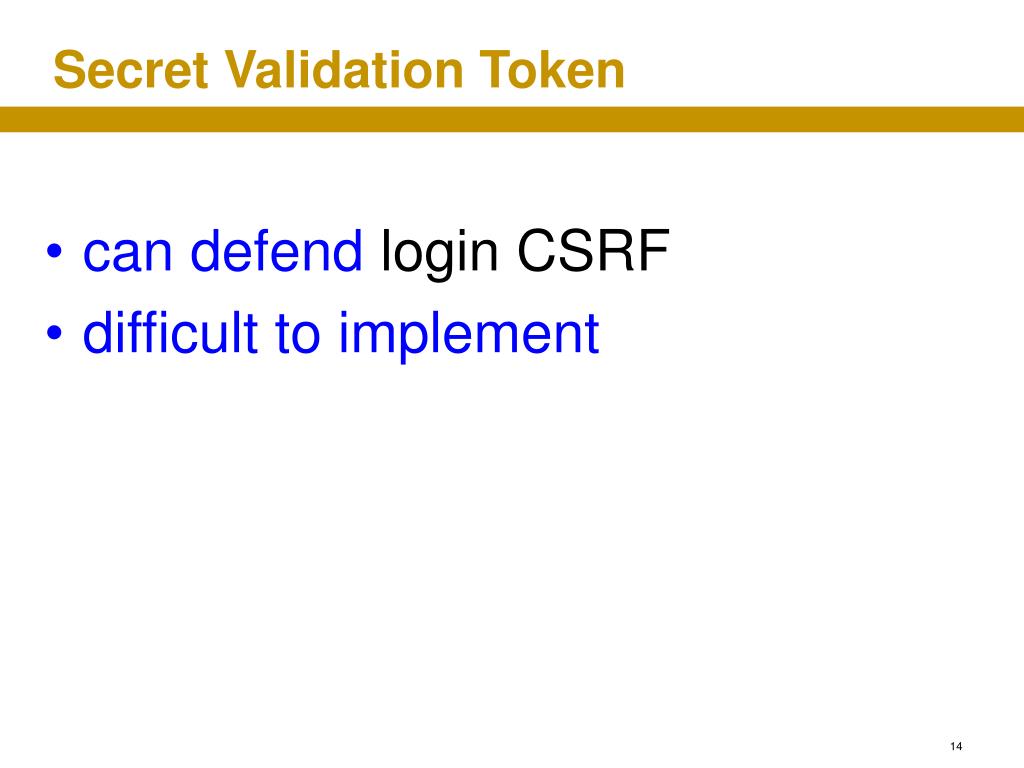

14. Secret Validation Token • can defend login CSRF • difficult to implement

15. Outline • What is CSRF? • What is Login CSRF? • Existing Defenses • Secret Validation Token • The Referer Header • Custom HTTP Headers • Proposal: Origin Header • Session Initialization • Conclusion

16. The Referer Header • The Referer (?) header contains the URL of the site making the request • E.g. Referer: http://en.wikipedia.org/query?=xxx • A site can defend itself against CSRF attacks by checking whether the request was issued by itself • Privacy • E.g. reveals contents of search queries • info about corporate intranets might leak • Strictness • Lenient Referer validation (wrong-reject, lack-accept) • Strict Refer validation (wrong-reject, lack-reject)

17. Interesting Story • Referer is a common misspelling of the word referrer. It is so common, in fact, that it made it into the official specification of HTTP – the communication protocol of the World Wide Web – and has therefore become a widely used industry spelling when discussing HTTP referrers

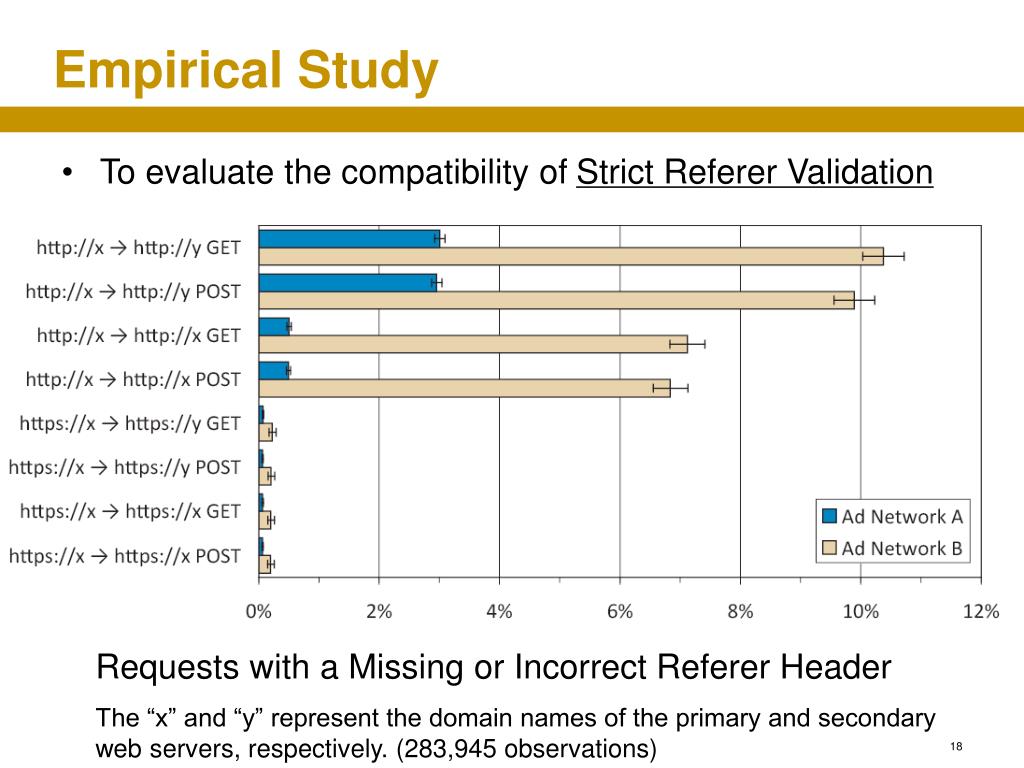

18. Empirical Study • To evaluate the compatibility of Strict Referer Validation Requests with a Missing or Incorrect Referer Header The “x” and “y” represent the domain names of the primary and secondary web servers, respectively. (283,945 observations)

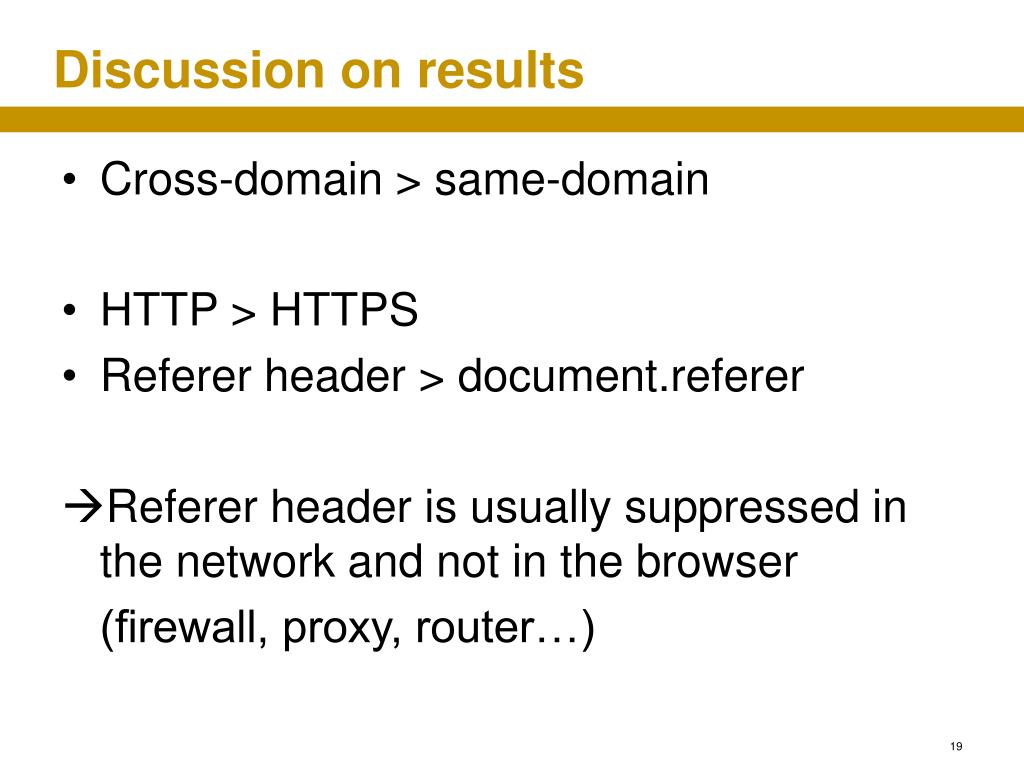

19. Discussion on results • Cross-domain > same-domain • HTTP > HTTPS • Referer header > document.referer • Referer header is usually suppressed in the network and not in the browser (firewall, proxy, router…)

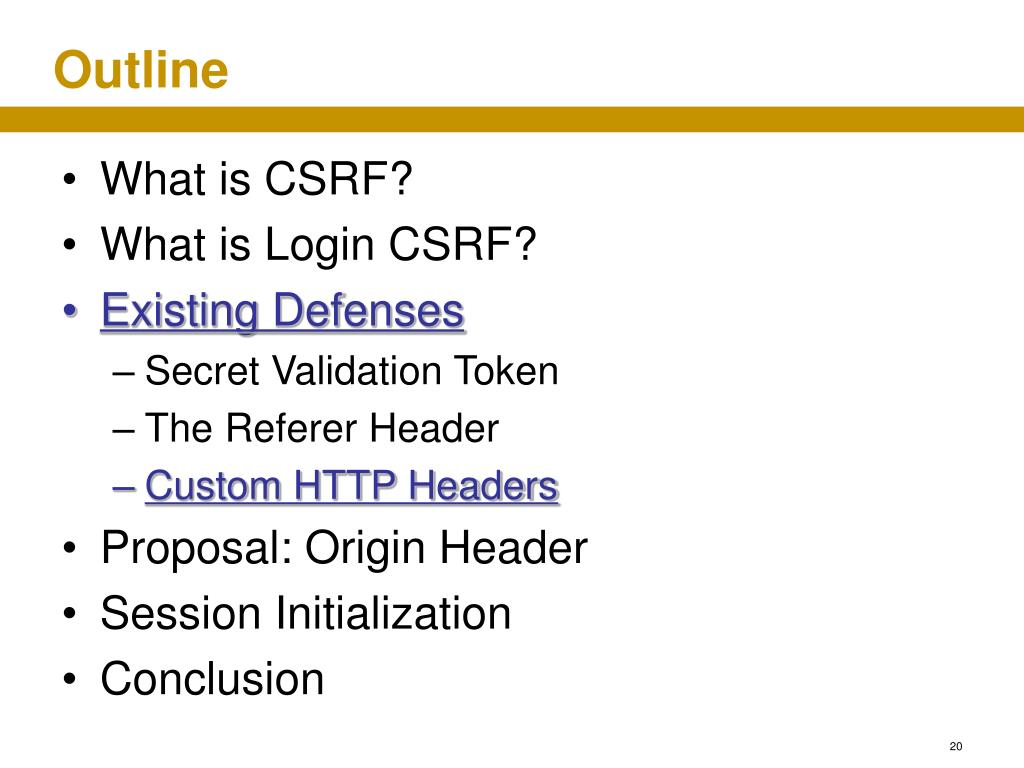

20. Outline • What is CSRF? • What is Login CSRF? • Existing Defenses • Secret Validation Token • The Referer Header • Custom HTTP Headers • Proposal: Origin Header • Session Initialization • Conclusion

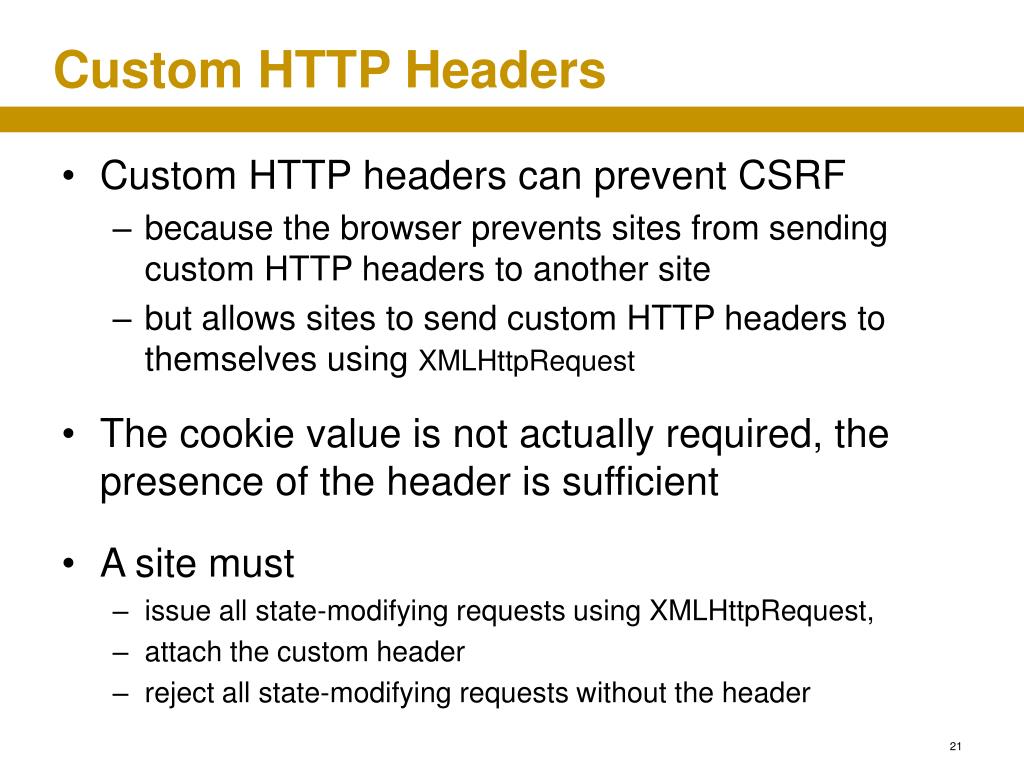

21. Custom HTTP Headers • Custom HTTP headers can prevent CSRF • because the browser prevents sites from sending custom HTTP headers to another site • but allows sites to send custom HTTP headers to themselves using XMLHttpRequest • The cookie value is not actually required, the presence of the header is sufficient • A site must • issue all state-modifying requests using XMLHttpRequest, • attach the custom header • reject all state-modifying requests without the header

22. Outline • What is CSRF? • What is Login CSRF? • Existing Defenses • Secret Validation Token • The Referer Header • Custom HTTP Headers • Proposal: Origin Header • Session Initialization • Conclusion

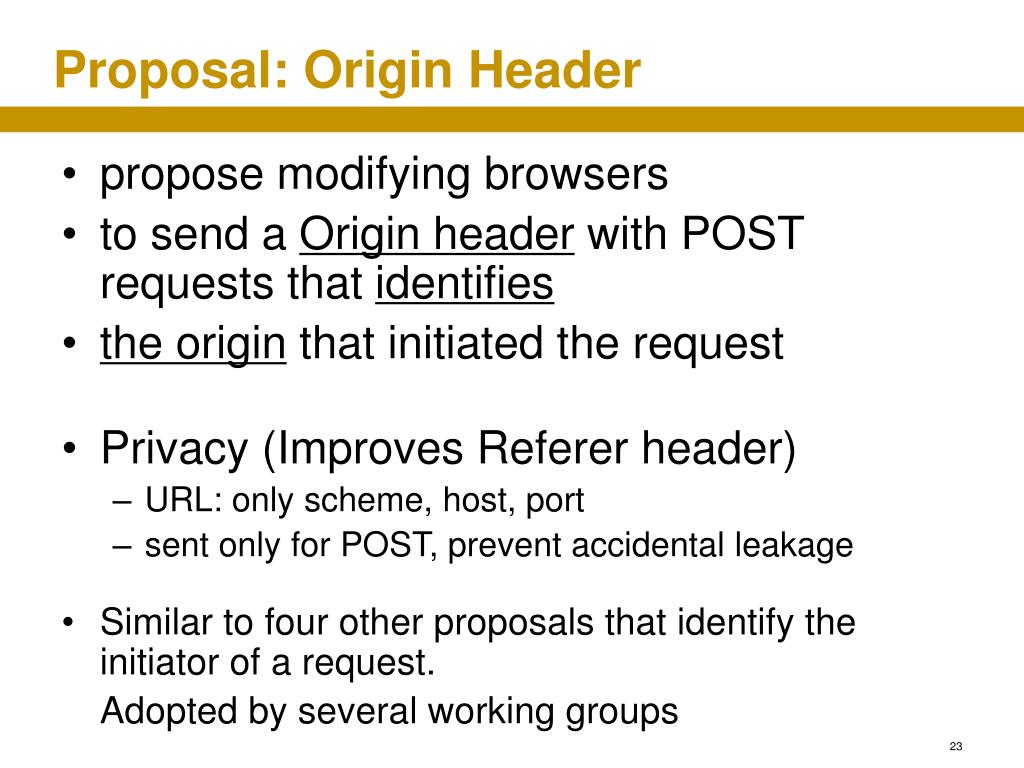

23. Proposal: Origin Header • propose modifying browsers • to send a Origin header with POST requests that identifies • the origin that initiated the request • Privacy (Improves Referer header) • URL: only scheme, host, port • sent only for POST, prevent accidental leakage • Similar to four other proposals that identify the initiator of a request. Adopted by several working groups

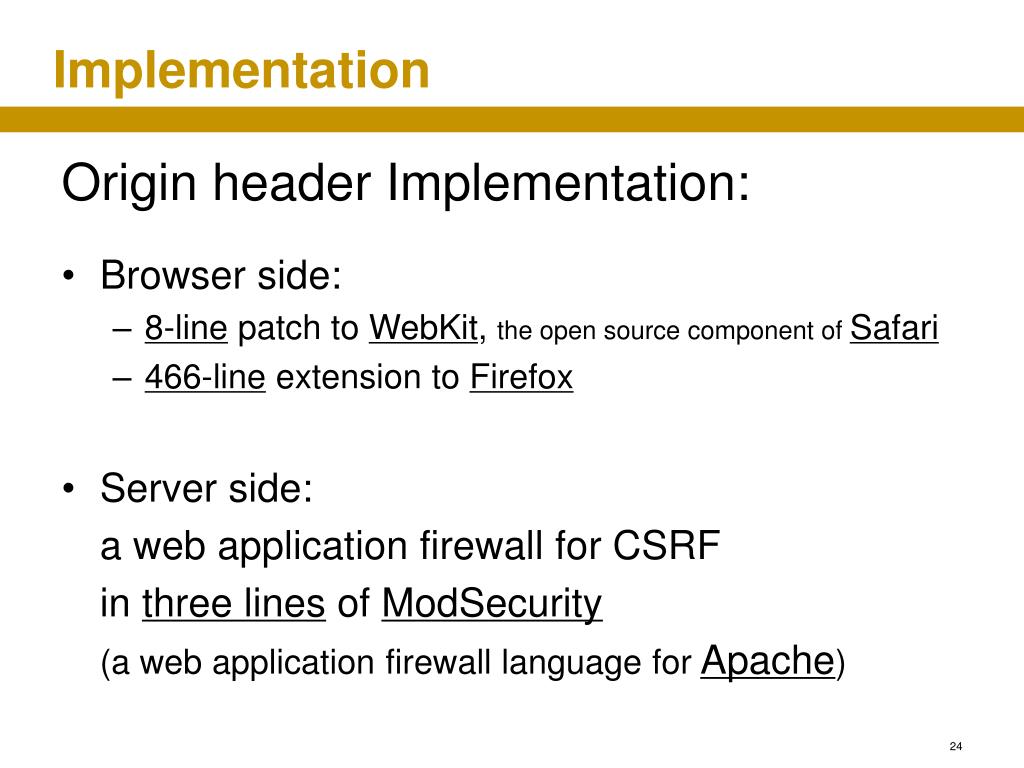

24. Implementation Origin header Implementation: • Browser side: • 8-line patch to WebKit, the open source component of Safari • 466-line extension to Firefox • Server side: a web application firewall for CSRF in three lines of ModSecurity (a web application firewall language for Apache)

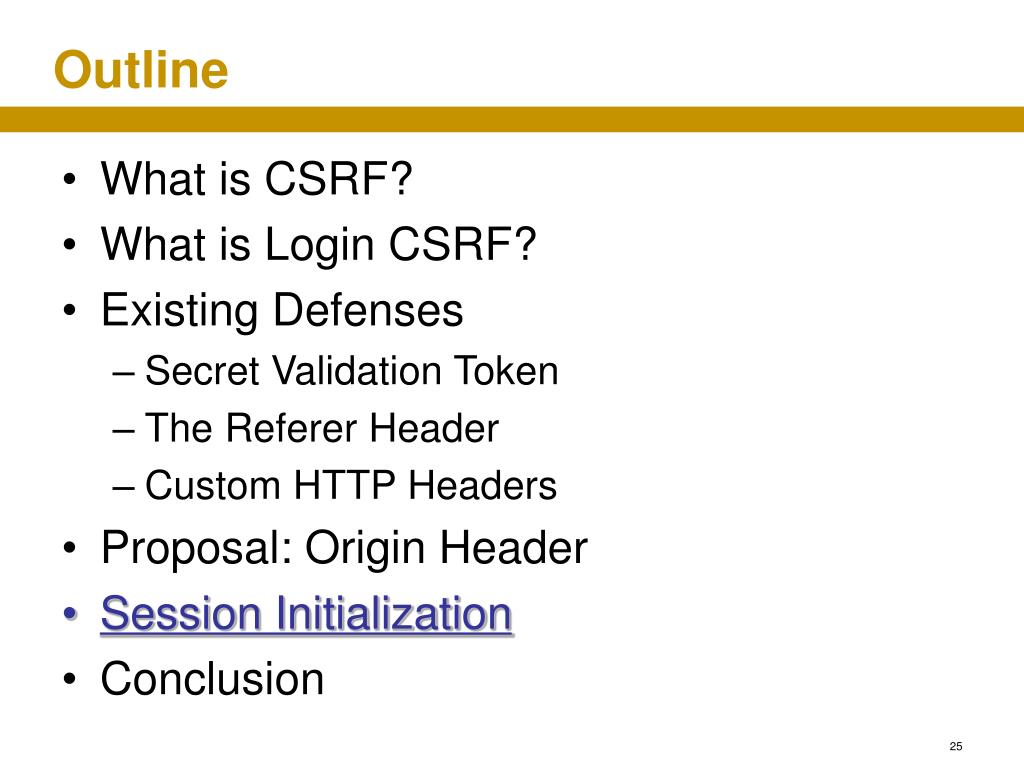

25. Outline • What is CSRF? • What is Login CSRF? • Existing Defenses • Secret Validation Token • The Referer Header • Custom HTTP Headers • Proposal: Origin Header • Session Initialization • Conclusion

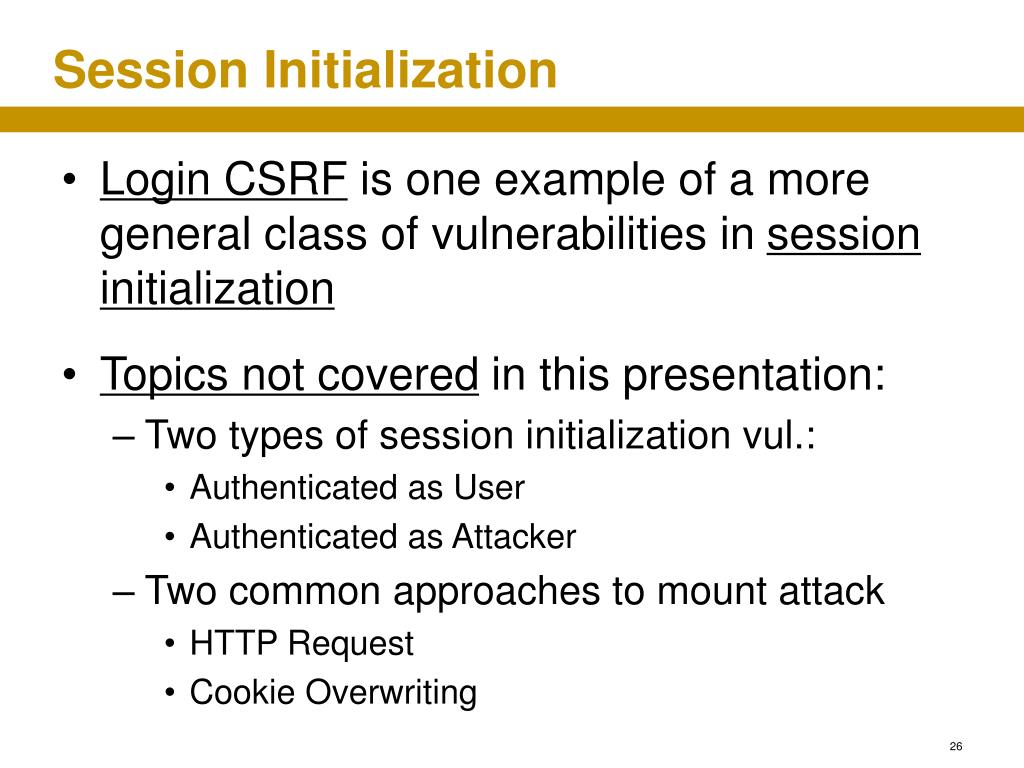

26. Session Initialization • Login CSRF is one example of a more general class of vulnerabilities in session initialization • Topics not covered in this presentation: • Two types of session initialization vul.: • Authenticated as User • Authenticated as Attacker • Two common approaches to mount attack • HTTP Request • Cookie Overwriting

27. Outline • What is CSRF? • What is Login CSRF? • Existing Defenses • Secret Validation Token • The Referer Header • Custom HTTP Headers • Proposal: Origin Header • Session Initialization • Conclusion

28. Conclusion Different defenses for different use cases: • Login CSRF  strict Referer validation • login forms typically submit over HTTPS • HTTPS sites  strict Referer validation • such as banking sites • Third-party Content  secret token validation • spend the engineering effort to implement (HMAC token) • Long term  Origin header • Privacy, both HTTP & HTTPS, no secret tokens leakage
